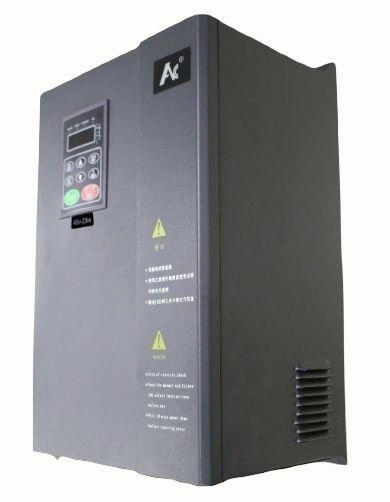

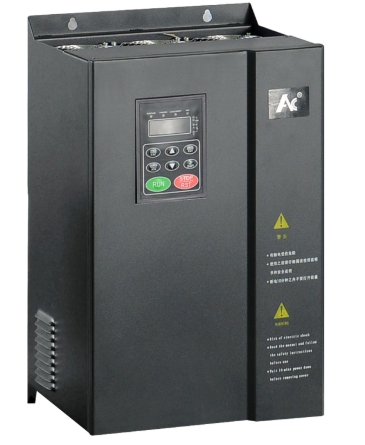

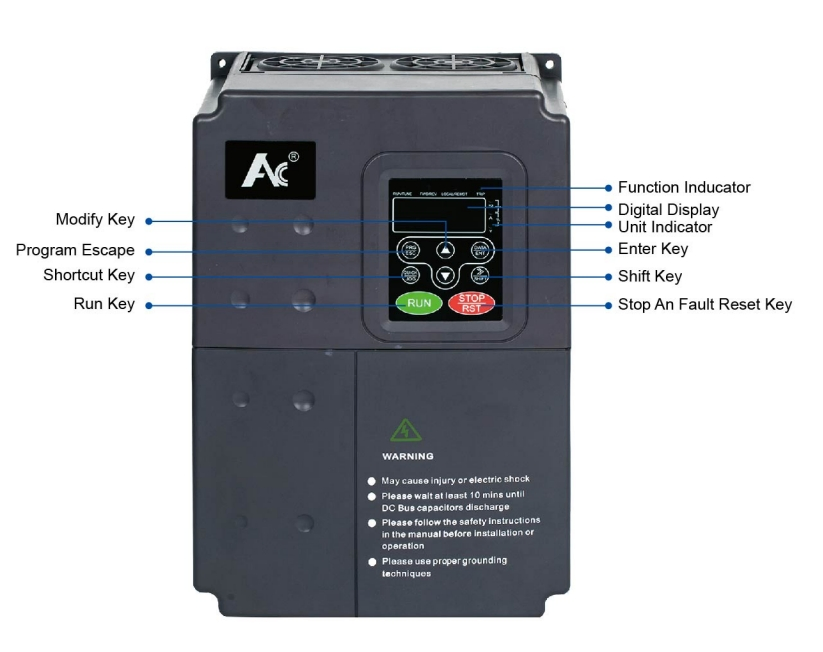

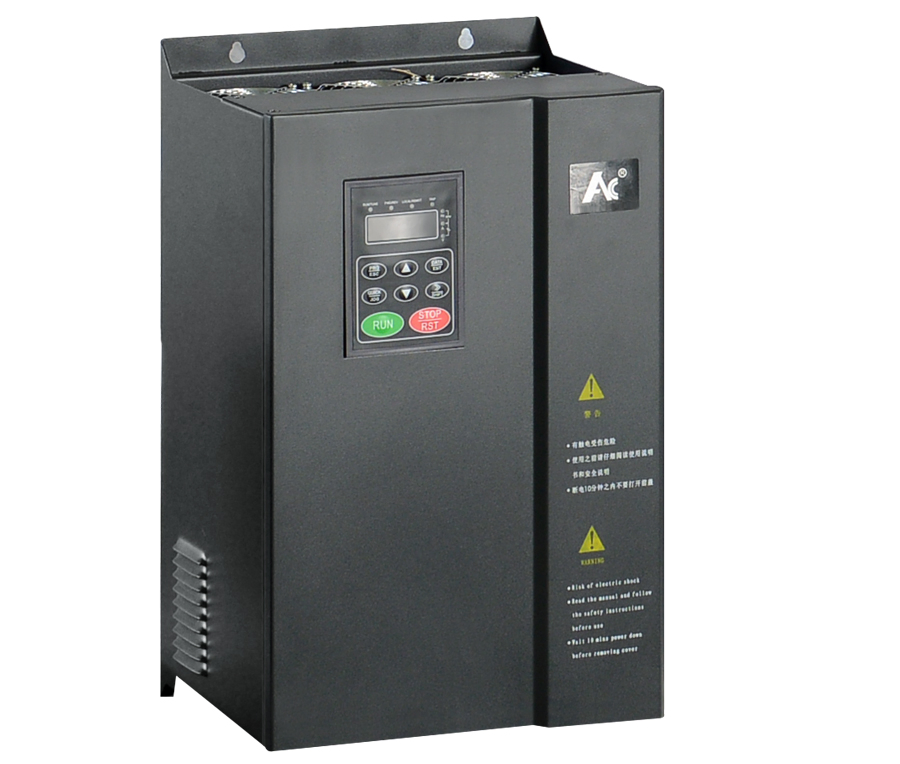

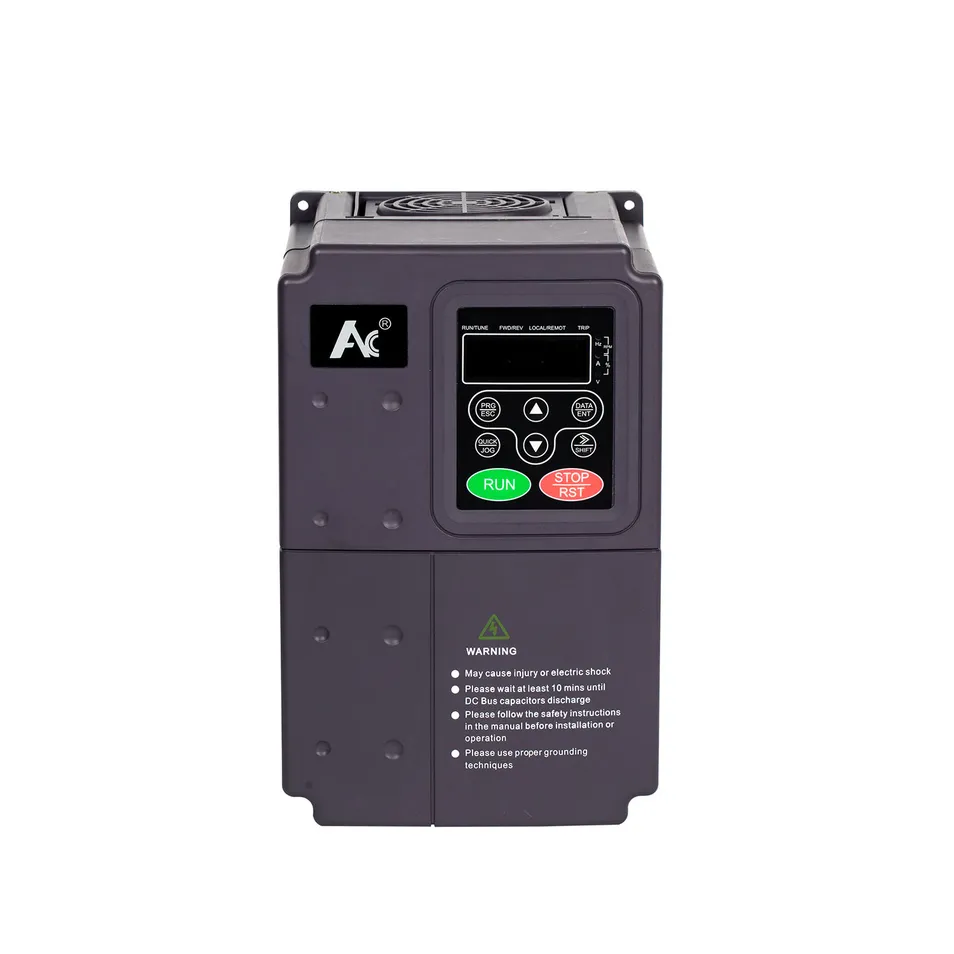

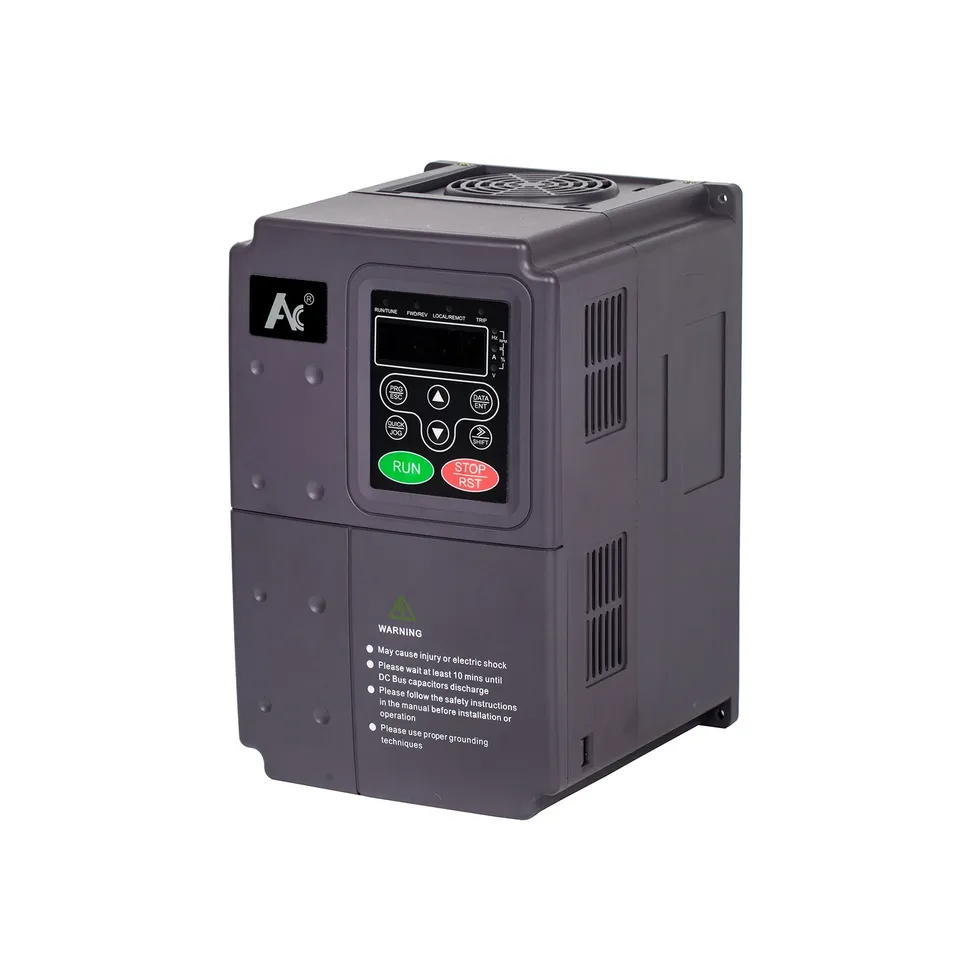

The AC600 effectively suppresses low-frequency oscillations. Abundant terminals make the application more flexible. It is mainly applied to fan and pump loads and satisfies high requirements on speed control accuracy, torque response speed, and low-frequency output.

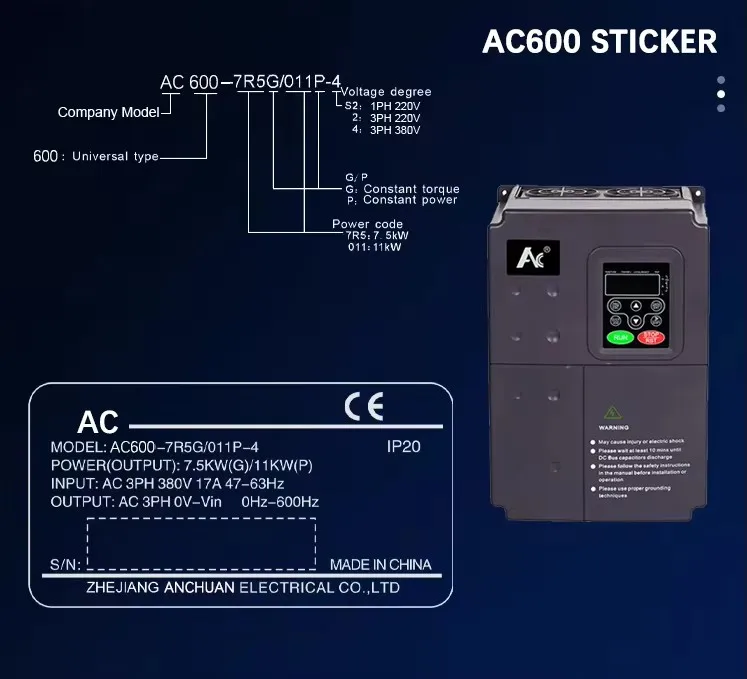

| Model No. | Input Voltage | Rated Power (kW) | Input Current (A) | Output Current (A) | Compatible Motor |
|---|---|---|---|---|---|
| AC600N0.75G | Single phase 230V +/- 15% | 0.75 | 8 | 4 | 0.75 |
| AC600N1.5G | 1.5 | 14.2 | 7.0 | 1.5 | |
| AC600N2.2G | 2.2 | 23.0 | 10 | 2.2 | |
| AC600NS0.75G | 3-Phase 230V +/- 15% | 0.75 | 5.0 | 4.5 | 0.75 |
| AC600NS1.5G | 1.5 | 7.7 | 7 | 1.5 | |
| AC600NS2.2G | 2.2 | 11.0 | 10 | 2.2 | |
| AC600NS4.0G | 3.7 | 17.0 | 16 | 3.7 | |
| AC600NS5.5G | 5.5 | 21.0 | 20 | 5.5 | |
| AC600L0.75G | 3-phase 400V +/- 15% | 0.75 | 3.4 | 2.5 | 0.75 |
| AC600L1.5G | 1.5 | 5.0 | 3.7 | 1.5 | |
| AC600L2.2G | 2.2 | 5.8 | 5 | 2.2 | |
| AC600L4.0G | 4.0 | 10 | 9 | 4.0 | |
| AC600L5.5G | 5.5 | 15 | 13 | 5.5 |

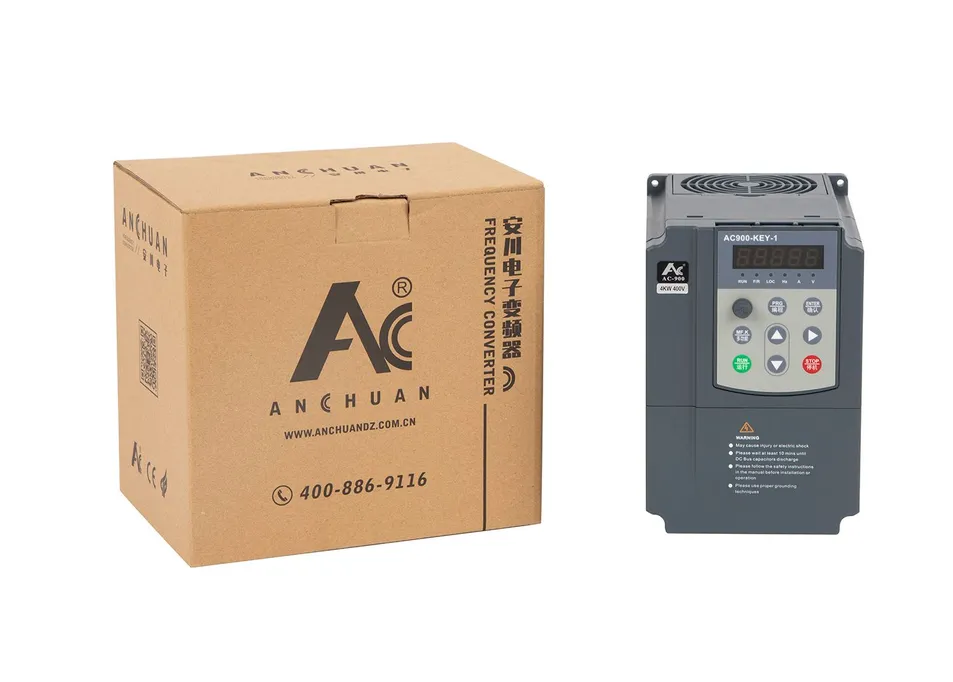

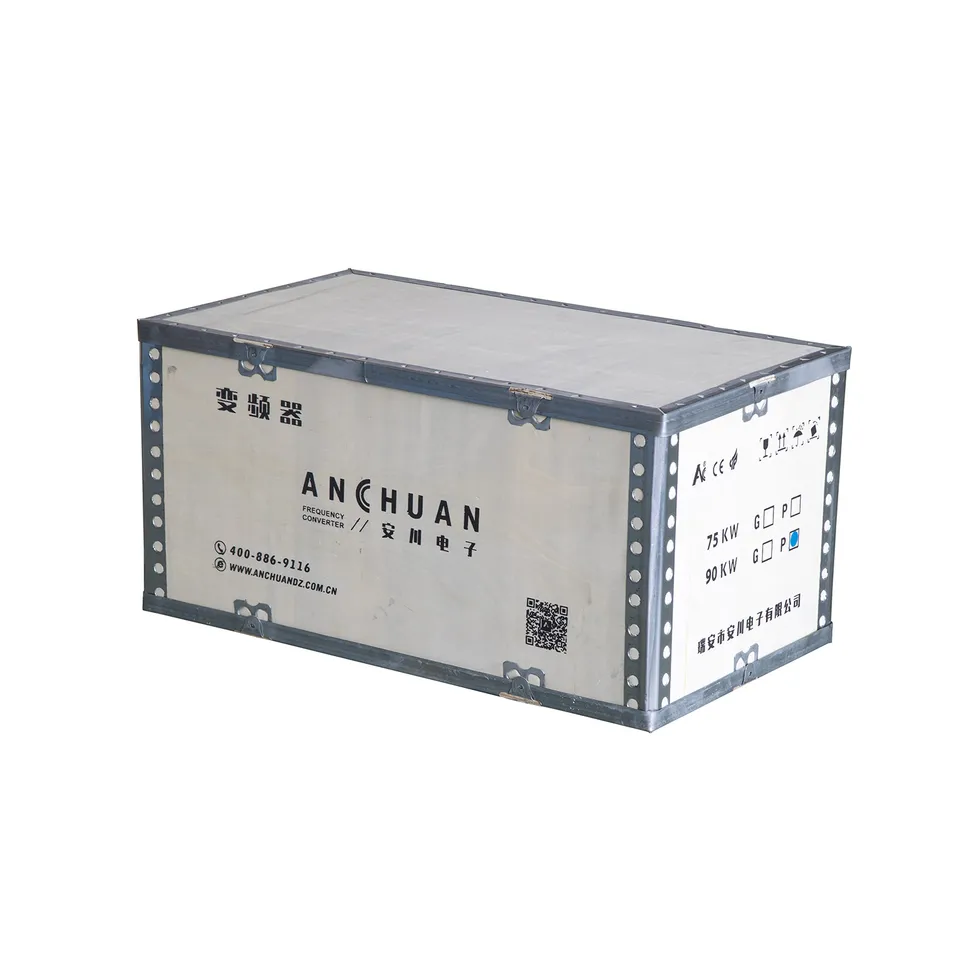

Package: Standard carton package or wooden case for heavy items.
Shipment: Supported via Sea, Air, or Express (DHL, FedEx, etc.).

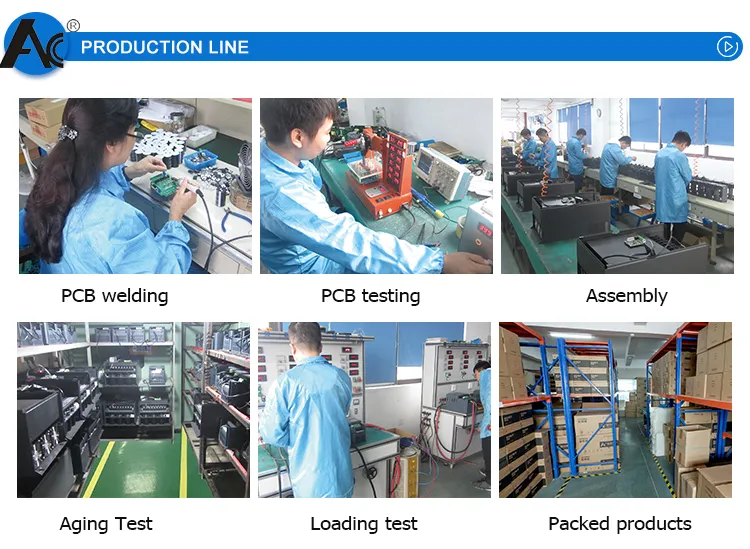

Used extensively in drive automation production, including:
