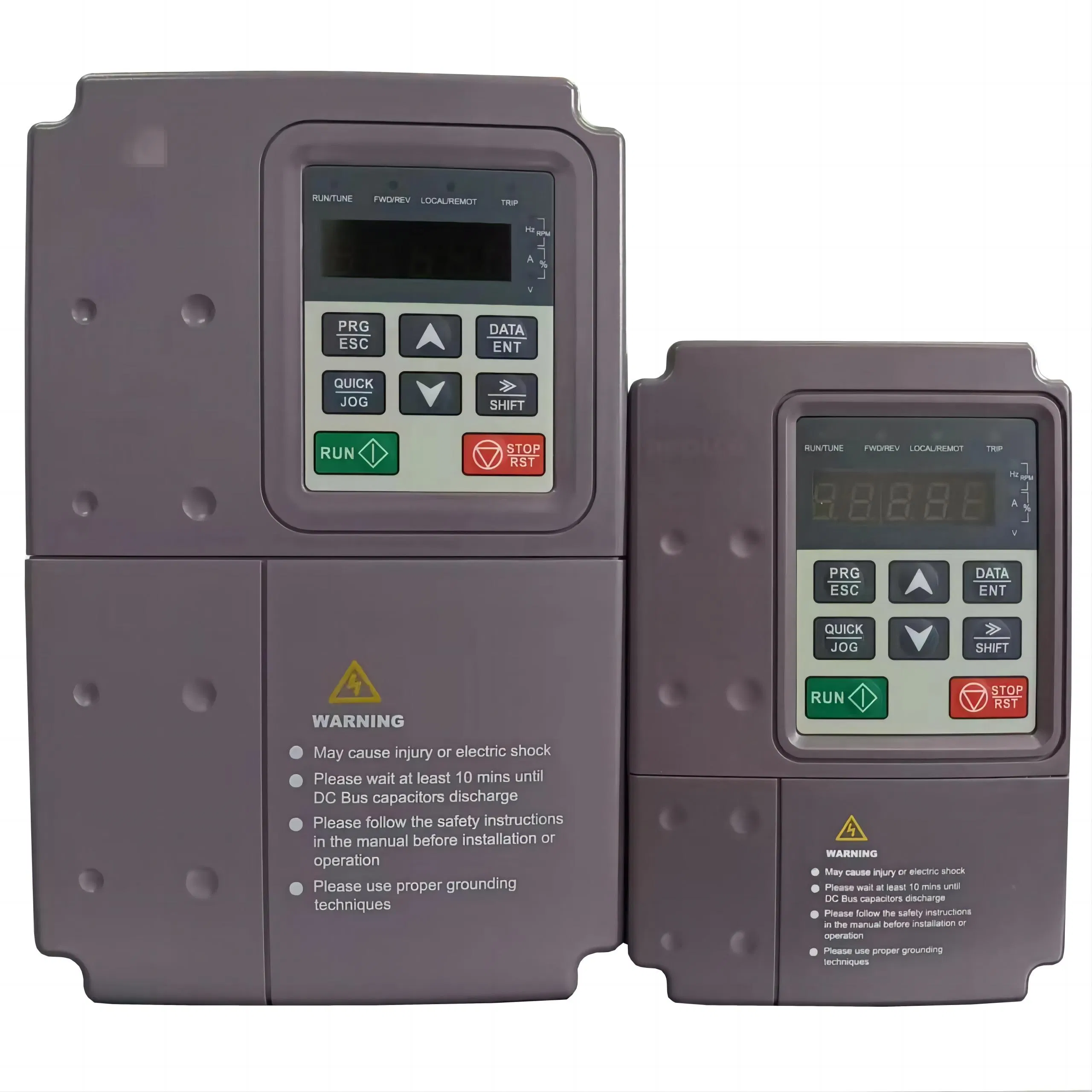

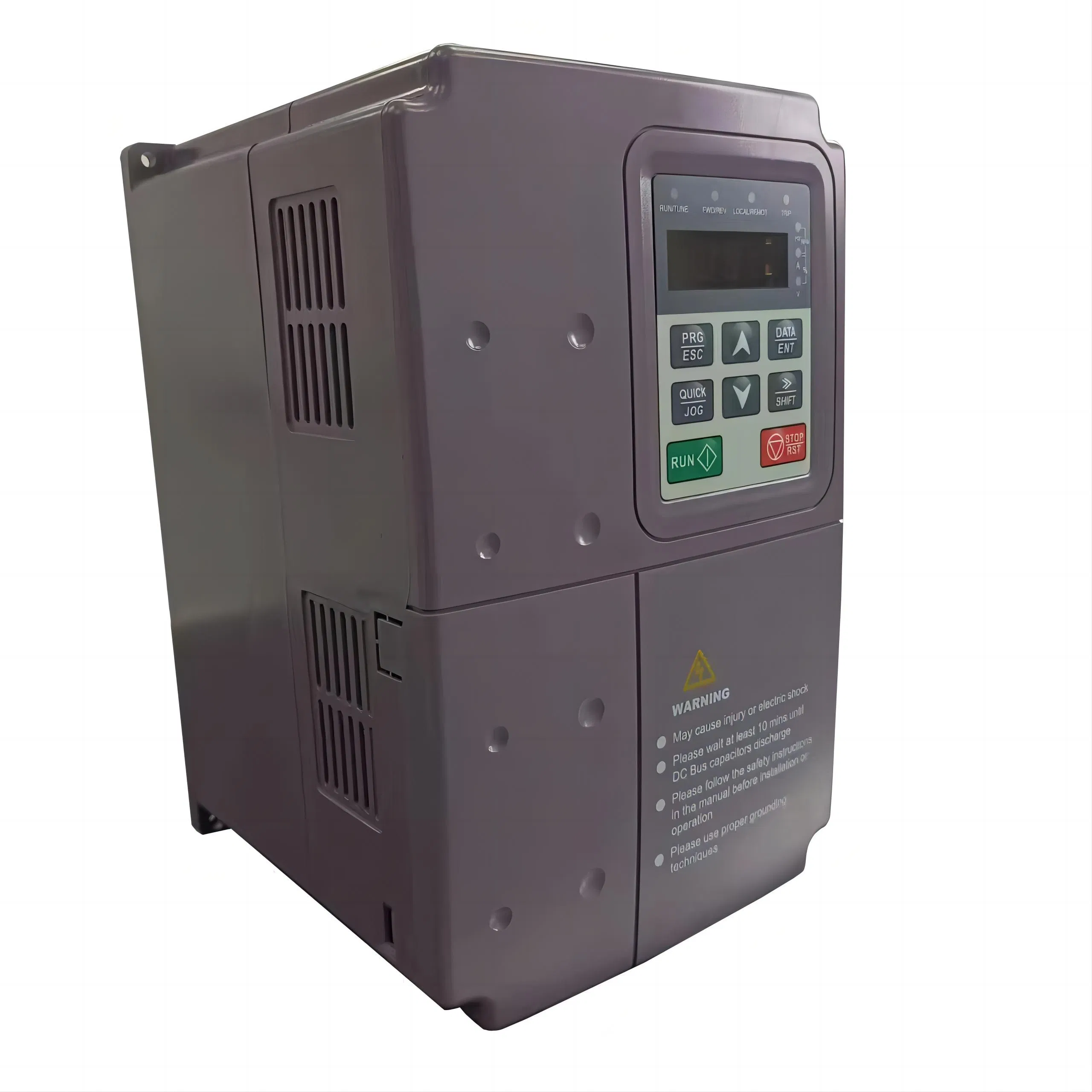

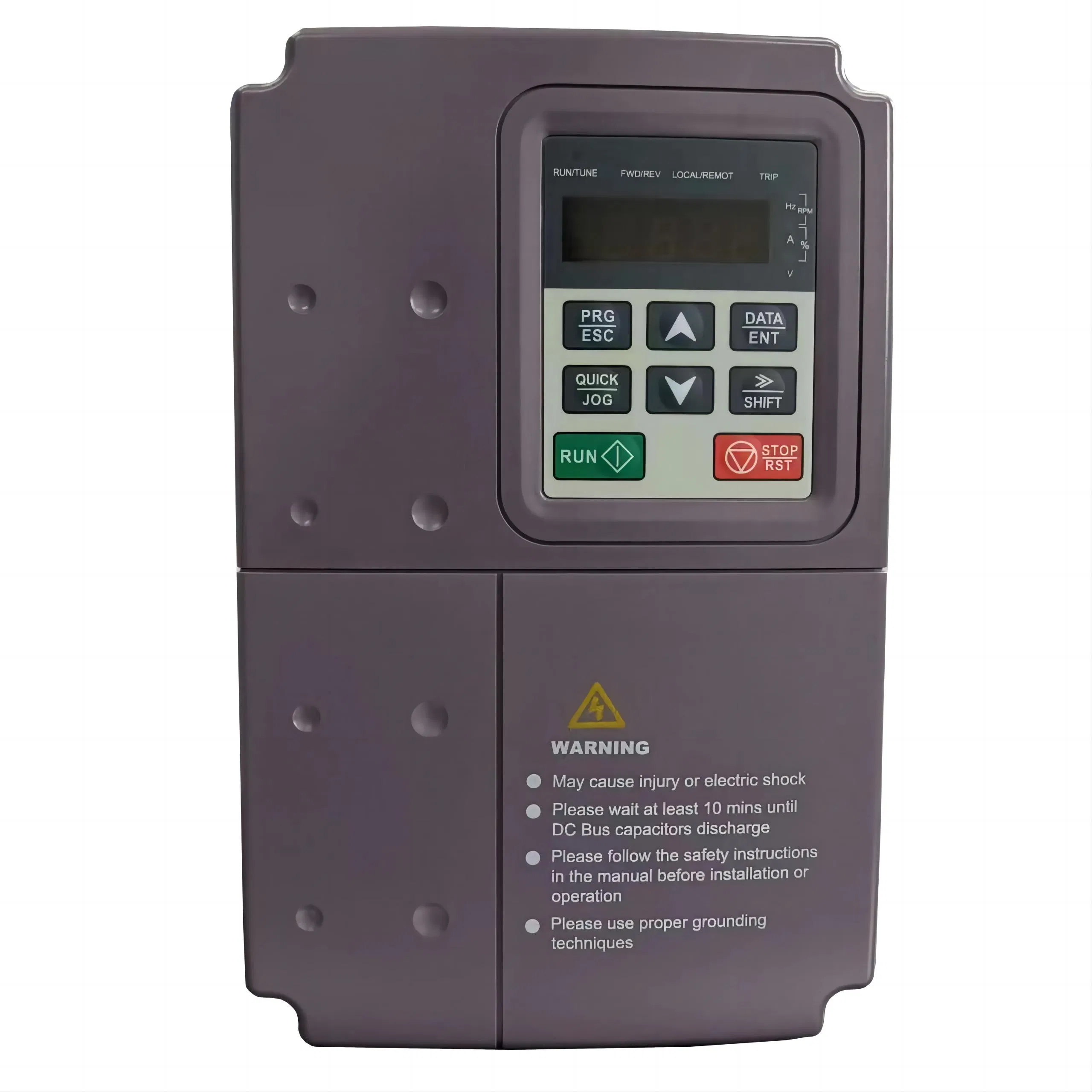

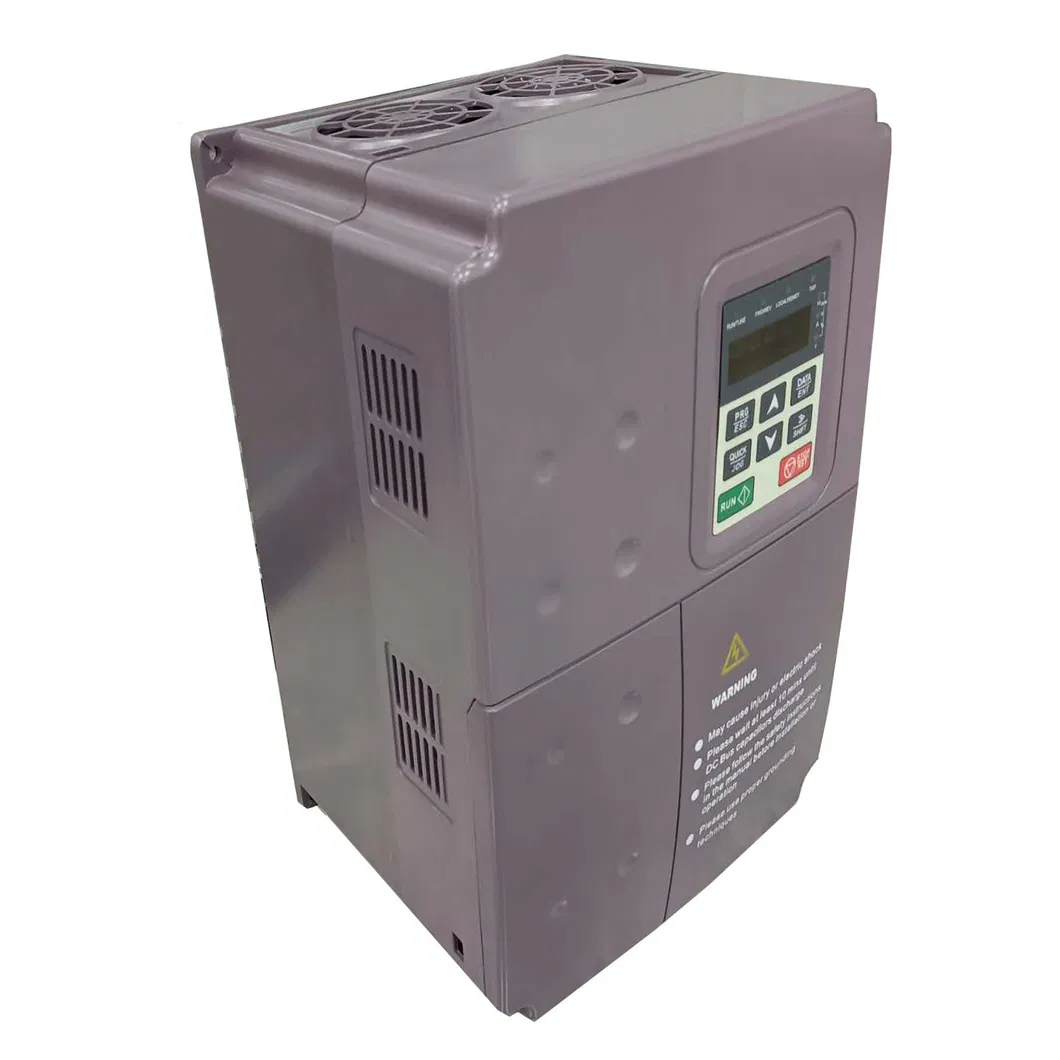

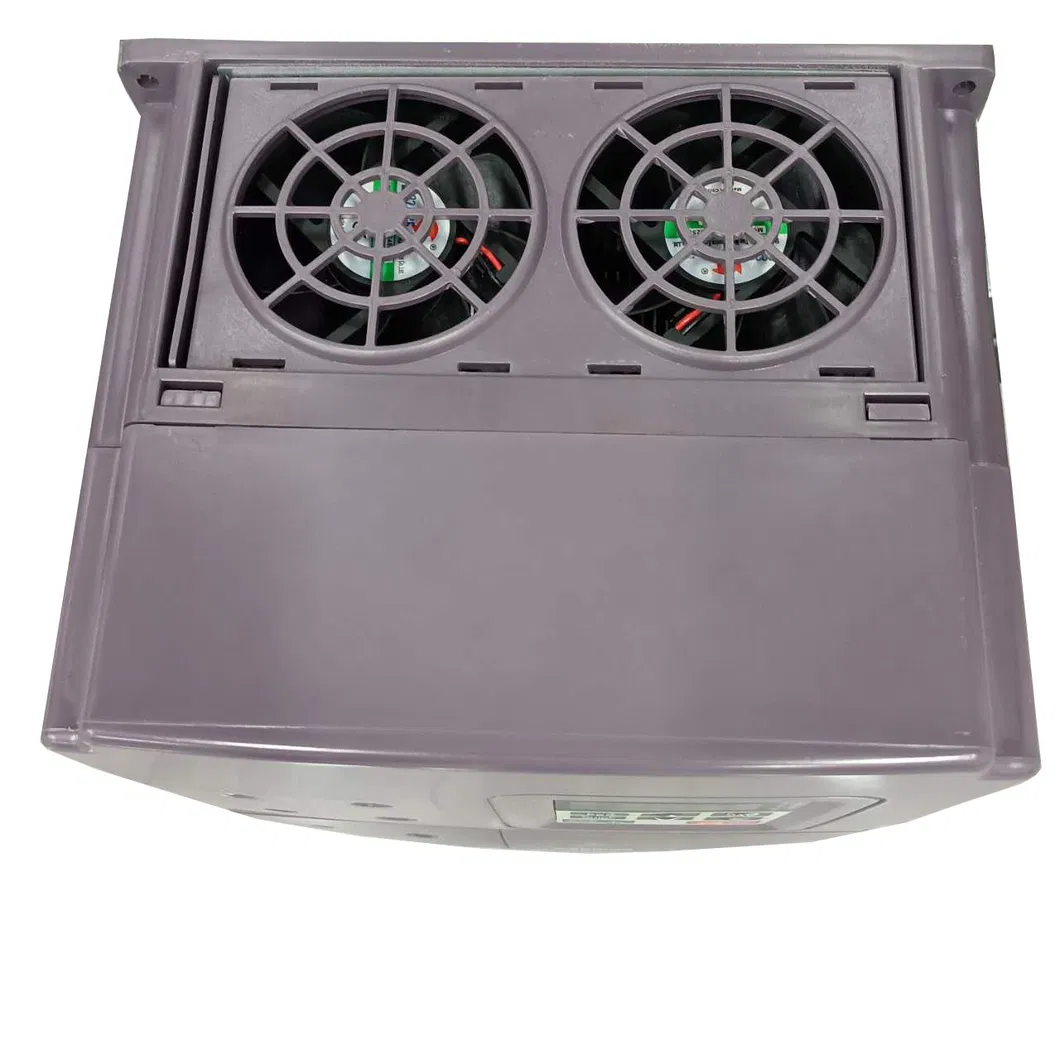

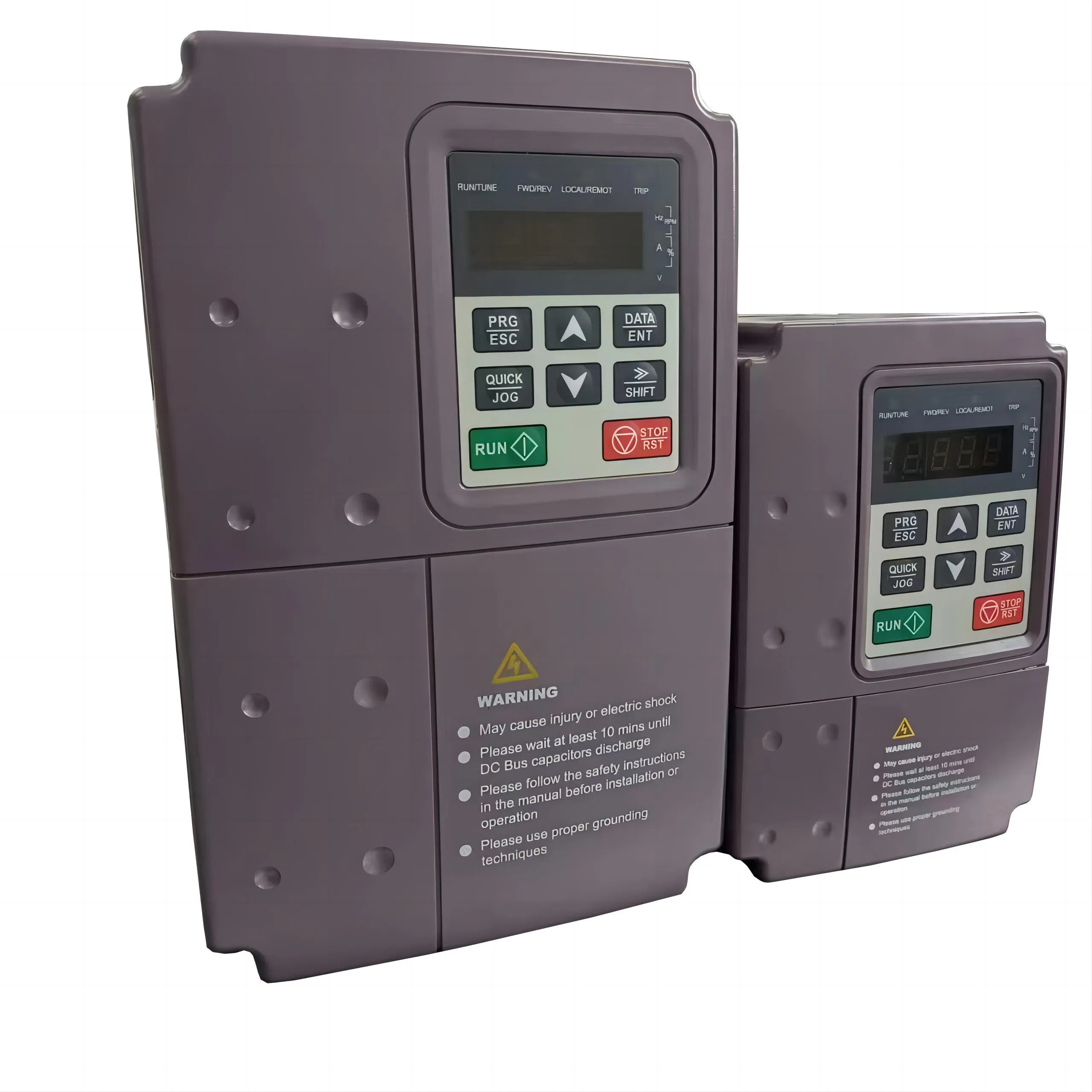

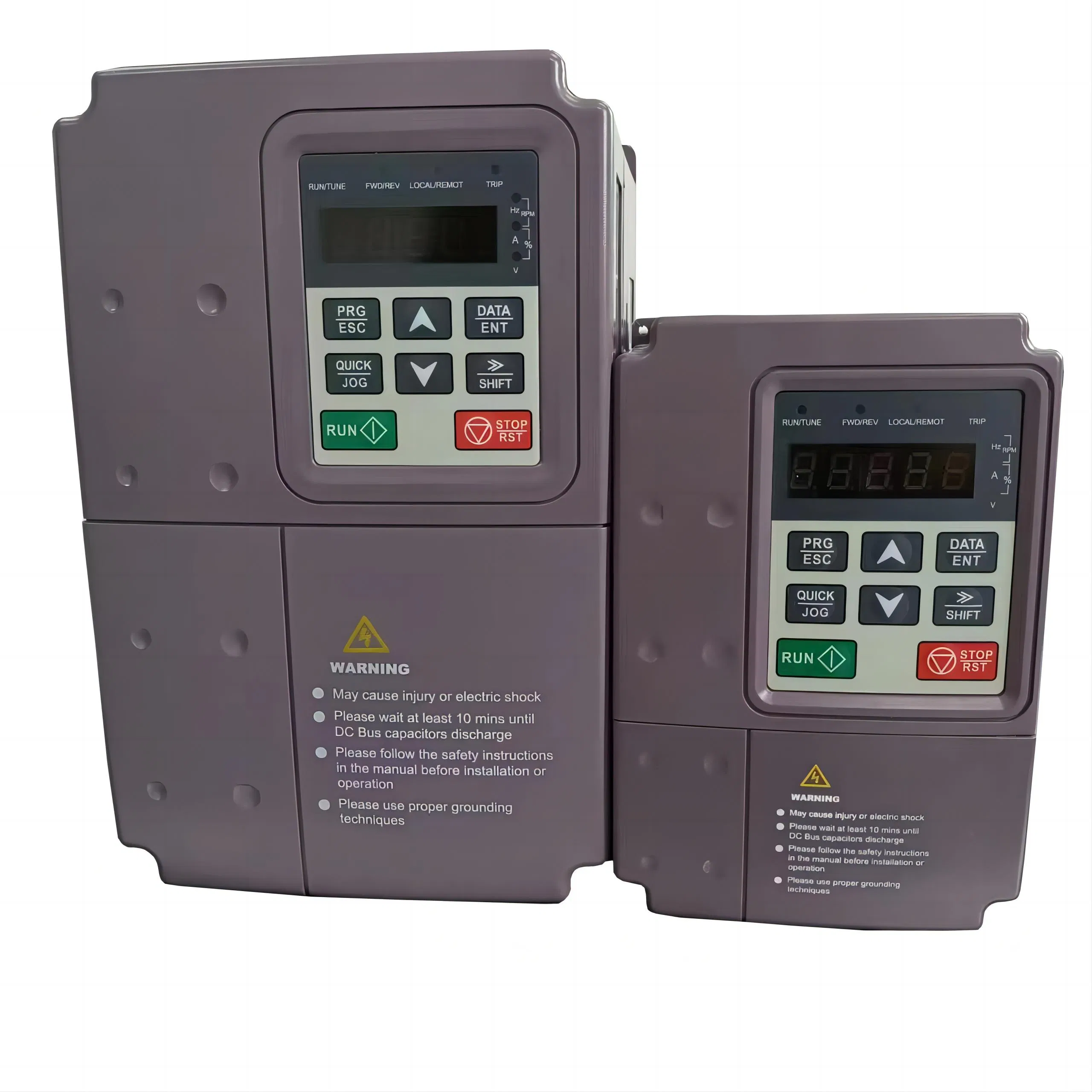

Solar Irrigation System Solar Pump Inverter CHF100A Solar Pump Controller DC and AC Input Solar VFD 50-60Hz Three Phase

Basic Specifications

Principle of Work:

Vector Control Transducer

Switch Mode:

PWM Control

Main Circuit Type:

Voltage

Link of Transformation:

AC-DC-AC Variable-Frequency Drive

Function:

General Purpose

Output Power:

0.75kw

Input Voltage:

380V/400V 3pH

Output Current:

2.5A

Output Voltage:

0-400V 3pH

Product Names:

Variable Frequency Drive, AC Drive, VFD, Frequency Inverter

Package Size:

23.70cm * 18.00cm * 20.50cm

Package Gross Weight:

3.400kg

HS Code:

8504409999

Production Capacity:

60000PCS/Year

Product Description

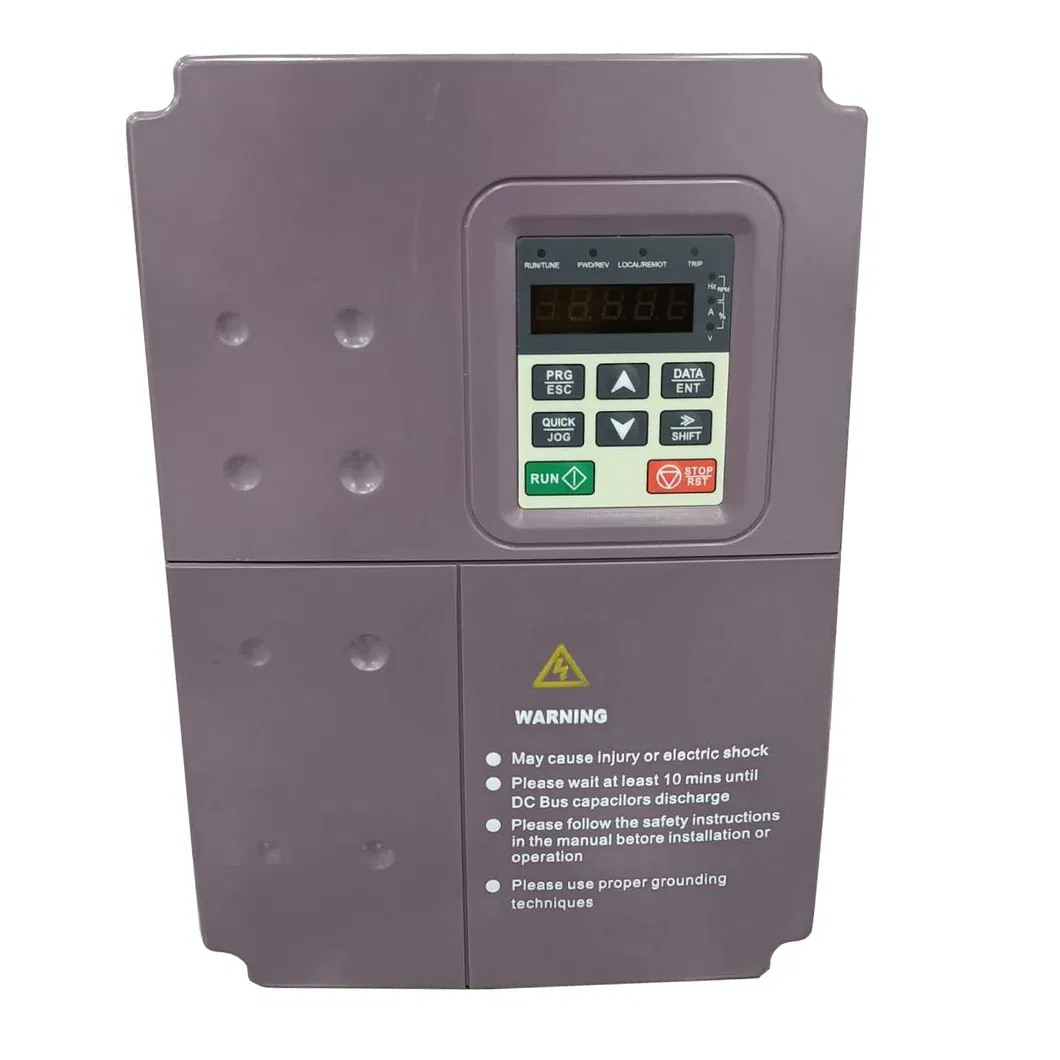

Textile AC Drives VFD Vector Power Inverters Speed Controller Frequency Textile Inverter

The 3030 series frequency converter adopts speed sensorless vector control technology, and the product has excellent driving and control performance. Maximum support for built-in brake unit of 132KW (optional) with standard configuration up to 15KW, which can better meet industrial requirements.

Technical Features

⚡ Input & Output Performance:

▶ Input Voltage Range: 400/230V ± 15%
▶ Input Frequency Range: 47-63Hz
▶ Output Voltage Range: 0-rated input voltage
▶ Output Frequency Range: 0-400Hz

🔌 I/O Connectivity:

✔ Programmable Digital input: 7 terminals (ON-OFF), 1 high speed pulse input (PNP, NPN).
✔ Programmable Open collector output: 1 terminal (high speed pulse supported).
✔ Relay output: 2 terminals.
✔ Analog output: 2 terminals (0/4-20 mA or 0-10V).

⚙️ Core Control Functions:

🔸 Control Mode: V/F control, sensorless vector control (SVC), Torque control.
🔸 Overload capacity: 150% for 60s, 180% for 10s.
🔸 Speed adjusting range: 1:100 (SVC).
🔸 Carrier frequency: 1kHz-15.0kHz.
🔸 Frequency reference: keypad, analog, HDI, communication, PLC, PID.
🔸 Additional: Simple PLC, 16-stage speed control, Traverse control, Speed trace function, AVR.

Model Selection Guide

Model No.	Input Voltage	Rated Power (KW)	Rated Input Current (A)	Rated Output Current (A)	Compatible Motor (KW)
1R5G-S2	Single phase 230V±15%	1.5	14.2	7.0	1.5
2R2G-S2	Single phase 230V±15%	2.2	23.0	10	2.2
0R7G-4	3-Phase 400V±15%	0.75	3.4	2.5	0.75
1R5G-4	3-Phase 400V±15%	1.5	5.0	3.7	1.5
2R2G-4	3-Phase 400V±15%	2.2	5.8	5	2.2
004G/5R5P-4	3-Phase 400V±15%	4.0/5.5	10/15	9/13	4.0/5.5
011G/015P-4	3-Phase 400V±15%	11.0/15.0	26/35	25/32	11.0/15.0
030G/037P-4	3-Phase 400V±15%	30.0/37.0	62/76	60/75	30.0/37.0
110G/132P-4	3-Phase 400V±15%	110.0/132.0	210/240	210/250	110.0/132.0
250G/280P-4	3-Phase 400V±15%	250.0/280.0	460/500	470/520	250.0/280.0
