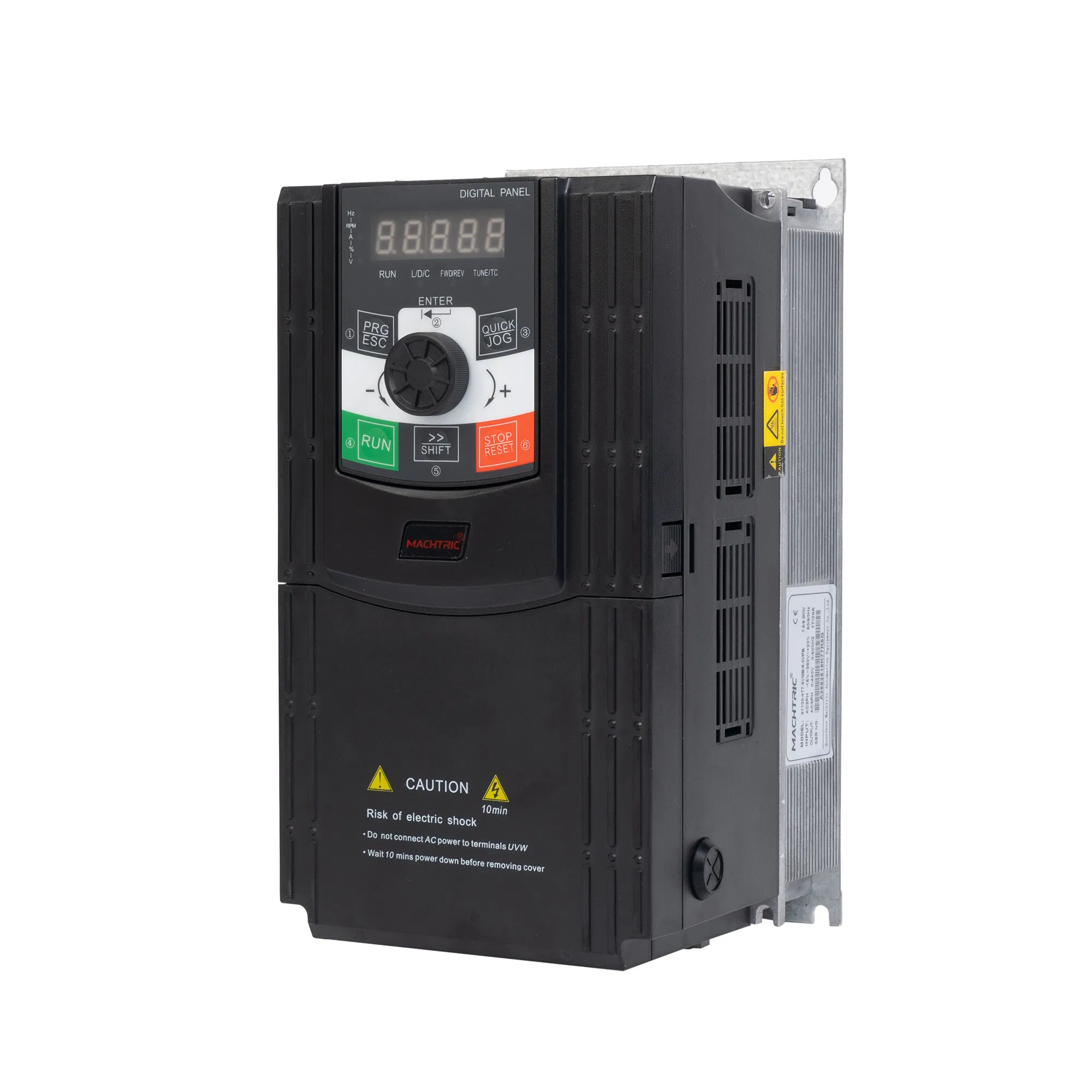

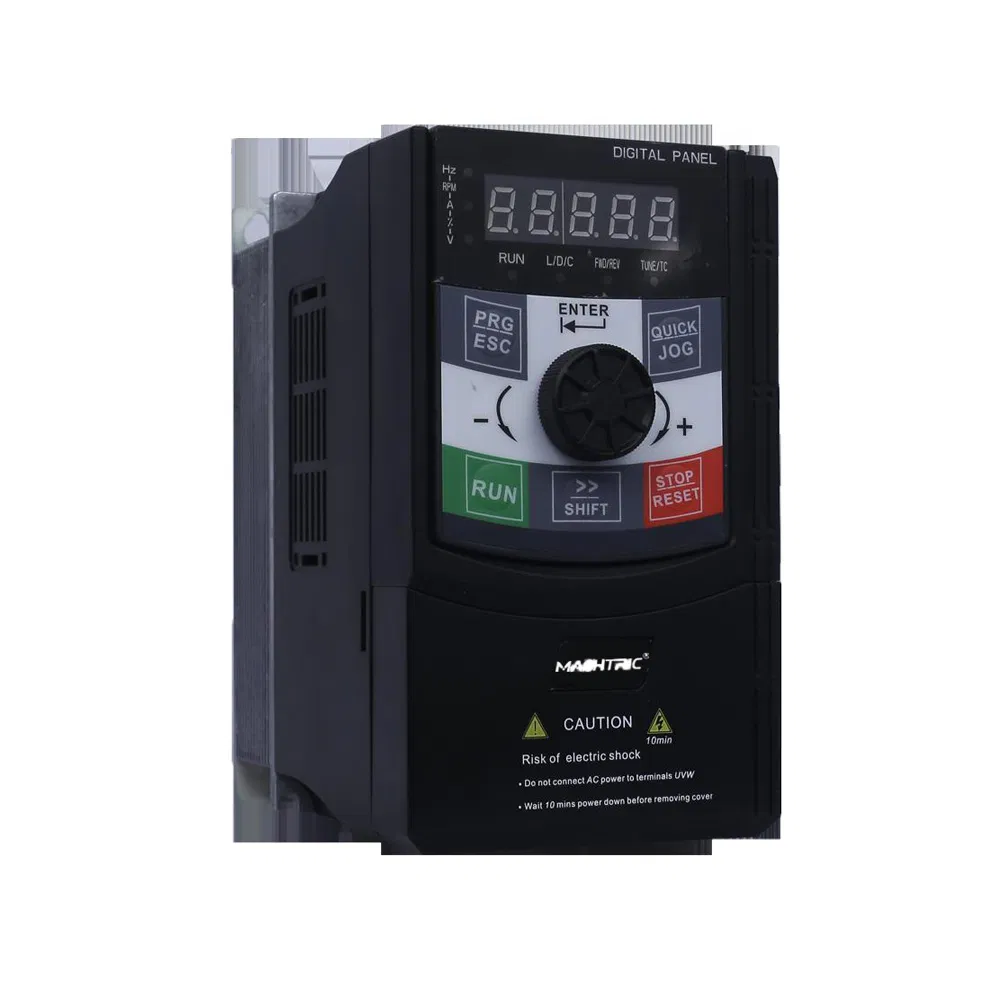

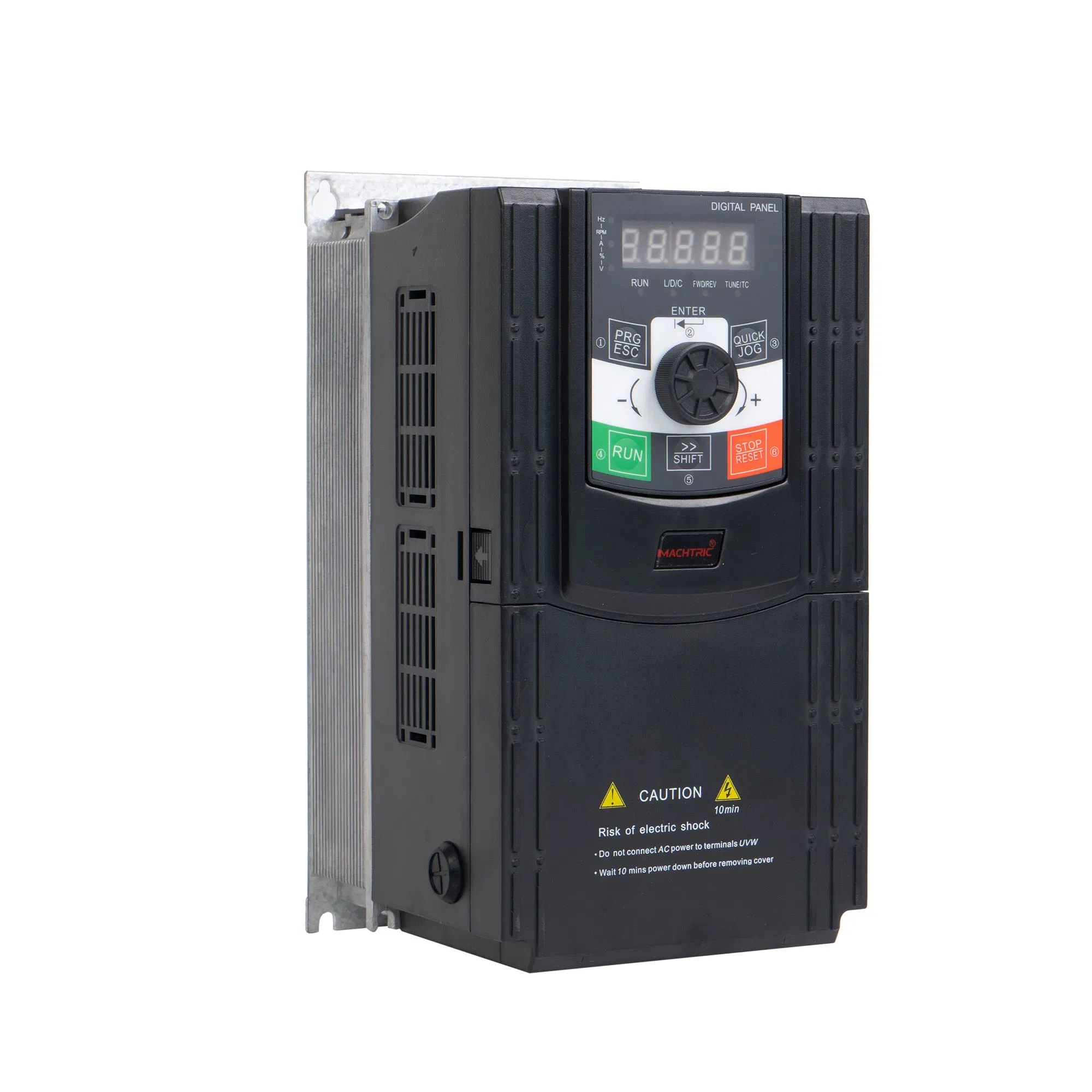

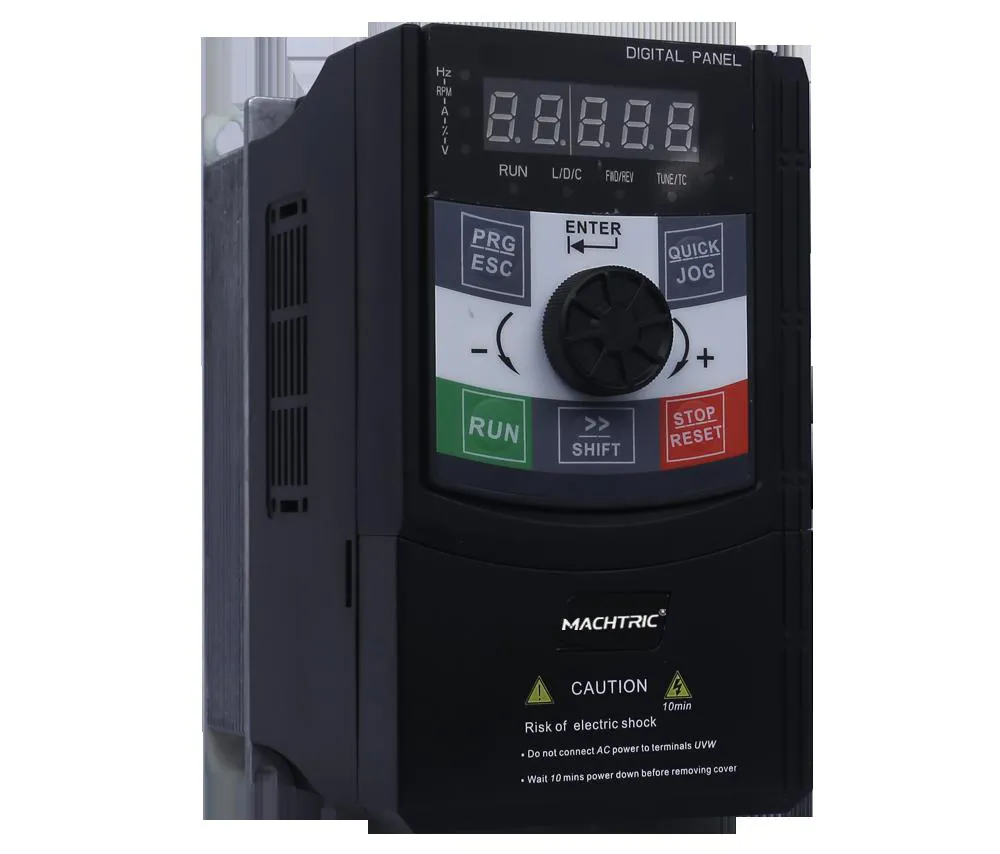

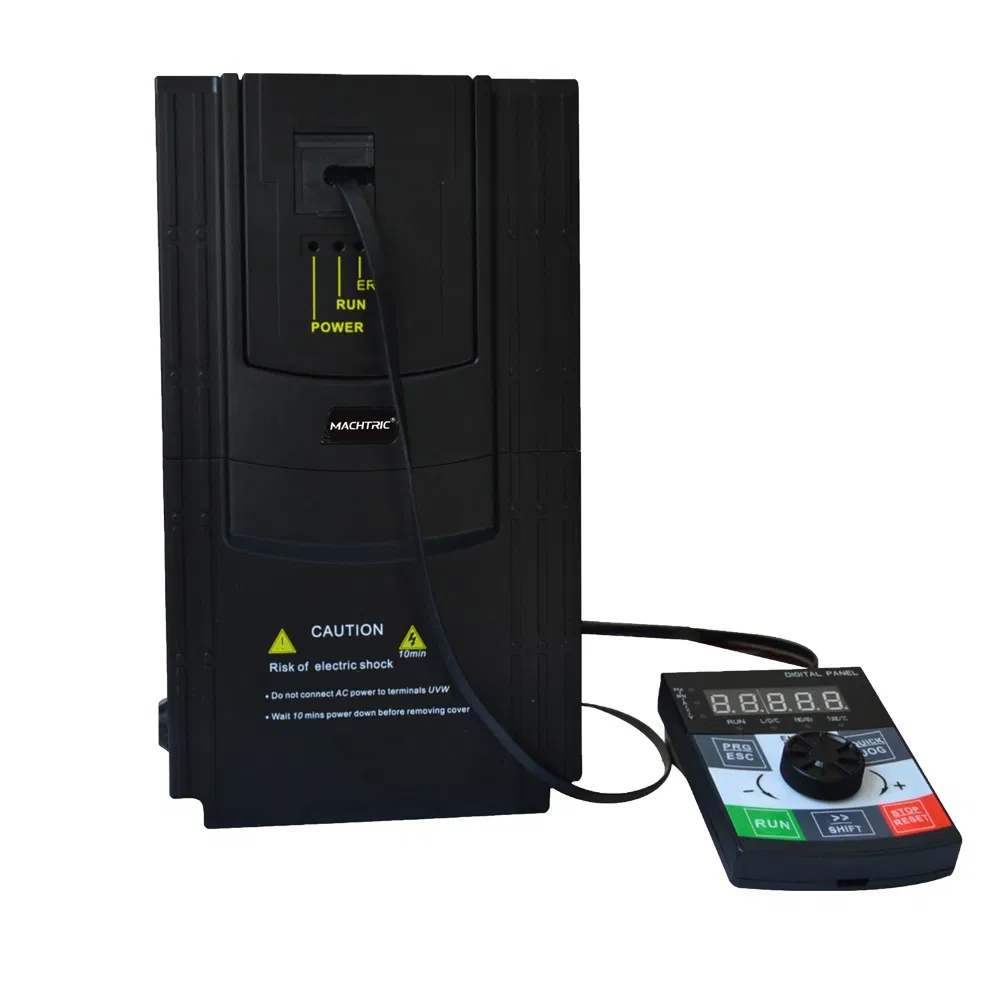

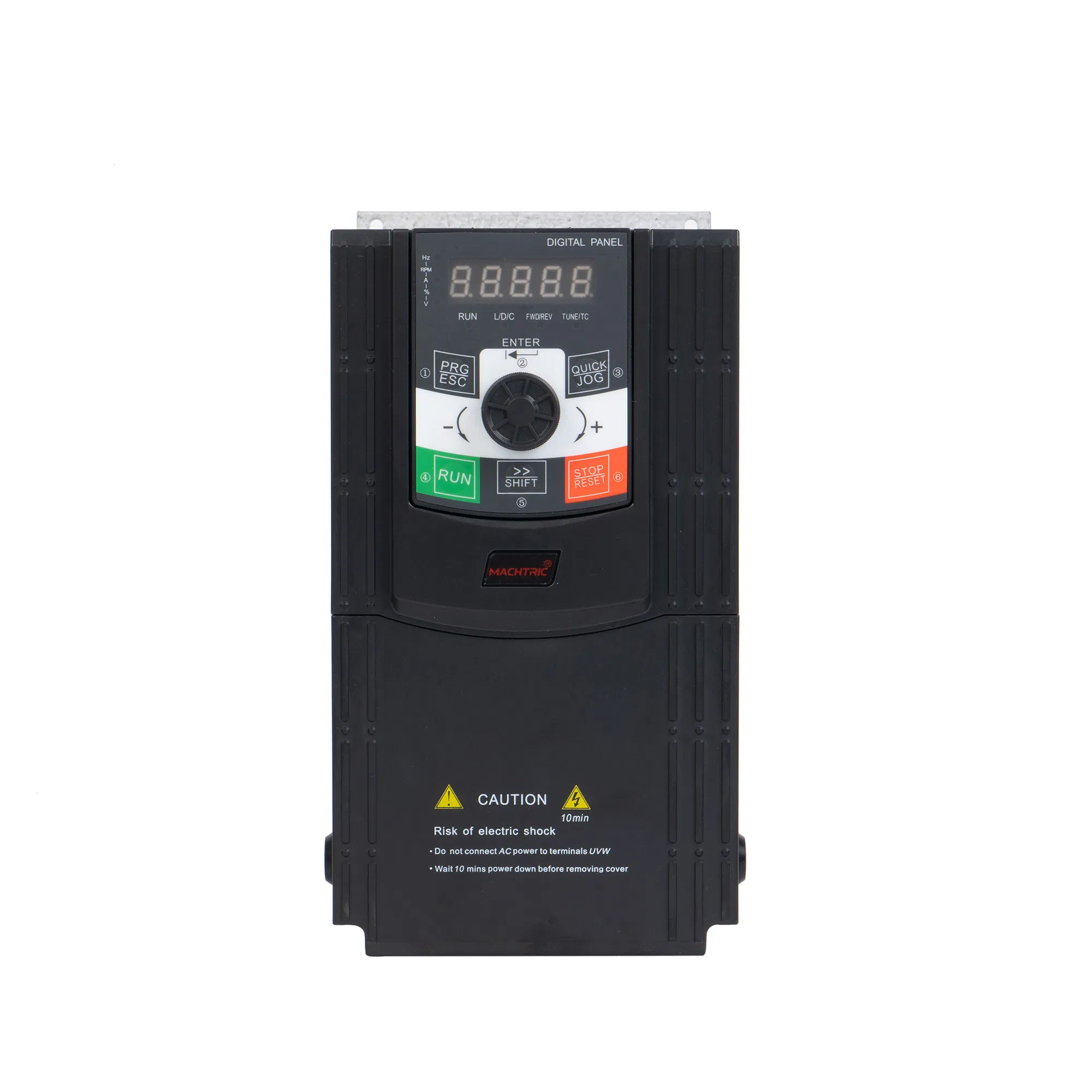

S1100vg General Purpose Packaging Machine Motor VFD

1 / 5

S1100vg General Purpose Packaging Machine Motor VFD

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

S1100VG

Principle of Work

V/F Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Voltage

Power Supply

High Voltage VFD

Link of Transformation

AC-DC-AC VFD

Function

Simple Type, Textile, Heavy Loading

Item Name

Variable Speed Drive for Packing Machine

Control Mode

V/F / Vector Flux Control

Jog Frequency

0.00-50.00Hz

Output Power

220V(0.4-2.2kw); 380V(0.75-400kw)

Multi Speed

16 Segments

PID Control

Built-in

C3 Filter

Yes

Interface

Standard RS-485

Max Frequency

600.00Hz

Production Capacity

5000 Pieces Per Month

Origin

China

Product Specification

Item		S1100VG Details
Maximum frequency		400Hz
Input resolution	Digital setting	0.01Hz
	Analog setting	Maximum frequency × 0.1%
Control mode		V/F control, Vector flux control 1, Vector flux control 2
Startup torque	G model	0.5Hz / 180% (Open loop Vector flux control)
	P model	0.5Hz / 120% (Open loop Vector flux control)
Speed adjustment range		1:200 (Open loop Vector flux control)
Speed precision		Open loop Vector flux control: ≤±0.5% (Basic) / ≤±0.3%
Torque response		≤40ms (Open magnetic flux vector control)
Overload capacity	G model	150% rated current 60s; 180% rated current 3s
	P model	130% rated current 60s; 150% rated current 3s
DC brake		Freq: 0.00Hz to Max; Time: 0.0s to 36.0s; Current: 0.0% to 100.0%
Simple PLC & MS speed		Realize maximum of 16 segments speed running via built-in PLC
AVR (Auto voltage regulation)		Keep constant output voltage automatically against mains fluctuation
Individualized function		Peripherals self-detection upon power-on (earth/short circuit), Shared DC bus

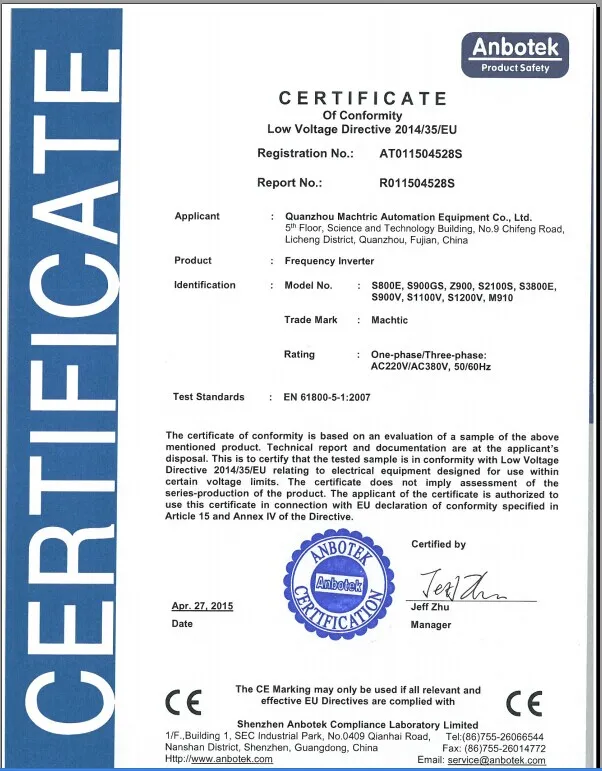

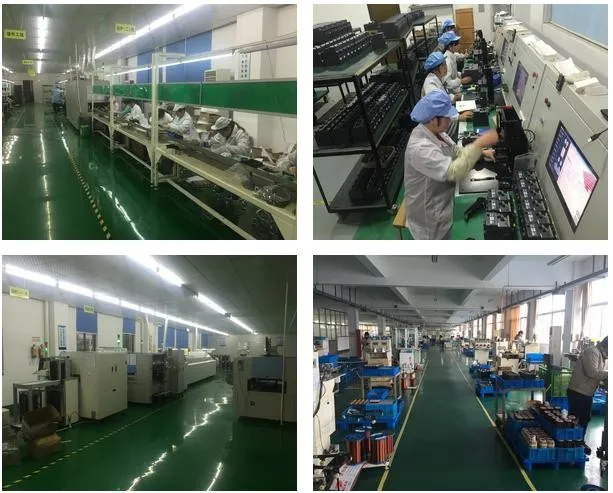

Product & Factory Show

Frequently Asked Questions

Q: What are the primary control modes for the S1100VG series?

A: The unit supports V/F control and two types of Vector Flux Control to ensure precise motor management.

Q: What is the output power range available for this VFD?

A: For 220V systems, the range is 0.4-2.2kw. For 380V systems, it covers a wide range from 0.75kw up to 400kw.

Q: How many speed segments can be programmed into the device?

A: It features a built-in PLC that can realize a maximum of 16 segments of speed running.

Q: Does the S1100VG support remote communication?

A: Yes, it comes equipped with a standard RS-485 communication interface for system integration.

Q: What is the overload capacity for heavy-duty applications?

A: The G model provides 150% rated current for 60 seconds and up to 180% for 3 seconds.

Q: Does it include built-in safety and regulation features?

A: Yes, it includes Automatic Voltage Regulation (AVR), built-in PID control, and peripherals self-detection for earth and short circuits upon power-on.
