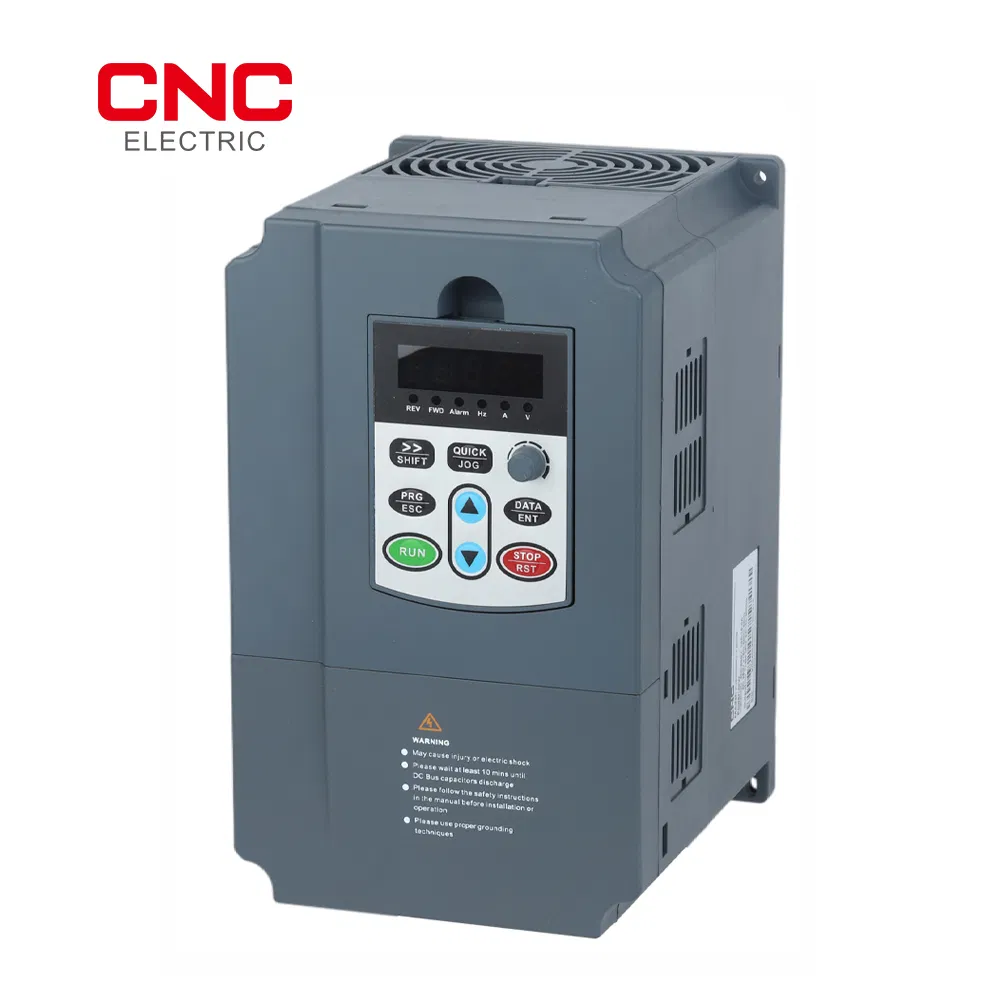

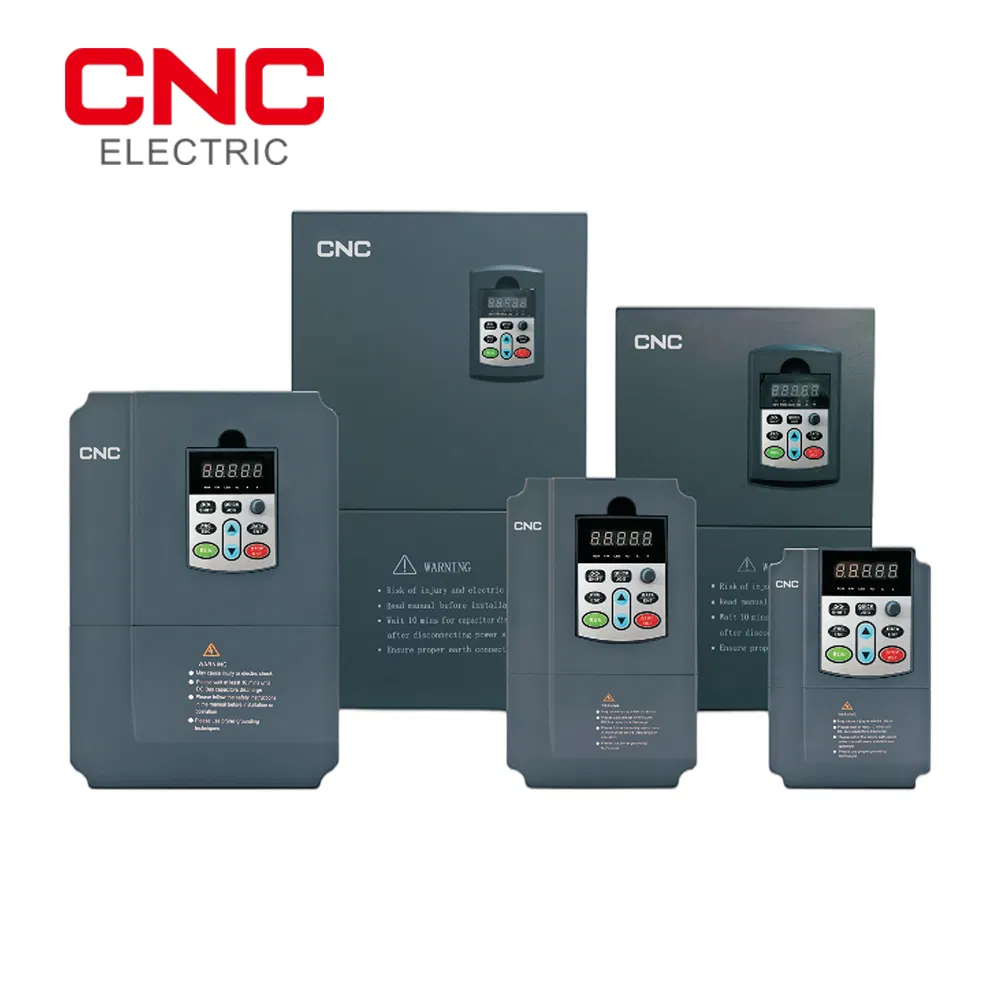

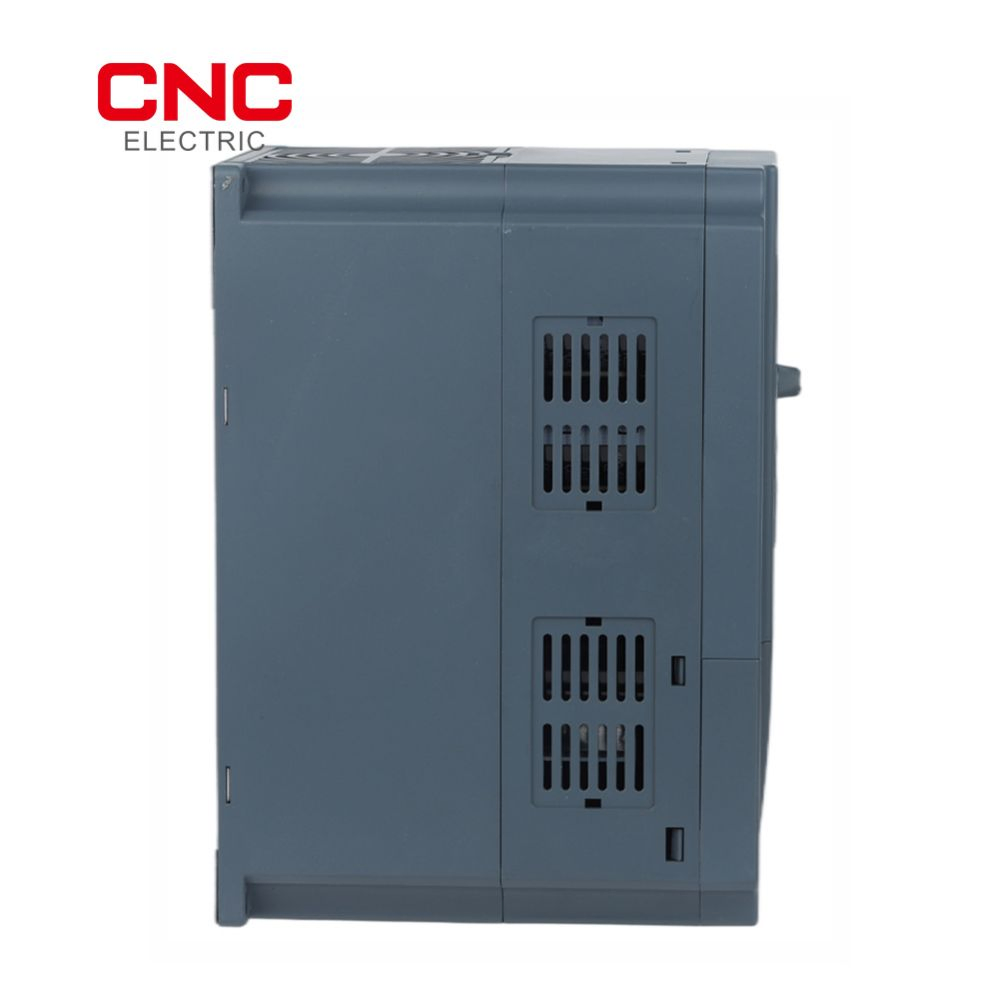

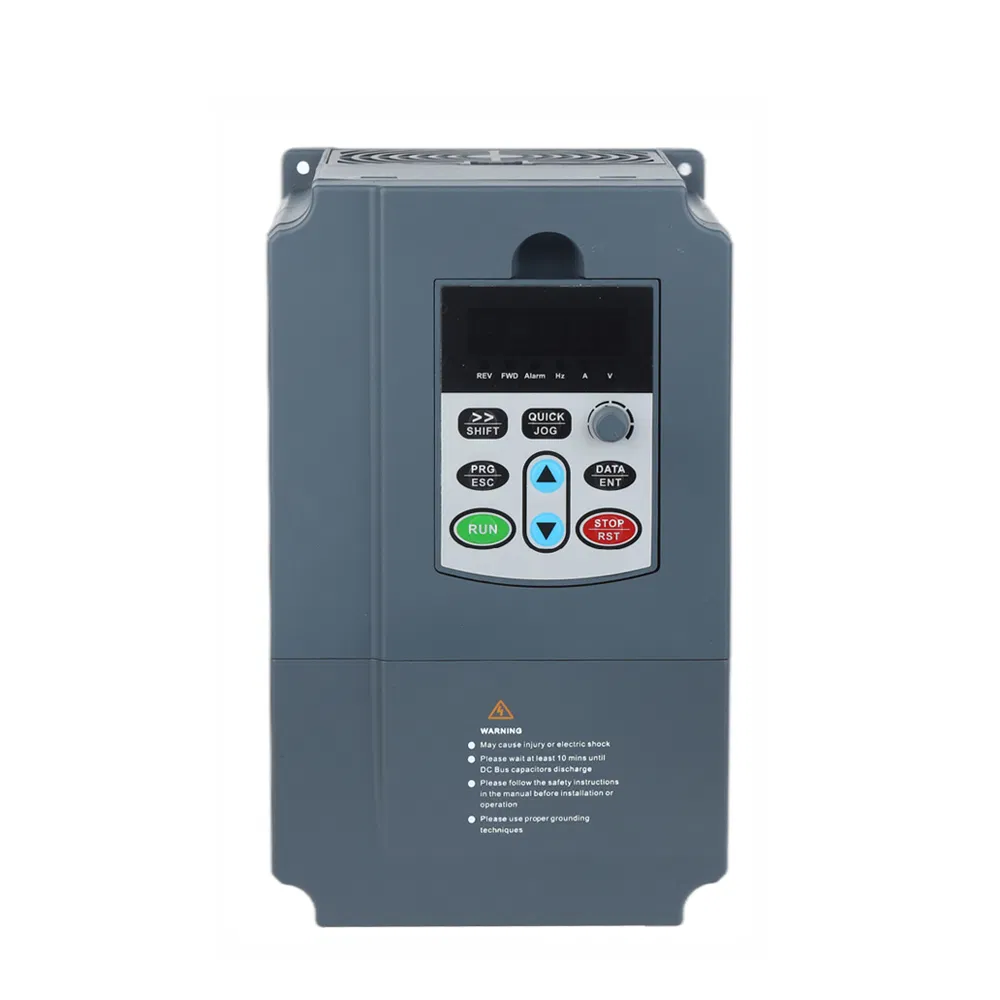

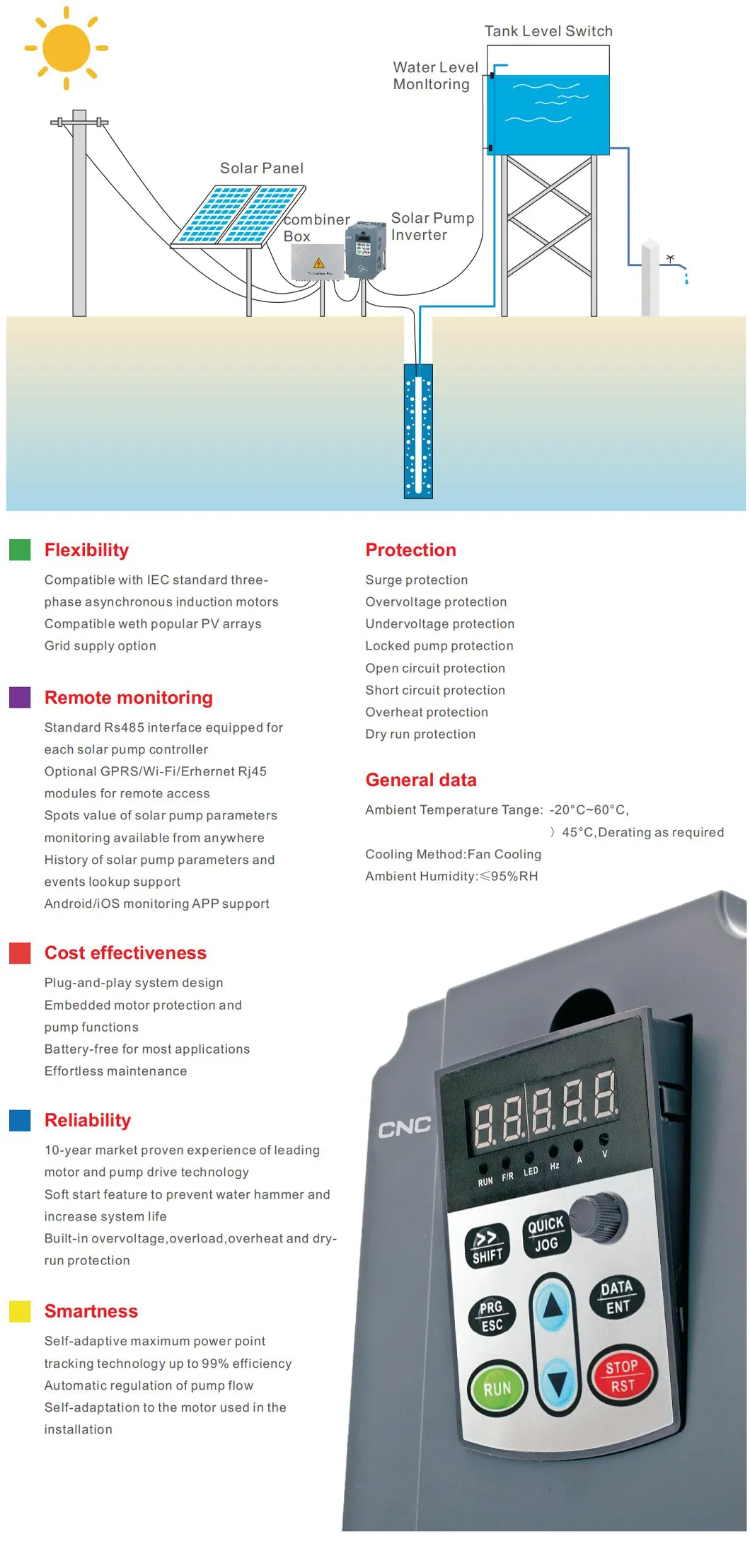

In order to satisfy the demands of various pumping applications, YCB2000PV solar pump controller adopts Max Power Point Tracking and proven motor drive technology to maximize output from solar modules.
It supports both single phase or three-phase AC input such as a generator or inverter from battery. The controller provides fault detection, motor softstart, and speed control. YCB2000PV controller is designed to proceed these features with the plug and play, ease of installation.
| Model Range | Output Voltage | Adaptive Power | Load Type |
|---|---|---|---|
| YCB2000PV Photovoltaic Inverter | S: Single phase AC220V / T: Three phase AC380V | 0.75KW to 110KW | G: Constant torque |
| Input Data | YCB2000PV-SOD7G | YCB2000PV-S1D5G | YCB2000PV-S2D2G |
|---|---|---|---|
| Max input voltage(Voc)[V] | 400 | ||
| Recommended voltage,at mpp | 280VDC~360VDC | ||
| Rated output power[kW] | 0.75 | 1.5 | 2.2 |
| Output frequency | 0-50Hz/60Hz | ||
| Applicable pump (kW) | 0.37-0.55 | 0.75-1.1 | 1.5 |
