Product Description

📊

Overview

Model NO.
KD100
Work Principle
Vector Control Transducer
Switch Mode
PWM Control
Main Circuit
Voltage Type
Supply Voltage
Low Voltage VFD
Transformation
AC-DC-AC
Function
Elevator/Textile Special, Universal
Capacity
200,000 PCS/Month
📝

Product Description

Professional manufacturer specializing in R&D of AC drives for over 12 years. Our product family covers a power range from 0.4 to 630kW, with voltage ranges between 220V and 480V. Over 300,000 units are operating reliably across various industrial sites.

The KD100 Series represents our most competitive range, featuring high-quality internal components, integrated Hall chips, and built-in EMC filters, all backed by a 3-year warranty.

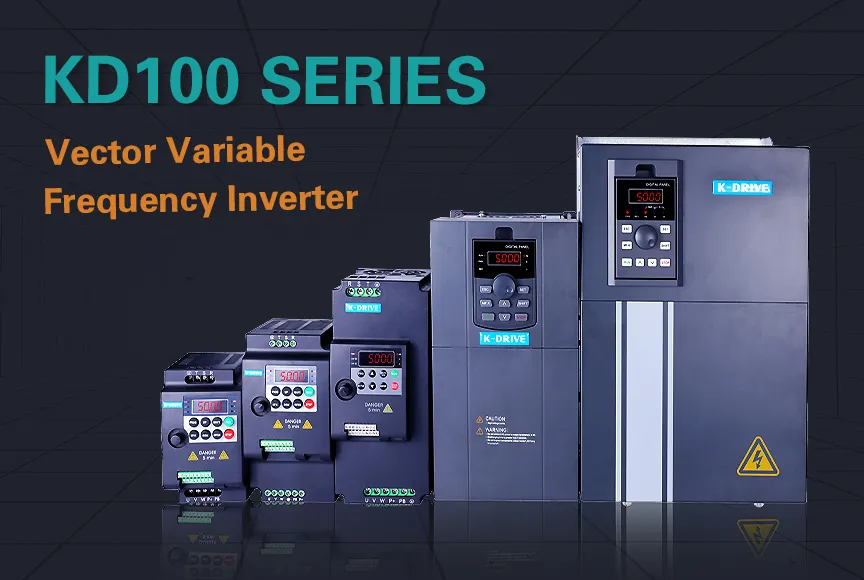

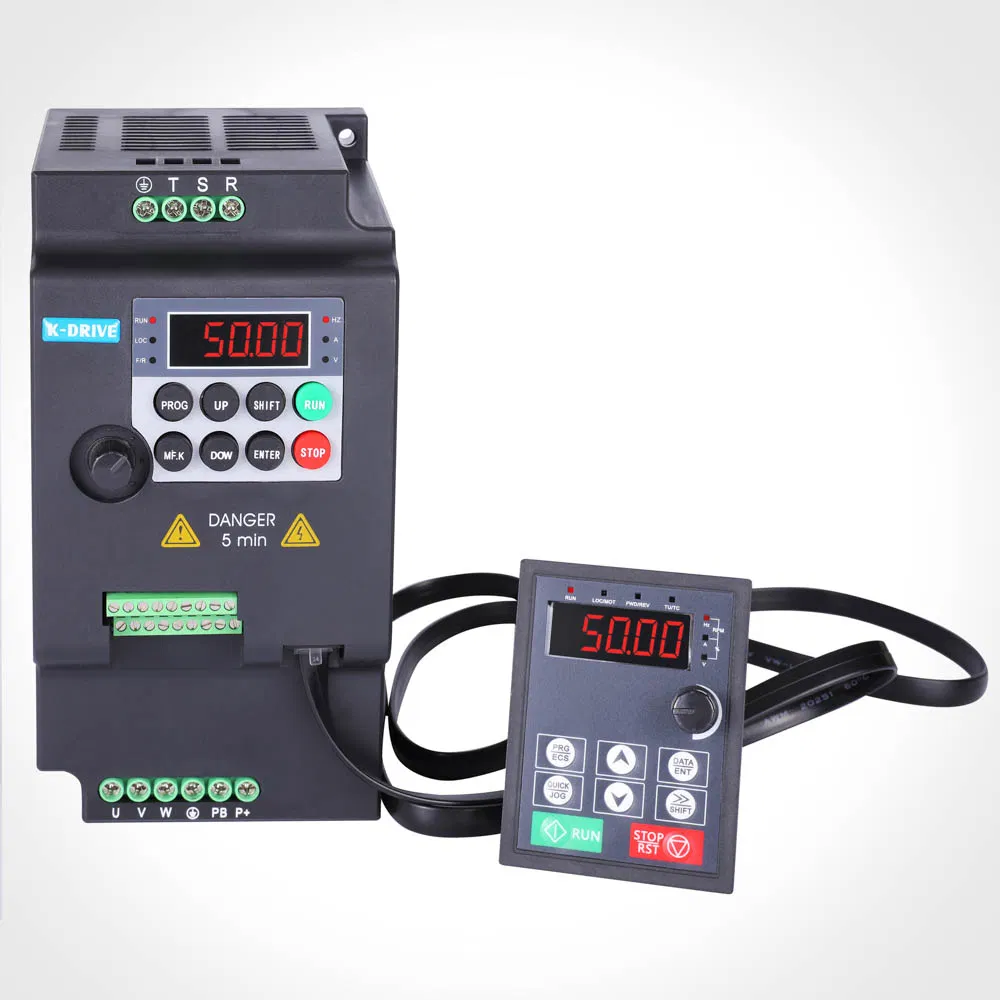

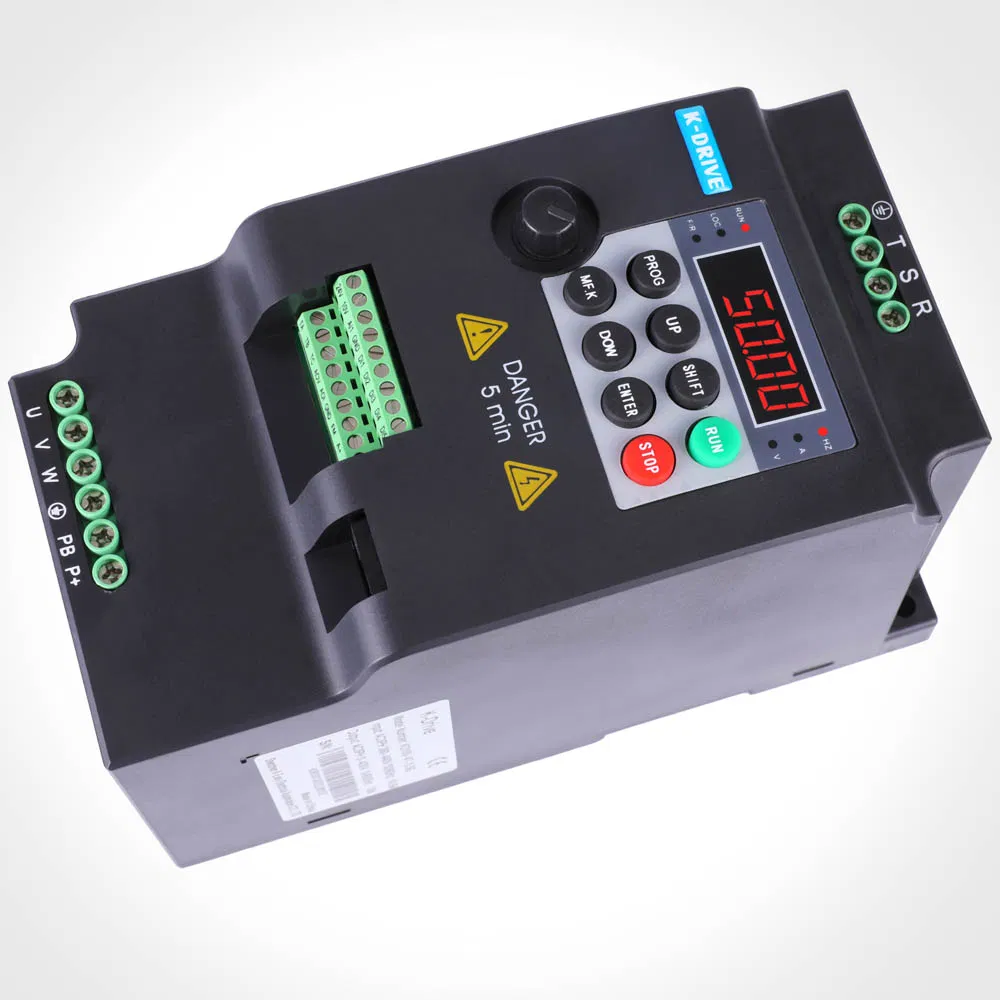

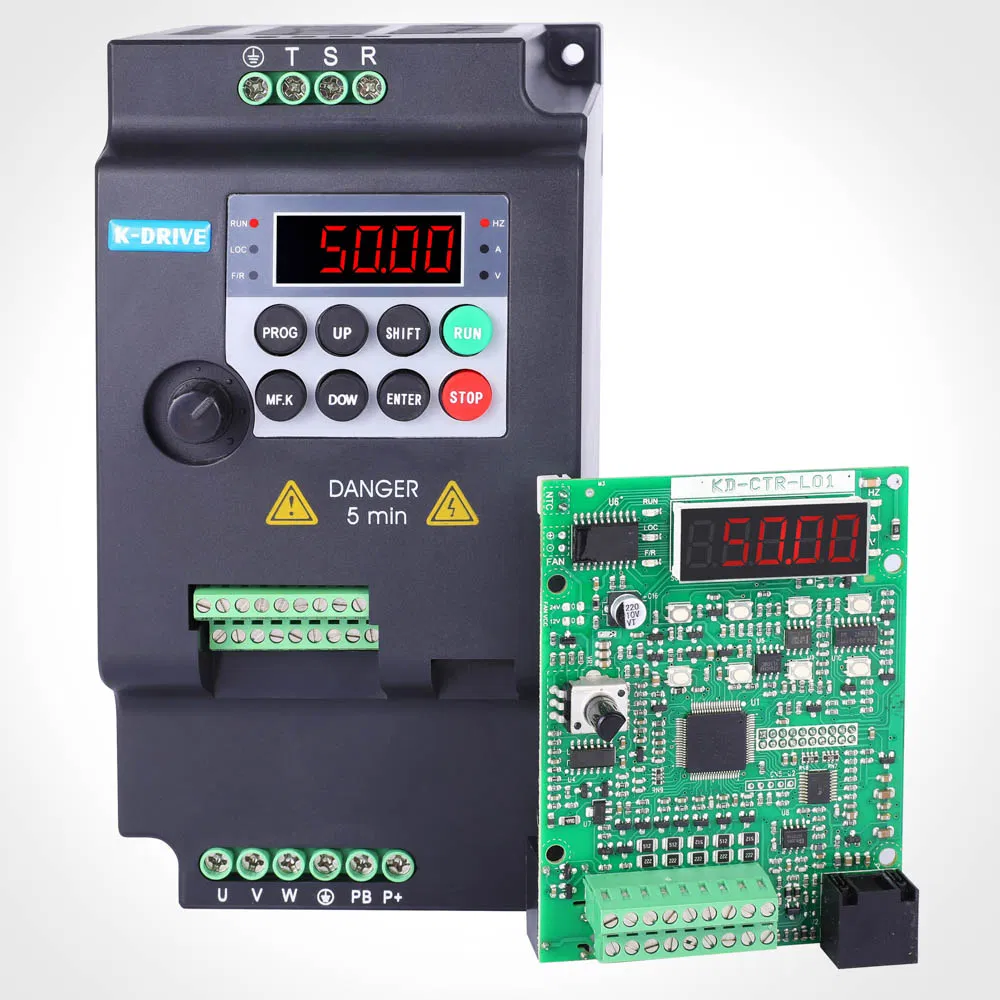

KD100 Vector Controller VFD
⚙️

Product Parameters

Input Voltage 208~240V single phase & three phase
380~480V three phase
Output Frequency 0~600Hz
Control Technology V/F, SVC, Torque Control
Starting Torque 0.5Hz 150% (V/F), 0.25HZ 180% (SVC)
Speed Accuracy ±0.5%(V/F) ±0.2%(SVC)
Torque Response <10ms (SVC)
Overload Capability 150% 60S / 180% 10S / 200% 1S
I/O Support Simple PLC 16-steps speed, 5 Digital inputs (NPN/PNP), 2 Analog inputs, 2 Analog outputs
Communication MODBUS RS485

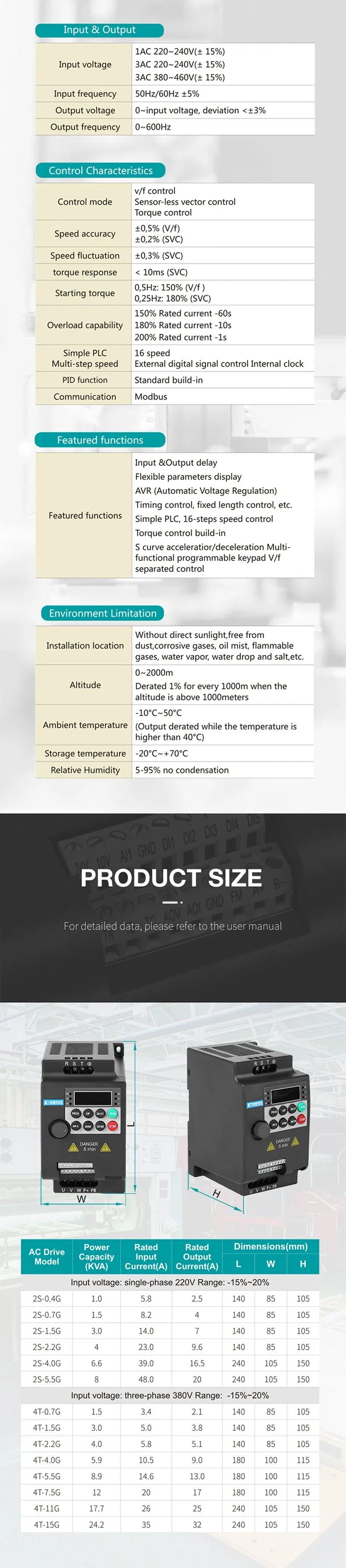

VFD Technical Specification Sheet

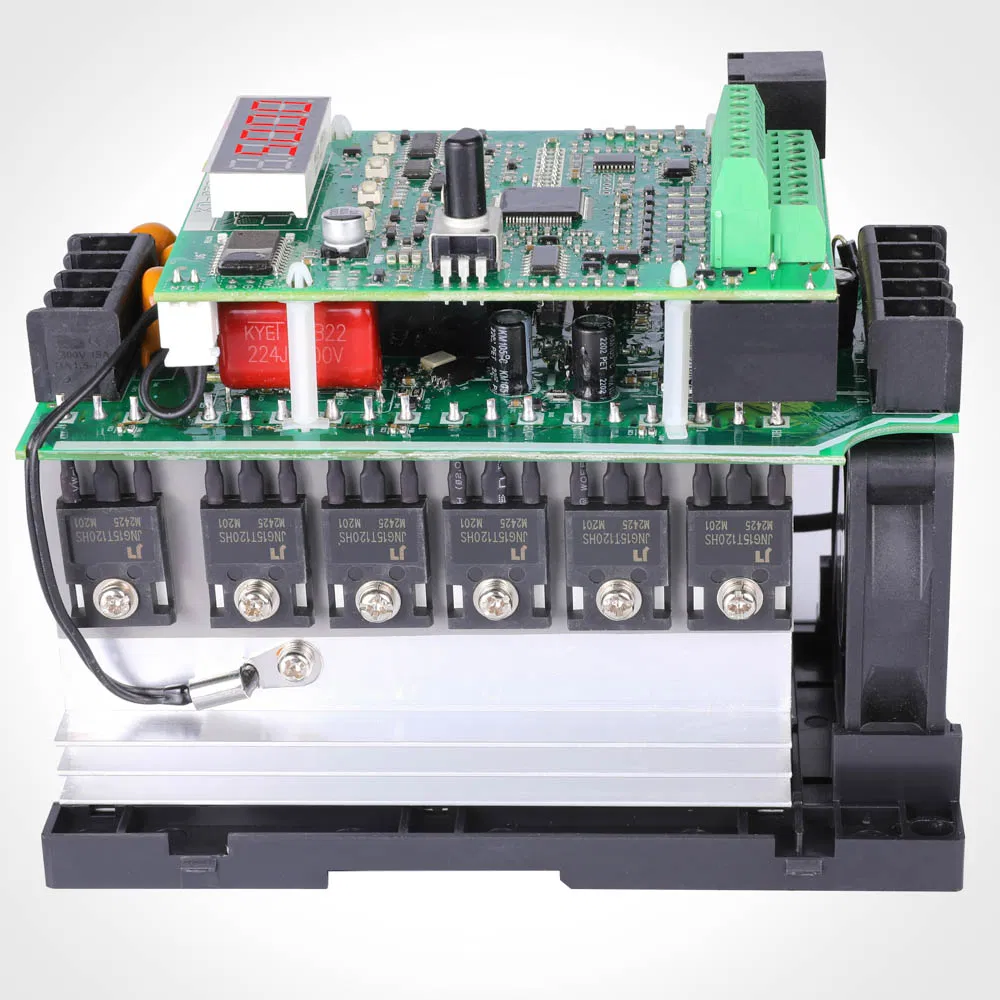

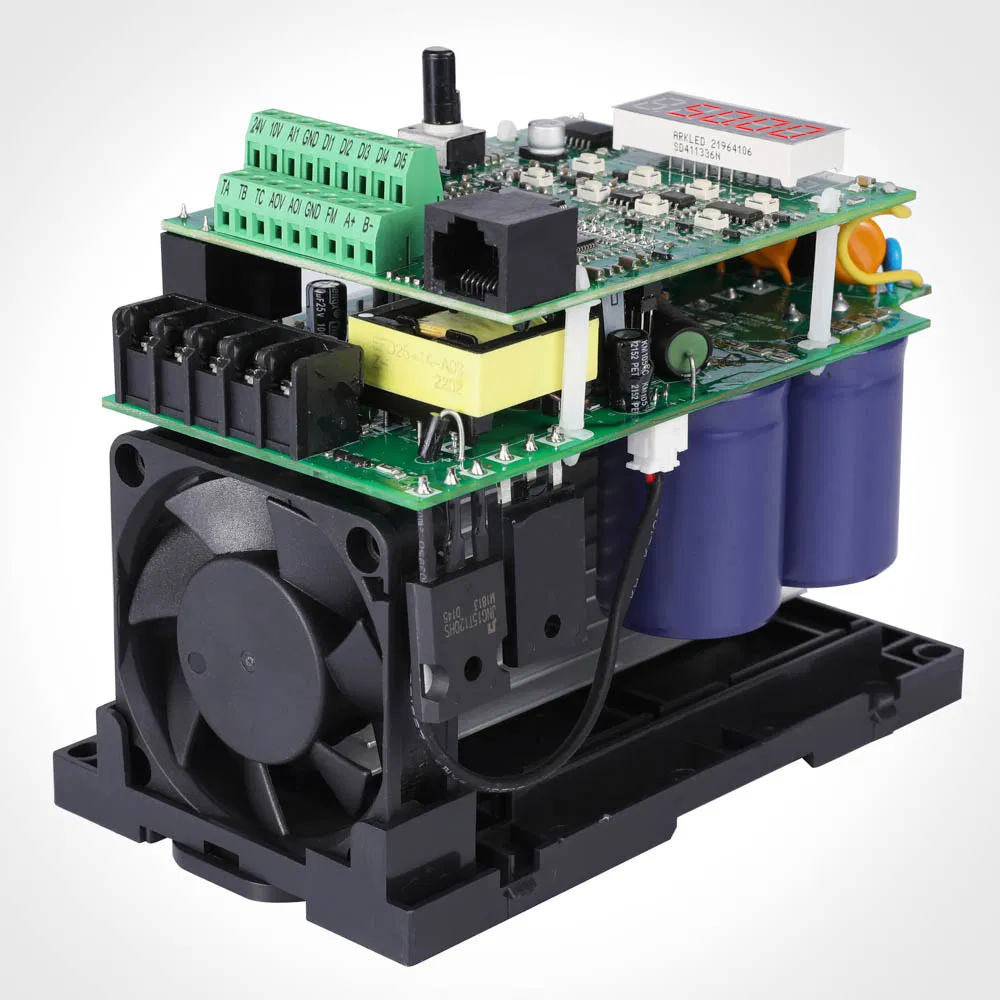

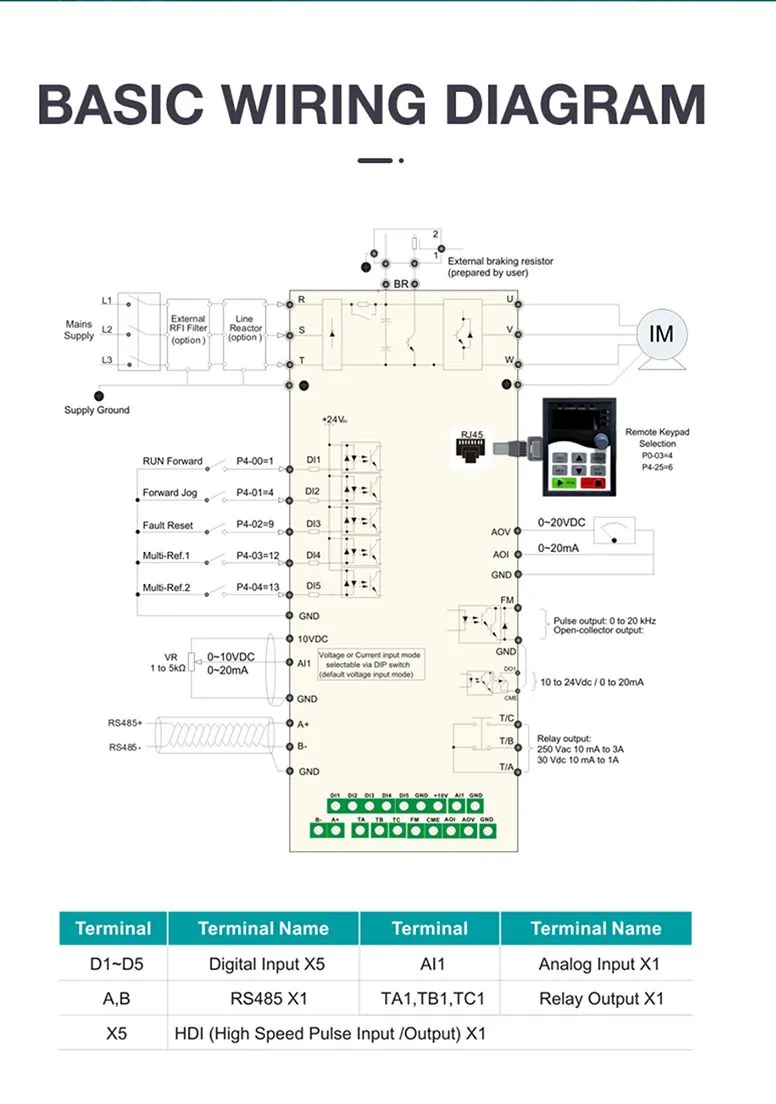

Control Board Diagram
🚀

Product Features

01
Compact design ideal for limited installation spaces like packaging and labeling machines.
02
Patented rubber keypad with a larger size for easier manual operation.
03
External keyboard support, allowing flexibility for panel assembling.
04
PC software for one-key settings, significantly reducing debugging time.
05
Built-in EMC C3 filter for enhanced anti-electromagnetic interference capability.
06
Independent air duct design ensures superior heat dissipation and easy maintenance.
07
Programmable DI/DO/AI and RS485 Modbus RTU & ASCII for seamless communication.
08
Integrated PID function for precision process control.
09
Integrated multi-speed function for complex operation cycles.
10
Support for fire override mode in emergency applications.

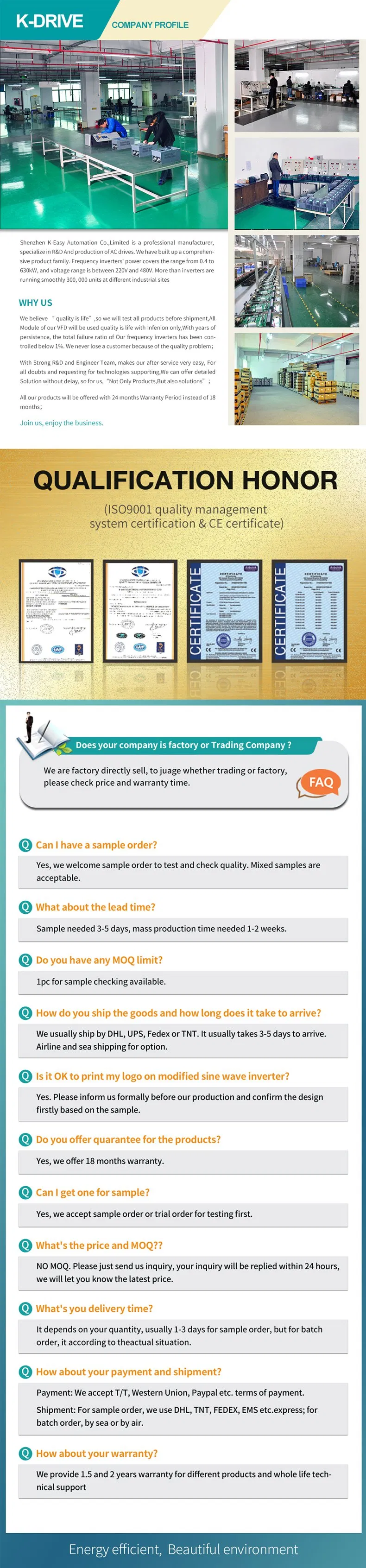

Technical Capability Overview
❓

Frequently Asked Questions

Q1: What is the input voltage range for the KD100 series?
The KD100 supports single-phase and three-phase 208V to 240V, as well as three-phase 380V to 480V power supplies.
Q2: Does this VFD include an interference filter?
Yes, it features a built-in EMC C3 filter to provide strong anti-electromagnetic interference performance.
Q3: Can the KD100 be used for high-precision speed control?
Absolutely. It utilizes Sensorless Vector Control (SVC) with a speed accuracy of ±0.2% and torque response under 10ms.
Q4: Is it suitable for space-constrained environments?
Yes, its compact design is specifically engineered for applications with limited installation space, such as packaging and conveyor systems.
Q5: What is the warranty period for this inverter?
The KD100 series comes with a comprehensive 3-year warranty, reflecting our commitment to high-quality components.
Q6: What communication protocols are supported?
It supports MODBUS RS485 (RTU & ASCII) for easy integration with PLC and other automation devices.

Related Products

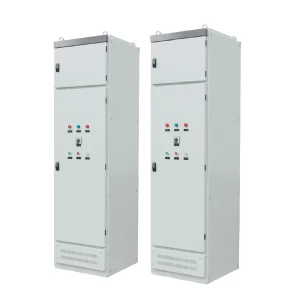

Own Resarched Low Voltage Frequency Drive VFD with Control Panel for Fans

Own Resarched Low Voltage Frequency Drive VFD with Control Panel for Fans
Low Voltage Vector Controller Variable AC Frequency Power Pump Motor Inverter Drives VFD

Low Voltage Vector Controller Variable AC Frequency Power Pump Motor Inverter Drives VFD
China Advanced Technology VFD for Improved Process Control and Energy Management in Industrial Systems Low Voltage VFD

China Advanced Technology VFD for Improved Process Control and Energy Management in Industrial Systems Low Voltage VFD

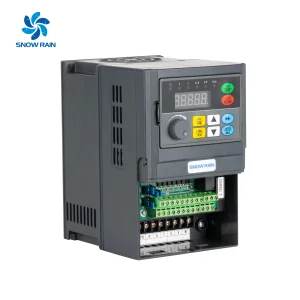

Snow Rain Low Voltage 380V Frequency Inverter 0.75kw VSD VFD

Snow Rain Low Voltage 380V Frequency Inverter 0.75kw VSD VFD

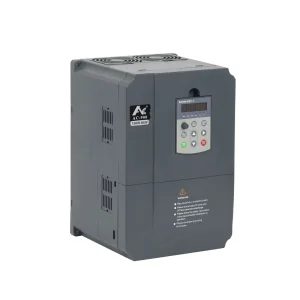

15kw 200V/400V Low Voltage Vectol Control /Torque Control VFD

15kw 200V/400V Low Voltage Vectol Control /Torque Control VFD
0.75kw-630kw Series Low Voltage General Industrial Use Vector VFD Variable Frequency Drive Inverter

0.75kw-630kw Series Low Voltage General Industrial Use Vector VFD Variable Frequency Drive Inverter

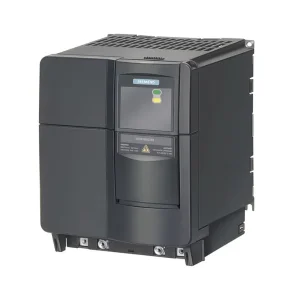

Original-New Sie-Mens-6se6440-2ad27-5ca1 Micromaster-440 7.5kw/11kw-Low-Voltage Frequency-Inverter VFD Negotiate-Price

Original-New Sie-Mens-6se6440-2ad27-5ca1 Micromaster-440 7.5kw/11kw-Low-Voltage Frequency-Inverter VFD Negotiate-Price

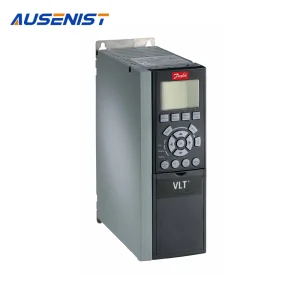

Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw

Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
11kw VFD 380V Input Low Voltage Power Variable Frequency Converter for Industrial

11kw VFD 380V Input Low Voltage Power Variable Frequency Converter for Industrial

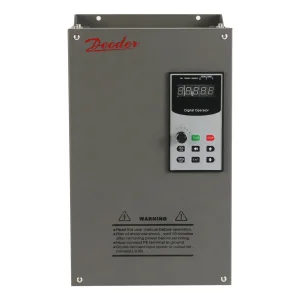

China Wholesale Frequency Inverter Medium Low Voltage Variable Frequency Drive 55kw VFD
