| Principle of Work | V/F Control Transducer |
| Switch Mode | PWM Control |
| Main Circuit Type | Voltage |
| Power Supply | Low Voltage Variable-Frequency Drive |
| Function | Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type, Motor Control and Protection |
| Input Frequency | 50/60Hz |
| Nominal Voltage | 220V, 380V, 415V |
| Size | 501*390*328 mm |
| Weight | 18.25kg |
| Output Frequency | SVC:0-320Hz V/F:0~3200Hz |
| Communication | RS485/Modbus/Profinet/Profibys |

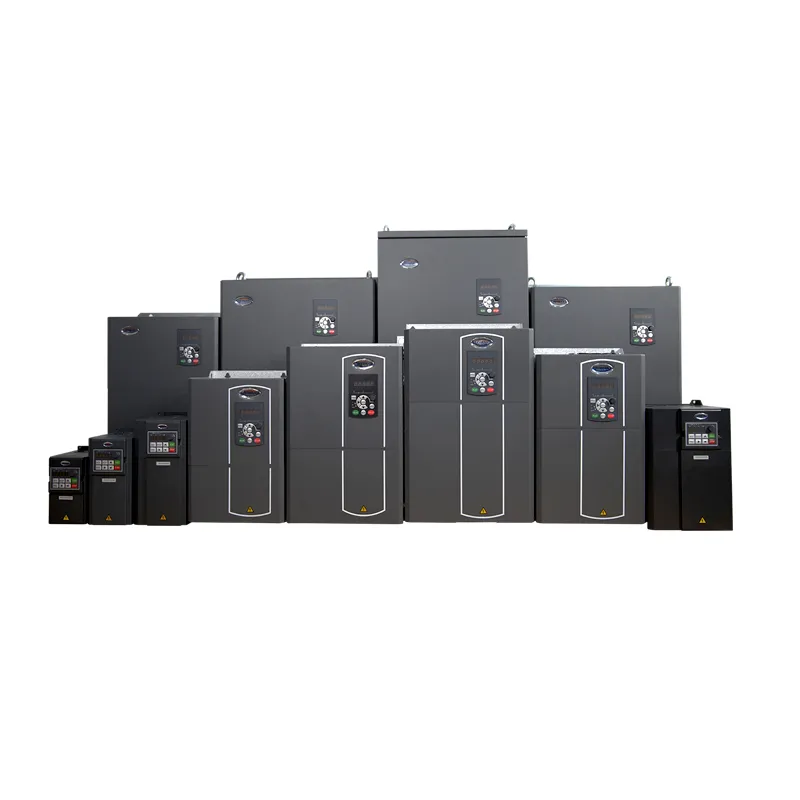

| Capacity Range | 0.45-1750kw |

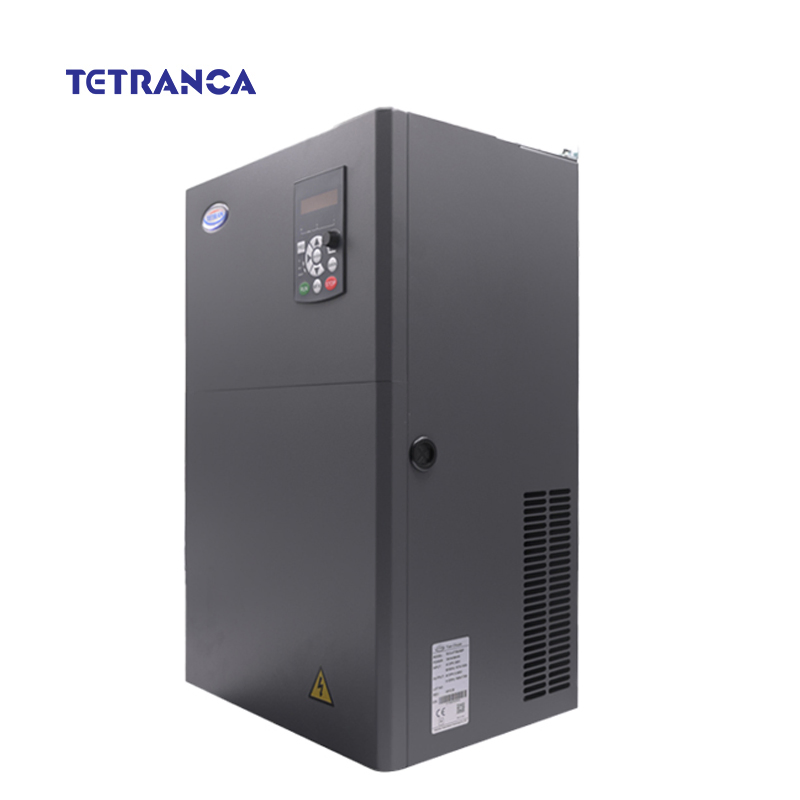

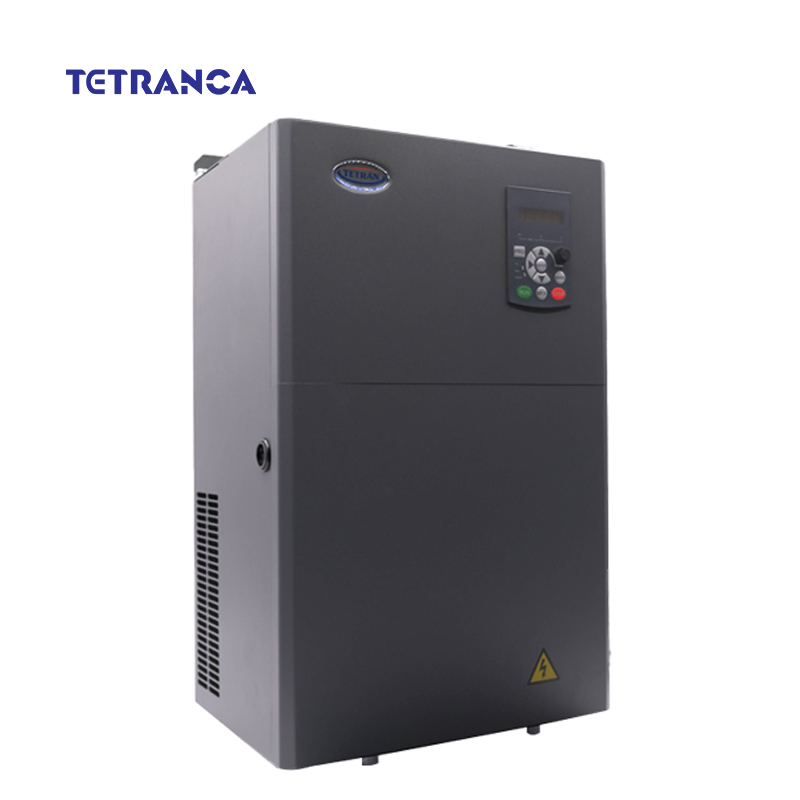

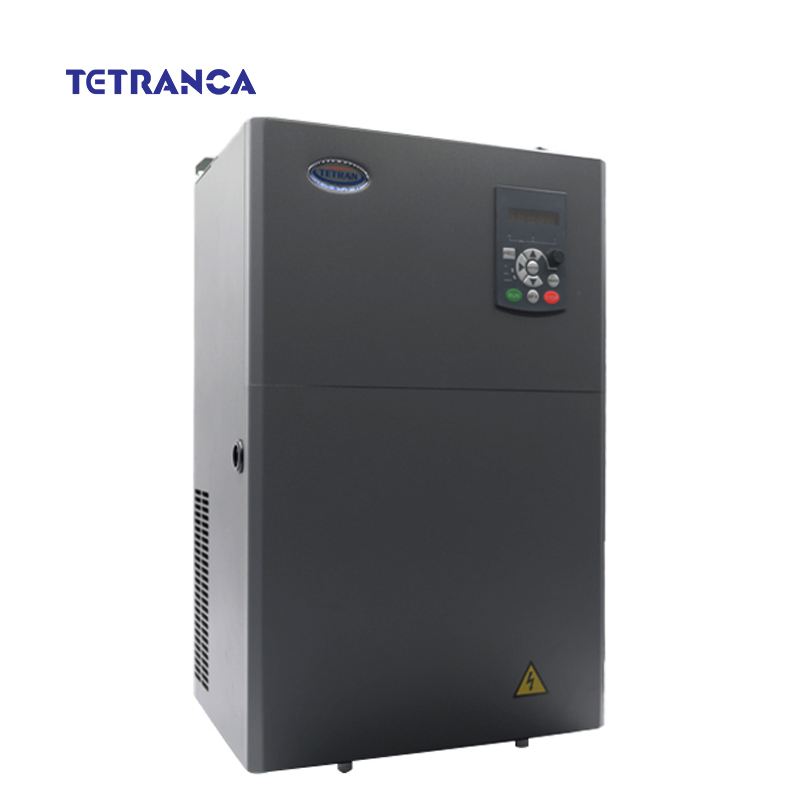

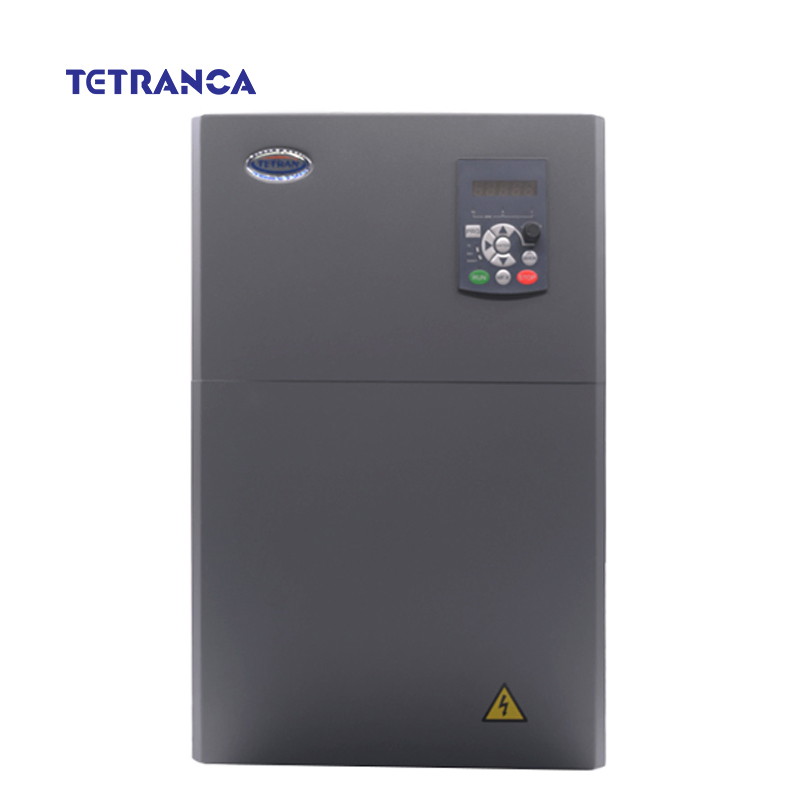

The T510 series frequency converter adopts sensorless vector control technology, and the product has excellent driving performance and control functions. It can accurately identify the parameters of allosynchronous induction motor and permanent magnet synchronous motor, and realize high-performance vector control.

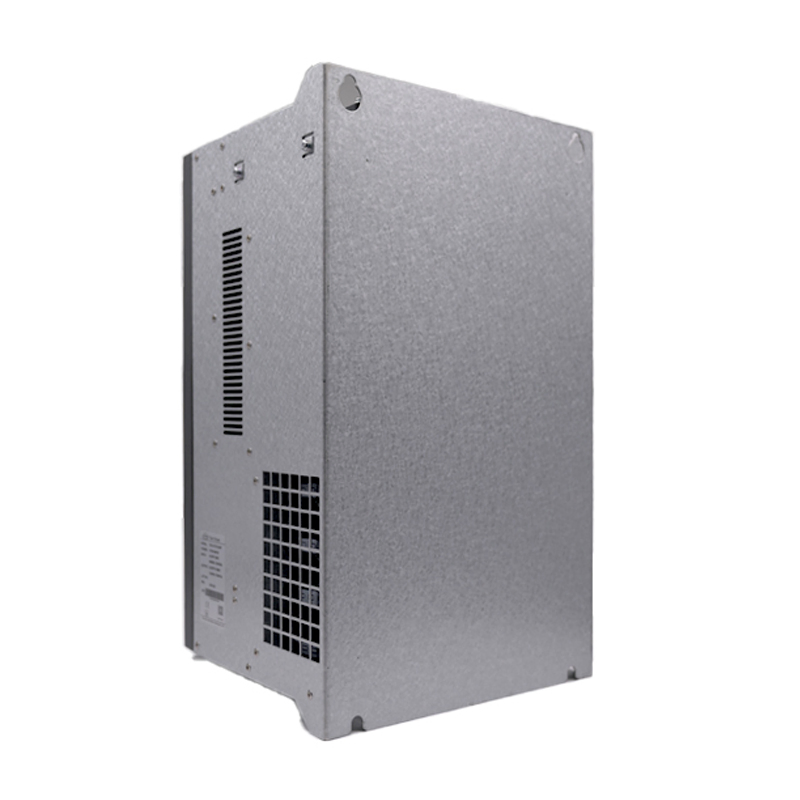

0.75~22KW built-in Standard brake unit, optional for 30-37KW. Features an independent air duct design for enhanced reliability.
| Electrical Specification | |
|---|---|
| Input Voltage | Single Phase/ Three Phase 200~240V, Three Phase 380~440V |
| Output Voltage | 0-220v, 0-415v |
| Overload Capacity | G type: 150% 1 min; P type: 120% 1 min |
| Control Method | Open-loop vector control (SVC), V/F control |
| Working Temp | -10°C to +40°C (up to 50°C with derating) |
| Environment | Indoor, free from direct sunlight, dust, corrosive gas |

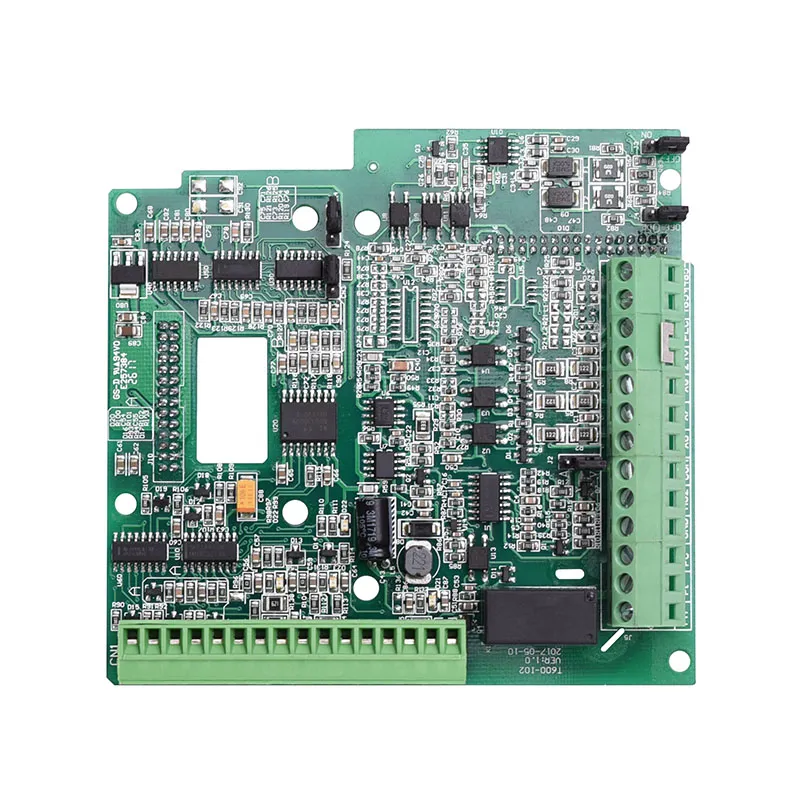

FULL FUNCTIONING
485 communication + 16 speed adjustable + simple PLC

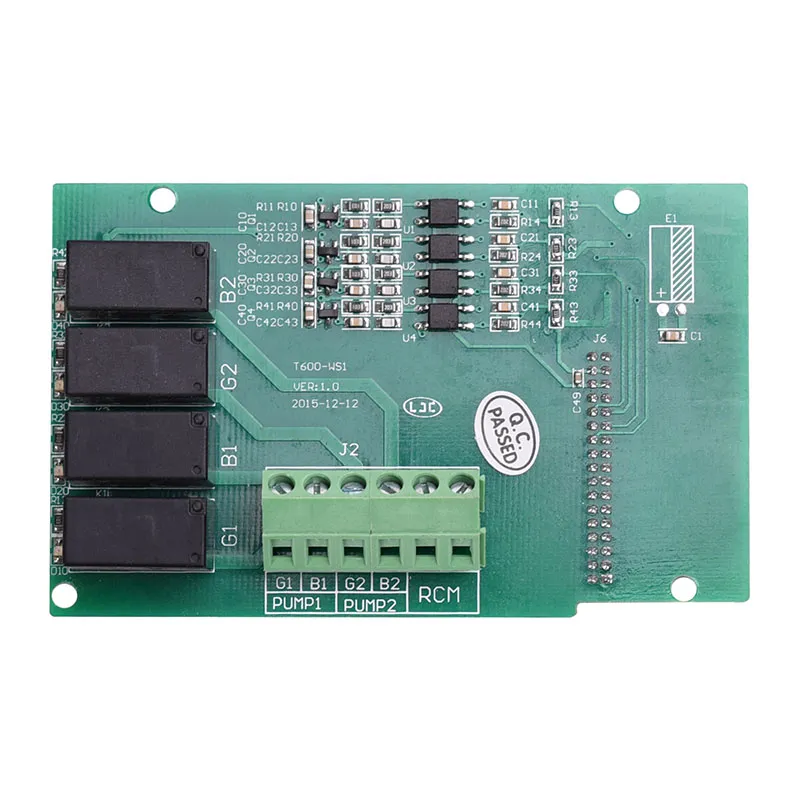

Independent grounding design to solve EMC interference

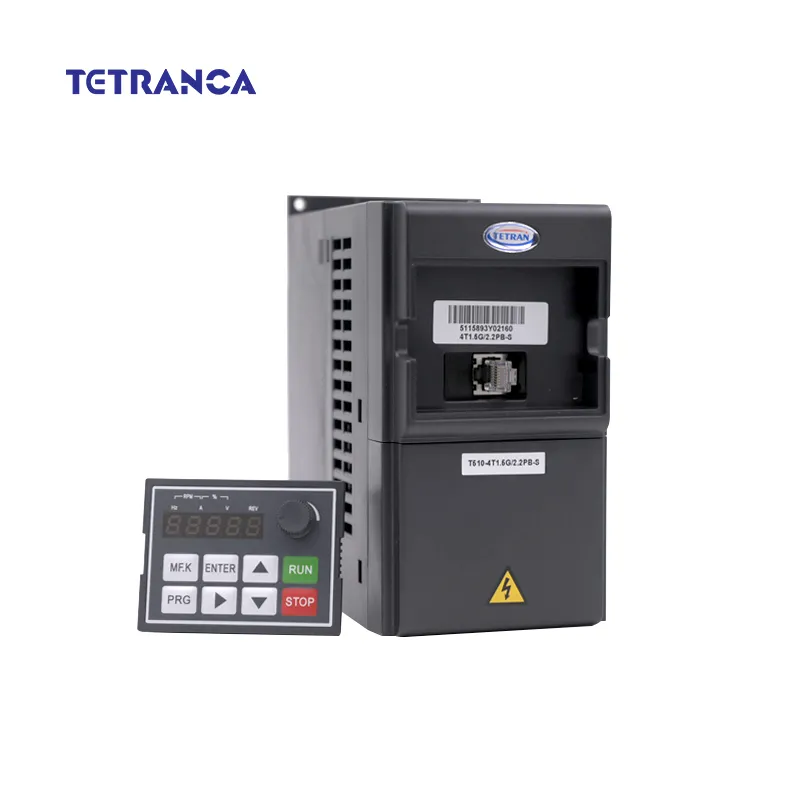

Mobile digital operation panel with 2m extension support
Quick disassembly screw-free cover design

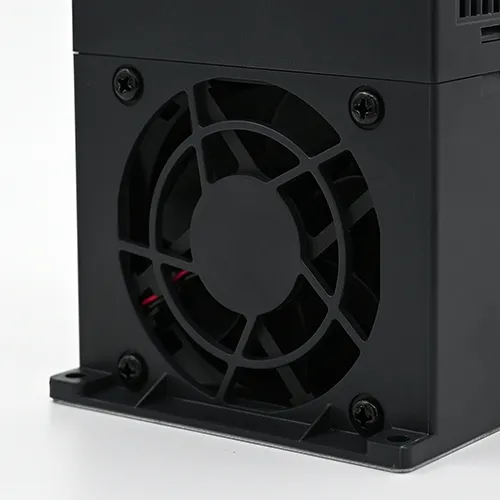

Standard cooling fan with easy-to-disassemble design
Our high-performance inverters are widely used in multiple industries:

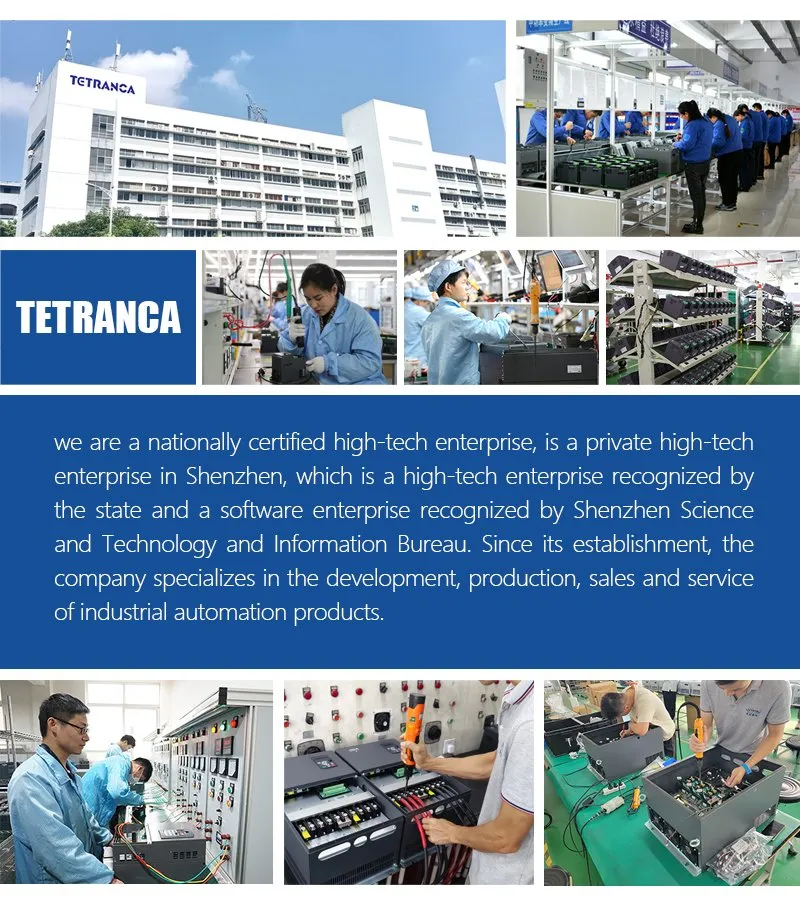

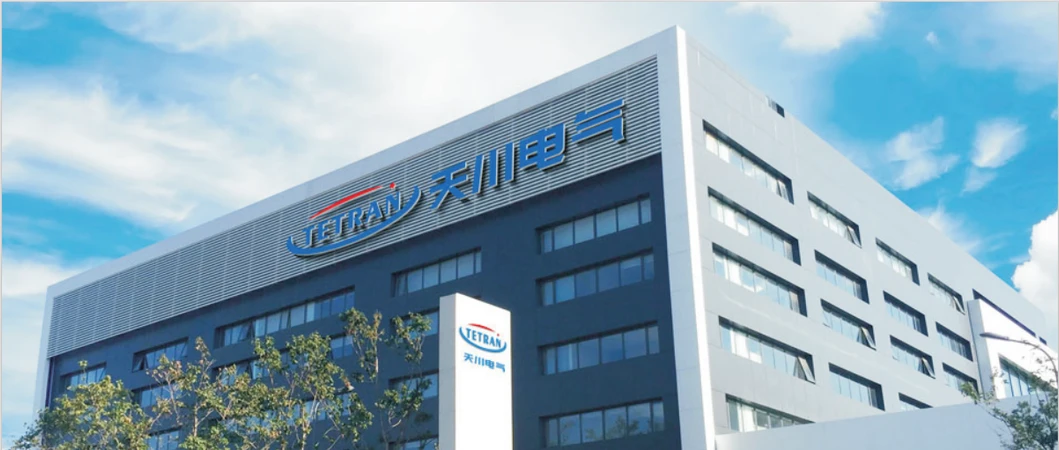

Core Technology: 187 intellectual property rights obtained (26 invention patents, 59 utility model patents).
Experience: Focused on motor drive control for 15 years.
Capacity: Annual capacity of 500,000 sets of inverters.
Standard export packaging: waterproof, dustproof, and pressure resistant. Ensures safety during international transportation.
