| Feature | Details |
|---|---|

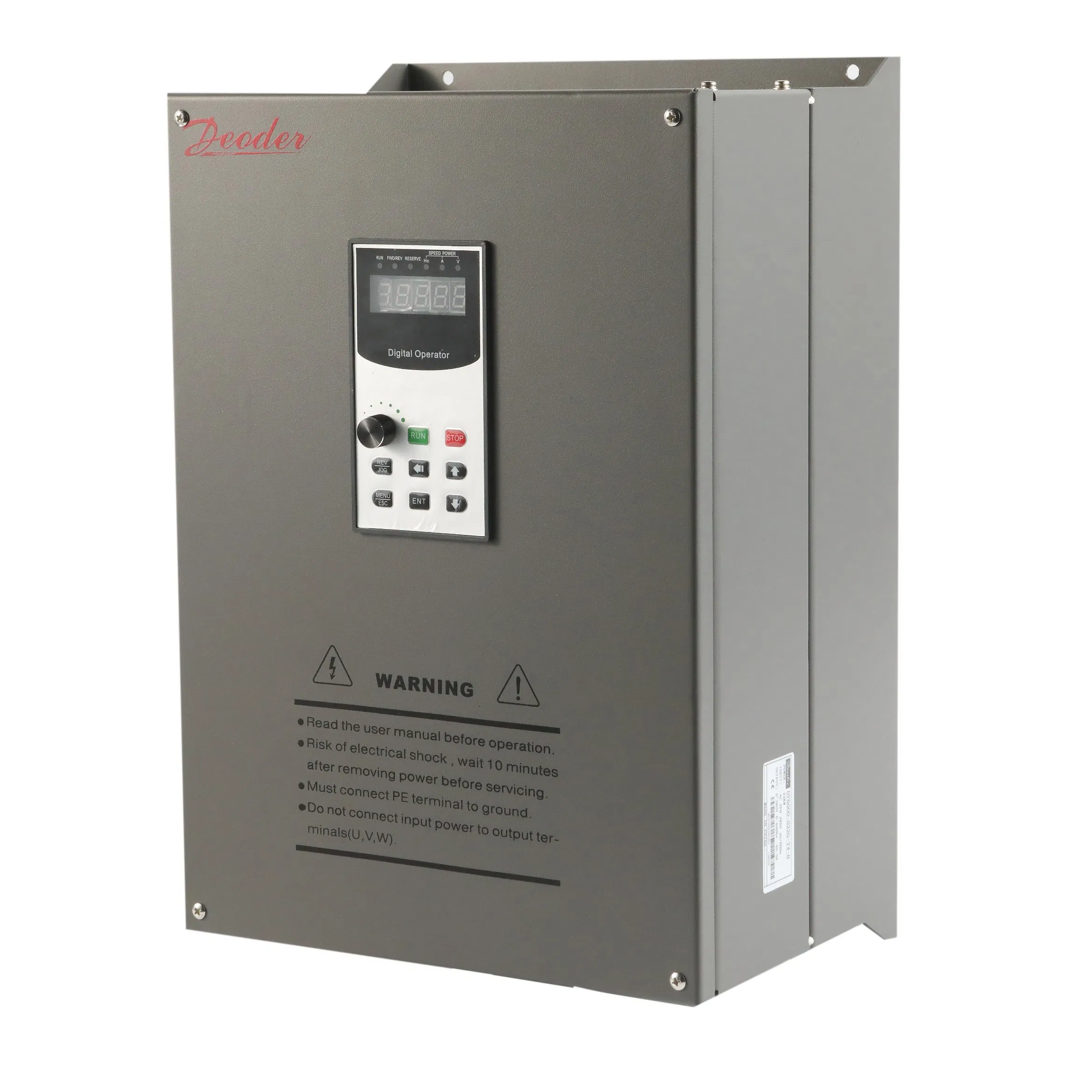

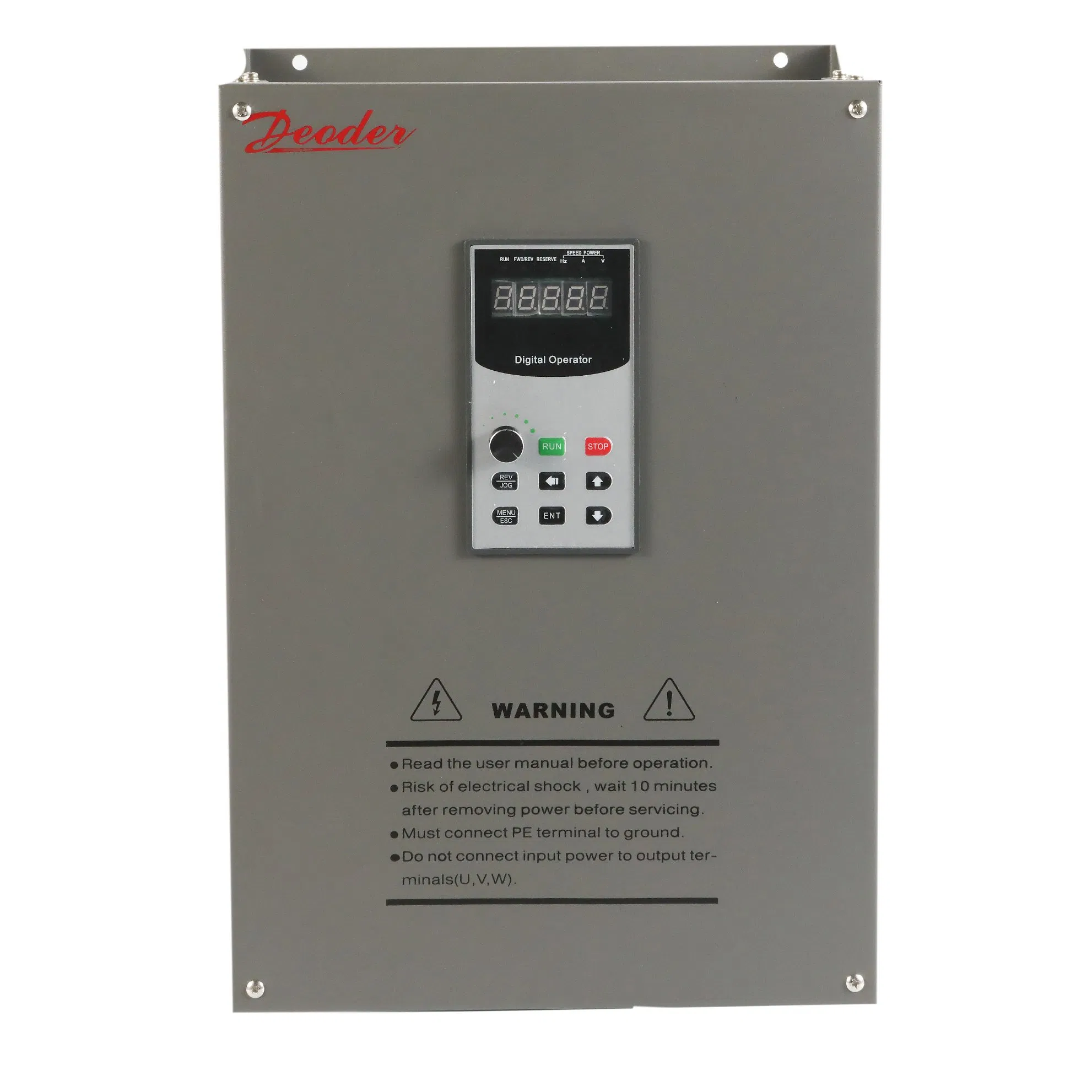

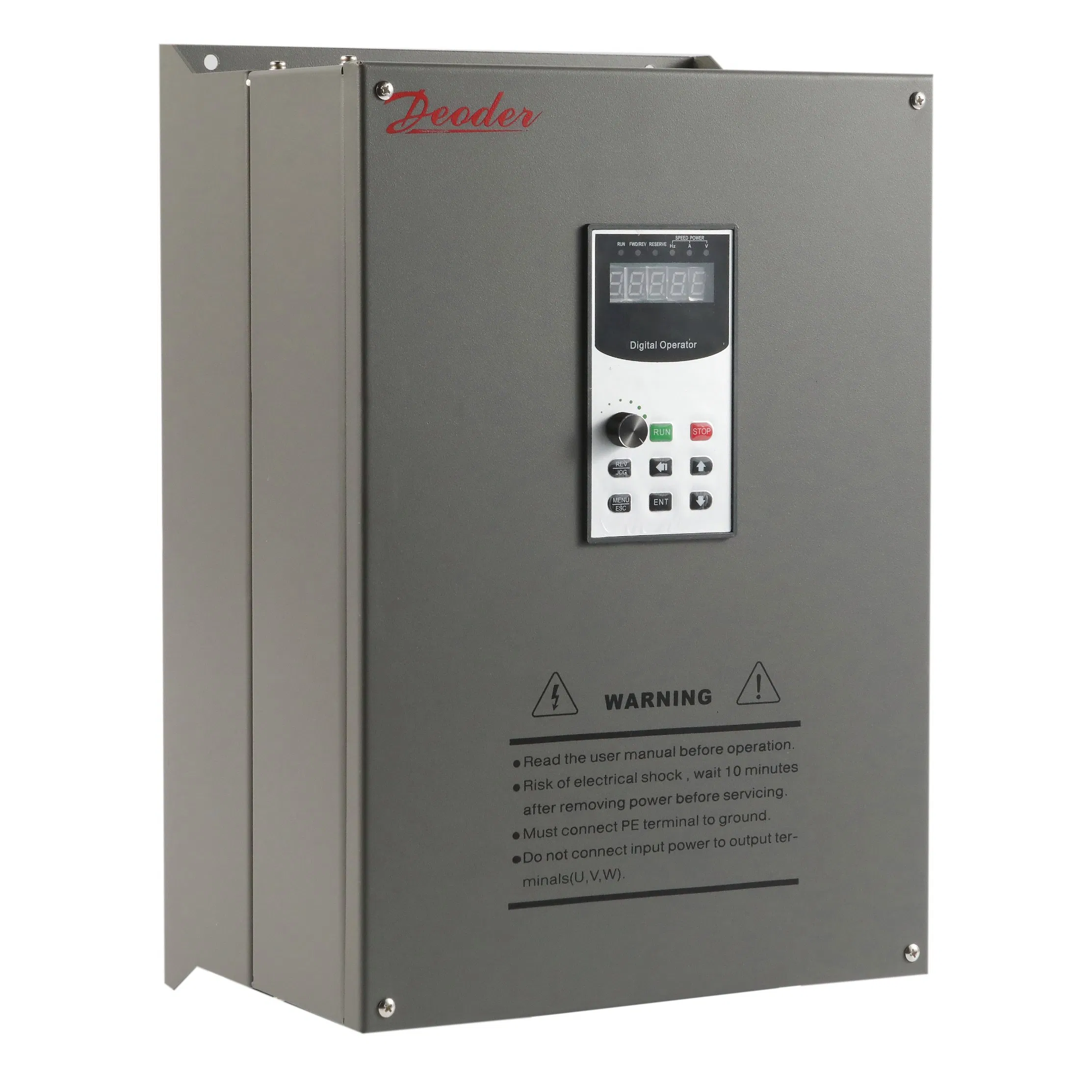

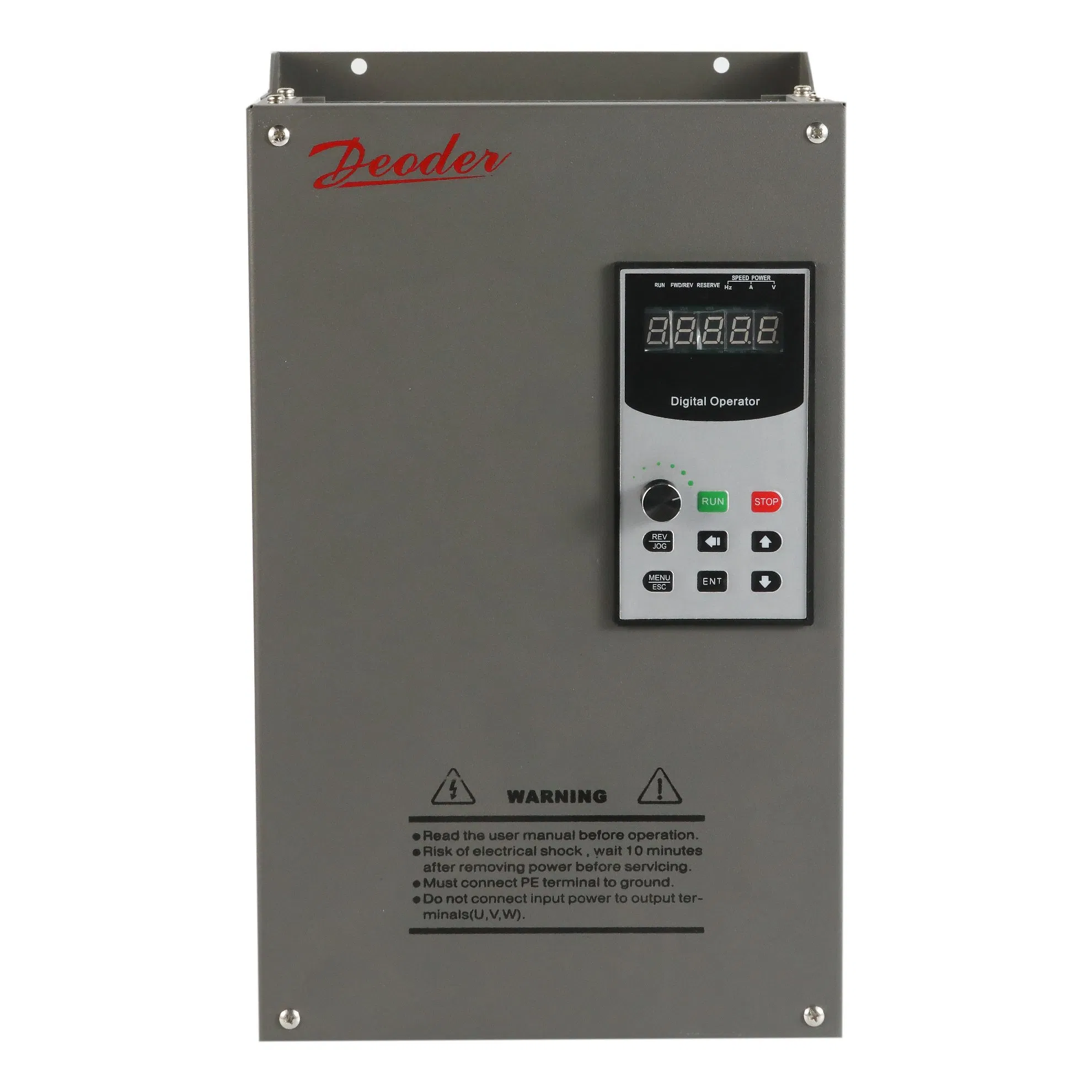

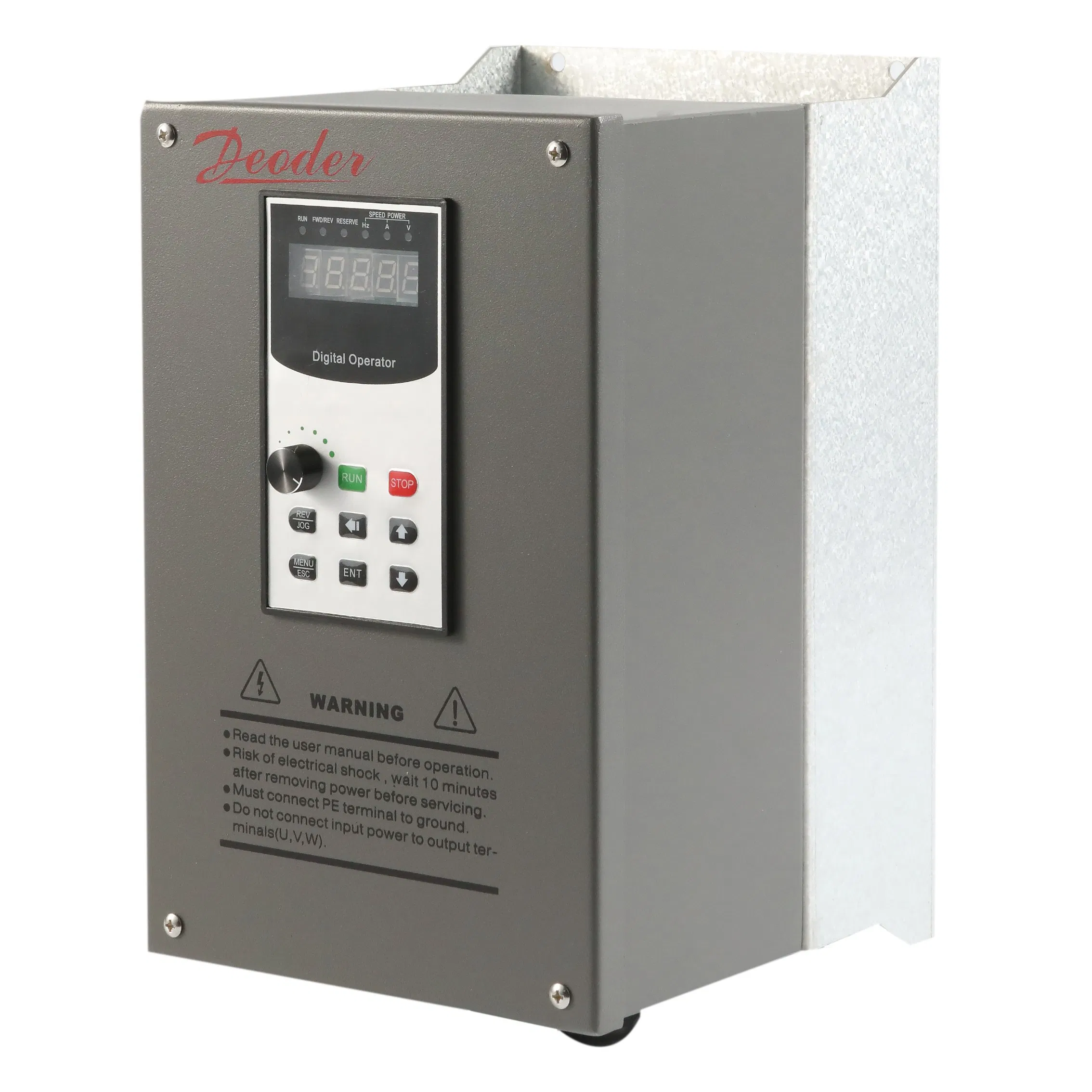

| Model Series | H100 & DV6000 Series Frequency Converter |
| Power Range | 3 Phase AC 380V~480V (-10% ~ +10%) 0.75KW ~ 550KW |
| Output Frequency | 0.00~1000Hz (Default: 50/60Hz) |
| Control Mode | V/F Control, Sensorless Vector Control, Torque Control |
| Starting Torque | 0.5Hz/150%(SVC) |
| Communication | RS-485, supports MODBUS protocol |
| Energy Saving | Power saving rate 30% - 80% |
| PID Control | Built-in, ideal for constant pressure water supply |
| Fault Protection | Over current, over voltage, under voltage, over temperature, phase failure, over load etc. |
| Inverter Model | Power (kW) | Input Voltage | Output Current (A) | Dimension W×H×D (mm) |
|---|---|---|---|---|
| DV6000-5R5G-4T-H | 5.5 | 380V | 13 | 176×300×207 |
| DV6000-7R5G-4T-H | 7.5 | 380V | 17 | 176×300×207 |
| DV6000-011G-4T-H | 11 | 380V | 25 | 176×300×207 |
| DV6000-015G-4T-H | 15 | 380V | 32 | 220×380×204 |
| DV6000-022G-4T-H | 22 | 380V | 45 | 282×430×213 |
| DV6000-037G-4T-H | 37 | 380V | 75 | 282×430×242 |
| DV6000-055G-4T-H | 55 | 380V | 110 | 380×460×251 |
| DV6000-110G-4T-H | 110 | 380V | 210 | 390×722×278 |
| DV6000-220G-4T-H | 220 | 380V | 380 | 480×846×339 |
Variable frequency converter is applicable for: Fans, Pumps, 3-Phase Motors, Machine Tools, Textile, Mining, Chemical, Plastic machinery, Metallurgy, Oil, Woodworking, Pharmaceutical, Ceramics, Paper, Lifting, Printing, Air Compressors, and Agricultural Irrigation.
