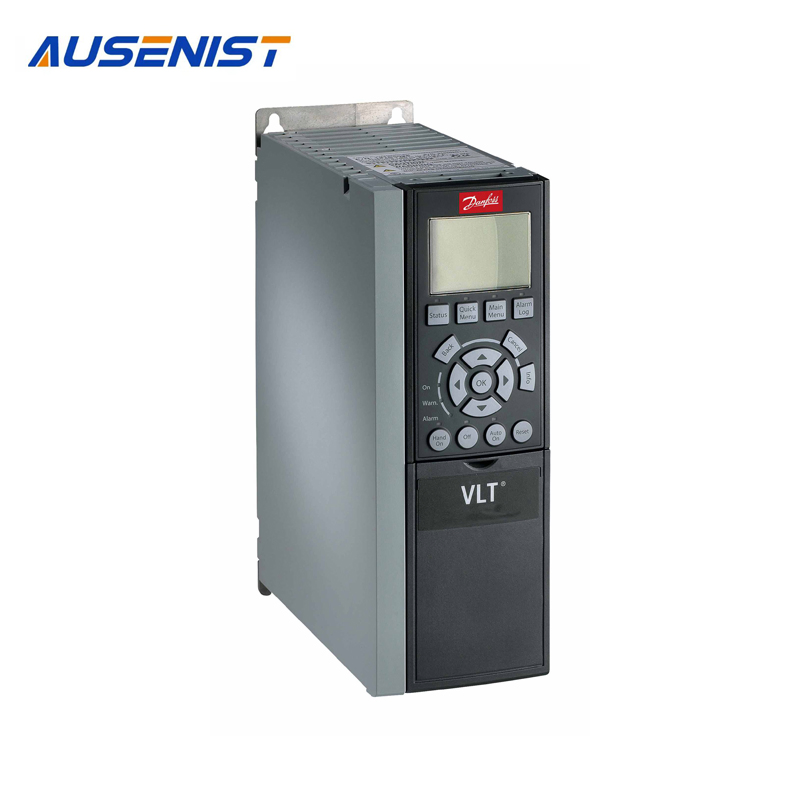

Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
1 / 5
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw
Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw

Automation Drive FC-302 131b0144 Low-Voltage VFD 0.55kw

Customization: Available
Application: Three Phase Transducer
Output Type: Triple
Send Inquiry

Product Description

i

Basic Information

Model NO.131B0144
PrincipleVector Control Transducer
Switch ModePWM Control
Circuit TypeVoltage
SeriesVLT® AutomationDrive 302
Power Rating0.55 Kw / 7.5 HP
Mains Voltage380 - 500 VAC
PhaseThree Phase
EnclosureIP20 / Chassis
RFI FilterClass A1/B (C1)
HS Code8504409999
OriginChina
📋

Technical Specifications

Gross Weight4.41 kg (Calculated) / 7.08 Kg (Shipping)
Net Weight3.89 kg / 6.55 Kg
Volume21.569 l
EAN5702427096295
Frame SizeA2
LCPGraphical Local Control Panel
PCB CoatingCoated PCB
Dimensions (HxWxD)268.0 mm x 90.0 mm x 205.0 mm
Continuous Current (HO)1.6 A - 1.8 A
Intermittent Current (HO)2.56 A - 2.88 A
Power Loss HO42 W
Transport PackageCarton (43.5 cm x 55.0 cm x 25.0 cm)
🖼️

Product Gallery

Automation Drive FC-302 131b0144 View 1
Automation Drive FC-302 131b0144 View 2
Automation Drive FC-302 131b0144 View 3

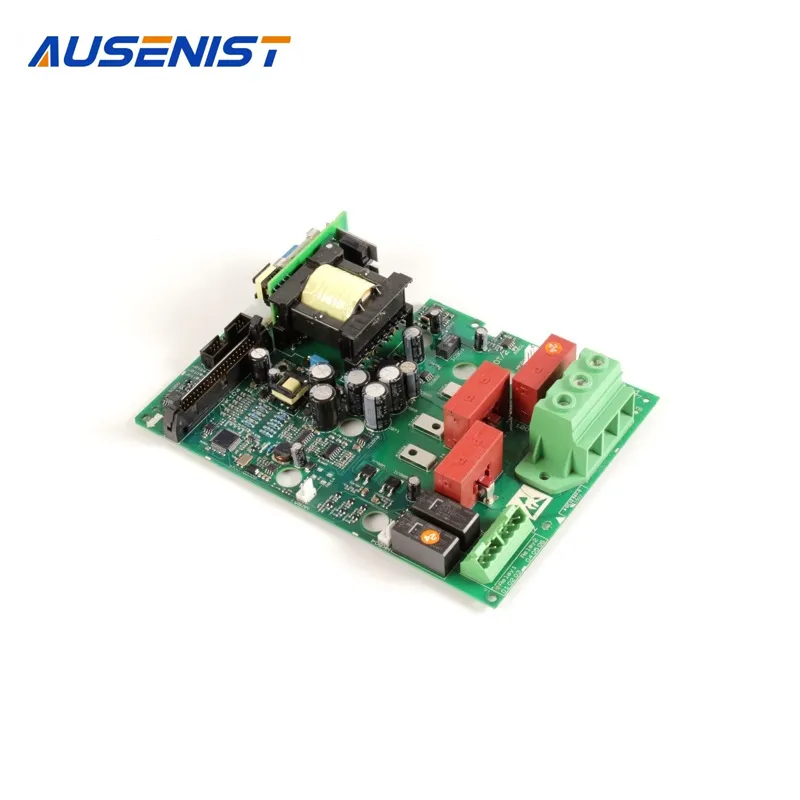

Automation Drive FC-302 131b0144 View 4

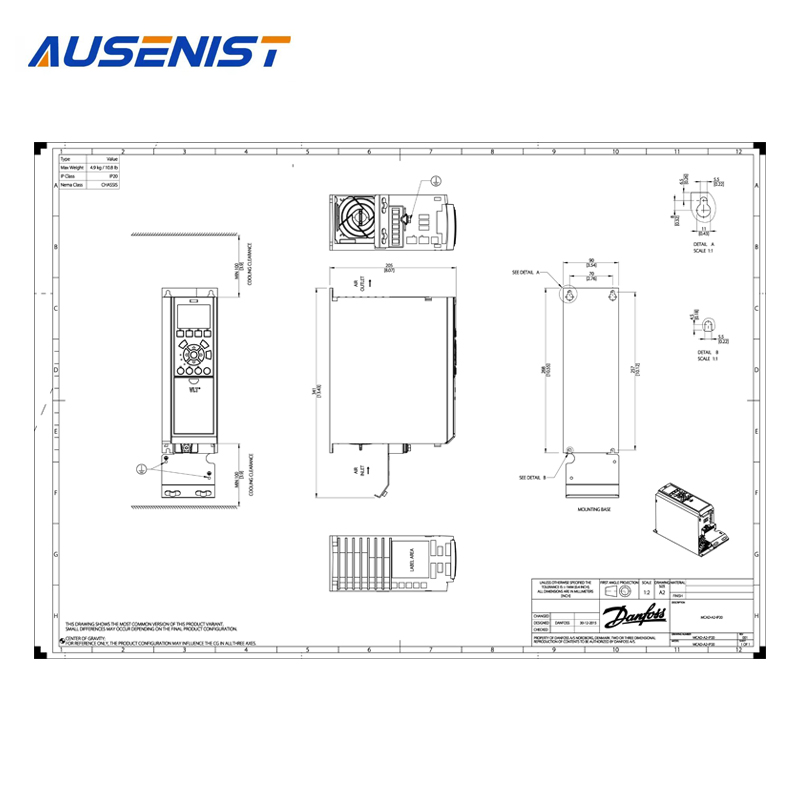

Automation Drive FC-302 131b0144 Dimensions
?

Frequently Asked Questions

What is the power rating of the FC-302 model 131B0144?
The power rating for this specific VFD model is 0.55 KW (equivalent to 0.75 HP).
What is the enclosure protection rating?
It features an IP20 enclosure rating, which is a chassis-style design suitable for indoor installation in controlled environments.
Does this unit support three-phase power supply?
Yes, it is designed for a three-phase mains voltage ranging from 380 VAC to 500 VAC.
Is an RFI filter included?
Yes, this model comes equipped with an H2 RFI filter class (standard RFI filter capabilities).

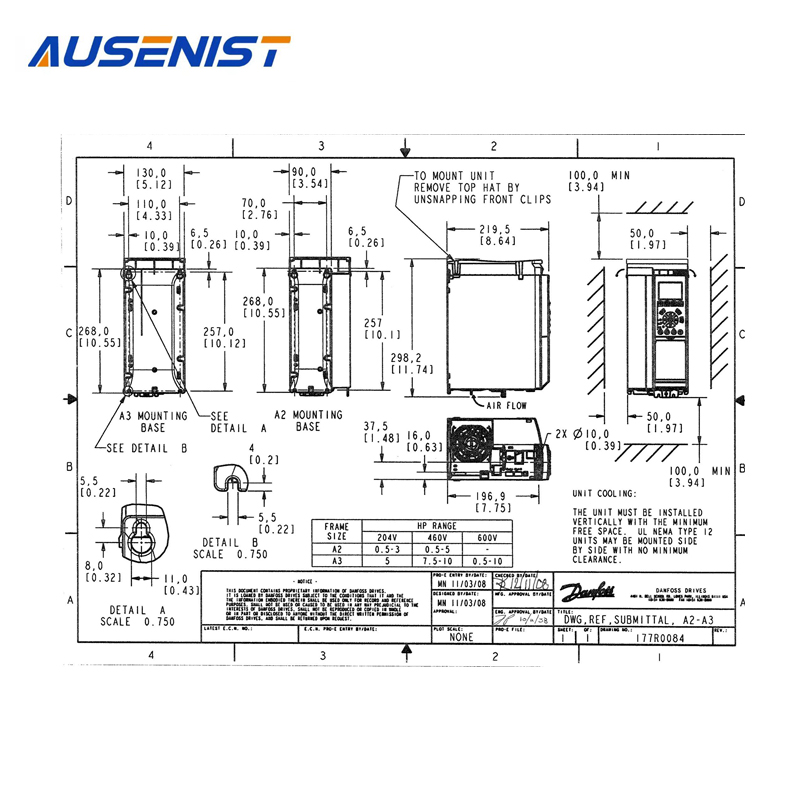

What are the physical dimensions and frame size?
The unit has a frame size of A2. Its dimensions are approximately 268 mm in height, 90 mm in width, and 205 mm in depth.
What type of control interface does it use?
It includes a Graphical Local Control Panel (LCP) for easy monitoring and manual configuration.
