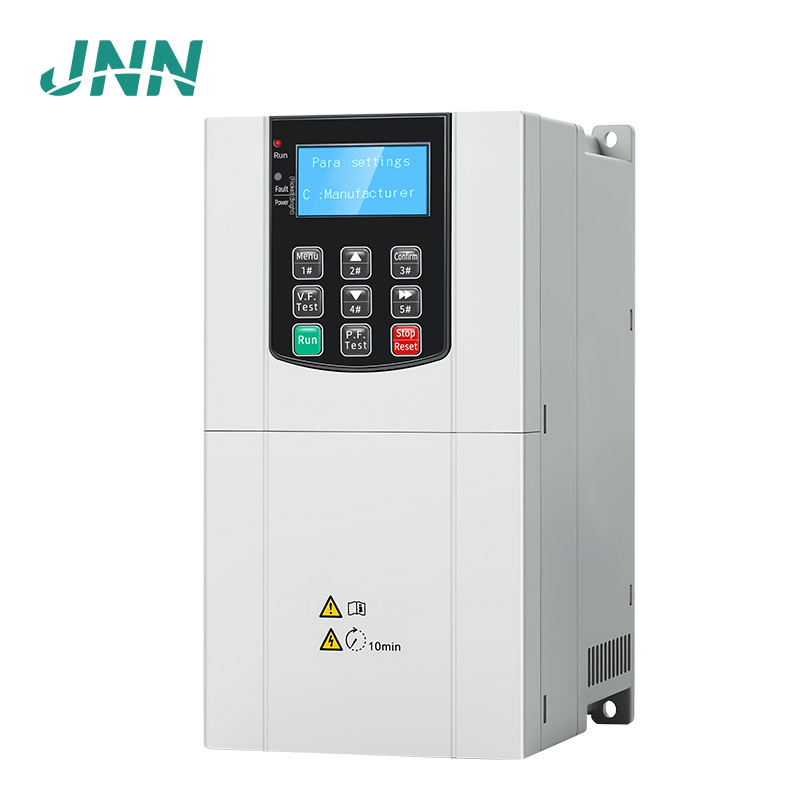

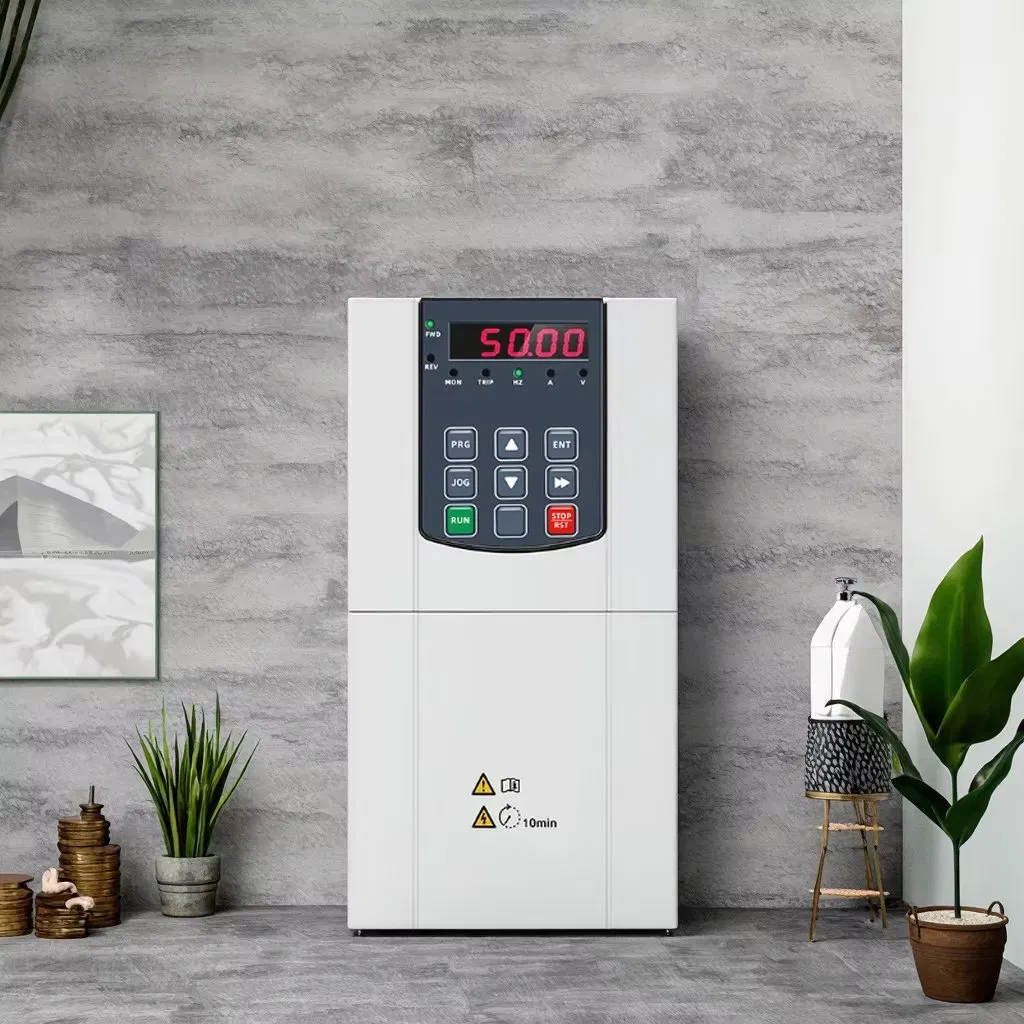

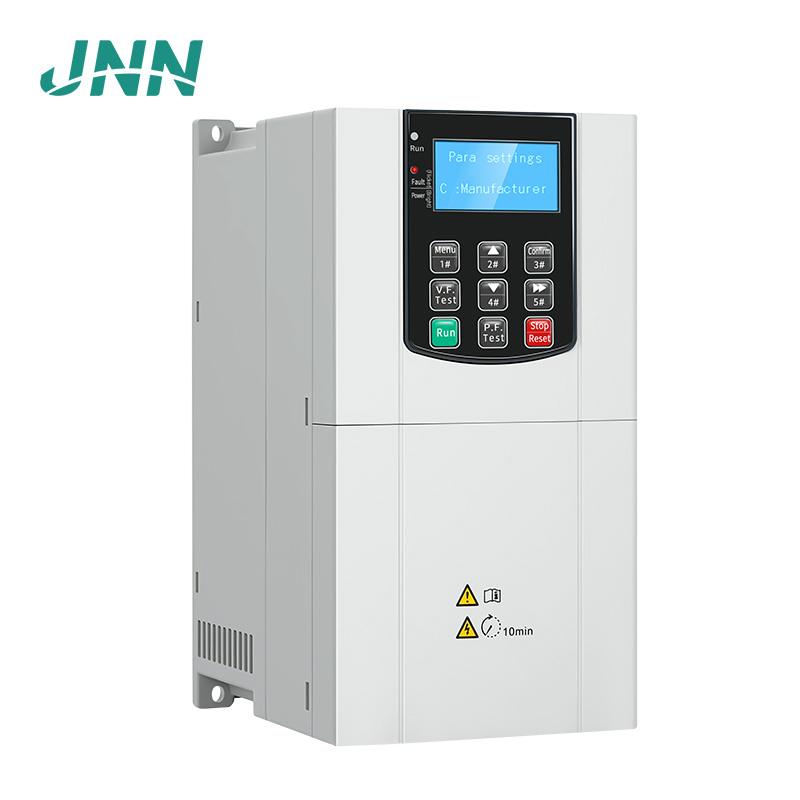

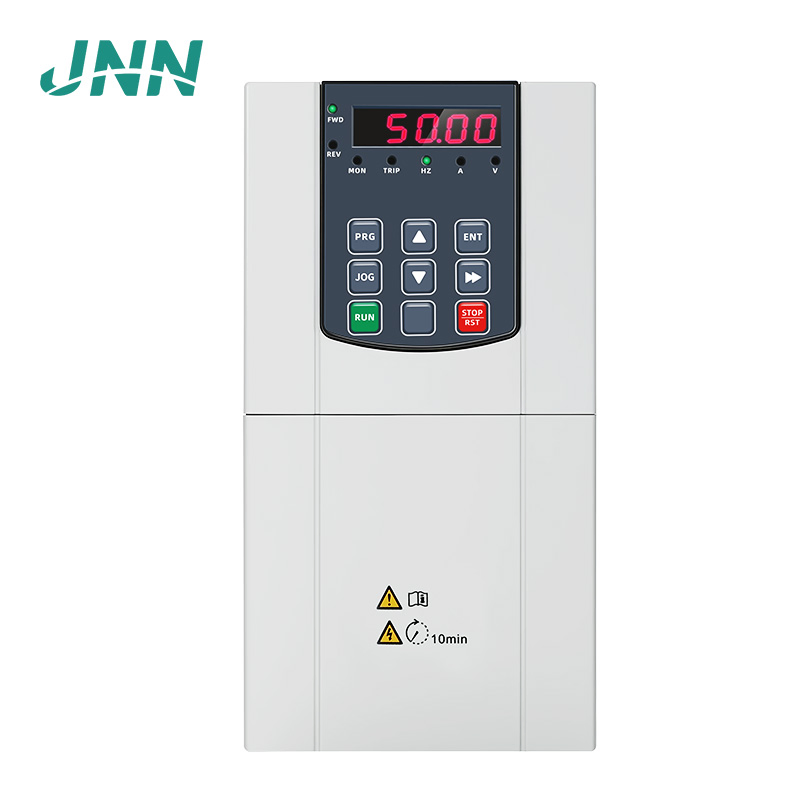

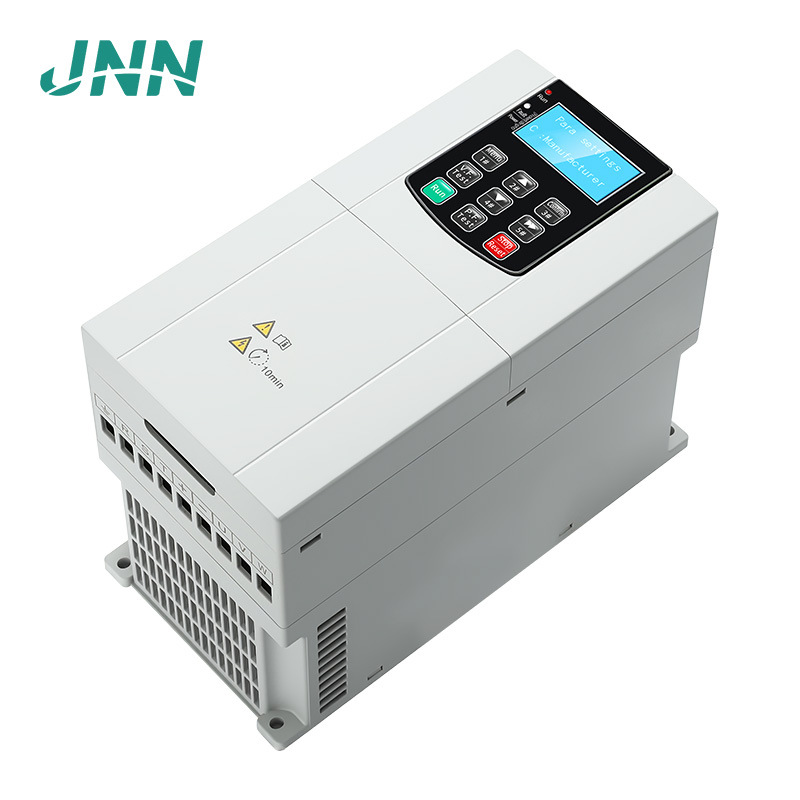

11kw VFD 380V Input Low Voltage Power Variable Frequency Converter for Industrial

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Specification
Model NO.
LW-9000-011T3
Switch Mode
PWM Control
Main Circuit Type
Voltage
Rated Power
11kw
Rated Voltage
AC380V
Rated Input Current
26A
Rated Output Current
25A
Adapted Motor
7.5-11kw
Nature of DC Power
Current Variable-Frequency Drive
Specification
254x124x170mm
Origin
China
Production Capacity
50,000 PCS/Year
Variable Frequency Converter
📝 Product Overview

LW-9000VFD Series: Three-phase AC 380V 600Hz Variable Frequency Pump Control System and Voltage Frequency Regulation.

Wide Application: This high-performance VFD is extensively used in various industrial sectors, including machine tools, textiles, petroleum, ceramics, stone processing, plastics, air compressors, papermaking, lifting and hoisting, fans, and water pump systems.

🔍 Product Details

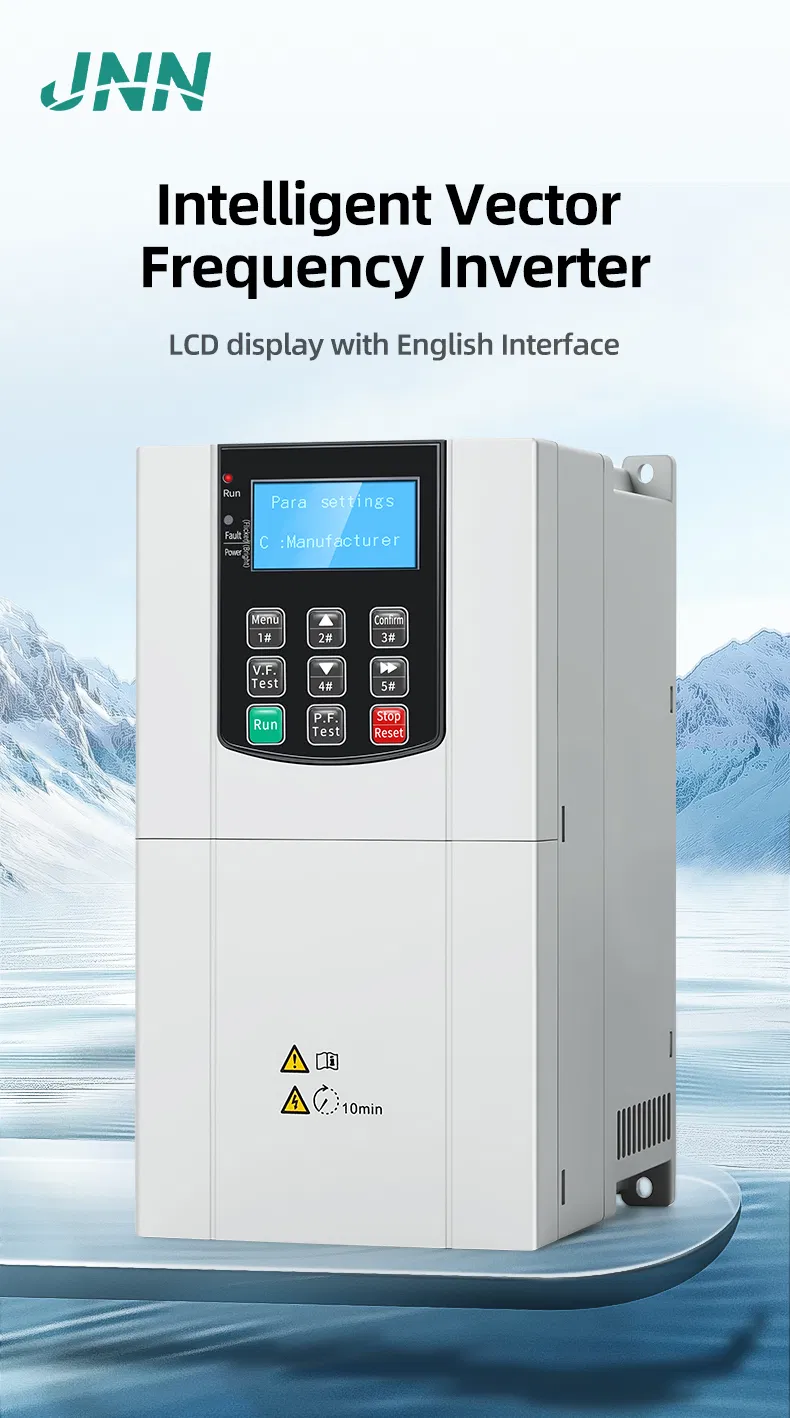

VFD Detail 1

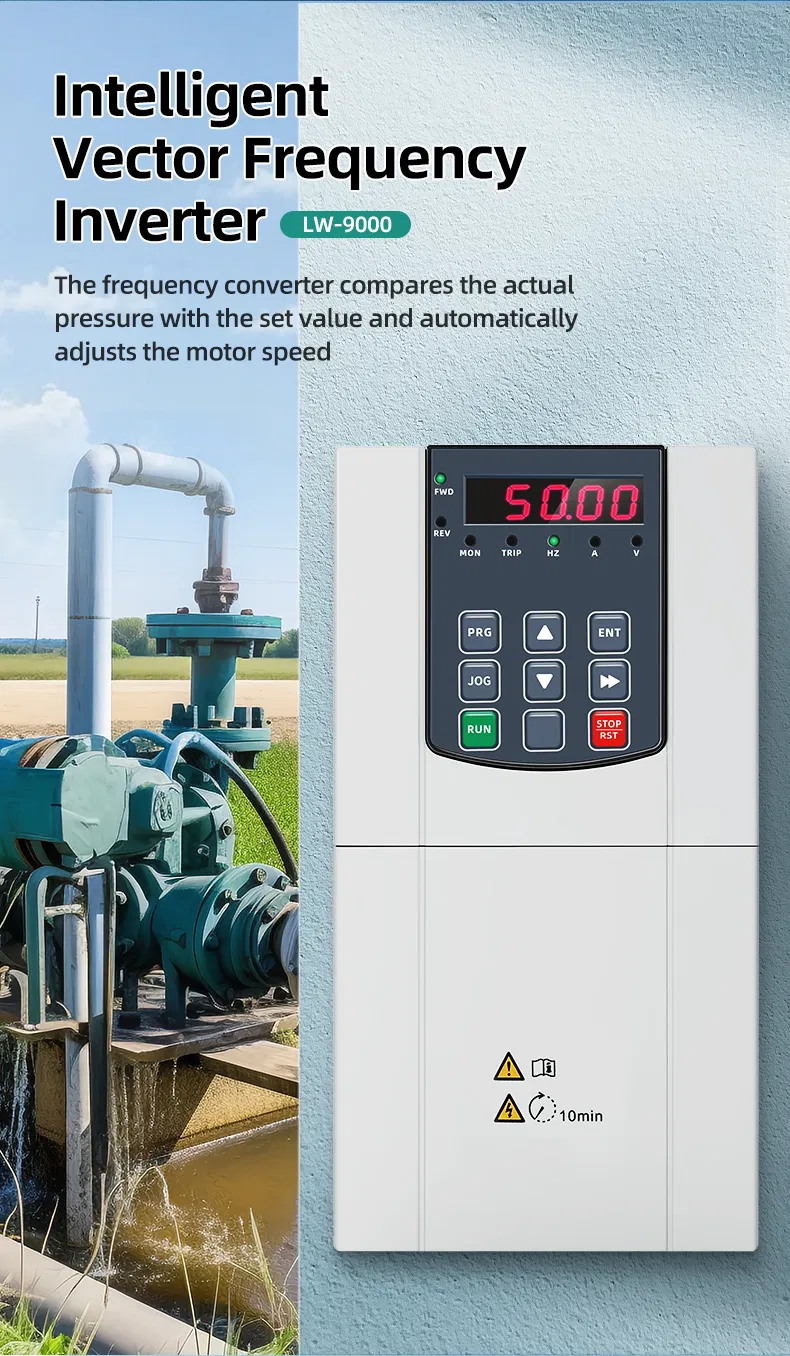

VFD Detail 2

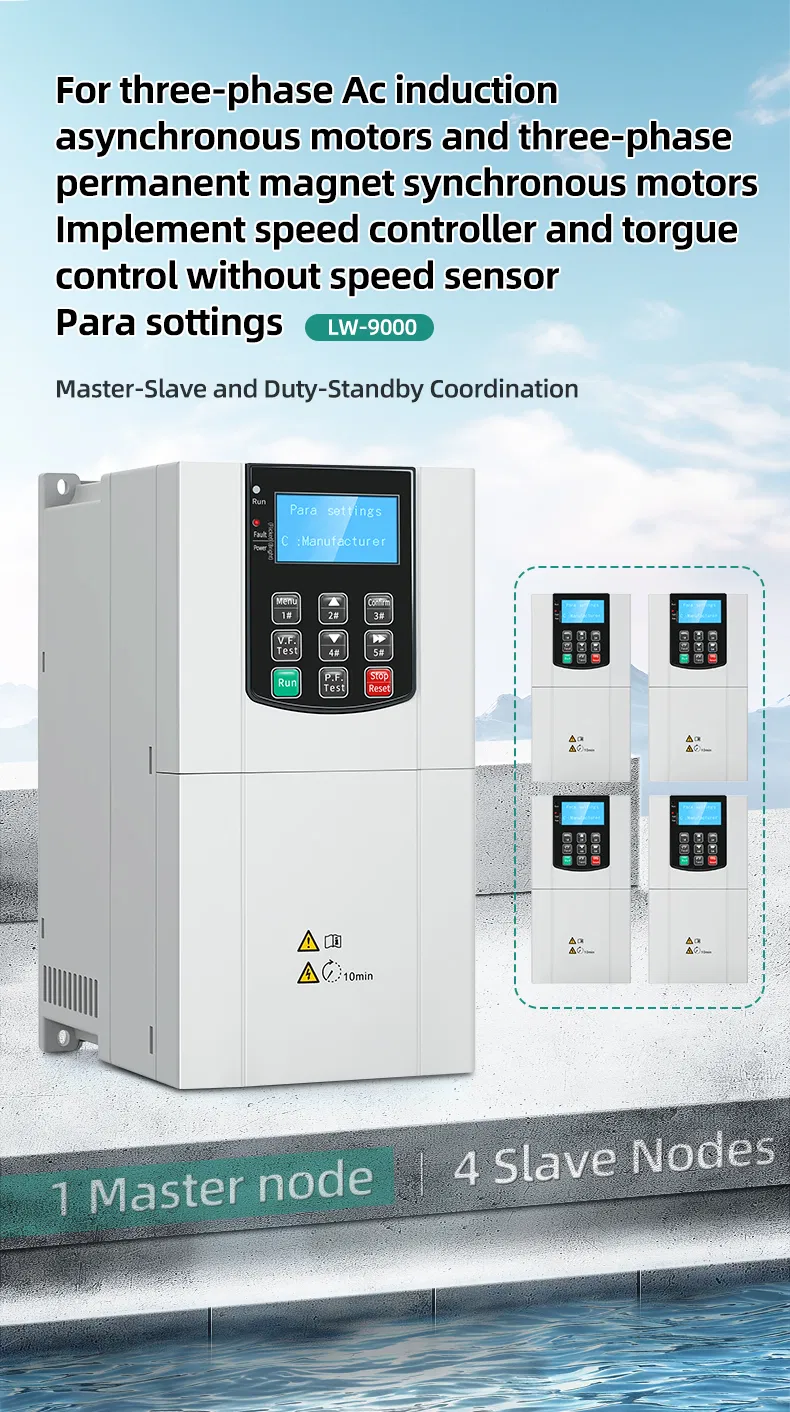

VFD Detail 3

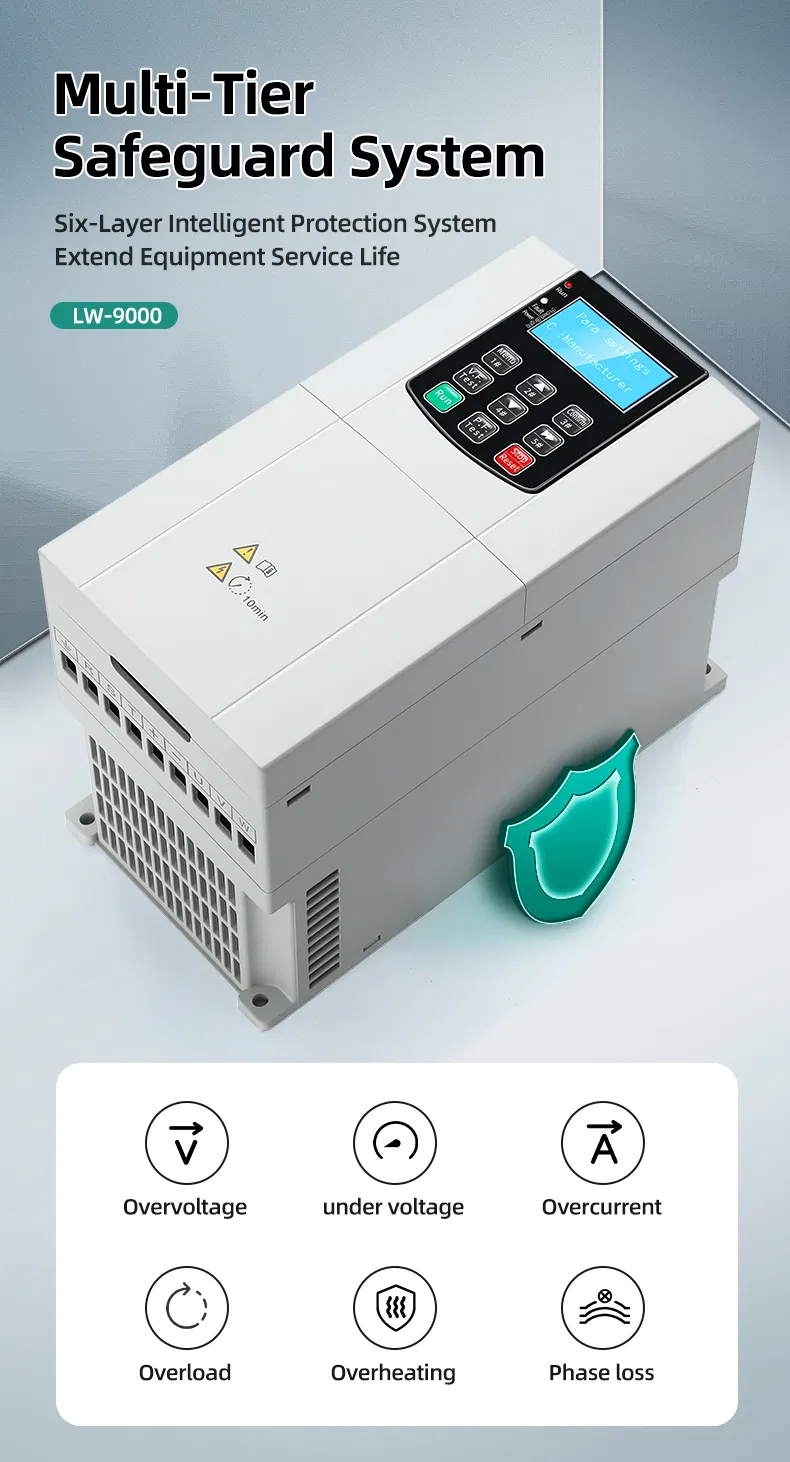

VFD Detail 4

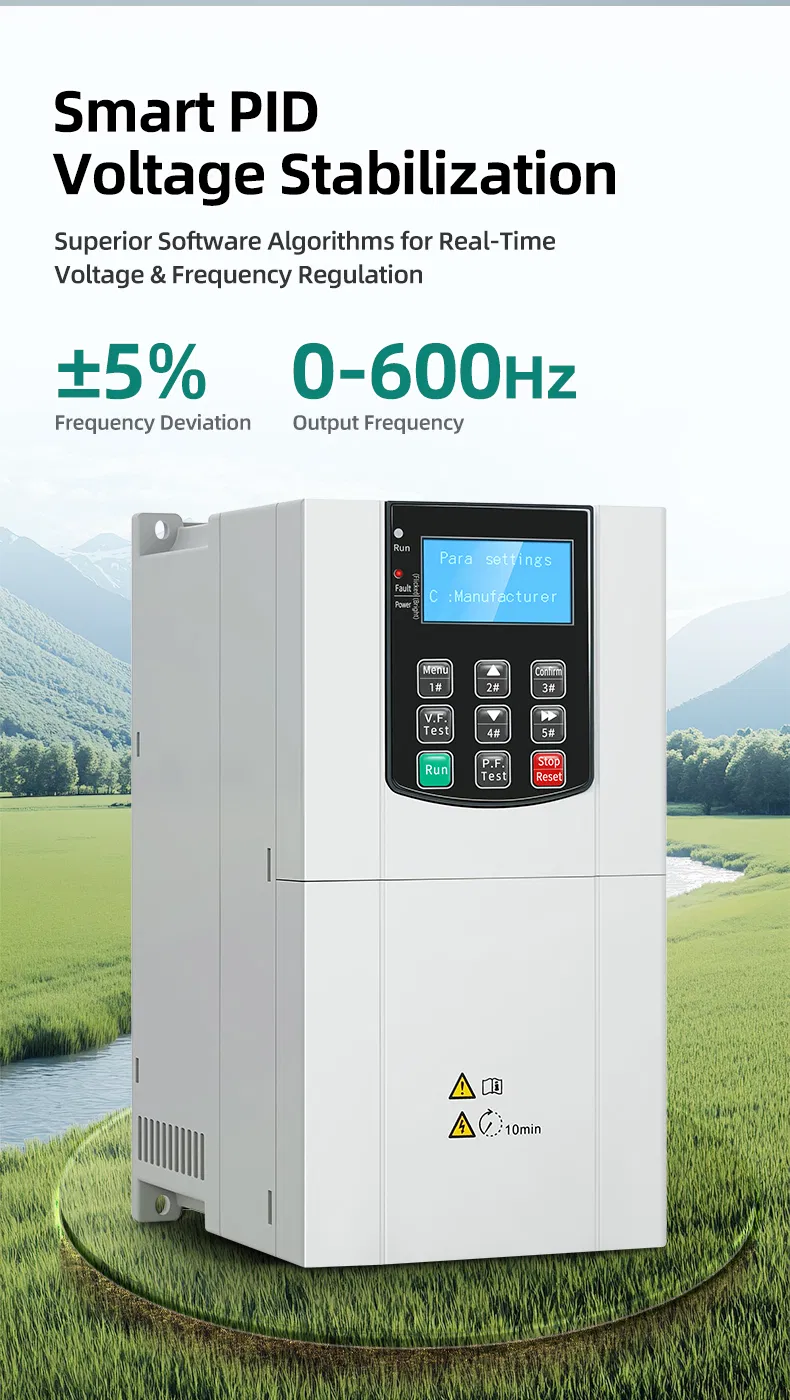

VFD Detail 5

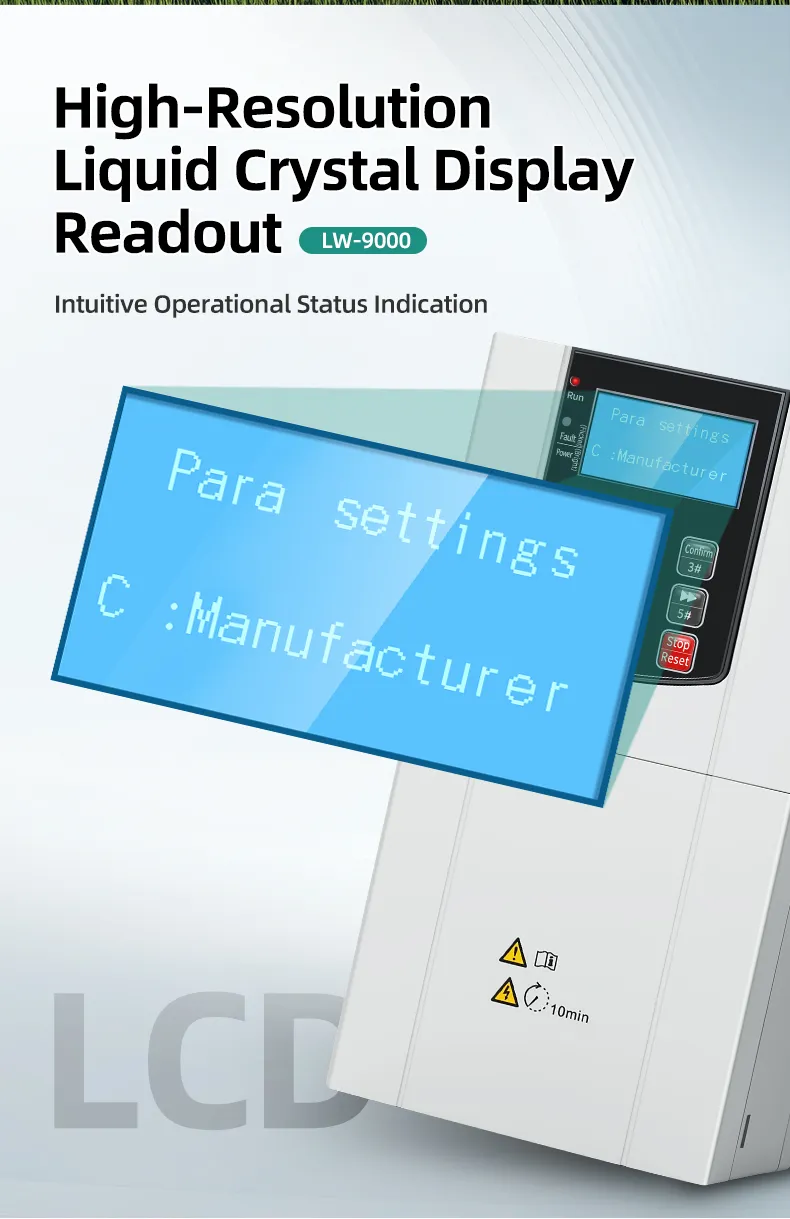

VFD Detail 6
⚙️ Internal Structure & Dimensions

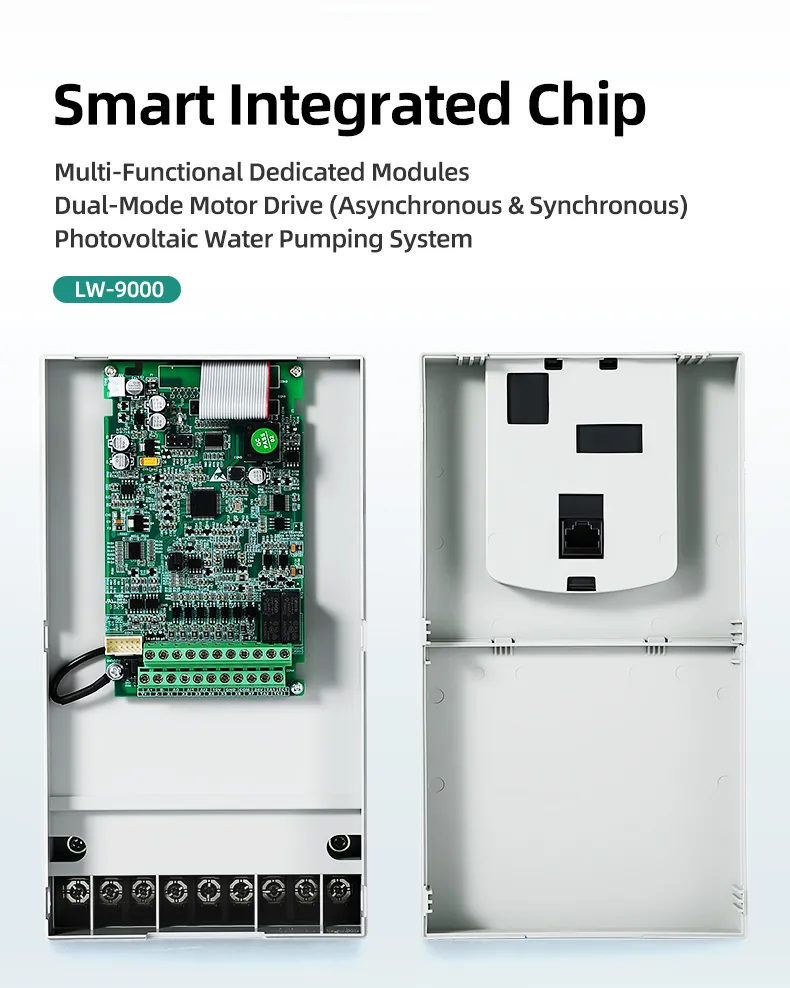

Internal Structure

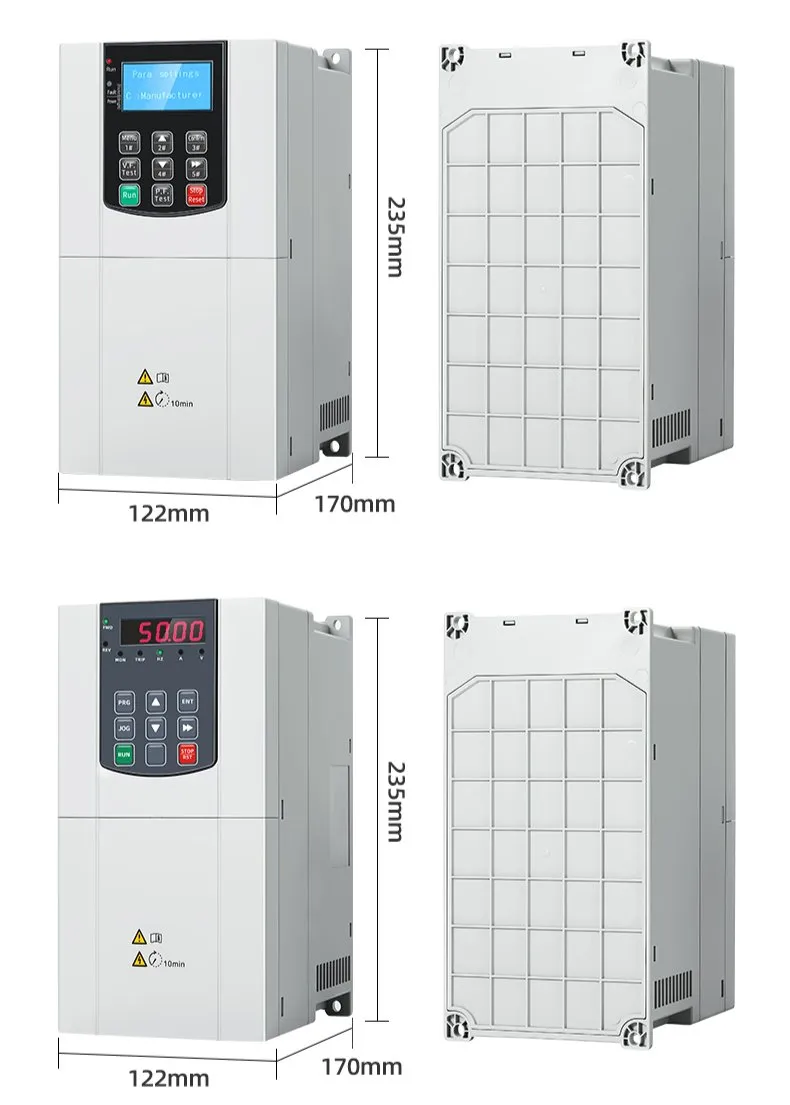

Dimensions
📜 Specifications & Certifications
MaterialABS / Stainless Steel / Industrial Plastic
Primary FunctionConstant Pressure Water Supply Pump Control
CertificationCE Certified
Control MethodV/F Control / Open-loop Vector Control
Warranty1 Year Global Warranty
🔌 Wiring Diagrams

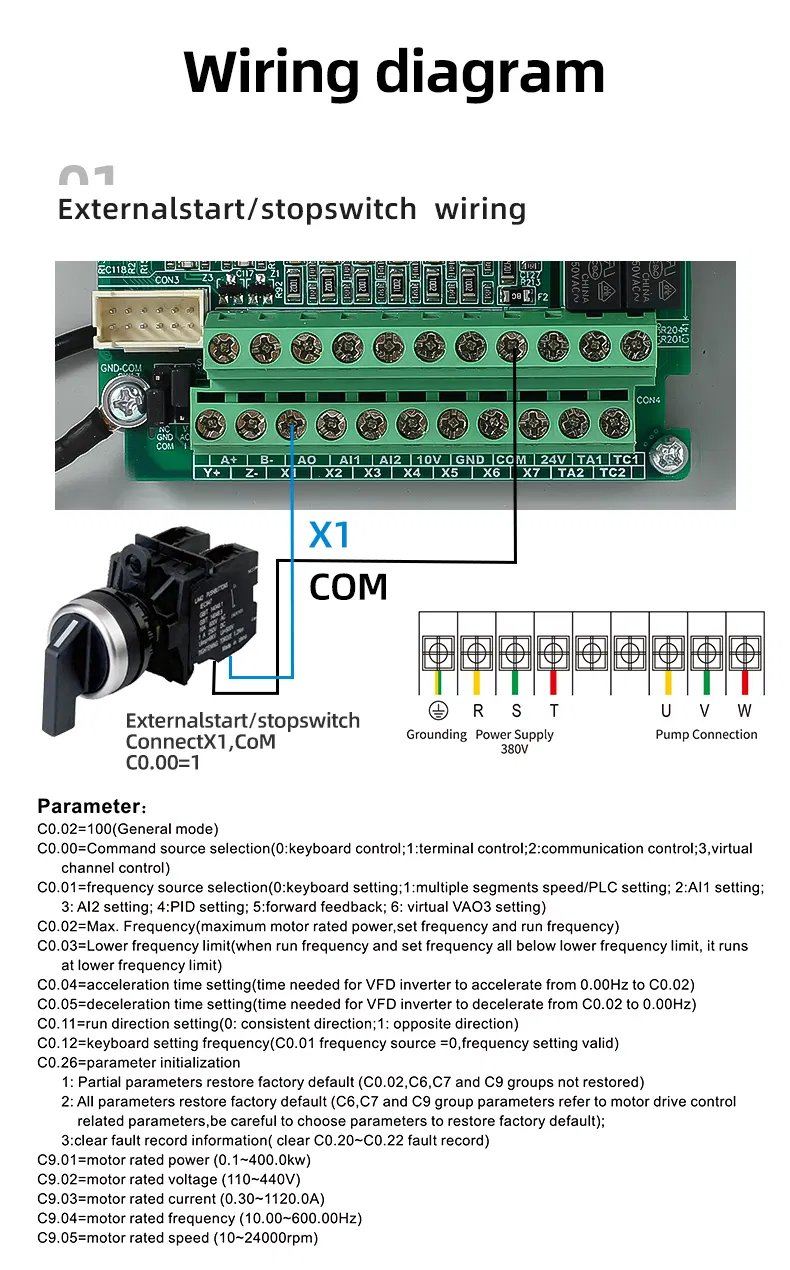

Wiring Diagram 1

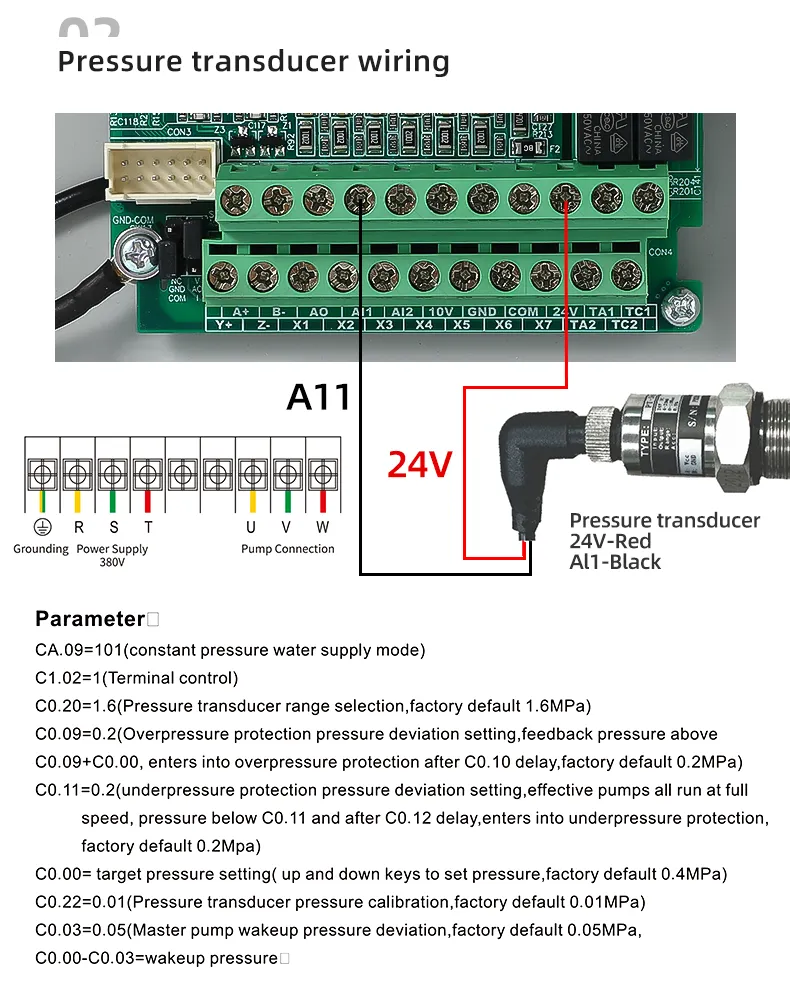

Wiring Diagram 2
📦 Packaging & Delivery
Package Size
28.00cm * 15.00cm * 19.00cm
Gross Weight
5.000kg
Package Type
Robust Cardboard Box
🏢 Professional Manufacturer Profile

We are a major intelligent water pump controller manufacturer with advanced technology and a professional R&D team. We are committed to providing high-quality and intelligent products, earning a global reputation across the Middle East, Asia, Africa, Europe, and America.

With high-level self-development capabilities and a production capacity of 10,000 pieces per month, we ensure fast delivery, reliable quality, and excellent service. We offer both standard catalog products and customized OEM/ODM services to meet your specific industrial requirements.

Manufacturing Facility
Production Line
Frequently Asked Questions
Q: What is the rated power and input voltage for this VFD?
A: This model features a rated power of 11kw and is designed for an input voltage of AC 380V (Three-phase).
Q: Which control modes are supported by the LW-9000-011T3?
A: It supports both V/F control and Open-loop Vector control for versatile motor management.
Q: Can this unit be used for constant pressure water supply?
A: Yes, one of its primary functions is constant pressure water supply pump control.
Q: What industries are suitable for this frequency converter?
A: It is ideal for machine tools, textiles, petroleum, ceramics, air compressors, and various water pump applications.
Q: What is the warranty period for the product?
A: We provide a 1-year warranty on this variable frequency drive.
Q: Does the product have any international certifications?
A: Yes, the product is CE certified, meeting European safety and quality standards.
