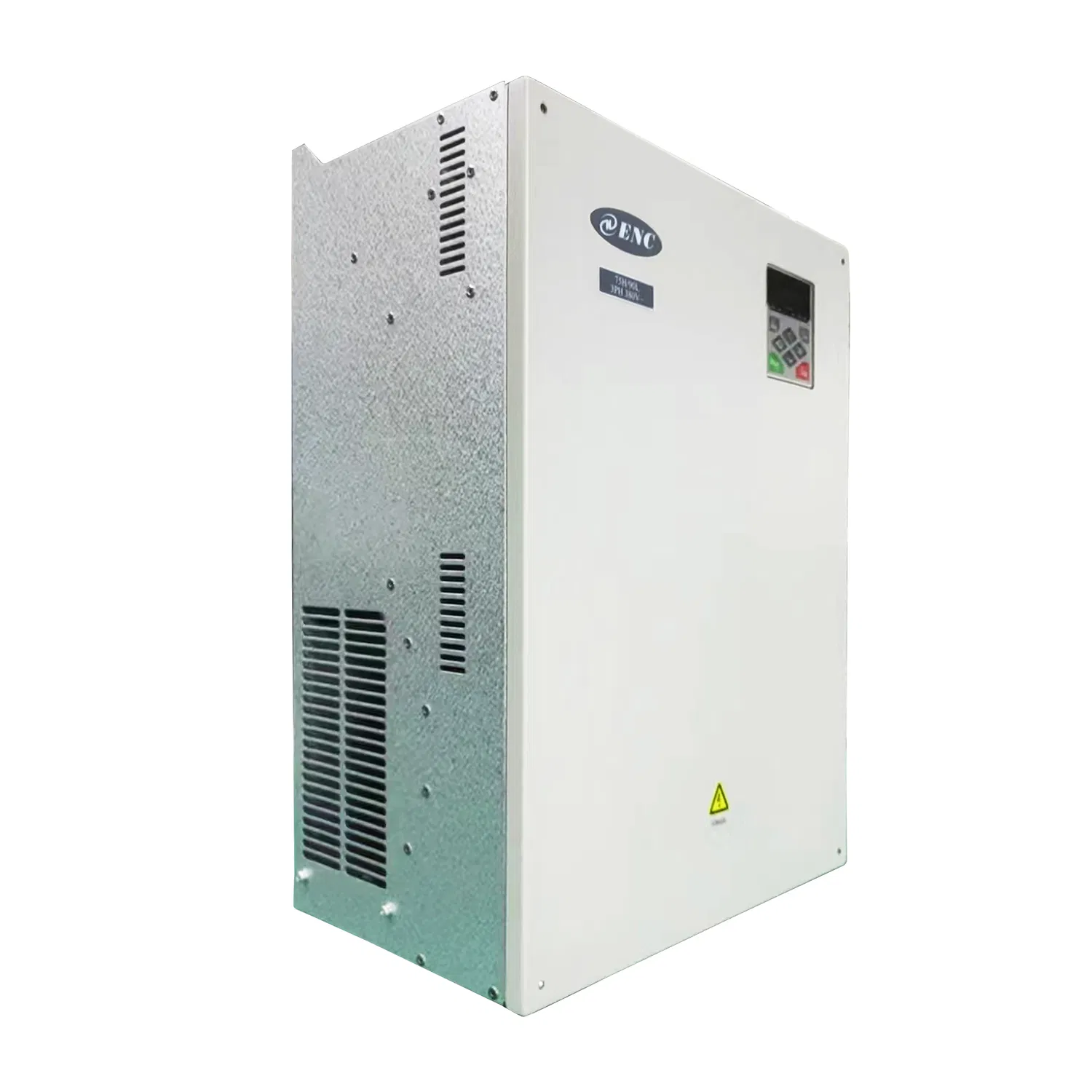

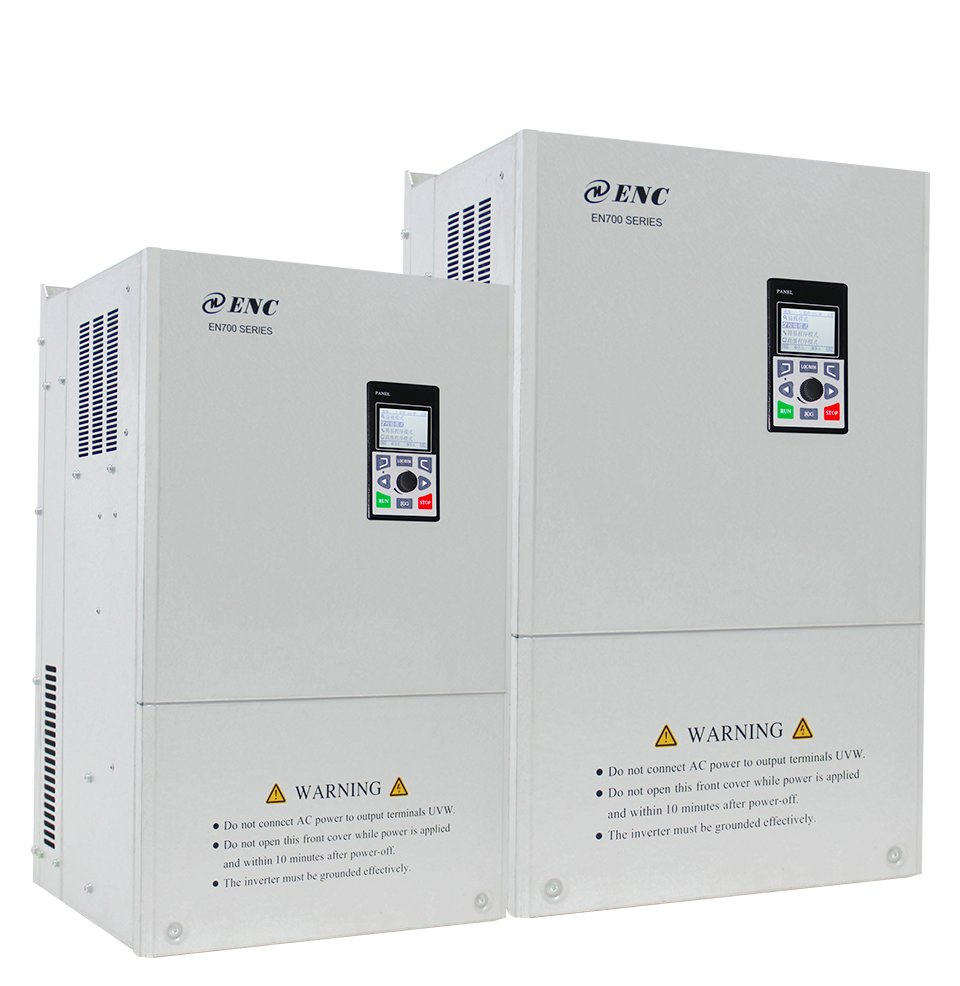

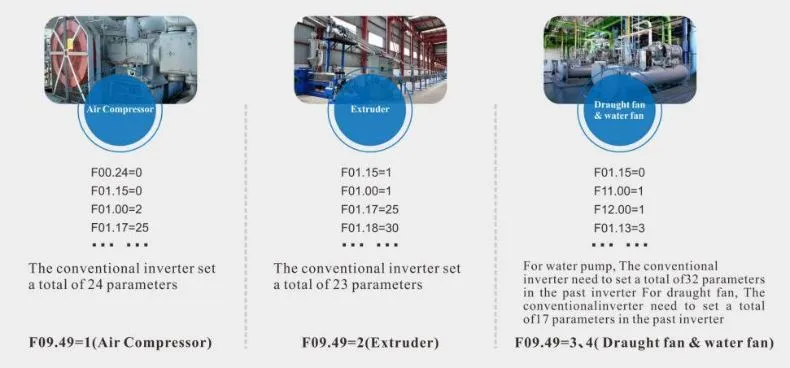

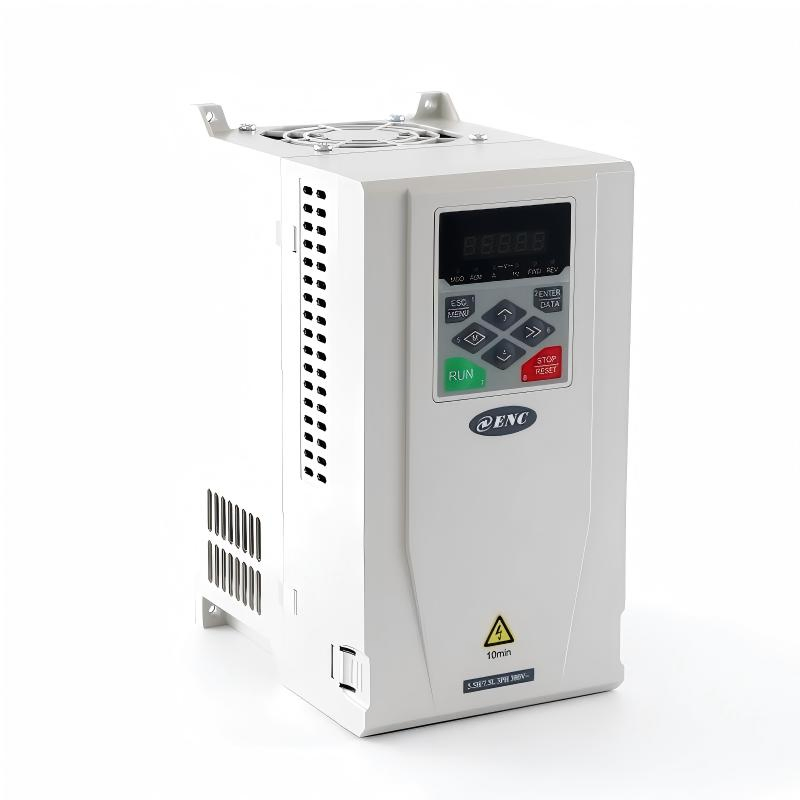

The ENA100 is a cost-effective general vector inverter with a power range from 0.4kW to 160kW. It features built-in macro functions for typical industry applications, greatly facilitating operation. Models below 30KW come equipped with a built-in braking unit as standard. It is designed to perform reliably in higher ambient temperature environments.

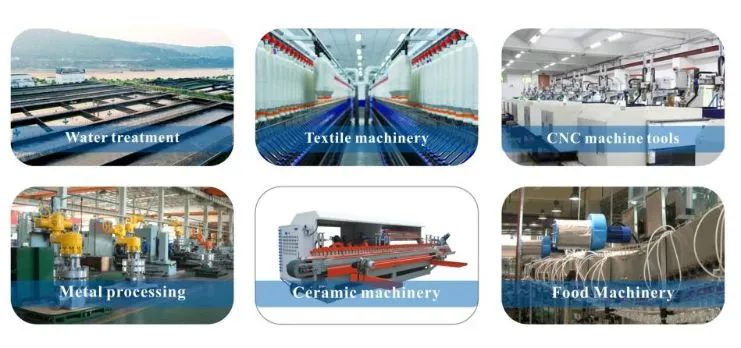

Typical Application Industries:
Metal processing, plastic machinery, CNC machine tools, printing equipment, printing and dyeing, paper making, municipal engineering, water supply, sewage treatment, textile, refrigeration, cement, ceramics, and stone processing.

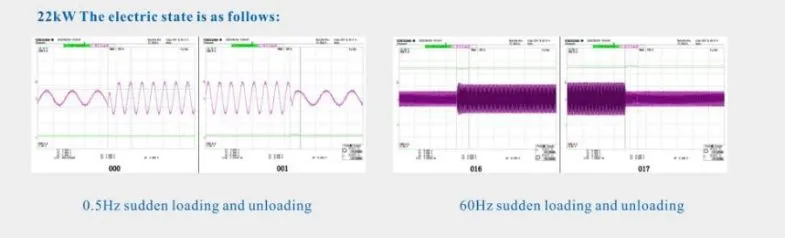

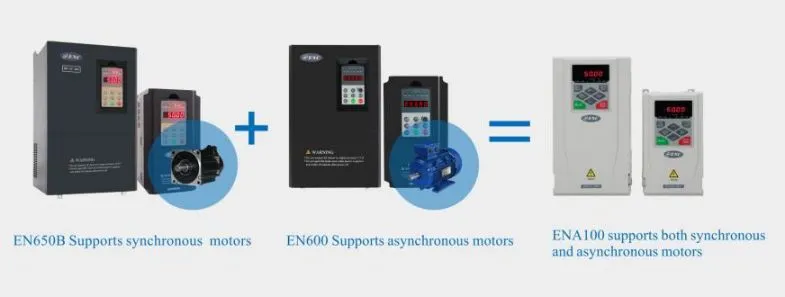

Dynamic Response & Dual Keyboard:

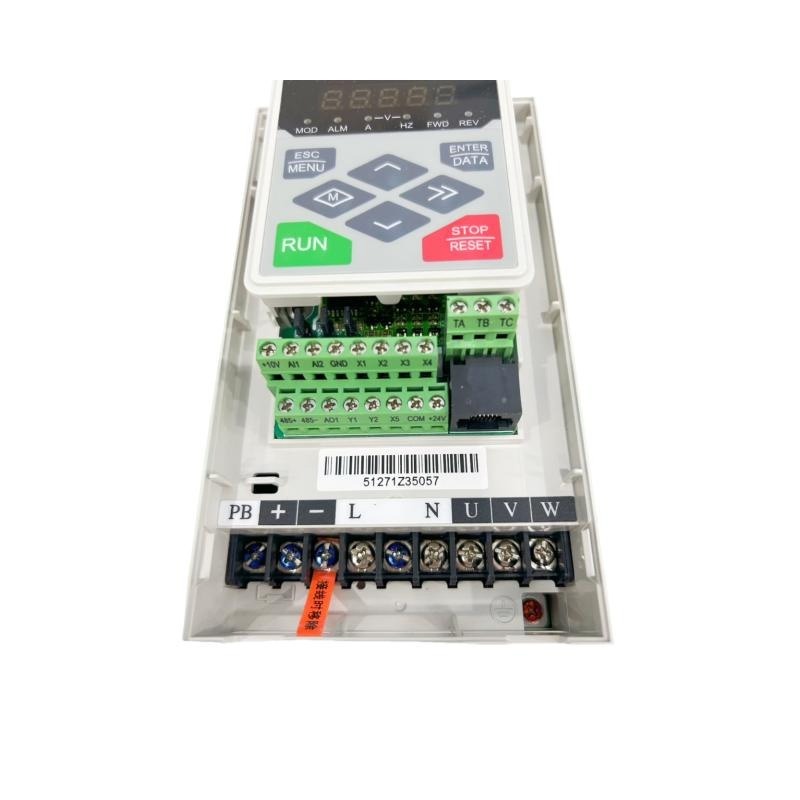

Torque response speed is less than 20ms. Supports the simultaneous use of local and external control keyboards, allowing for parameter upload and download functions.
| Category | Item | Description |
|---|---|---|
| Input | Rating Voltage/Freq | 1 phase 220V / 3 phase 380V; 50Hz/60Hz |
| Allowable Range | 220V: 200~260V; 380V: 320~460V | |
| Output | Voltage | 0 ~ Input Voltage |
| Frequency | 0 ~ 600Hz | |
| Overload Capacity | Heavy: 150% for 1 min; Light: 120% for 1 min | |

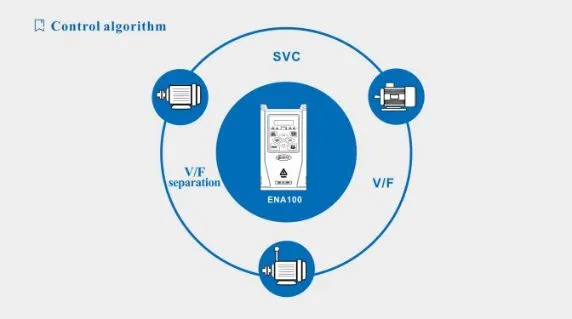

| Control Performance | Control Mode | Sensorless vector control, Open loop V/F control |
| Start-up Torque | 0.5Hz: 150% (Vector); 1.0Hz: 150% (V/F) | |
| Frequency Precision | Digital: ±0.01%; Analog: ±0.5% | |
| Braking | Built-in unit for ≤22KW (3-phase); External for ≥30KW | |
| PID Controller | Built-in for easy closed-loop system creation | |

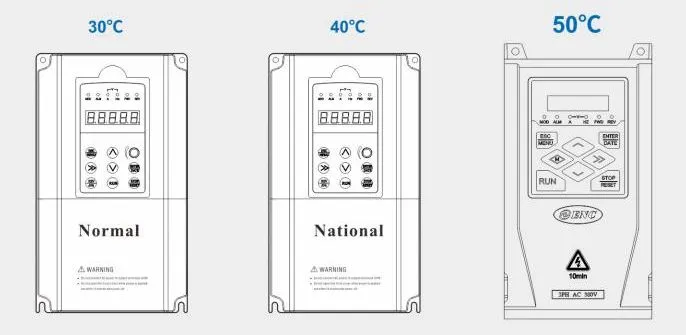

| Ambient | Temperature | -10ºC to +50ºC (No derating required) |
