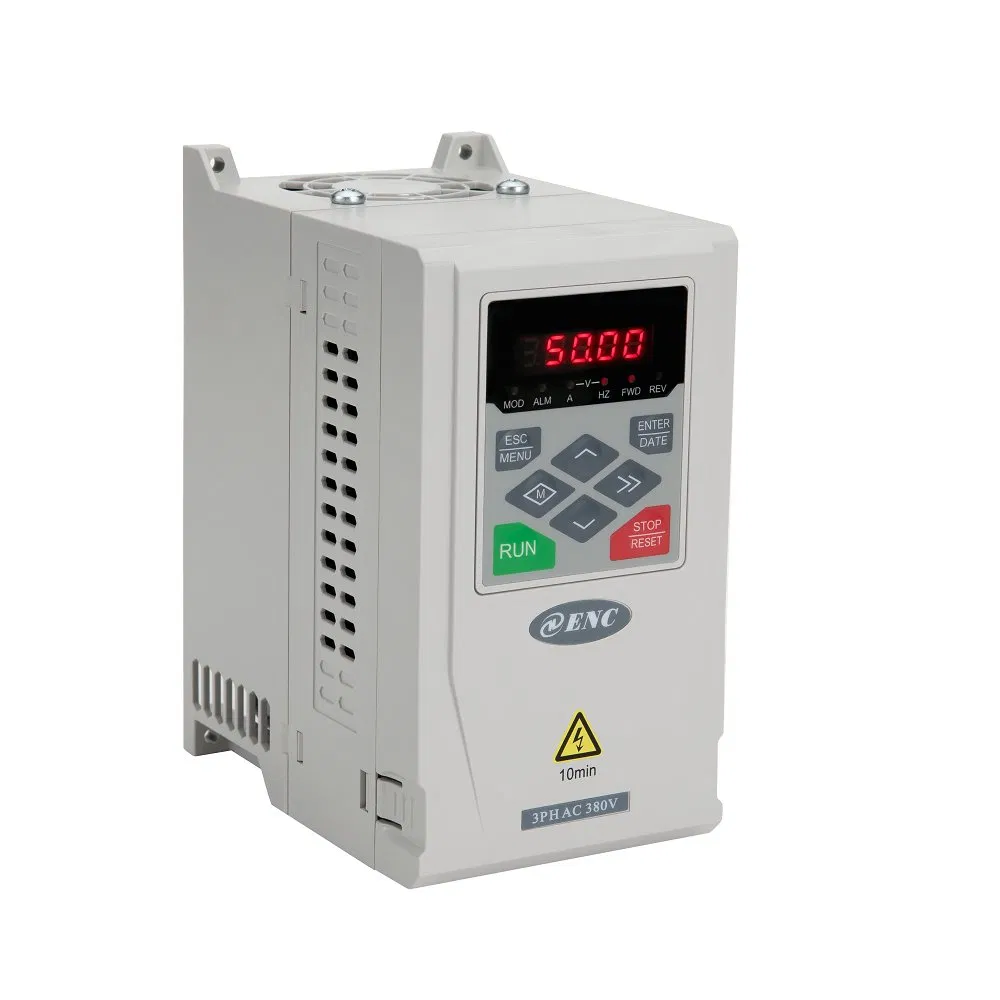

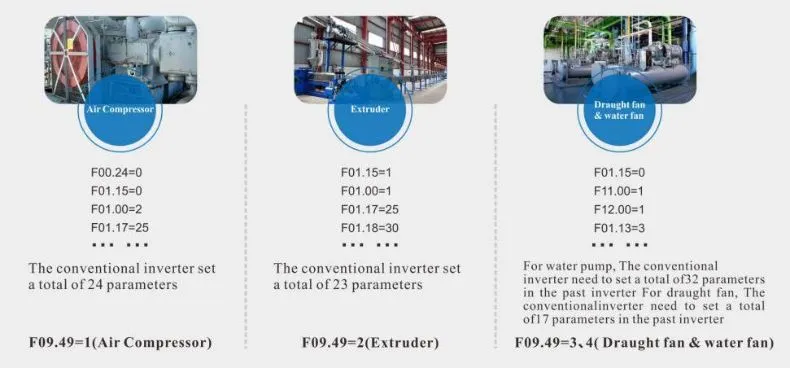

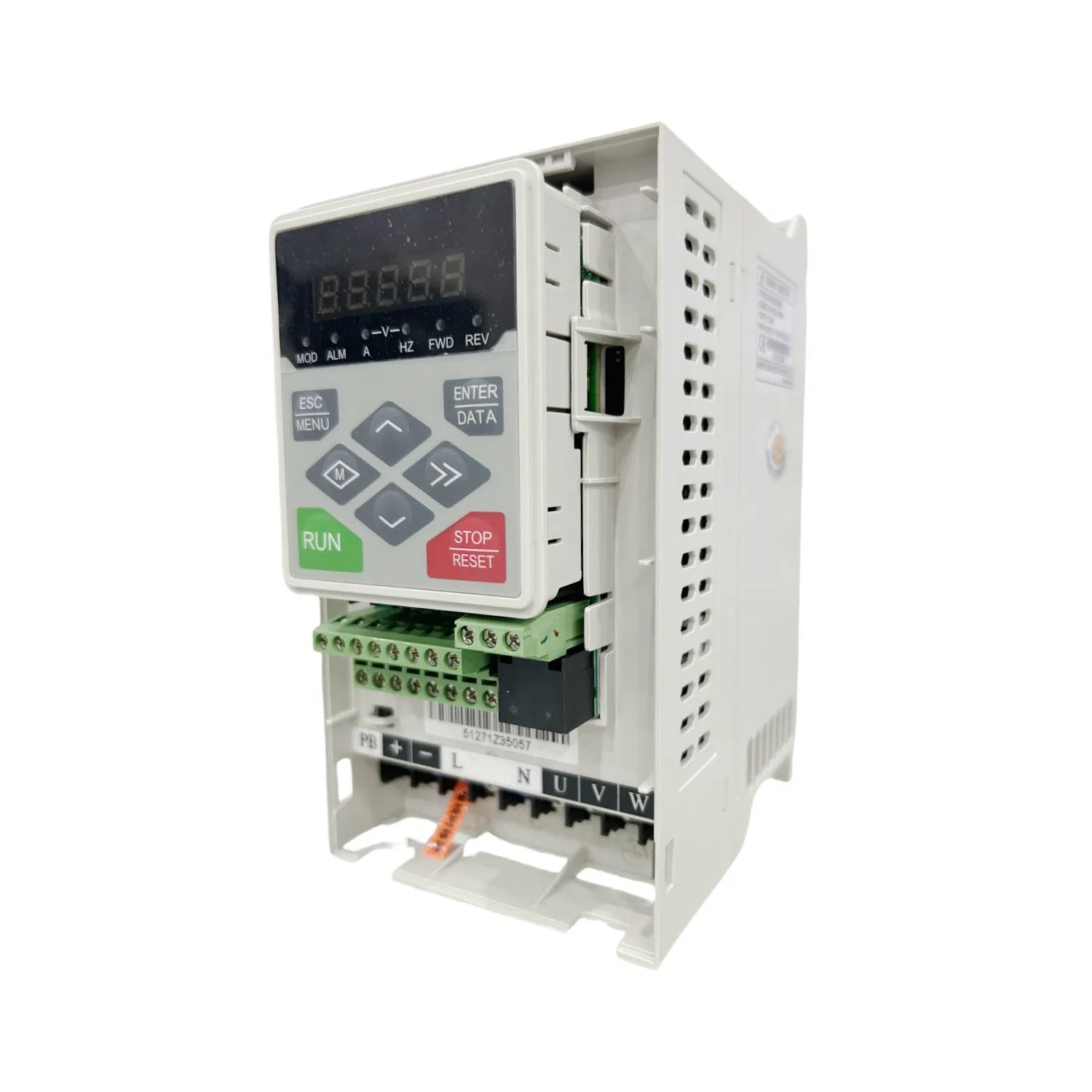

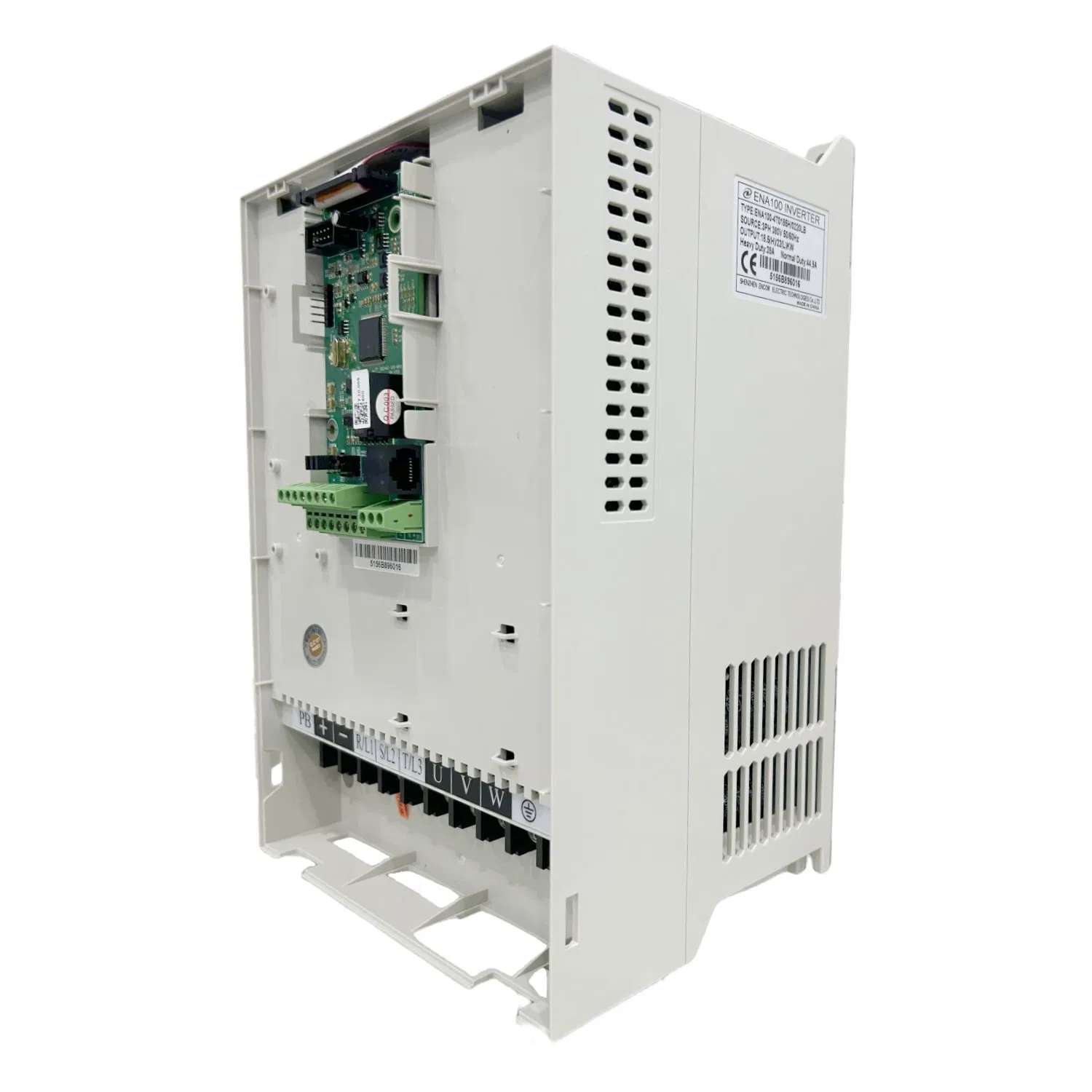

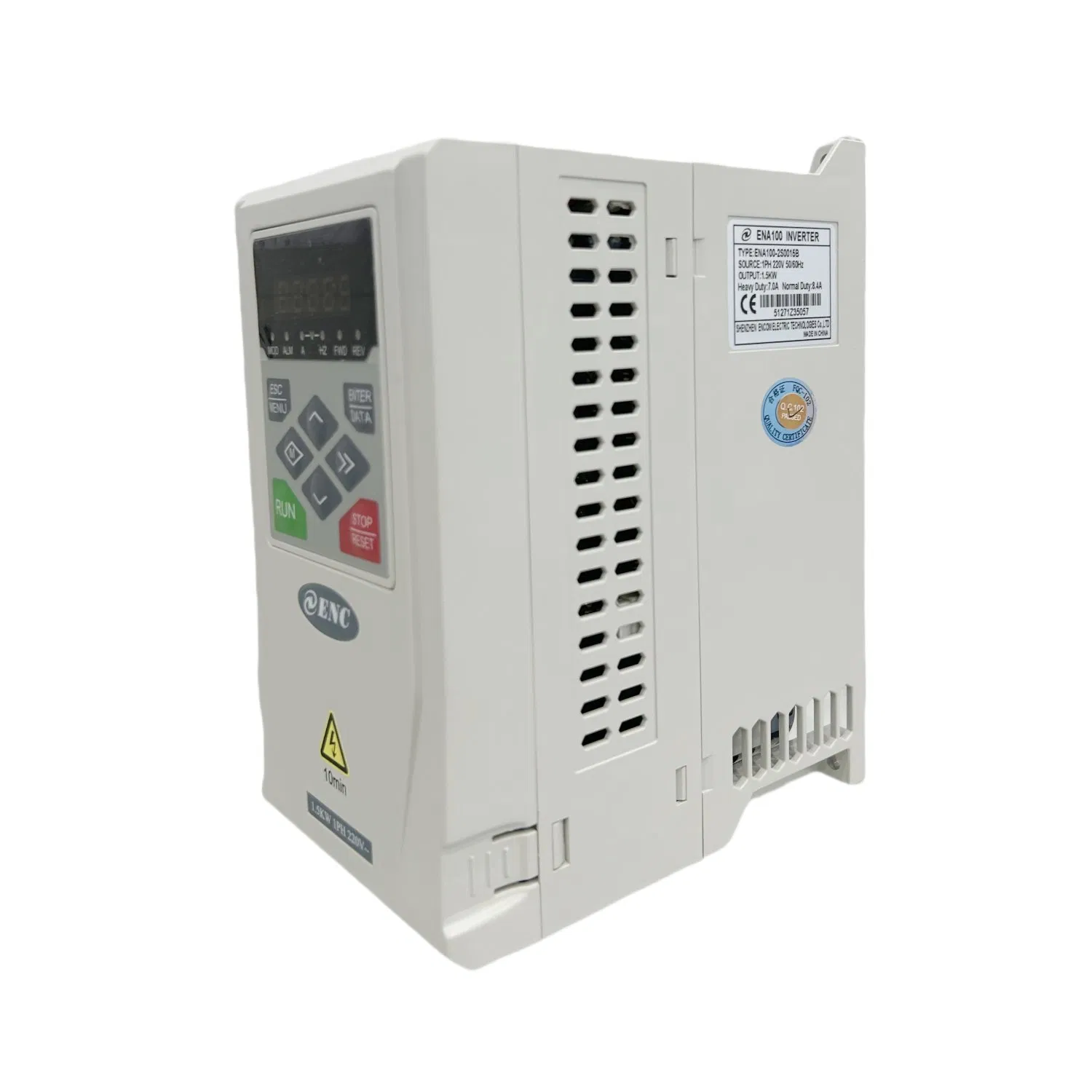

ENA100 is a cost-effective general vector inverter with a power range from 0.4kW to 160kW. Built-in macro functions for typical industry applications greatly facilitate customer operations. Models below 30KW are equipped with a built-in braking unit as standard. It is specifically designed to perform reliably in higher ambient temperature situations.

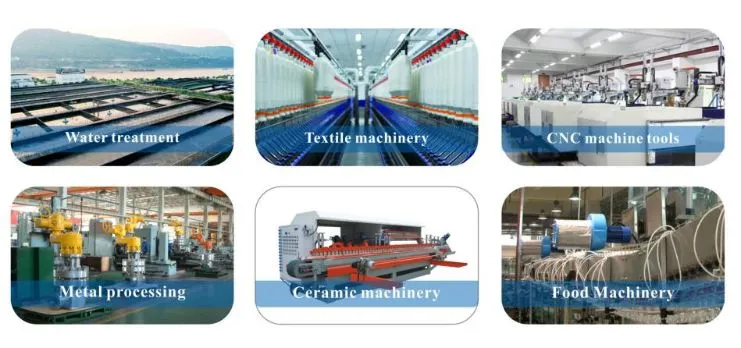

Suitable for metal processing, plastic machinery, CNC machine tools, printing equipment, printing and dyeing industry, paper making, municipal engineering, water supply engineering, sewage treatment, etc. It is also widely used in textile, refrigeration, cement, ceramics, stone processing, and other fields.

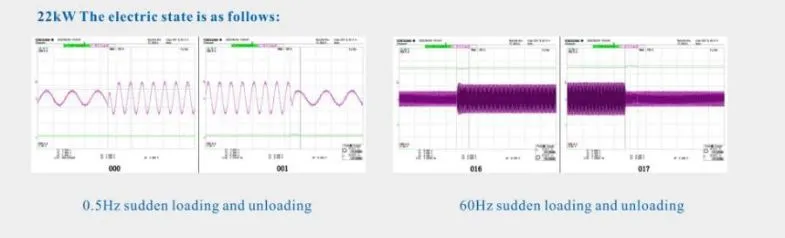

Dynamic Response: Torque response < 20ms. Starting torque 1.0Hz 150% (V/F) and 0.5Hz up to 180% (No PG vector).
| Category | Item | Description |
|---|---|---|
| Input | Rating Volt, Frequency | 1 phase 220V (50Hz/60Hz); 3 phase 380V (50Hz/60Hz) |
| Allow Volt Range | 1 phase 220V: 200~260V; 3 phase 380V: 320~460V | |
| Output | Voltage | 0 ~ Input Voltage |
| Frequency | 0 ~ 600Hz | |
| Overload Capacity | Heavy Load: 150% (1 min); Light Load: 120% (1 min) | |

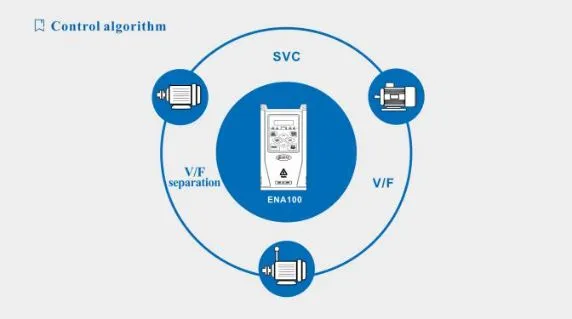

| Control Performance | Control Mode | Sensorless Vector Control (without PG), Open loop V/F control |
| Start-up Torque | 0.5Hz: 150% rated torque (Vector control) | |
| Torque Response | ≤20ms (Vector control) | |
| PID Controller | Built-in, convenient for closed-loop systems | |
| Energy Saving | Optimize V/F curve automatically based on load | |

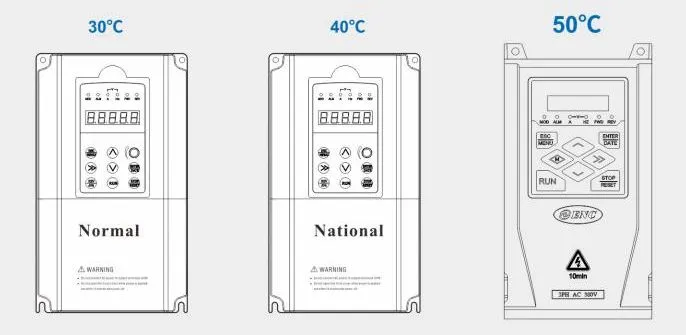

| Ambient | Environment Temperature | -10ºC ~ +50ºC (No derating required at 50ºC) |
| Environment Humidity | < 95%RH, no condensation | |
| Protection Grade | IP20 |
