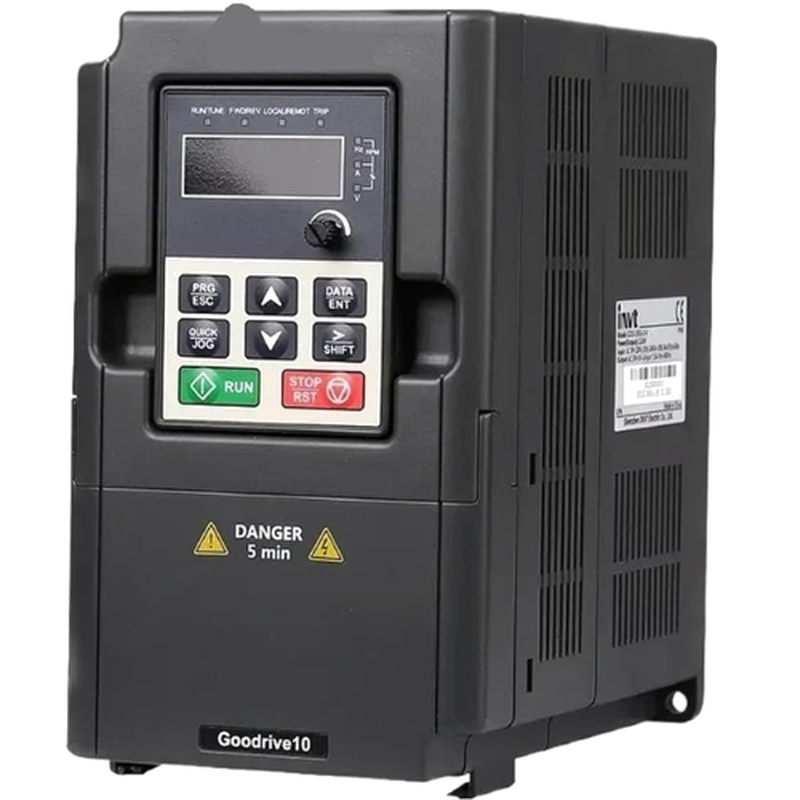

INVT GD10-1R5G-4-B General Purpose Variable Frequency Drive VFD

1 / 5

INVT GD10-1R5G-4-B General Purpose Variable Frequency Drive VFD

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

GD10-1R5G-4-B

Principle of Work

V/F Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Voltage

Voltage of Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Nature of DC Power

Current Variable-Frequency Drive

Brand

INVT

Trademark

INVT

HS Code

8504409999

Product Description

The INVT GD10-1R5G-4-B is a versatile General Purpose Variable Frequency Drive (VFD) engineered to optimize the performance of AC induction motors. This compact and economical drive is ideal for small power applications and the OEM market, offering advanced V/F control technology. With its robust feature set, including PID control, multi-speed steps, DC braking, and Modbus communication, the GD10-1R5G-4-B delivers precise motor speed and torque regulation.

Its compact design reduces installation space by approximately 15% compared to similar products, making it a highly efficient choice for various industrial automation needs. The drive operates on a 3-phase 400V power supply, providing a 1.5kW output. It is well-suited for applications such as pumps, fans, conveyors, and general machinery where variable speed control is crucial for efficiency and performance.

Specification	Value
Model	GD10-1R5G-4-B
Rated Power (kW)	1.5
Output Power (HP)	2
Input Voltage (V)	AC 3PH 400V ±15%
Input Frequency (Hz)	47-63
Output Current (A)	4.2
Output Frequency (Hz)	0-400
Control Mode	V/F (Volts/Hertz)
Overload Capacity	150% for 1 min, 180% for 10 sec, 200% for 1 sec
Dimensions (mm)	100 x 165 x 153.2 (W x H x D)
Enclosure	IP20

Features and Advantages

Enhanced Energy Efficiency: Significantly reduces energy consumption by precisely matching motor speed to demand.
Precise Process Control: Fine-tuned adjustment of motor speed and torque for consistent quality.
Controlled Motor Starting: Soft start capability eliminates electrical and mechanical stress.
Compact Design: Occupies approximately 15% less installation space than comparable drives.
Integrated PID Controller: Allows for closed-loop control for temperature or pressure regulation.
Communication Capabilities: Integrated Modbus RS485 for seamless SCADA integration.
Robust Protection: Overcurrent, overvoltage, undervoltage, and overload protection.

Application Scenarios

The versatility of the GD10-1R5G-4-B makes it suitable for various industries:

Pumps and Fans: Optimizing HVAC systems and water supply.
Conveyor Systems: Precise belt speed control for material handling.
Textile Machinery: Consistent speed for spinning and weaving.
Packaging Machinery: Accurate speeds for filling and sealing.
General Machinery: Mixers, agitators, and machine tools.

Usage Instructions & Precautions

Installation: Ensure upright position in a well-ventilated area. Maintain adequate clearance for heat dissipation.

Safety: Never open the drive enclosure while power is applied. Wait at least 5 minutes after power off for internal capacitors to discharge.

Frequently Asked Questions

What is the primary benefit of using the GD10-1R5G-4-B VFD?

The primary benefit is significant energy savings and extended motor lifespan. By precisely controlling motor speed, it reduces mechanical stress and electricity costs while enhancing process stability.

How does this VFD improve energy efficiency?

It adjusts motor speed and torque based on real-time load demand. Since power consumption is proportional to the cube of the speed in many applications like fans and pumps, even small speed reductions lead to massive energy savings.

What types of applications are best suited for this model?

It is ideal for general-purpose industrial equipment including pumps, fans, conveyors, and packaging machinery. Its compact size is particularly useful for OEM applications where mounting space is limited.

Can it be integrated into existing automation systems?

Yes, it features standard Modbus communication via an RS485 interface, allowing seamless connection with PLCs, HMIs, and SCADA systems for remote monitoring and control.

What is the role of the integrated PID controller?

The PID controller allows for closed-loop control, automatically adjusting motor speed to maintain a specific target setpoint for variables like pressure, flow rate, or temperature.

What precautions are necessary for dusty environments?

In dusty environments, this drive utilizes natural cooling to prevent drawing contaminants inside. Regular cleaning and ensuring unobstructed ventilation pathways are still essential for optimal performance.
