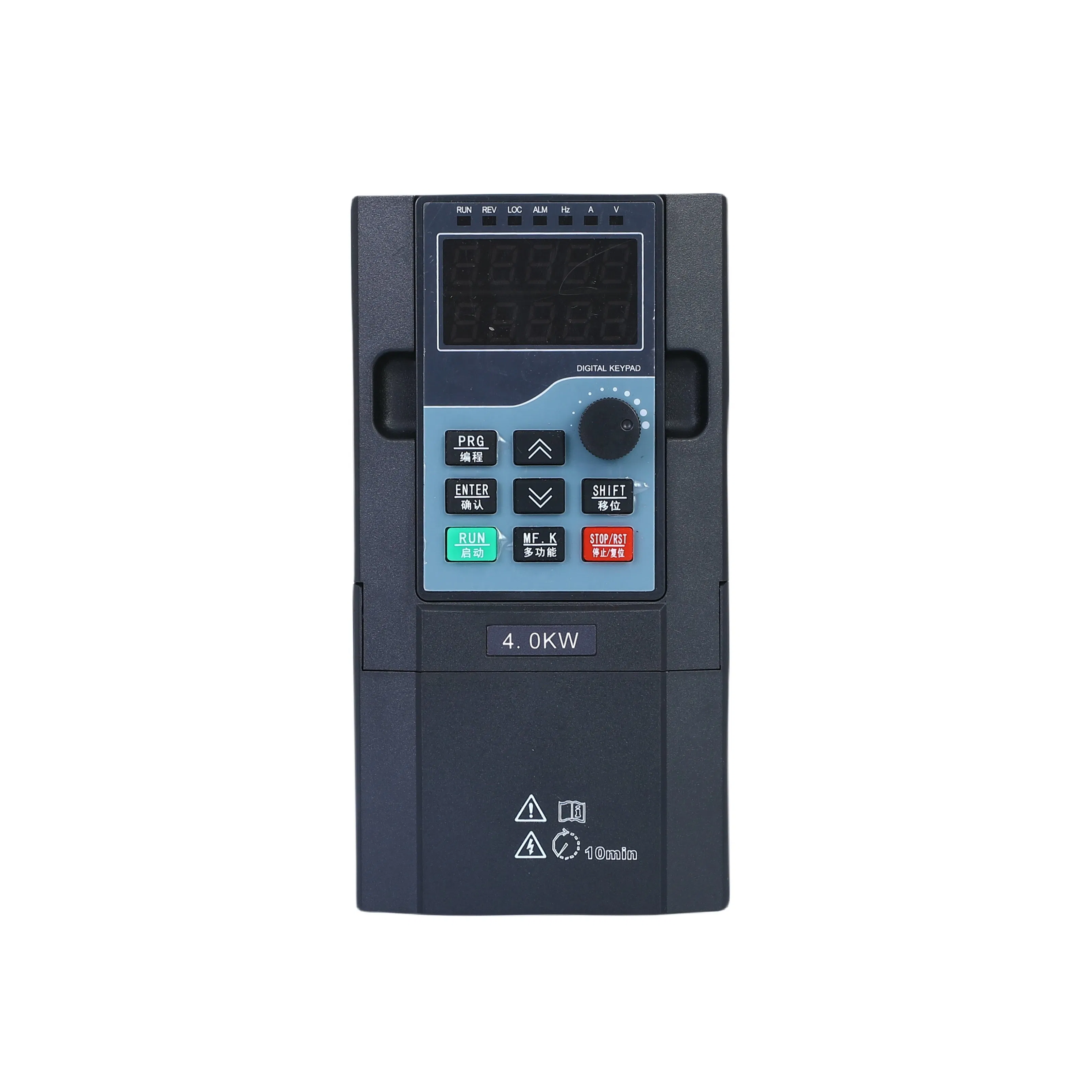

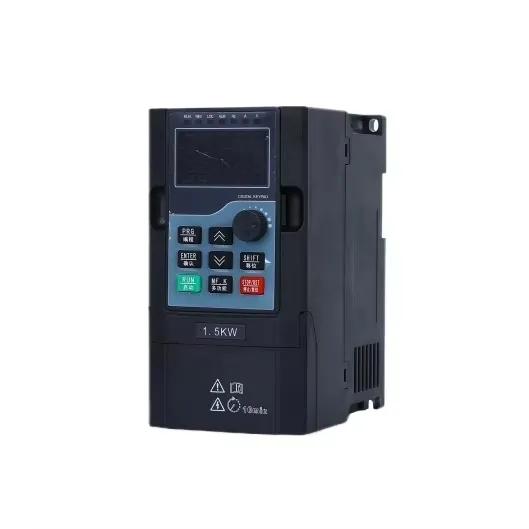

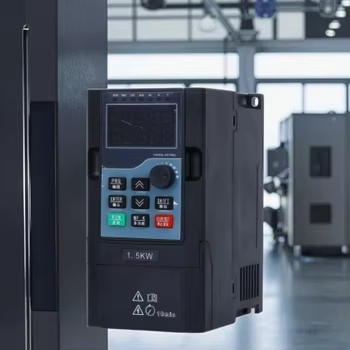

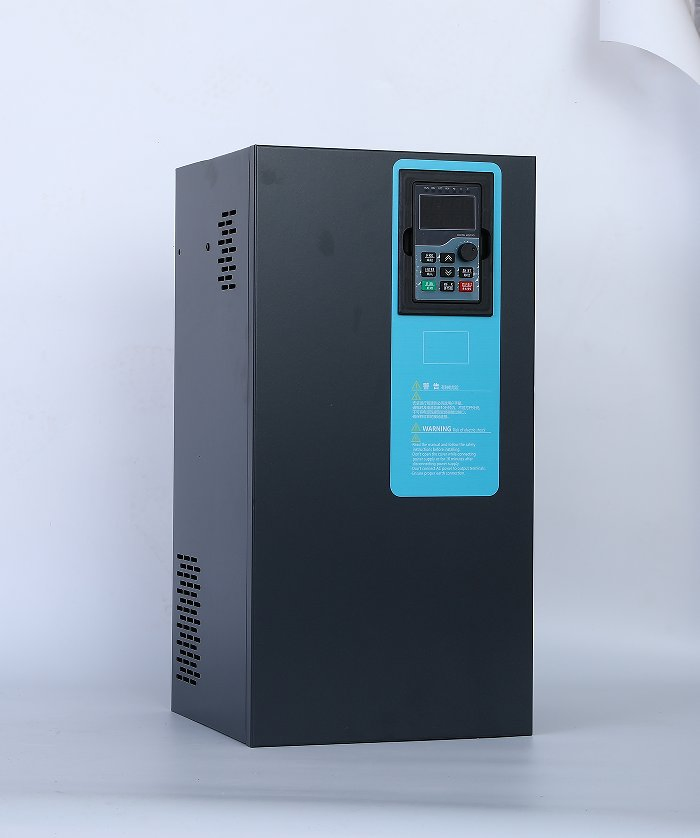

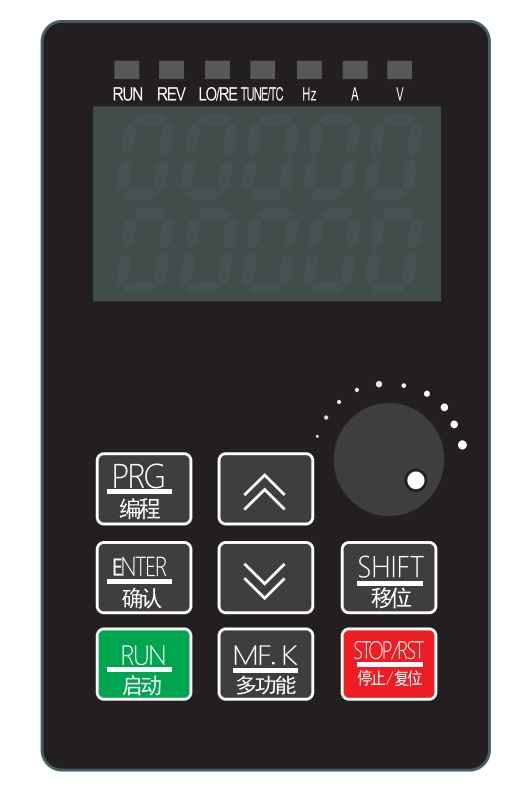

The NV560 series frequency inverter is a general-purpose high-performance current vector inverter, which is mainly used to control and adjust the speed and torque of three-phase AC asynchronous motors.
NV560 uses high-performance vector control technology, low-speed and high-torque output, with good dynamic characteristics, super overload capacity, stable performance, and powerful protection functions. It is widely used in weaving, paper, wire drawing, machine tools, packaging, food, fans, water pumps, and automated production equipment.
| Environment Specification | Details | |
|---|---|---|
| Usage | Location | Indoor, no direct sunlight, dust-free, no corrosive/combustible gas. |
| Altitude | Sea Level | Below 1000m (1% derating per 100m above 1000m). |
| Temperature | Ambient | -10℃ ~ +40℃ (Max 50℃ with derating). |
| Humidity | Storage | Less than 95%RH, no condensation; -20℃~+60℃. |
| Control Function | Technical Details |
|---|---|
| Control Method | Open-loop vector control (SVC); closed-loop vector control (FVC); V/F control. |
| Pull-in Torque | 0.25Hz/150%(SVC); 0Hz/180%(FVC). |
| PID Control | Built-in PID for easy process closed-loop control. |
| Protection | Lack of phase, Over-current, Over-voltage, Under-voltage, Overheat, Overload, Short-circuit. |
We are a major intelligent water pump controller manufacturer. With advanced technology and a professional R&D team, we are committed to providing customers with high-quality and intelligent products. We have won a good reputation in global markets including the Middle East, Asia, Africa, Europe, and America.
Our facility maintains a high level of self-development capabilities with fast delivery (10,000 pieces per month), reliable quality, and comprehensive service supports.
