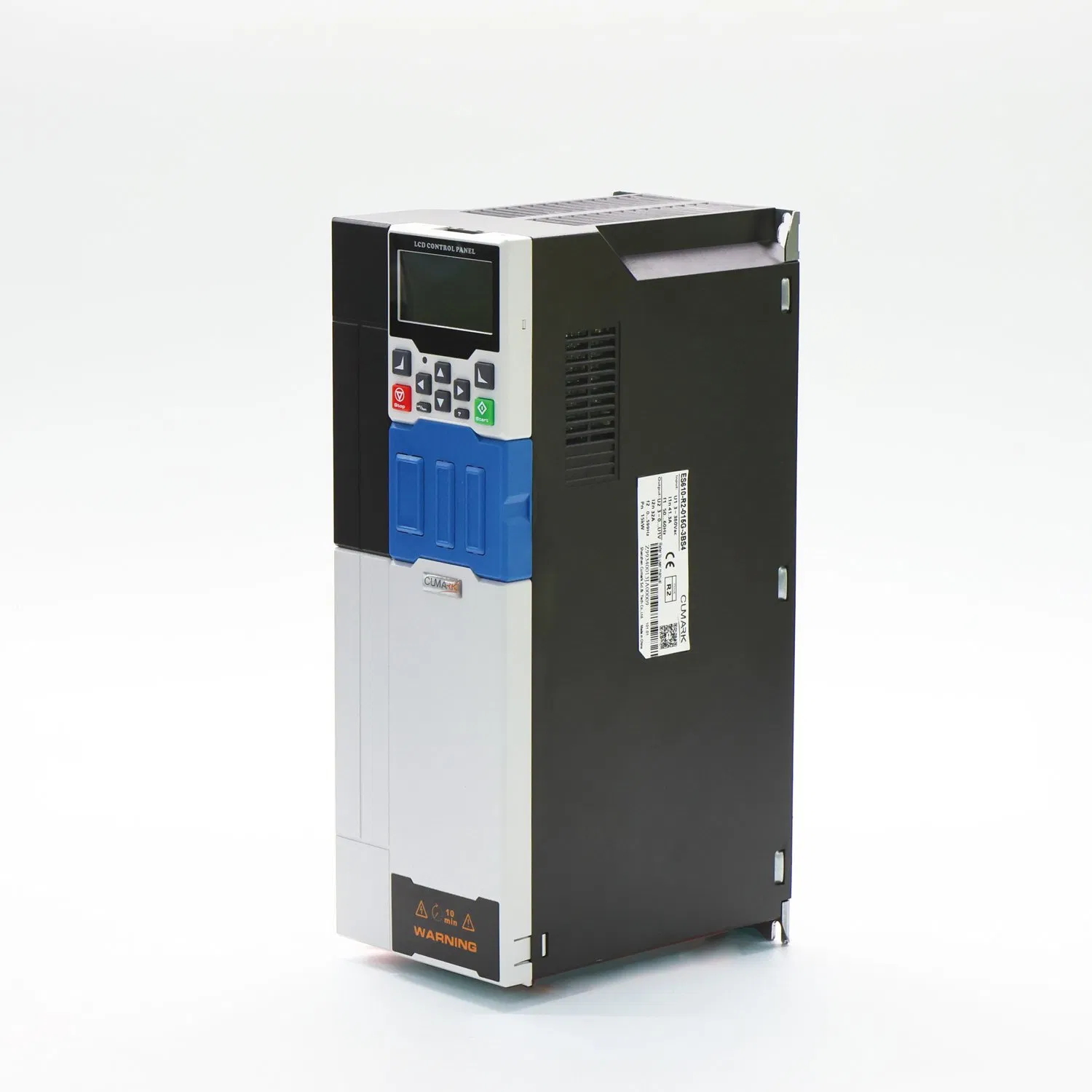

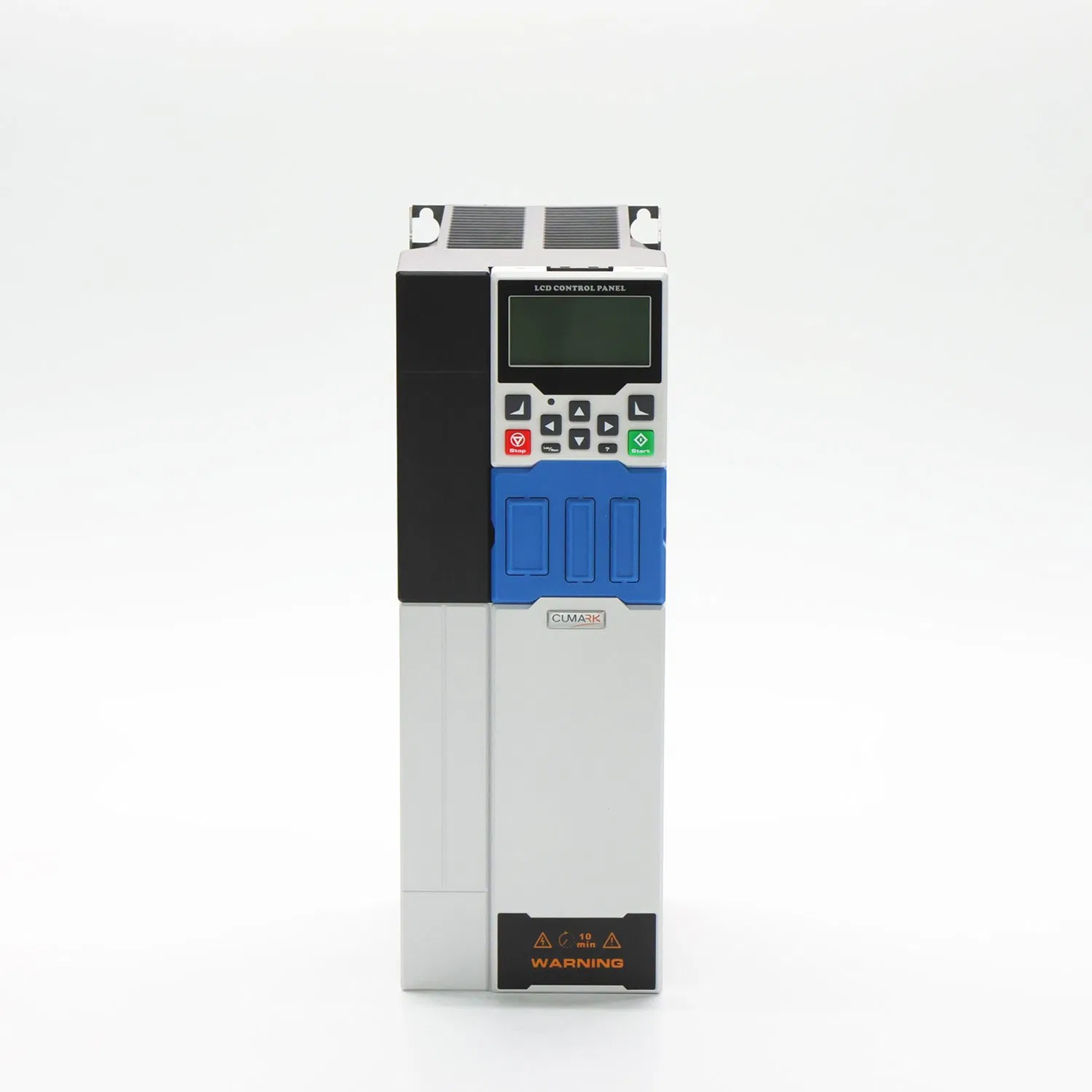

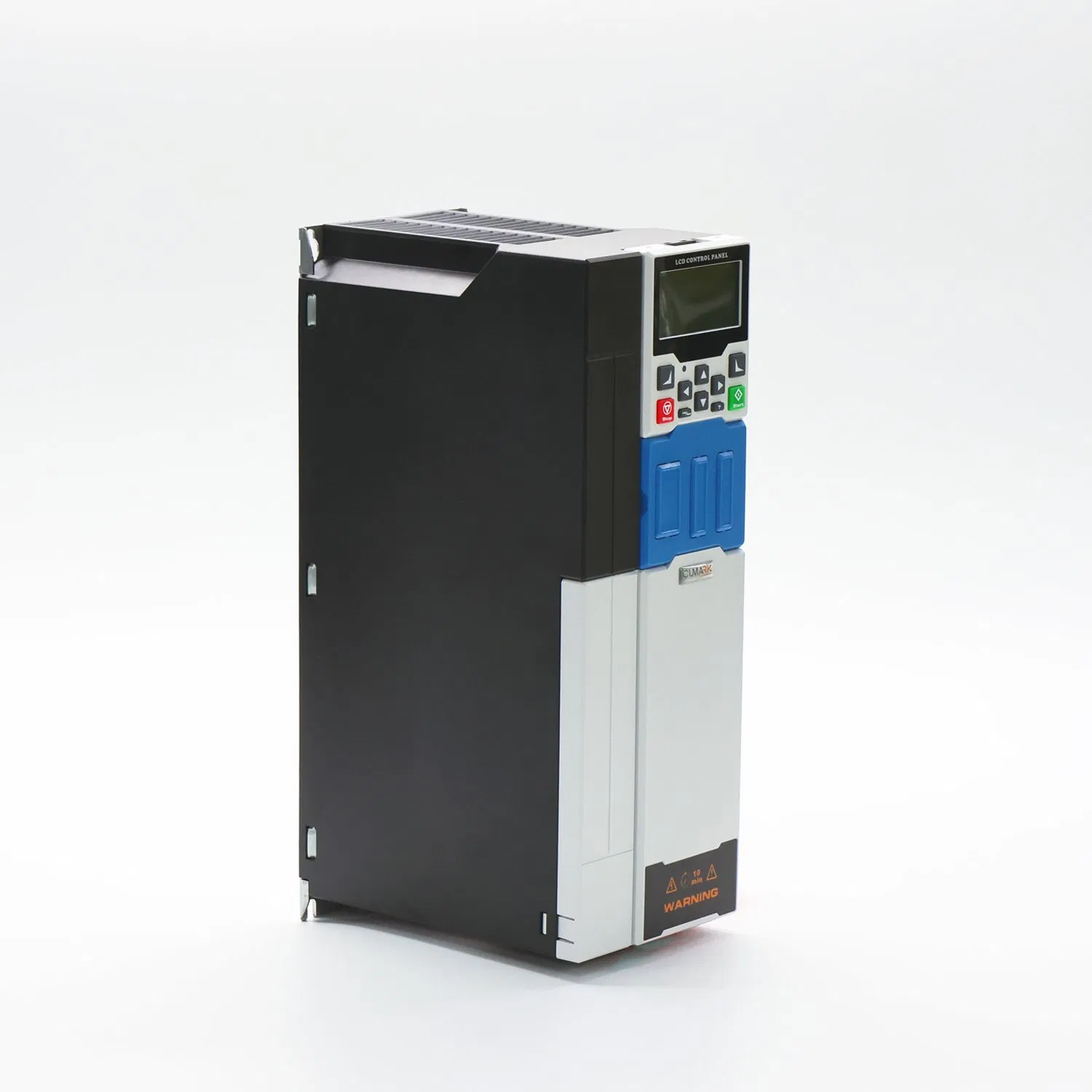

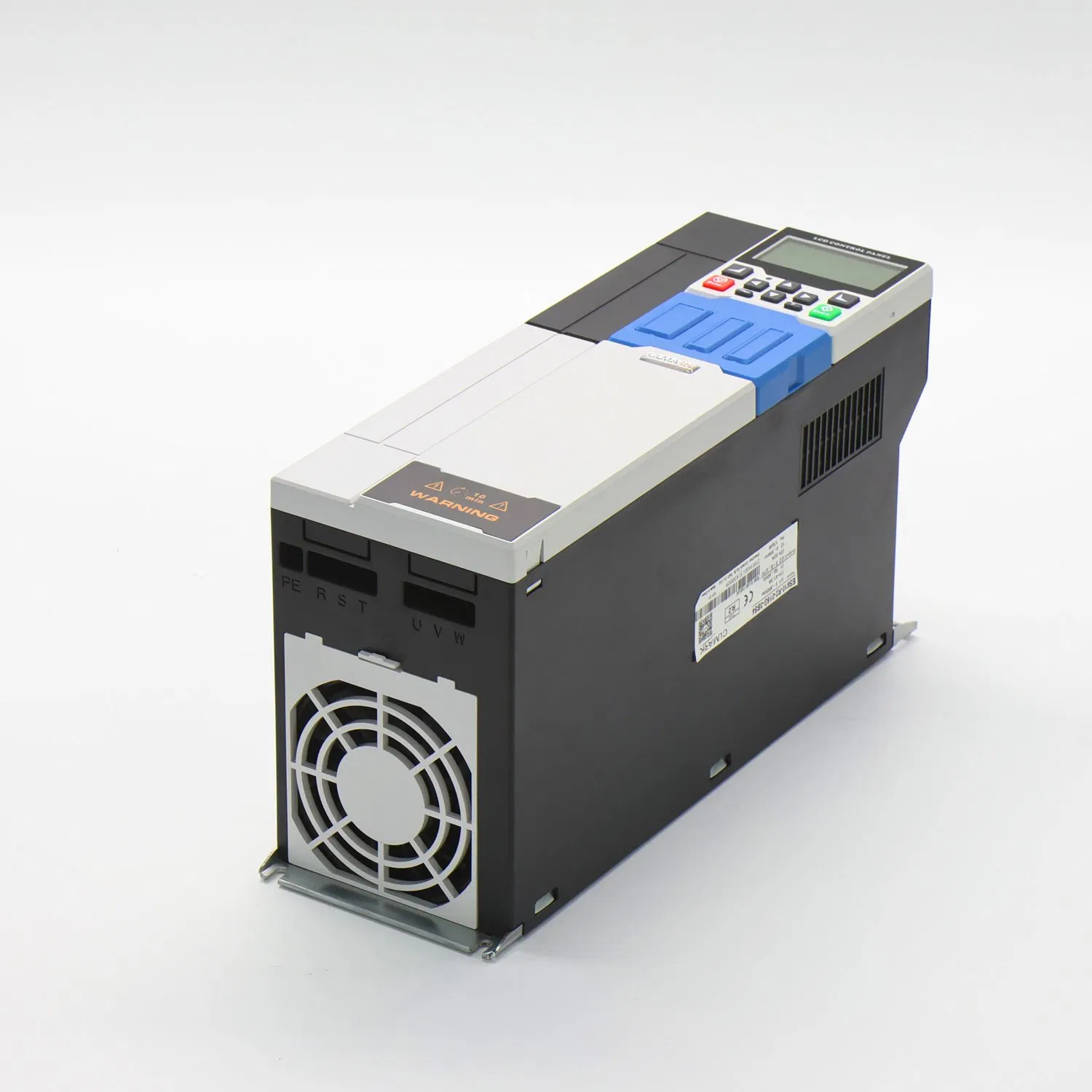

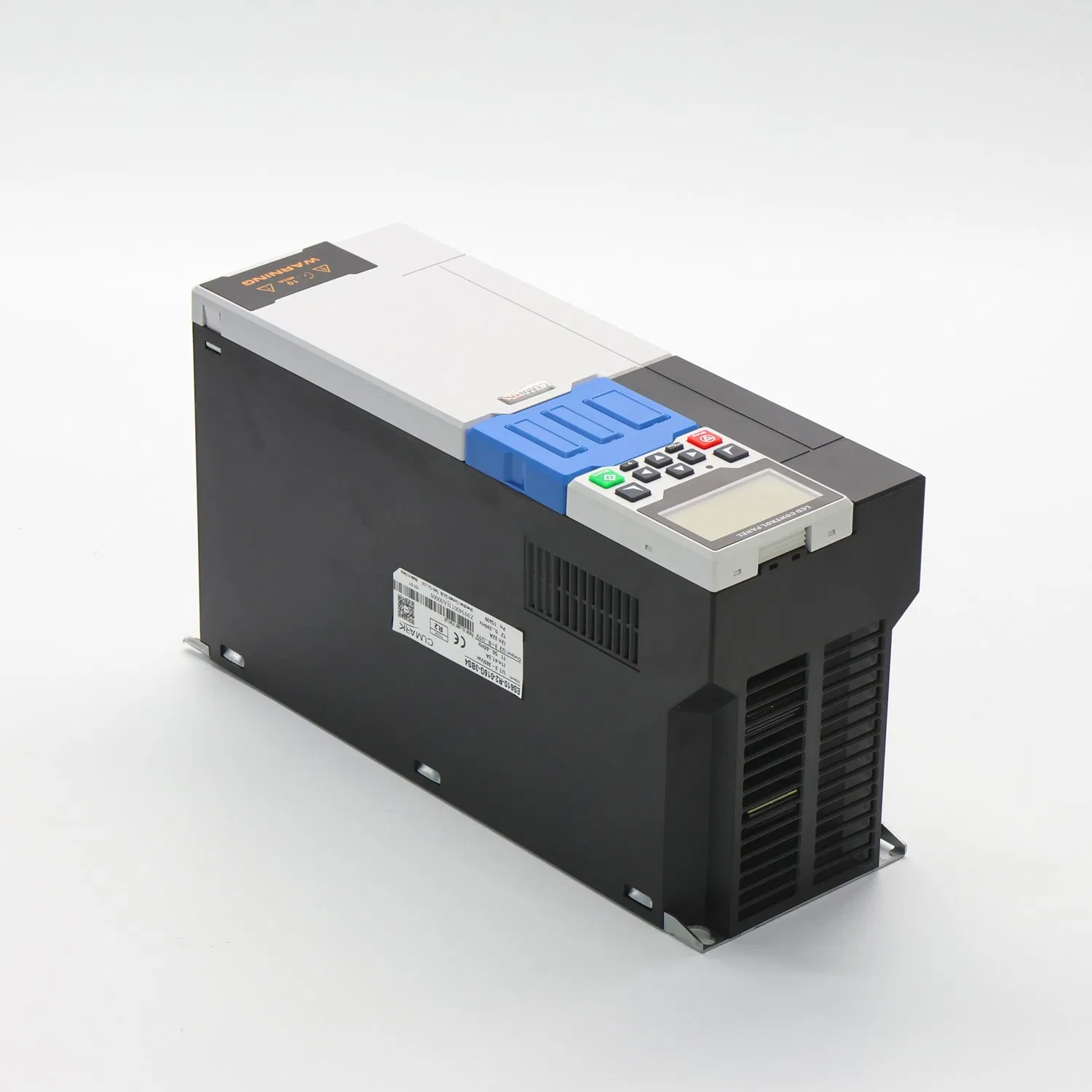

Es610PV-15kw Hybrid Solar Pump VFD with MPPT for Irrigation Systems

📋

Basic Information

Model NO.

ES610PV-R2-015G-3BS4

Principle of Work

V/F Control & SVC Control

Switch Mode

PWM Control

Main Circuit Type

Voltage

MPPT Function

Yes (99.9% Efficiency)

Solar DC Voltage

0~900VDC

Hybrid Input

Solar DC & AC Grid

Capacity

2000PCS Per Month

💡

Product Description

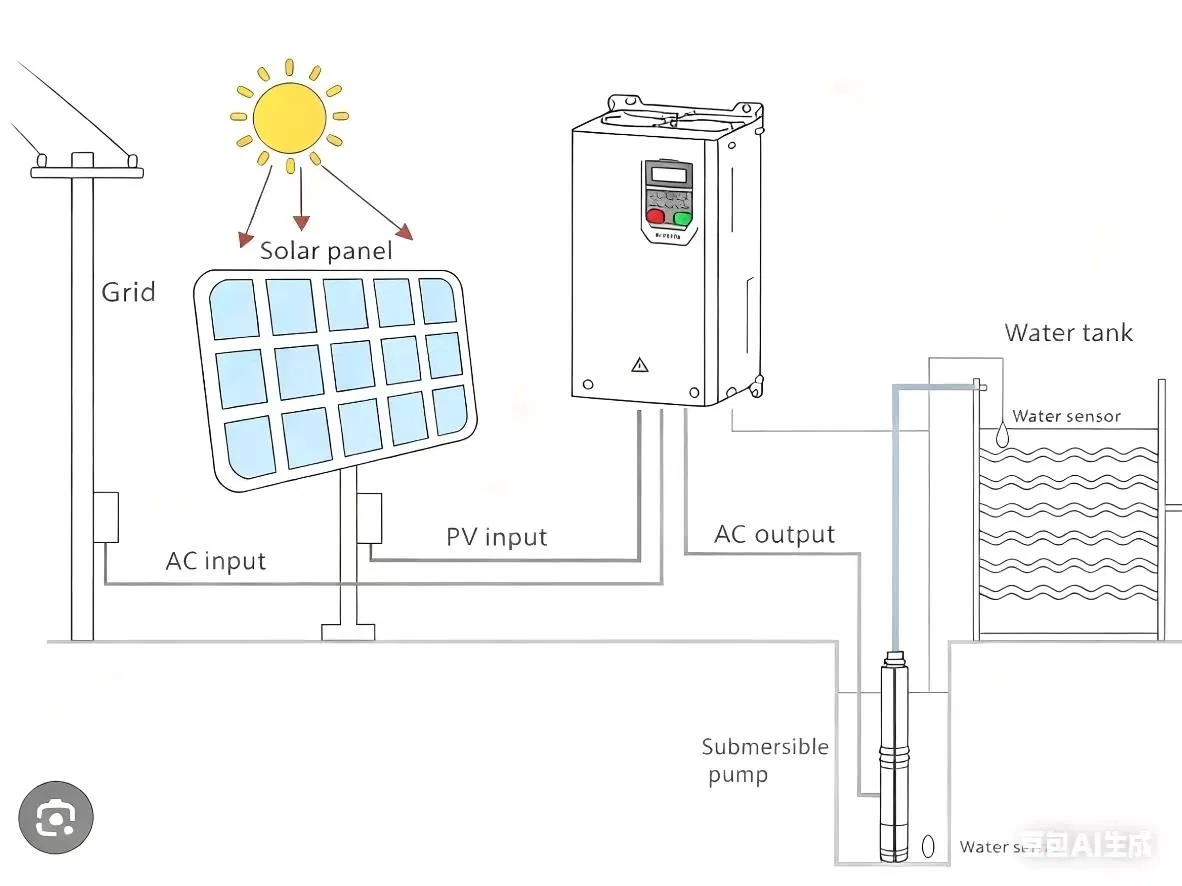

Working Principle of MPPT Solar Pump Inverter:

The MPPT Solar Pump Inverter is the intelligent core of off-grid/hybrid solar water pumping systems, specially designed for agricultural irrigation, rural water supply and remote area water pumping scenarios. It integrates Maximum Power Point Tracking (MPPT) technology, high-efficiency DC-AC inversion and intelligent motor speed control, realizing direct conversion of solar energy to pumping mechanical energy without energy storage batteries.

✨ Product Highlights

Built-in MPPT function with efficiency up to 99.9%.
Supports 220V/380VAC solar pump, power range 0.4~560KW.
Hybrid power input: supports Solar & AC Grid power for 24/7 operation.
Multi-meter LCD display: Current, Voltage, KW/H, Water Flow.
Full Protection: Pump over temperature, dry run, and overload protection.
Protection Class: IP40/IP20/IP54 options available.

📊

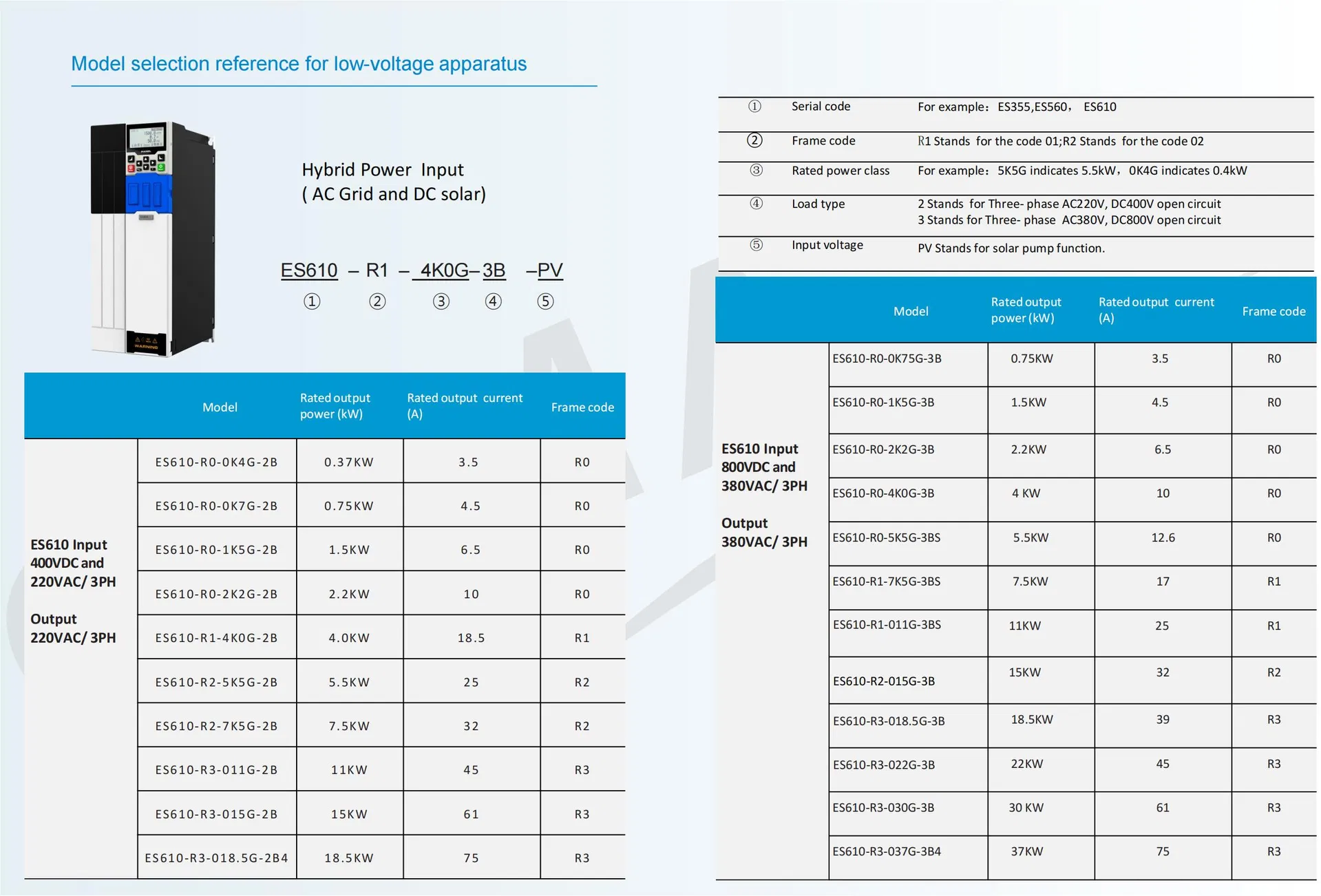

Technical Specifications

Parameter	Ending with -1	Ending with -2	Ending with -3
AC input voltage (V)	208-240V (1HP)	208-240V (3HP)	380-460V (3HP)
MAX. DC input voltage	400Vdc	400Vdc	900Vdc
Solar Start-up voltage	200Vdc	200Vdc	300Vdc
Recommend MPP voltage	330V	330V	550V
Output frequency	0~600Hz
Fault protection	30+ functions (Overvoltage, Dry running, Water level, phase loss, etc.)

🖼️

Visual Overview

📦

Packing & Certifications

❓

Frequently Asked Questions

1. What is the efficiency of the MPPT Solar Pump Inverter?

Our inverter features built-in MPPT technology with an efficiency rating of up to 99.9%, ensuring maximum solar energy utilization even in changing sunlight conditions.

2. Does it support hybrid power input for 24-hour operation?

Yes, it supports hybrid power input. You can connect both Solar DC and AC Grid power, allowing the system to work during the day via solar and switch to the grid at night or during cloudy days.

3. What types of pumps can this inverter drive?

The inverter is designed to drive various 220V and 380V AC water pump motors. It is compatible with most standard agricultural and industrial water pumps.

4. What protection features are built into the system?

The system includes over 30 protection functions, including pump dry-run protection, over-temperature protection, water level sensing, PV overvoltage/undervoltage, and phase loss protection.

5. Is it possible to use this for general industrial applications?

Yes, under the AC control mode, this inverter can also be used for different general-purpose industrial application sites as a standard variable frequency drive (VFD).

6. What is the typical lead time for an order?

For small orders (1-10 pieces), the lead time is approximately 7 days. For larger quantities, the lead time is negotiable based on current production capacity.
