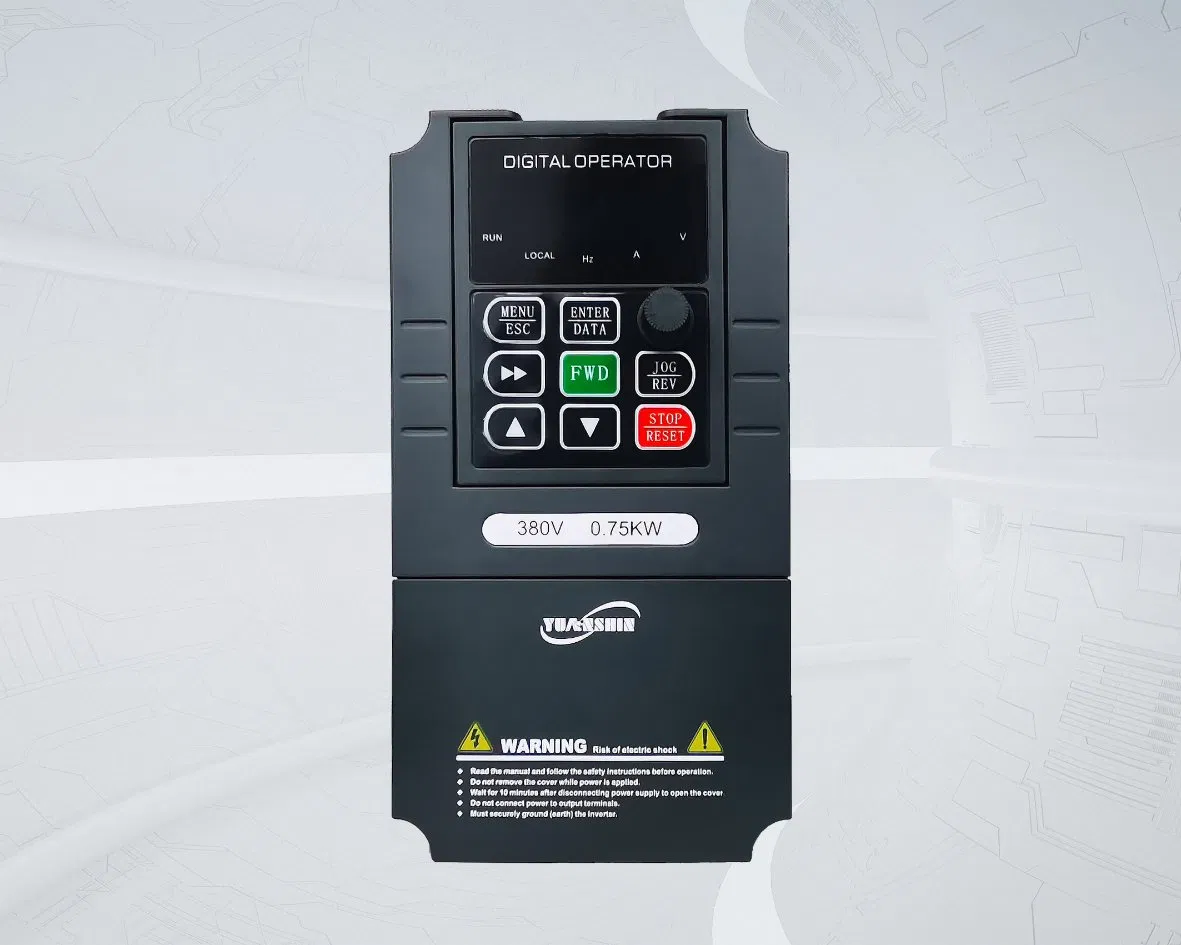

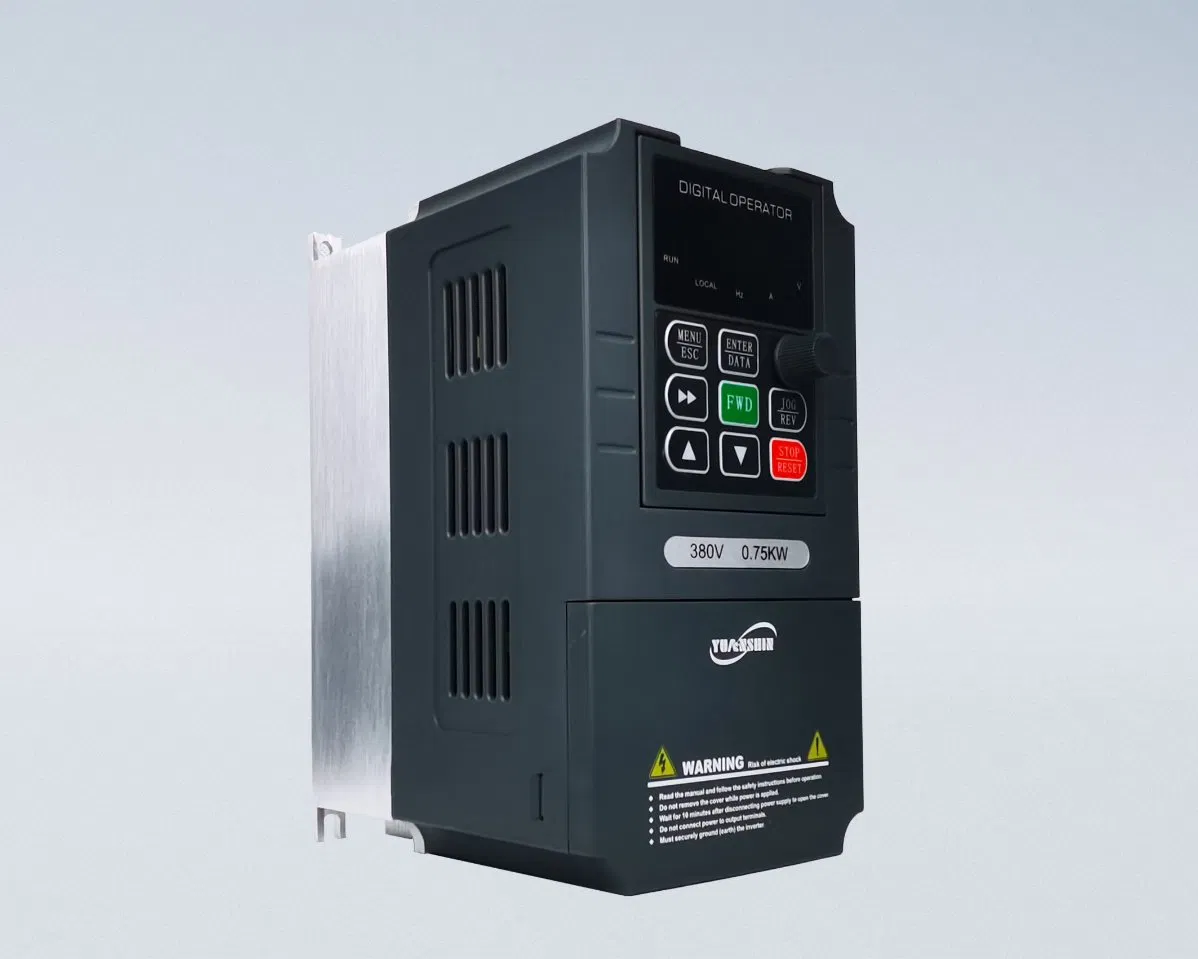

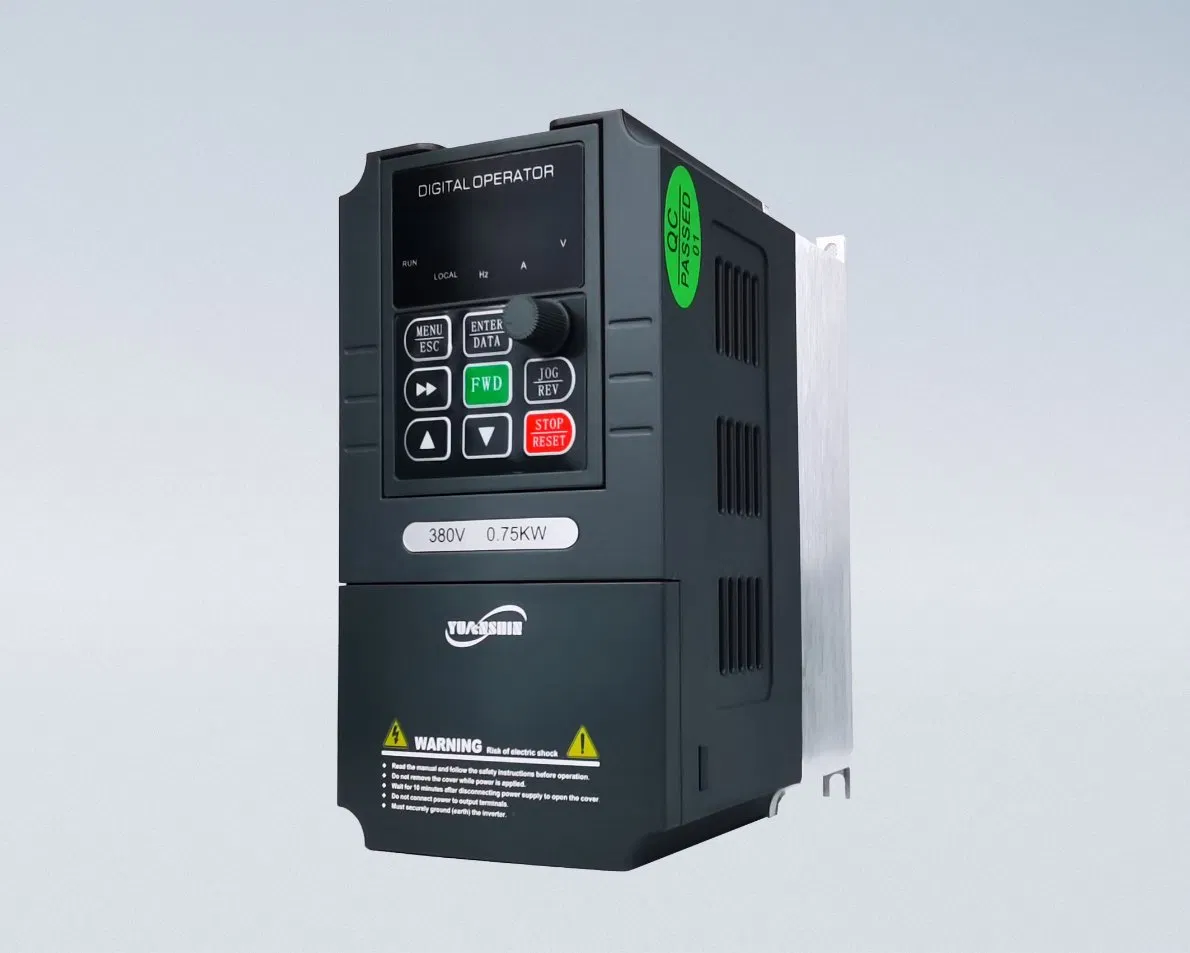

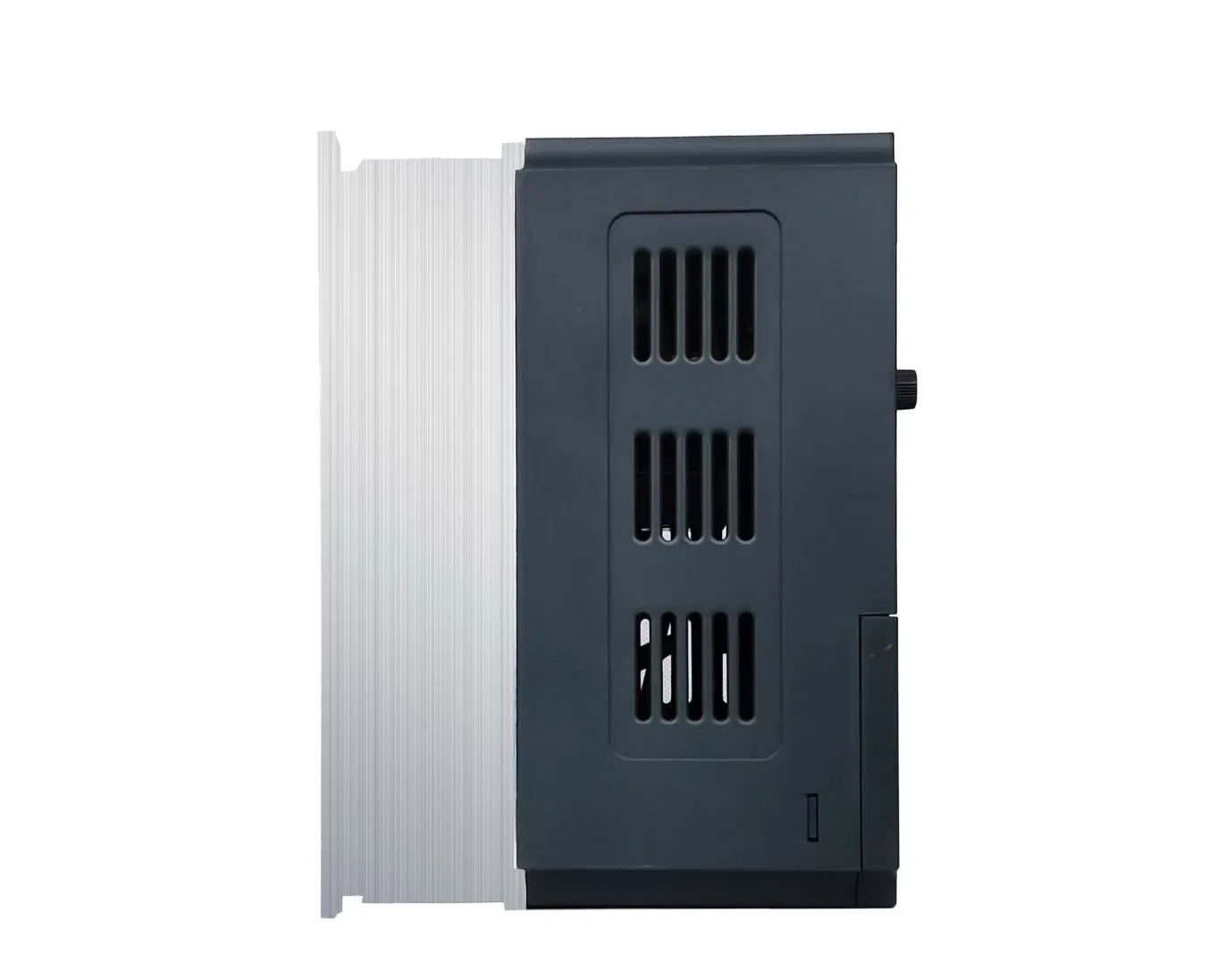

Economy General Purpose Frequency Inverter VFD

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

Principle

V/F Control Transducer

Switch Mode

PWM Control

Main Circuit

Voltage Type

Power Supply

Low Voltage Variable-Frequency Drive

Link

AC-DC-AC

Function

Simple Type

Color

Black

Warranty

18 Months

Voltage

380V+/-20%

Power Capacity

0.4kw-400kw

Rated Current

3A-750A

Certificate

CE, ISO9001, TUV, SGS

Capacity

5000 PCS / Month

Product Description

🚀 Key Features

✓Support both PMSM/BLDC motor and normal induction A/S motor.

✓Side-by-side mounting capability with Vector control.

✓DIN rail mounted design (available for 0.75kw~2.2kw).

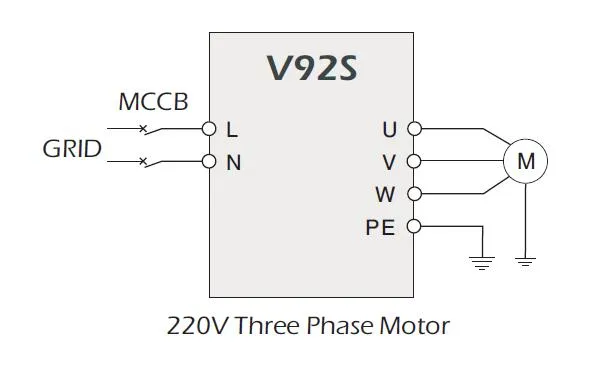

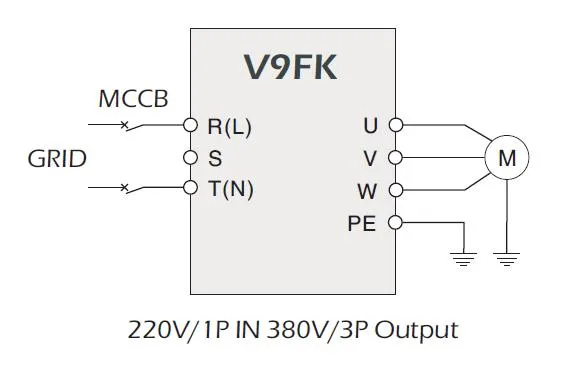

✓220V/1P input and 380V/3P output support.

✓Solar Pump model support: DC input from solar panel and AC output for water pump.

✓Dust-free cooling fans and cost-effective design.

💎 Main Benefits

★Higher efficiency and less installation space for PMSM motors.

★Built-in Braking chopper/unit for complicated applications.

★Compact size reduces control cabinet enclosure costs.

★Vector control & auto-tuning for faster setup and high performance.

Technical Specifications

Items	Specifications
Rated Input Voltage	220V / 380V / 415V / 440V; 50Hz/60Hz
Voltage Tolerance	±20% voltage unbalance rate: <3%; frequency: ±5%
Frequency Range	0Hz~5000Hz
Overload Capability	150% rated current for 1 minute, 180% rated current for 3 seconds
Control Mode	V/F, Sensorless Vector Control (SVC), Speed Sensor Vector Control (FVC)
Start Frequency	0.40Hz~20.00Hz
V/F Curve	Constant torque, user-defined, and 3 kinds of down torque curves
DC Braking	Braking Time: 0.0s~36.0s; Action Current: 0.0%~100.0%
Communication	Support Modbus
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Overload, Input phase loss
Ambient Temperature	-10ºC~+40ºC
Protection Level	IP20
