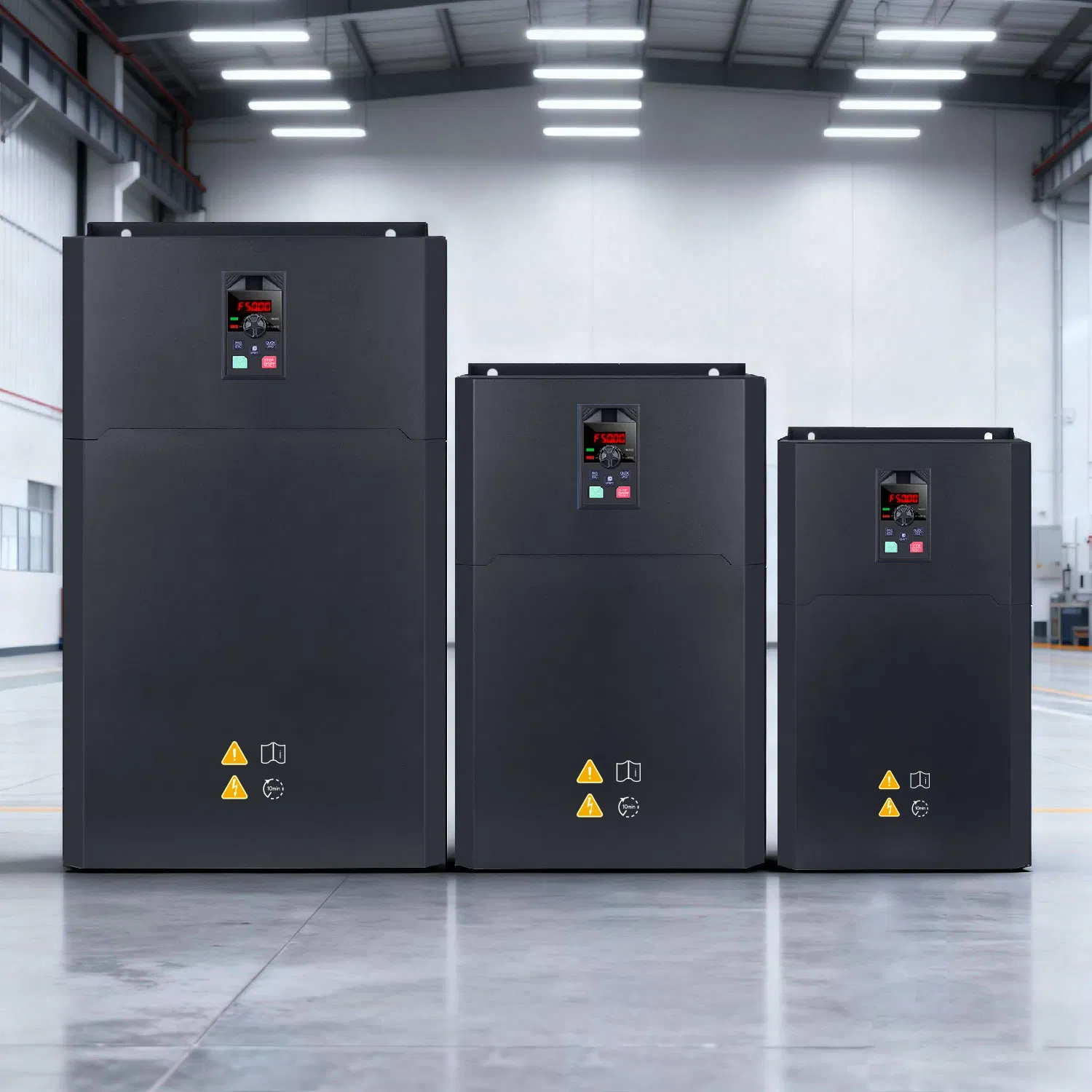

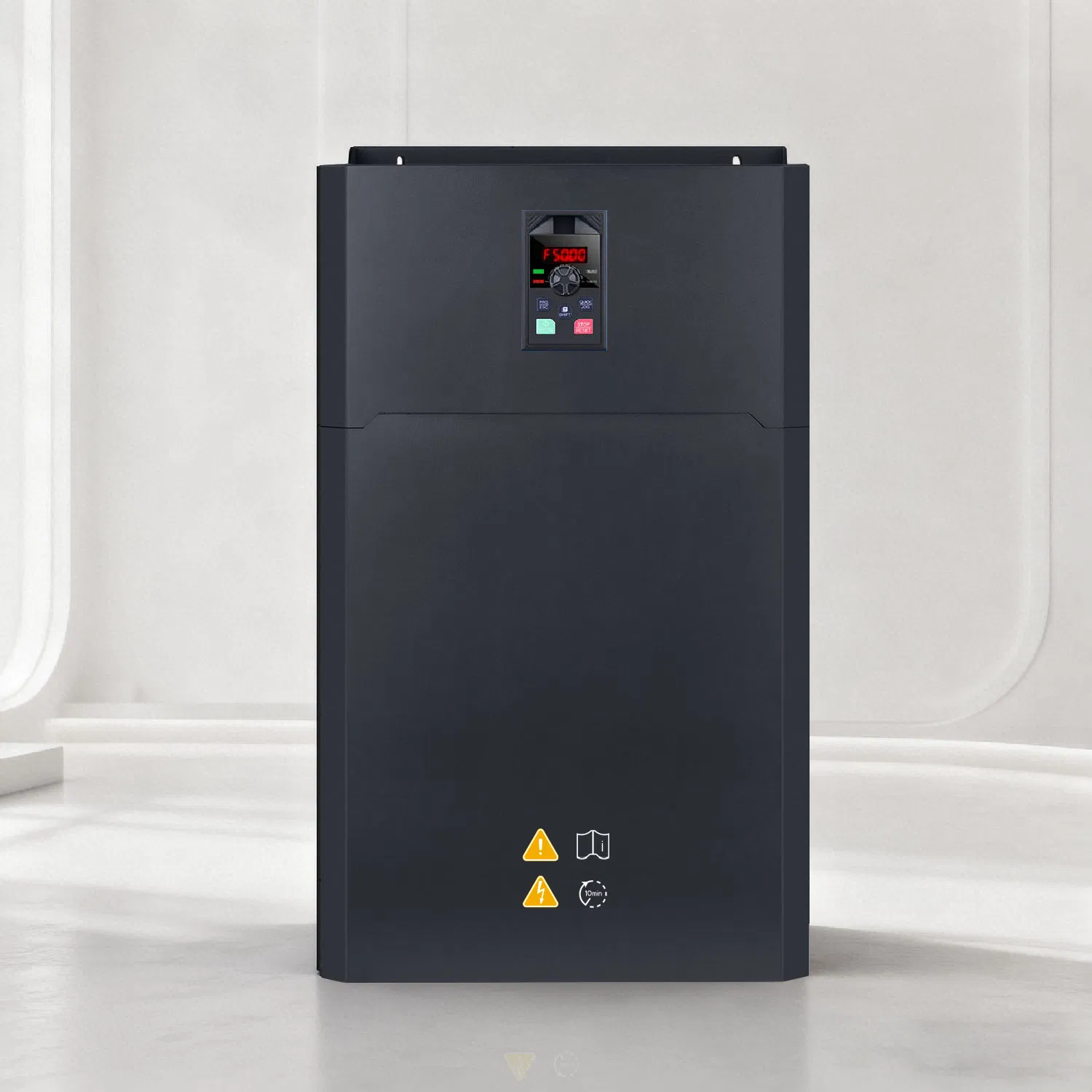

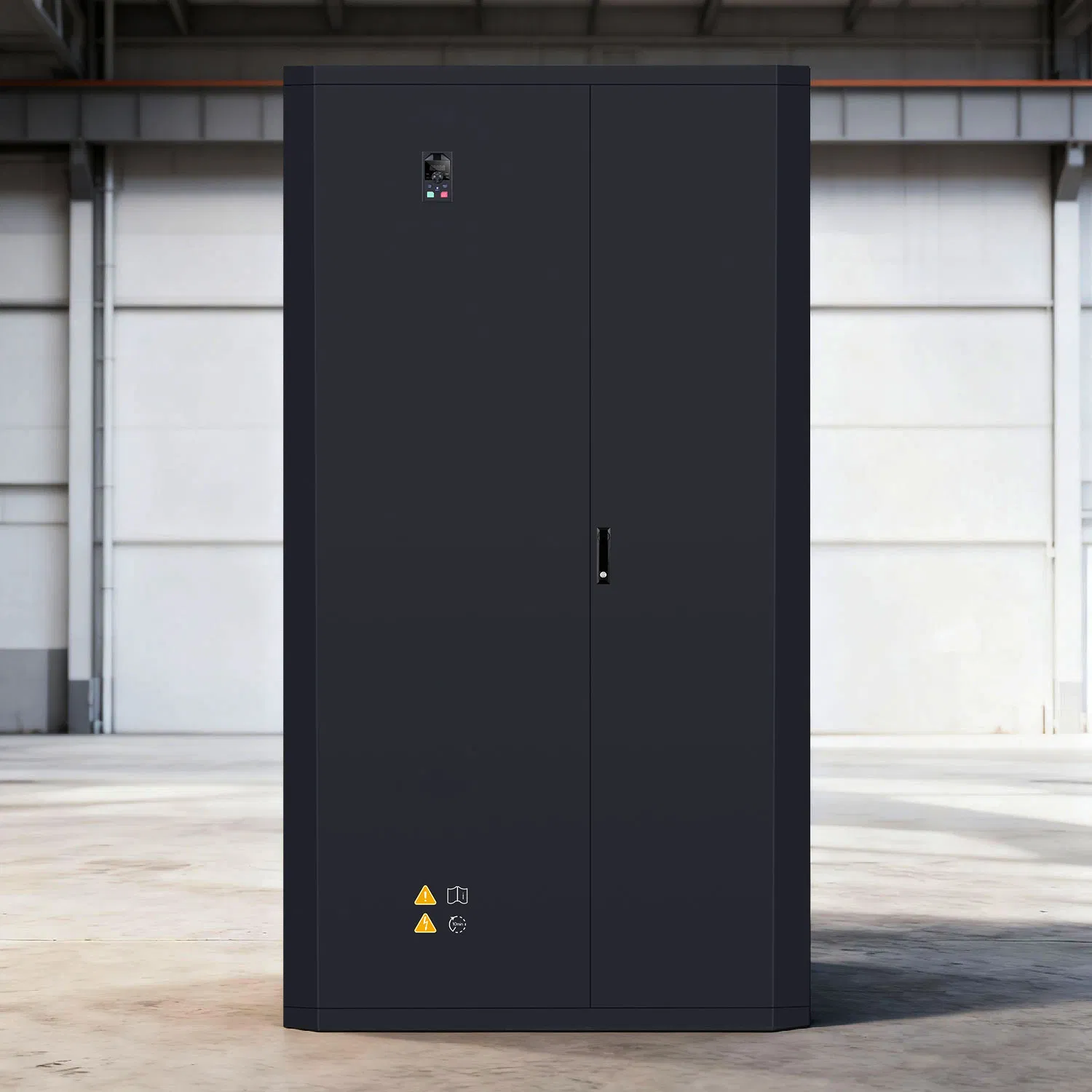

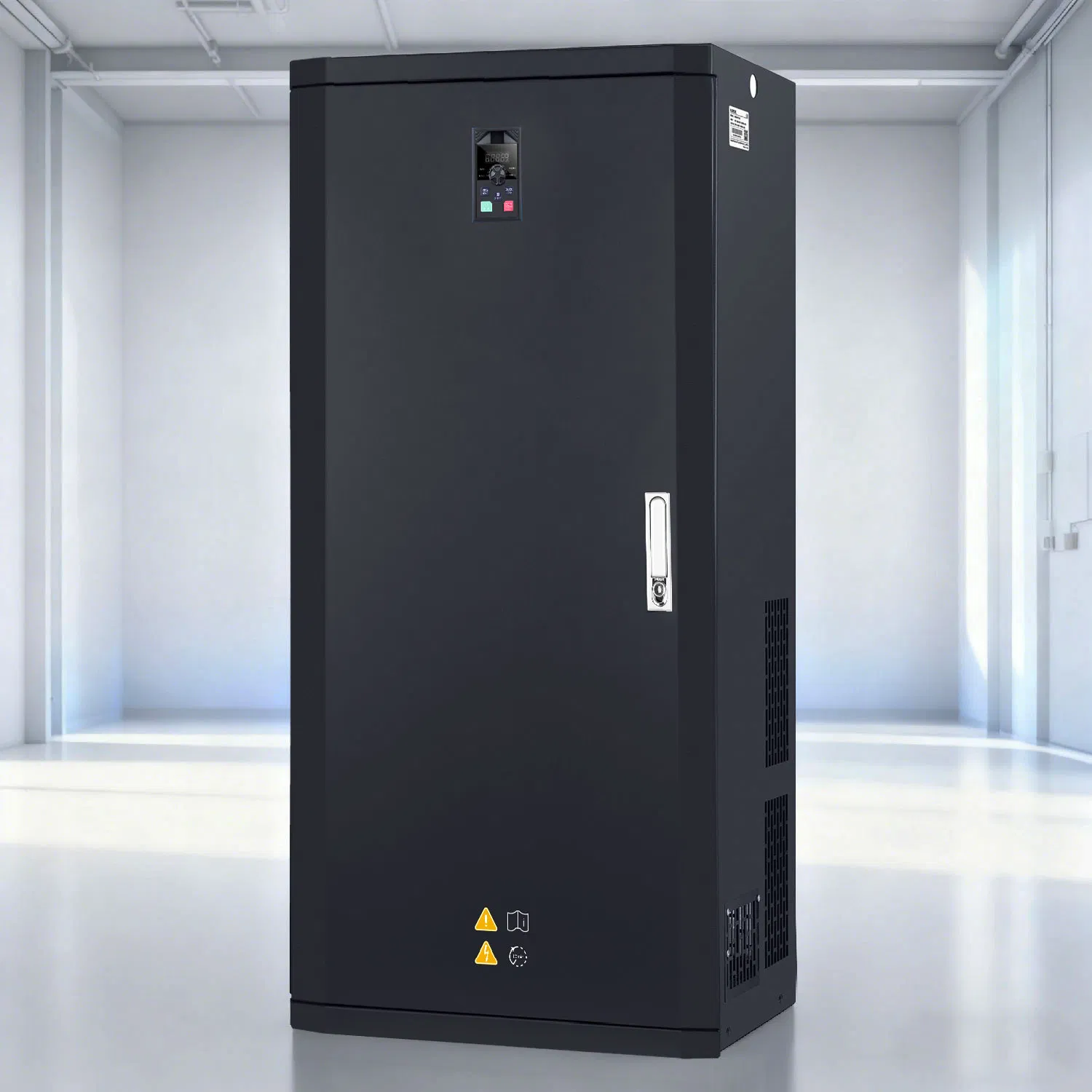

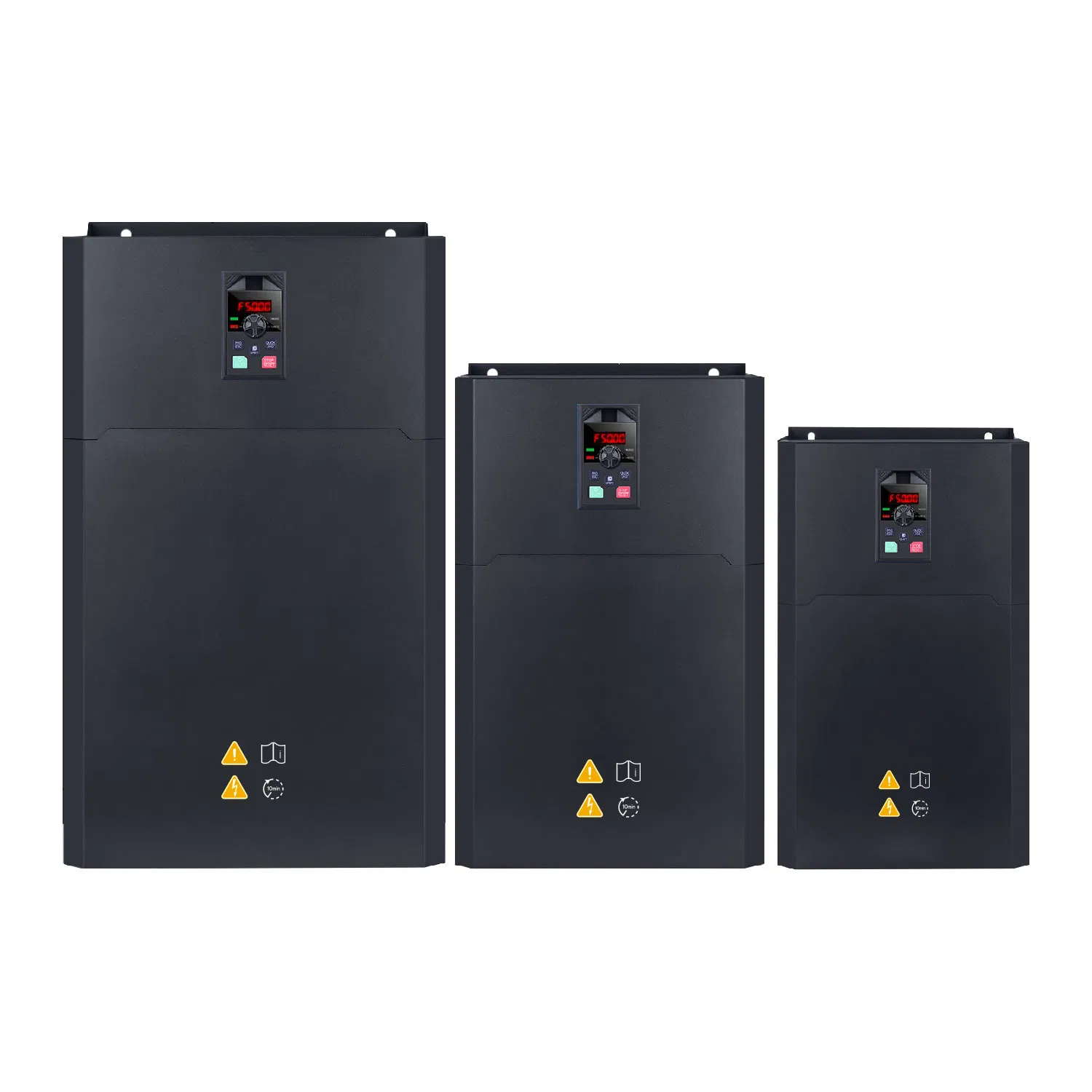

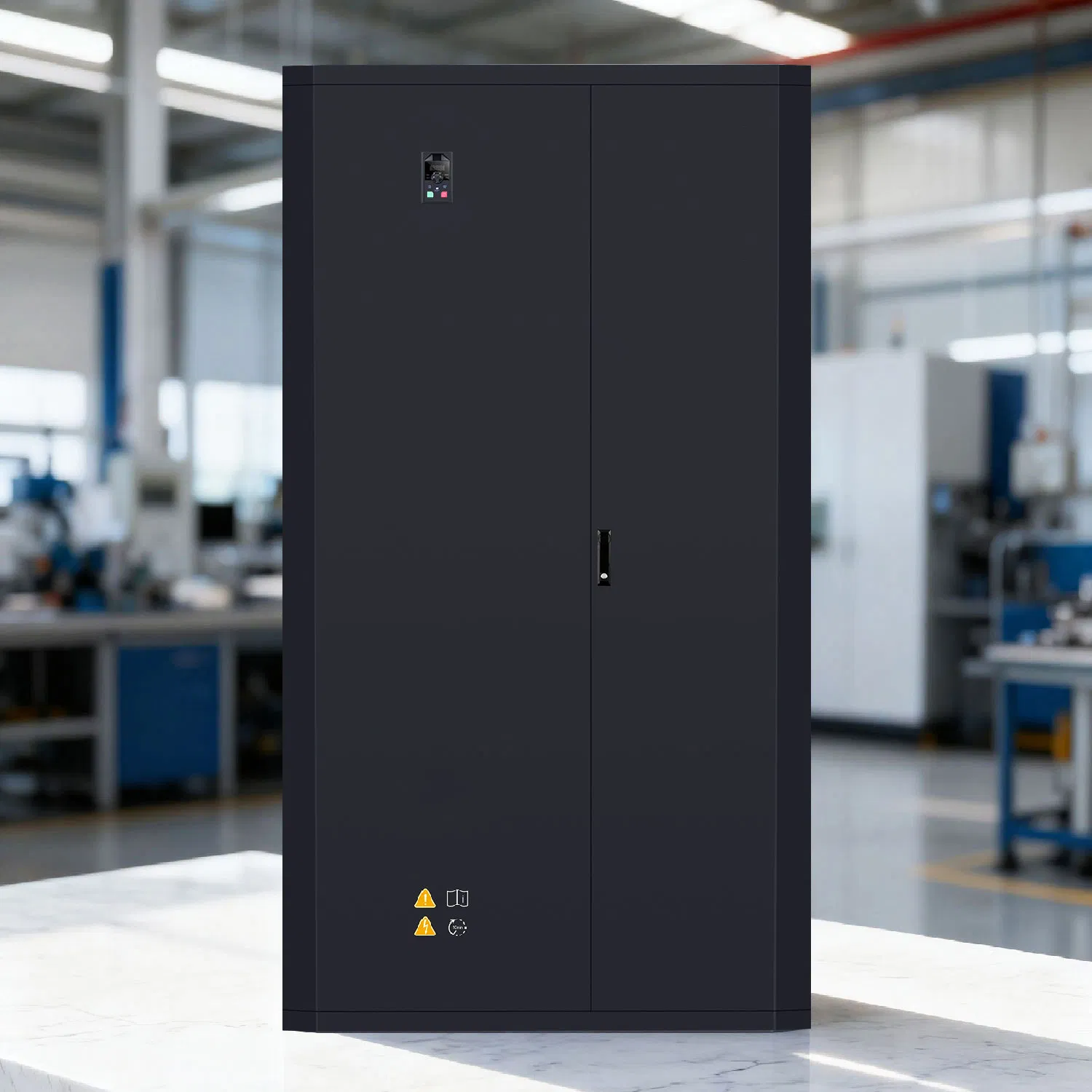

Current Vector Control: Online adjustment of motor parameters according to the motor's operating status to achieve optimal control.
1. Large Speed Range: Output frequency supports 0 to 3000Hz.
2. Adaptive Acceleration and Deceleration: Intelligently adjusts rates based on the load operating status.
3. Excellent Performance: Outstanding current and voltage control technology ensures stable and jump-free operation with 0.1s command response.
| Function Description | Specification Index | |
| Basic Functions | Maximum Frequency | Vector Control: 0-300Hz; V/F Control: 0-3000Hz |
| Carrier Frequency | 1kHz - 16kHz (Auto-adjustable) | |
| Control Method | Open Loop Vector Control (SVC), V/F Control | |
| Starting Torque | 0.5Hz/150% (SVC) | |
| Overload Capacity | G Type: 150% rated current for 60s; 180% for 1s | |
| DC Braking | Frequency: 0.00Hz to Max; Time: 0.0s-30.0s | |
| Operation & Protection | Frequency Source | 11 types (Digital, Analog, Pulse, Serial, etc.) |
| Input Terminals | 8 digital (1x 100kHz pulse), 2 analog (0-10V/0-20mA) | |
| Protection | Phase loss, Overcurrent, Overvoltage, Undervoltage, Overheating, Overload | |
A professional manufacturer of soft starters and variable frequency drives since 1998, holding ISO and CE certification with over 80 patents demonstrating industry innovation. Rigorous quality control ensures product reliability through PCBA testing, intelligent aging tests, and 10KV medium-voltage validation.

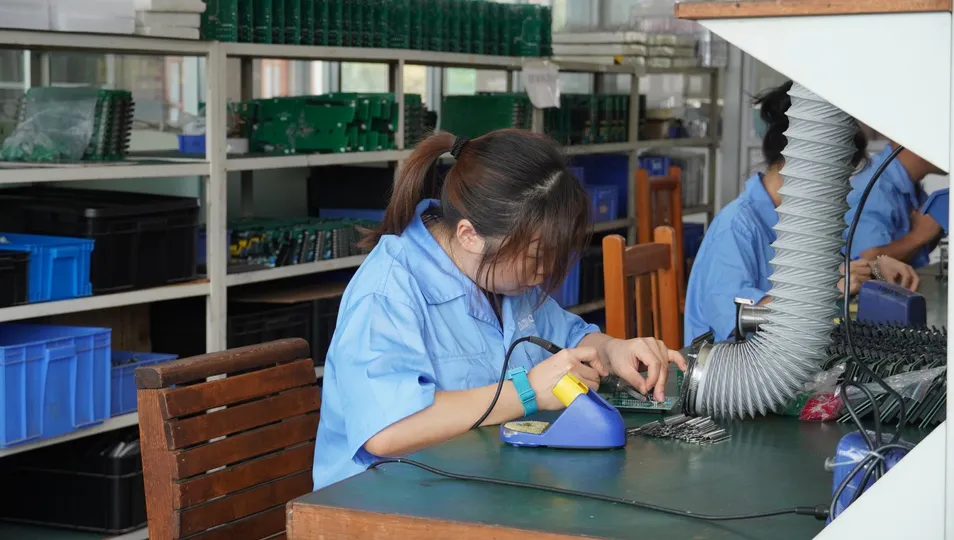

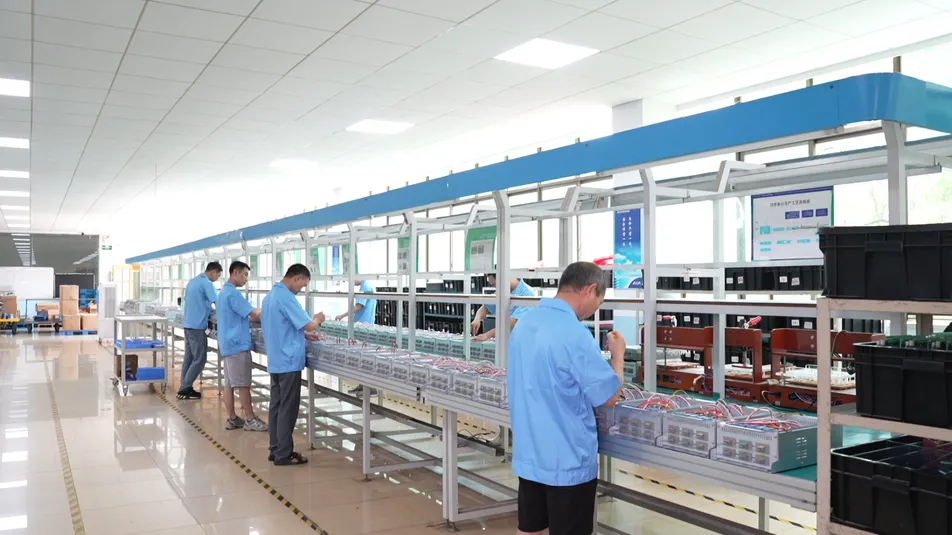

Advanced production infrastructure includes ESD-protected clean rooms and modular assembly platforms. Products have been distributed across Europe, Southeast Asia, the Middle East, South America, and Africa.
