Professional manufacturer specializing in the R&D of AC drives with over 12 years of experience. We provide a comprehensive product family covering a power range from 0.4 to 630kW and voltage range between 220V and 480V. Over 300,000 units are operating smoothly across various industrial sites worldwide.

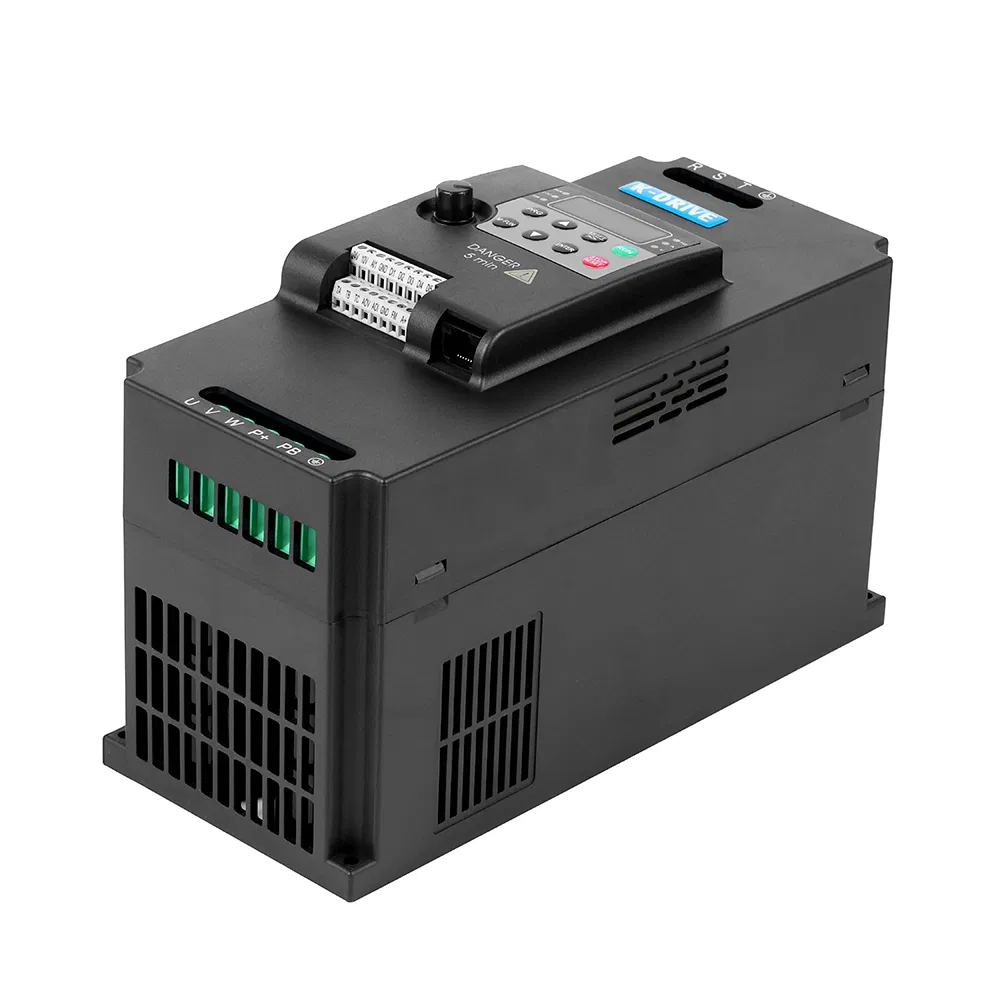

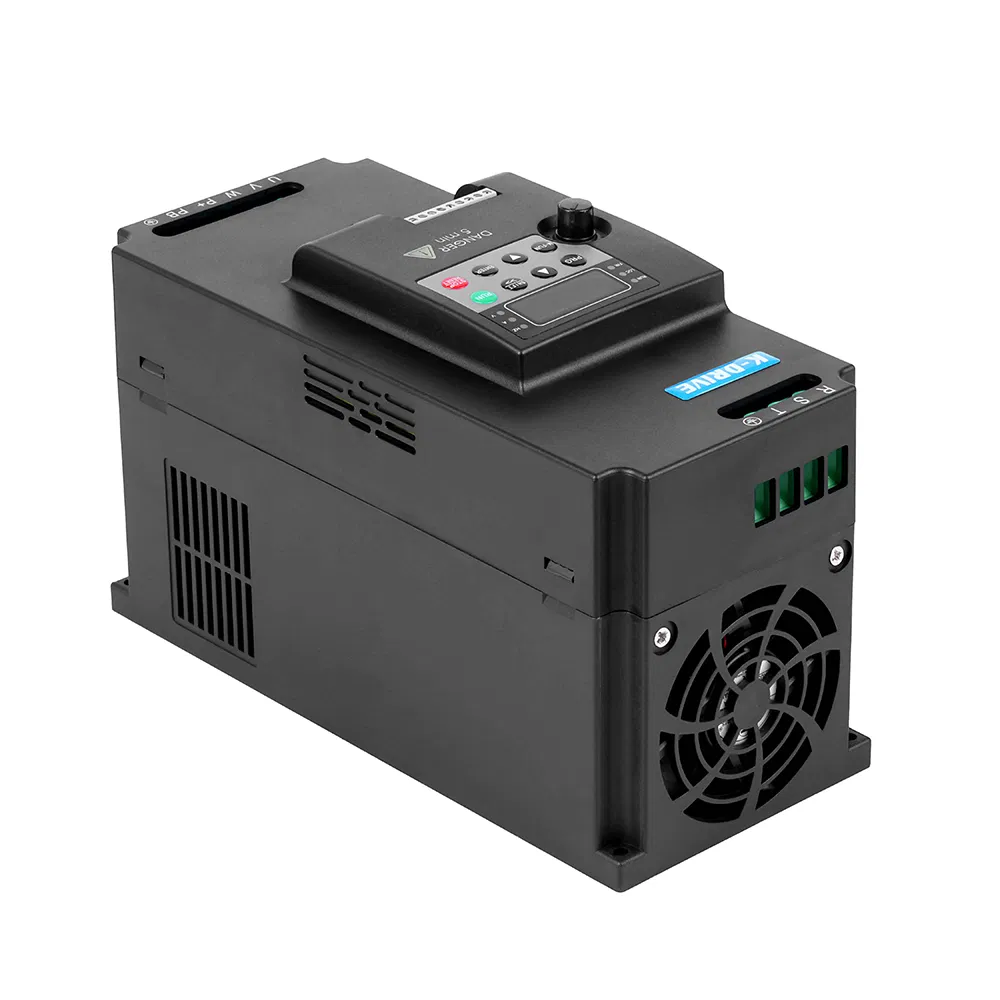

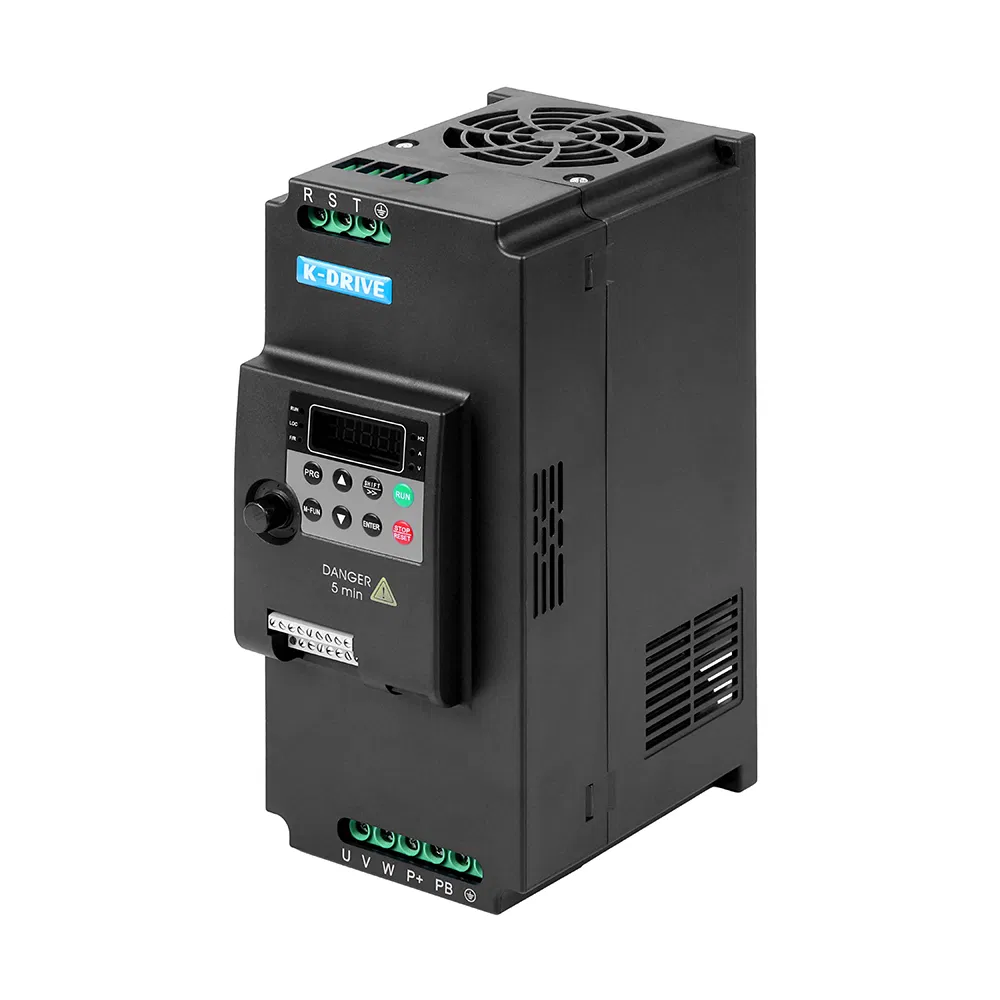

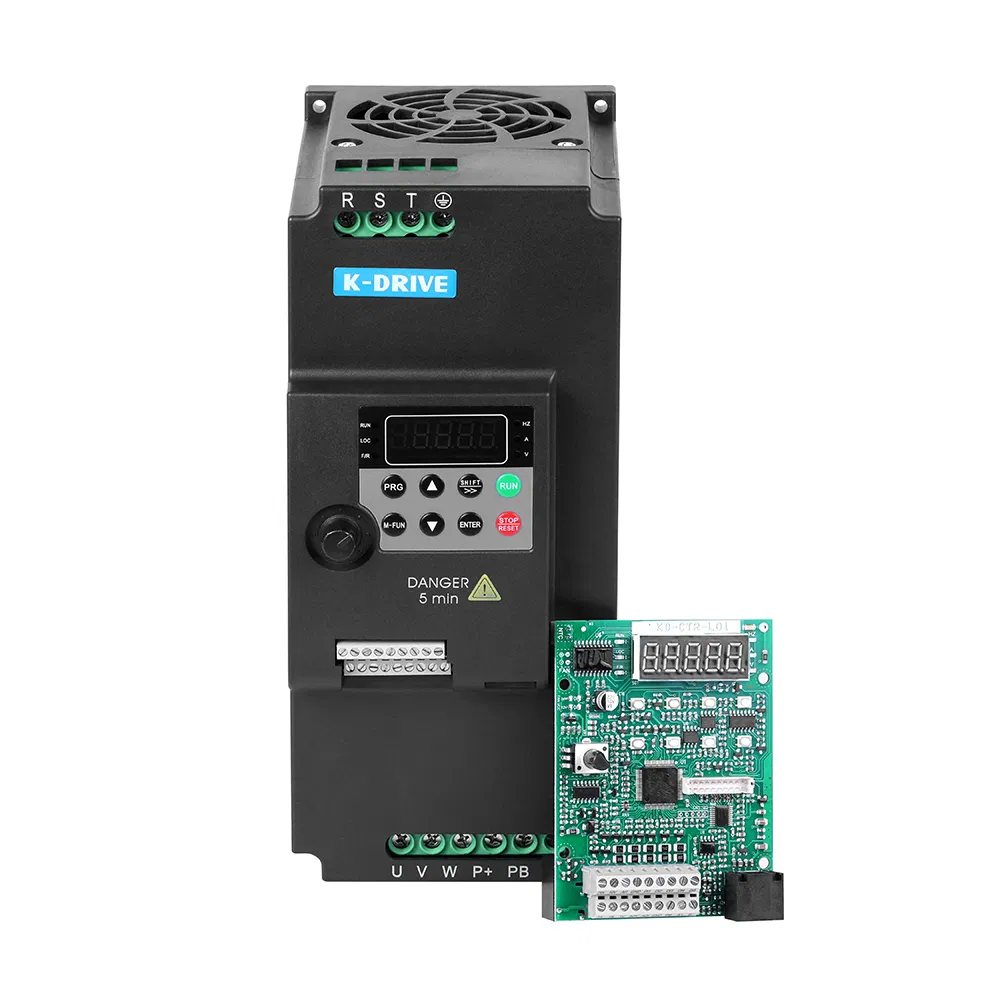

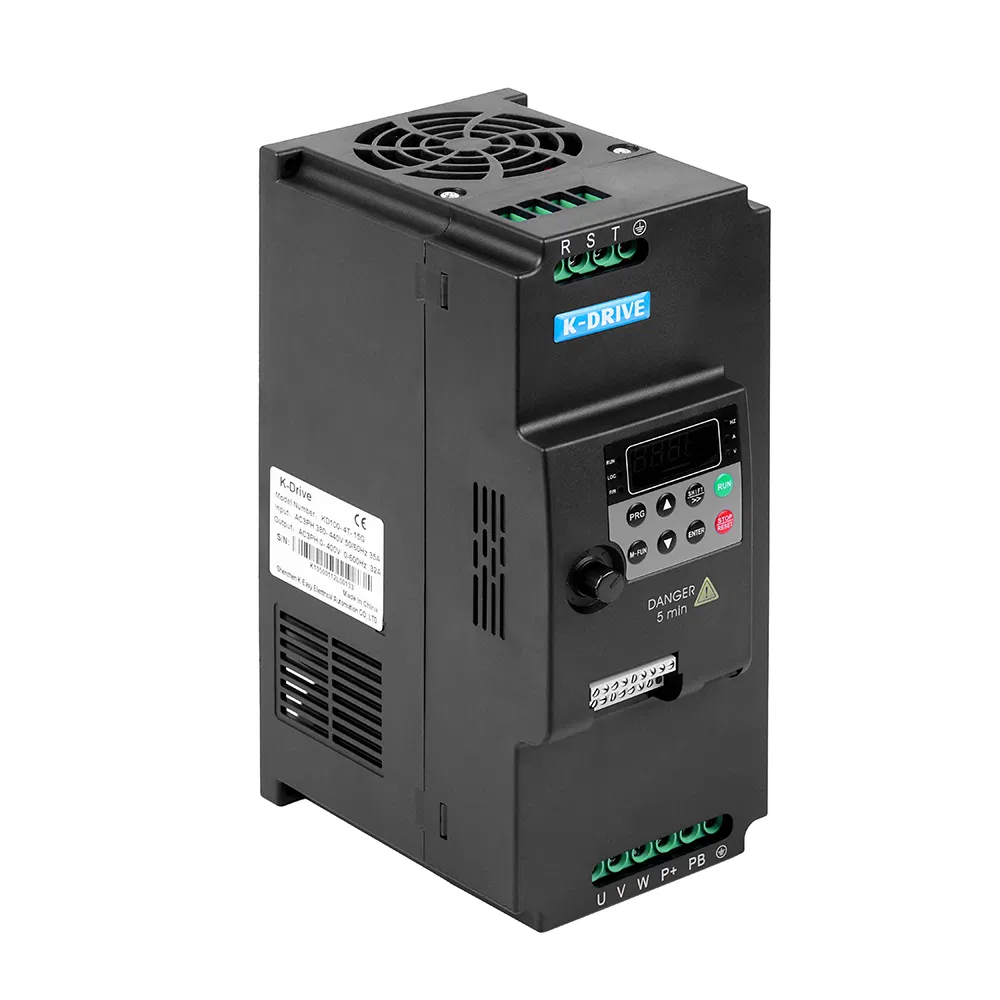

The KD100 Series is our most competitive line, offering exceptional value. It features high-quality internal components, including hall chips and a built-in EMC filter, supported by a 3-year warranty.

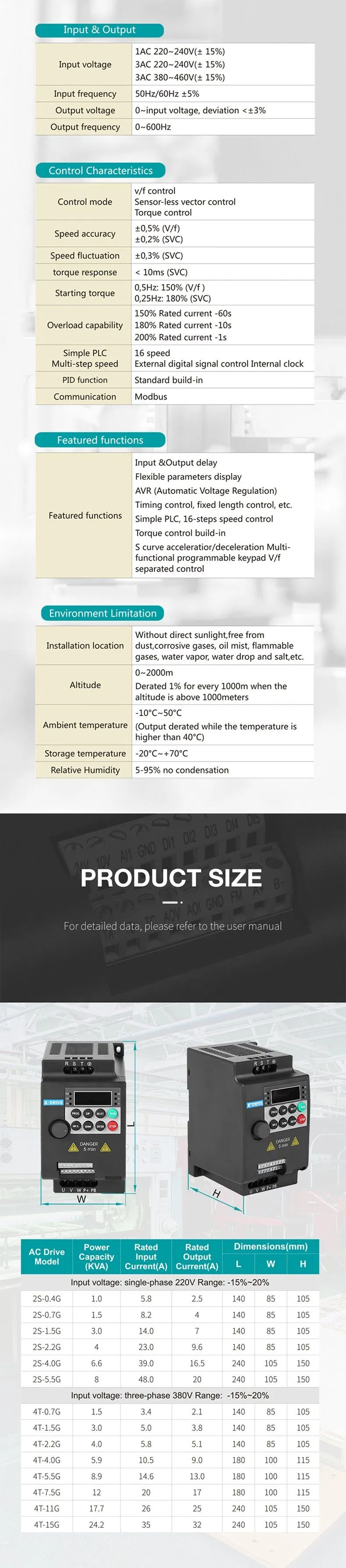

| Input Voltage | 208~240V single phase & three phase 380~480V three phase |
| Output Frequency | 0~600Hz |
| Control Technology | V/F, SVC, Torque Control |
| Starting Torque | 0.5Hz 150% (V/F), 0.25HZ 180% (SVC) |
| Speed Accuracy | ±0.5%(V/F) ±0.2%(SVC) |
| Torque Response | <10ms (SVC) |
| Overload Capability | 150% @ 60S, 180% @ 10S, 200% @ 1S |

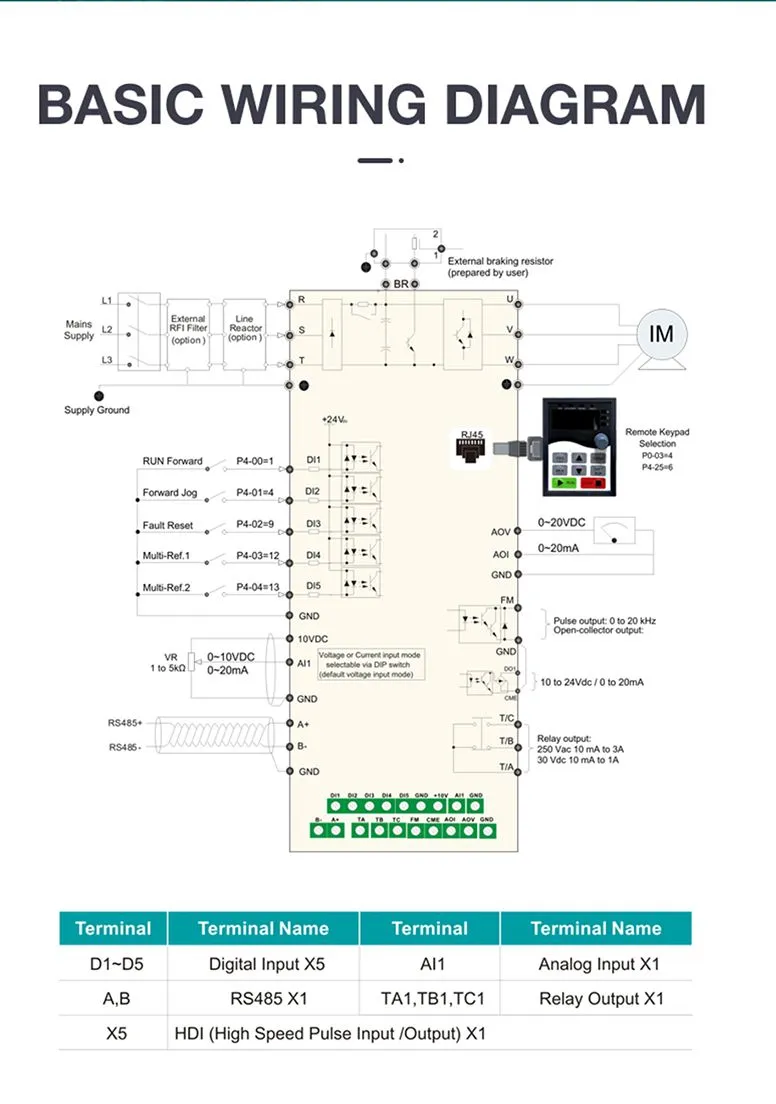

| I/O Support | Simple PLC (16-steps speed control), 5 Digital inputs (NPN & PNP), 2 Analog inputs, 2 Analog outputs |
| Communication | MODBUS RS485 |
