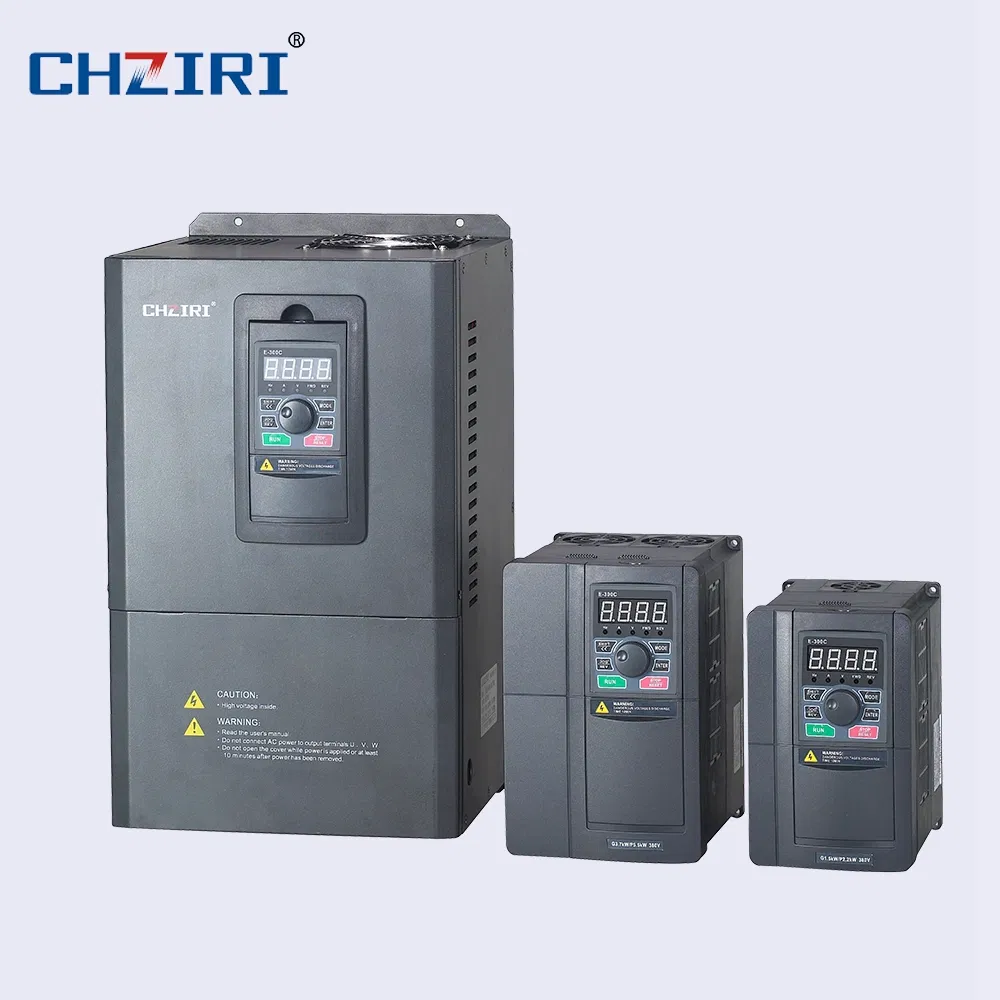

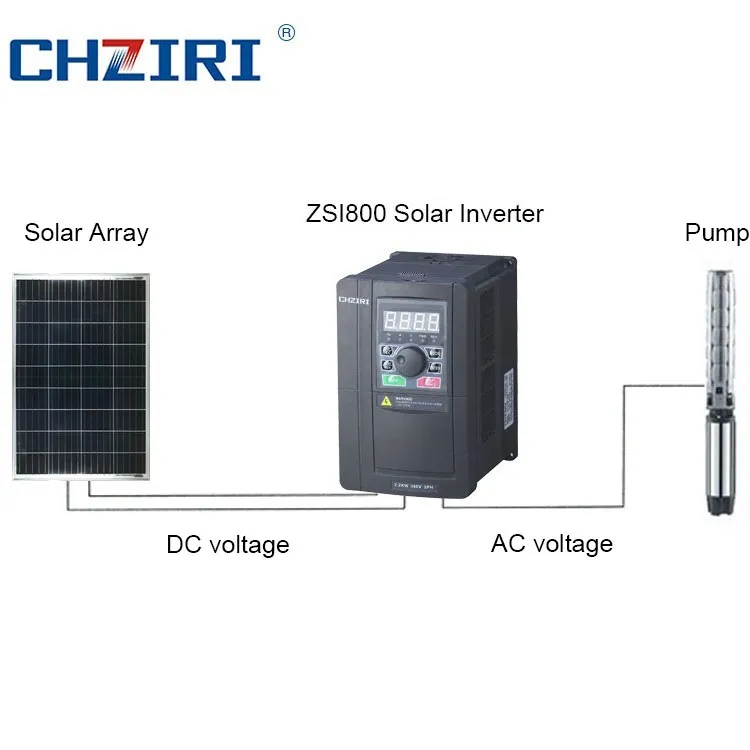

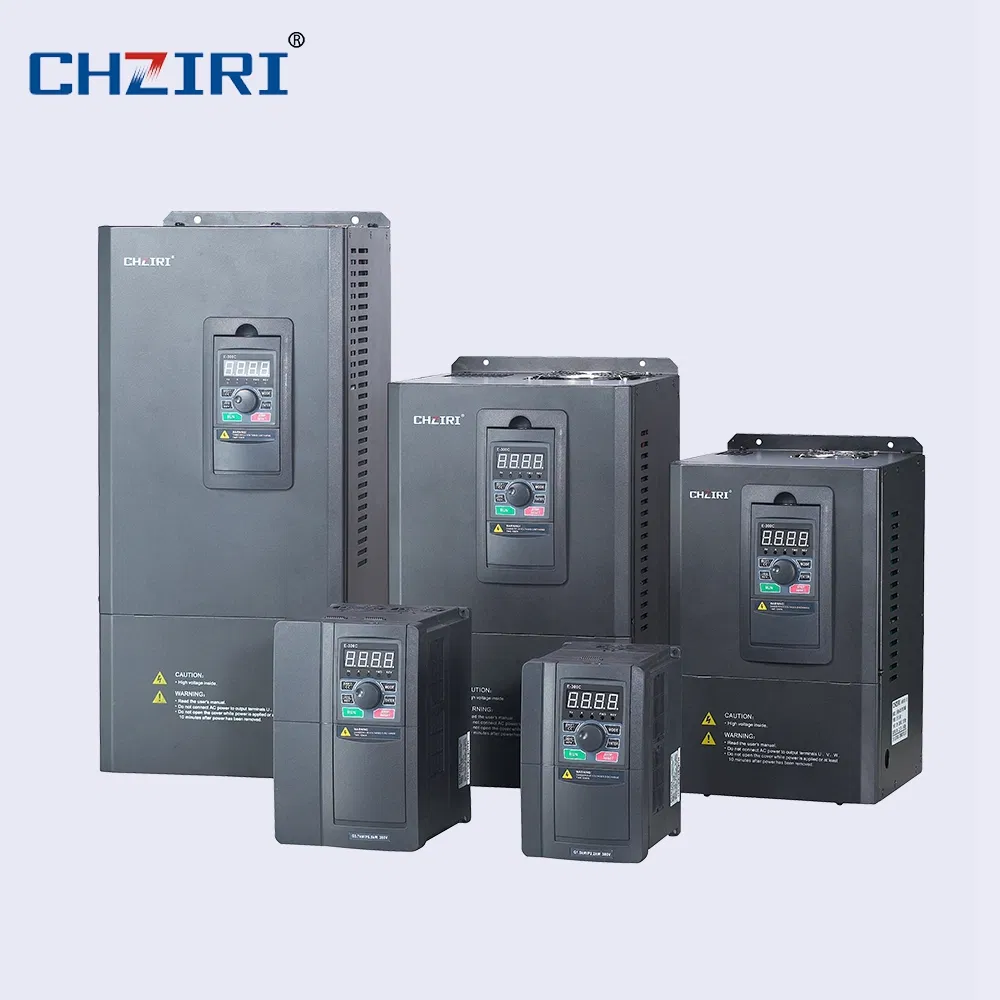

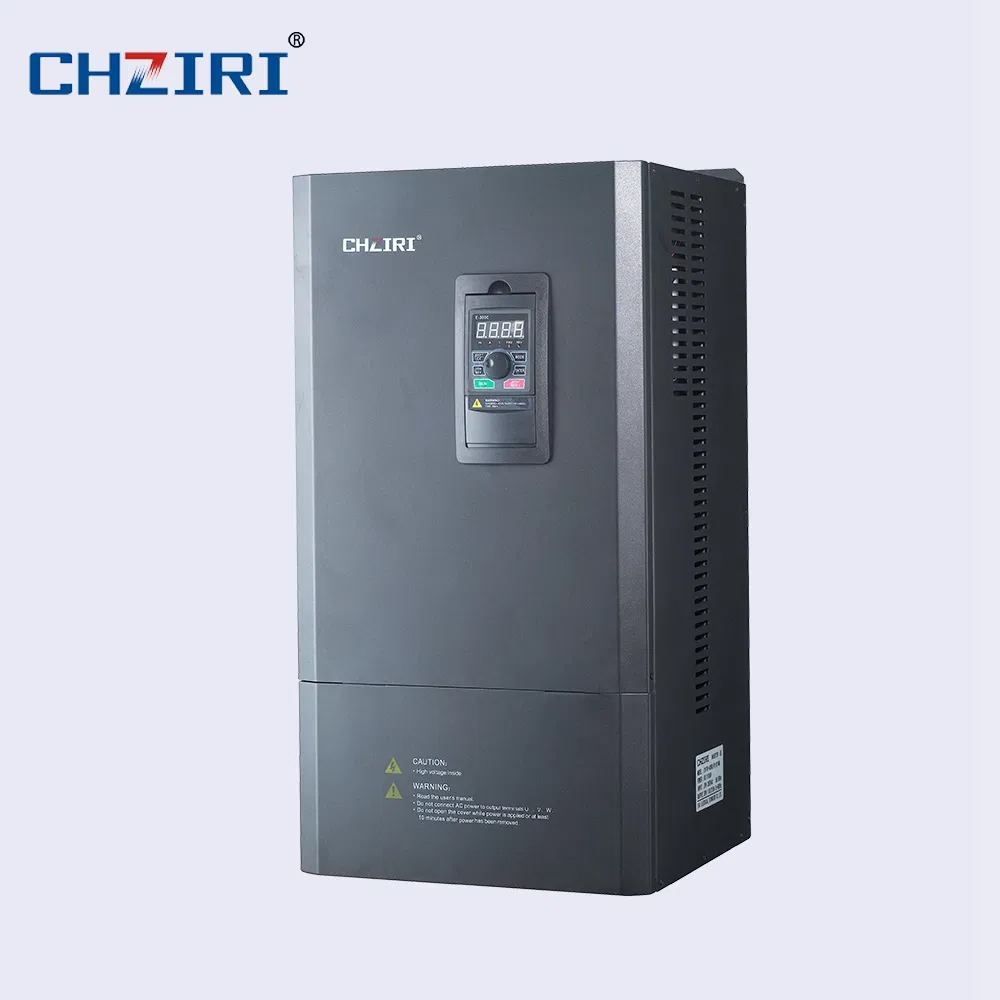

ZSI800 Solar Inverter
Main Features: The ZIS800 series pump control inverter is a high-degree protection pump inverter. The shell is dustproof and splash-water resistant, suitable for installation on different water pump motor junction boxes. It adapts to various sensor signals with simple operation, high reliability, and low noise. It can control a single pump individually or support multi-online operation.
| Category | Item | Description |
|---|---|---|
| Input | Rated Voltage & Frequency | Single/Three phase 220VAC; Three phase 400V. 50Hz/60Hz |
| Allowable Voltage range | Fluctuation: -20%~+20%; Unbalance rate: <3%; Frequency: ≤5% | |
| Output | Rated Voltage | Three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz | |
| Basic Function | Frequency Accuracy | Digital: Max. Freq. ×±0.01%; Analog: Max. Freq. ×±0.2% |
| Acceleration/Deceleration | 0.1~3600s can be set in sequence | |
| Control Mode | V/F curve (Linear, Quadratic, User defined), PID control | |
| Protection | Phase loss, Over current, Overload, Over voltage, Under voltage, Over heat | |
| Ambient | Altitude | Below 1000 M |
| Temperature | -10 ºC to +45 ºC (Bare Machine: -10 ºC to +50 ºC) | |
| Humidity | 20%-90% RH without dew condensation |

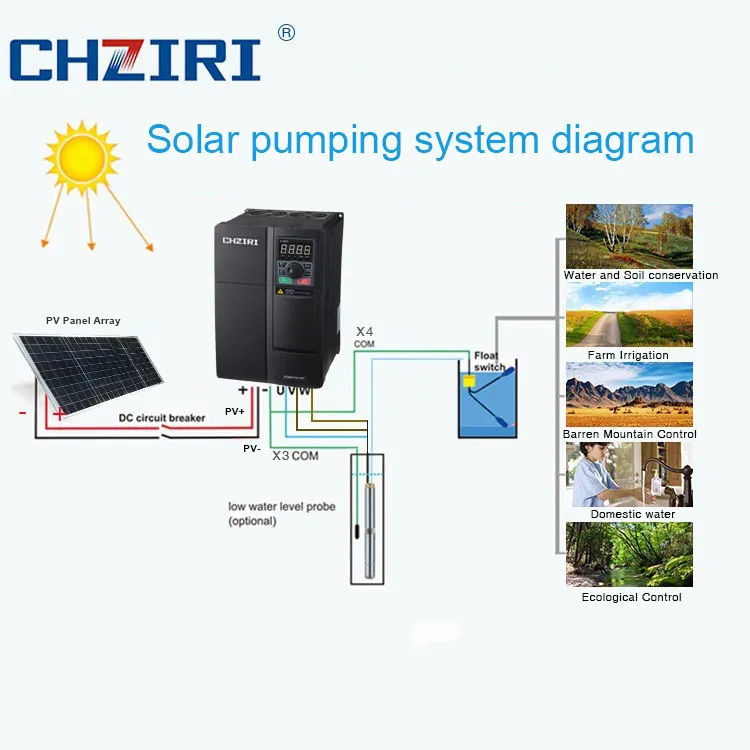

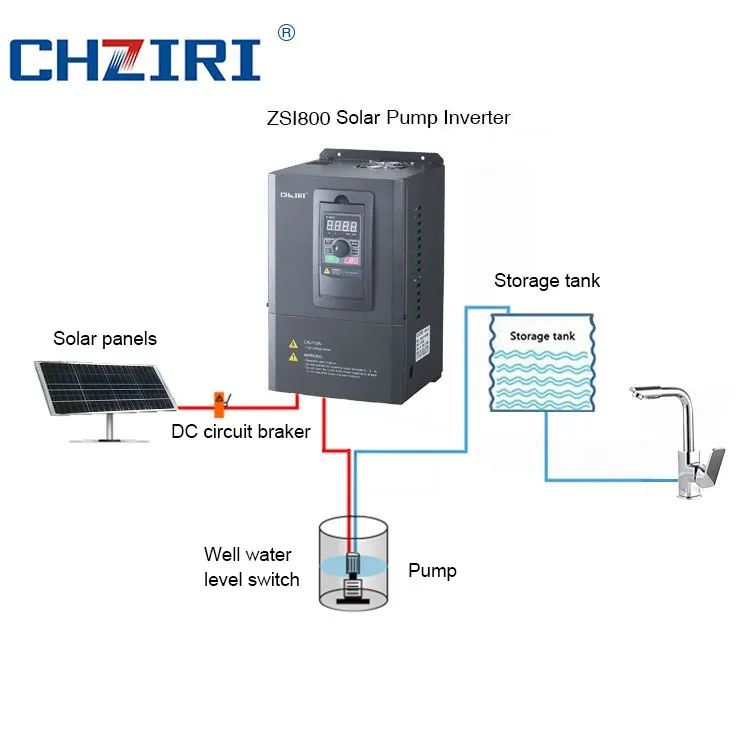

Ideal for agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, and waste water treatment engineering.
