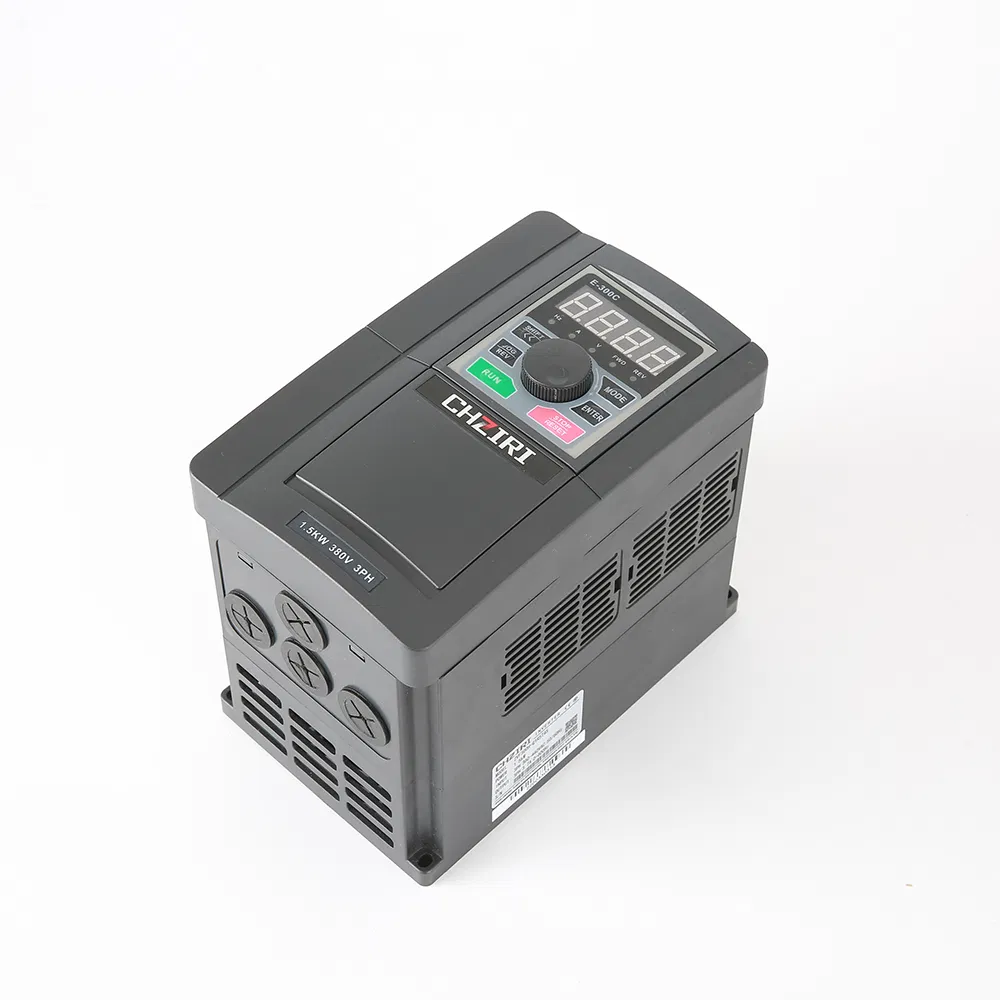

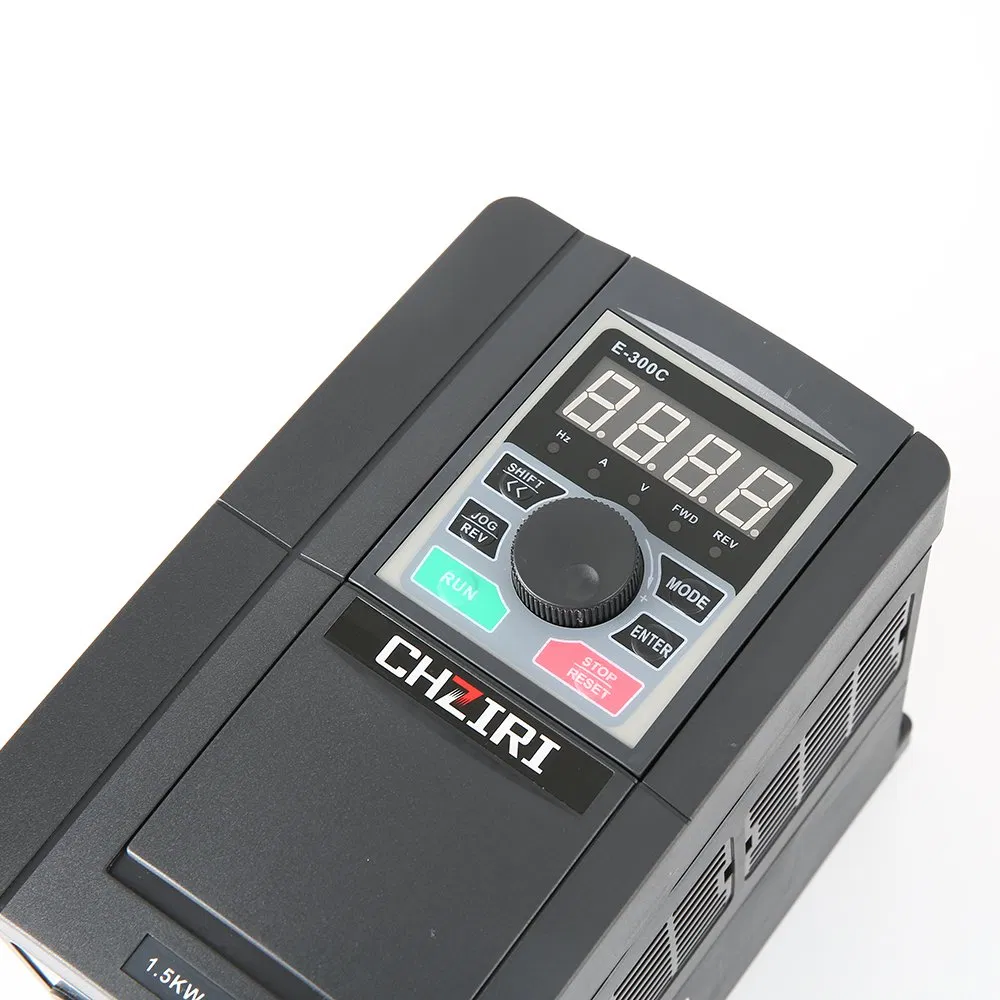

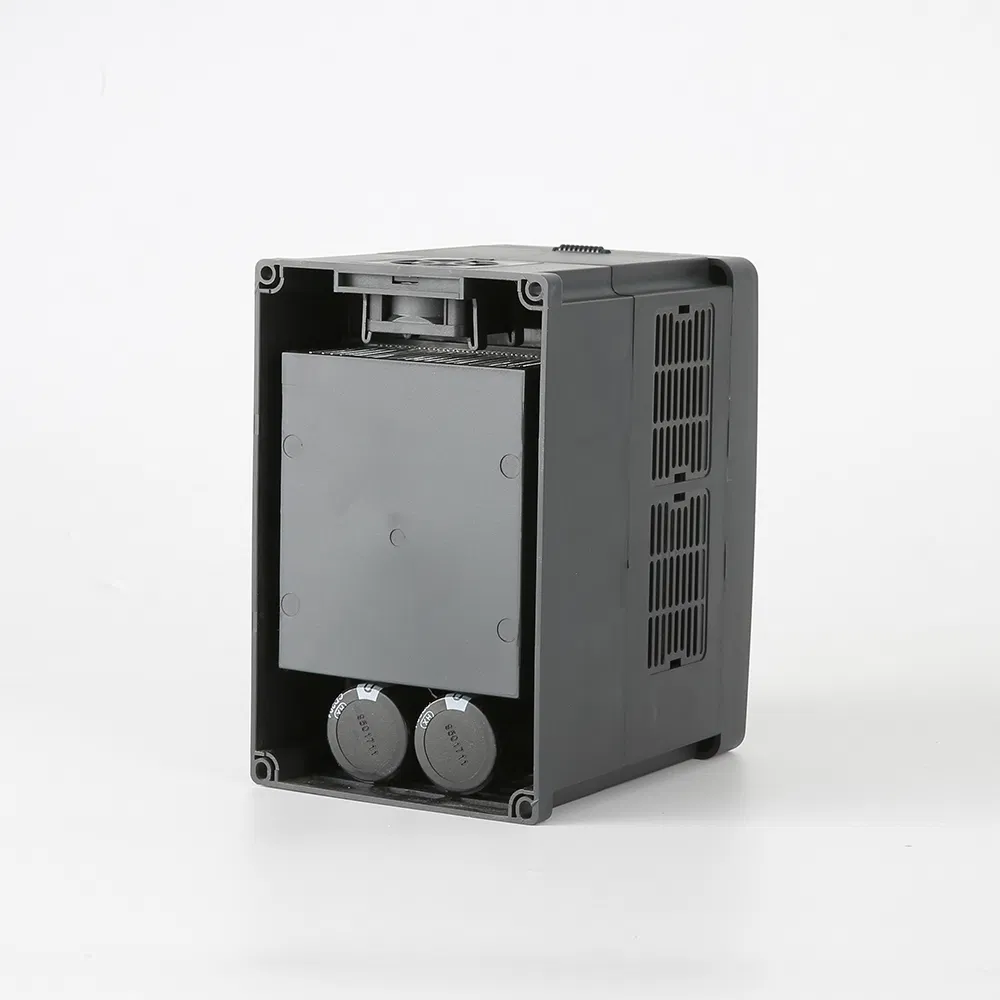

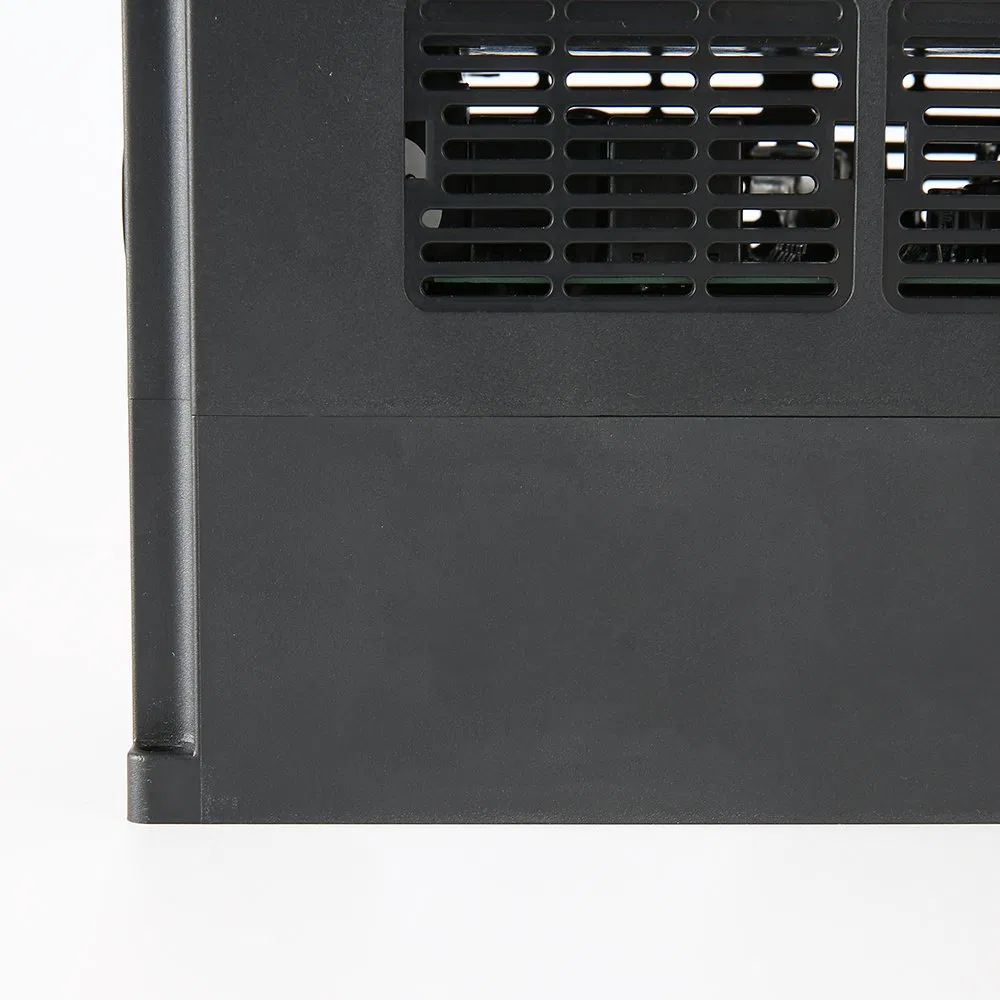

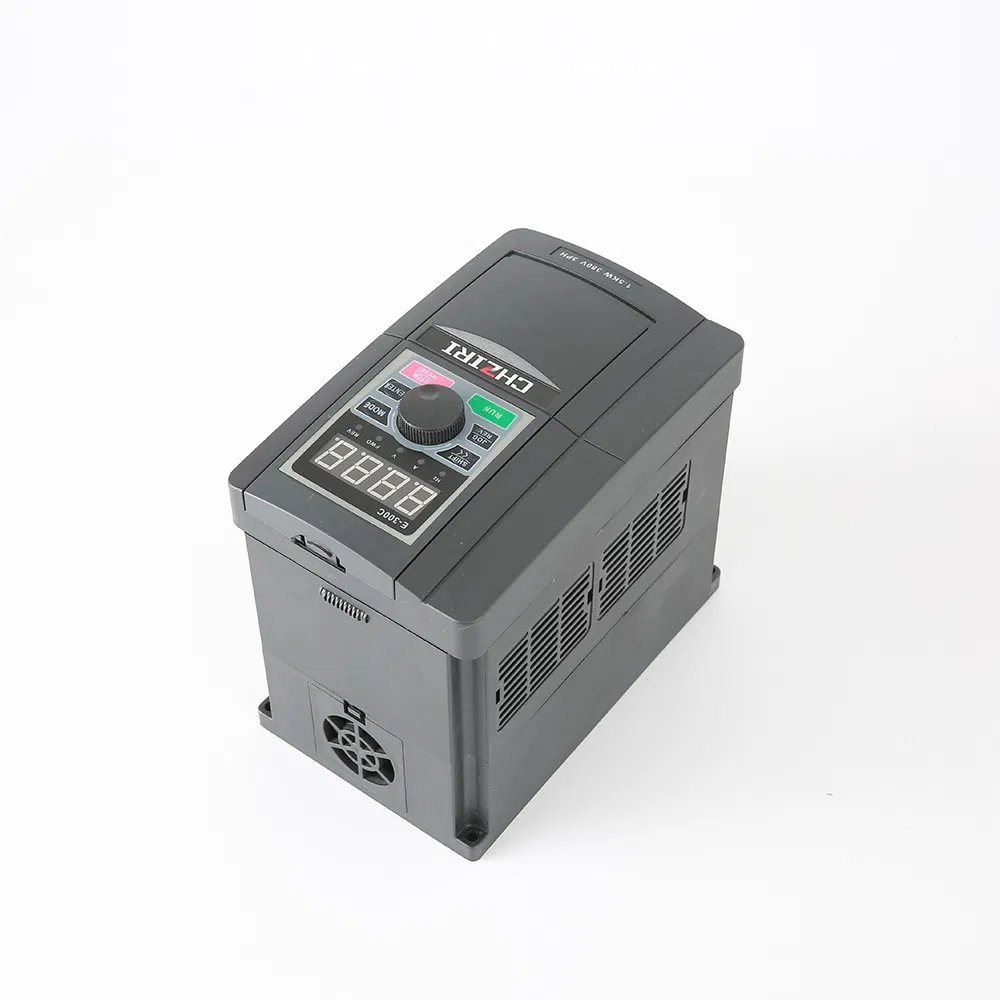

Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
1 / 5
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD
Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD

Chziri Low Voltage 380V Frequency Inverter 0.75kw VSD VFD

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

■ Basic Specifications
Model NO.
ZVF300H-G0R7T4SD
Principle of Work
Vector Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Voltage of Power Supply
Low Voltage Variable-Frequency Drive
Link of Transformation
AC-AC Variable-Frequency Drive
Nature of DC Power
Voltage Variable-Frequency Drive
Function
Simple Type, Textile Special, Constant Torque Universal Type
Voltage
380V~440V
Warranty Times
16 Months
Protection
IP20
Power Module
IGBT
Type
AC-DC-AC
Control Mode
Vsc V/F Torque
Communication
Modbus/ RS485
Adaped Motor
AC Asynchronous Motor
Production Capacity
2000PCS/Month
HS Code
8504409999
Frequency Inverter ZVF300H Series is the high performance open-loop vector frequency inverter for controlling asynchronous AC induction motor and permanent synchronous motor. The product has excellent quality, multiple functions and wide application range. Inverter Features
★ Inverter Features
  • Multiple password protection mode.
  • Remote control operation keypad, convenient for remote control.
  • V/F curve & multi-inflection point setting, flexible configuration.
  • Keyboard parameter copy function, easy to set the parameters for multi-inverters.
  • Wide industry application, to expand special function according to different industries.
  • Multiple hardware and software protection and optimized hardware for anti-interference technology.
  • Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
  • Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
  • Optimized external installation and internal structure and independent air flue design.
  • Output automatic voltage regulation function (AVR).
  • Built-in PID regulation function to facilitate realization of closed loop control.
  • Standard MODBUS communication protocol, easy to achieve communication between PLC and IPC.

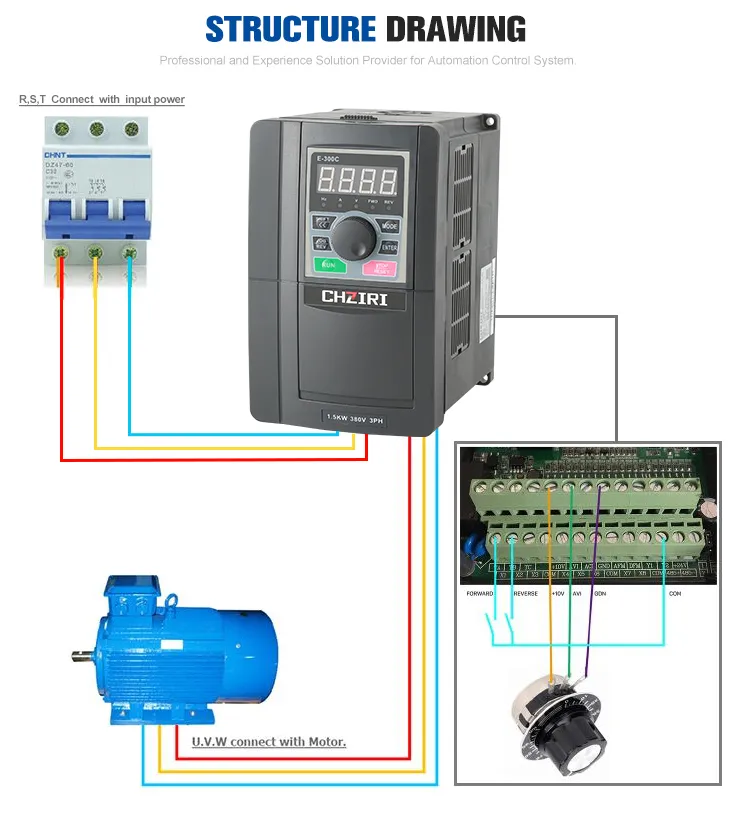

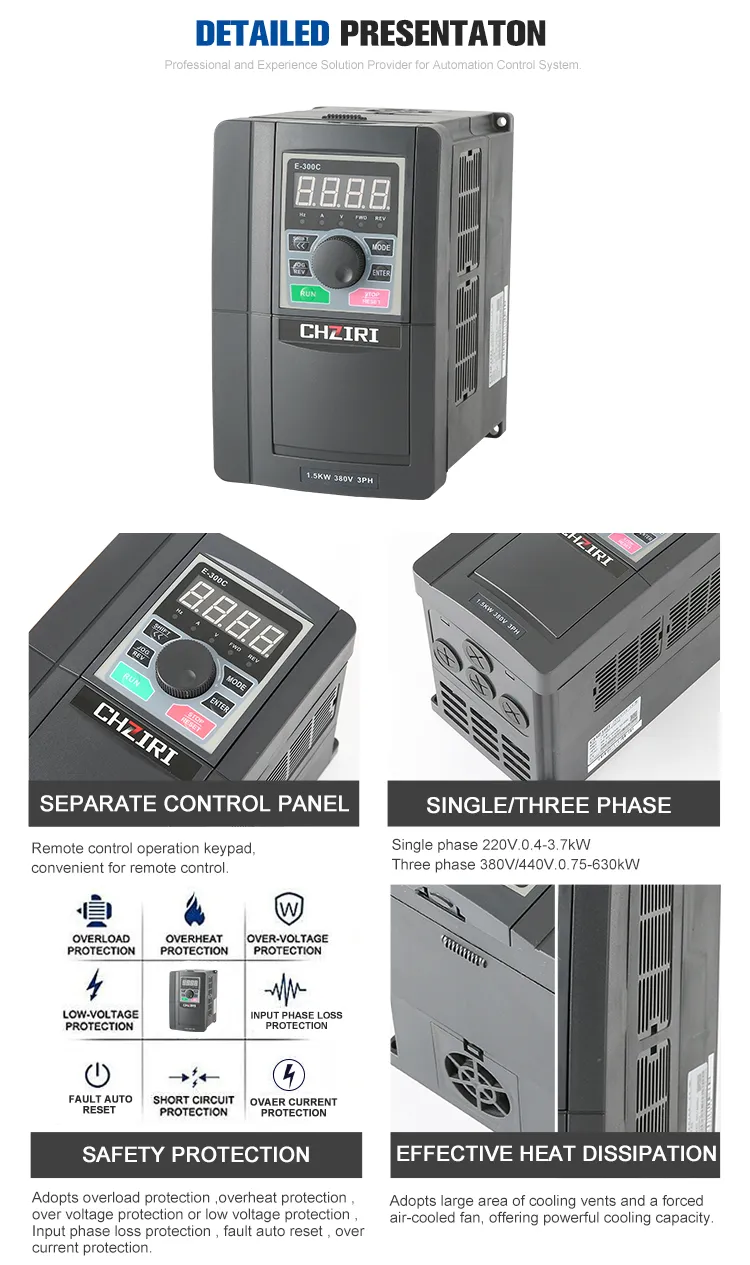

Technical Data 1 Technical Data 2
⚙ Application Range
  • Handing machinery, conveyor.
  • Wire drawing machines, industrial washing machines, sports machines.
  • Fluid machinery: Fan, water pump, blower, music fountain.
  • Public mechanical equipment: high precision CNC machine tools.
  • Metal processing, wire drawing machine and other mechanical equipment.
  • Paper-making equipment, chemical industry, pharmaceutical industry, textile industry, etc.
Application Range

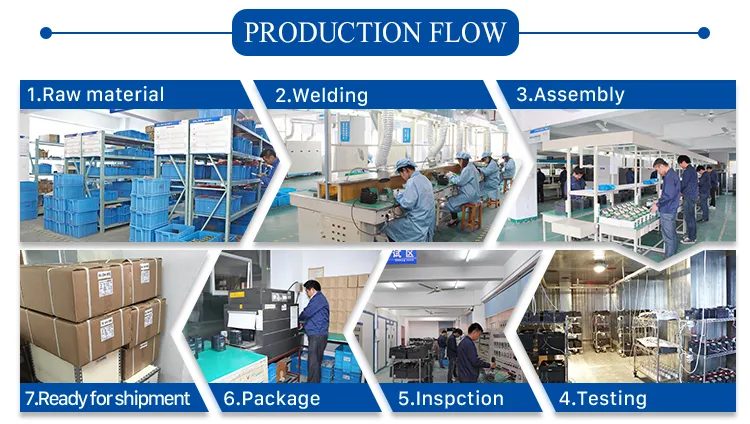

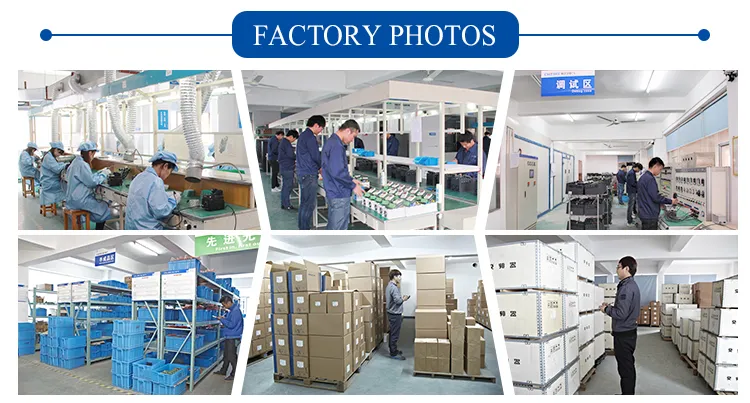

Production Detail 1 Production Detail 2
Production Detail 3 Production Detail 4
? Frequently Asked Questions
Q1: Can I get some samples?
Yes, Sample order is available for quality check and market test.
Q2: What's your warranty terms?
We offer 16 months warranty time.
Q3: How does the factory perform quality control?
Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
Q4: Can the inverter connect with computer or PLC?
Yes. All inverters have built-in RS485 port and support Modbus communication protocol for easy connection.
Q5: Can you provide VFD and soft starter control cabinets?
Yes. We have extensive experience designing VFD control panels and soft starter cabinets according to your primary wiring diagram.
Q6: How is after-sale service handled?
Solutions are typically provided within 3 working days through our local distribution network or direct technical support.
