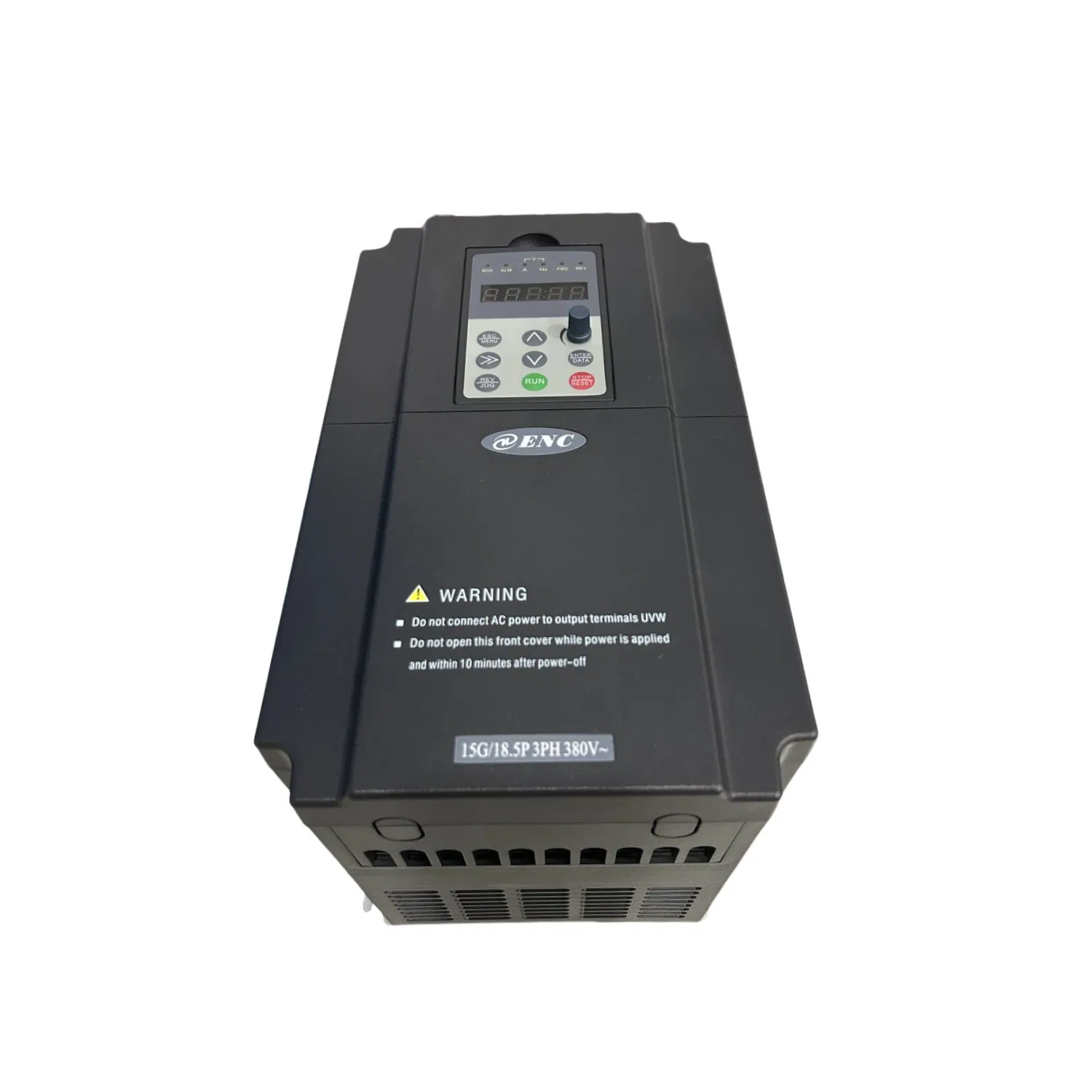

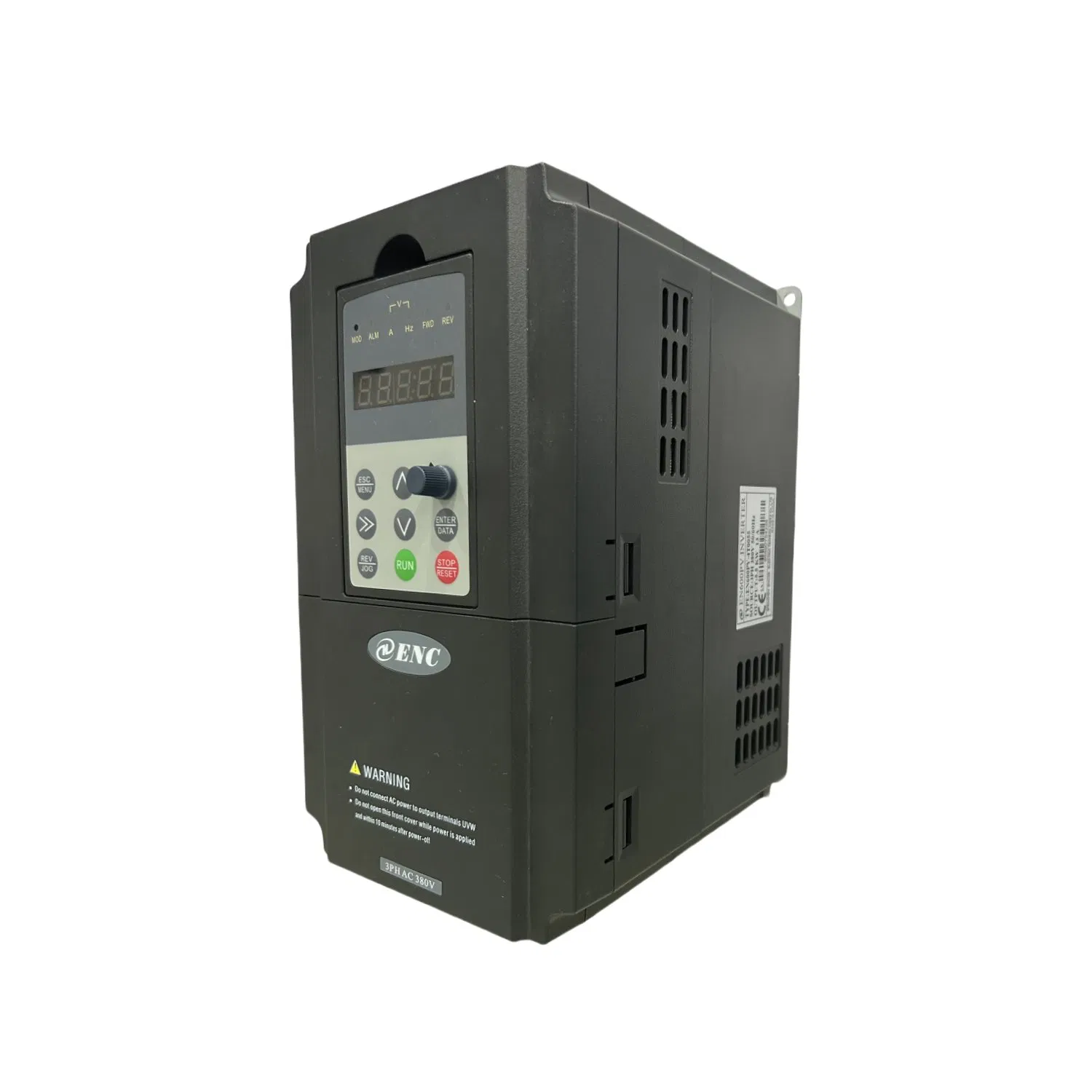

Stock for AC Drive VFD 0.75kw Low Voltage Variable Frequency Drive

Customization:	Available
Application:	High-performance Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

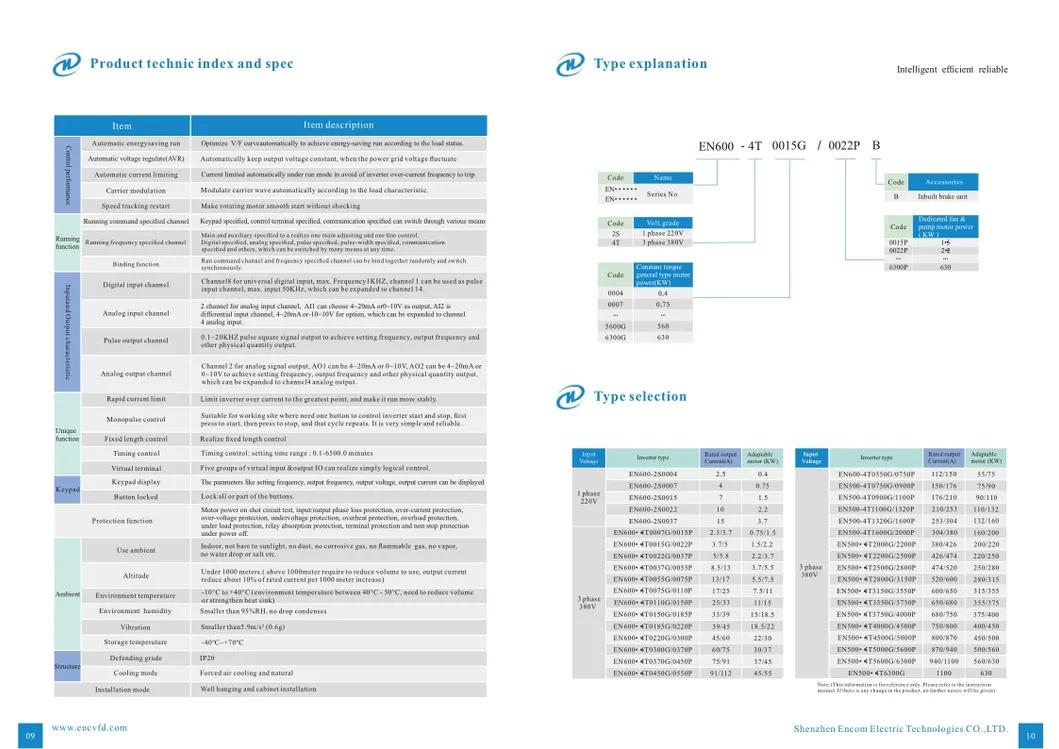

Technical Specifications

Model NO.

EN600-4T0007G/0015PB

Principle of Work

Vector Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Voltage of Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-AC Variable-Frequency Drive

Nature of DC Power

Voltage Variable-Frequency Drive

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal Type

Brand

Enc

Trademark

ENC

Origin

China Shenzhen

HS Code

8504499999

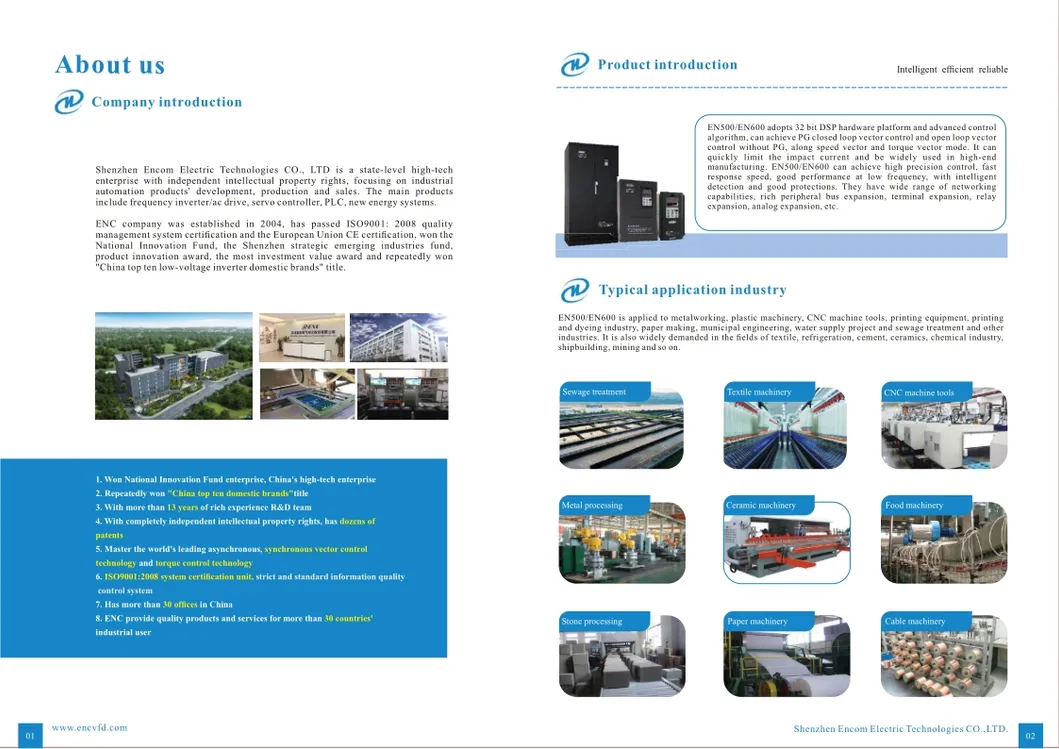

Product Overview

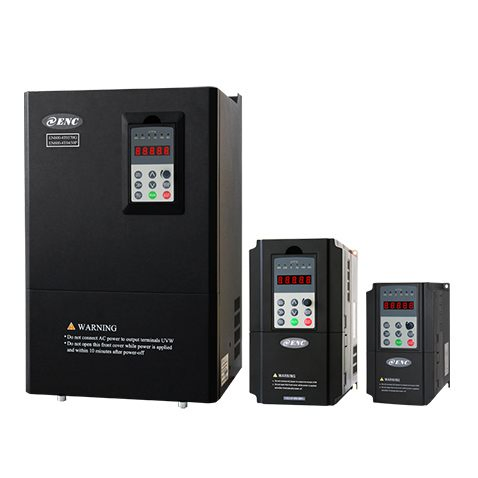

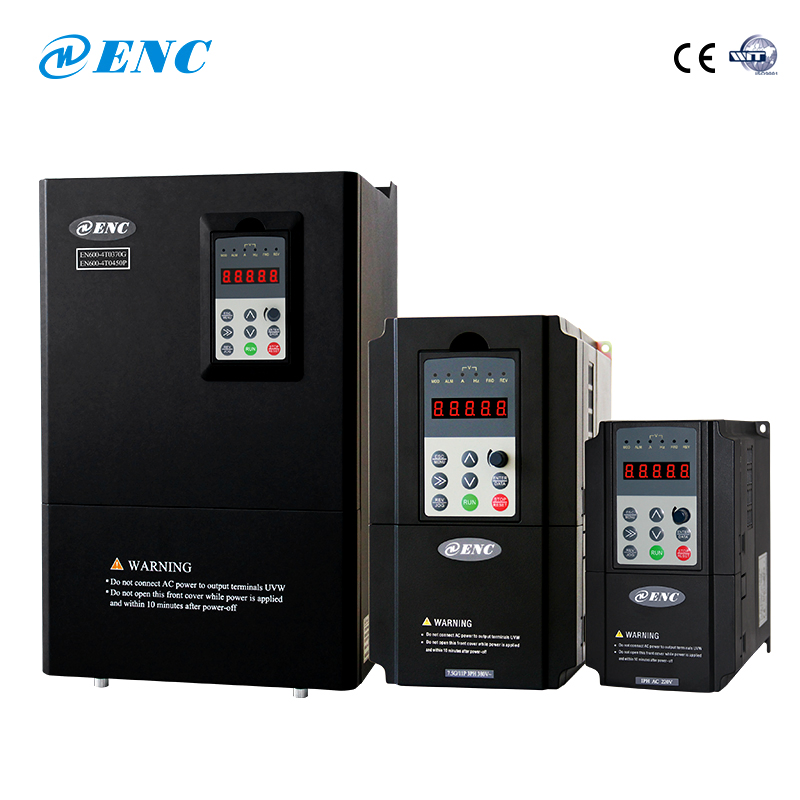

EN600 series high performance flux vector type frequency inverter

Adopt 32-bit DSP (digital signal processor) hardware platform, advanced control algorithm, PG closed loop vector control and sensorless vector control, with both speed vector and torque vector control working methods. It can quickly limit impact current, and could be widely used in high-end manufacturing. This series with high control precision, fast response, superior low frequency characteristic, intelligent detection and protection, has a wide range of network function and friendly user habits, abundant peripheral bus expansion, terminal expansion, relay expansion, analog expansion etc.

Key Product Features

Multiple control modes

Including sensorless flux vector control, closed loop vector control and optimized V/F control. Supports both speed and torque control.

Superior performance

Excellent flux vector control algorithm with ±0.1% rated synchronous speed (PG vector control); ±0.5% (without PG); ±1% (V/F control).

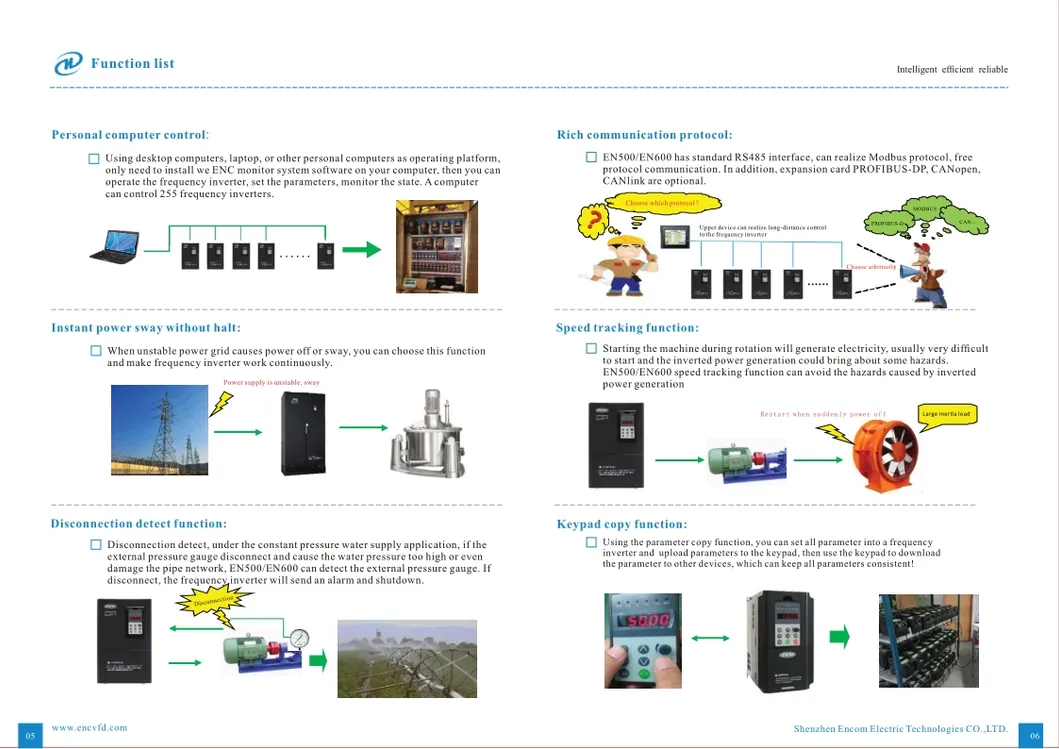

Powerful functions

Speed tracking, CANOpen, CANLink, Profibus, Modbus, local/remote LED/LCD keyboard support, and original self-learning function.

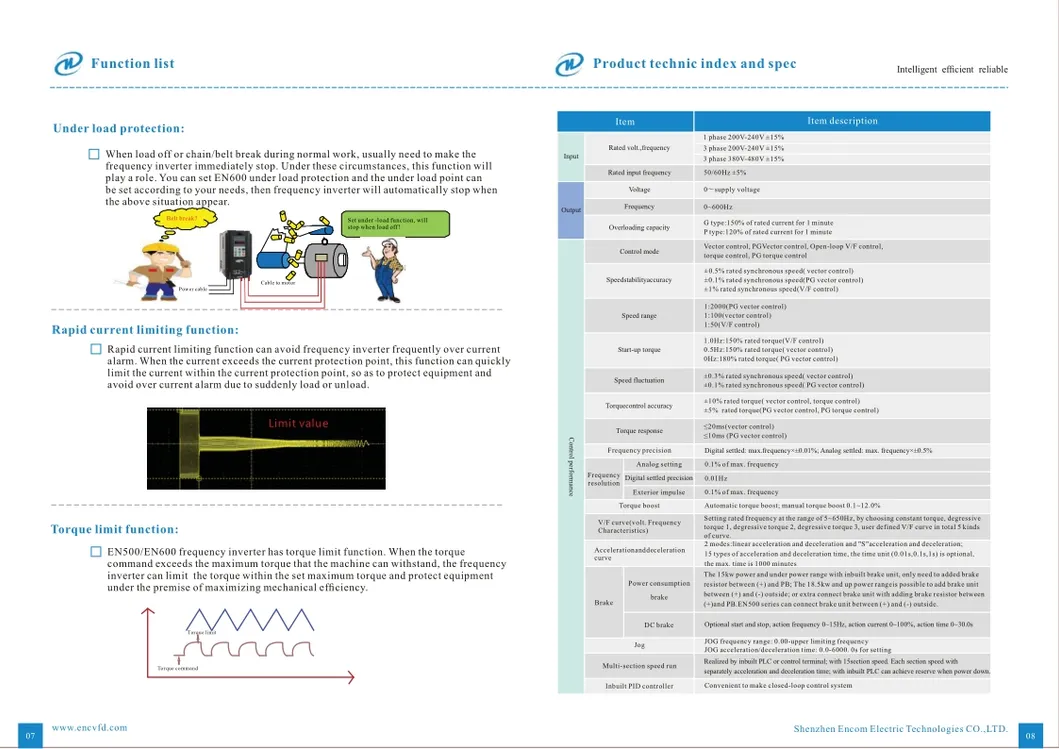

Multiple protections

Intelligent detection for phase loss, short circuit, and ground protection. Abundant peripheral expansion for relays and analog.

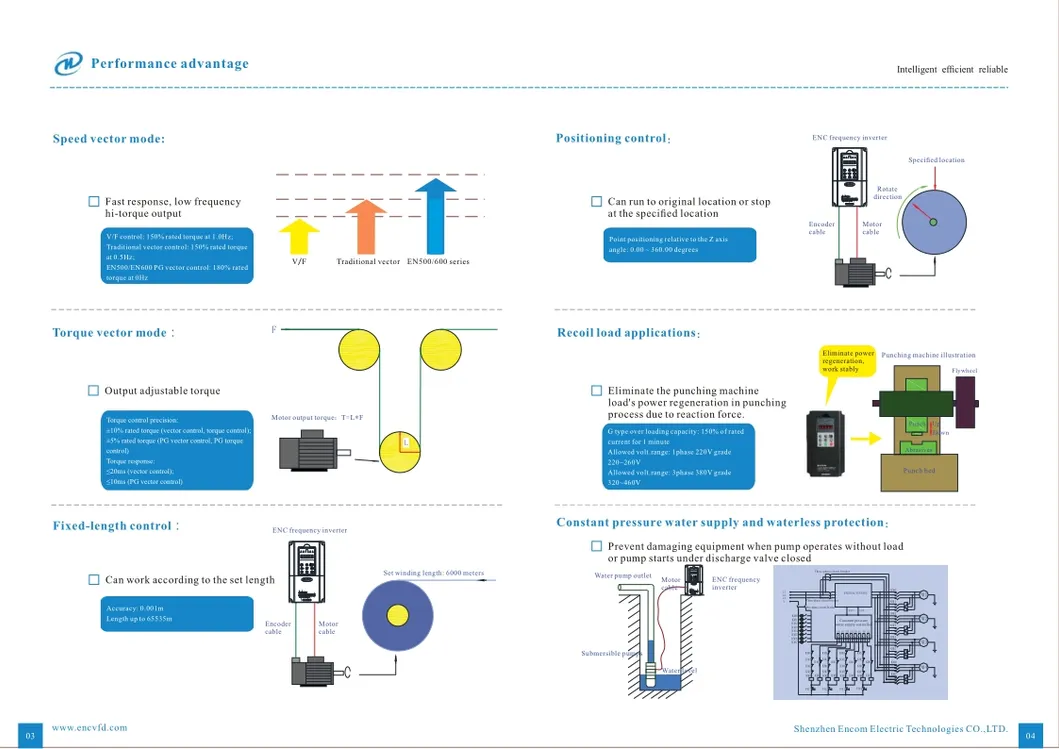

Application Advantages

●

Widely used in fans, constant torque and impact loads with small speed fluctuation.

●

Fast torque response: Without PG vector control ≤20mS, PG vector control ≤10mS.

●

Instantaneous power down no shut down function and speed tracking restart for high reliability.

●

User-friendly keyboard for parameter upload/download via standard network cables.

●

Intelligent fault diagnosis and alarm systems to ensure maximum machine uptime.

Frequently Asked Questions

What control modes does the EN600 series support?

The EN600 series supports sensorless flux vector control, closed-loop vector control (PG), and optimized V/F control, allowing for both speed and torque management.

What is the speed control precision of this VFD?

With PG vector control, the precision is ±0.1% of the rated synchronous speed. Without PG, it is ±0.5%, and under V/F control, it is ±1%.

Does the inverter provide protection against electrical faults?

Yes, it features intelligent protection including input/output phase loss protection, output phase short circuit protection, and ground protection.

Can the keyboard be operated remotely?

Yes, the EN600 series supports both local and remote control LCD/LED keyboards, which can be connected using standard network line cables.

What communication protocols are compatible with this drive?

It supports a wide range of protocols including CANOpen, CANLink, Profibus, and Modbus, as well as free port protocols.

How does it handle sudden power interruptions?

It includes an instantaneous power-down non-stop function and speed tracking restart to maintain operation during brief power fluctuations.
