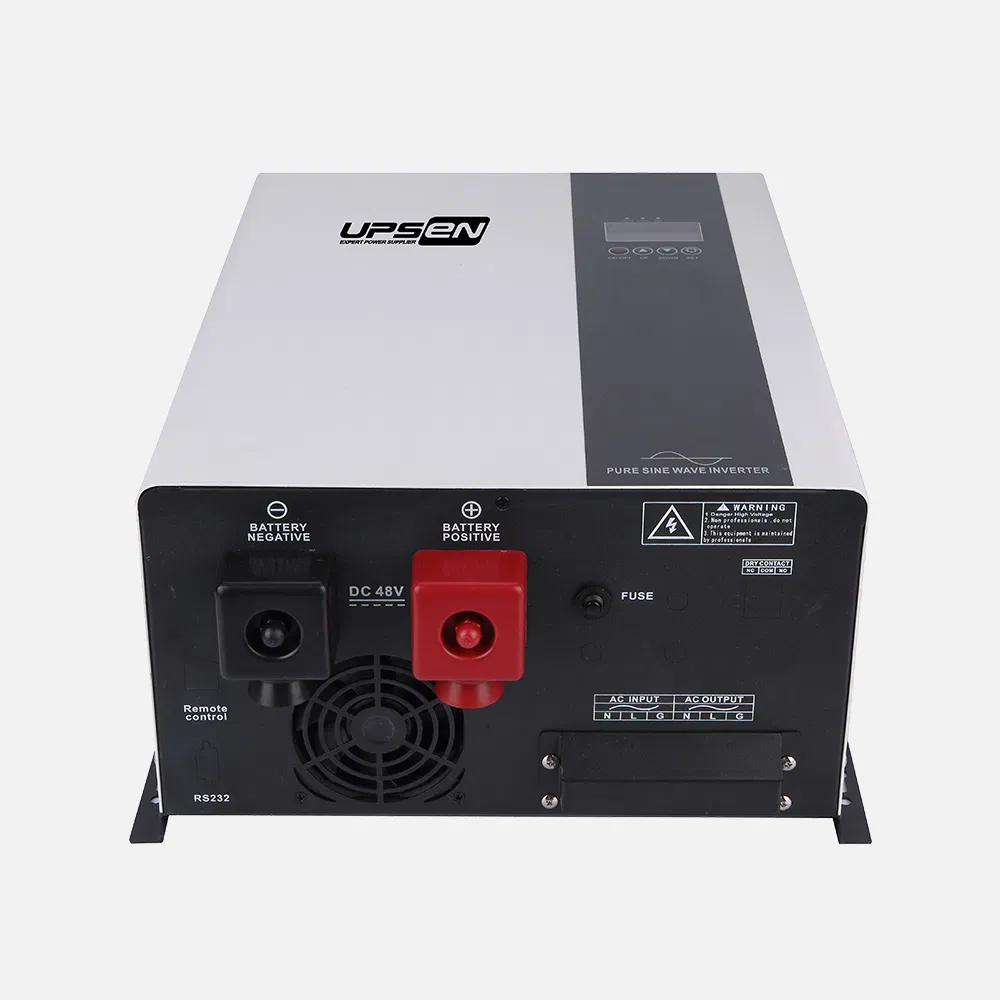

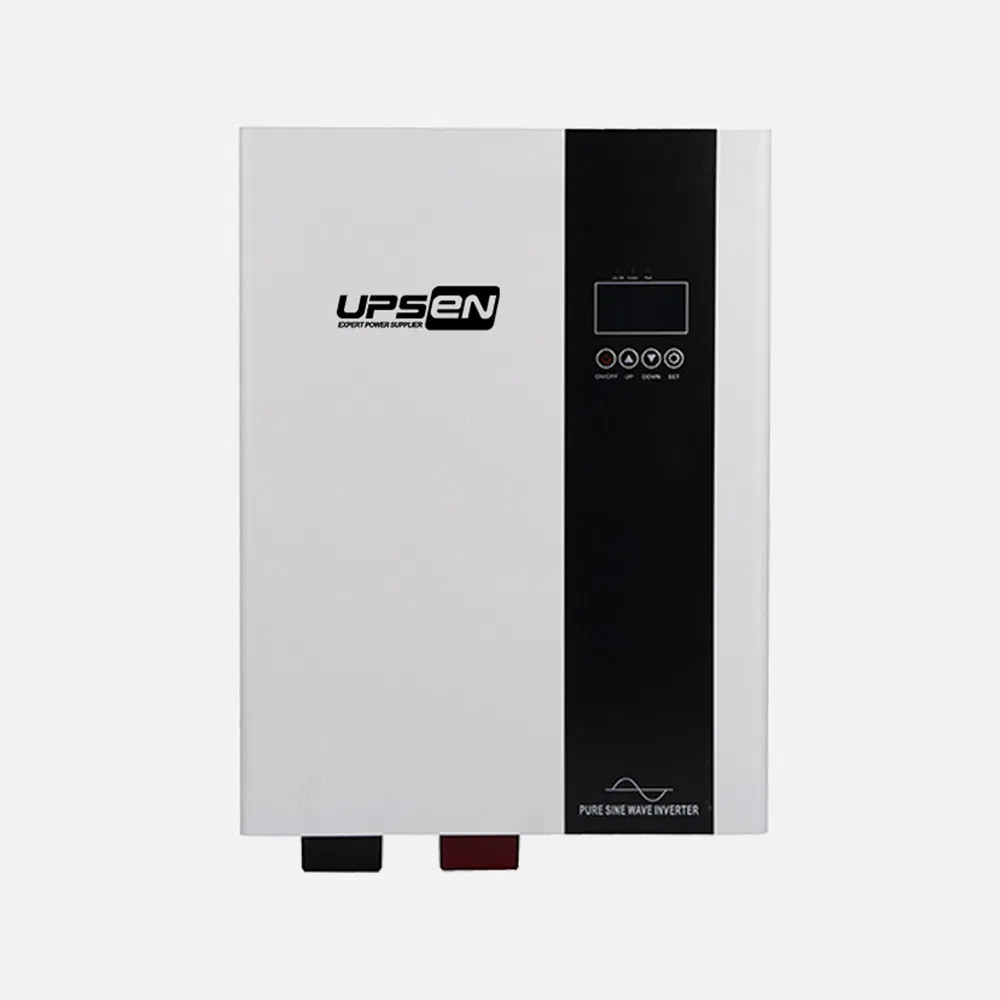

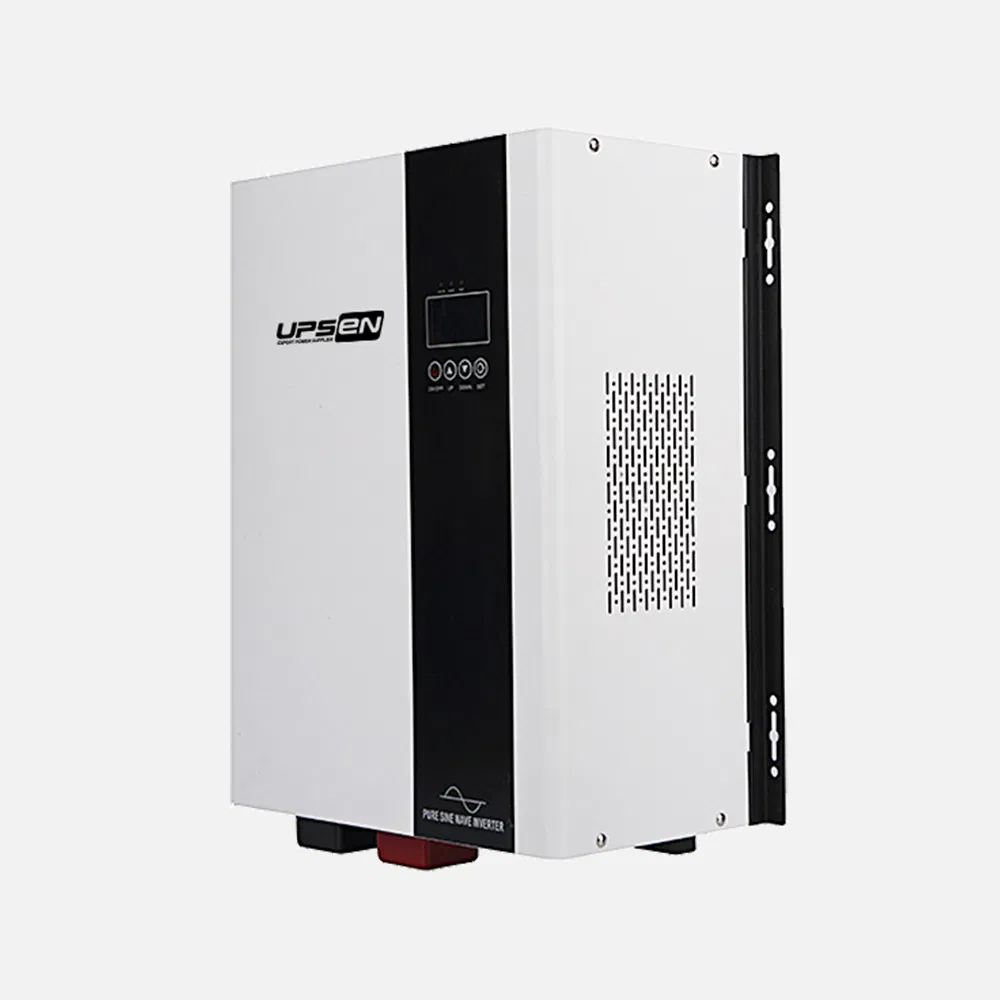

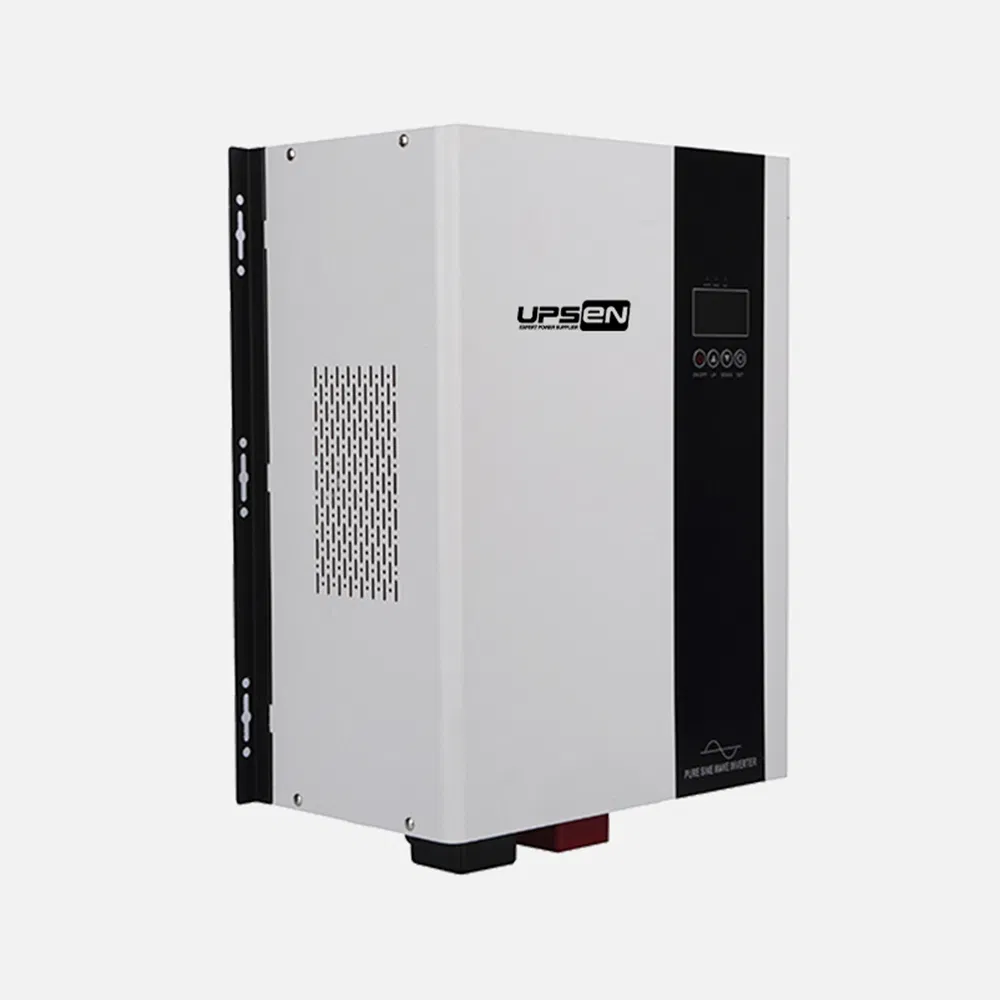

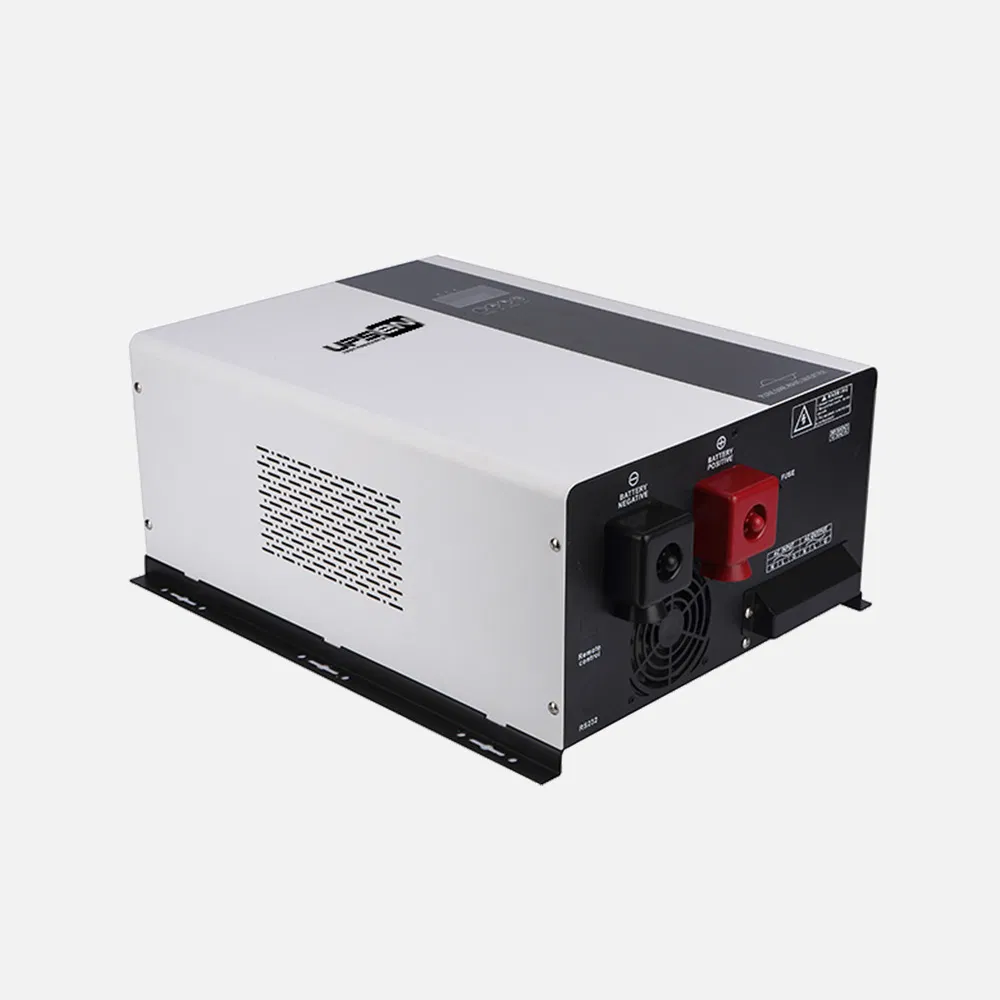

5kw 48VDC DC to AC Power Inverter Wide AC Voltage off Grid Spilt Solar Inverters for Solar Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
Winner Sp Series
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave
Pure Sine Wave Inverter
Battery Type
Lead-Acid / Gel / Lithium
Rated Power
5kw
Peak Power
15kw
DC Voltage
48VDC

Key Features

Split Phase Output Configuration:
• Output 1: HOT1 / HOT2 + N = 100 / 110 / 115 / 120VAC
• Output 2: HOT1 + HOT2 = 200 / 220 / 230 / 240VAC
  • Pure sine wave output
  • Rated power: 1KW to 12KW (12V/24V/48V/96V)
  • Large AC Charging current 5-50A (optional)
  • UPS function with AC to DC automatic conversion
  • Compatible with Mains and Generator input
  • Adjustable battery voltage for Lead-acid, Gel, and Lithium
  • DC Start & Automatic Self-Diagnostic function
  • High Efficiency Design with "Power Saving Mode"
  • Smart LCD display for monitoring and settings
  • Full protection: Overload, Short-circuit, Temperature
  • Supports RS232, RS485 and Wifi remote monitoring
5 Chooseable Working Modes:
01: Mains priority | 02: Energy saving | 03: Battery priority | 04: Unattended mode | 05: Solar priority

Product Presentation

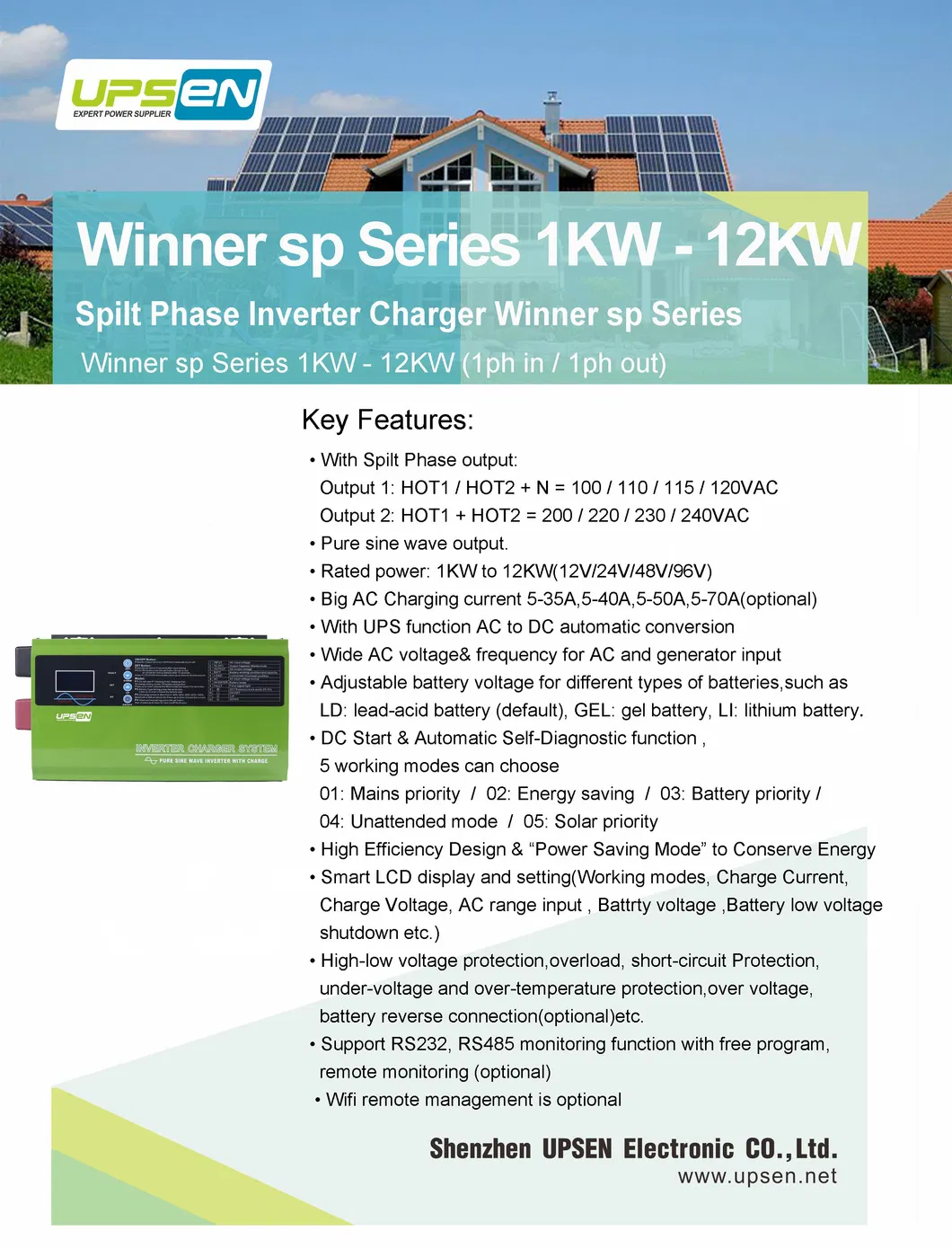

Inverter Detail 1

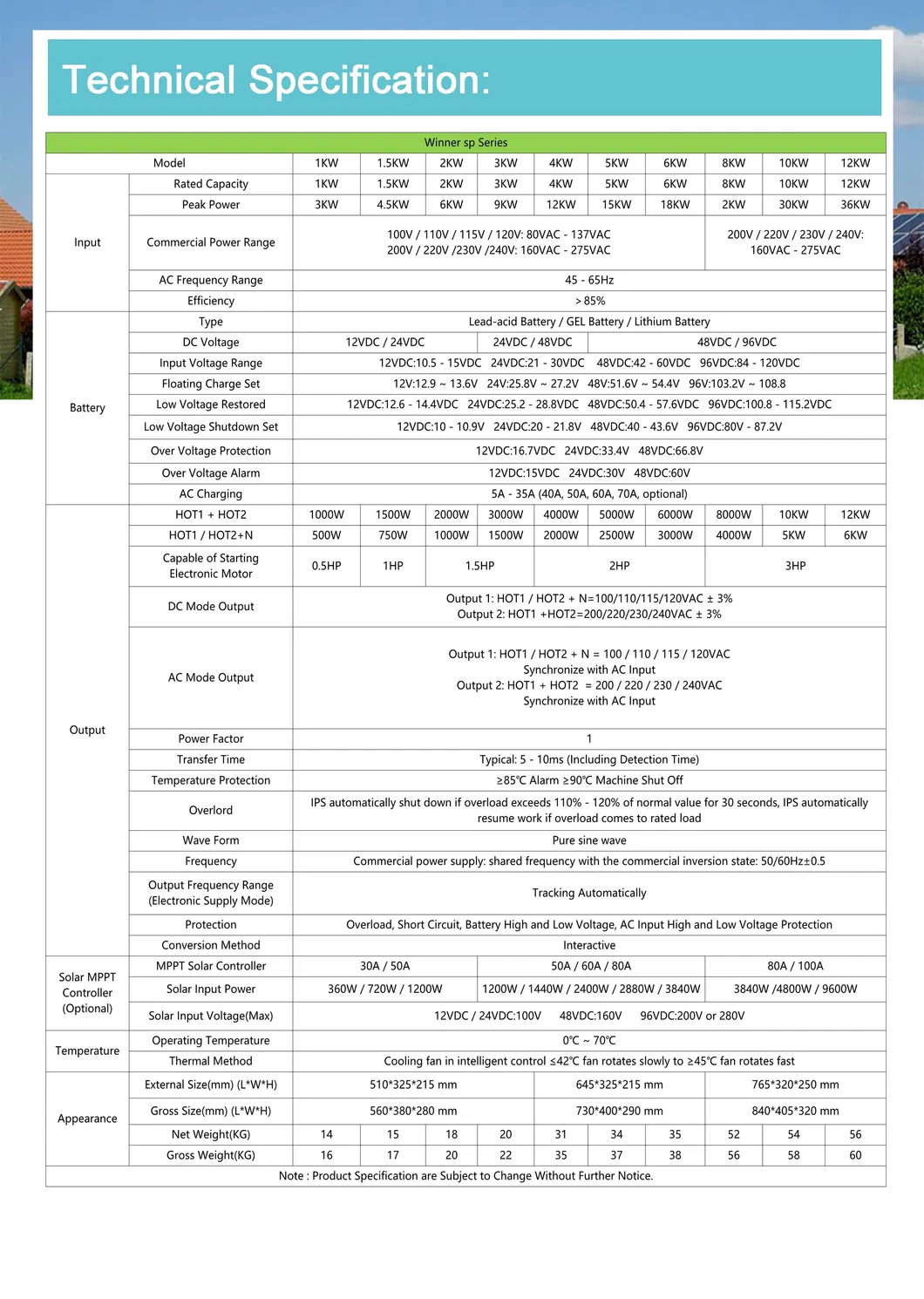

Inverter Detail 2

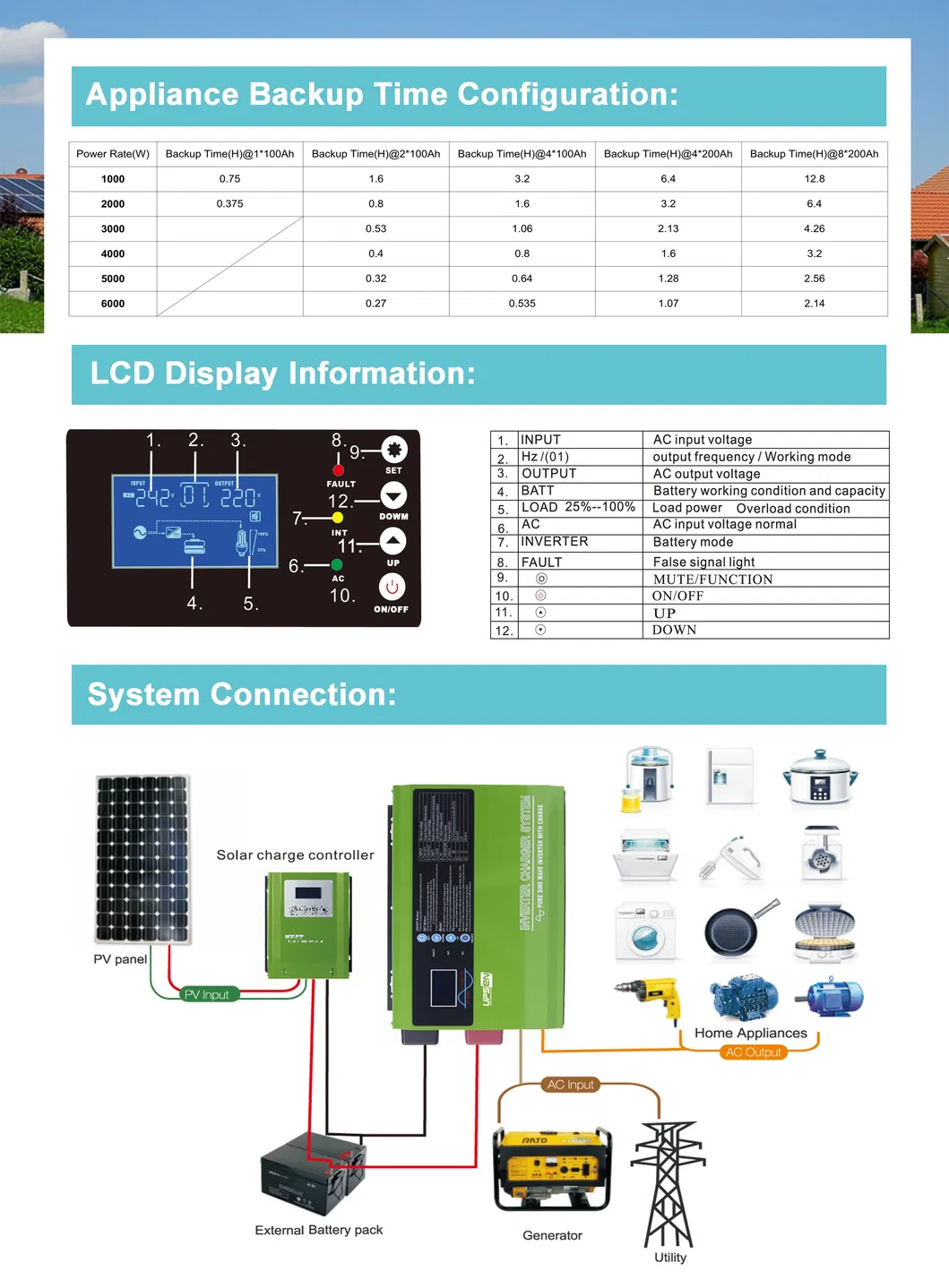

Inverter Detail 3

Manufacturing & Quality

As a private high-tech enterprise, we integrate research & development, production, and technical services specializing in Electric, Electronic, and Energy fields. Our focus remains on offering quality power solutions for Data-centers, Telecom, Banking, Healthcare, and Industrial applications.

With ISO9001 international quality system certification, we have established a complete quality control process ranging from material sourcing to final testing. Our products meet CE standards and are exported to over 30 countries across Australia, Europe, Africa, and the Americas.

Factory View 1 Factory View 2

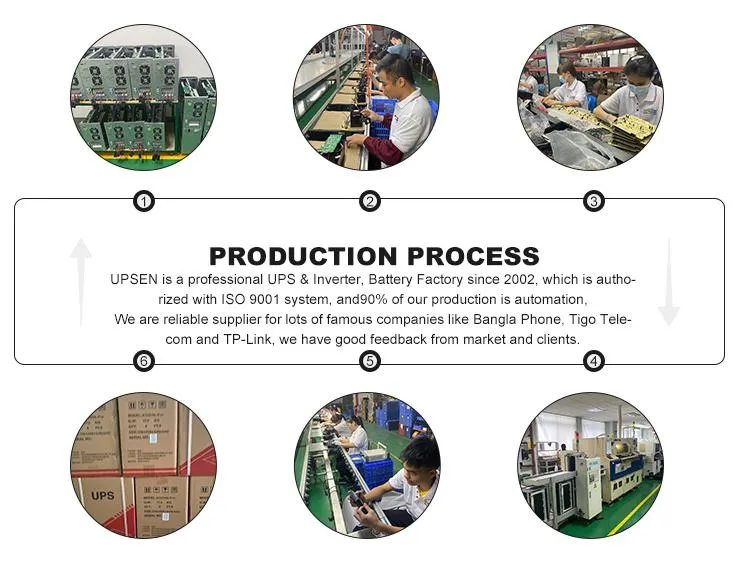

Production Line Quality Testing

Certifications

Product Certifications

Packaging & Logistics

Package Detail Shipping Logistics

Our Advantages

  • High working efficiency and production capacity for competitive pricing.
  • Strict material quality control meeting all CE standards.
  • Independent test equipment for international standard compliance.
  • Pre-assembly testing for every process to ensure low fault rates.
  • Professional R&D engineers with high academic qualifications.
  • Continuous product upgrading every 1.5 to 2 years.
  • Warranty support with free units or spare parts provided.
  • Free technical support throughout the sales cycle.

Frequently Asked Questions

What are your terms of payment?
T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packages before final payment.
How long is the typical delivery time?
Generally, it takes 7-20 days after receiving your advance payment, depending on the specific items and order quantity.
Do you offer OEM and ODM services?
Yes, we provide free OEM services, and ODM services are available for volume orders.
Is every unit tested before shipping?
Yes, all products undergo more than 6-8 hours of aging and strict testing before dispatch.
What is your Minimum Order Quantity (MOQ)?
We maintain a low MOQ; even 5 pieces for sample checking is available.
What are the delivery terms?
We support multiple terms including EXW, FOB, CFR, CIF, and DDU.
