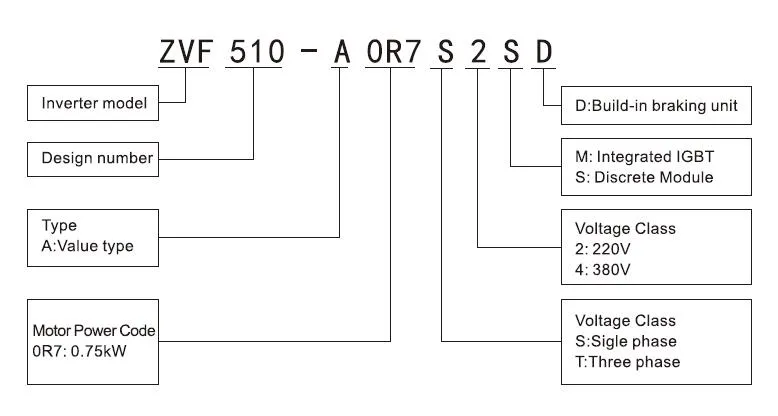

| Model NO. | ZVF510-A5R5T4S |
| Principle of Work | V/F/Vector/Torque Control |
| Switch Mode | High Carrier Frequency PWM Control |
| Main Circuit Type | Voltage |
| Power Supply | Low Voltage Variable-Frequency Drive |
| Function | Constant Torque Universal Type |
| Current | 13A |
| Output Frequency | 0.00~600.00Hz |
| Power | 5.5kw |
| Input Voltage | Three Phase |

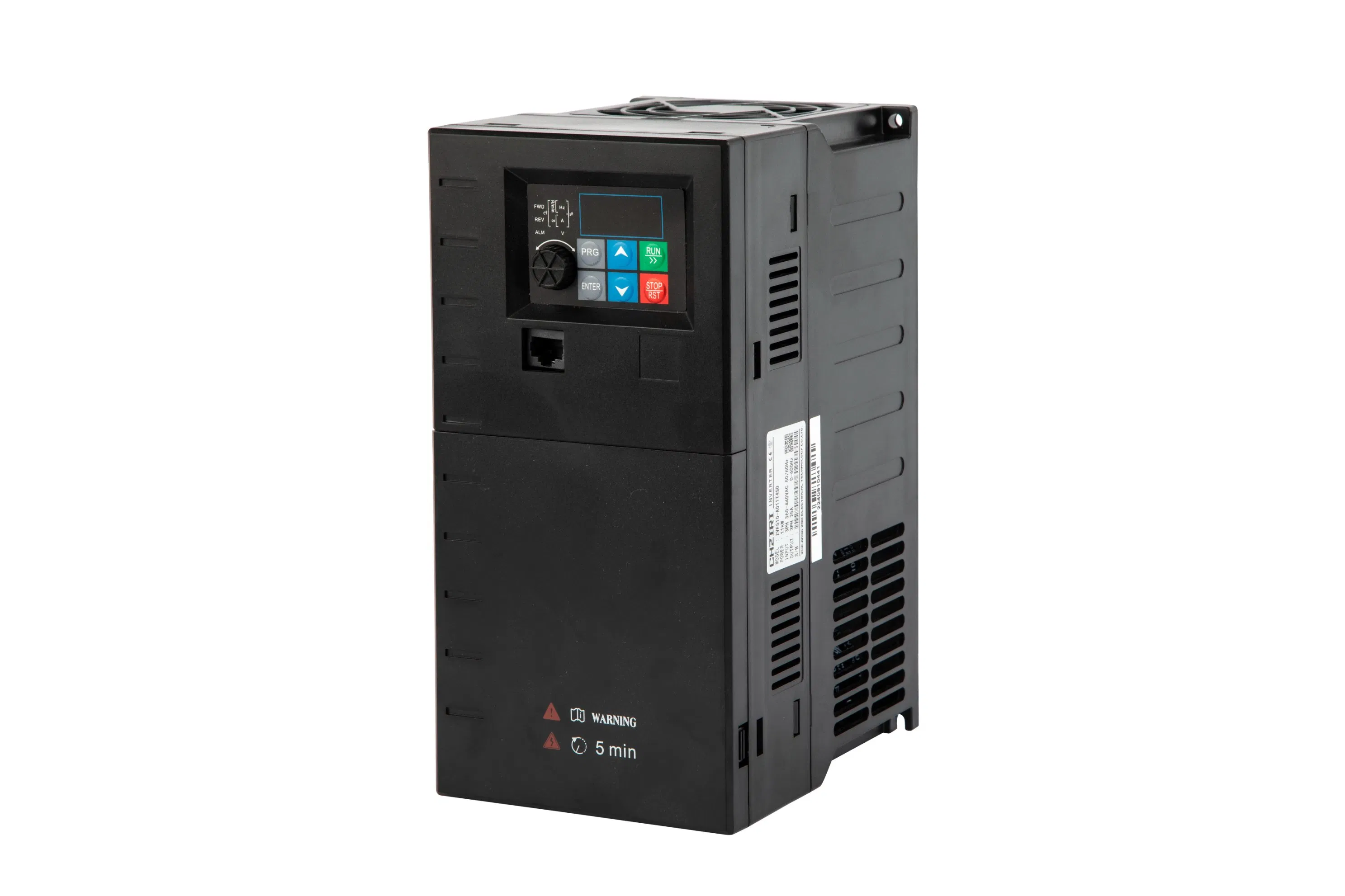

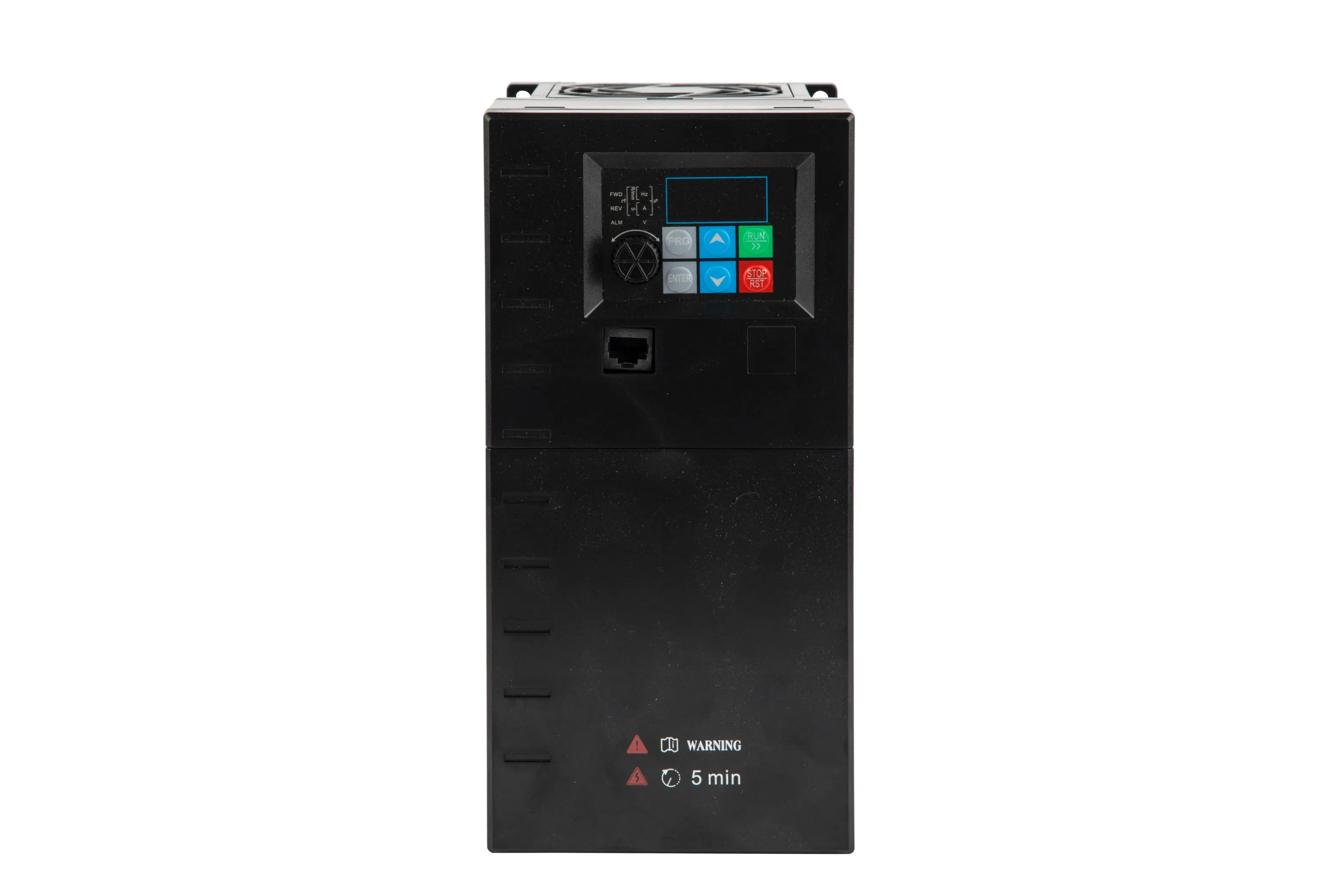

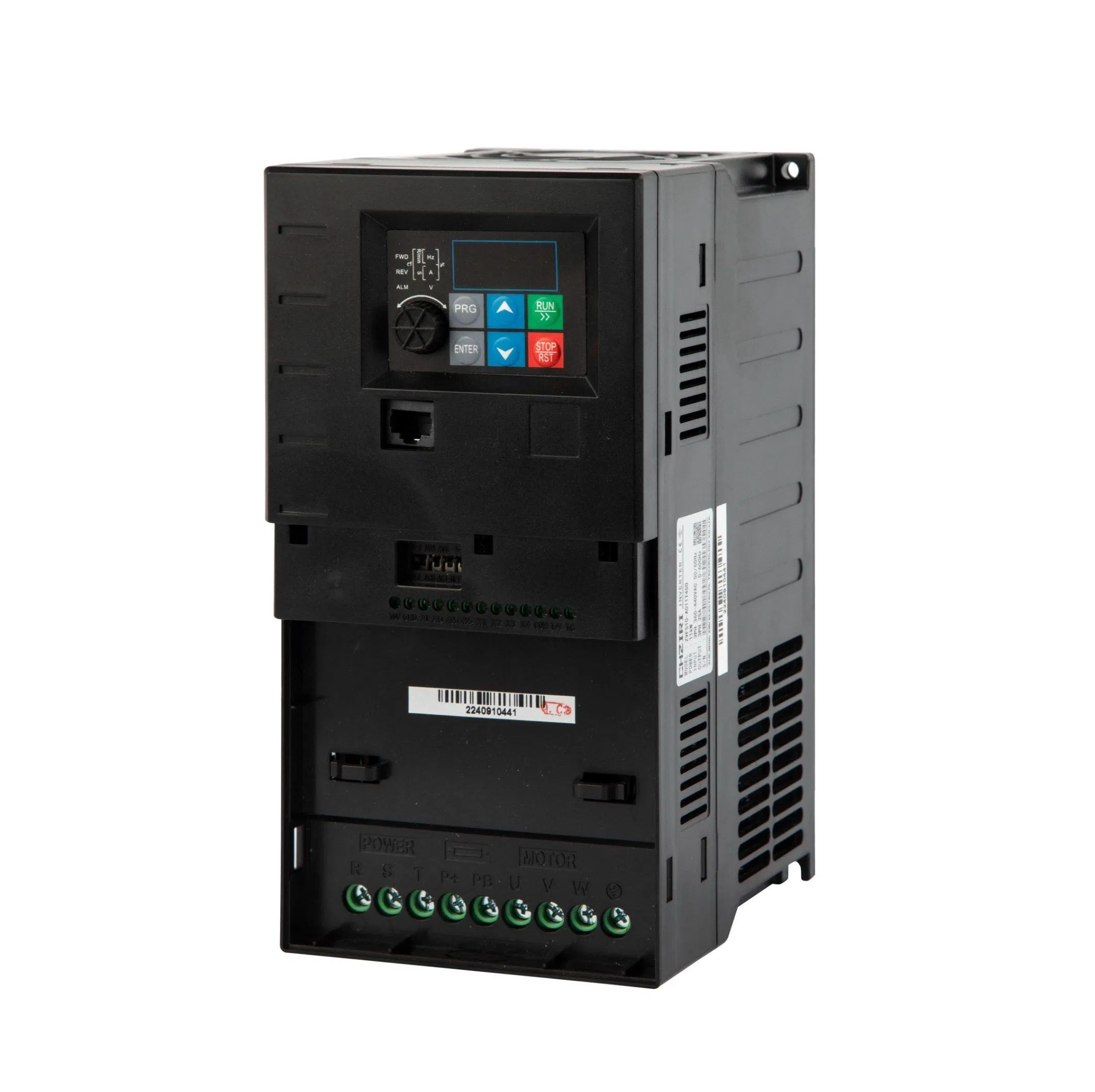

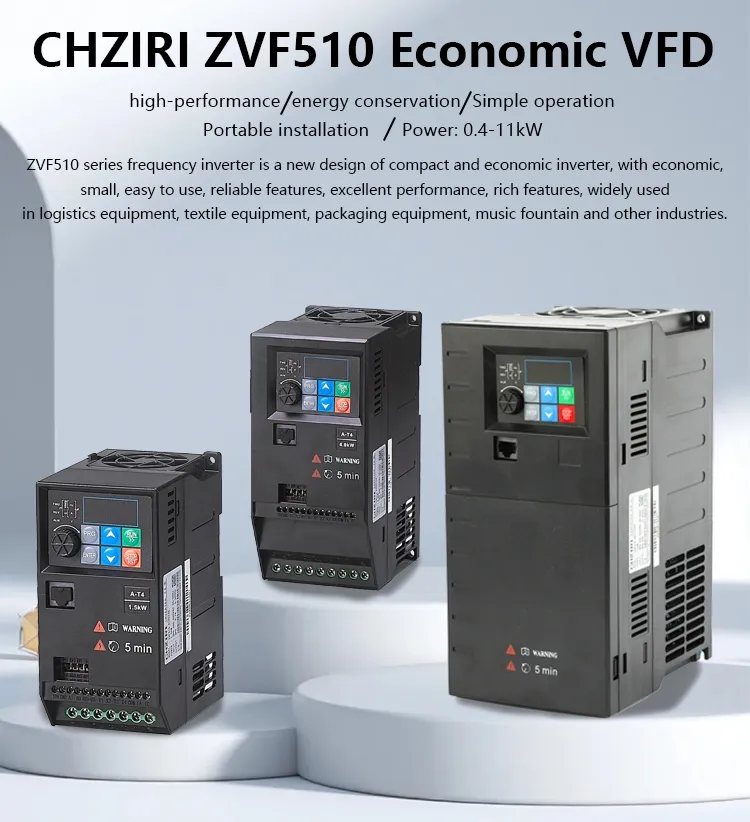

The ZVF510 Series Mini Type AC Drive is developed for general applications of small power and OEM markets. It applies advanced V/f control technology, integrating PID functions, multiple-speed steps, DC braking, and Modbus communication while requiring minimal installation space. It is ideal for small automation equipment, specifically electronic equipment, food packaging, woodworking, and glass processing.

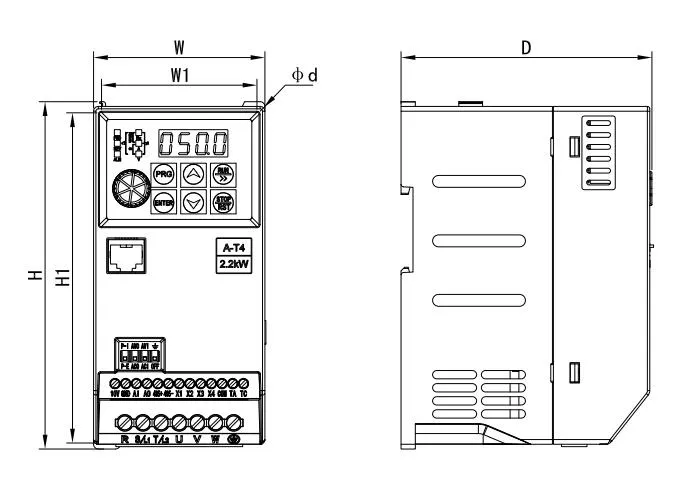

| Model | Voltage | Power (kW) | Current (A) | H (mm) | W (mm) | D (mm) |
|---|---|---|---|---|---|---|
| ZVF510-A5R5T4SD | 380V | 5.5 | 13 | 182 | 87 | 127 |

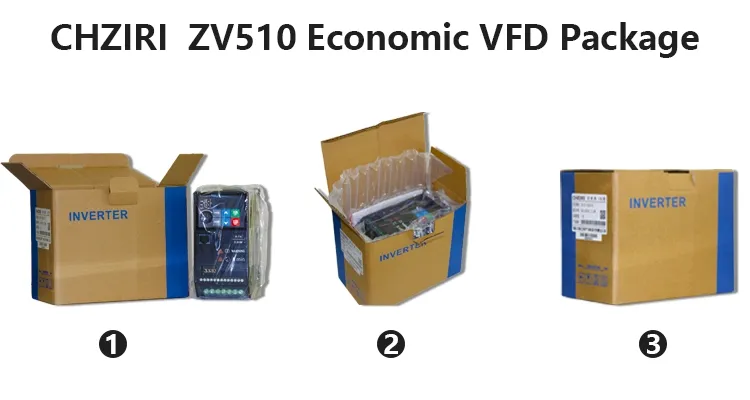

| Package Size | 45.00cm * 43.50cm * 37.00cm |
| Package Gross Weight | 16.000kg |
| Package Type | Standard Export Package |
Yes, sample orders are available for quality verification and market testing. Please note that sample costs apply.
Small orders usually take 3-5 working days, while larger bulk orders typically require 10-15 days for production and processing.
We accept various payment terms including T/T (Telegraphic Transfer), L/C (Letter of Credit), Western Union, and Cash.
We offer a comprehensive 12-month warranty from the date of purchase.
Standard models are kept in stock. Specialized or large-scale orders are newly produced according to your specific requirements.
Yes, all inverters feature a built-in RS485 port and support the standard Modbus communication protocol for easy industrial integration.
