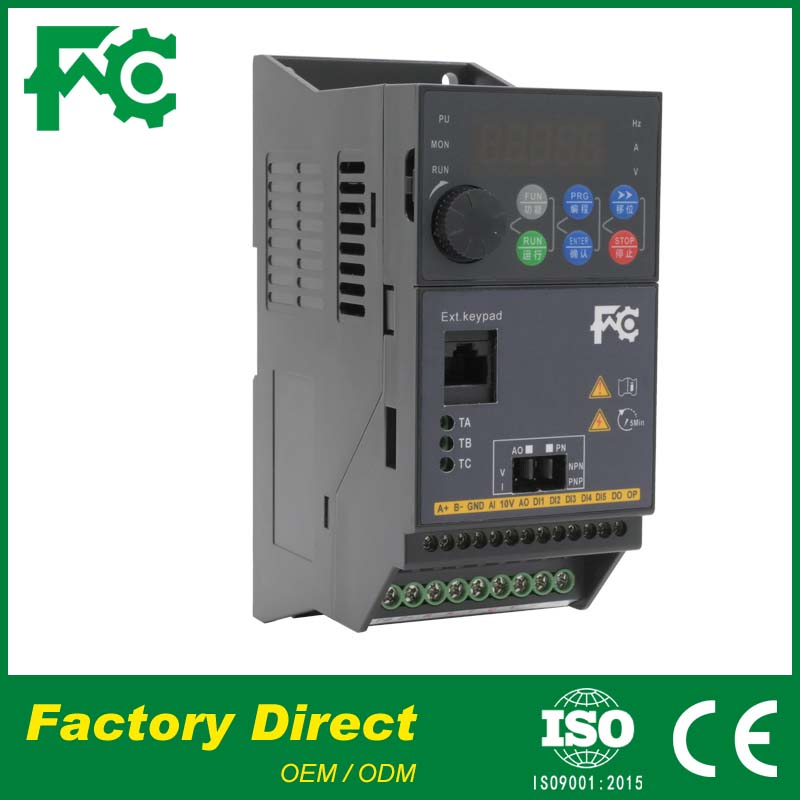

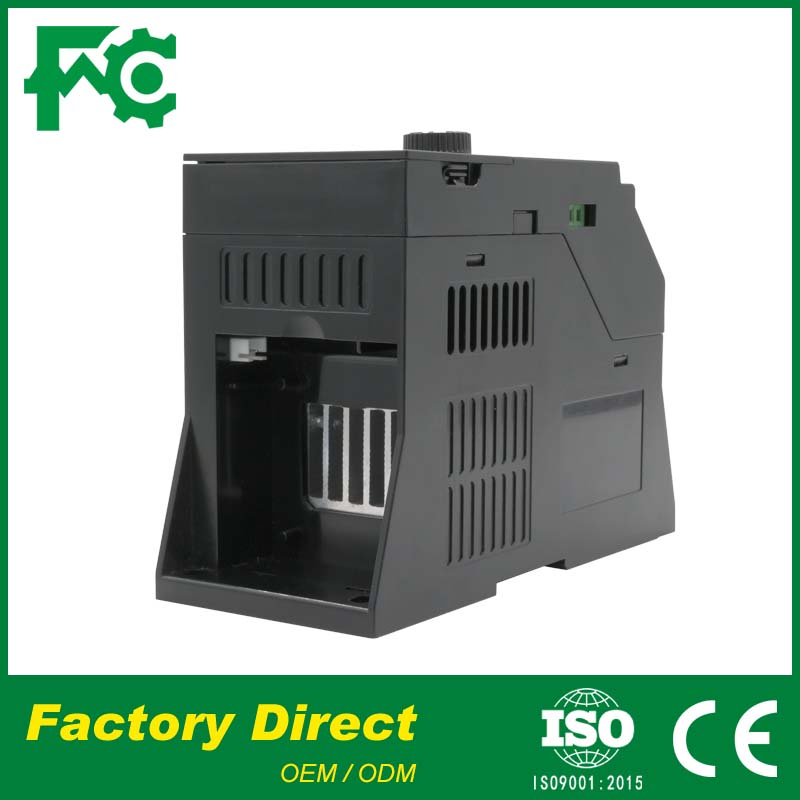

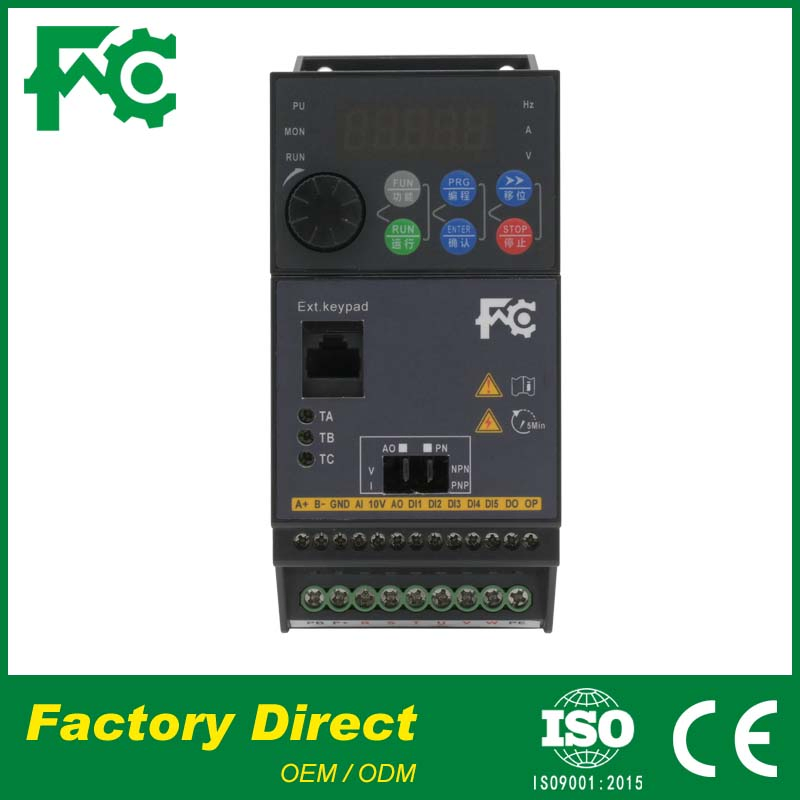

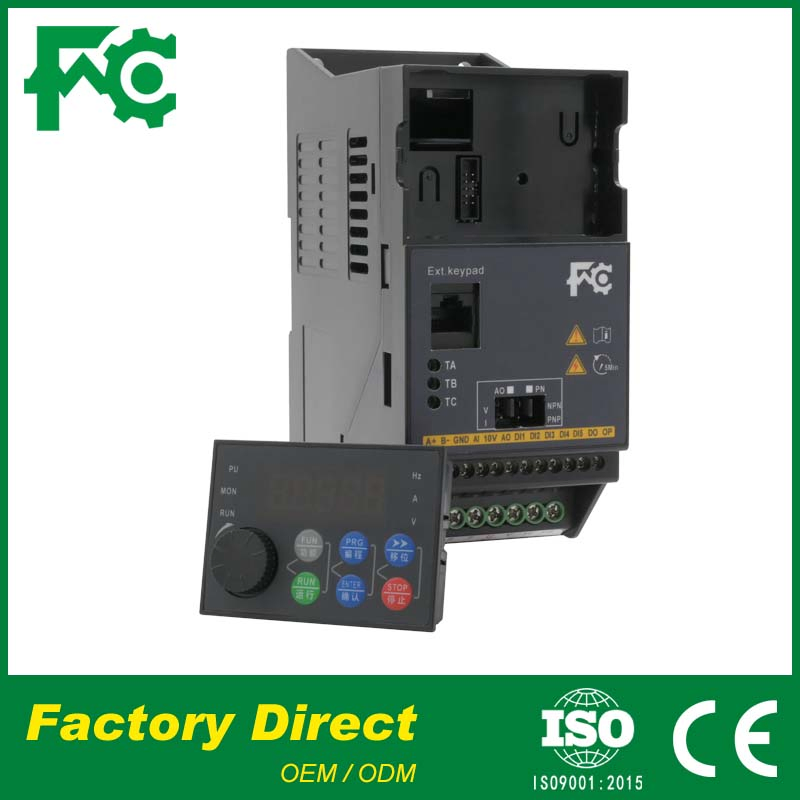

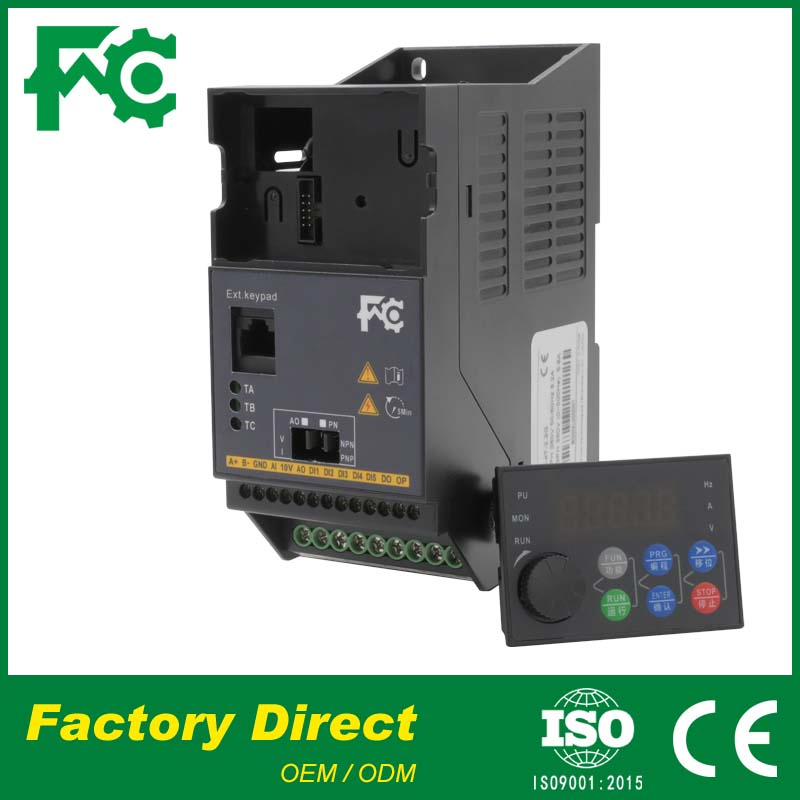

380V Three Phase VFD with CE (FC90, General Purpose)

📋Overview

Model NO.

FC90 Series

Principle of Work

V/F Control

Switch Mode

PWM Control

Main Circuit Type

Voltage

Voltage of Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Nature of DC Power

Voltage Variable-Frequency Drive

Function

Simple Type, Textile Special, Constant Torque Universal Type

Certificate

ISO9001, CE

Input Voltage

220V/380V

Output Voltage

0~220VAC/0~380VAC

Output Frequency

0~300Hz

Output Power

0.4~7.5kw

Used for

Textiles, Papermaking, Food, Electronic Equipments

Transport Package

Cartons/ Piece

HS Code

8504409999

Production Capacity

10000PCS/Month

📦Packaging & Delivery

Package Size

11.10cm * 6.80cm * 16.40cm

Package Gross Weight

1.000kg

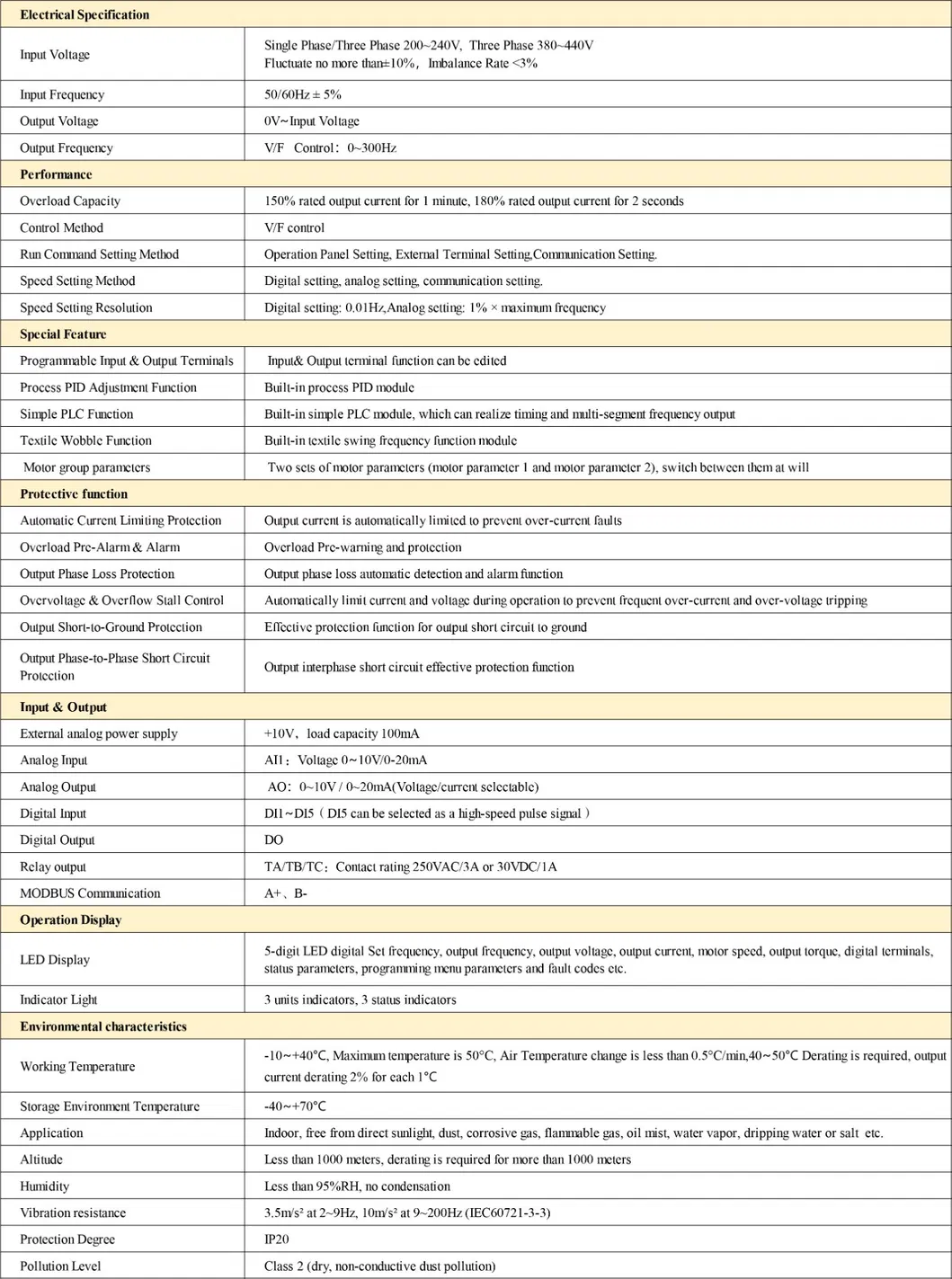

⚙️Product Parameters

🔢Model Selection

Item No.	Motor (HP)	Motor (kW)	Input (A)	Output (A)	Capacity (kVA)	W (mm)	H (mm)	D (mm)	GW (kg)
1 Phase Input and 3 Phase Output 220V
FC90-2S-0.4G	0.54	0.4	7.00	2.80	1.10	68	164	111	1.0
FC90-2S-0.75G	1.01	0.75	13.00	5.00	2.00	68	164	111	1.0
FC90-2S-1.5G	2.01	1.5	20.00	8.00	3.00	68	164	111	1.0
3 Phase Input and 3 Phase Output 380V
FC90-4T-0.75G	1.01	0.75	3.40	2.10	1.50	68	164	111	1.0
FC90-4T-1.5G	2.01	1.5	5.00	3.80	3.00	68	164	111	1.0
FC90-4T-2.2G	2.95	2.2	5.80	5.10	4.00	68	164	111	1.0
FC90-4T-4.0G	5.36	4	13.00	9.50	6.50	89	217	146	3.5
FC90-4T-5.5G	7.38	5.5	14.60	13.00	8.50	89	217	146	4.0
FC90-4T-7.5G	10.06	7.5	19.00	17.00	11.00	89	217	146	4.0

🏭Typical Application

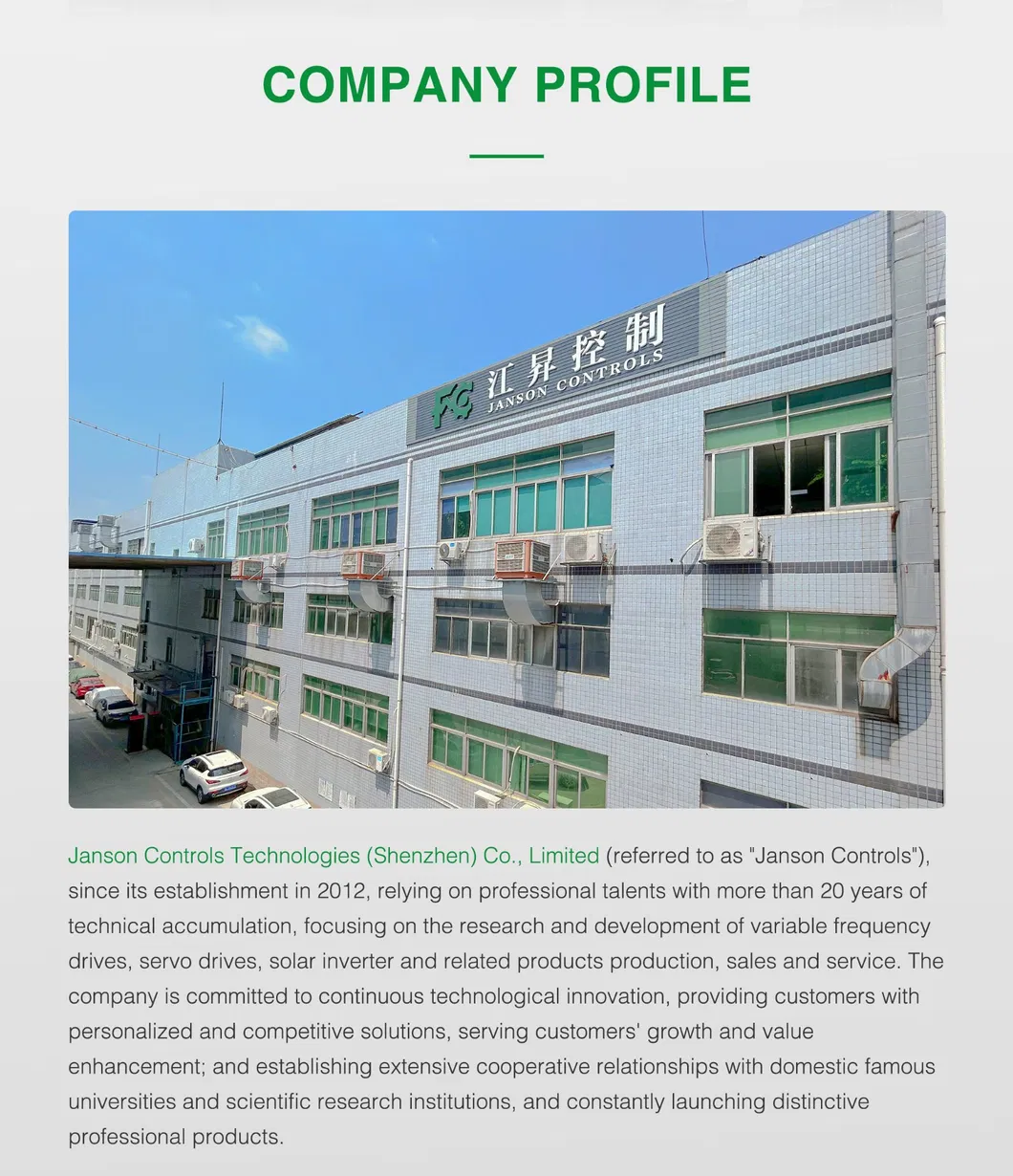

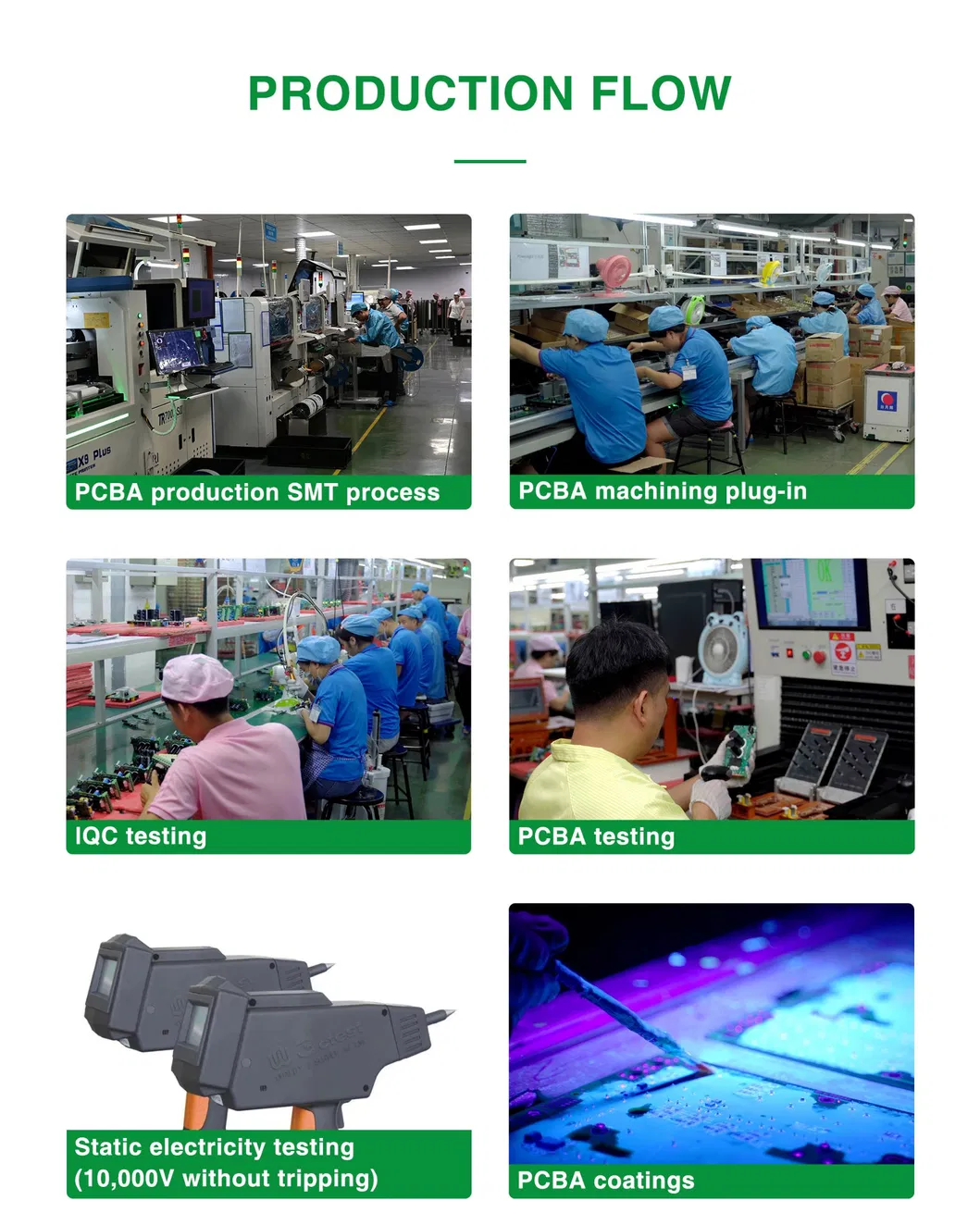

🏗️Company Profile & Production

📜Certifications

🚢Payment & Shipping

❓Frequently Asked Questions

1. Can I get some samples for testing?

Yes, sample orders are available for quality checks and market tests. However, sample and shipping costs apply.

2. What is the typical delivery lead time?

It usually takes about 3-5 working days for small orders and 10-15 days for bulk orders.

3. What are your accepted payment terms?

We accept various payment methods including T/T, L/C, and Western Union.

4. What is the warranty period for your products?

We offer a 24-month warranty from the date of purchase.

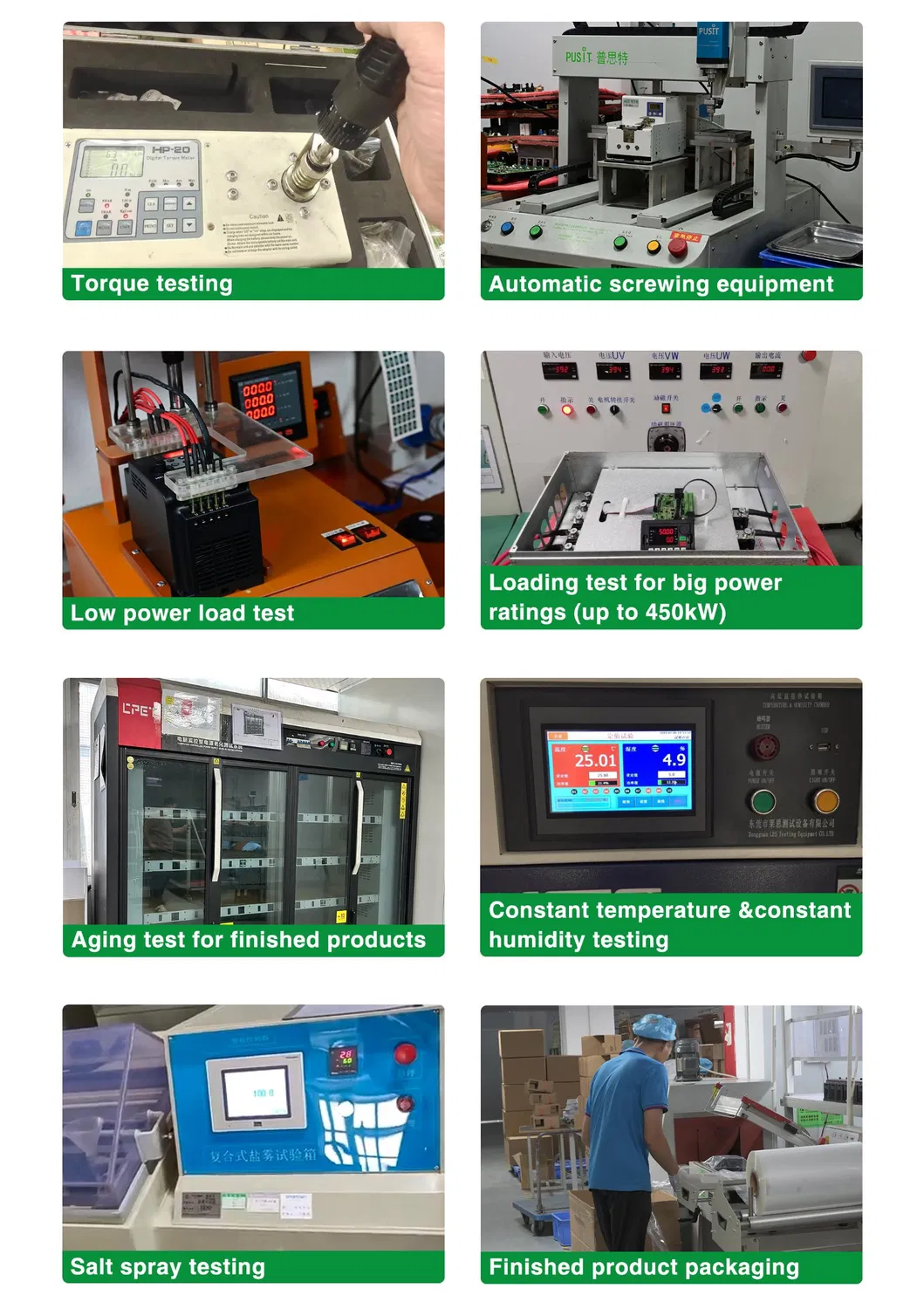

5. How does the factory ensure quality control?

Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping to ensure compliance with ISO9001 and CE standards.

6. Can the inverter connect to a computer system?

Yes, all inverters feature a built-in RS485 port and support the Modbus communication protocol for PC connectivity.
