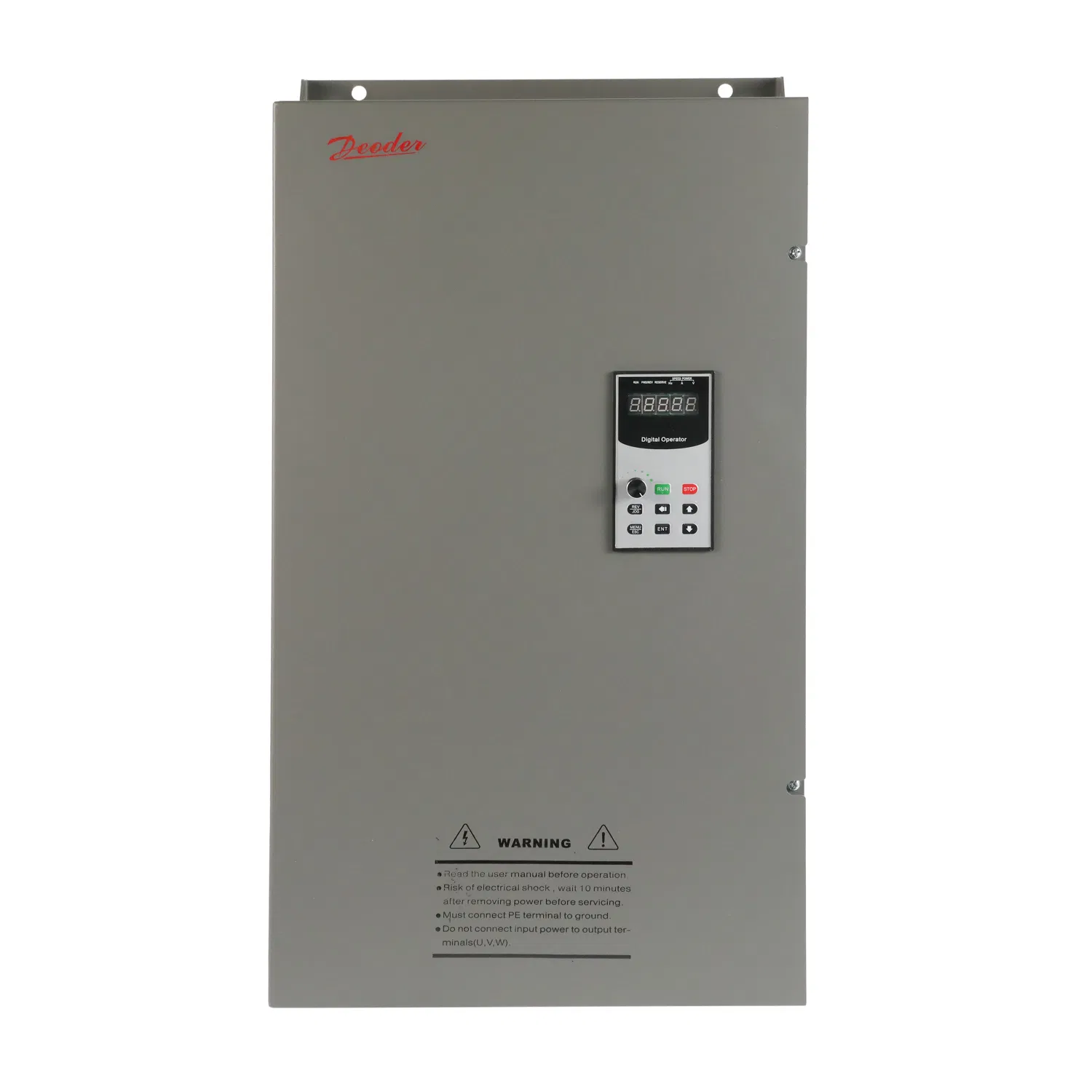

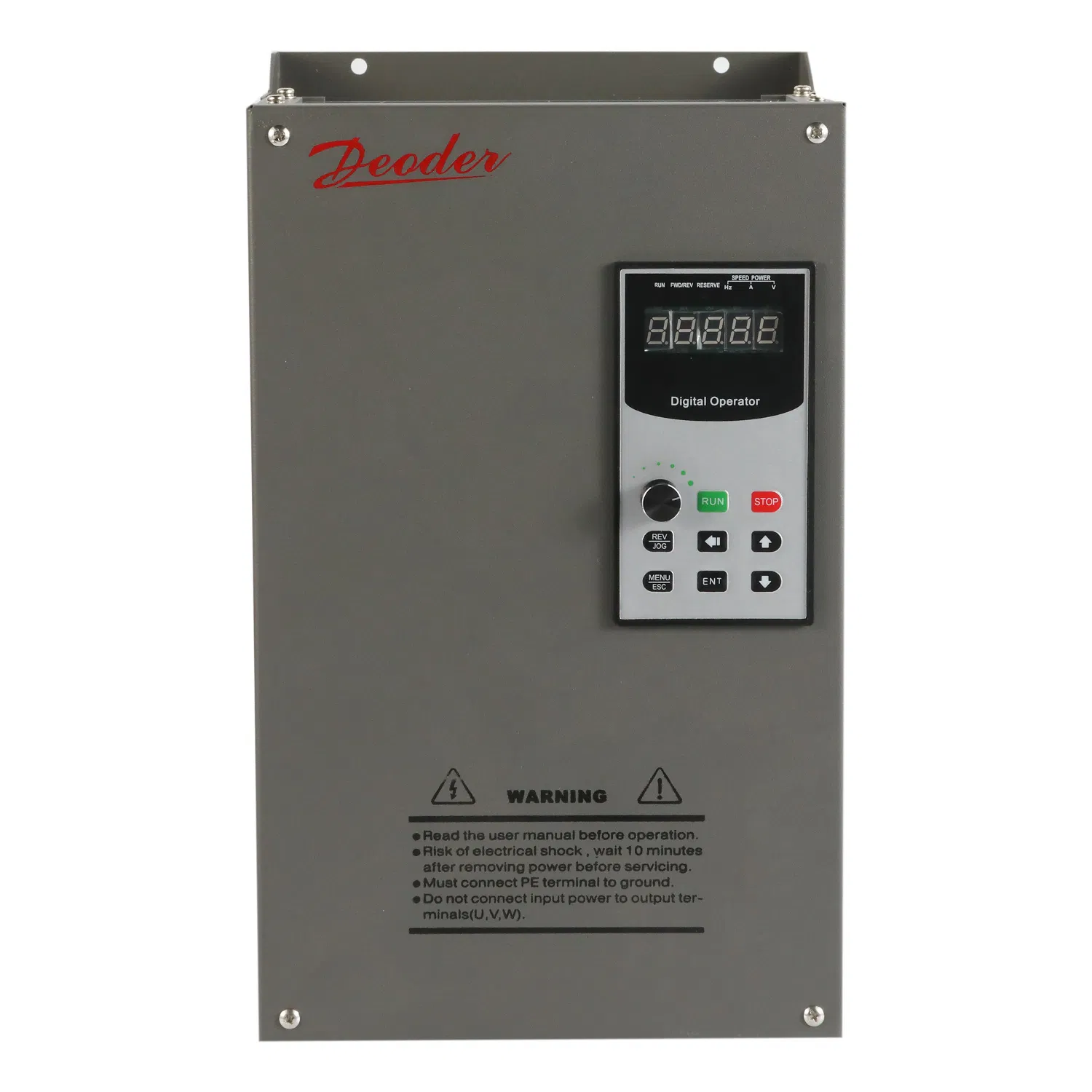

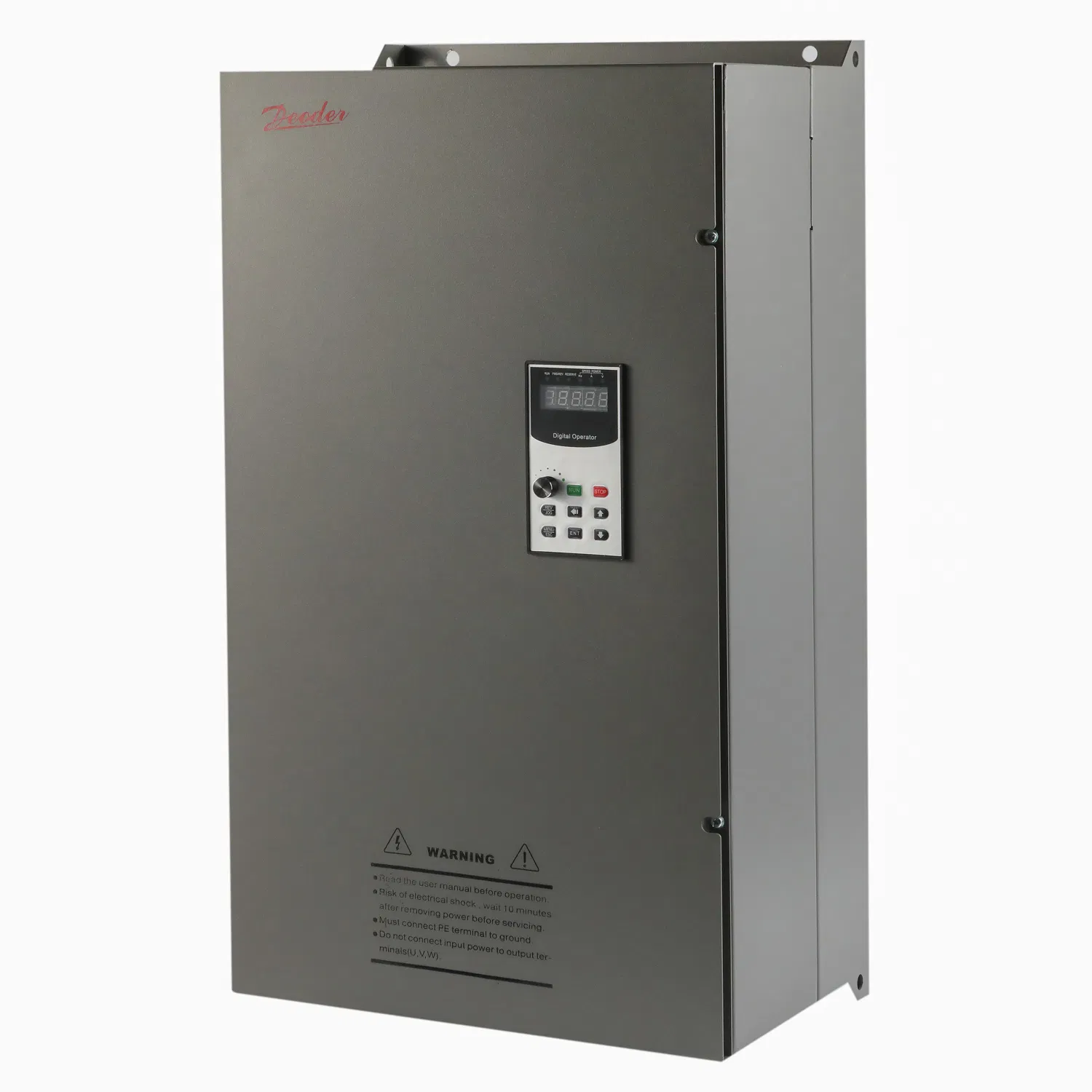

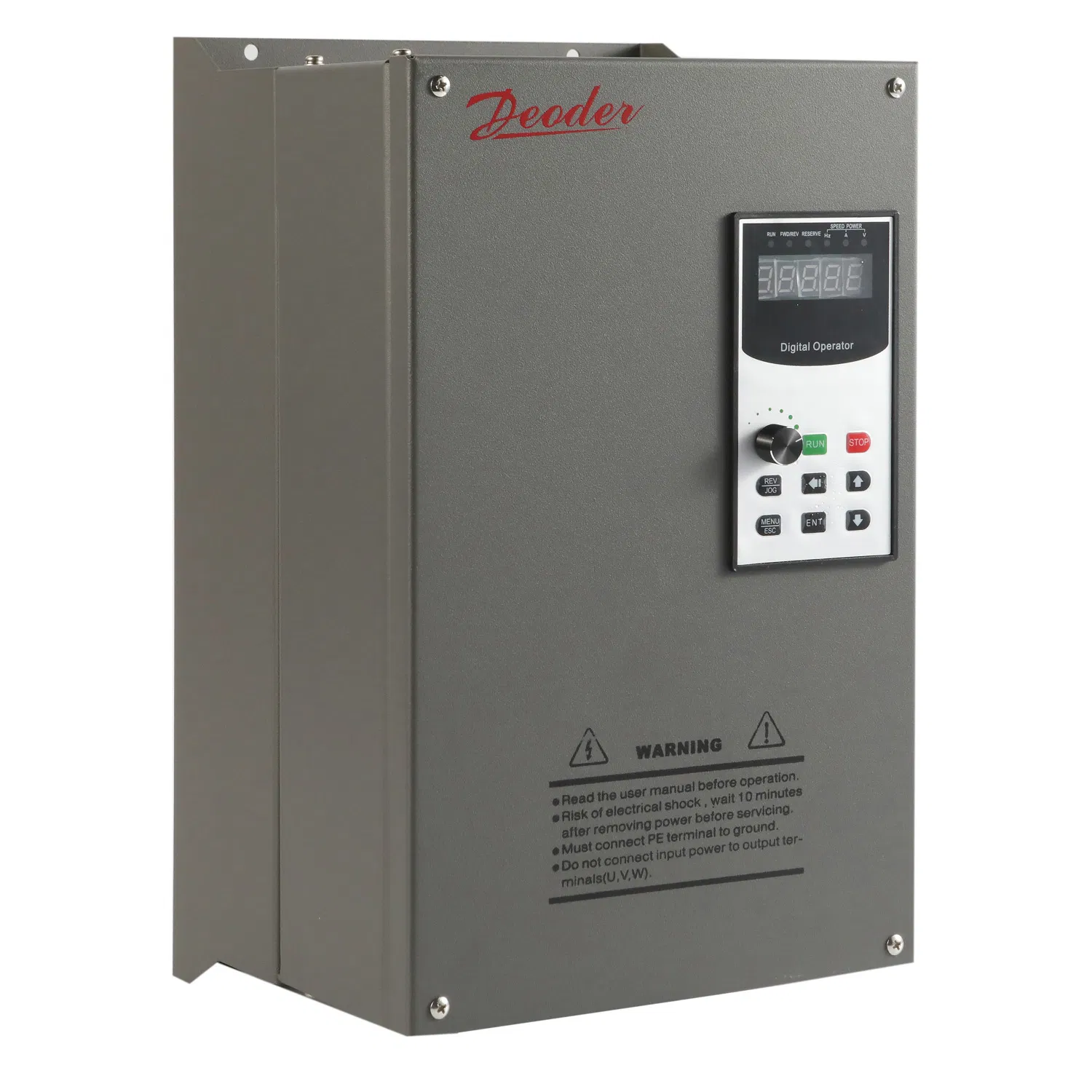

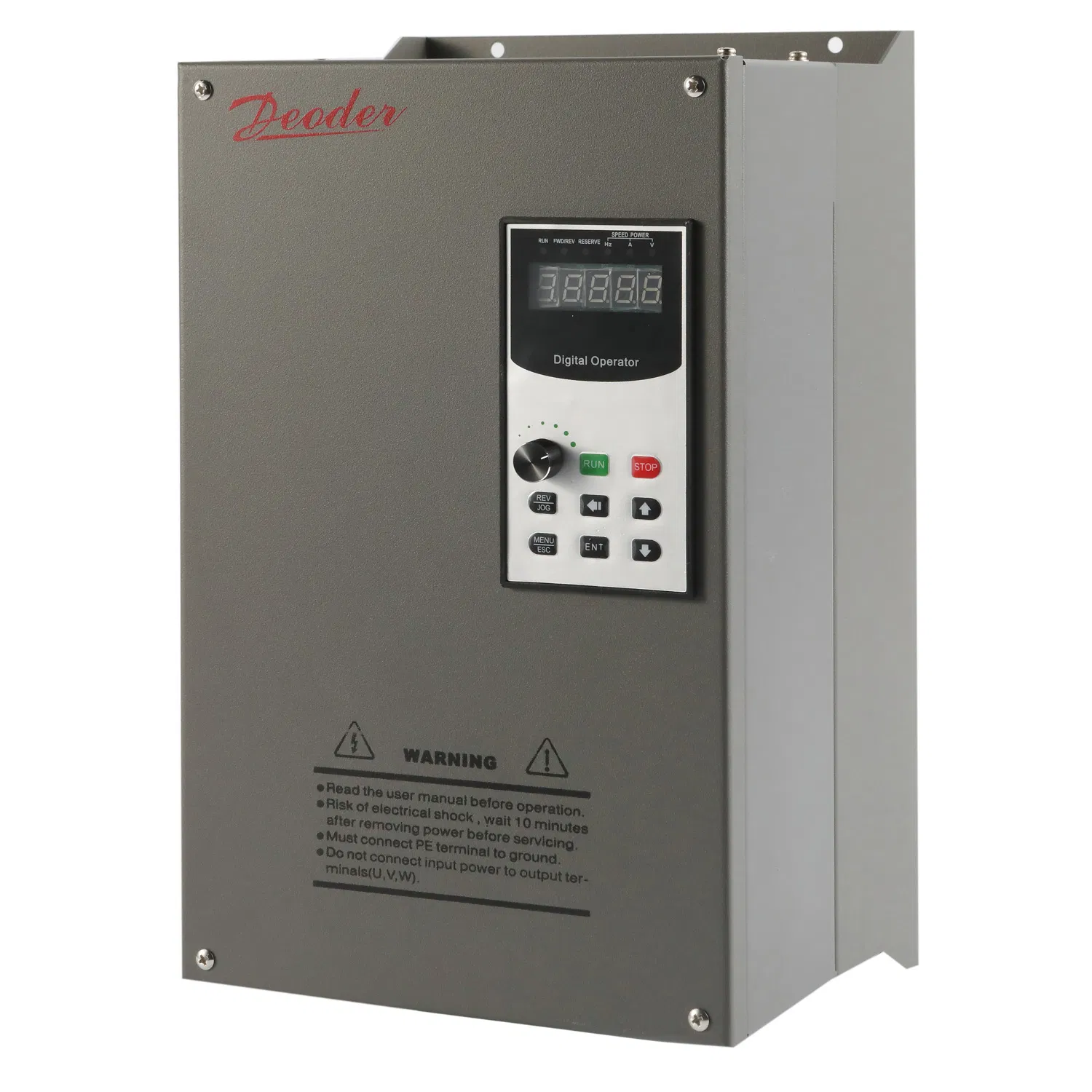

| Model | H100 & DV6000 Series Frequency Converter |
|---|---|
| Power Range | 3 Phase AC 380V-480V (-10% to +10%) | 0.75KW - 550KW |
| Output Frequency | 0.00 ~ 1000Hz (Default: 50/60Hz) |
| Control Mode | V/F Control, Sensorless Vector Control, Torque Control |
| Starting Torque | 0.5Hz / 150% (SVC) |
| Communication | RS-485 (Supports MODBUS Protocol) |
| Energy Saving | 30% - 80% Power saving rate |
| Protection | Over-current, Over-voltage, Under-voltage, Over-temperature, Phase failure, Overload |
| Inverter Model | Power (kW) | Input | Output (A) | Dim (W*H*D) mm |
|---|---|---|---|---|
| DV6000-5R5G-4T-H | 5.5 | 380V | 13 | 176 * 300 * 207 |
| DV6000-7R5G-4T-H | 7.5 | 380V | 17 | 176 * 300 * 207 |
| DV6000-011G-4T-H | 11 | 380V | 25 | 176 * 300 * 207 |
| DV6000-015G-4T-H | 15 | 380V | 32 | 220 * 380 * 204 |
| DV6000-030G-4T-H | 30 | 380V | 60 | 282 * 430 * 242 |
| DV6000-055G-4T-H | 55 | 380V | 110 | 380 * 460 * 251 |
| DV6000-110G-4T-H | 110 | 380V | 210 | 390 * 722 * 278 |
| DV6000-250G-4T-H | 250 | 380V | 470 | 634 * 988 * 364 |
Highly versatile for various industrial machinery: Fans, Pumps, 3-Phase Motors, Textile, Mining, Chemical, Metallurgy, Oil, Woodworking, Air Compressors, and Agricultural Irrigation.
