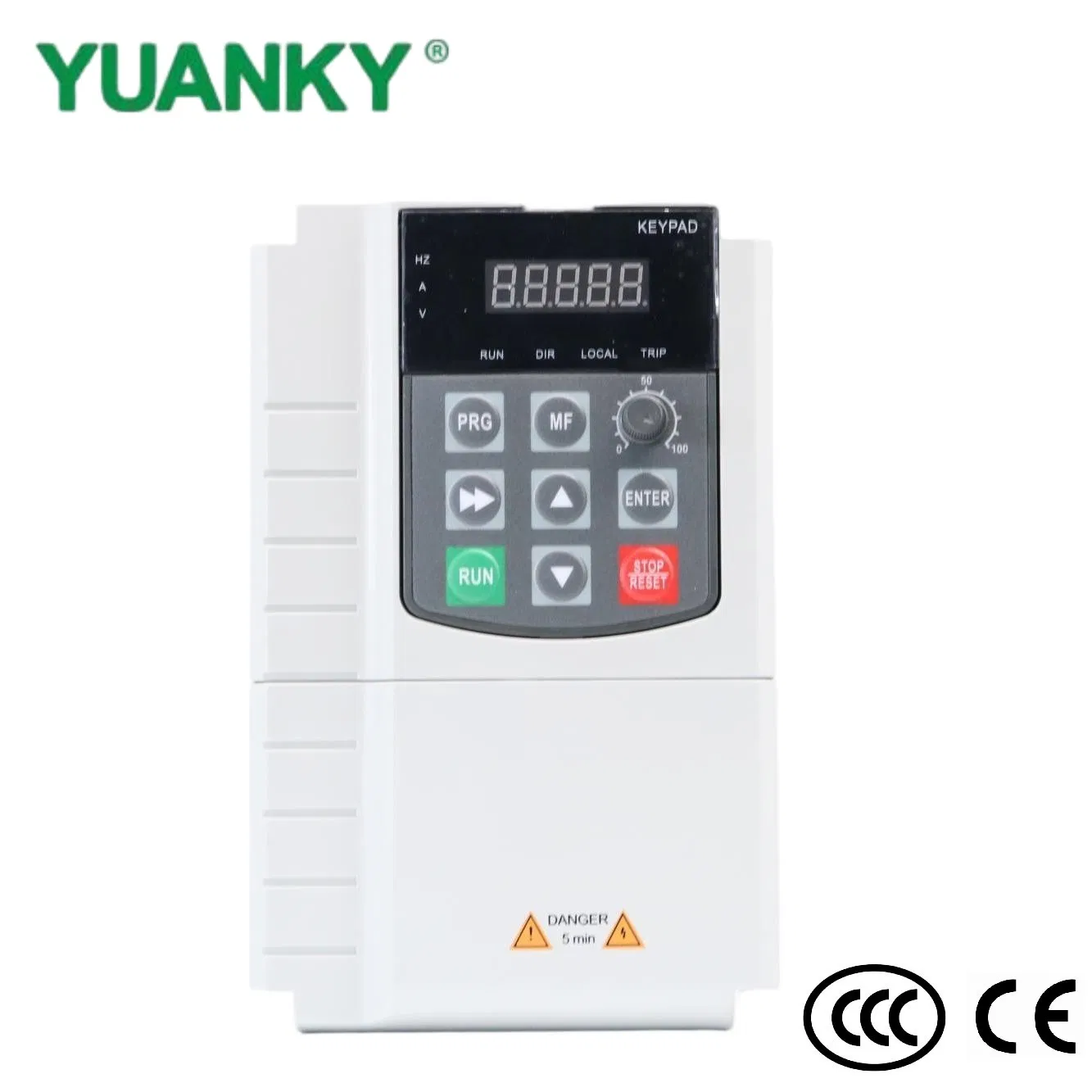

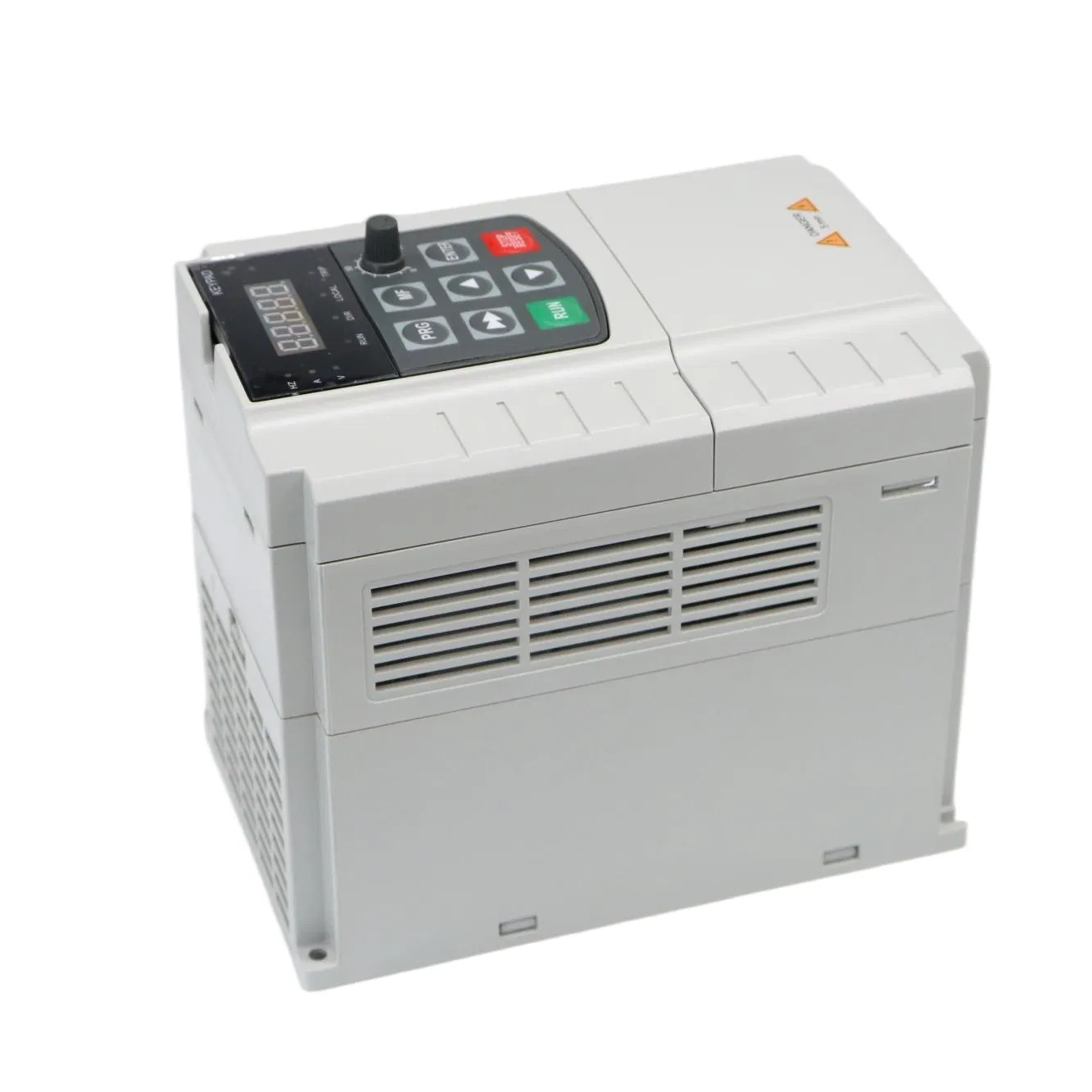

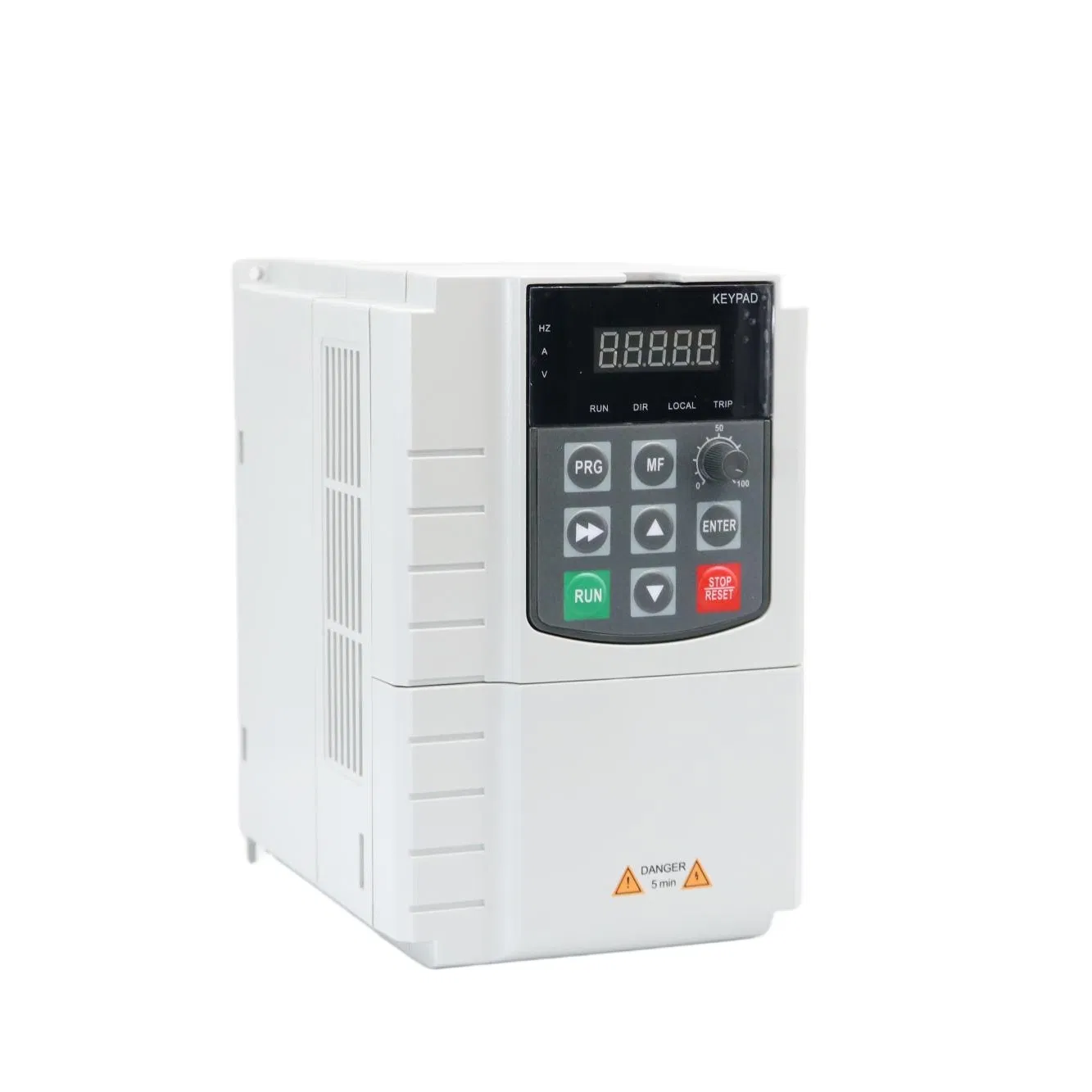

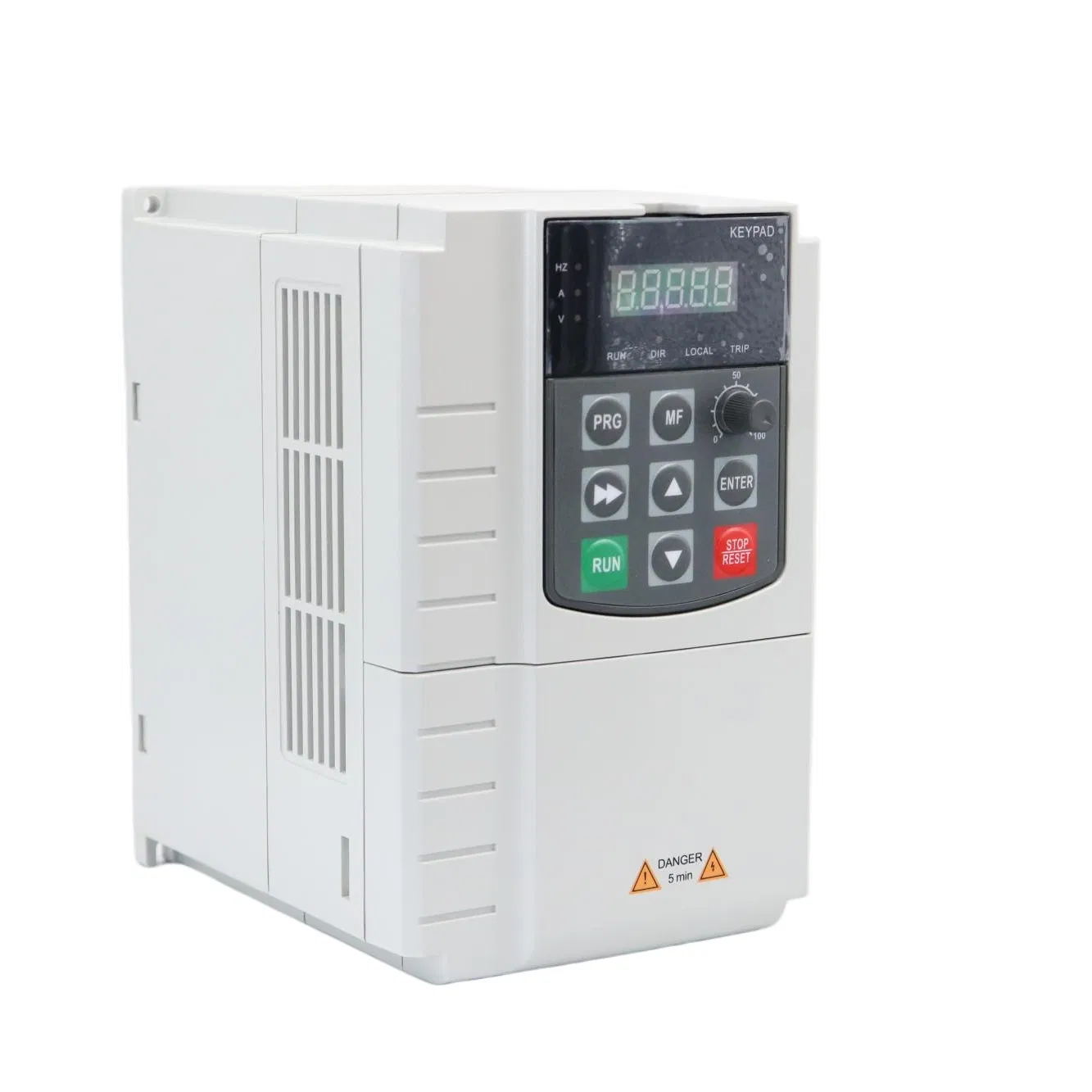

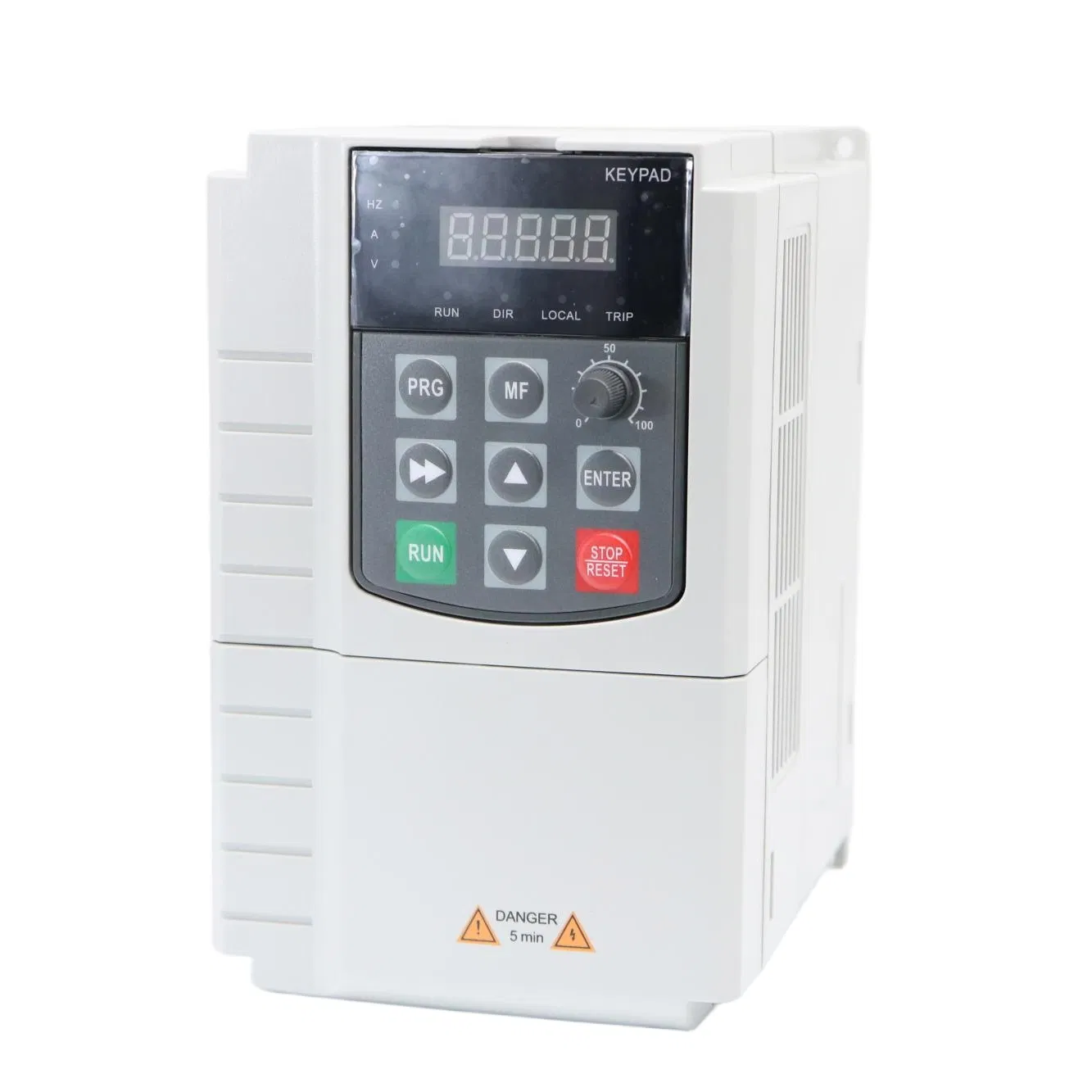

YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
1 / 5
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD
YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD

YUANKY S100 Series Variable Frequency Drive, 220V/380V 50/60Hz AC Single-Phase/Three-Phase Frequency Converter, 0.75kW-200kW Motor Control VFD

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
S100
Work Principle
V/F Control Transducer
Switch Mode
PWM Control
Circuit Type
AC-DC-AC Drive
Voltage
220V / 380V Low Voltage
Power Range
0.75kW - 200kW
Max Frequency
V/F: 0-3200Hz; Vector: 0-320Hz
Carrier Frequency
0.5kHz - 16kHz
Starting Torque
Without PG: 0.5Hz/150%
Origin
China
Packaging & Delivery
Package Size
11.80cm * 16.50cm * 7.00cm
Gross Weight
4.000kg
Lead Time
35 days (1 - 5000 Pieces); > 5000 (Negotiable)
Product Parameter
Series Variable Frequency Drive Parameters
Three-phase 380V, 50/60Hz
Inverter Model Power Capacity (KVA) Input Current (A) Output Current (A) Adapted Motors (KW)
S100-4T-0.7GB1.53.42.10.75
S100-4T-1.5GB353.81.5
S100-4T-2.2GB45.85.12.2
S100-4T-4.0G/5.5PB5.910.593.7
S100-4T-5.5G/7.5PB8.914.6135.5
S100-4T-7.5G/11PB1120.5177.5
S100-4T-11G/15PB17262511
S100-4T-15G/18.5PB21353215
S100-4T-22G/30PB3046.54522
S100-4T-45G/55P69929145
S100-4T-90G/110P13418017690
S100-4T-200G/220P250385377200
Frequency Converter Feature Overview Motor Control VFD Specifications
Products Show
Product Display Header

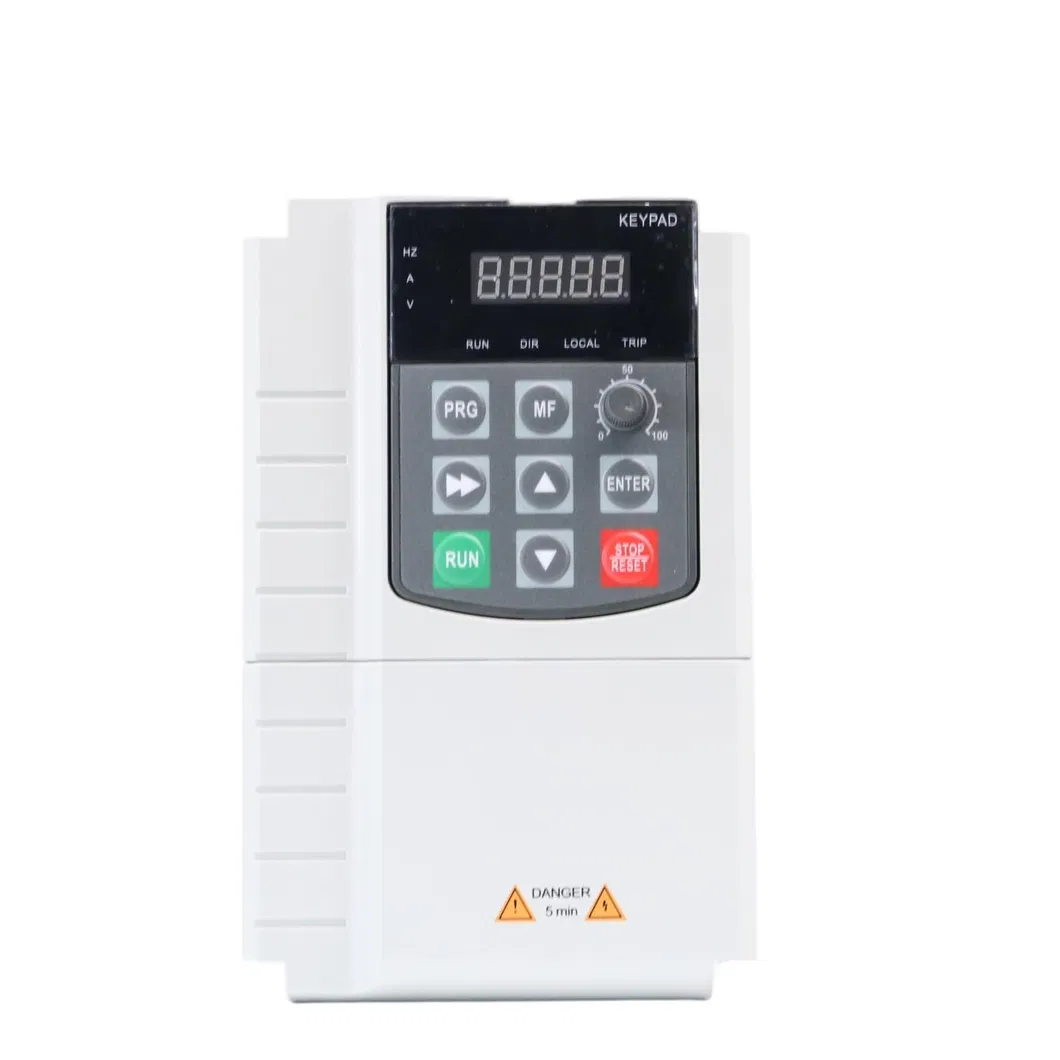

VFD Show 1

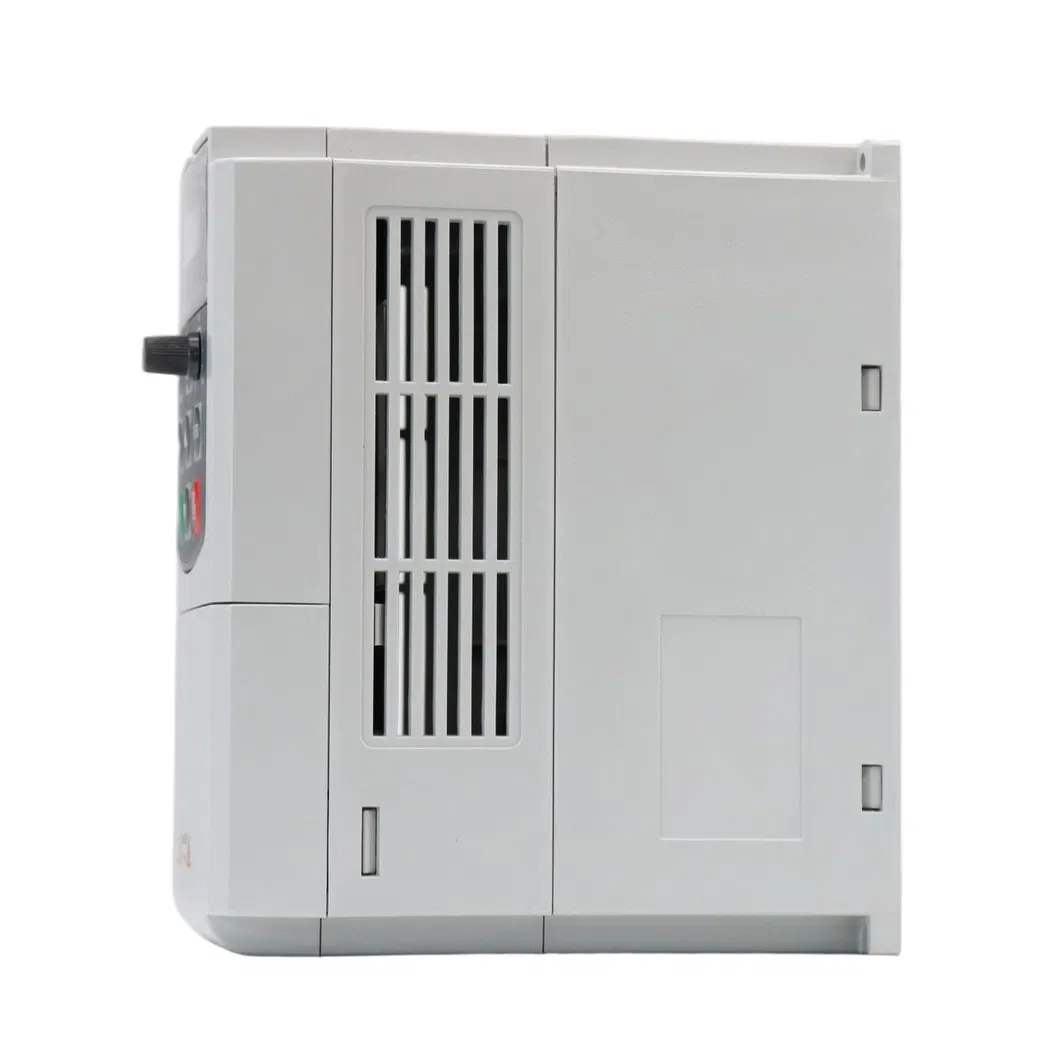

VFD Show 2

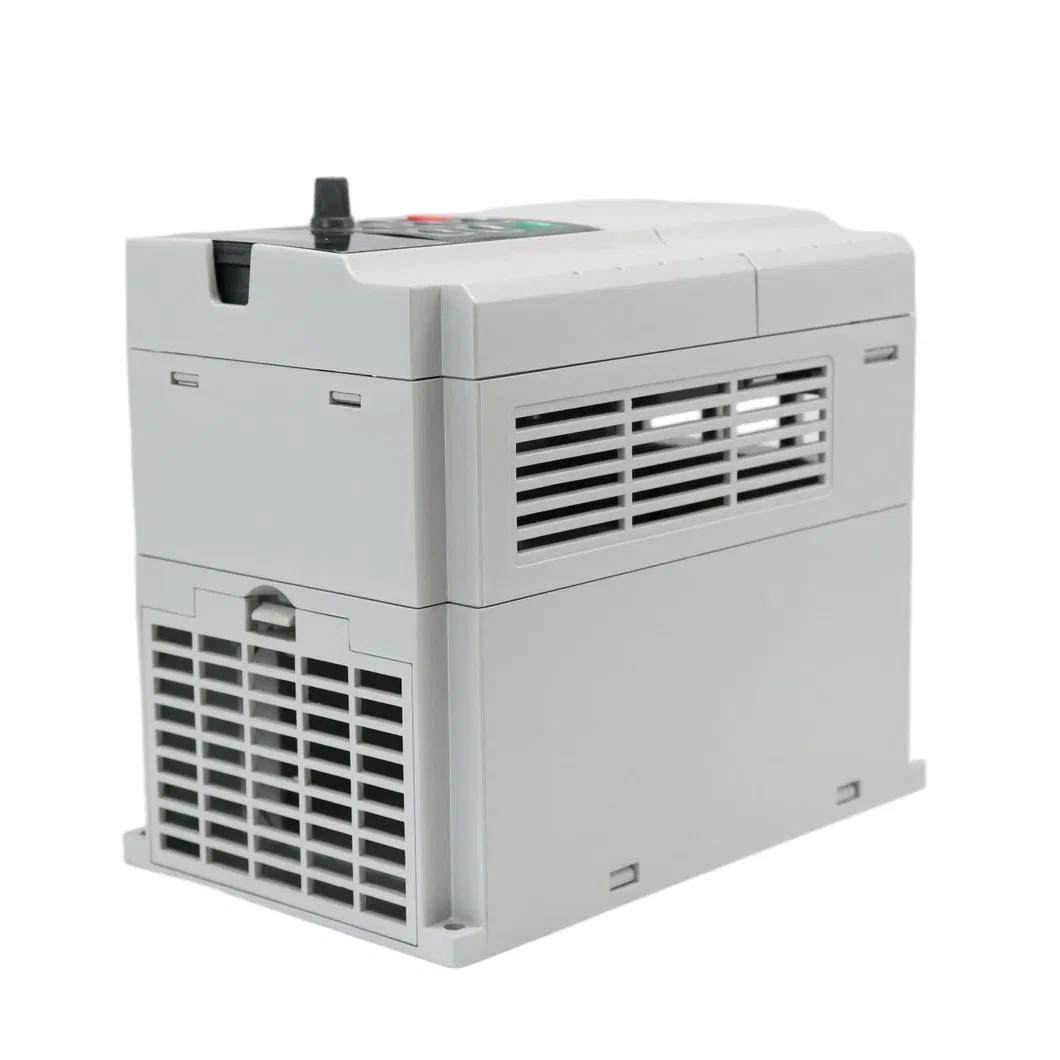

VFD Show 3

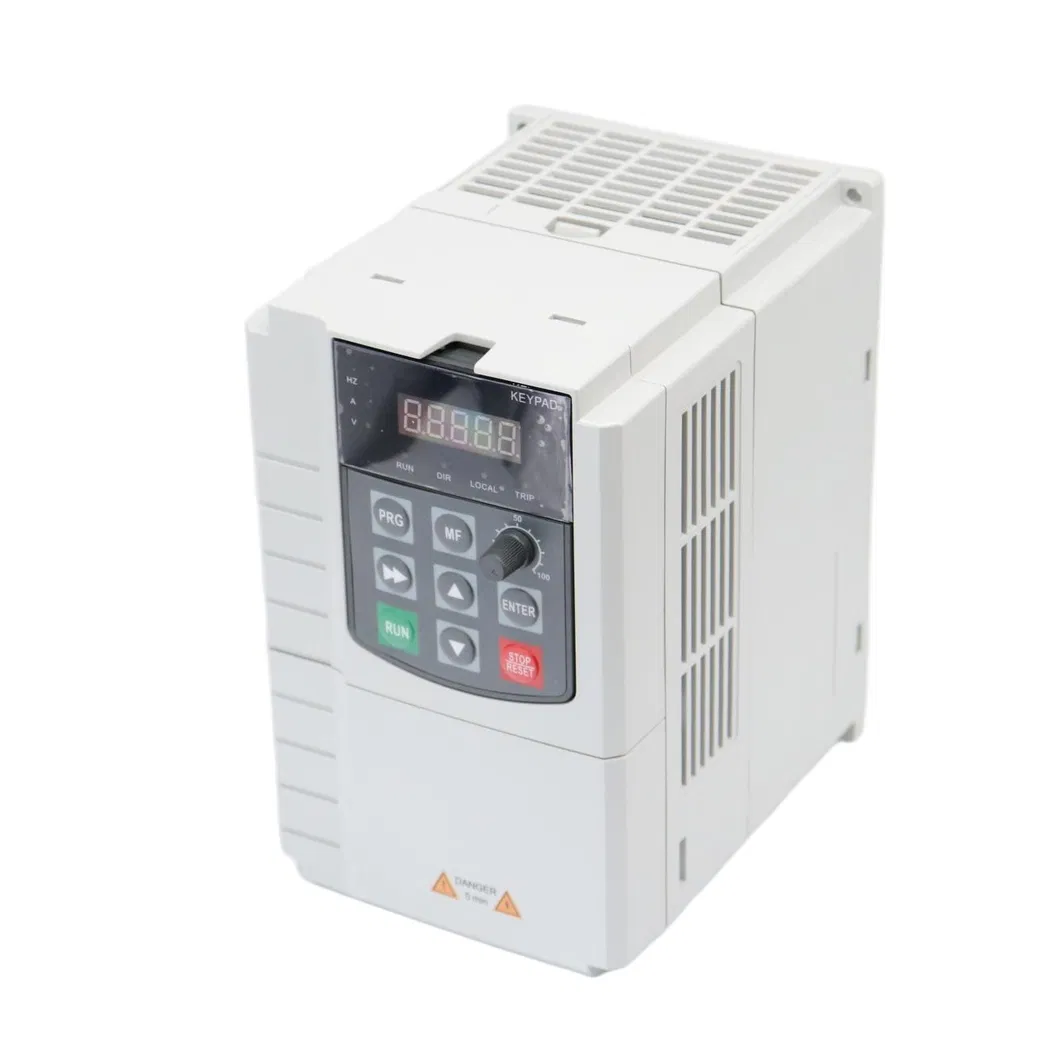

VFD Show 4
Detailed Dimensions Wiring Diagram
Frequently Asked Questions
What is the output frequency range of the S100 series?
The S100 series offers a wide frequency range: V/F control supports 0~3200Hz, while Vector control supports 0~320Hz.
Does this VFD support different voltage inputs?
Yes, the series is designed to handle both 220V and 380V AC single-phase or three-phase power supplies, depending on the specific model.
What is the typical lead time for an order of 500 pieces?
The standard lead time for quantities under 5000 pieces is approximately 35 days. For larger orders, the schedule can be negotiated.
Can I request customized processing or OEM services?
Absolutely. We support professional processing and OEM/ODM requests. You simply need to provide the technical parameters and process requirements.
How can I obtain a sample for testing?
Please leave a message with your contact information. Our team will get back to you to discuss the specific details and requirements for sample provision.
What quality standards do these products follow?
Our products are manufactured to meet international standards including IEC, ISO9001, and hold certifications such as CE, CB, and TUV where applicable.
