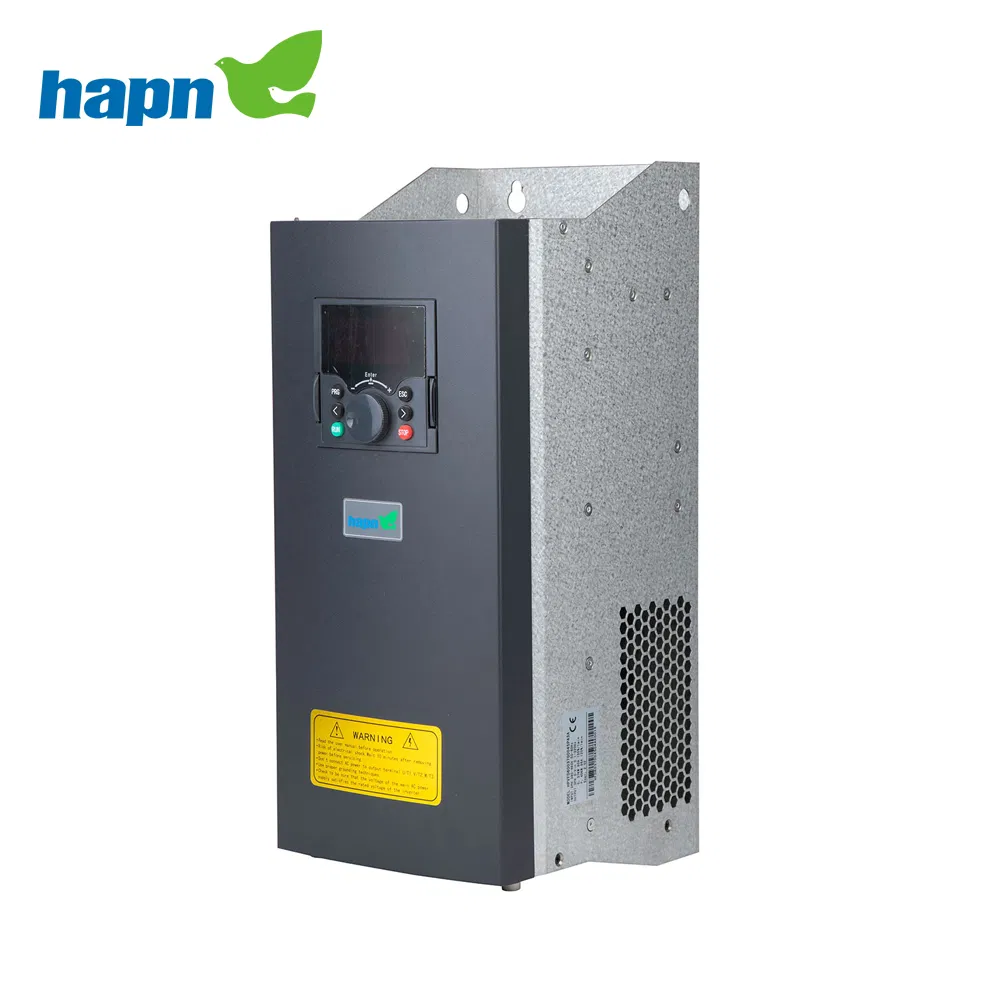

0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
1 / 5
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD
0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD

0.75-560kw DC AC Motor Inverter/Single Phase to Three Phase Frequency Converter VFD

Application: High Frequency Converter Transducer
Output Type: Triple
Principle of Work: V/F Control Transducer
Send Inquiry

Product Description

Basic Information
Model NO.
hpvfd
Switch Mode
PWM Control
Main Circuit Type
Voltage
Working Voltage
220V~480V
Working Power
0.75-1560kw
Working Current
3.4-960
Transport Package
Carton Package
Specification
CE 3C TUV SGS
Production Capacity
3000 Set / 30 Days
Product Description

HPVFD series is a high-quality range designed for industrial and commercial engineering fields. Utilizing unique current vector control, it provides excellent motor control characteristics suitable for various mechanical loads. Its narrow, space-saving design is ideal for enclosure installations where multiple units are required. Featuring an English interface, it ensures quick installation, connection, and debugging. The series is fully CE EMC certified.

Technical Features
◈
High Torque Performance: VTC current vector control algorithm achieves high starting torque and stable low-speed torque.
◈
Industrial Functionality: Combines rich industrial application functions to meet diverse field control requirements.
◈
International Standards: Designed, tested, and produced in strict accordance with international standards for superior heat dissipation and electromagnetic compatibility.
◈
I/O Configuration: Provides 8 multi-functional digital inputs, 2 analog inputs, 2 relay outputs, and 2 open collector outputs.
◈
Communication: Standard RS485 serial interface using Modbus protocol; built-in input filters for 18.5-560KW models.
◈
Energy Efficiency: Includes energy-saving operation and automatic current limiting to ensure stable performance.
◈
User Interface: LED and LCD interfaces with a parameter copy function for easy debugging.
◈
Reliable Safety: Features flame-retardant materials and high-reliability main loop connection modes.
Technical Specifications
Parameters Details
Input Voltage Range 1AC 220V ±15% / 3AC 220V ±15% / 3AC 380V ±15%
Input Frequency Range 47-63Hz
Maximum Output Voltage 220V grade: 220V / 380V grade: 380V (proportional to input)
Rated Output Frequency Programmable up to 400Hz
Product Gallery

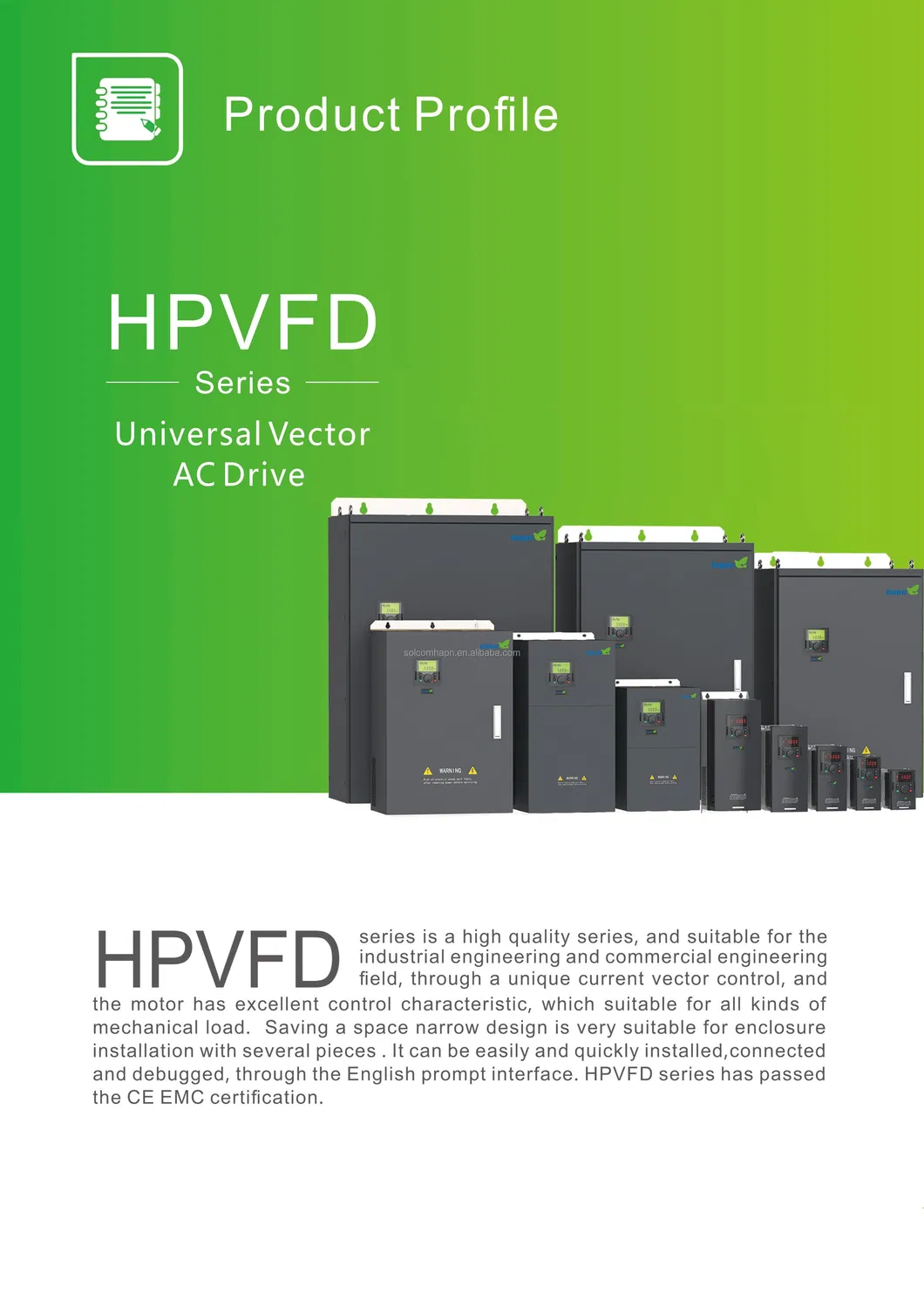

HPVFD Inverter Display 1

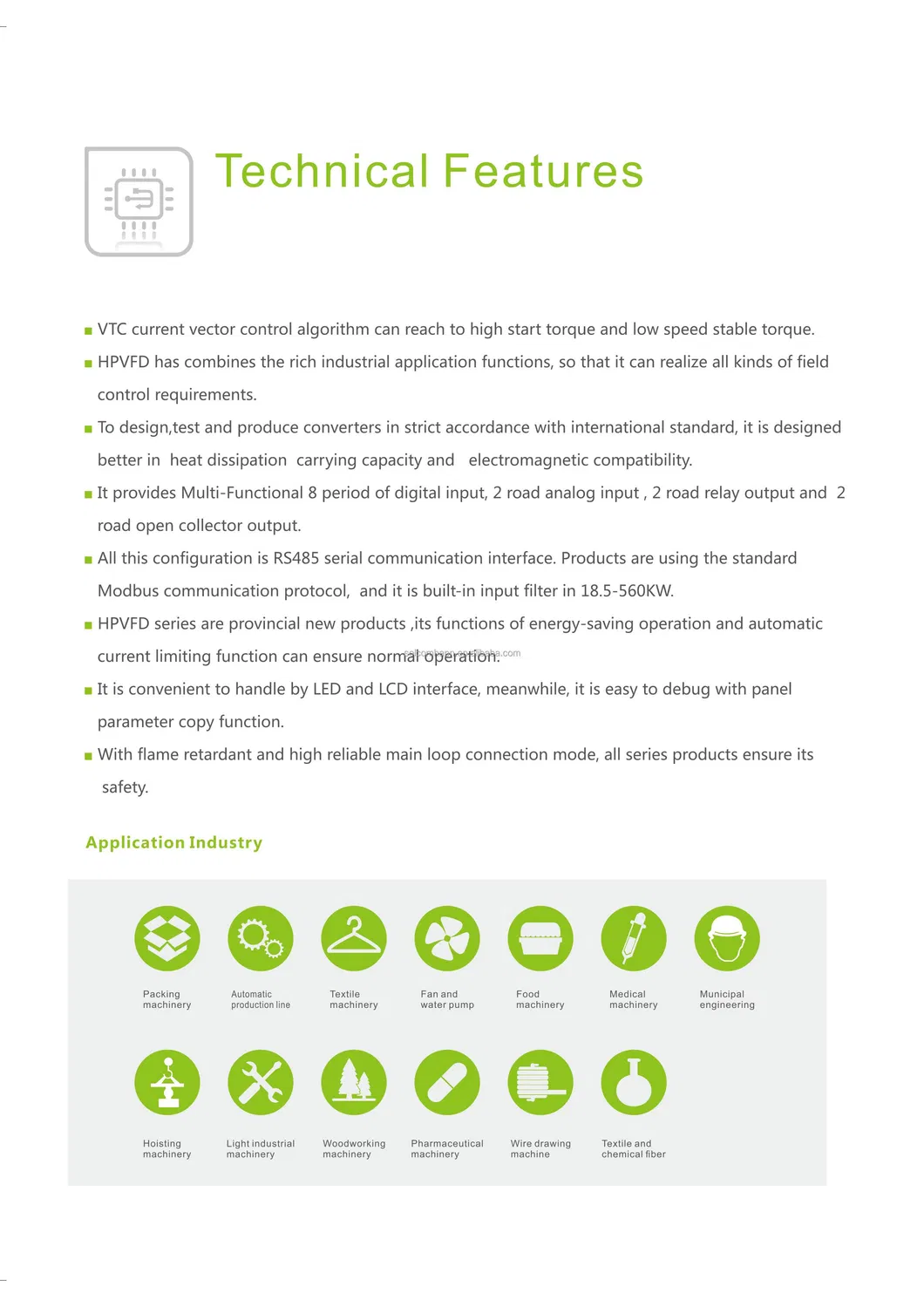

HPVFD Inverter Display 2

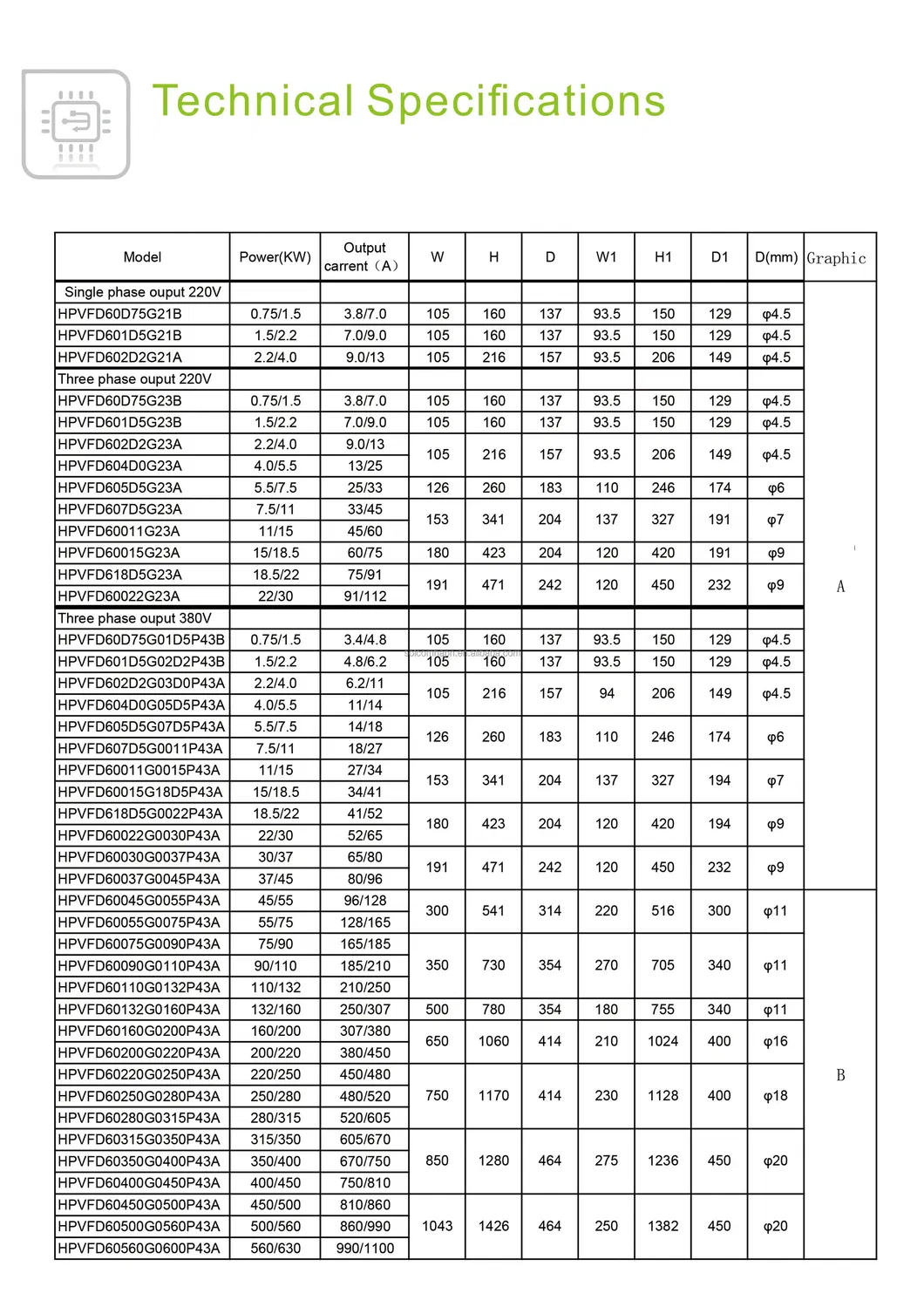

HPVFD Inverter Display 3

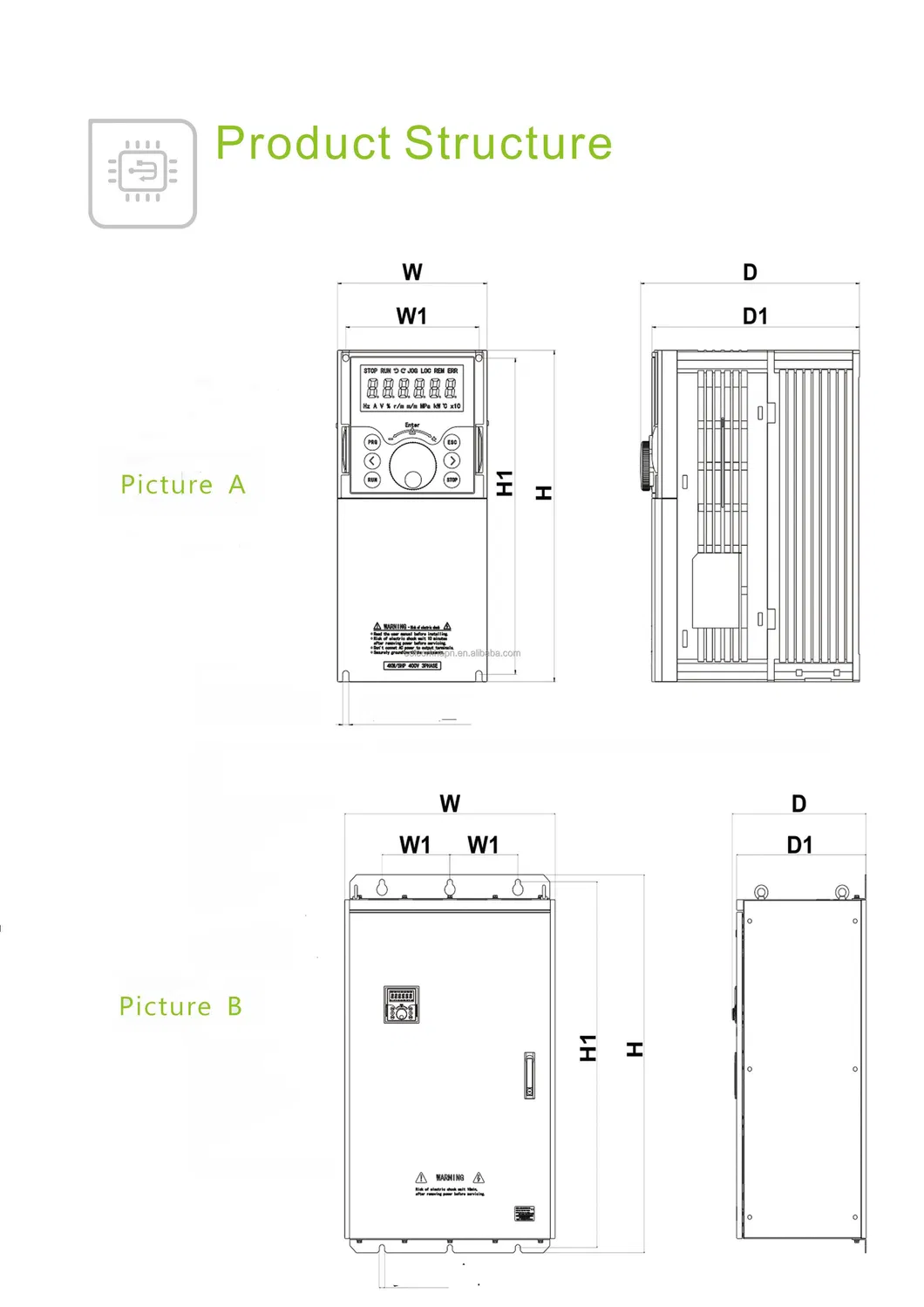

HPVFD Inverter Display 4

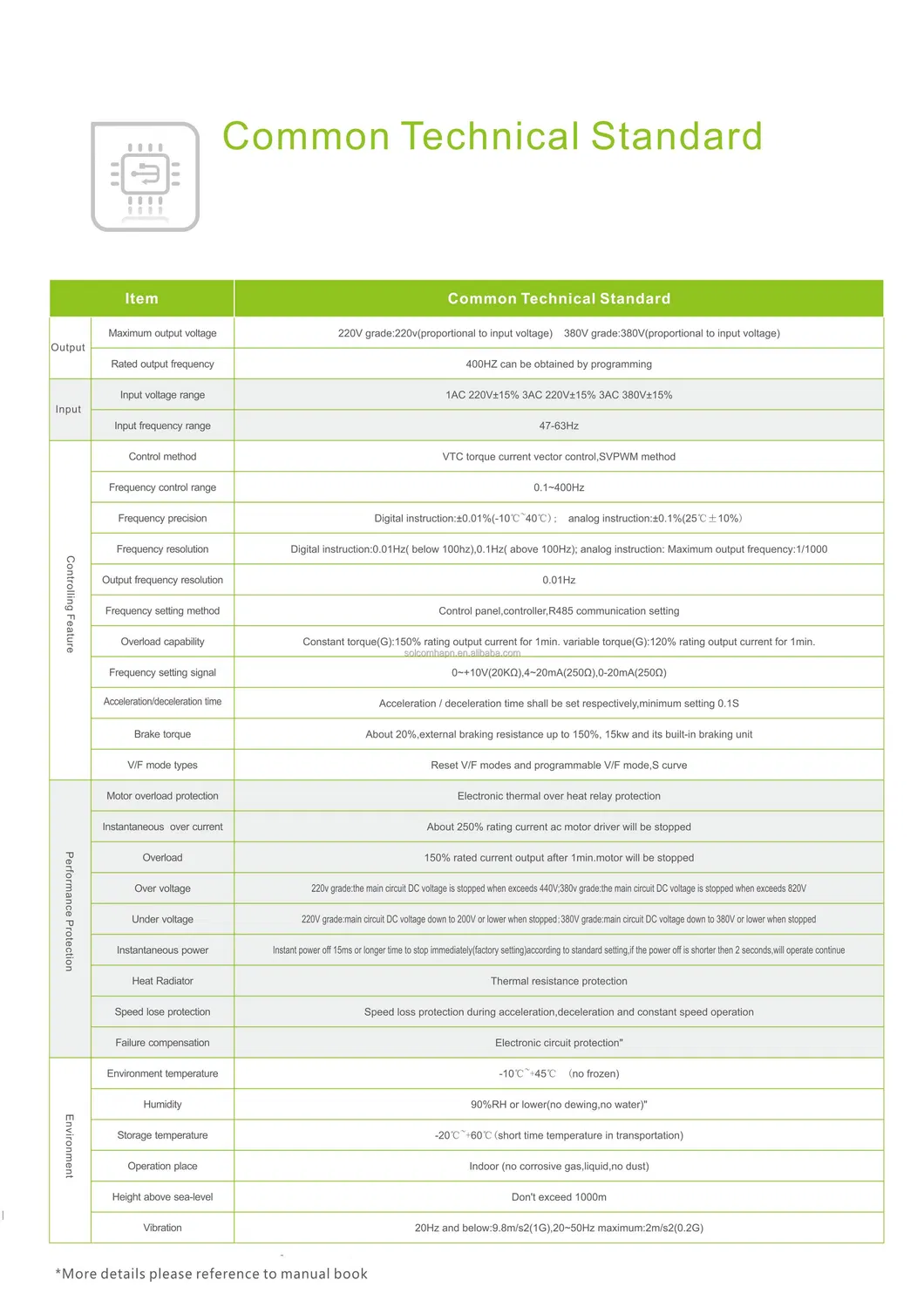

HPVFD Inverter Display 5
Frequently Asked Questions
1. What is the primary control algorithm used in the HPVFD series?
The series utilizes the VTC current vector control algorithm, which allows for high starting torque and stable operation even at low speeds.
2. Can these converters be installed in tight spaces?
Yes, the HPVFD series features a narrow design specifically optimized for enclosure installations, making it convenient to install multiple units side by side.
3. What communication protocols are supported?
The products are equipped with an RS485 serial communication interface and use the standard Modbus communication protocol for easy integration.
4. How is the user interface designed for debugging?
The device features both LED and LCD interfaces with English prompts. It also includes a panel parameter copy function to simplify the debugging process across multiple units.
5. What safety certifications does the HPVFD series hold?
The series has passed CE and EMC certifications and is designed with flame-retardant materials to ensure high reliability and safety in industrial environments.
6. What is the maximum output frequency obtainable?
The rated output frequency can reach up to 400Hz through user programming, depending on the application requirements.
