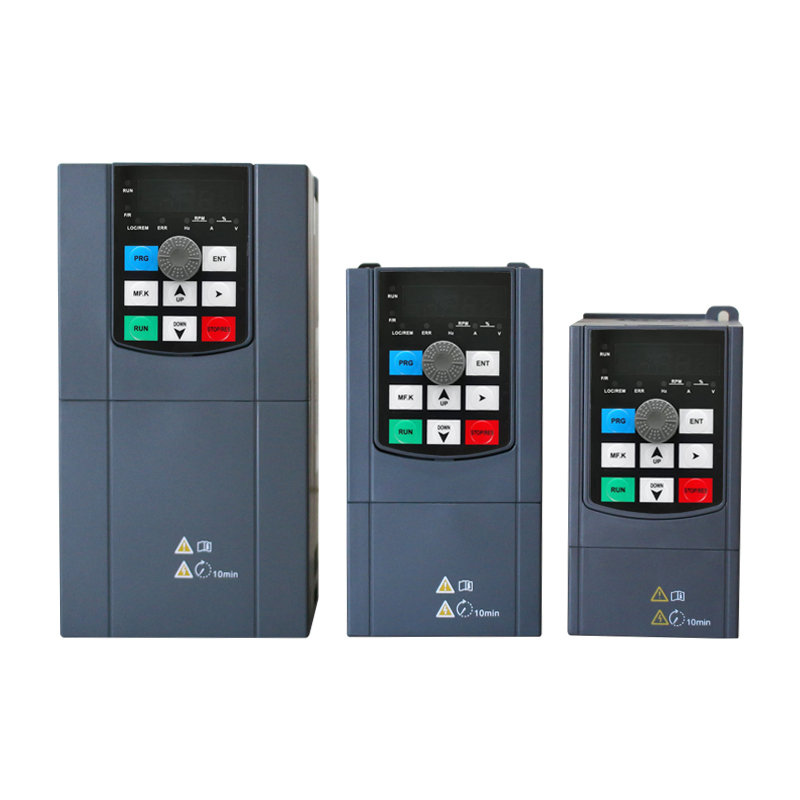

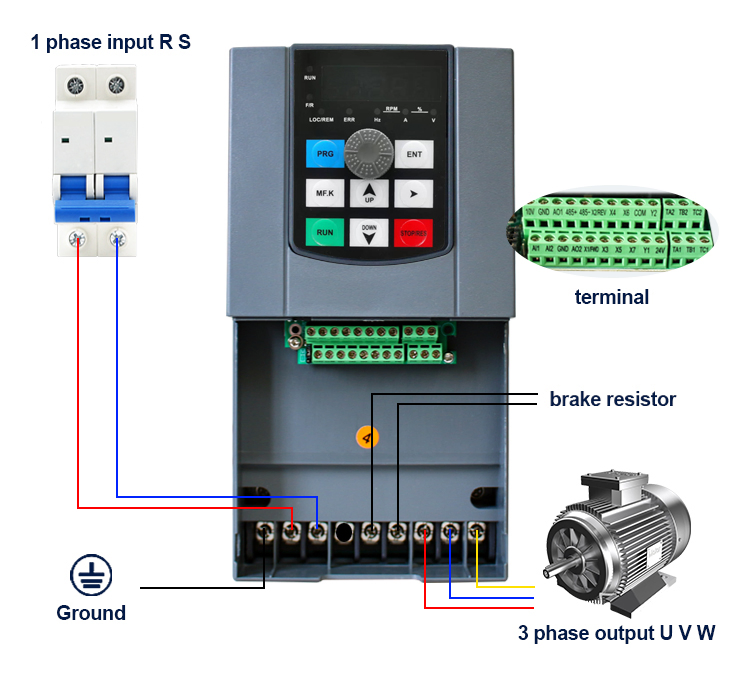

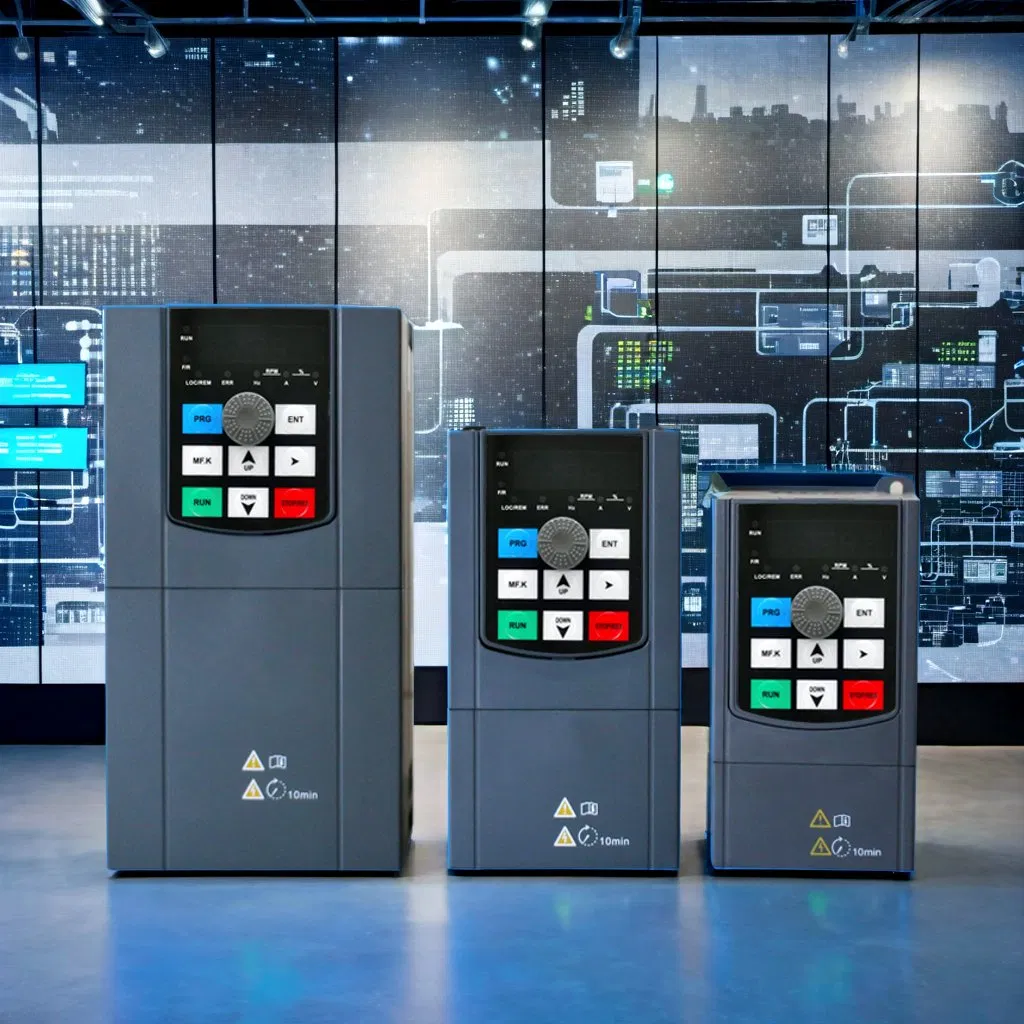

High-Efficiency LC630 Series VFD 220V Single Phase to Three Phase

Customization: Available
Application: High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type: Triple

Product Description

Basic Information

Principle of WorkVector Control TransducerSwitch ModeHigh Carrier Frequency PWM Control
Main Circuit TypeCurrentVoltage of Power SupplyLow Voltage Variable-Frequency Drive
Link of TransformationAC-DC-AC Variable-Frequency DriveNature of DC PowerCurrent Variable-Frequency Drive
Rated Power Range0.75-22kwControl ModeV/F, SVC, FVC
Input/OutputAC 1pH 220V to 3pH 220V / 3pH 380V to 3pH 380VLanguageChinese/English
Frequency0-500HzCommunicationRS485/Modbus

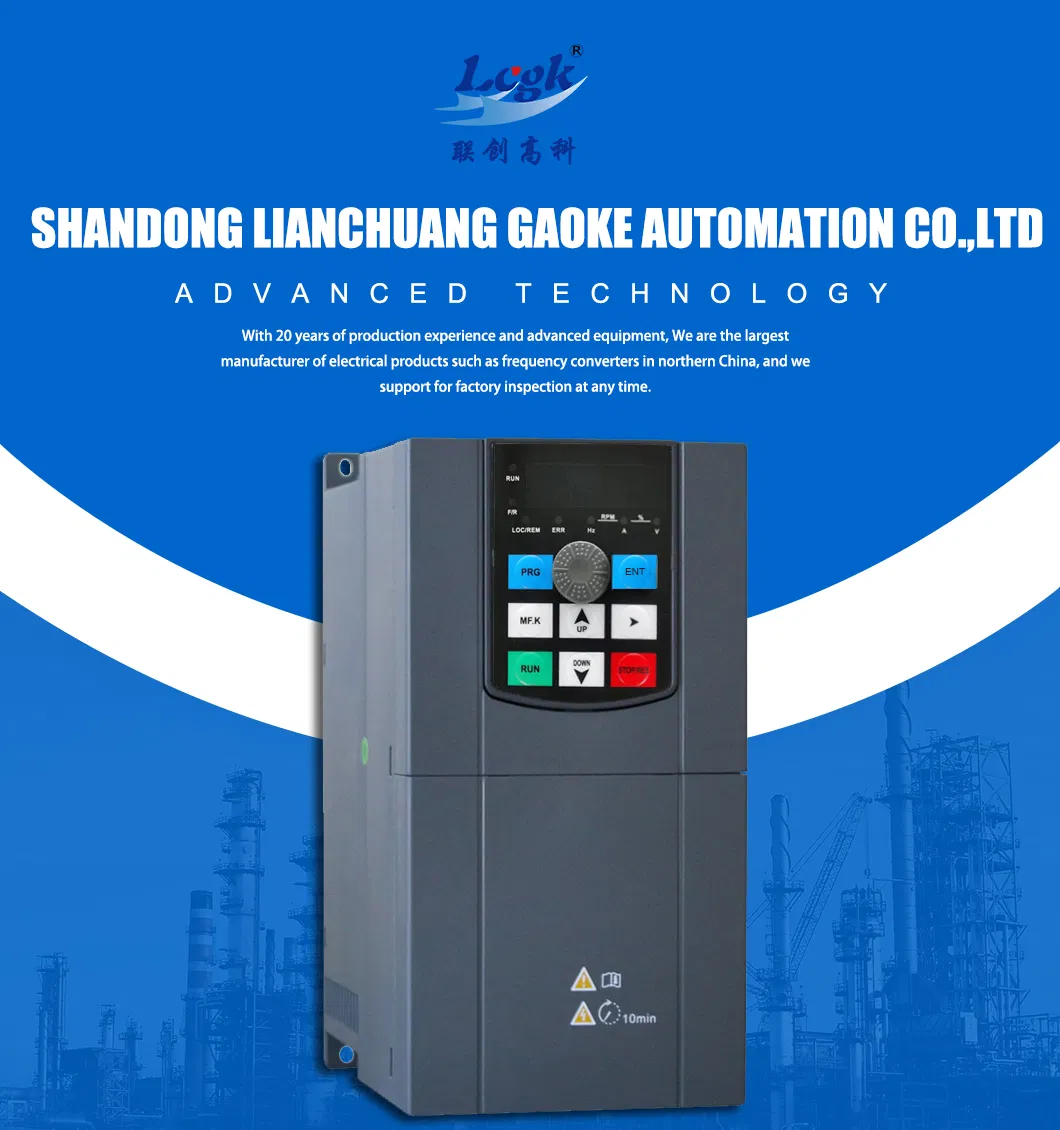

VFD Series
VFD Performance

Product Description

Product Detail
High Efficiency
  • 220V input 0.4-7.5KW Available
  • 380V input 0.75-22KW Available
  • Most Economic Models
  • Good dynamic performance
  • Super overload capacity
  • Rich combination functions
  • Stable performance

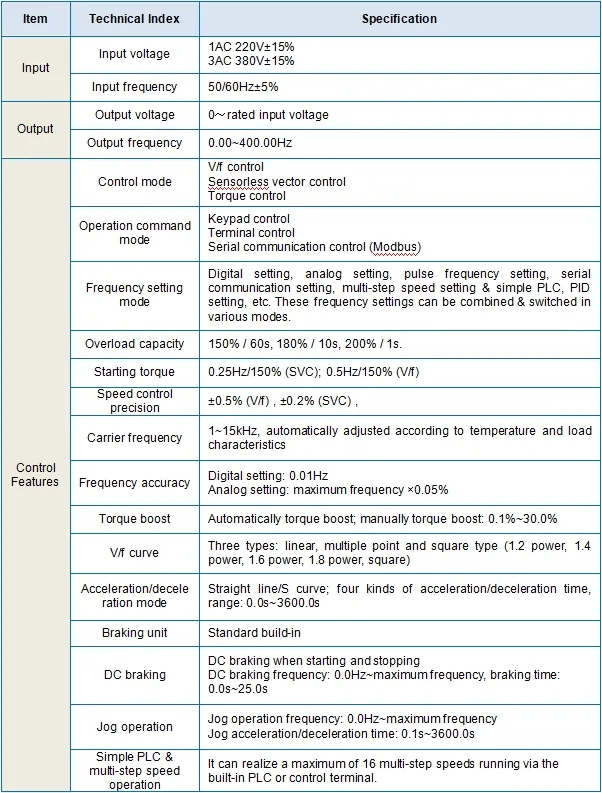

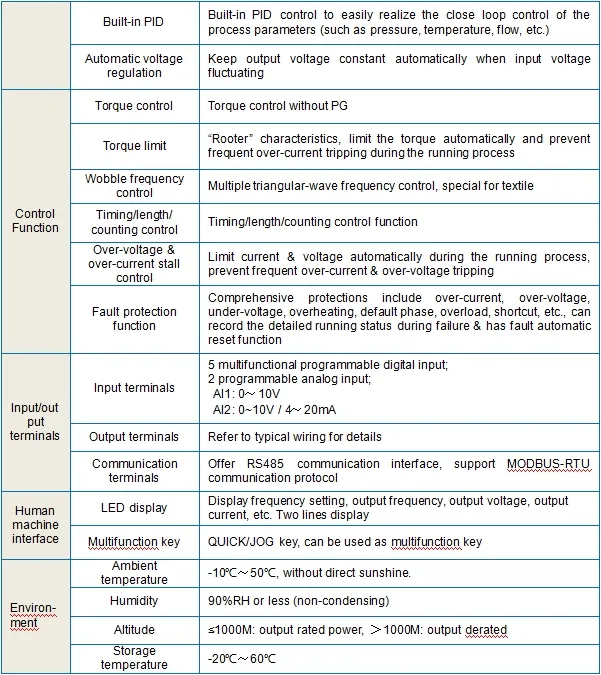

Technical Specifications

ItemTechnical IndexSpecification
InputInput voltage1AC 220V±15% / 3AC 380V±15%
InputInput frequency50/60Hz±5%
OutputOutput voltage0~rated input voltage
OutputOutput frequency0.00~400.00Hz
ControlControl modeV/f control, Sensorless vector control, Torque control
ControlOverload capacity150% / 60s, 180% / 10s, 200% / 1s
ControlStarting torque0.25Hz/150% (SVC); 0.5Hz/150% (V/f)
Specifications Diagram
Internal Structure
VFD Dimensions

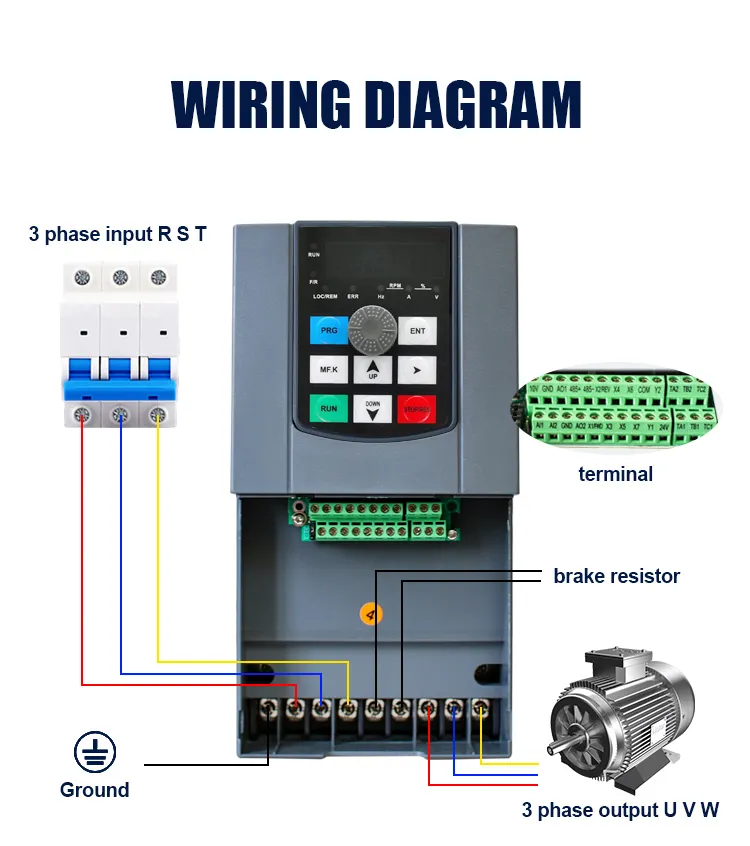

Application 1
Application 2

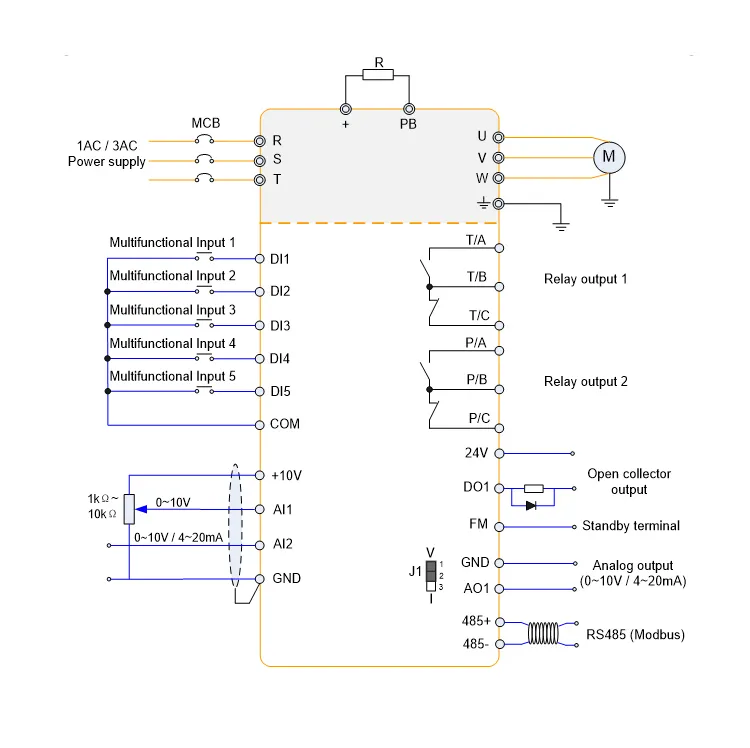

Application 3

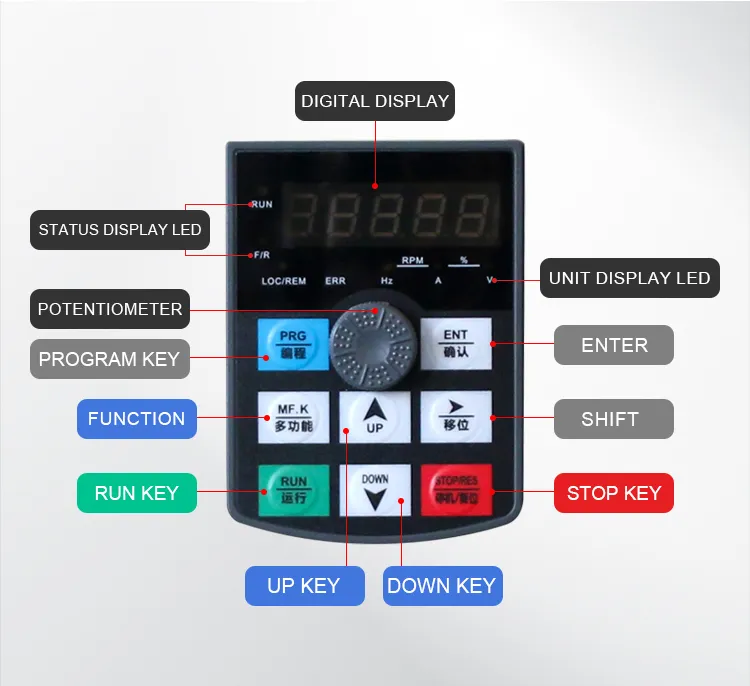

Details 1

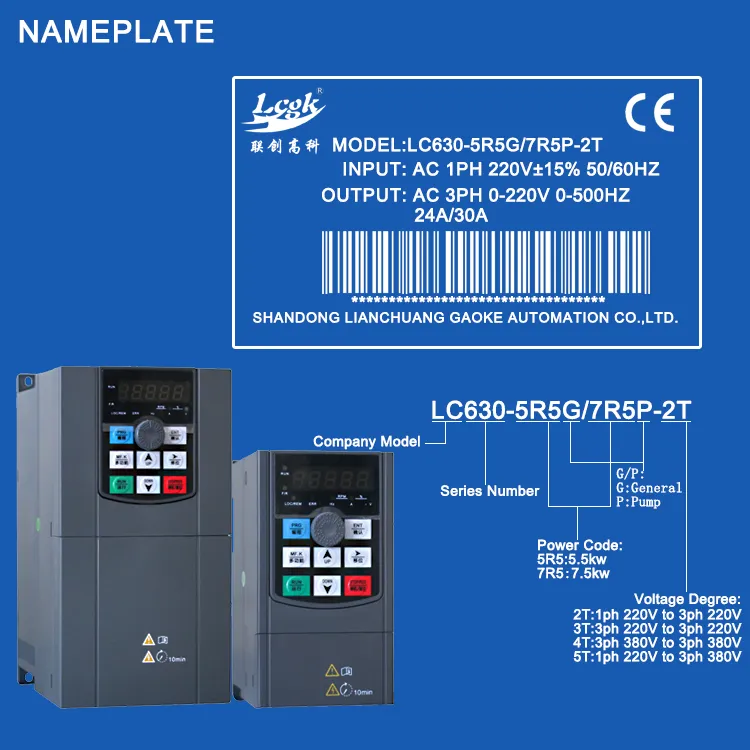

Details 2

Frequently Asked Questions

What's the function of VFD?
VFD controls the speed and frequency of motors, which is widely used in industrial control, automation systems, and pump systems.
How about the quality of your VFD?
We guarantee high quality with CE and ISO9001 certification. Each piece undergoes four rigorous tests (AOI, Pre-test, Aging Test, and Whole Test) before delivery.
What is the delivery time?
Generally within 7-10 days after deposit. It depends on the order quantity and stock availability.
How do I choose the suitable VFD for my machine?
Please provide the nameplate details of your motor, and our technical team will recommend the most suitable model for your application.
Do you support OEM services?
Yes, we support OEM services including custom logos, labels, and molds, subject to Minimum Order Quantity (MOQ) requirements.
What is your after-sales service policy?
We provide a 1-year warranty for all inverter types and offer 24-hour technical support to resolve any operational issues.
