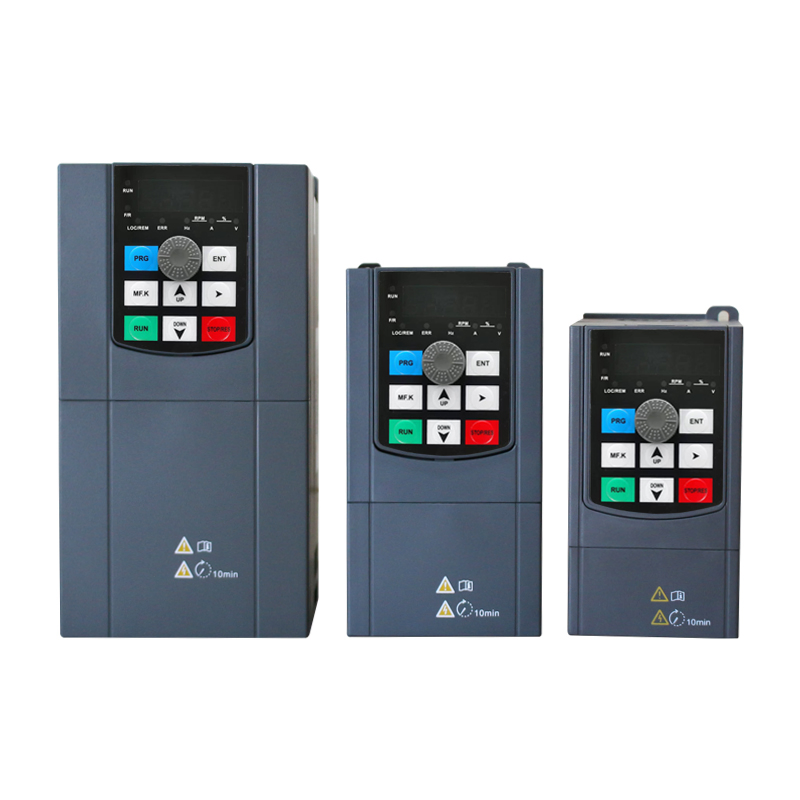

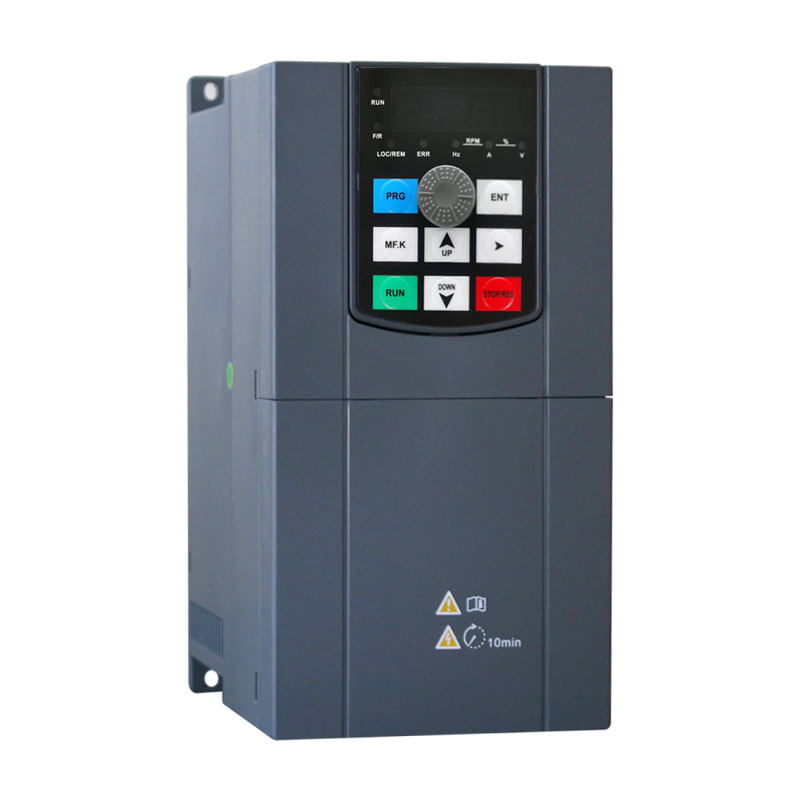

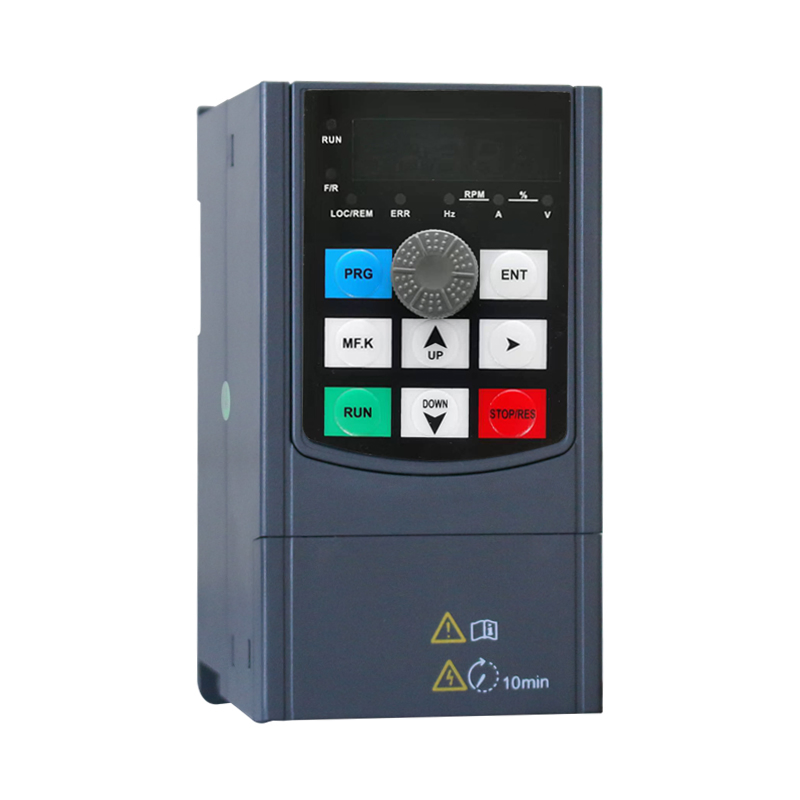

Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
1 / 5
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter
Advanced LC630 Series Single Phase 220V Input VFD Converter

Advanced LC630 Series Single Phase 220V Input VFD Converter

Customization: Available
Application: High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type: Triple
Send Inquiry

Product Description

i
Basic Information
Principle of Work
Vector Control Transducer
Switch Mode
High Carrier Frequency PWM Control
Main Circuit Type
Current
Voltage
Low Voltage Variable-Frequency Drive
Nature of DC Power
Current Variable-Frequency Drive
Function
Simple Type, Textile Special
Rated Power Range
0.75-22kw
Control Mode
V/F, SVC, FVC
Input/Output
AC 1pH 220V to 3pH 220V / 3pH 380V to 3pH 380V
Speed Control
±0.5% (V/F), ±0.2% (SVC)
Frequency
0-500Hz
Communication
RS485 / Modbus
!
Product Description
VFD Converter Overview
Advanced LC630 Series
Core Features:
  • 220V input 0.4-7.5KW Available
  • 380V input 0.75-22KW Available
  • Most Economic Models
  • Good dynamic performance
  • Super overload capacity
  • Rich combination functions
  • Stable performance
Product Feature Image
T

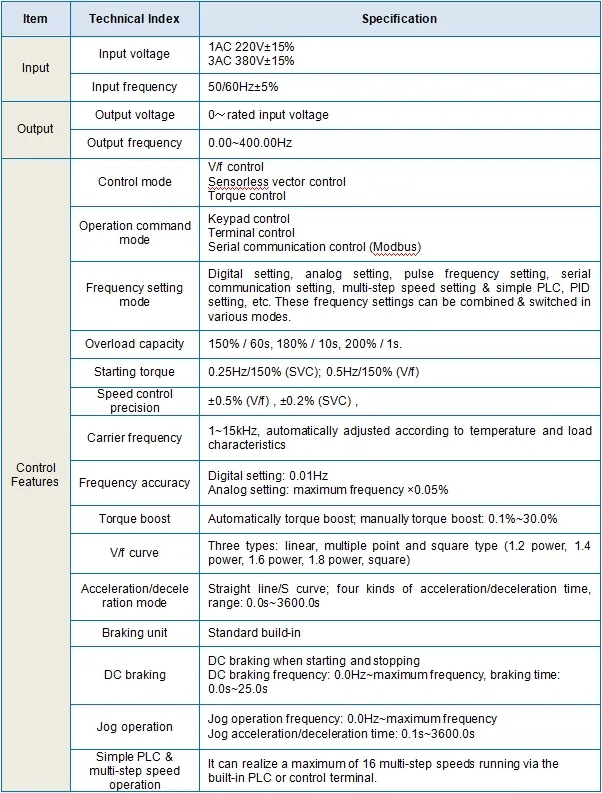

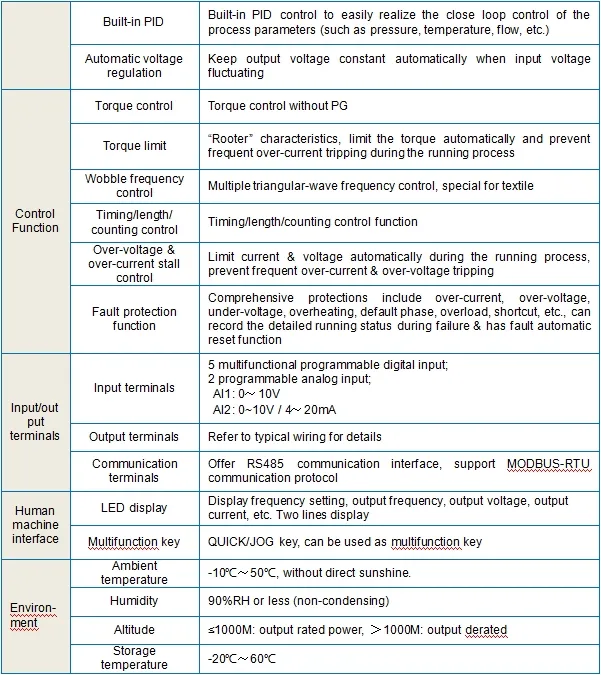

Technical Specification
Item Technical Index Specification
Input Input voltage 1AC 220V±15% / 3AC 380V±15%
Input frequency 50/60Hz±5%
Output Output voltage 0 ~ rated input voltage
Output frequency 0.00 ~ 400.00Hz
Control Features Control mode V/f control, Sensorless vector control, Torque control
Overload capacity 150% / 60s, 180% / 10s, 200% / 1s
Starting torque 0.25Hz/150% (SVC); 0.5Hz/150% (V/f)
Speed control precision ±0.5% (V/f), ±0.2% (SVC)

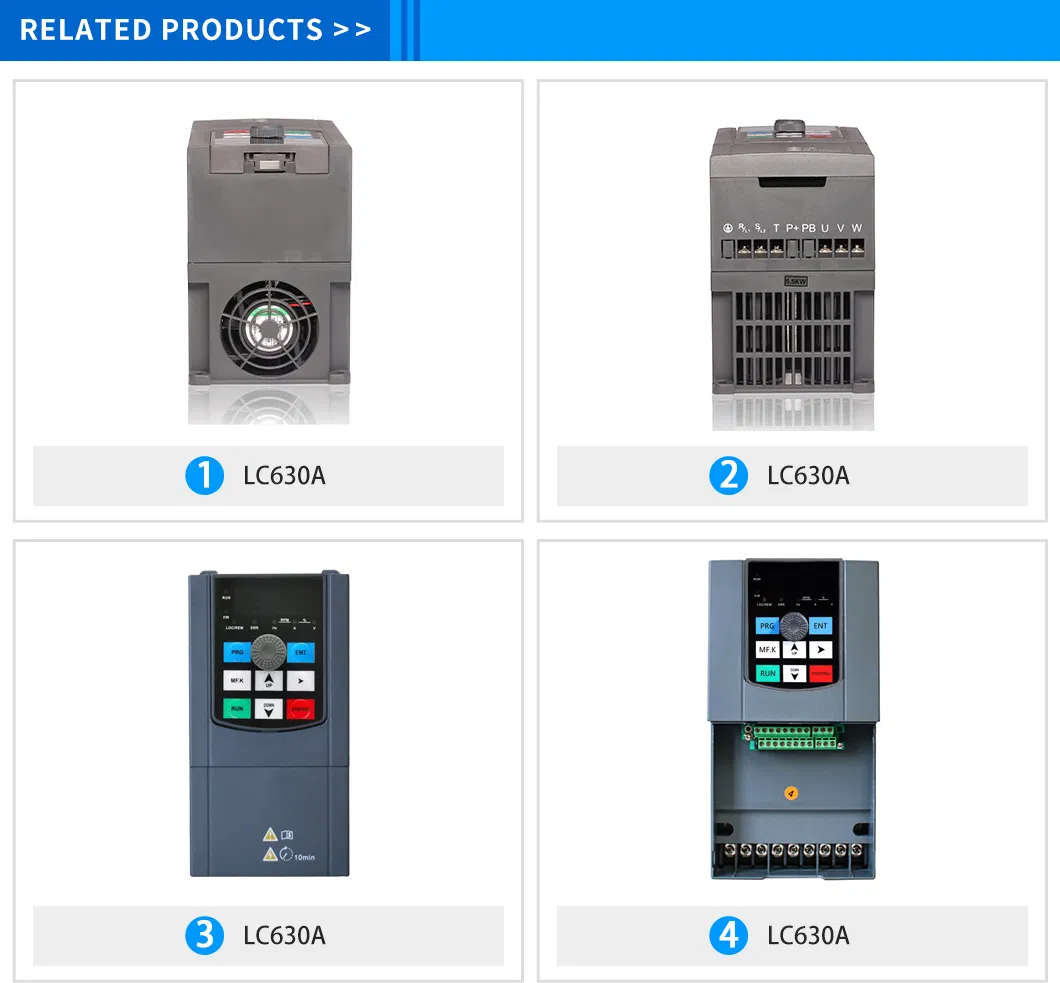

Internal Structure
P
Product Gallery
Gallery Image 1
Gallery Image 2

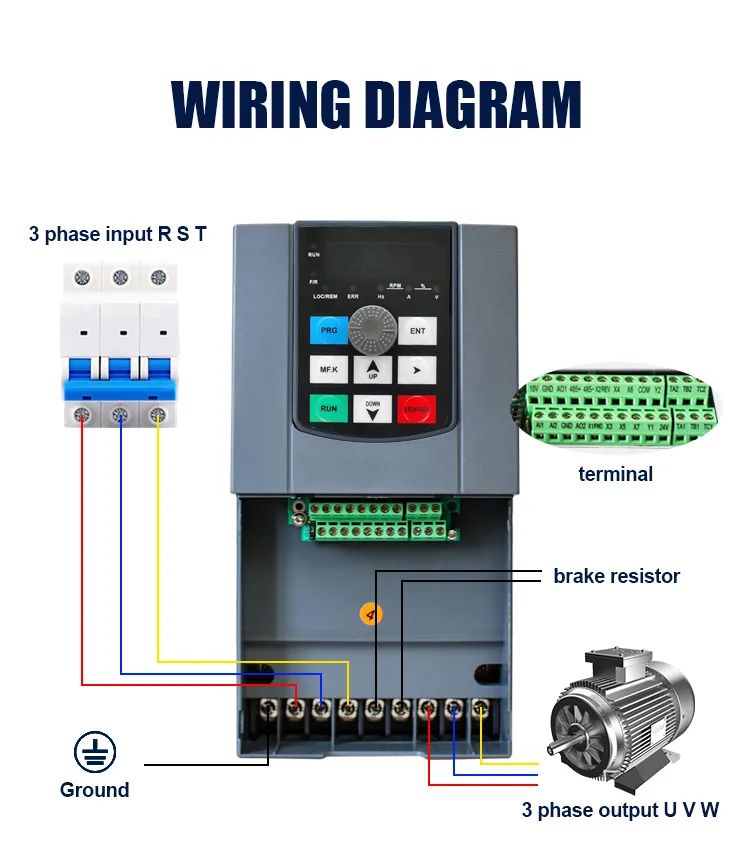

Gallery Image 3
Gallery Image 4

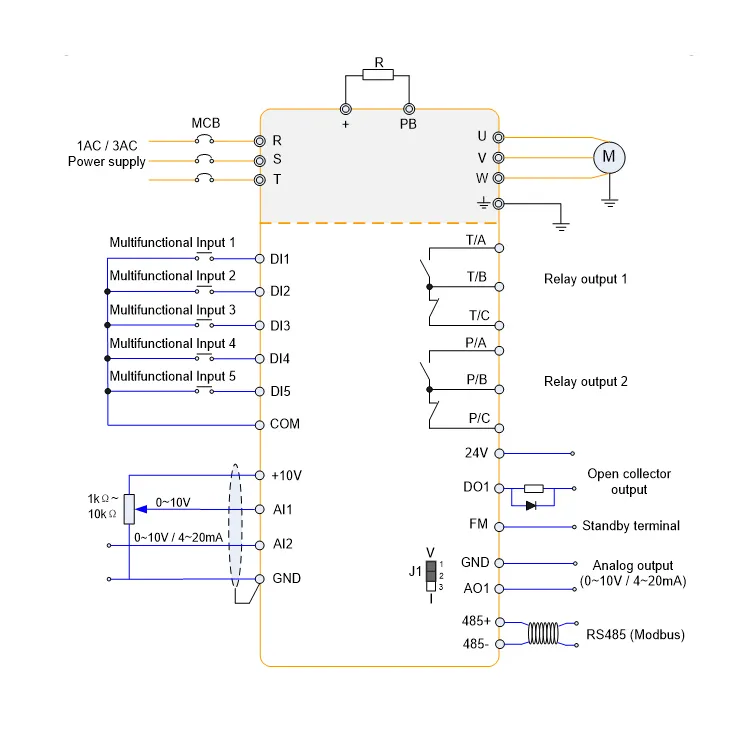

Gallery Image 5
Gallery Image 6
Gallery Image 7
Application Scenarios
?
Frequently Asked Questions
Q: What is the primary function of the VFD?
A: VFD controls the speed and frequency of motors, widely used in industrial control, automation systems, and pump systems.
Q: How is the quality of your VFD products ensured?
A: Each VFD undergoes four stages of testing: AOI test, Pre-test, Aging Test, and Whole Test before delivery. We hold CE and ISO9001 certifications.
Q: What is the typical delivery time?
A: Generally within 7-10 days after deposit receipt, depending on the ordered quantity. Sample orders take 1-3 days.
Q: How do I choose the correct VFD for my machine?
A: Please provide the nameplate details of your motor, and our technical team will recommend the most suitable model type for your needs.
Q: Do you support OEM services?
A: Yes, we support OEM services including logo, label, and mold customization, subject to Minimum Order Quantity (MOQ) requirements.
Q: What kind of after-sales service is provided?
A: We provide a 1-year warranty for all inverter types and maintain a 24-hour after-sale technical support service.
