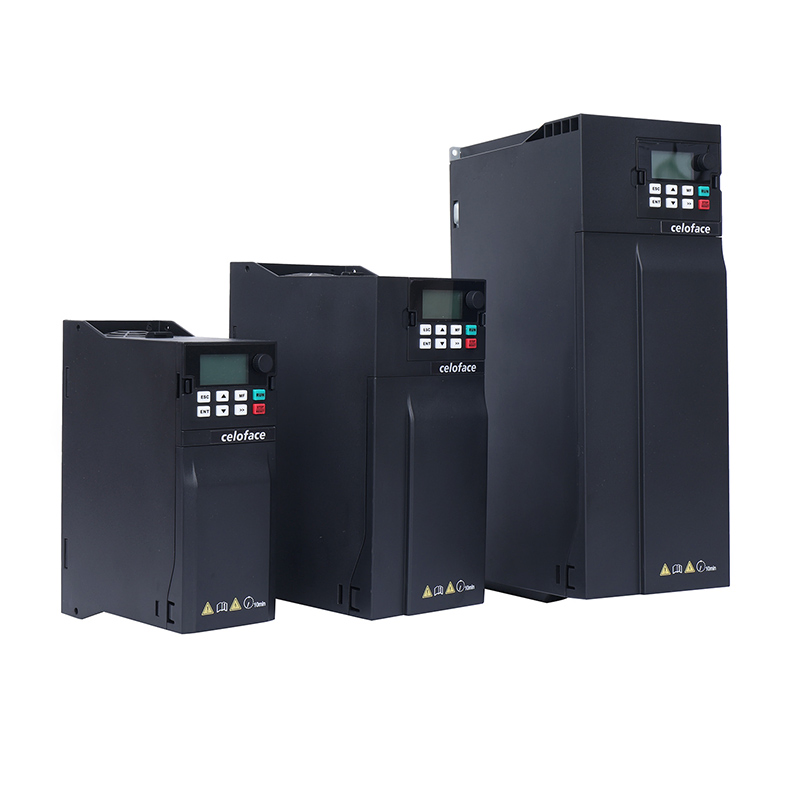

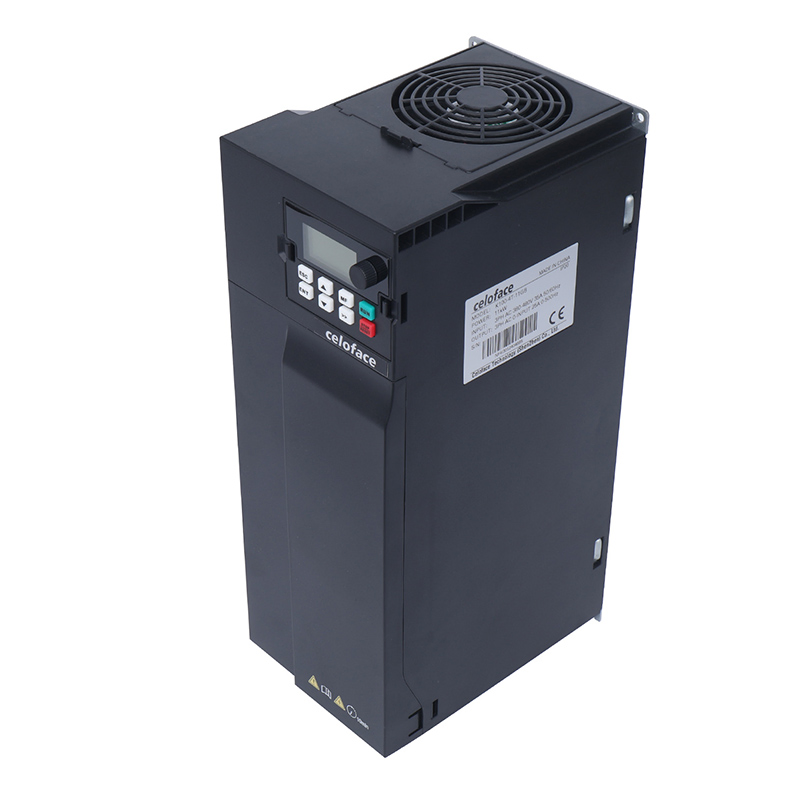

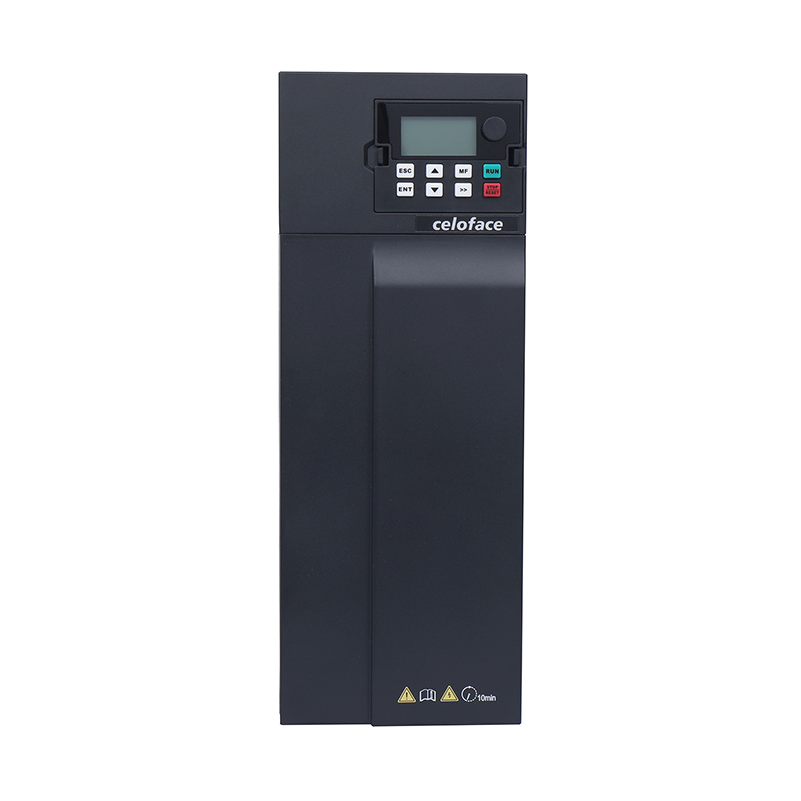

General Purpose 220V 2.2kw Single Phase Inverter VFD for Mixers

📊

Basic Information

Model NO.

K100-2S-2.2GB

Principle of Work

Vector Control Transducer

Switch Mode

PWM Control

Main Circuit Type

Current

Voltage

Low Voltage Variable-Frequency Drive

Function

Textile Special, Constant Torque Universal

Control Mode

V/F Control, Vector Control

Protection Class

IP20

Specification

220V 2.2KW 72*200*150.5

HS Code

8504409999

🔍

Product Description

This is K100 Series VFD inverter. Its regular model features a classic design, with 3-phase 380V input and output, ensuring stable performance, easy installation, and wide compatibility for most industrial drives. The dual-display model adds flexibility—offering two selectable parameter modes to show key operating data as needed, enabling precise monitoring and debugging, ideal for diverse work scenarios.

Model	Voltage Level	Rated Power (kW)	Input Current (A)	Output Current (A)	Compatible Motor (kW)
K100-2S-0.75GB	Single-phase 220V	0.75	9.3	4.2	0.75
K100-2S-1.5GB		1.5	15.7	7.5	1.5
K100-2S-2.2GB		2.2	24	10	2.2
K100-2S-4.0GB		4.0	35	17	4.0
K100-4T-0.75GB	Three-phase 380V	0.75	3.4	2.3	0.75
K100-4T-1.5GB		1.5	5	3.7	1.5
K100-4T-2.2GB		2.2	6	5	2.2
K100-4T-4.0GB		4.0	11	9.5	4.0

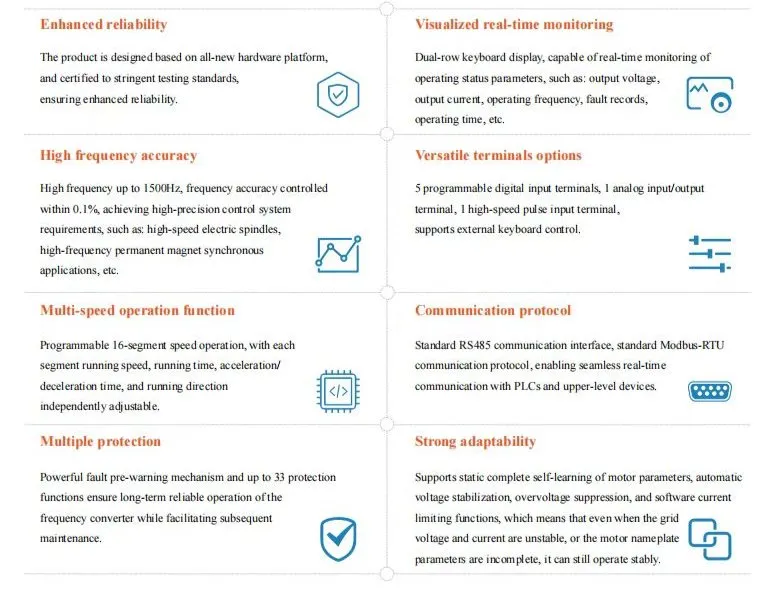

🚀 Product Advantages

✅ Enhanced Reliability

✅ High Frequency Accuracy

✅ Multi-speed Operation Function

✅ Visualized Real-time Monitoring

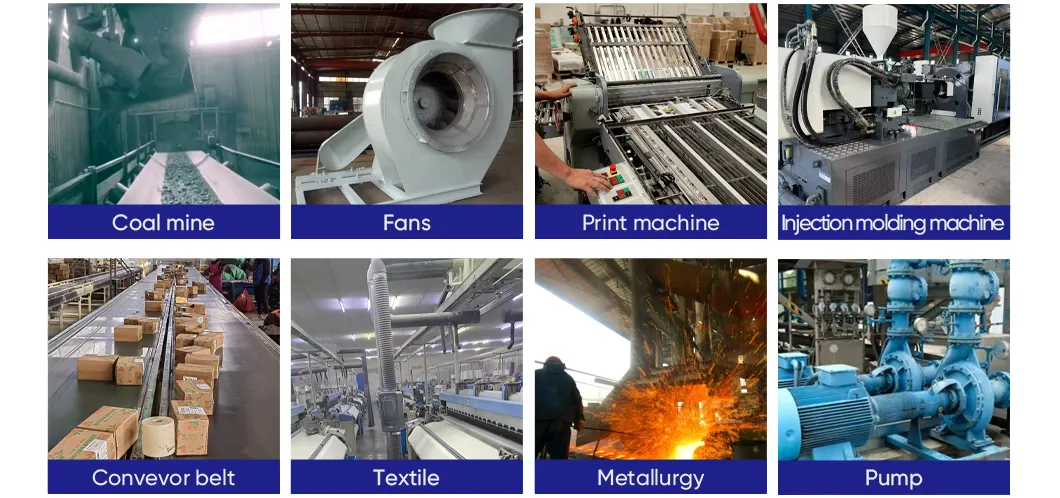

🏭 Application Fields

CNC machine tools, textiles, fans and pumps, food machinery, woodworking machinery, packaging and transportation, Printing machine etc.

🔌

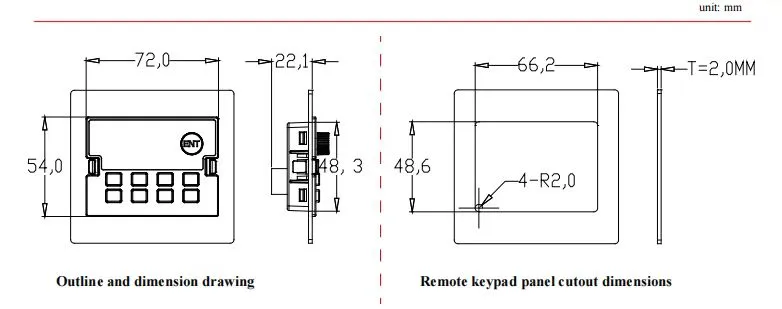

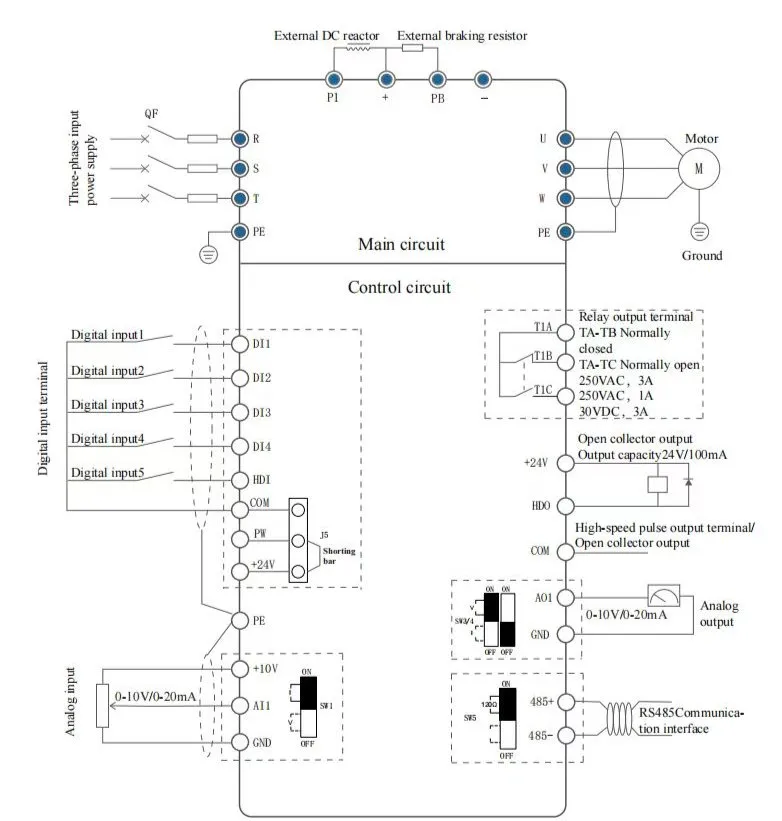

Wiring Diagram & Features

🌟

Main Applications

🏢

Company Profile

Since its establishment, the technology team has been focusing on the field of electrical transmission and industrial control. It is a high-tech enterprise engaged in the research and development, production, and sales of industrial automation products. The company has multiple production bases and R&D centers, and has over 50 offices and warranty service centers both domestically and internationally, continuously expanding the sales and service network to respond promptly to customer needs.

❓

Frequently Asked Questions

1. Can you provide samples?

We can provide samples to you, though sample fees and shipping costs will apply.

2. What are the warranty terms?

We offer a 12-month warranty period for our products.

3. How do you guarantee product quality?

We always provide a pre-production sample before mass production and perform a final inspection before shipment.

4. What is the shipment procedure after payment?

We dispatch goods within 1 day after receiving payment. It usually takes 3-5 working days to reach the destination. A tracking number will be provided immediately.

5. What is the typical delivery time?

Small orders usually take 3-5 working days, while larger bulk orders take approximately 10-15 days.

6. How do I choose the right VFD for my machine?

Please provide us with the detailed specifications of your machine, and our technical team will recommend the most suitable model type for your needs.
