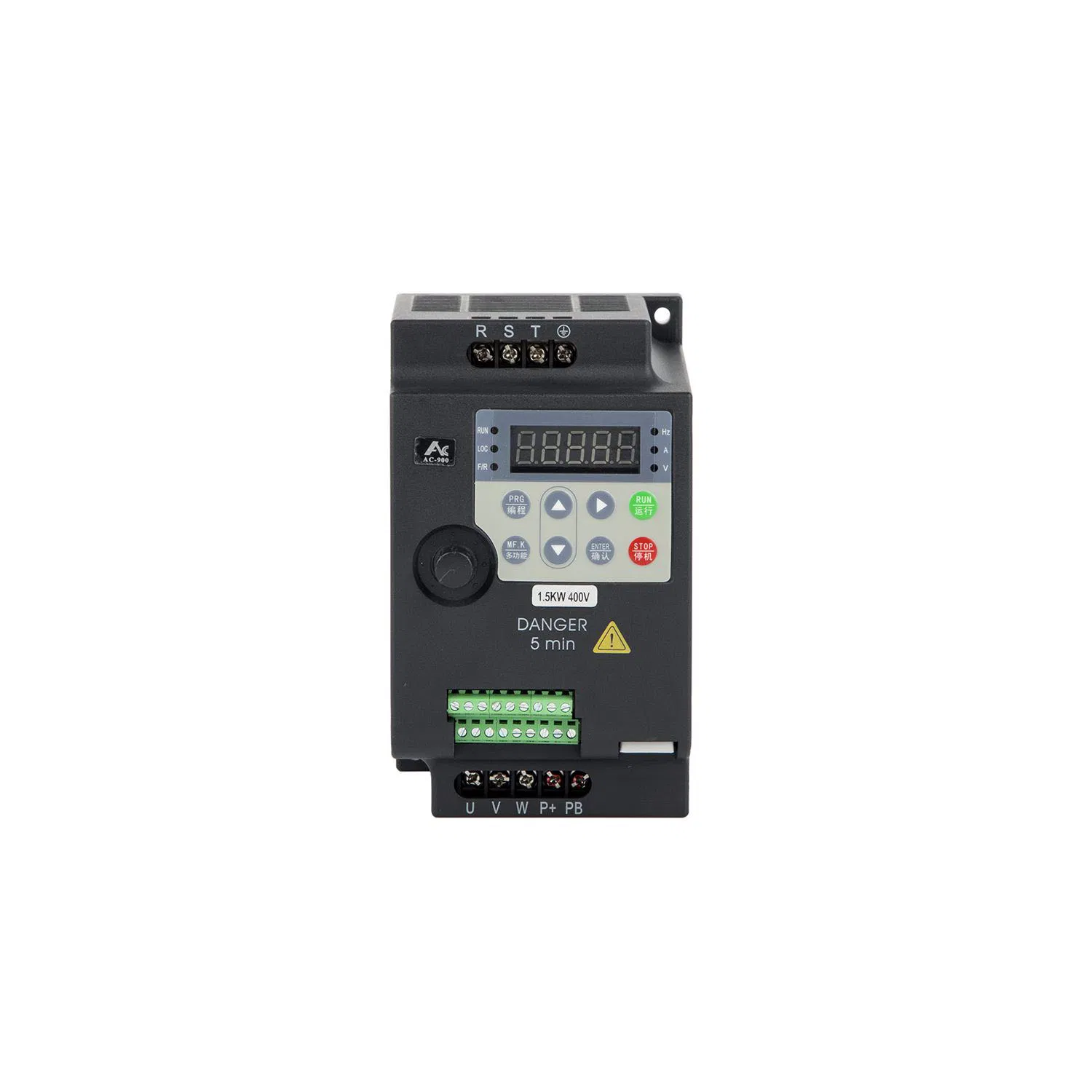

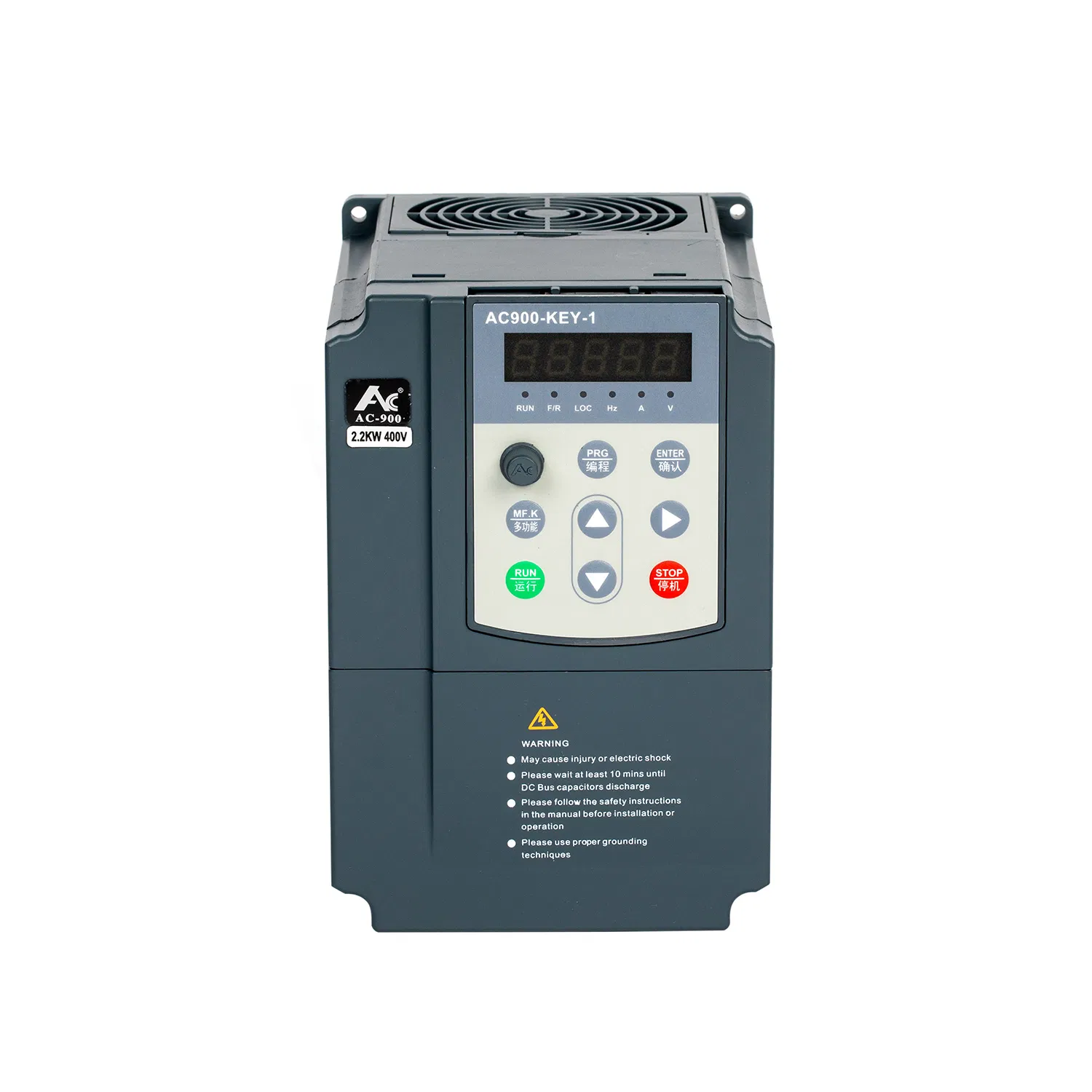

High performance variable frequency drive VFD AC drive 3 phase 380V 0.75KW to 2.2 KW with CE certification.

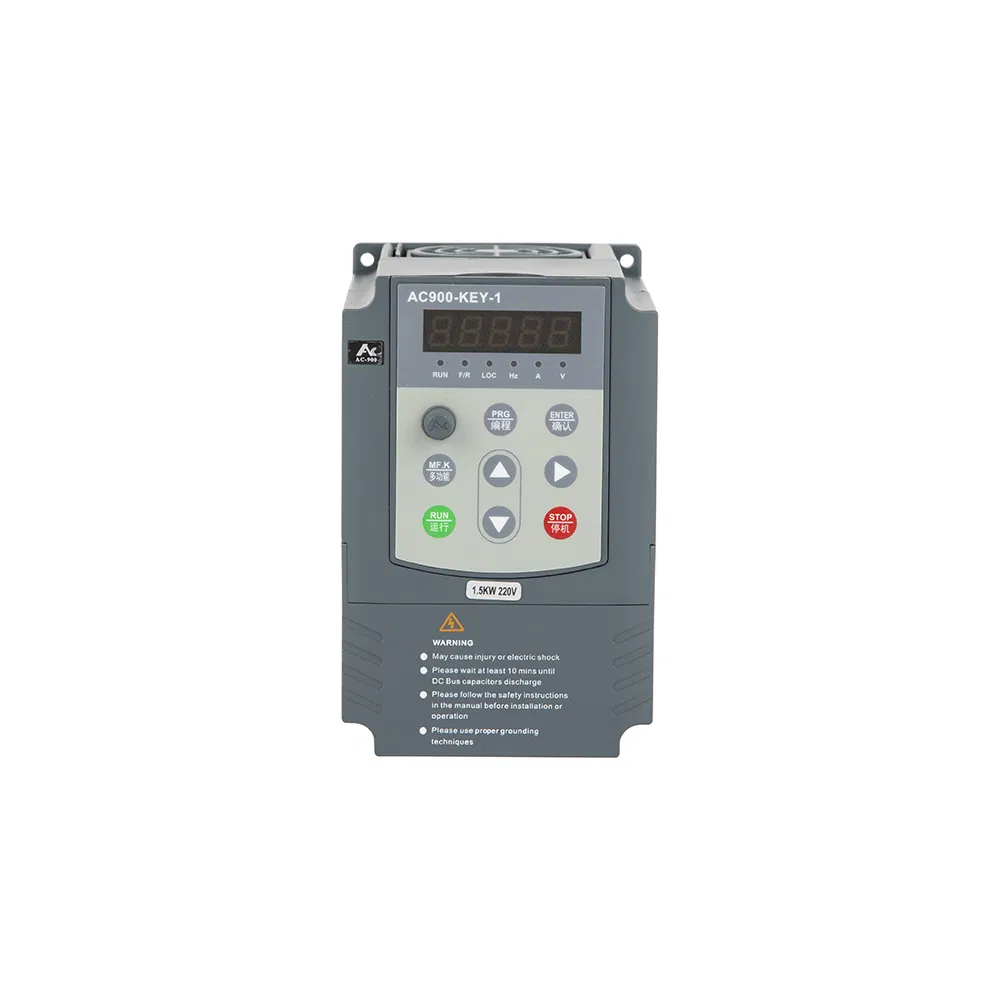

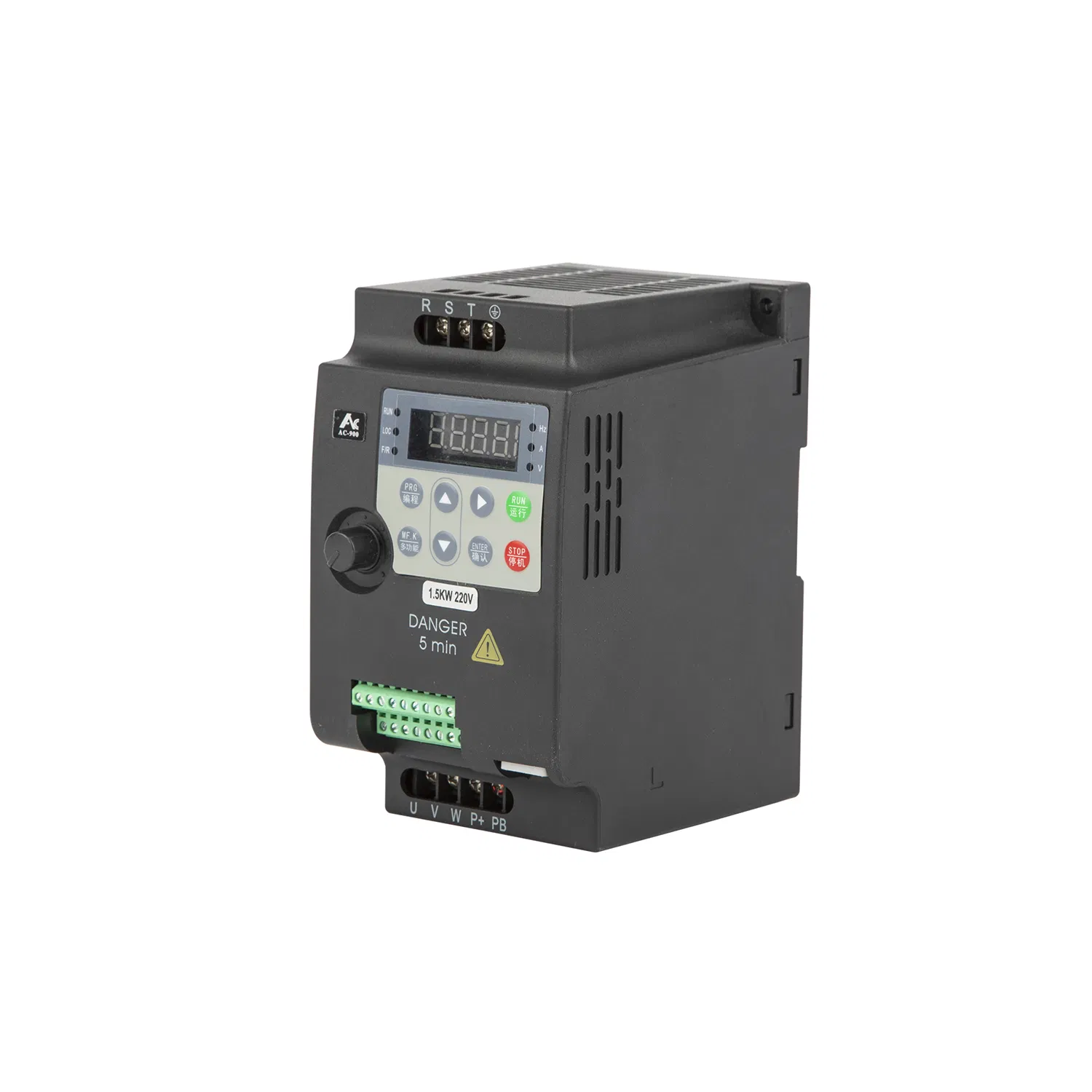

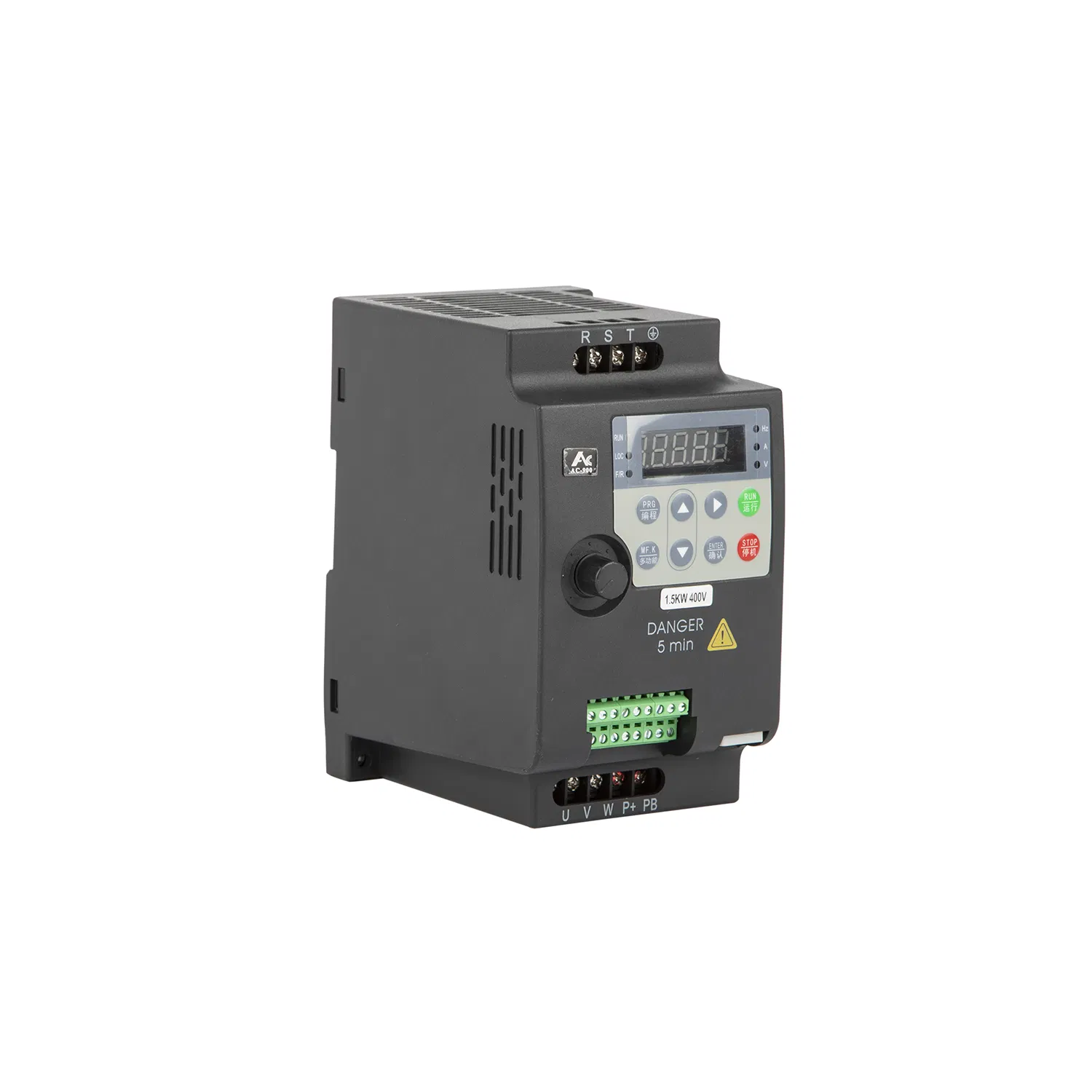

The AC900 series inverter is a general high-performance current vector inverter designed to control and regulate the speed of a three-phase asynchronous/induction motor. AC900 adopts high-performance vector control technology, offering low speed and high torque output, with excellent dynamic characteristics and superior overload capability.

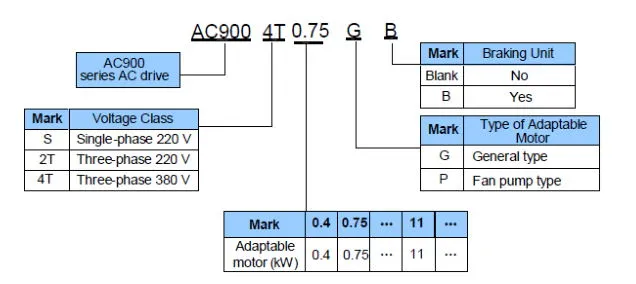

| Model | Power Capacity (kVA) | Input Current (A) | Output Current (A) | Motor (KW) | Motor (HP) |
|---|---|---|---|---|---|
| AC900-4T0.75G | 1.5 | 3.4 | 2.1 | 0.75 | 1 |
| AC900-4T1.5G | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| AC900-4T2.2G | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| AC900-4T4.0G | 5.9 | 10.5 | 9.0 | 4.0 | 5 |
| AC900-4T5.5G | 8.9 | 14.6 | 13.0 | 5.5 | 7.5 |
| AC900-4T7.5G | 11.0 | 20.5 | 17.0 | 7.5 | 10 |
| AC900-4T11G | 17.0 | 26.0 | 25.0 | 11.0 | 15 |
| AC900-4T15G | 21.0 | 35.0 | 32.0 | 15.0 | 20 |
| AC900-4T30G | 40.0 | 62.0 | 60.0 | 30 | 40 |
| AC900-4T75G | 114.0 | 157.0 | 150.0 | 75 | 100 |

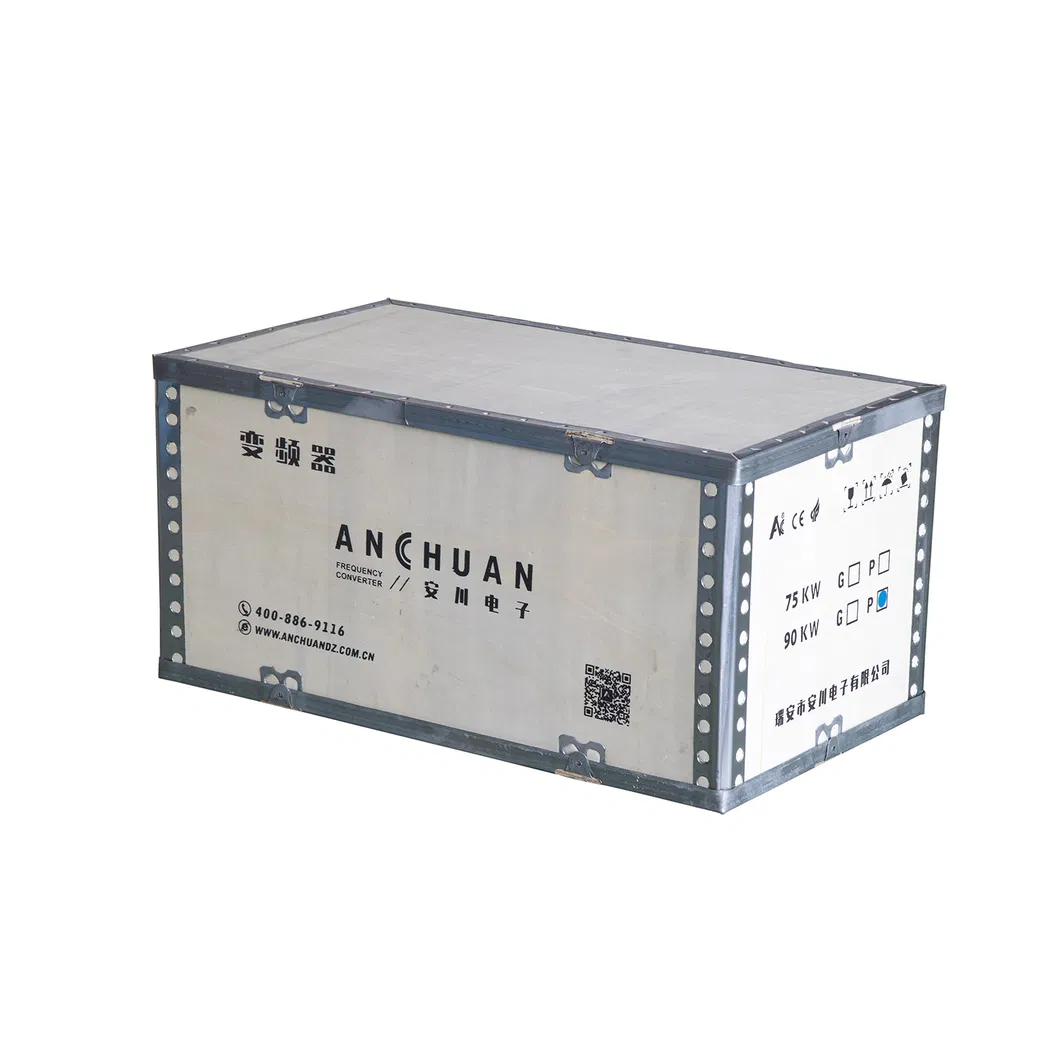

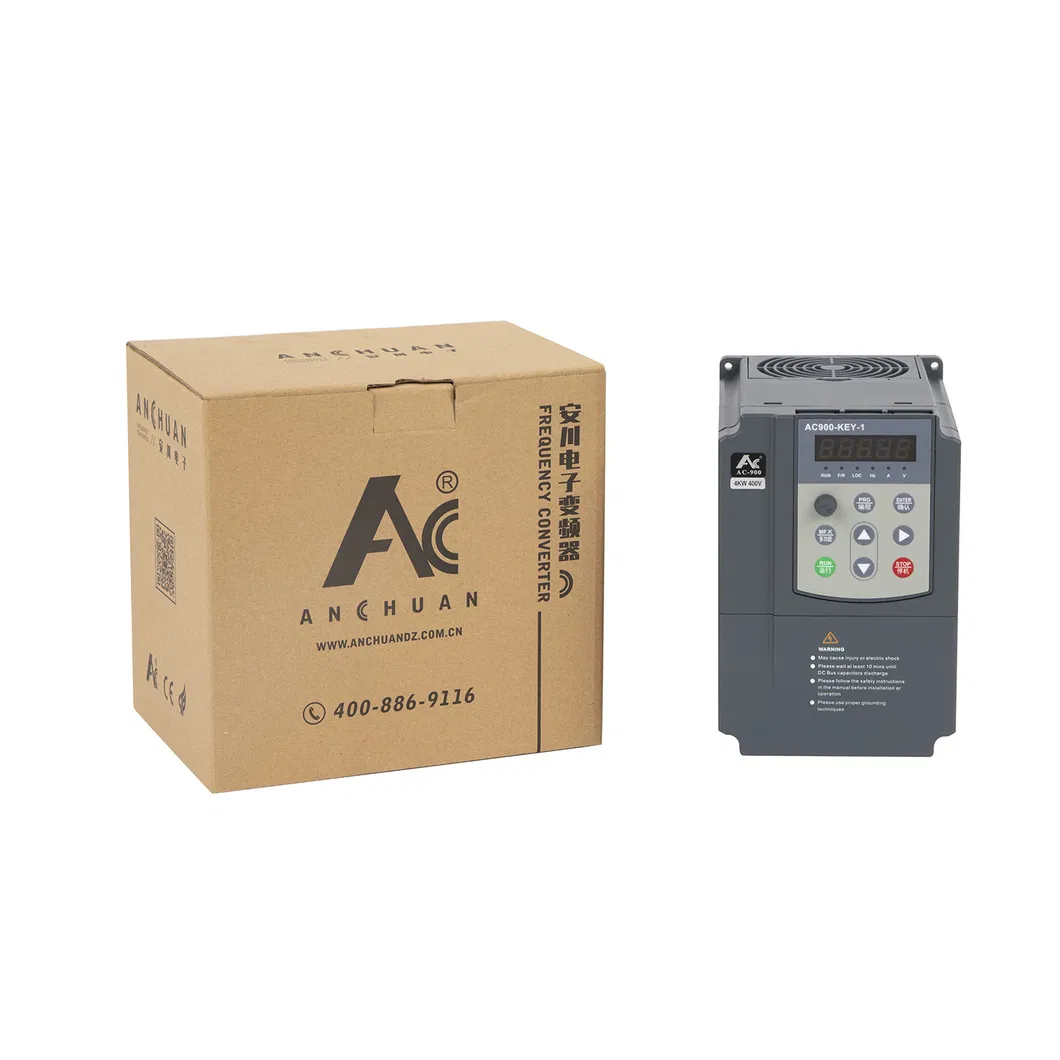

Package: Standard carton package or wooden case for protection.
Shipment: Available via sea, air, or express services like DHL and FedEx.

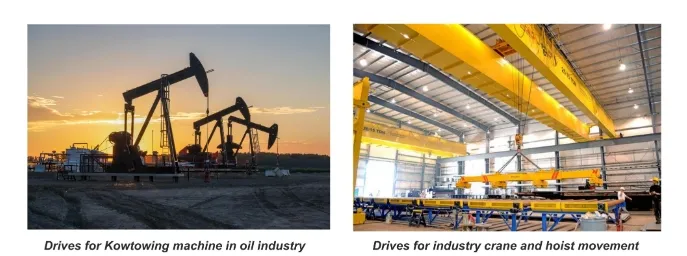

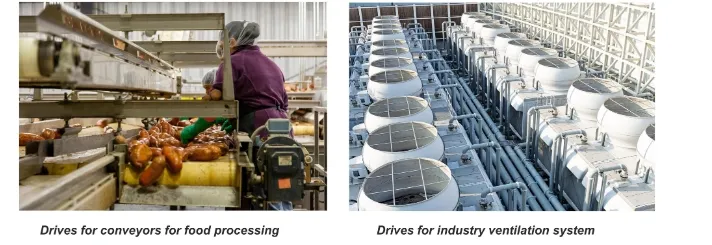

Our VFDs are widely used in automated production, including wire drawing machines, film winding, coating machines, CNC machine tools, weaving and jacquard machines, fans, pumps, chemical fiber, textile synchronization, injection molding, lifting equipment, elevators, and rolling mills.
