Basic Info
Model NO.EDS300-2S0007
PrincipleV/F Control Transducer
Switch ModePWM Control
Main CircuitVoltage
Power SupplyLow Voltage VFD
TransformationAC-DC-AC
DC Power NatureVoltage Variable
FunctionSimple Type, Textile Special, Constant Torque
HS Code8504409999
Specification8.9cm X 14.85cm X 11.25cm
⚙️
Product Description

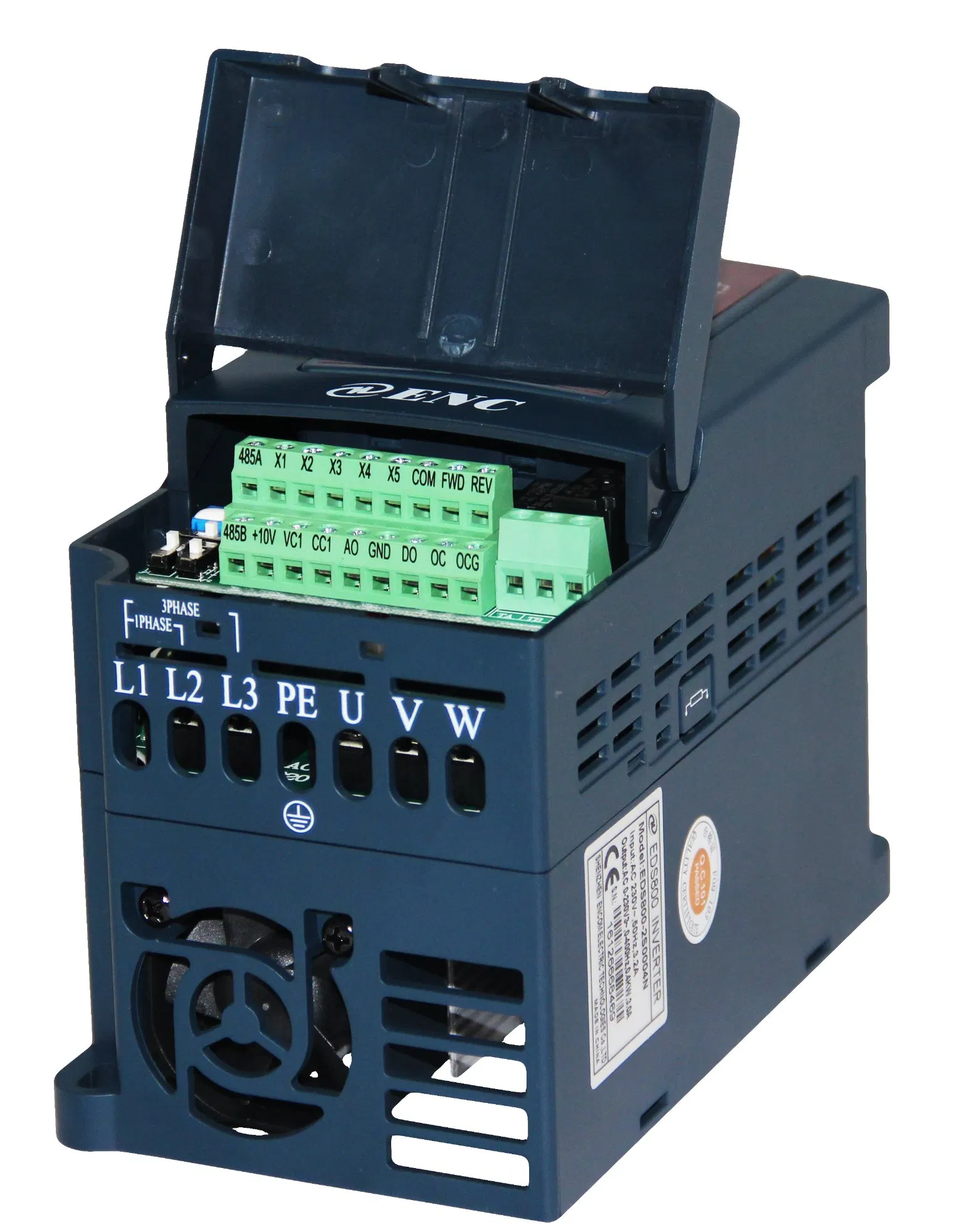

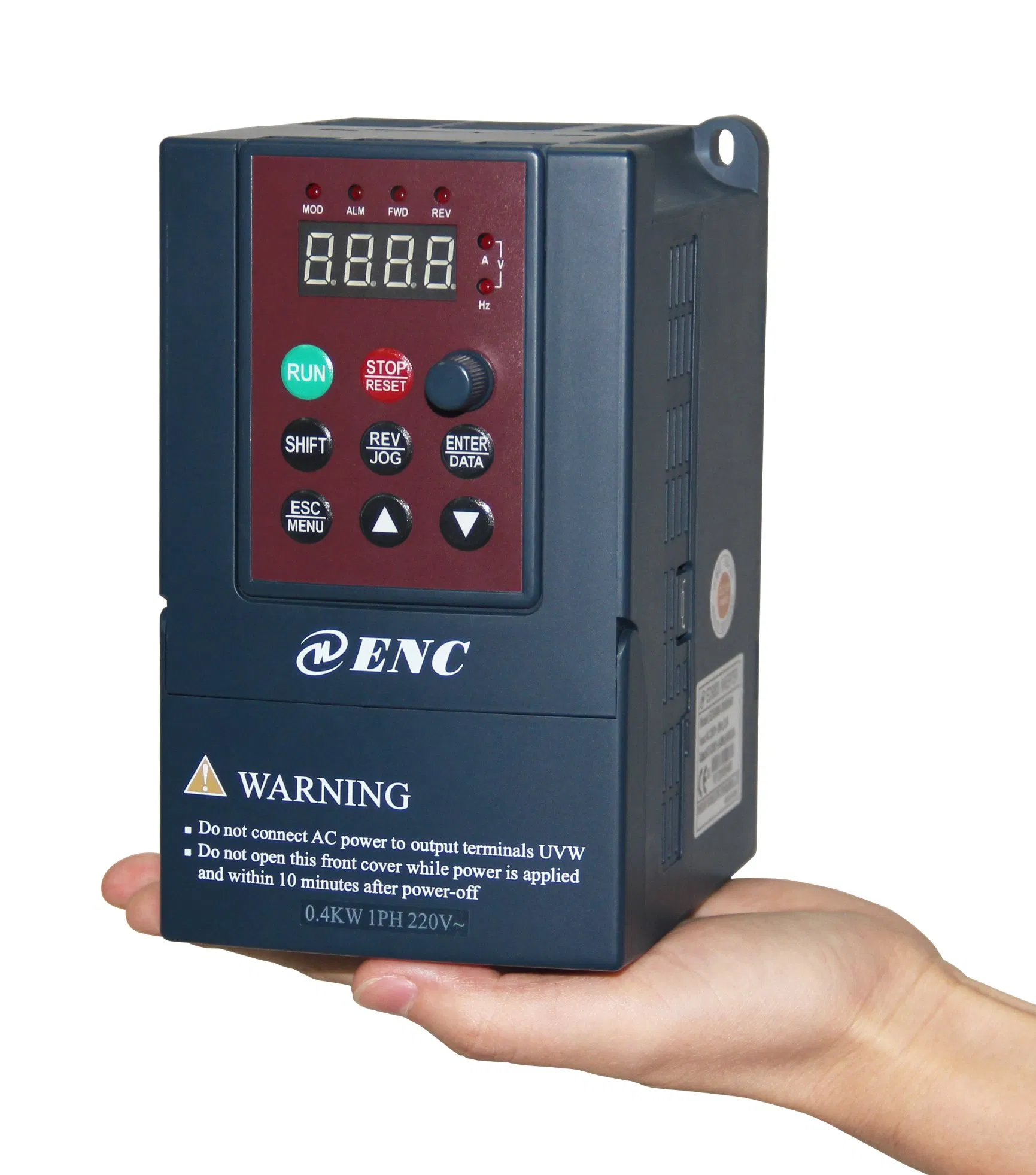

EDS300 series Universal Mini Inverter
The EDS300 series is a high-performance, compact-sized mini inverter designed for versatile industrial applications, offering high cost-performance and space-saving installation.
Key Features
- Small size (124.7*89*148.5mm), high cost performance
- Independent inverter network (Mainframe/Sub-device modes)
- External keyboard support with built-in potentiometer
- Integrated RS485 communication port
- Pulse/analog input and output channels
- 16 segments speed control
- Multiple running frequency/command specified channels
- Advanced SVPWM (Space voltage vector control)
- Hi-performance isolating OC output (220V/0.5A AC or DC)
- Traversal function for spinning and textile devices
- Built-in Braking unit
- Integrated user's timer and counter

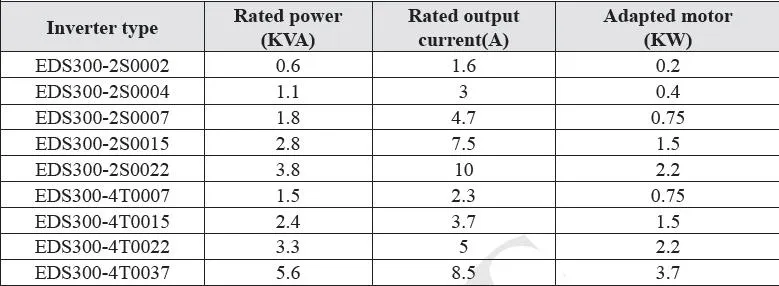

Power Range:
• 1 Phase 220V: 0.2kW ~ 2.2kW
• 3 Phase 380V: 0.75kW ~ 3.7kW
❓
Frequently Asked Questions
What are the dimensions of the EDS300 series inverter?
The EDS300 features a compact mini design with dimensions approximately 124.7mm * 89mm * 148.5mm, making it ideal for space-constrained installations.
What power inputs are supported by this series?
It supports single-phase 220V (0.2kW to 2.2kW) and three-phase 380V (0.75kW to 3.7kW) power supplies.
Does the inverter support remote monitoring or networking?
Yes, it comes with a built-in RS485 communication port and can be configured independently within a network as either a mainframe or sub-device.
Is a braking unit required separately?
No, the EDS300 series comes with a built-in braking unit, which simplifies the system design and saves costs.
What type of control method does it use?
It utilizes Space Voltage Vector Control (SVPWM) and V/F control for stable and efficient performance across various applications.

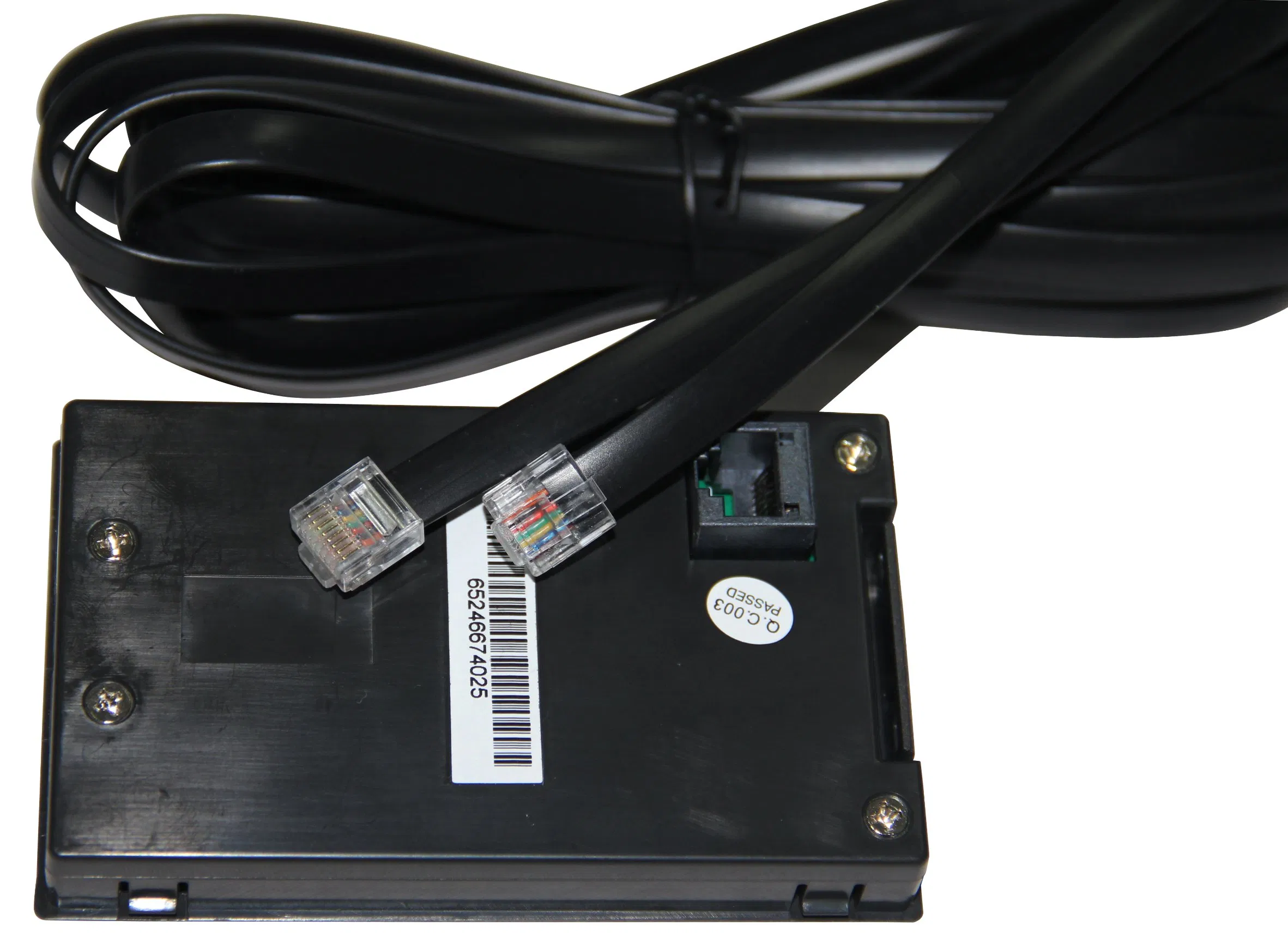

Can the keyboard be moved for easier access?
Yes, the keyboard can be pulled outside the unit, allowing for more flexible installation and easier parameter adjustment via the integrated potentiometer.
