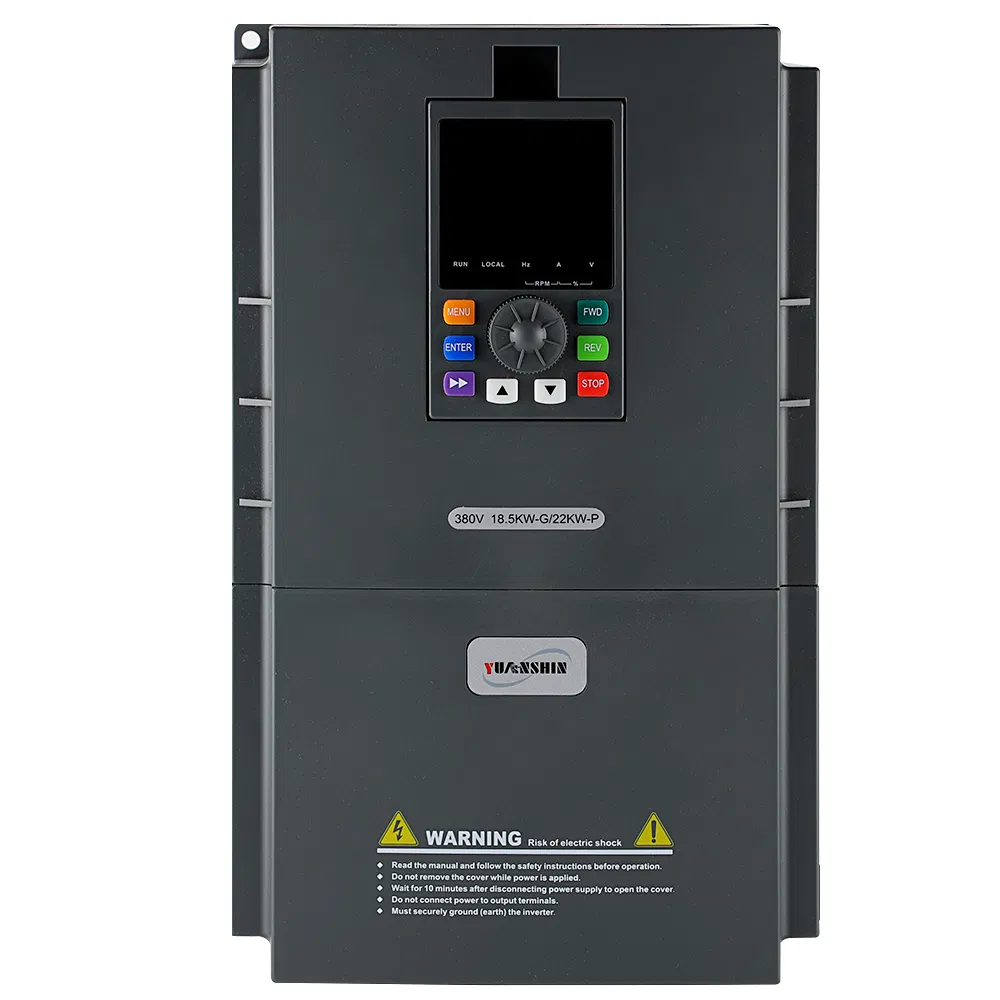

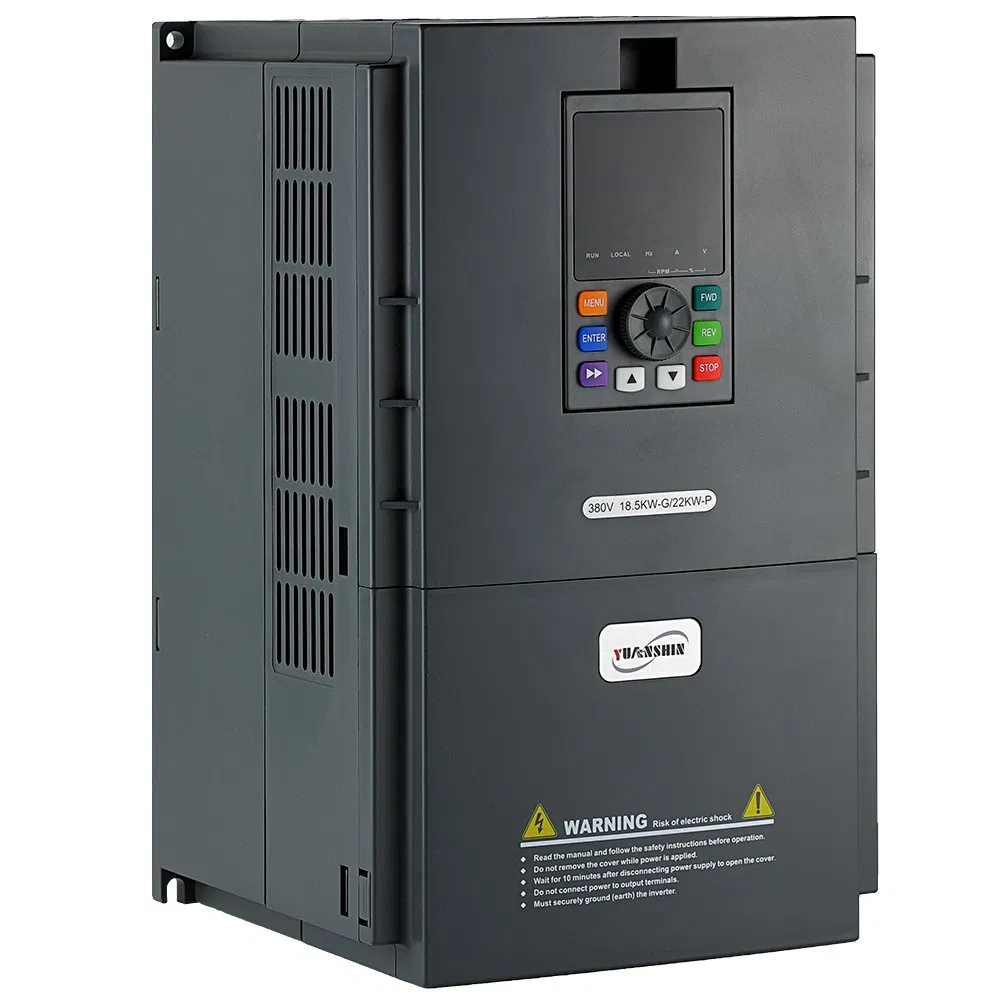

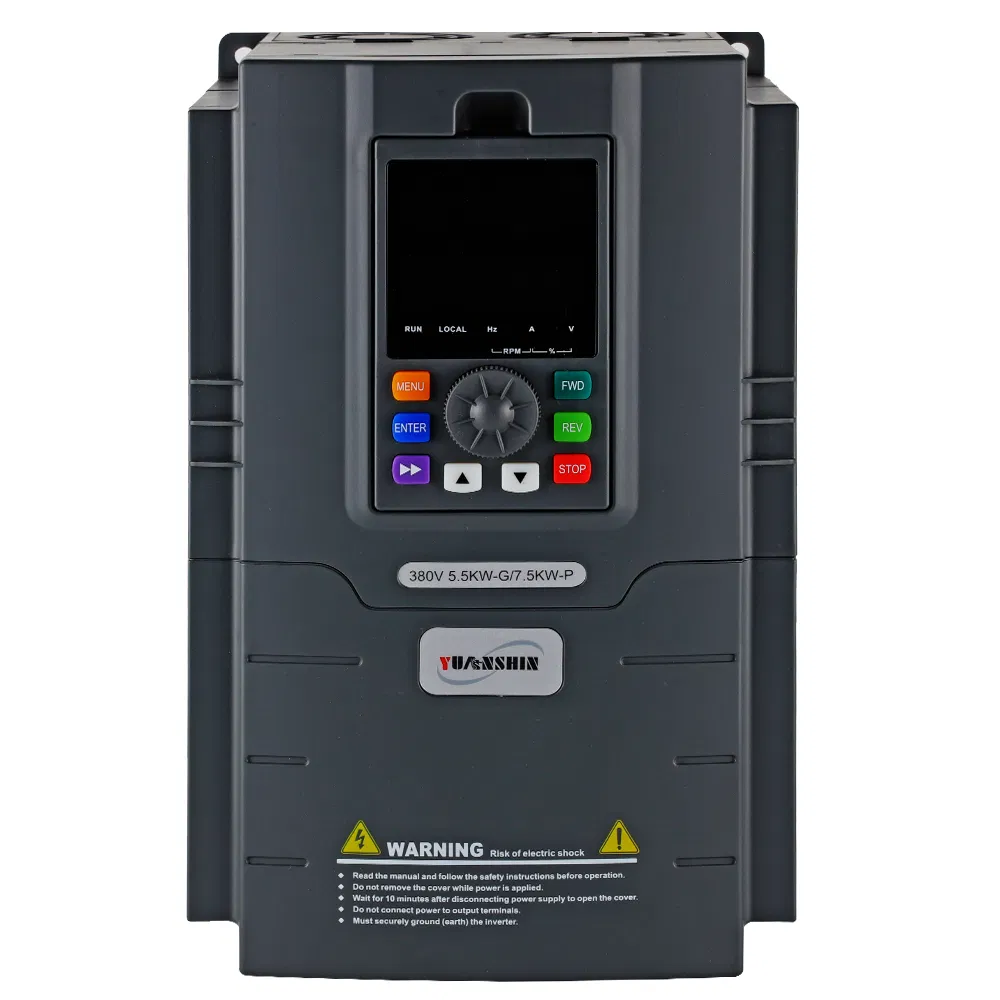

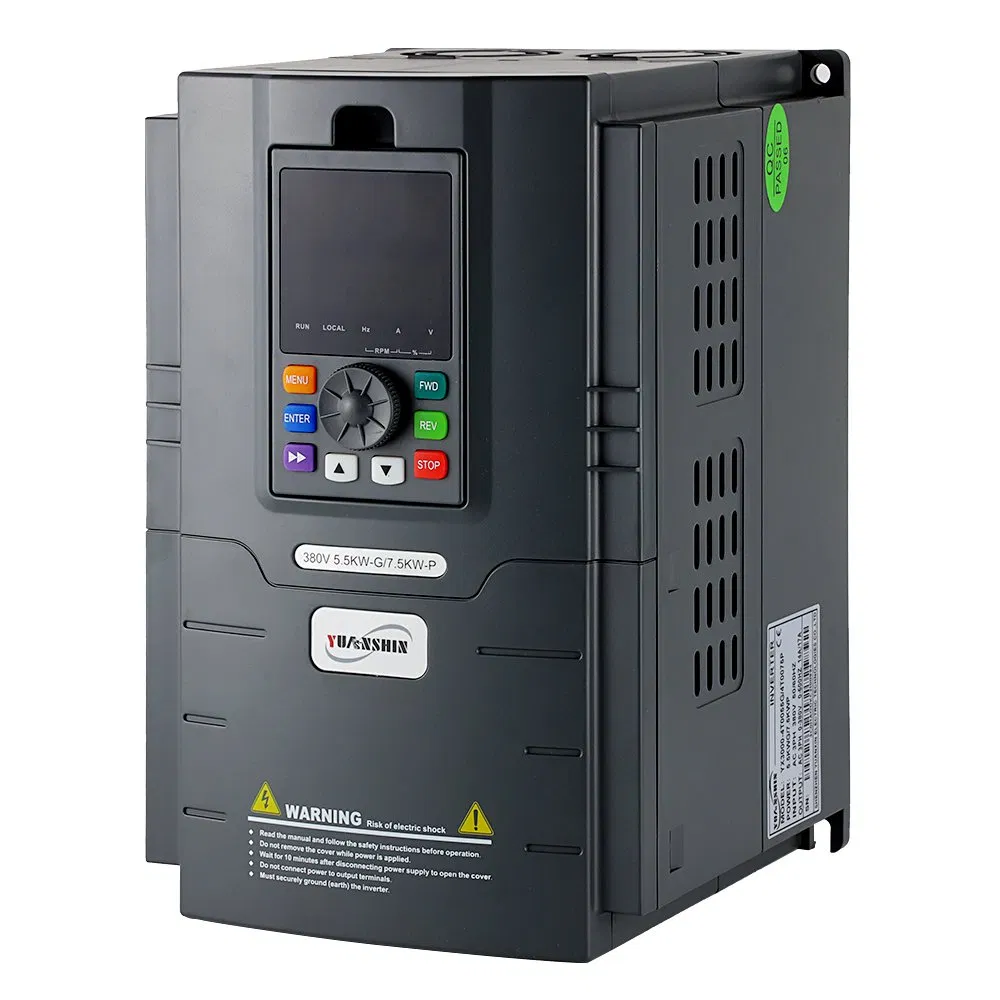

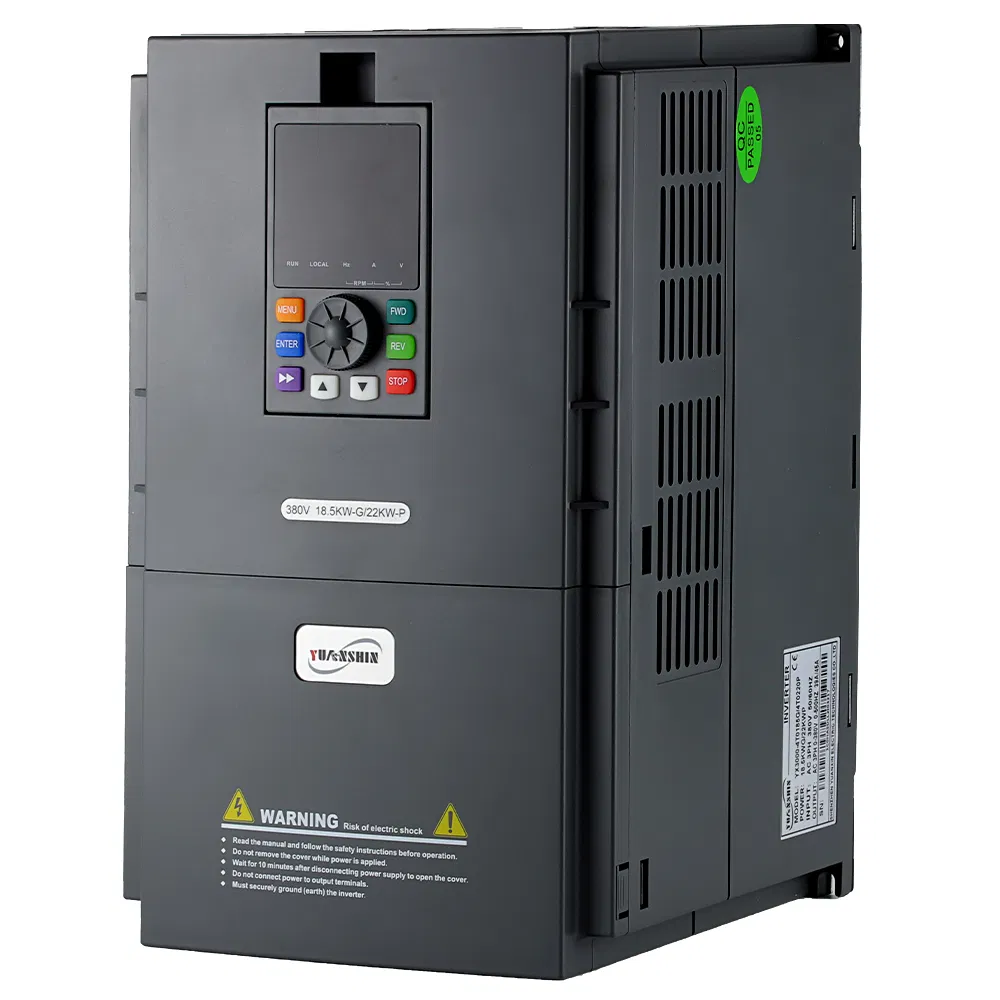

220V Single Phase Input and 380V Three Phase Output AC Drive VFD

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, Single-phase Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Specifications

Model NO.

YX9000

Principle of Work

Vector Control

Switch Mode

PWM Control

Main Circuit Type

Voltage

Nature of DC Power

Voltage VFD

Function

Simple Type

Warranty

18 Months

Rated Voltage

0~380V / 415V / 440V/460V

Frequency Range

0Hz~3000Hz

Communication

Modbus

HS Code

8504409990

Production Capacity

5000 PCS / Month

VFD 220v Single Phase Input to 380v Three Phase Output

Technical Features

Standard 485 communication port, supporting PG card expansion.

Support backend software uploading, downloading, and monitoring of driver parameters.

Advanced protections and rich fault handling methods with selectable protection measures.

Equipped with the function of stacking primary and secondary frequency sources.

Built-in PID, 16-speed control, swing frequency, and other versatile functions.

Technical Data Specifications

Items		Specifications
Input	Rated Voltage	Three phase 380V / 415V / 440V/460V; 50Hz/60Hz
Input	Range	Voltage: ±20% unbalance rate <3%; Frequency: ±5%
Output	Rated voltage	0~380V / 415V / 440V/460V
	Frequency range	0Hz~3000Hz
	Frequency resolution	0.01Hz
	Overload ability	150% rated current for 1 minute, 180% for 3 seconds
Control	Control mode	V/F, Sensorless vector control (SVC), Speed Sensor vector control (FVC)
	Start frequency	0.40Hz~20.00Hz
	Torque boost	Auto torque boost, manual torque boost 0.1%~30.0%
	DC braking	Braking Time: 0.0s~36.0s; Action Current: 0.0%~100.0%
	Communication	Modbus, Profibus, CANlink, CANopen
