Resistor for VFD (Variable Frequency Drive) High-Performance Solutions for Industrial Applications Kyx Resistor Supplier in China

Basic Information

Model NO.

RXLG

Installation

DIP Resistor

Material

Wire-wound Resistor

Packaging

Through Hole

Type

Brake Resistor

Shape

Rectangle

Application

Inverter, Robotics, Industrial Automation

Voltage Rating

1000V~3000V

Rated Resistance

0.1 Ohm-80 Kohm

Waterproof Grade

IP68, IP67

Resistance Tolerance

±1%, ±2%, ±5%, ±10%

Certificates

CE, RoHS

Detailed Photos

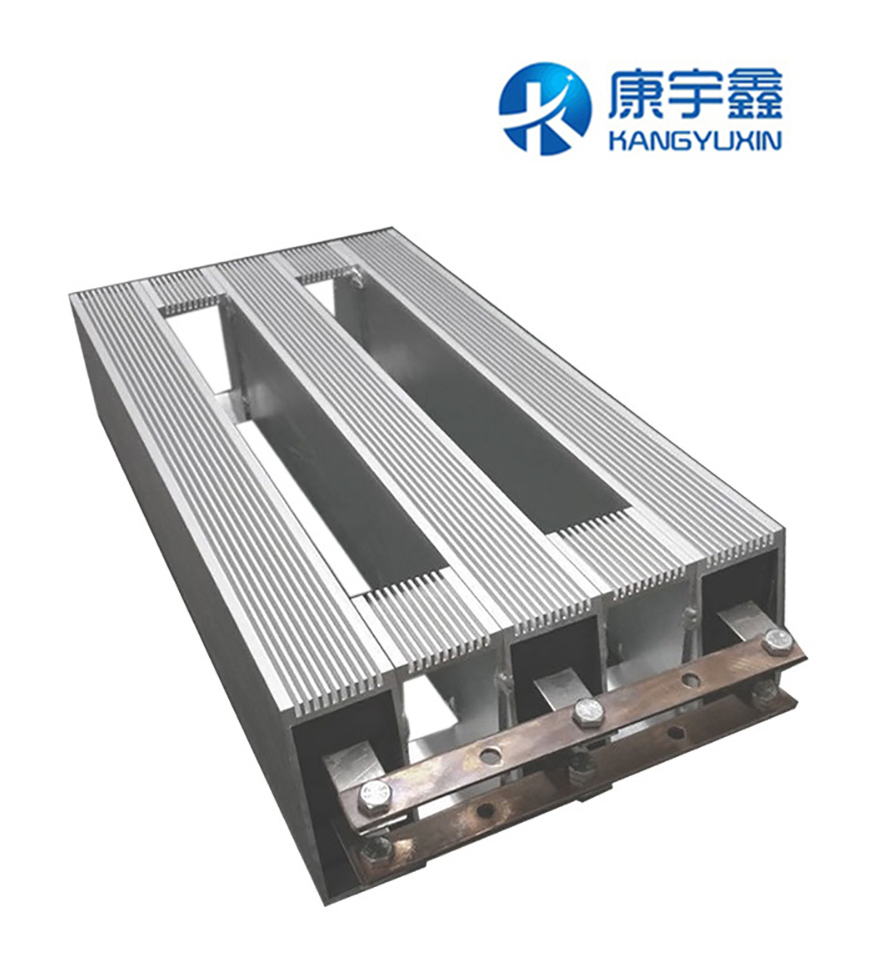

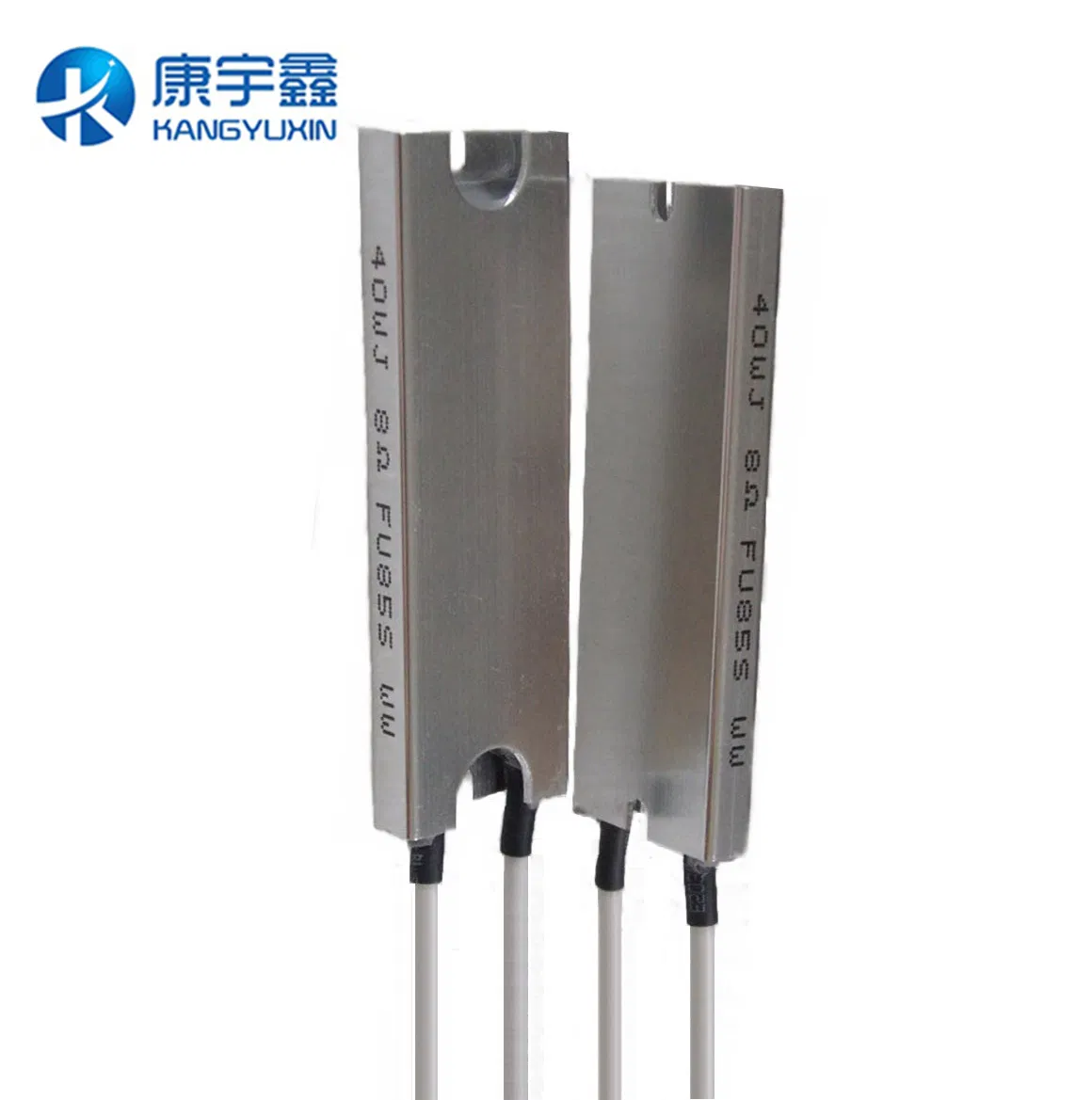

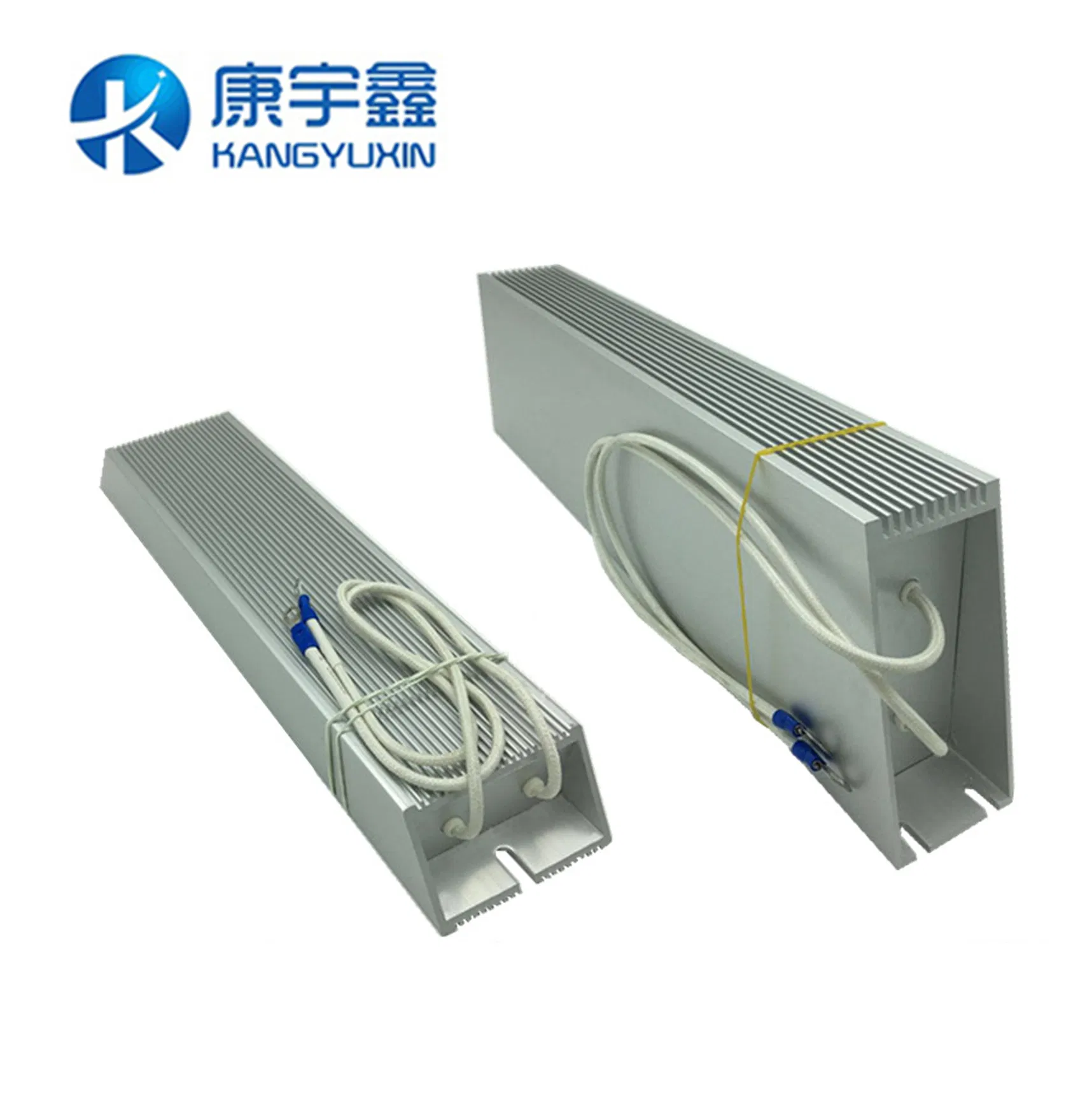

Product Overview

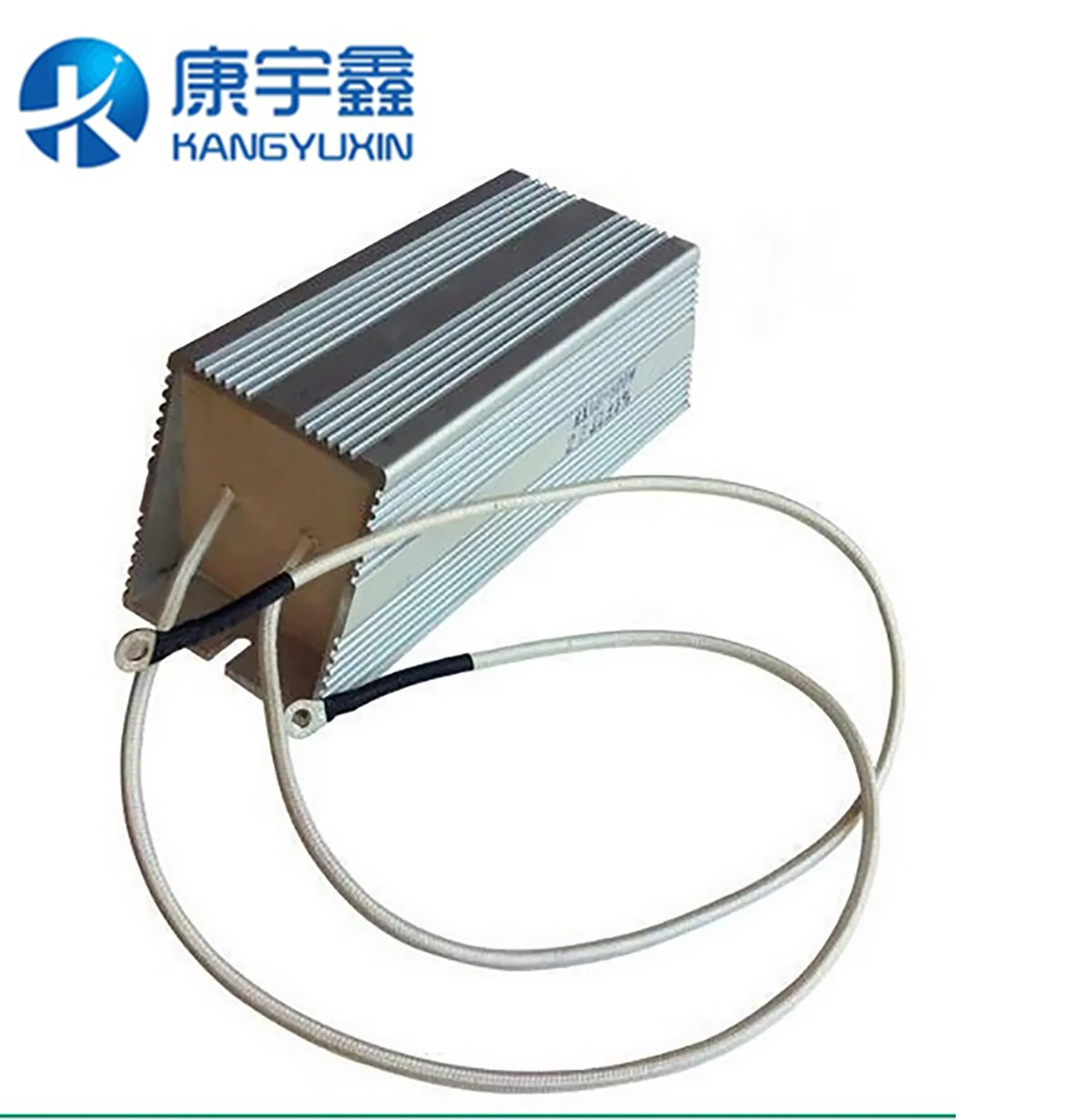

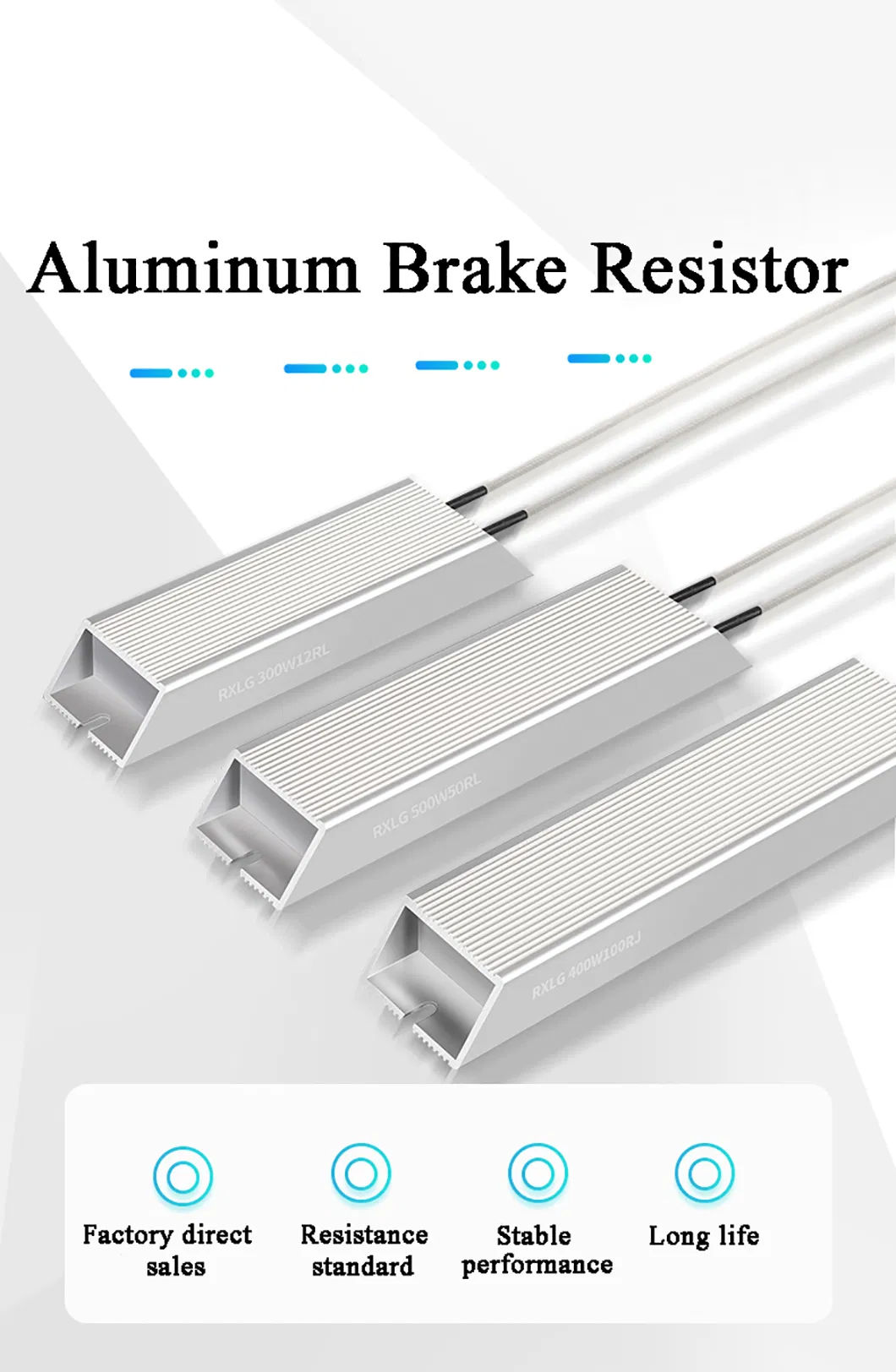

Aluminum resistor is also called braking resistor, charge resistor, bleeder resistor, or current-limited resistor. It features resistance to shock, high strength power, fast heat dissipation, high stability, and long life.

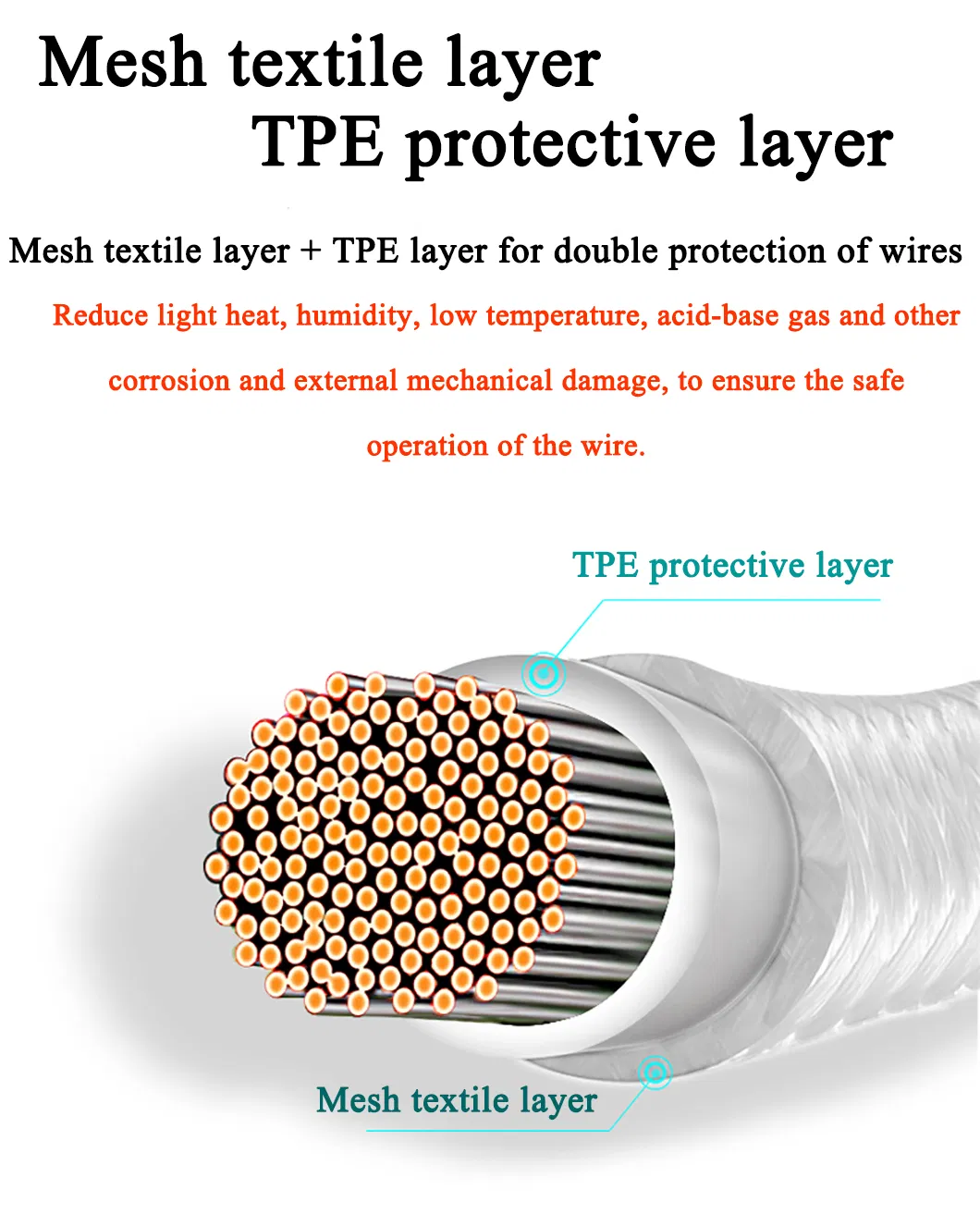

Construction

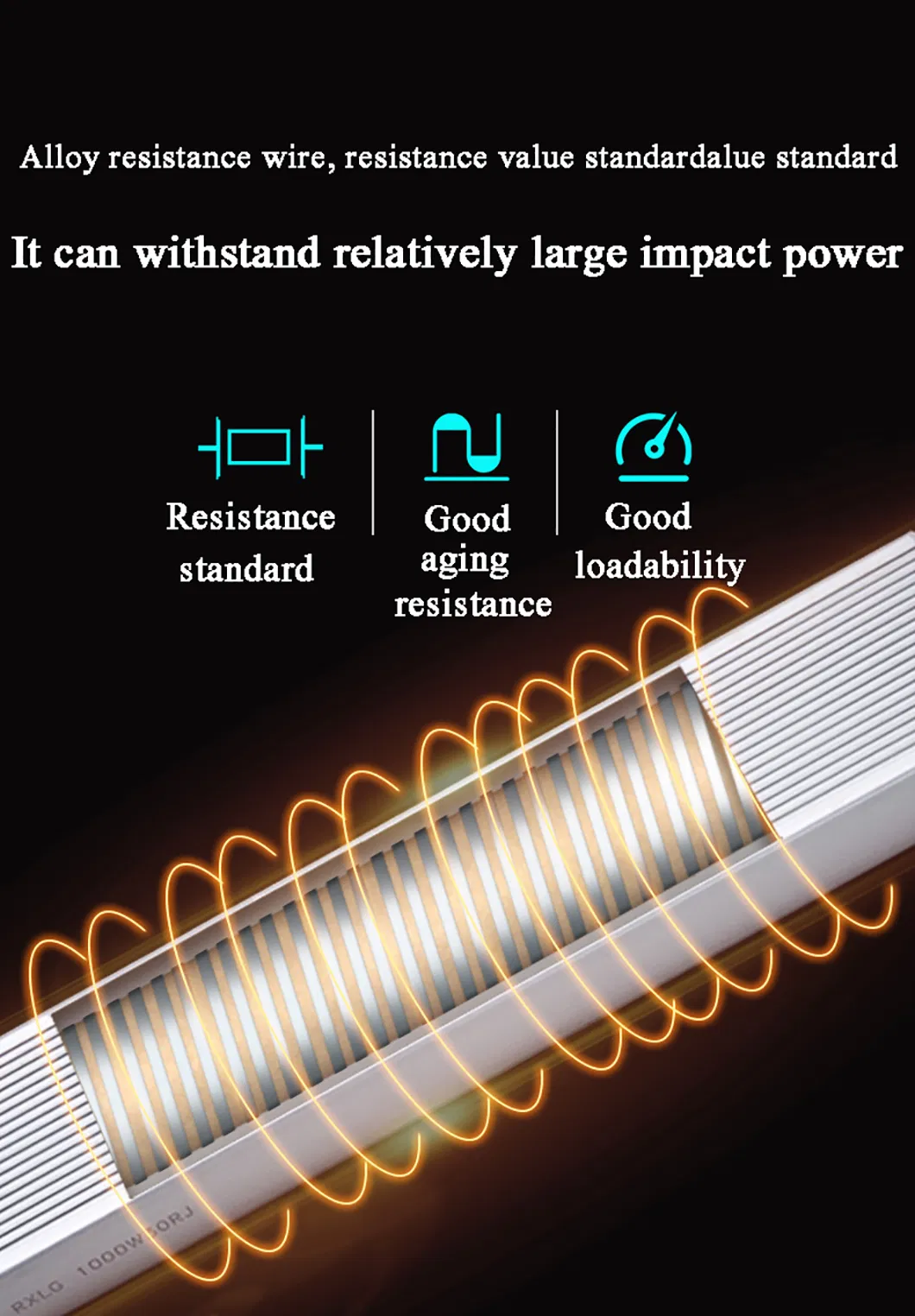

An aluminum encased resistor consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure.

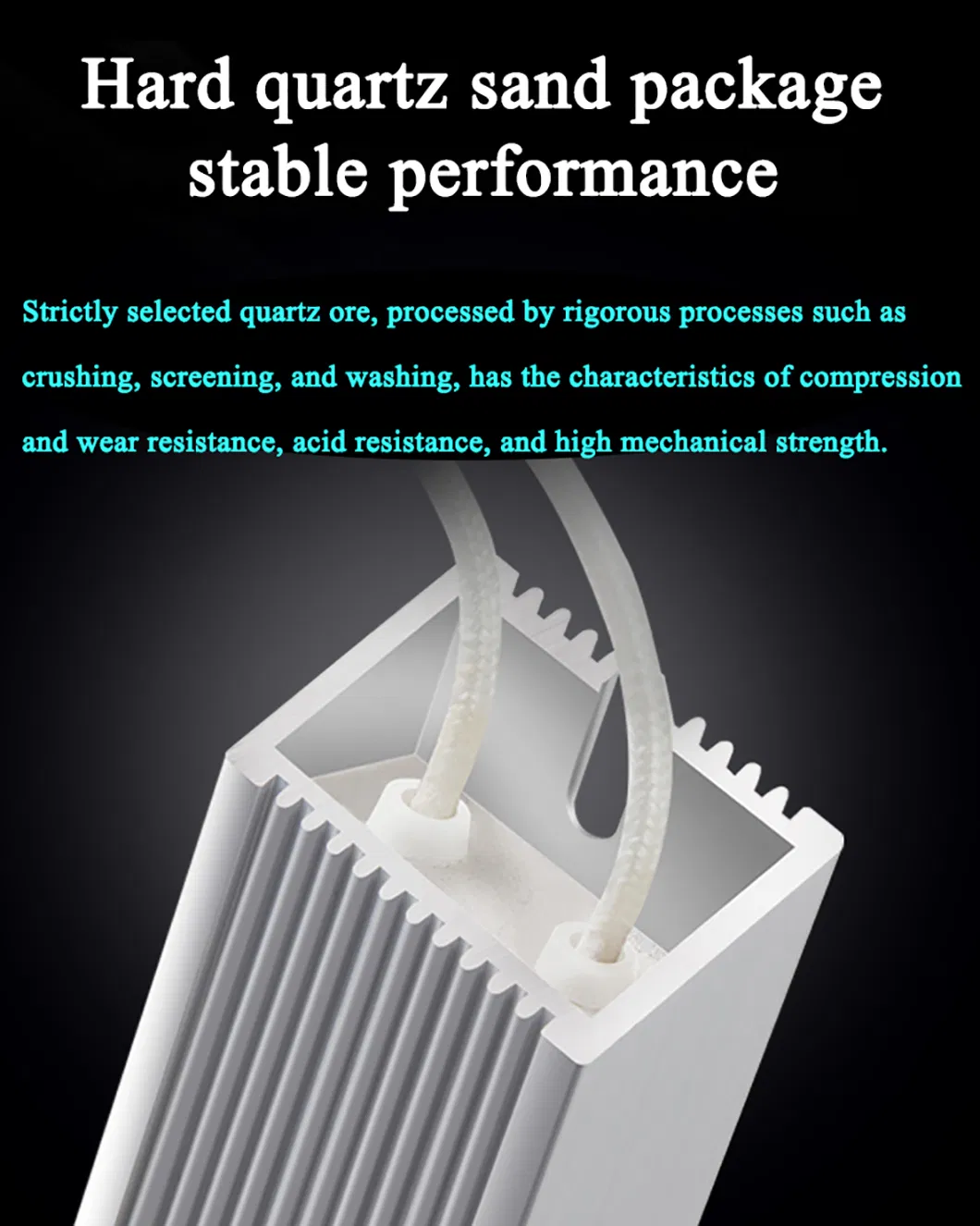

Following high-temperature anodization, the enclosure is filled with a special non-flammable cement paste. Insulation is applied through a high-temperature process.
Embedded in heat-proof cement, it is protected from external mechanical force and dusty environments.

Key Features

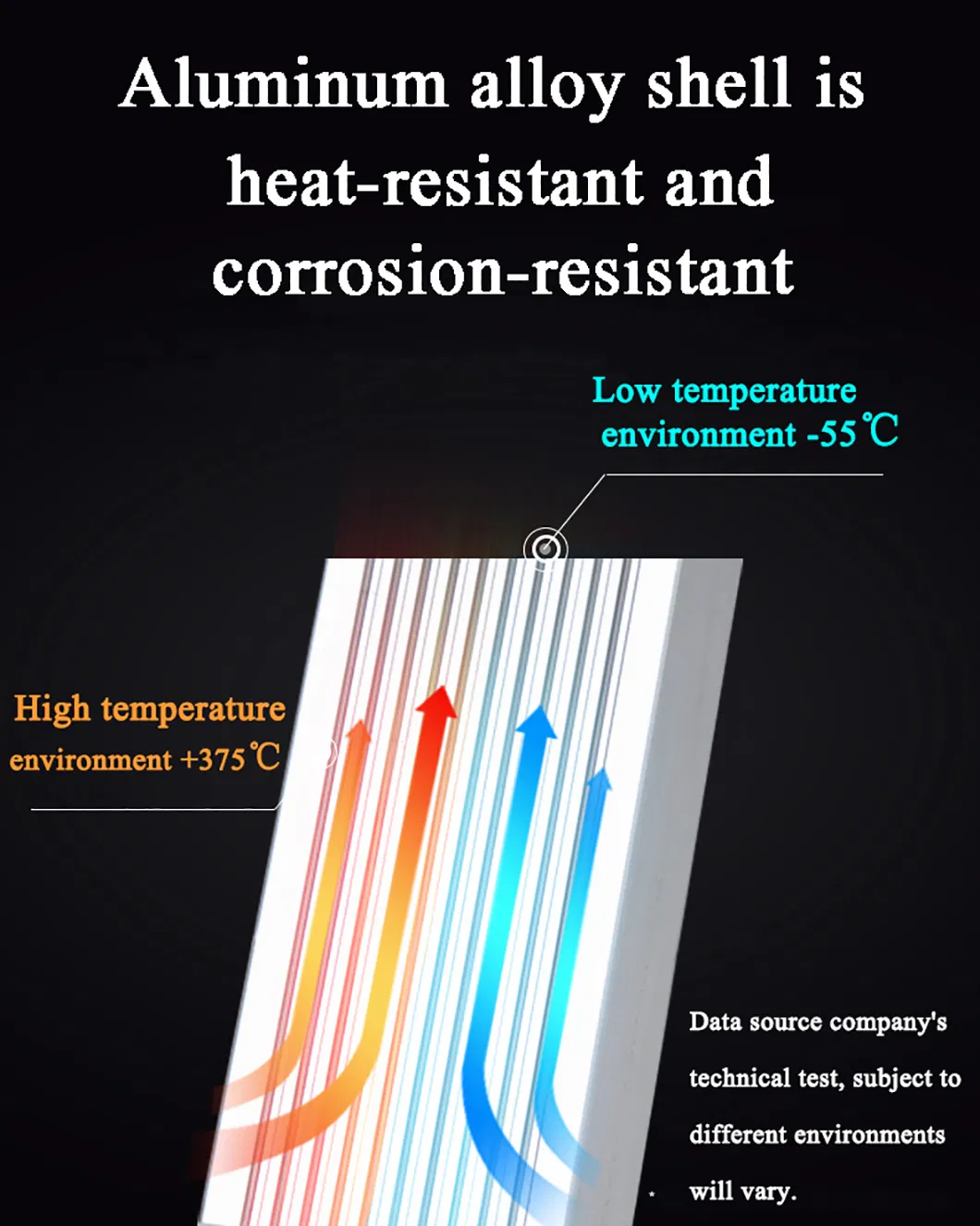

Durable, vibration-proof, and excellent heat dissipation.
Low temperature coefficient with resistance varying in direct proportion.
Quick delivery: 5-7 days for standard requirements.
Conforms to RoHS and lead-free standards.

Technical Specifications

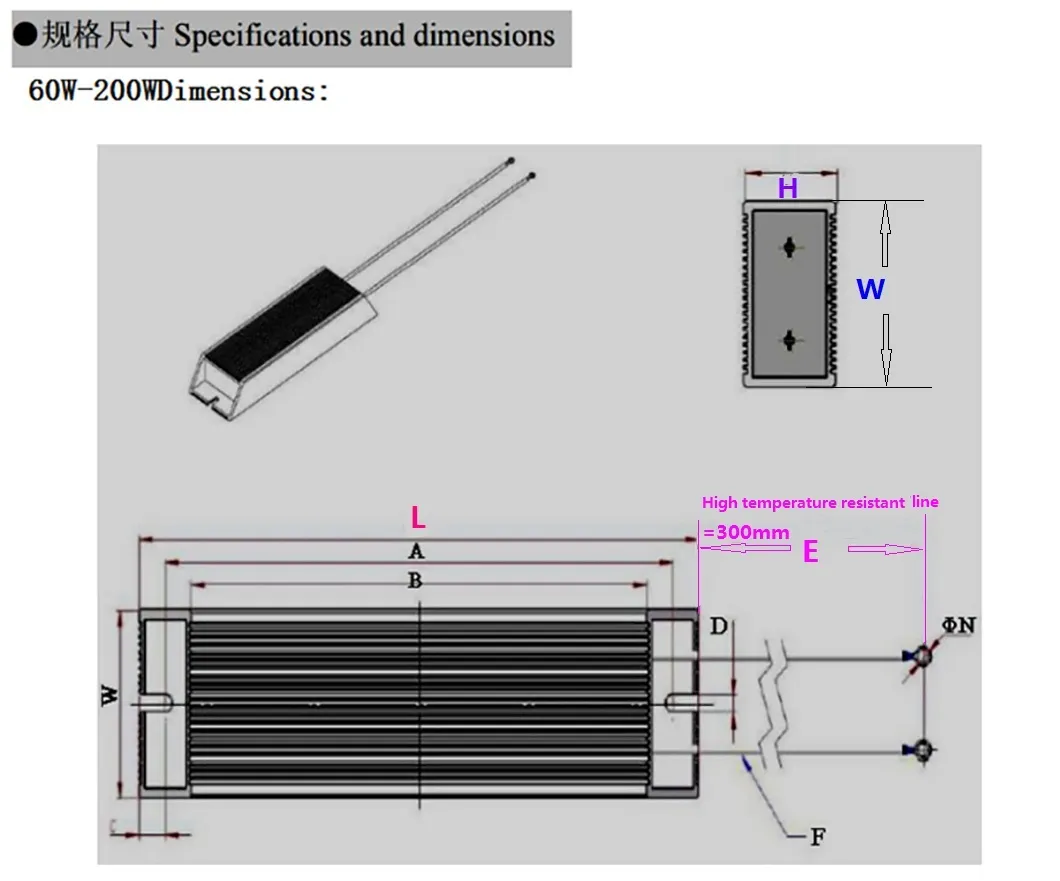

RXLG 60W~200W Dimensions

Power (W)	Bottom Length (L)	Width (W)	Height (H)	Pitch (A)	Line Length (E)
60	100	40	20	80	300
80	110	40	20	90	300
100	115	40	20	95	300
150	185	40	20	165	300
200	215	40	20	195	300

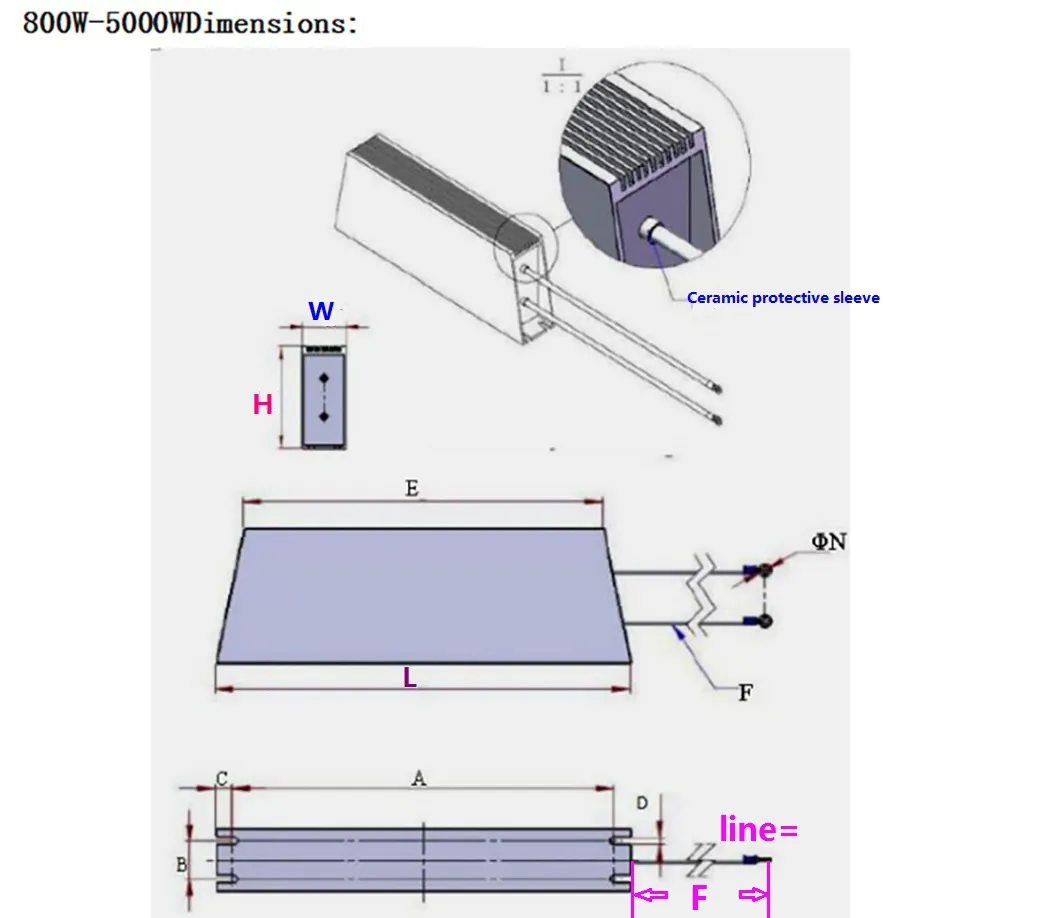

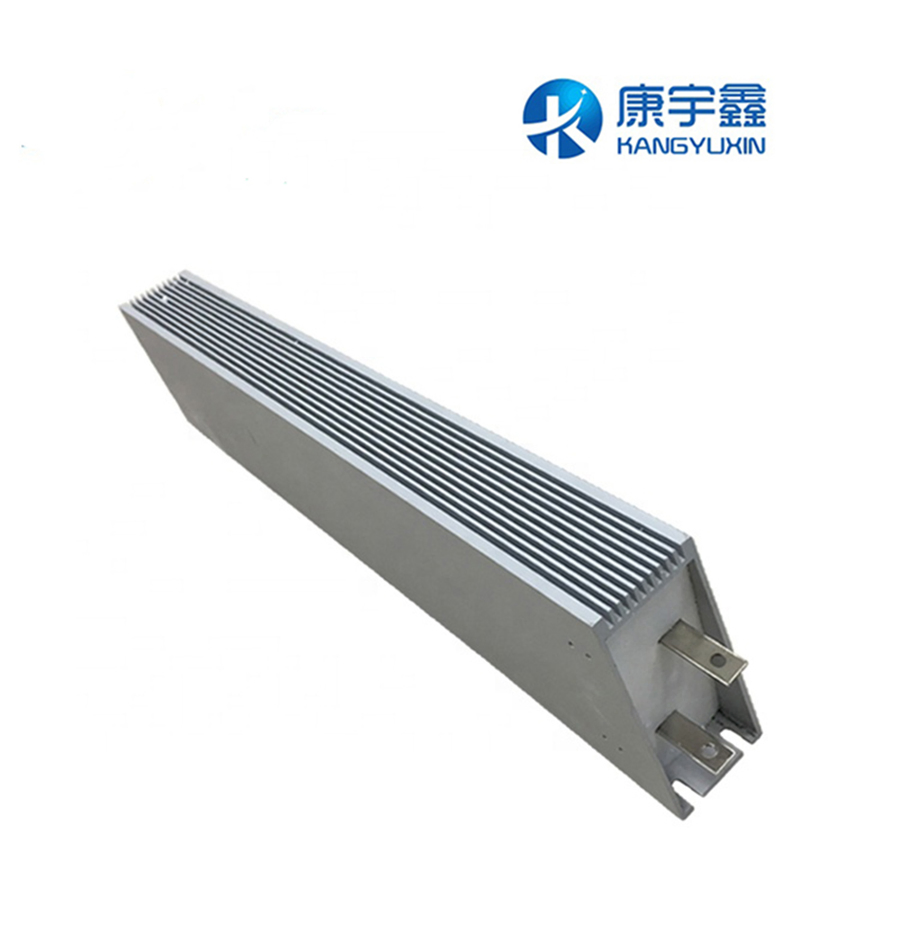

RXLG 800W~5000W Dimensions

Power (W)	Bottom Length (L)	Height (H)	Width (W)	Pitch (A)	Line Length (F)
800	210	107	50	190	300
1000	300	107	50	280	350
2000	450	107	50	430	500
3000	550	107	50	530	600
5000	750	107	50	730	800

VFD Solutions

Variable Frequency Drives (VFD) are essential for controlling motor speed and torque. Our resistors play a vital role in managing energy regeneration and dynamic braking. They are designed to dissipate braking energy effectively, preventing damage to the drive system and enhancing overall efficiency.

Applications

Motor Control Systems

Industrial Machinery

Automation & Robotics

Renewable Energy Systems

Frequently Asked Questions

1. What is the purpose of a resistor for VFD? It absorbs regenerative energy during motor deceleration, dissipating excess energy as heat and ensuring safe braking in frequency drive systems.

2. How do VFD resistors improve braking efficiency? By converting regenerative energy into heat, they prevent system overheating and improve energy recovery, enhancing overall braking performance.

3. What industries use these VFD resistors? These resistors are widely used in motor control systems, industrial automation, renewable energy, and heavy-duty machinery.

4. Are these resistors suitable for high-power systems? Yes, they are engineered to handle high-power applications with excellent heat dissipation through their aluminum shell design.

5. How do these resistors extend motor lifespan? By managing regenerative power and preventing voltage spikes, they reduce mechanical wear and thermal stress on both the motor and the drive.

6. Can the resistors be customized? Yes, technical specifications such as power range, resistance values, and dimensions can be tailored to meet specific industrial requirements.
