50W-100W Precision Hv/LV Non Inductive Wirewound Resistor

Basic Information

Model NO.

RXGIC Series

Installation

DIP Resistor

Material

Wire-wound Resistor

Packaging

Surface Mount

Type

Fixed Resistor

Quantity

Single Connection

Shape

Tubular

Resistance Change Scale

Linear Scale

Application

Automation Equipment Electrical Industry

Certificate

ISO9000

Transport Package

Carton Packing

Specification

181x6.35

Origin

Bengbu, Anhui

HS Code

8533900000

Production Capacity

1500 Piece/Week

Packaging & Delivery

Package Size

20.00cm * 15.00cm * 10.00cm

Package Gross Weight

5.000kg

Product Description

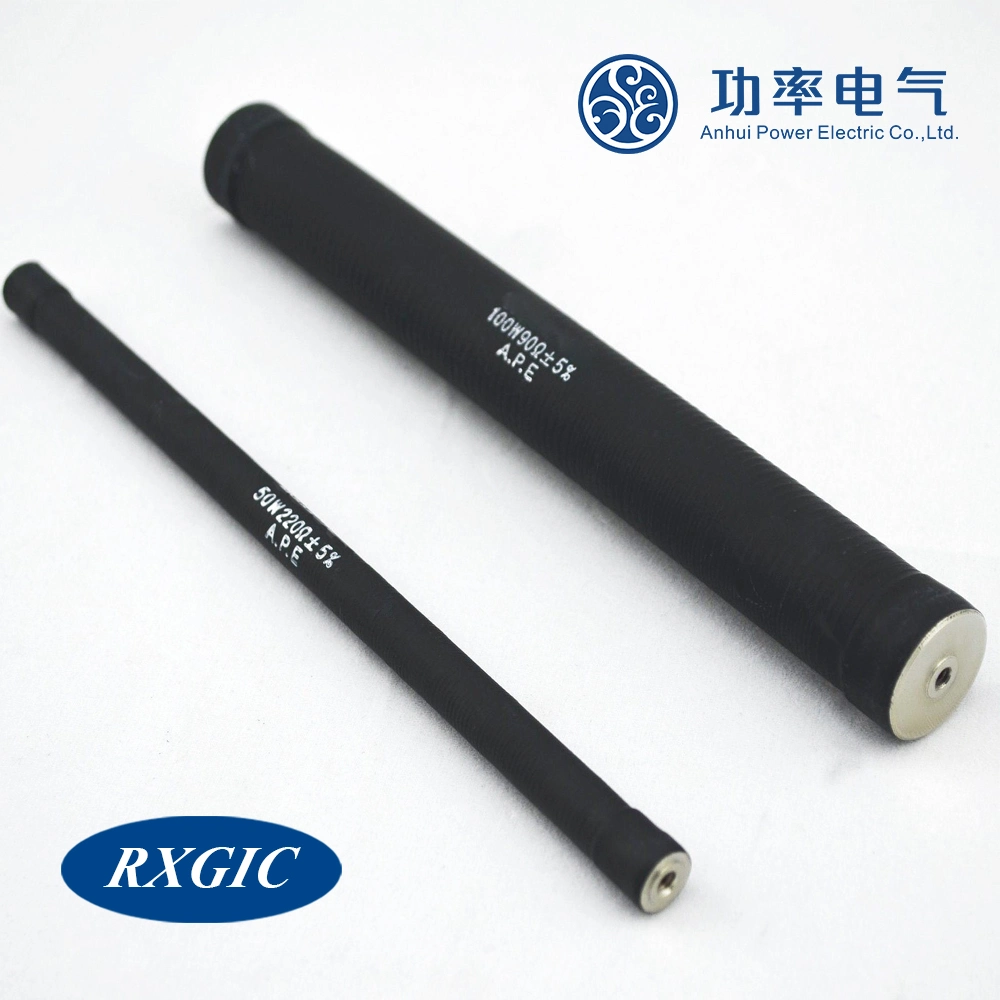

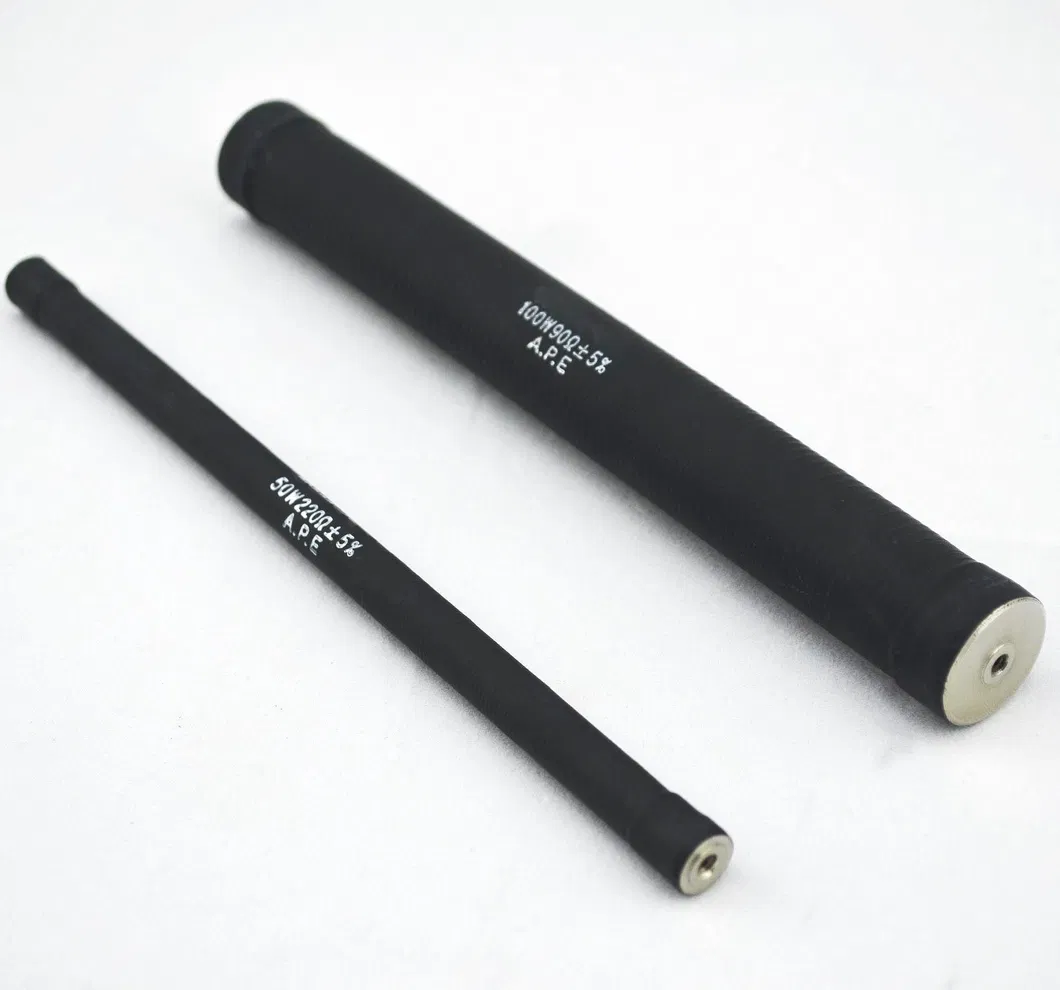

Silicone coated wire-wound resistor (RXGIC Series)

Product Characteristics:

RXGIC series use high quality alloy wounded on the body with link to the cap terminal to make it firm and reliable. Surface is coated with imported coating materials for good electrical performance. Both ends have threaded connections. This series can be made per noninductive design. They are mainly used in power electronics.

Product size and value can be designed according to customer requirements, or assembled into components.

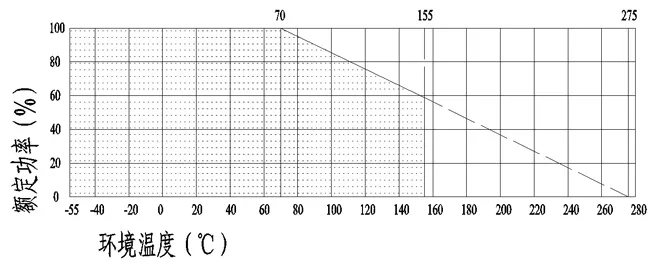

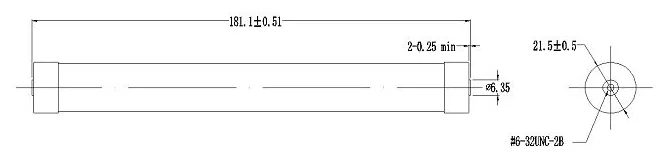

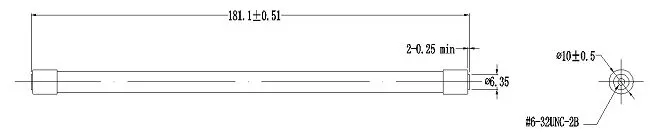

Outline & Derating Curve

Technical Specifications

Type	Rated Power	TCR	Resistance Range	Operating Temp Range
RXGIC-50	50W	±250(ppm/ºC)	1Ω-60KΩ	-55ºC - +155ºC
RXGIC-100	100W	±250(ppm/ºC)	1Ω-120KΩ	-55ºC - +155ºC

Technical Features

Test Item	Specifications	Test Methods
Short time overload	ΔR≤±(1%R+0.05Ω)	10PR, 5S
Leaching	ΔR≤±(1%R+0.05Ω)	375ºC±10ºC, 3.5±0.5S
Endurance	ΔR≤±(5%R+0.1Ω)	P15ºC-35ºC, PR, 1000h
Vibration	ΔR≤±(1%R+0.1Ω)	10Hz-50Hz-10Hz, 2h
Surface temperature rise	≤250ºC	PR

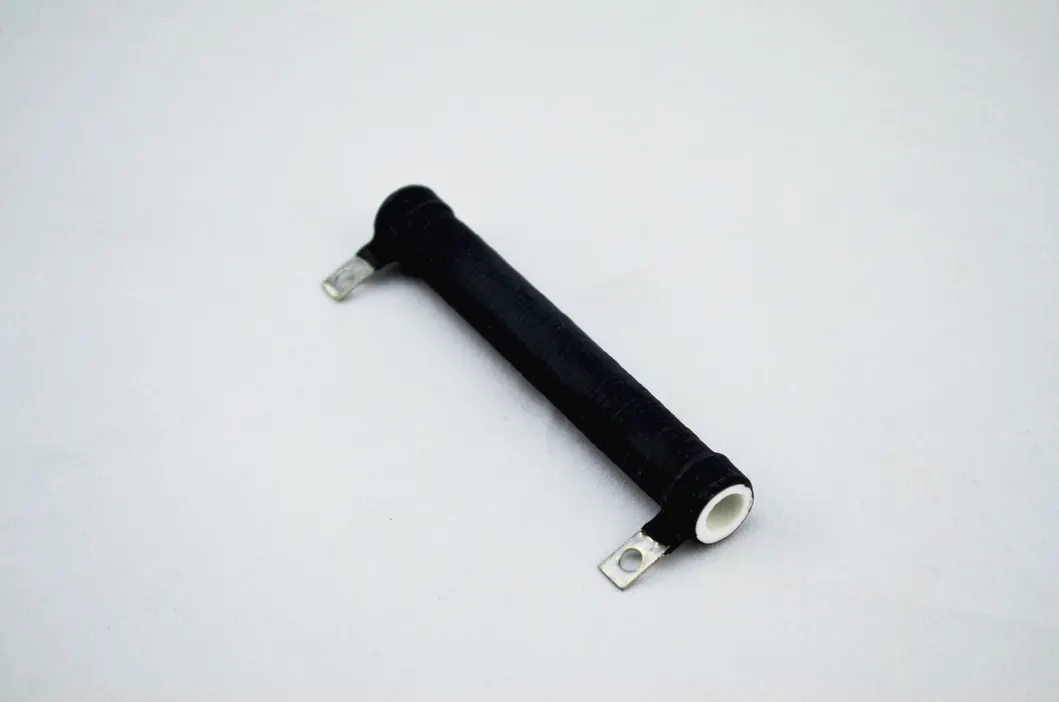

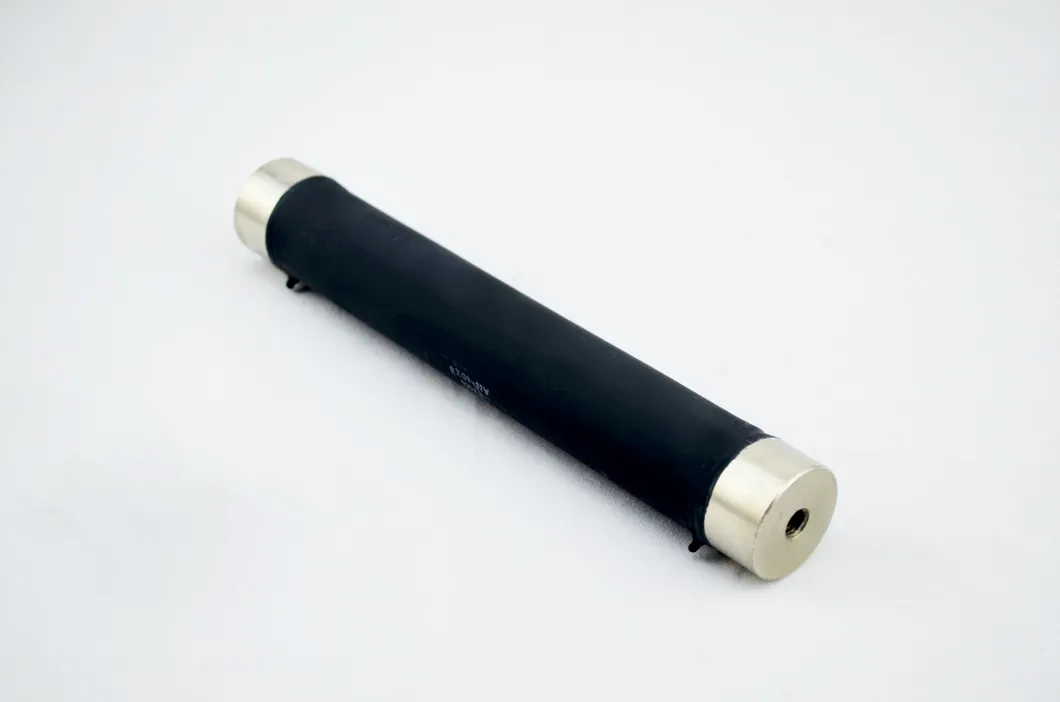

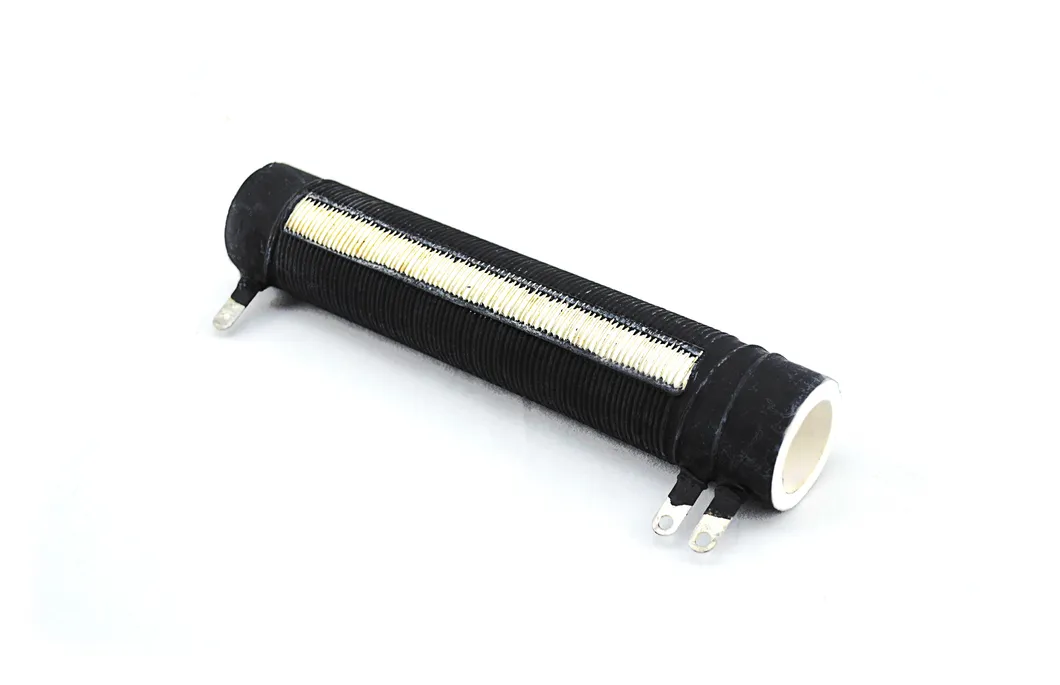

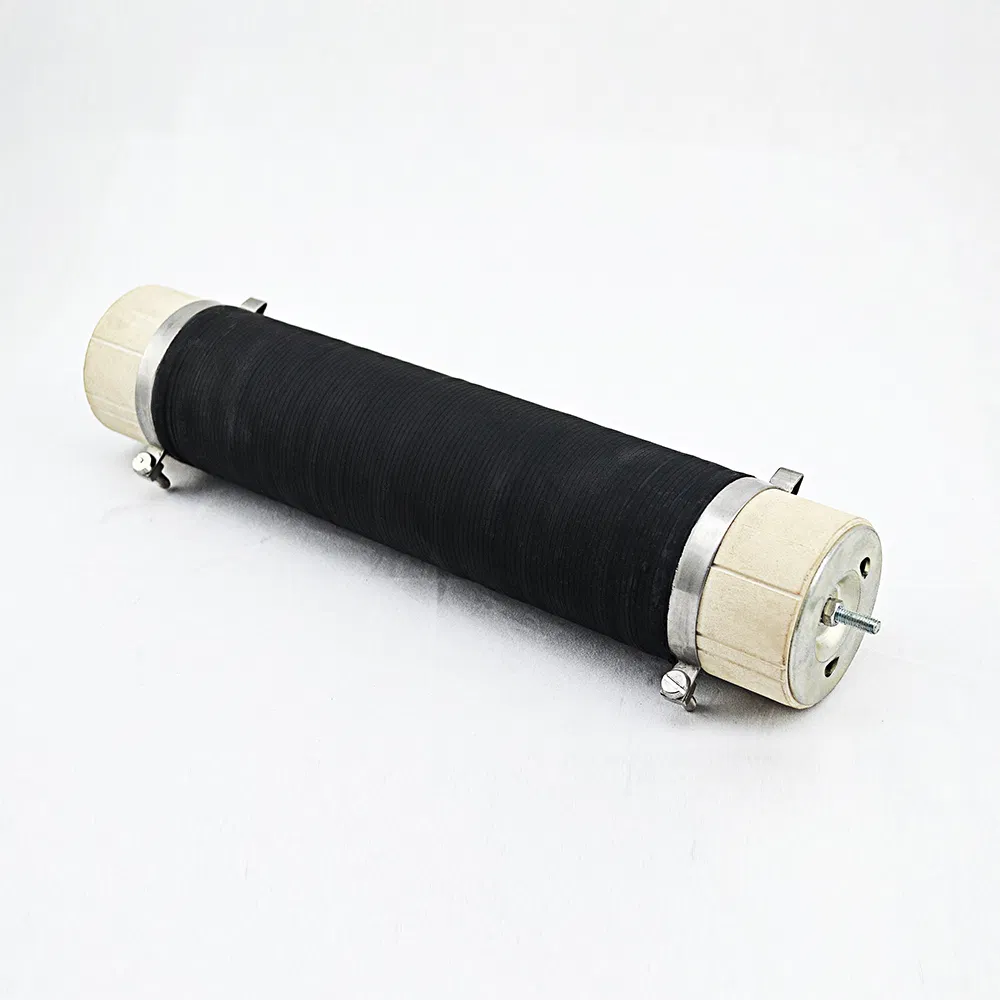

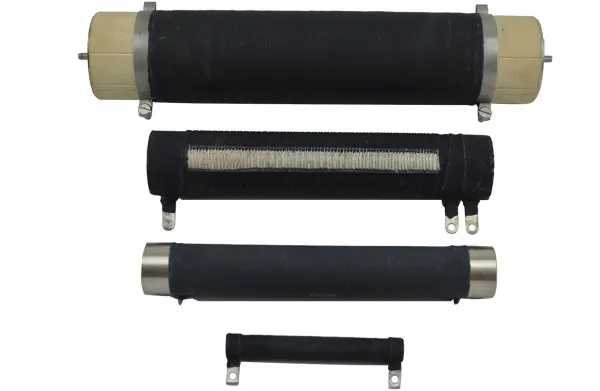

Product Display

Frequently Asked Questions

How can I place an order?

You can contact us via the available online platforms or through our official communication channels to discuss your specific order details.

What is the standard lead time for orders?

Typically, the lead time is within 15-35 days after the deposit is received, depending on the order volume.

Do you offer product customization?

Yes, we accept customized product requests. Product size and resistance values can be designed according to specific customer requirements.

What are your quality assurance policies?

We provide 100% product quality protection and 100% on-time shipment protection. If any quality defects are found, we offer a replacement service.

What are the accepted payment terms?

T/T and Paypal are the most commonly used methods. Please reach out to us for more specific details regarding payments.

How are the products protected during shipping?

Products are packed with thin film, pearl cotton, and finally secured in wooden cases to ensure they are well-protected during international transportation.
