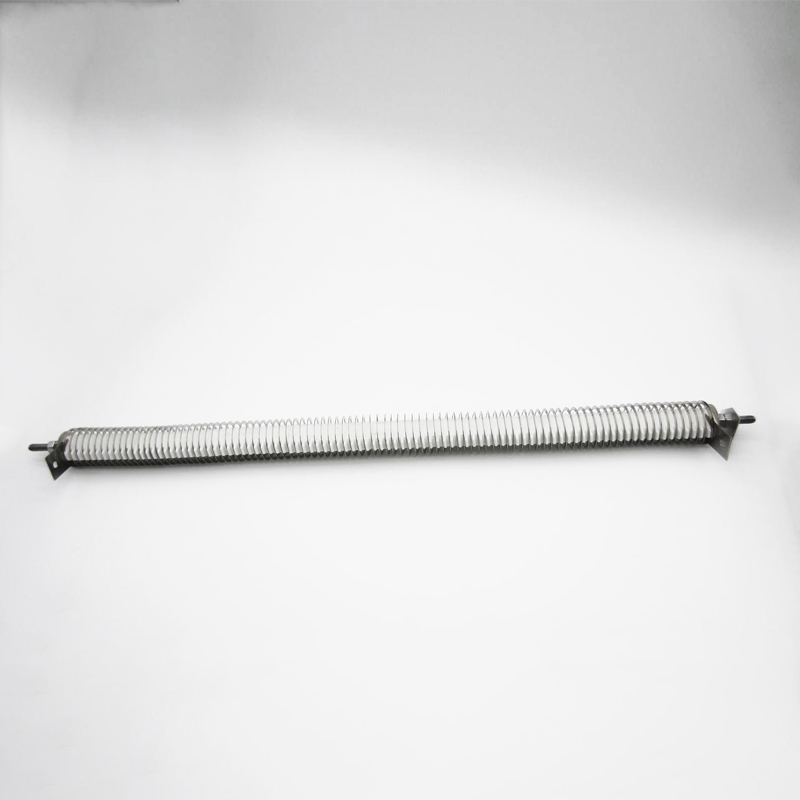

Industrial Equipment Conpments Load Bank Power Edge Wound Resistor

📋

Basic Specifications

Model NO.80026-650-01

InstallationScrew Fixation

MaterialCeramic and Alloy Tape

TypeFixed Resistor

ShapeTubular

Resistance ScaleLinear Scale

CertificateISO9001

HS Code8533900000

🚀

Product Application

The product is specifically designed for subway grounding protection systems, AC bus, or DC bus overvoltage protection. It serves effectively as a brake resistance or energy-absorbing resistance for large-scale industrial equipment.

⚙️

Key Features

High Energy Absorption: Low resistance with extra high power capacity, ideal for short-term energy absorption.
Superior Welding: Features resistance spot welding between elements for strong, non-contact resistance and durability.
Stable Performance: Resistance-temperature complementary characteristics with a total error not exceeding ±7.5%.
Premium Material: Constructed with 304L stainless steel, providing excellent rust resistance for harsh environments.
Versatile Packaging: Available in welding and insert packaging options.

📊

Technical Parameters

Rated Power (W)	Resistor Range (Ω)	Precision	Dielectric Strength	Current Duration	Impulse Energy
1KW	0.01Ω ~ 0.5Ω	±5% ~ ±10%	2500V ~ 5000V	≤ 10s	10KJ ~ 3MJ

No.	Specifications	Use Requirement
1	TCR	ND
2	Insulation	≥ 100MΩ
3	Protection	304L stainless steel, suitable for harsh environments
4	Installation	Use where there is no severe vibration or jolting
5	Cooling	Standard Cooling

📈

Performance & Visuals

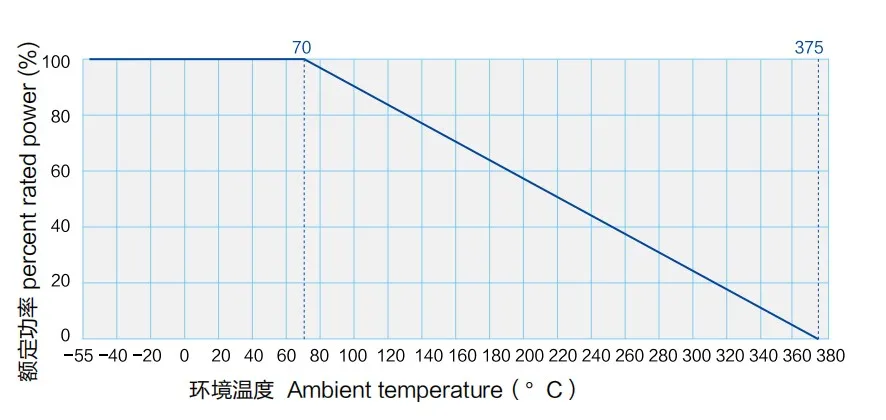

Derating Curve

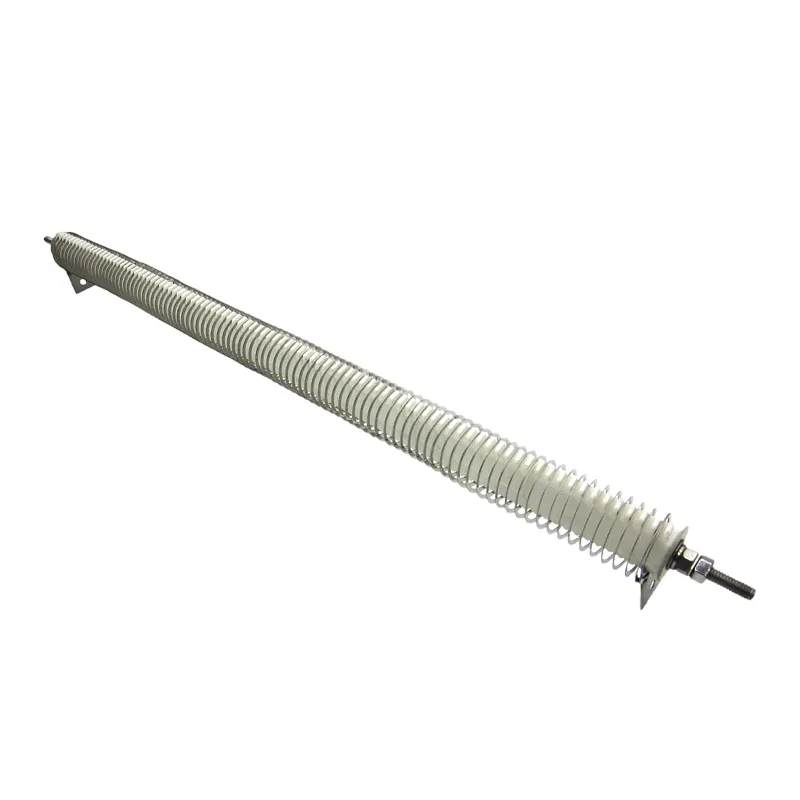

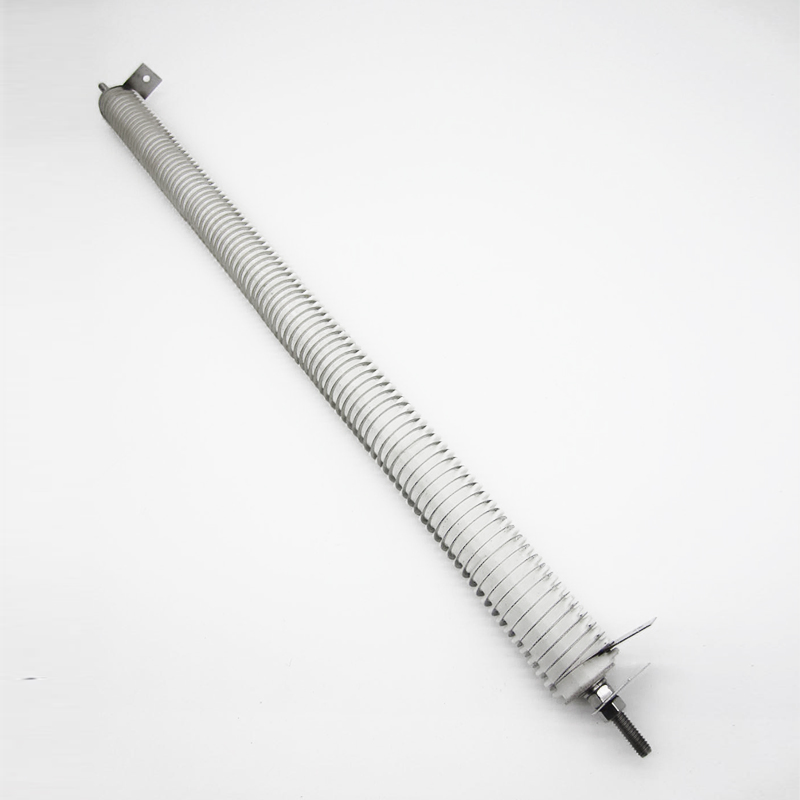

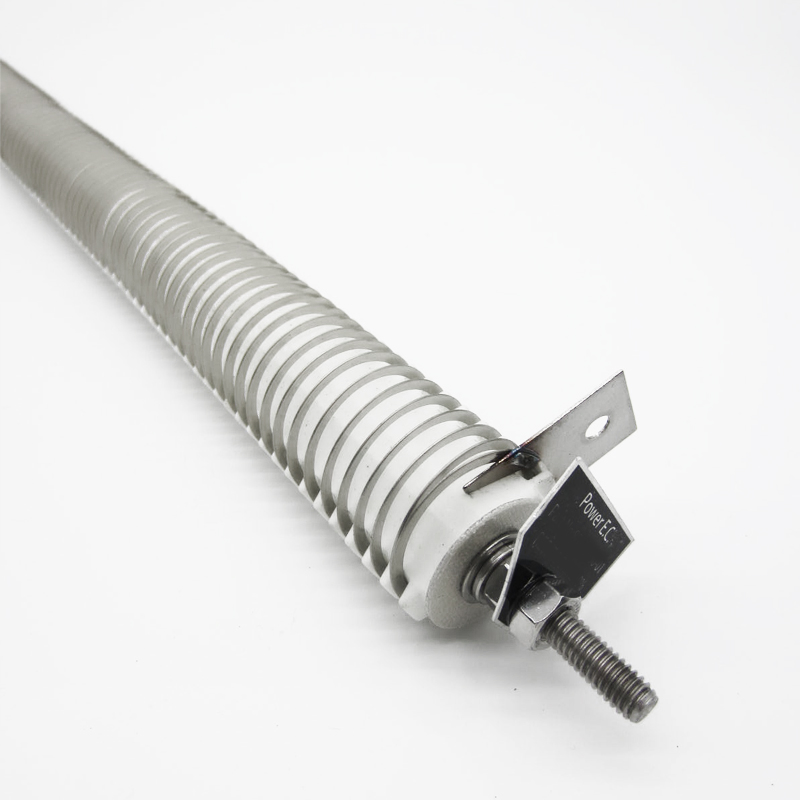

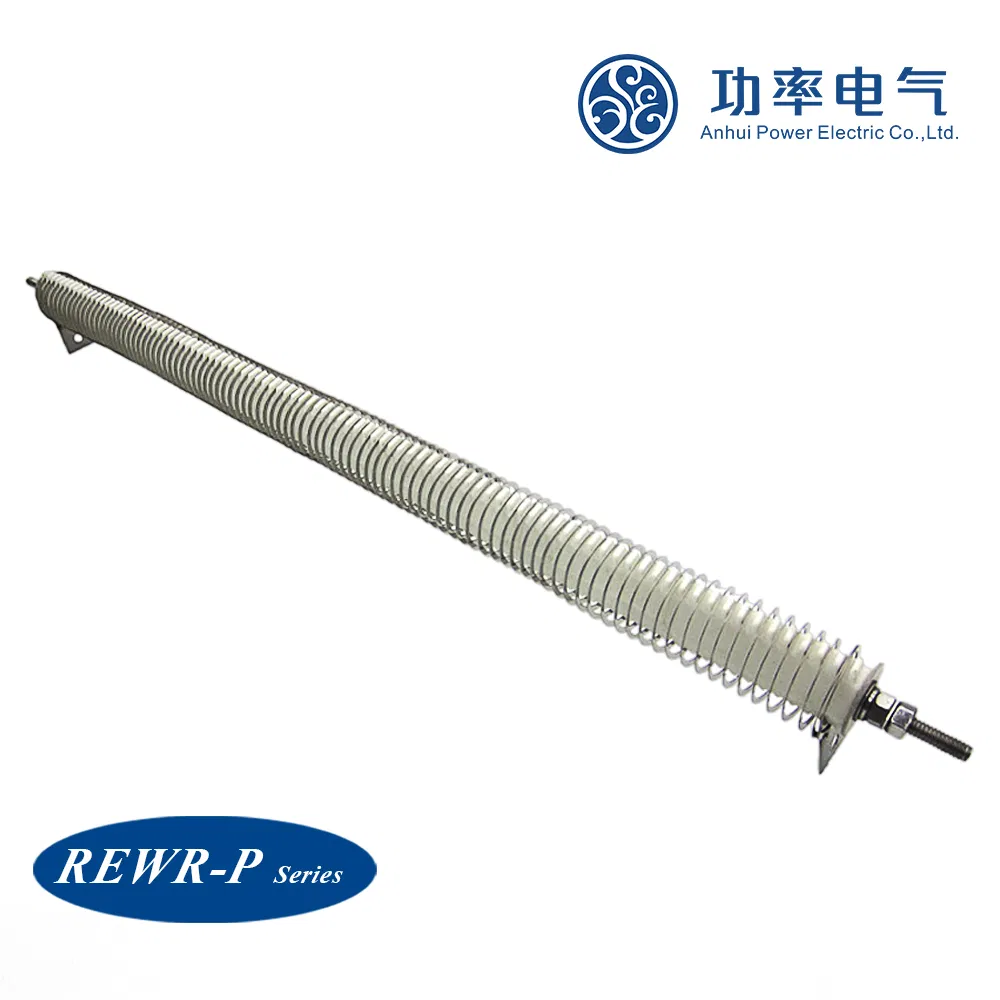

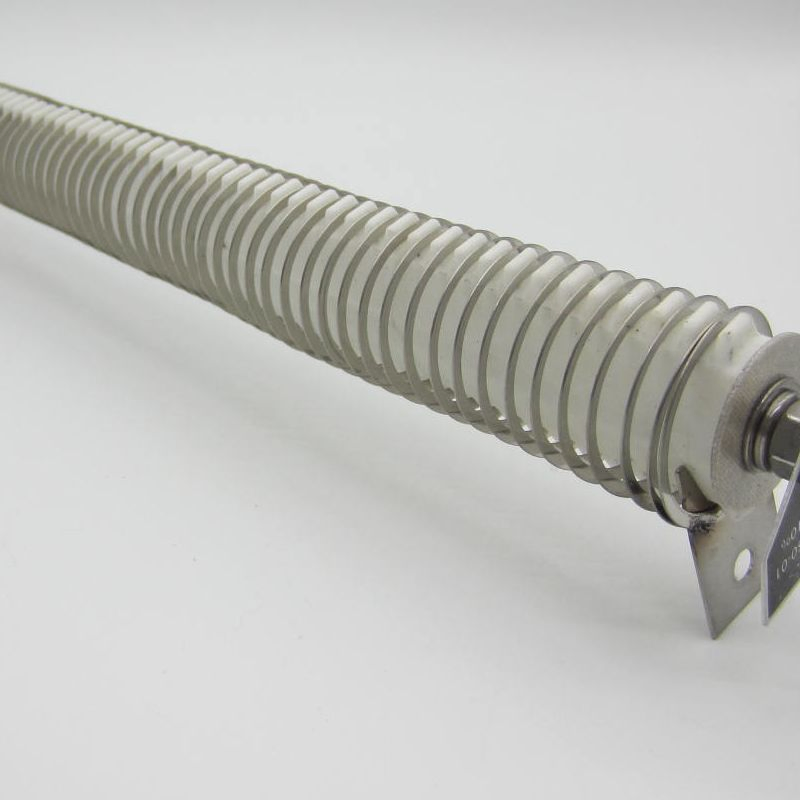

Product Showcase

Packaging & Protection

Packed with thin film, pearl cotton, and wooden case for maximum transport protection.

❓

Frequently Asked Questions

Q1: What are the primary applications for this resistor? A: It is mainly used in subway grounding protection, AC/DC bus overvoltage protection, and as a braking or energy-absorbing resistor for large industrial equipment.

Q2: Can the products be customized based on specific requirements? A: Yes, we accept customized orders and can manufacture products according to your specific technical requirements.

Q3: What is the typical lead time for an order? A: The standard lead time is generally between 15 to 35 days after the deposit is received.

Q4: How is the product quality ensured? A: We maintain a high-quality production standard. If there are any defects in quality, we provide a replacement service.

Q5: What materials are used for durability in harsh environments? A: We use 304L stainless steel for the resistance material, which is highly resistant to rust and suitable for demanding environmental conditions.

Q6: What are the accepted payment terms? A: T/T and PayPal are the most commonly used payment methods. Please contact our team for specific details.
