High Voltage Multi Stage Sampling Edgewound Resistor

1 / 5

High Voltage Multi Stage Sampling Edgewound Resistor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

IC9033

Installation

Assemble

Material

Resistance Alloy & Ceramic Bracket

Packaging

Surface Mount

Type

Edge Wound Resistor

Quantity

Single Connection

Shape

Circular

Resistance scale

Linear Scale

Application

Wind Power / VFD Braking

Certificate

ISO9001

Overload

≤±(2%R+0.05Ω)

Temperature

≤±5%

HS Code

8533900000

Capacity

100000PCS/Year

🚀 Product Overview

High Power Multi Stage Sampling Edgewound Resistor

The resistance body is crafted from highly stable resistance alloy. The ribbon element is precision wound on edge in a helix form and spun onto a durable ceramic bracket. Designed for high-performance thermal management, the continuous surface temperature remains within 375ºC.

⚡Optimized for VFD braking and motor control.

⚡Ideal for load banks and neutral grounding.

⚡Customizable sizes and resistance values.

📐 Technical Dimensions & Curves

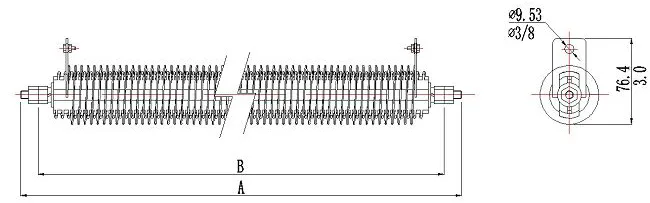

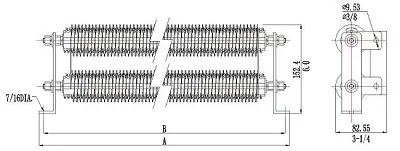

Outline Dimension

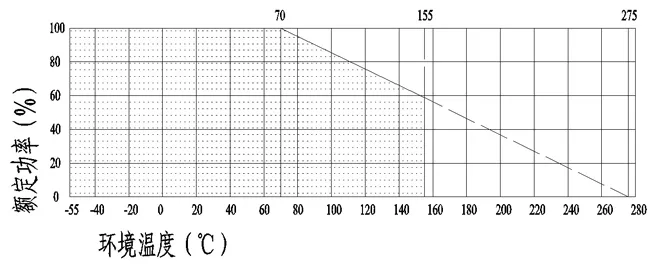

Derating Curve

📊 Technical Specifications

Test Item	Specifications	Test Methods
Temperature	Δ≤±5%	20ºC-375ºC
Terminal Tensile Strength	Δ≤±(2%R+0.05Ω)	45N, 30S
Terminal Shock	Δ≤±(2%R+0.05Ω)	PR, 30min/-55ºC, 15min
Overload	Δ≤±(2%R+0.05Ω)	10PR, 5S

📸 Product Details & Assembly

📦 Packaging & Delivery

Packed with thin film, pearl cotton and finally secured in a wooden case to ensure maximum protection during international transportation.

❓ Frequently Asked Questions

How can I place an order for these resistors?

You can contact us via email with your specific requirements and order details, or initiate an order directly through our online system.

What is the standard lead time for production?

Typically, the lead time ranges from 15 to 35 days following the receipt of the initial deposit, depending on the order volume.

Do you offer customization for specific dimensions?

Yes, we specialize in customized products. We can design size and resistance values according to your specific technical requirements.

What is your quality assurance policy?

We provide 100% product quality protection. In the rare event of a quality defect, we offer an exchange to ensure your equipment remains operational.

What are the accepted payment terms?

We primarily accept T/T (Telegraphic Transfer) and PayPal. For alternative payment methods, please contact our support team for details.

Are your products compliant with international standards?

Yes, our production facility is ISO9001 certified, and we maintain a strict quality control process to ensure high-performance industrial standards.

Ready to Enhance Your System?

Welcome to contact us for technical support and professional solutions.
