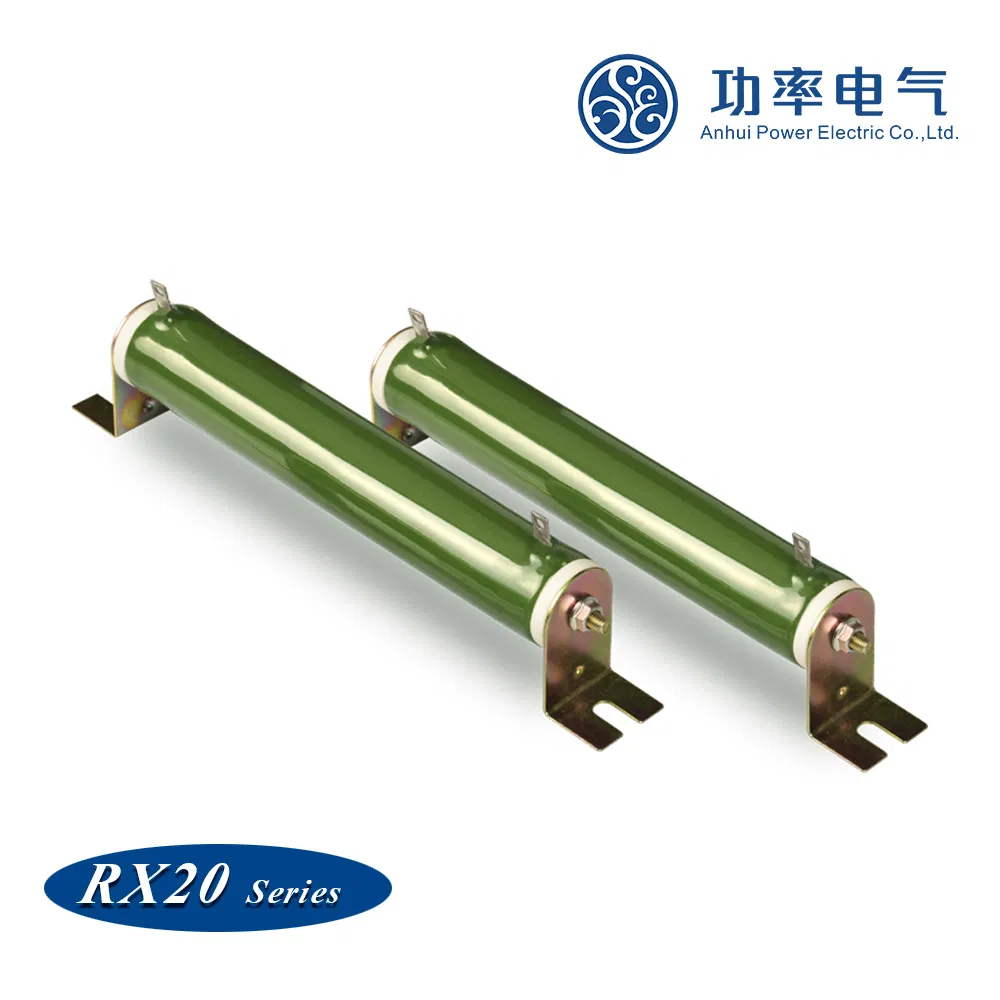

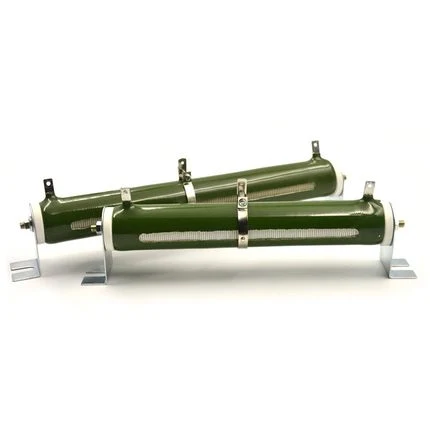

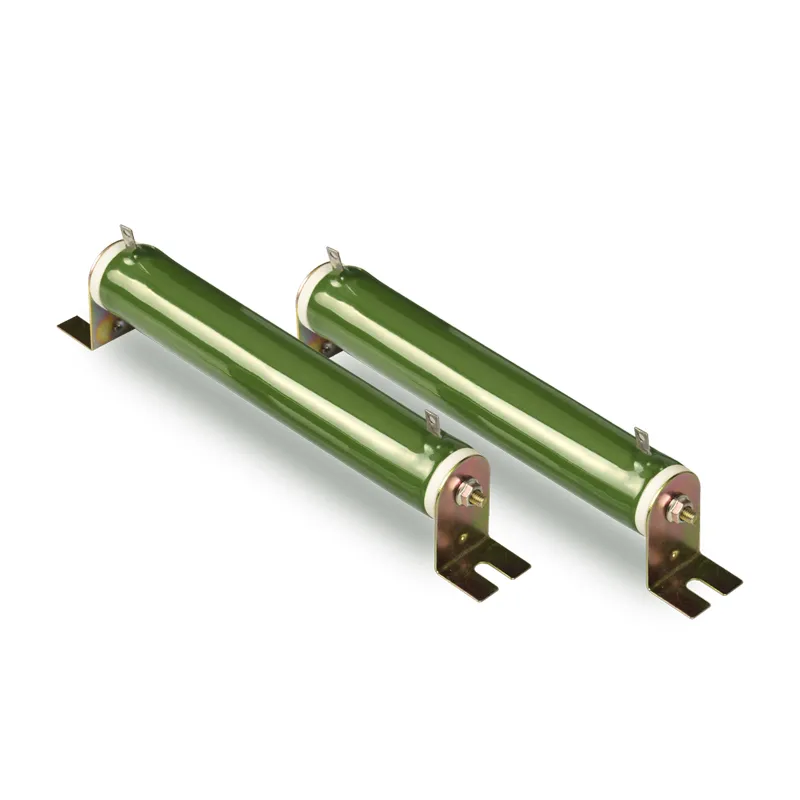

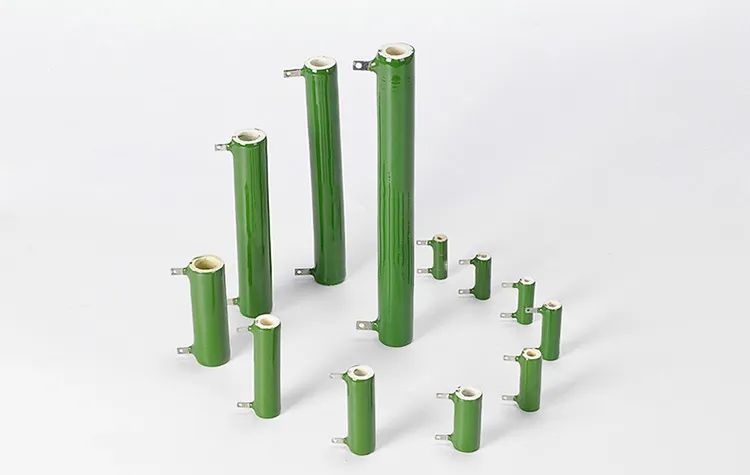

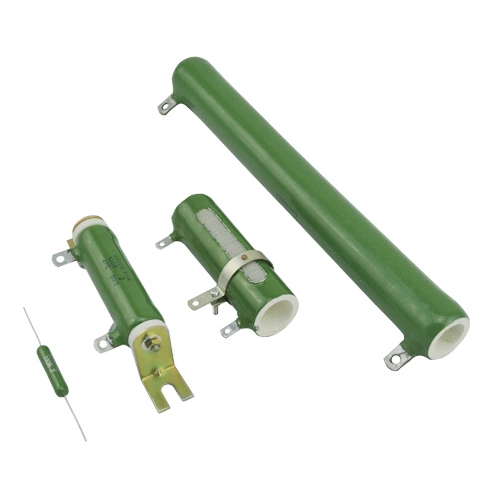

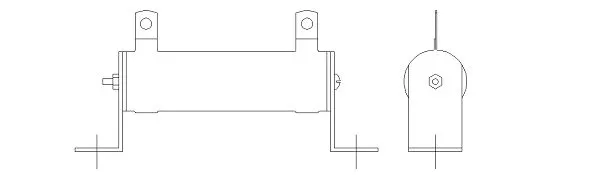

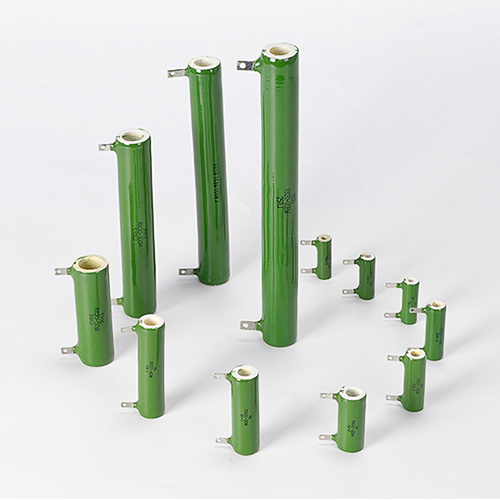

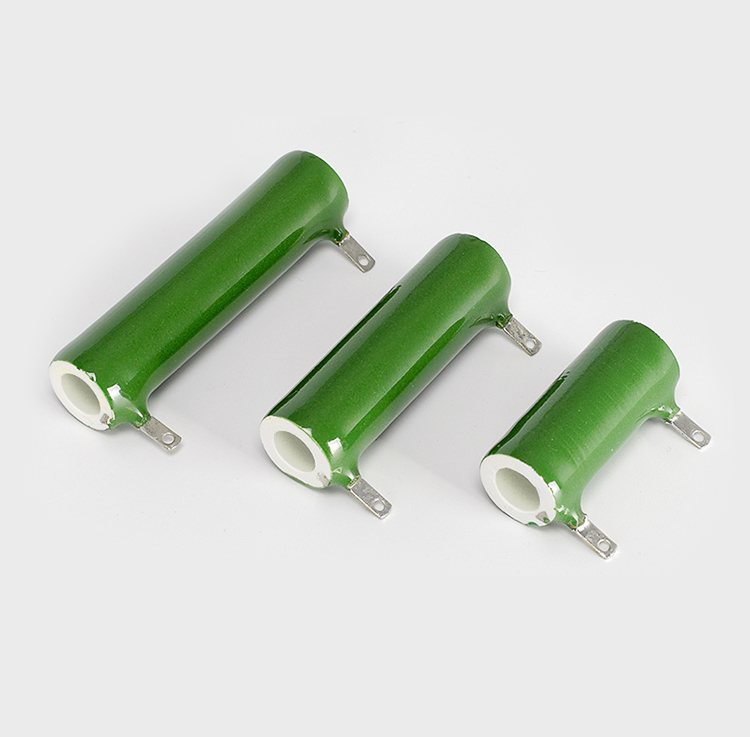

HT Type

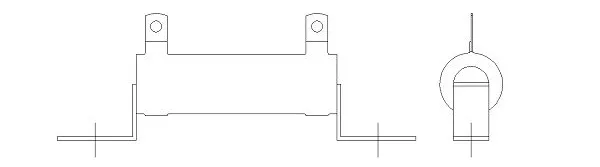

PI Type

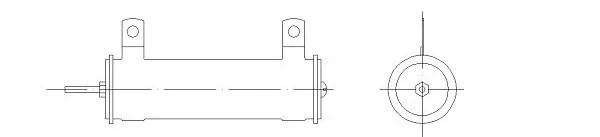

VT Type

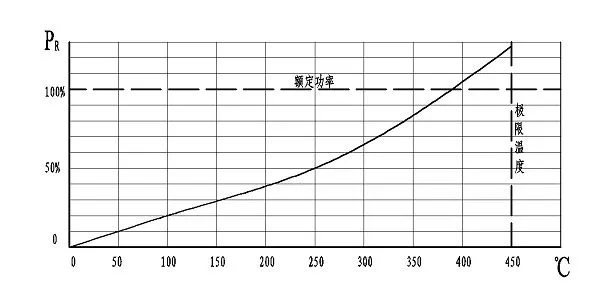

Surface temperature rise vs Power dissipation

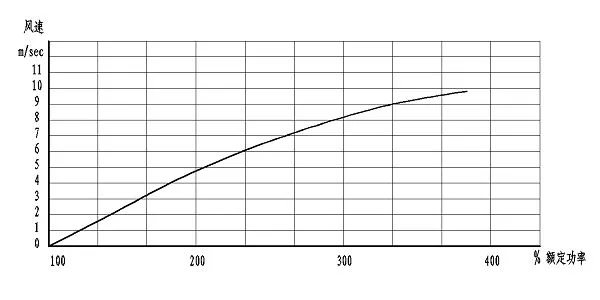

Overload with forced air cooling
| Test Item | Specifications | Test Methods |
|---|---|---|
| Short time overload | ΔR≤±(1%R+0.05Ω) | 10PR, 5S |
| Leaching | ΔR≤±(1%R+0.05Ω) | 375ºC±10ºC, 3.5±0.5s |
| Endurance | ΔR≤±(5%R+0.1Ω) | P15ºC-35ºC, PR, 1000h |
| Vibration | ΔR≤±(1%R+0.1Ω) | 10HZ-50HZ-10HZ, 2h |
| Surface temperature rise | ≤450ºC | PR |

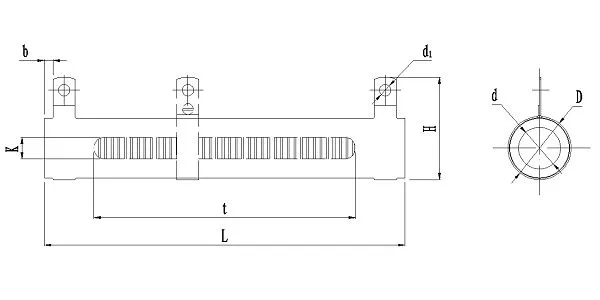

| Model | L | D | D1 | H | K | b | t | d1 |
|---|---|---|---|---|---|---|---|---|
| RX20-2.5 | 26 | 13 | 4 | 27 | 6+2 | 3.5 | 4.5 | 2 |
| RX20-8 | 34 | 14 | 5.5 | 28.5 | 6+2 | 3.5 | 4.5 | 2 |
| RX20-10 | 41 | 14 | 5.5 | 28.5 | 6+2 | 3.5 | 4.5 | 2 |
| RX20-50 | 91 | 29 | 20 | 43 | 7+2 | 4.5 | 6 | 3.2 |
| RX20-100 | 170 | 29 | 20 | 43 | 7+2 | 4.5 | 6 | 3.2 |
| RX20-300 | 267 | 34 | 20 | 49 | 7+2 | 6 | 10 | 5 |
