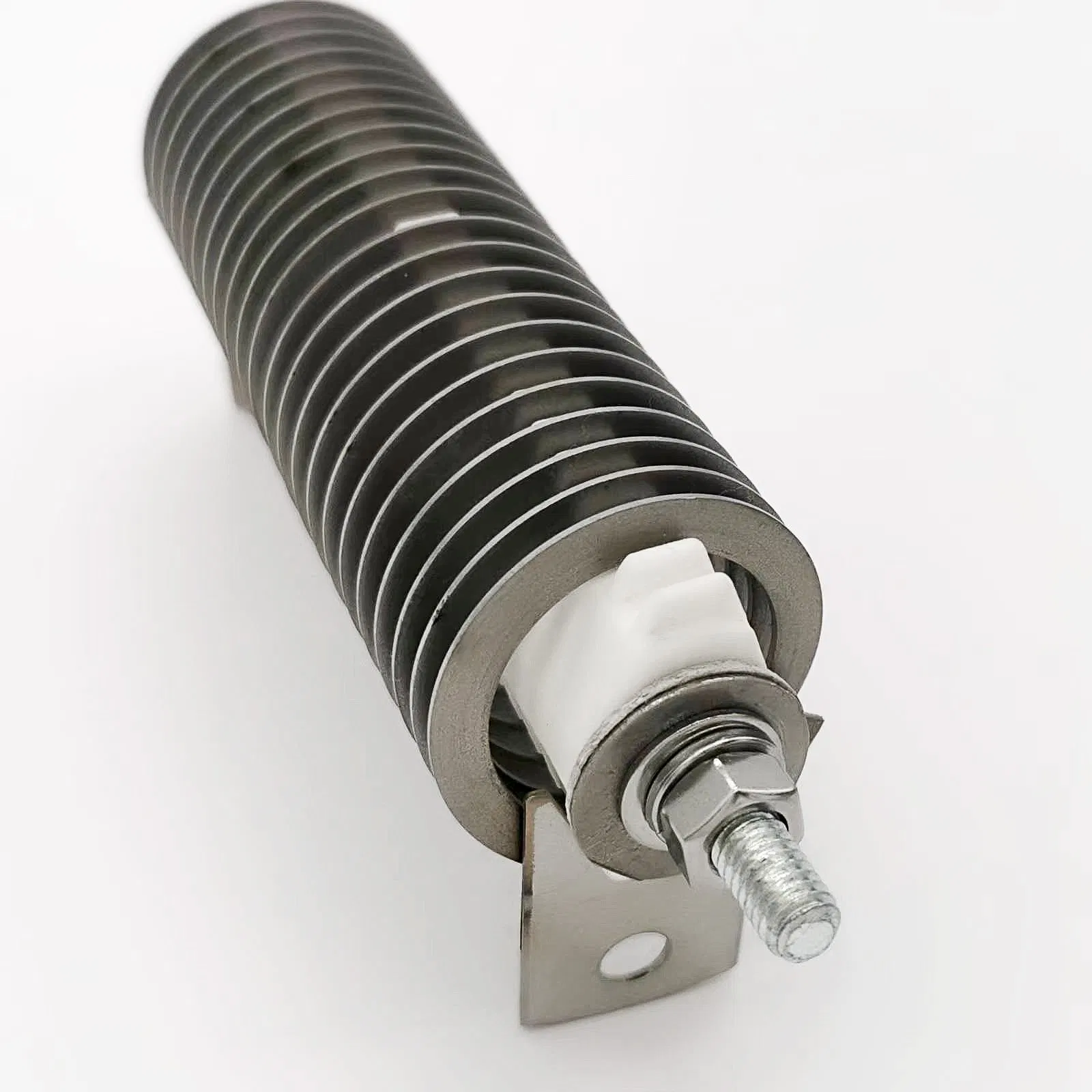

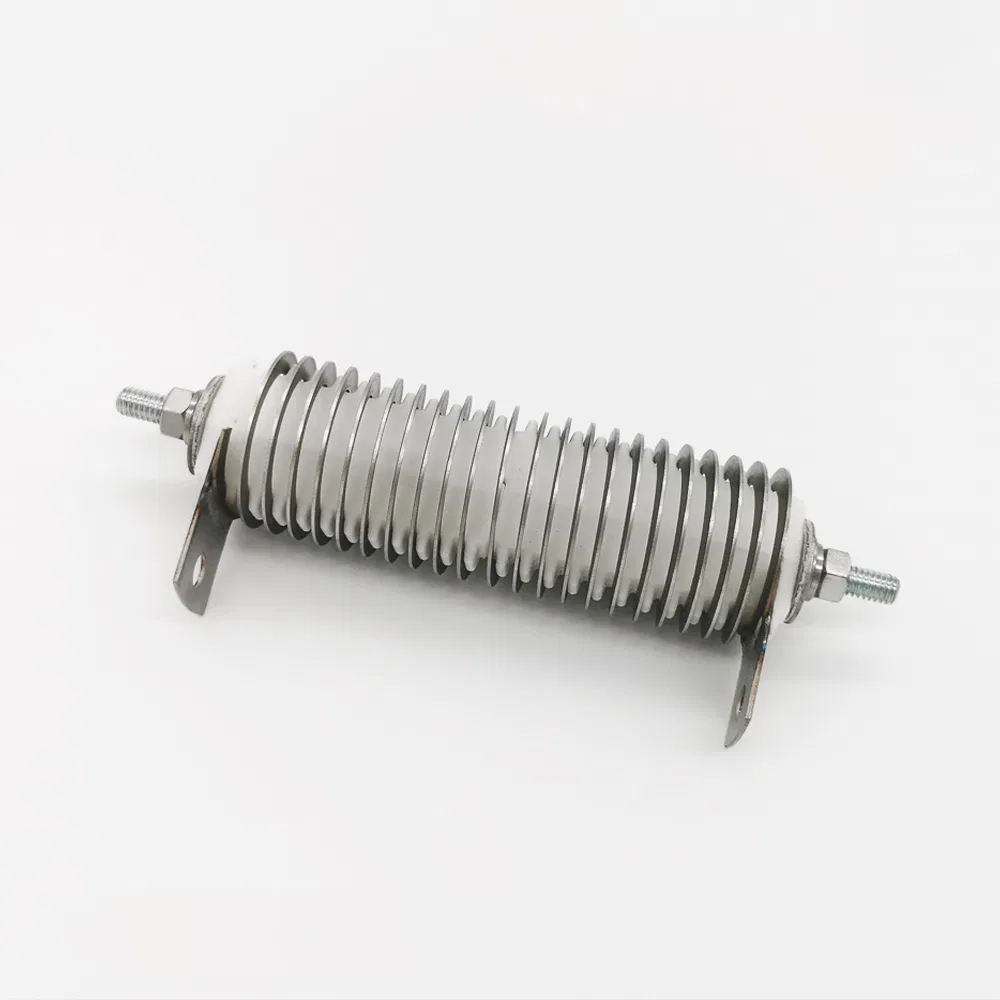

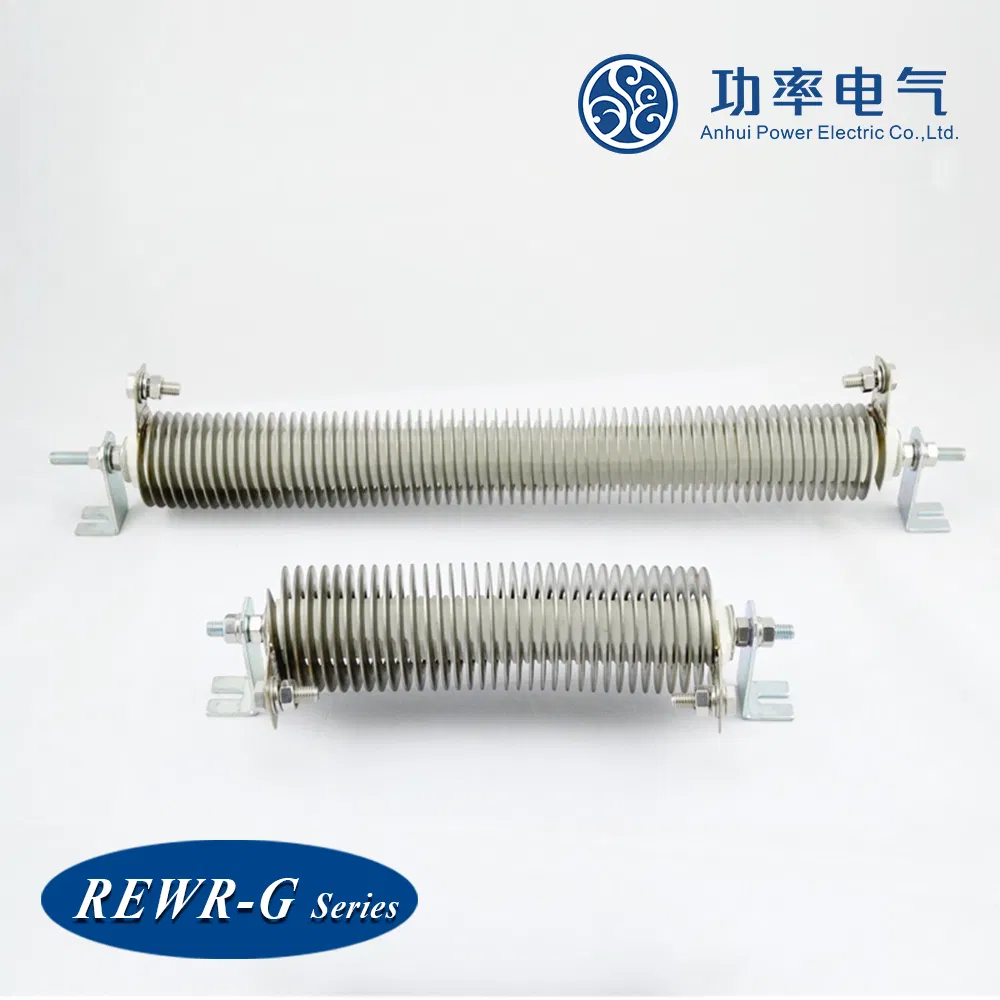

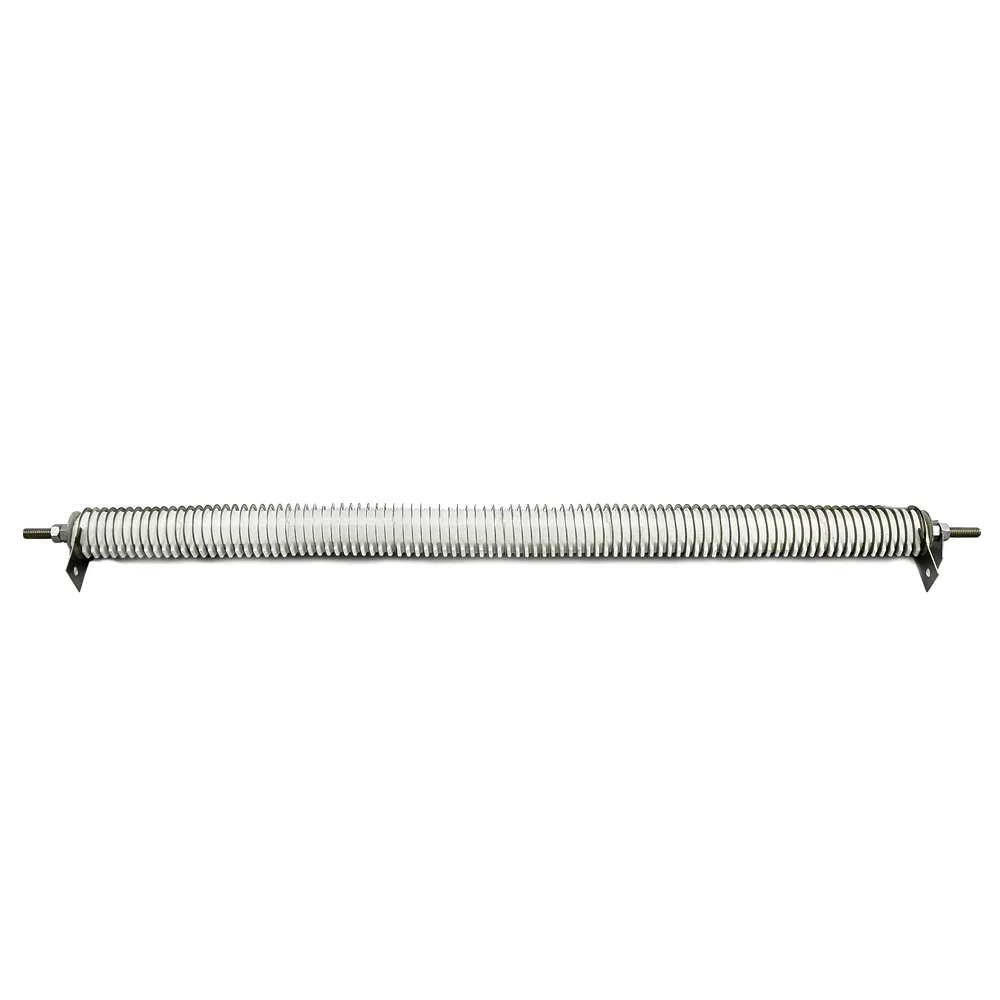

High Power Circular Edge Wound Resistor (REWR-G Series)

Basic Specifications

Model NO.

REWR-G Series

Material

Resistance Alloy & Ceramic Bracket

Installation

Assemble / Surface Mount

Type

Edge Wound Resistor

Shape

Circular / Helix

Application

Wind Power, VFD Braking, Load Banks

Certificate

ISO9001

Overload

≤±(2%R+0.05Ω)

HS Code

8533900000

Capacity

100,000 PCS/Year

Product Characteristics

⚙️

The resistance body is made of stable resistance alloy. The ribbon element is wound on edge in the form of a helix and spun onto a high-grade ceramic bracket.

🌡️

High temperature tolerance: The continuous surface temperature does not exceed 375ºC, ensuring stability in extreme conditions.

🛠️

Versatile Applications: REWR-G series are ideal for VFD braking, motor control, load banks, and neutral grounding.

🎨

Customization: Product size and resistance values can be customized to specific engineering requirements.

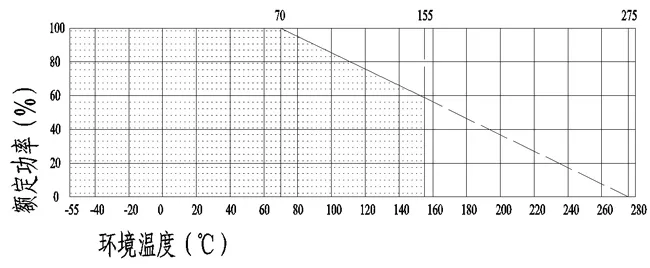

Outline & Derating Curve

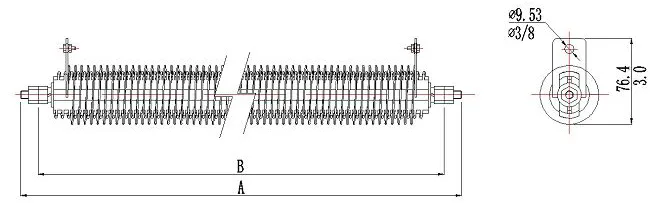

Dimensions (in./mm)

Size	A Over-all		Dimensions
Size	mm	inch	mm	inch
2	228.6	9	177.8	7
3	285.75	11.25	254	10
4	381	15	330.2	13
5	438.15	17.25	406.4	16
6	615.95	24.25	457.2	18
9	838.2	33	711.2	28

Technical Specifications

Test Item	Specifications	Test Methods
Temperature Change	Δ≤±5%	20ºC - 375ºC
Terminal Tensile Strength	Δ≤±(2%R+0.05Ω)	45N, 30S
Overload	Δ≤±(2%R+0.05Ω)	10PR, 5S

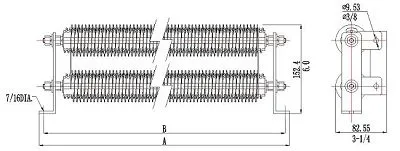

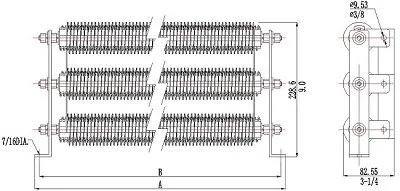

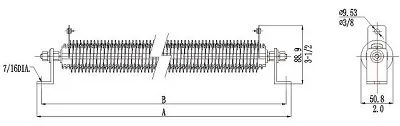

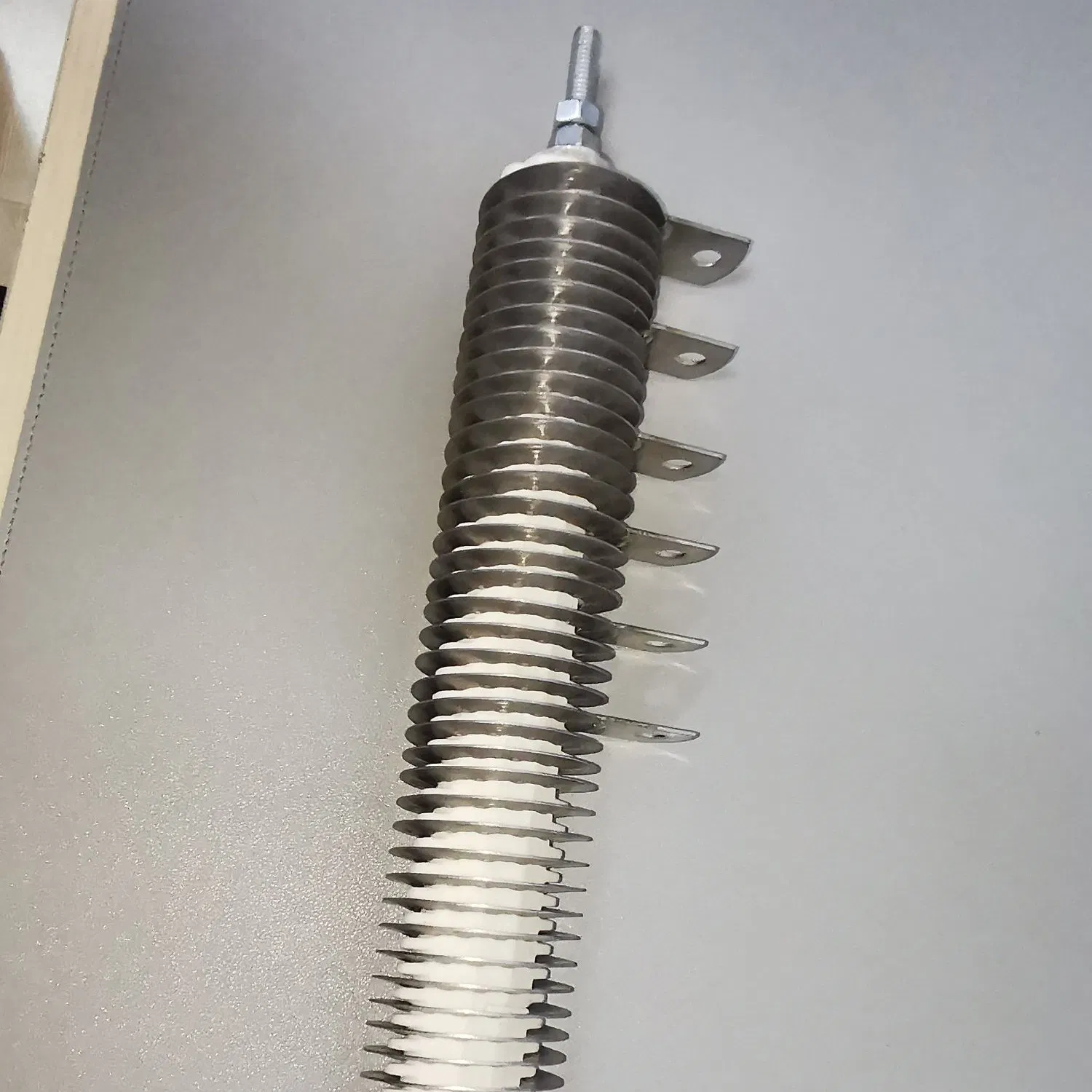

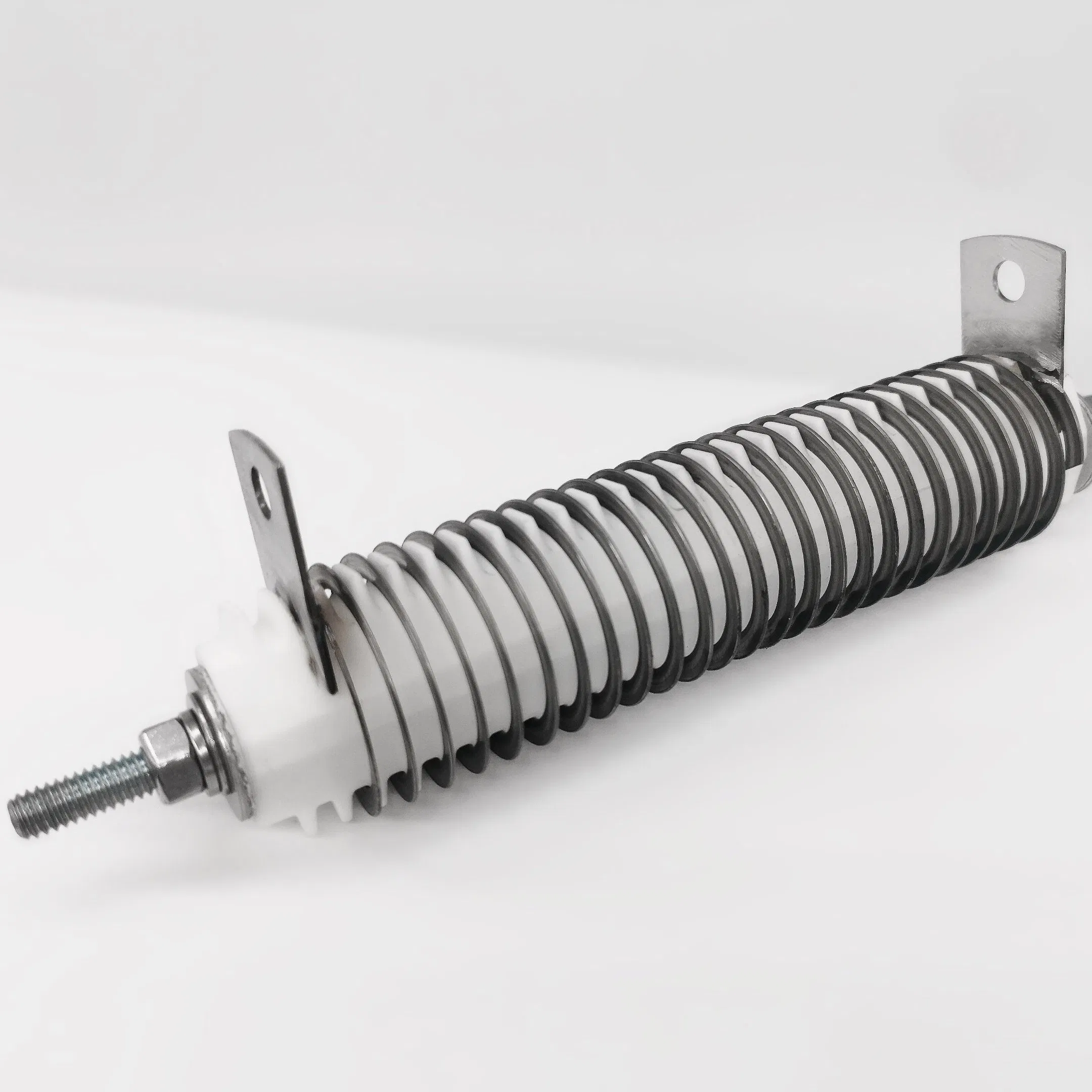

Bracket Assembly Options

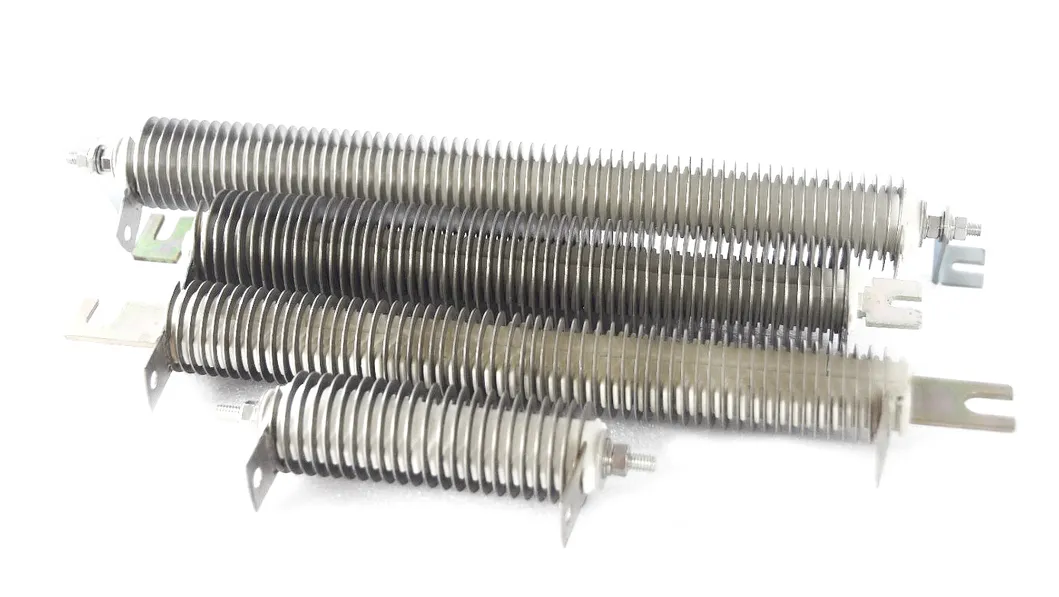

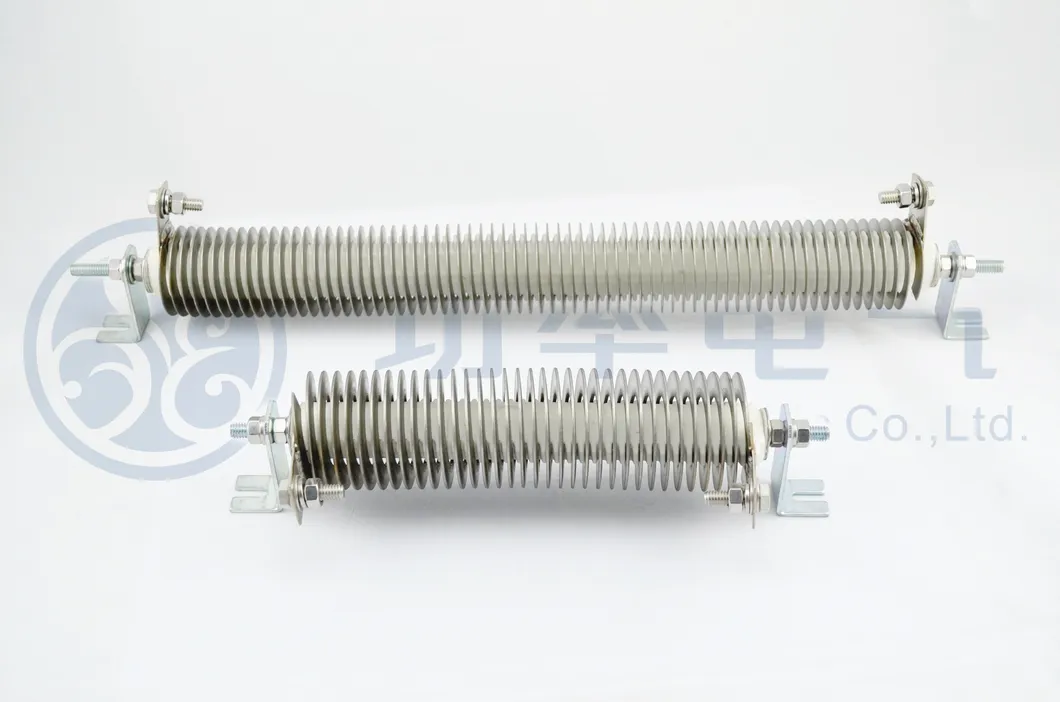

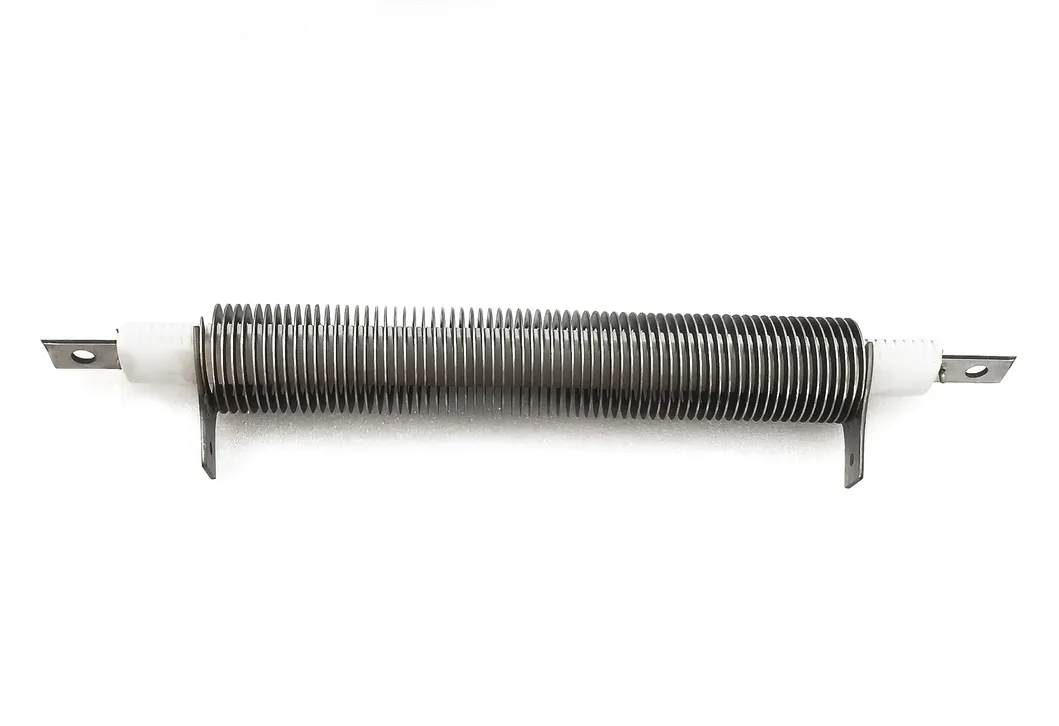

Product Gallery

Packaging & Delivery

Packed with thin film, pearl cotton, and finally wooden cases to ensure maximum protection during international transportation.
