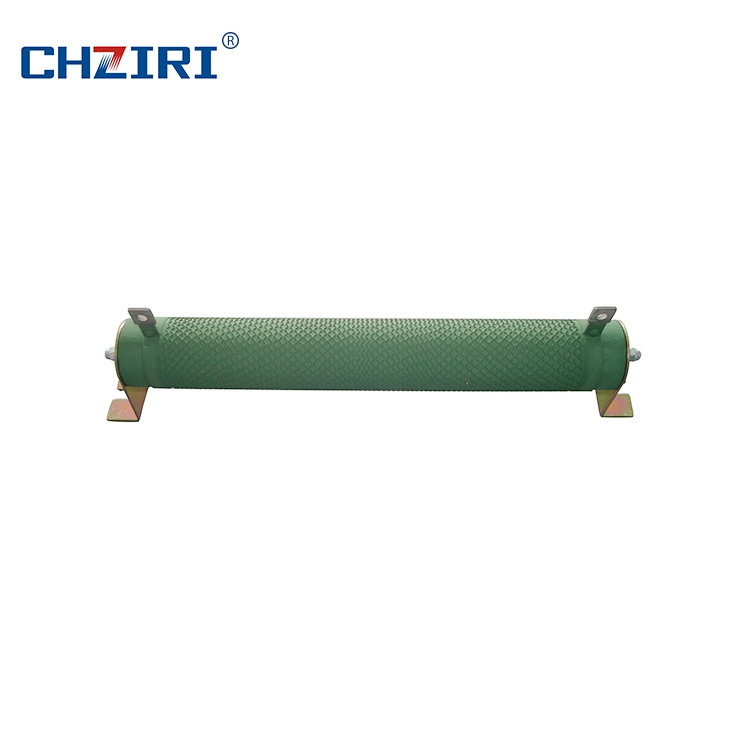

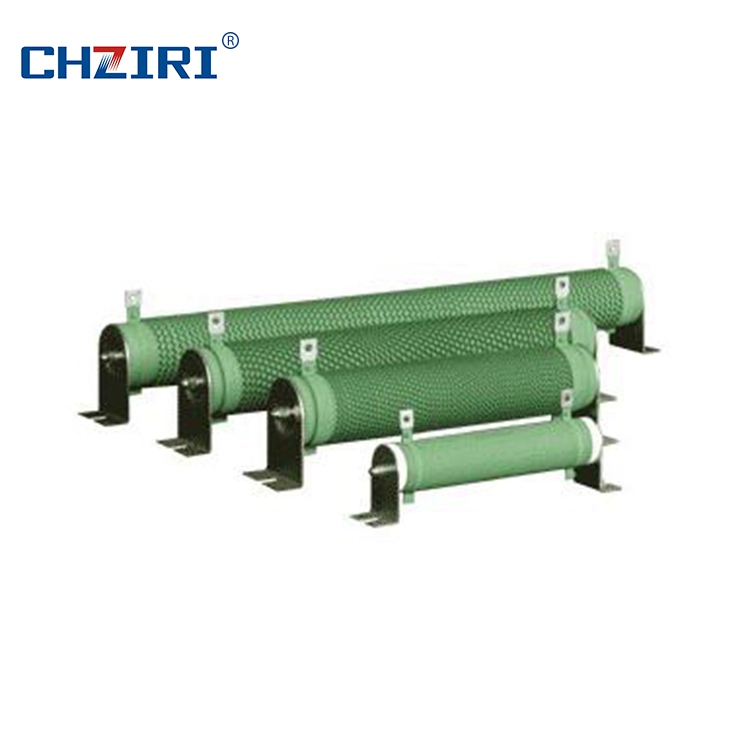

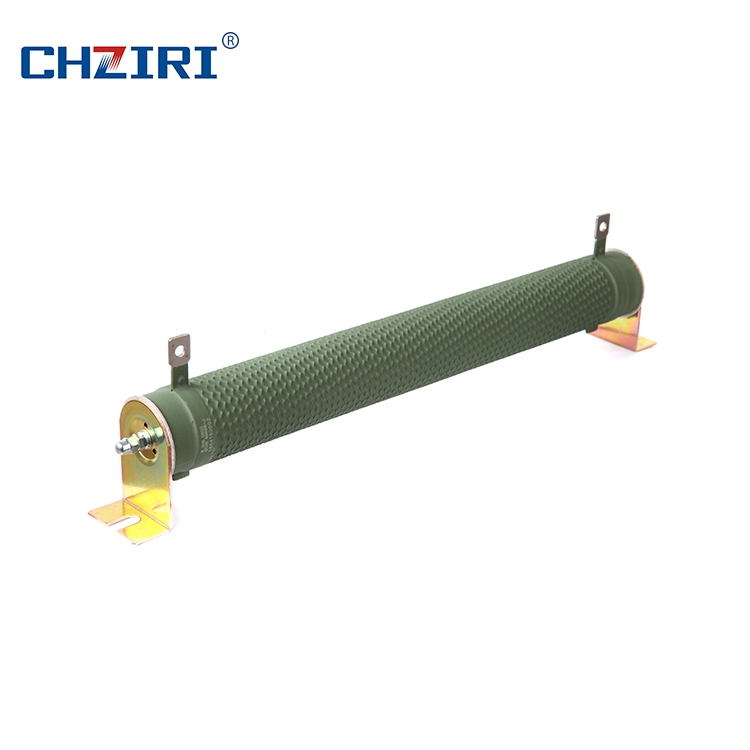

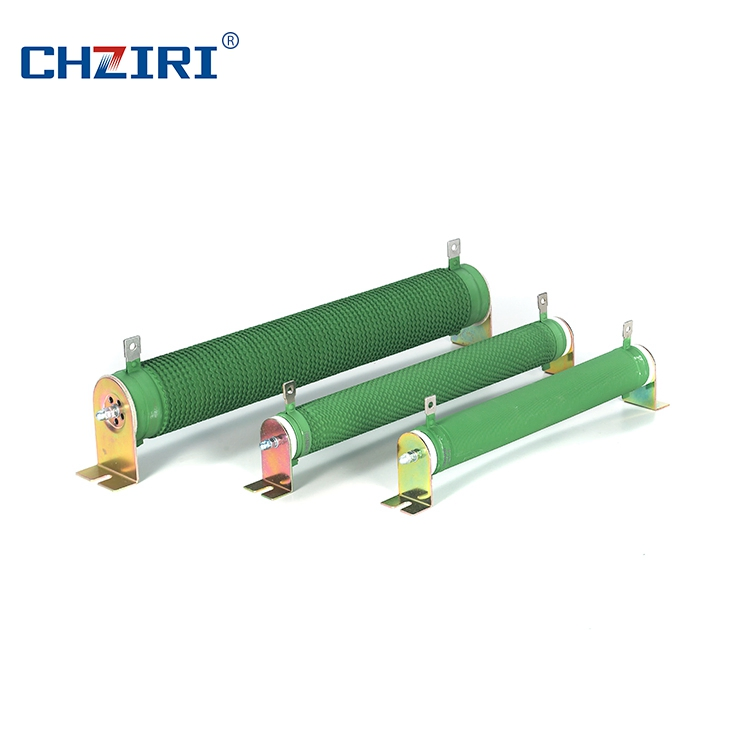

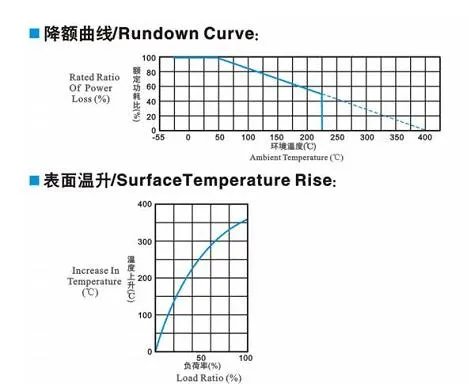

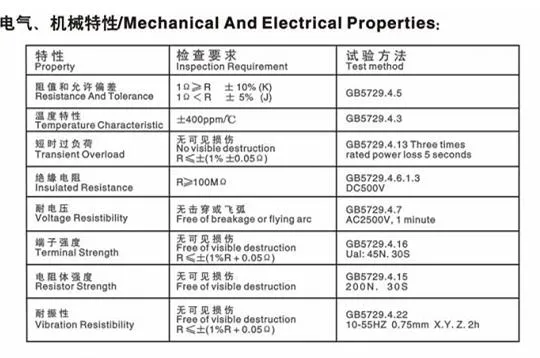

The wirewound resistor is constructed by securing two leading-out terminals on a cylindrical ceramic tube, which is coiled with a bandlet and wave-shaped alloy resistance wire. The surface of the ceramic tube is coated with a layer that is resistant to flaming and high temperatures. Acting as the framework for the resistance wire, the ceramic tube also serves as an efficient radiator.

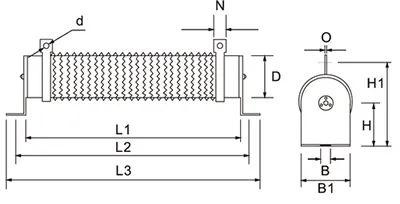

| Rated power (w) | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | D | B | B1 | H | H1 | N | d | O | |
| 50 | 102 | 124 | 146 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 100 | 182 | 204 | 226 | 28 | 6.5 | 28 | 28 | 61 | 10 | 4.5 | 1.2 |
| 500 | 316 | 338 | 360 | 50 | 8 | 50 | 45 | 101 | 16 | 6 | 2.0 |
| 1000 | 300 | 325 | 350 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |
| 2500 | 600 | 625 | 650 | 60 | 8.5 | 60 | 60 | 119 | 16 | 6 | 2.0 |

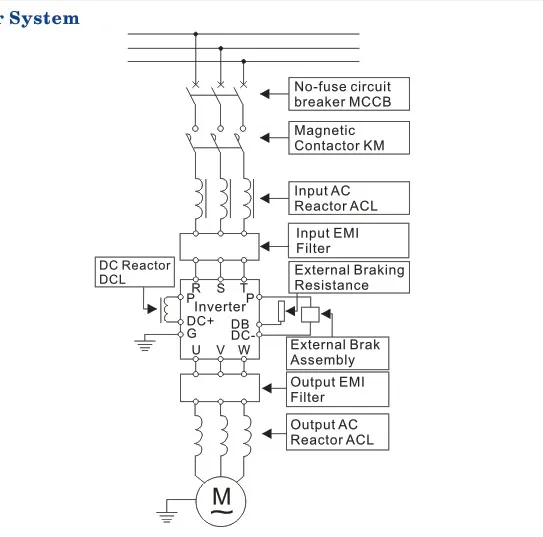

RXHG resistors support various brands of VFD Inverters. They are typically used in conjunction with braking units to achieve faster deceleration and stop times.
