Sunark 10kw Hybrid Solar Power System off Grid 5kw 20kw 30kw Complete Solar Kit for Home 15kw

1 / 5

Sunark 10kw Hybrid Solar Power System off Grid 5kw 20kw 30kw Complete Solar Kit for Home 15kw

Customization:	Available
After-sales Service:	Yes
Warranty:	5 Yeras

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

SE-HY 3-30Kw

Condition

New

Certification

ISO, CB, CE, TUV

Application

Home Residential

Specification

Normal, 3-30KW

Solar Panel

Monocrystalline 400-700W

Solar Inverter

Hybrid 3-30kw

Battery Type

Gel / LiFePO4 Lithium Battery

Transport Package

Wooden Box

Production Capacity

5000 Set/Week

🔍

Product Description

Warranty Information

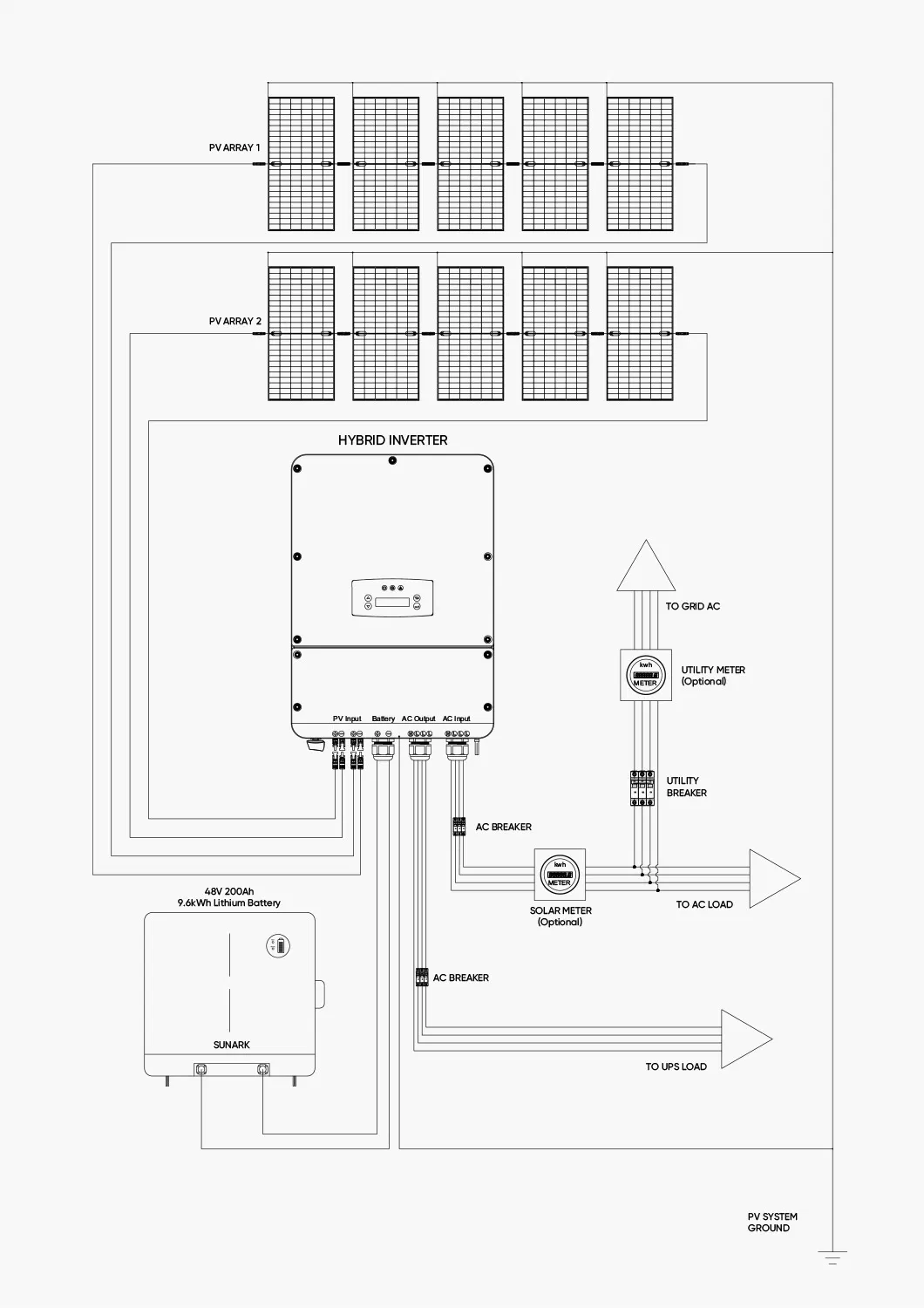

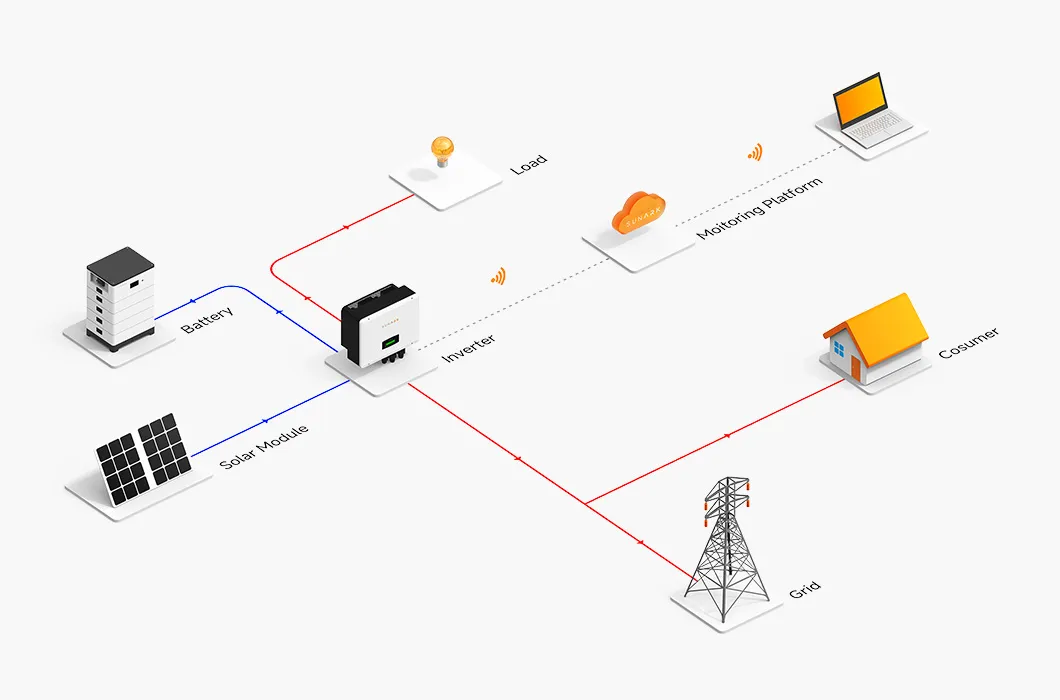

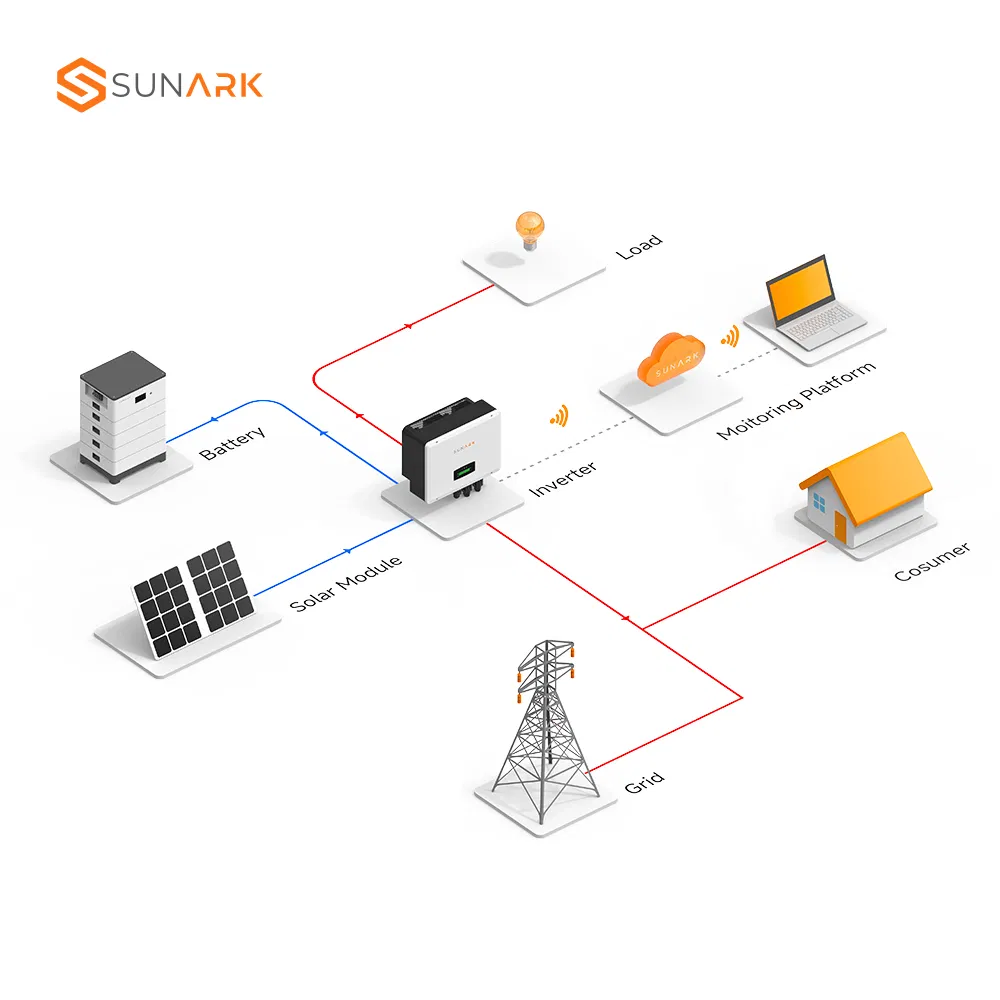

System Workflow

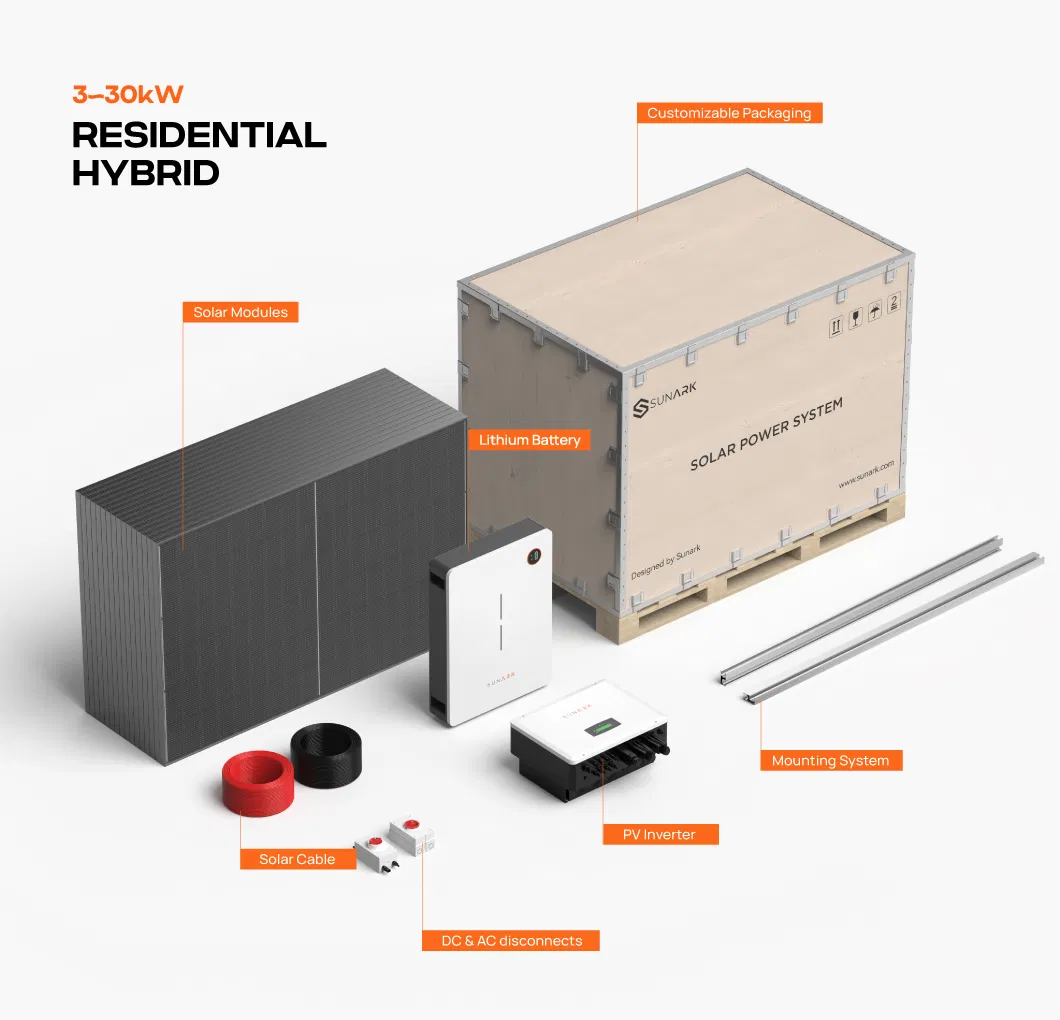

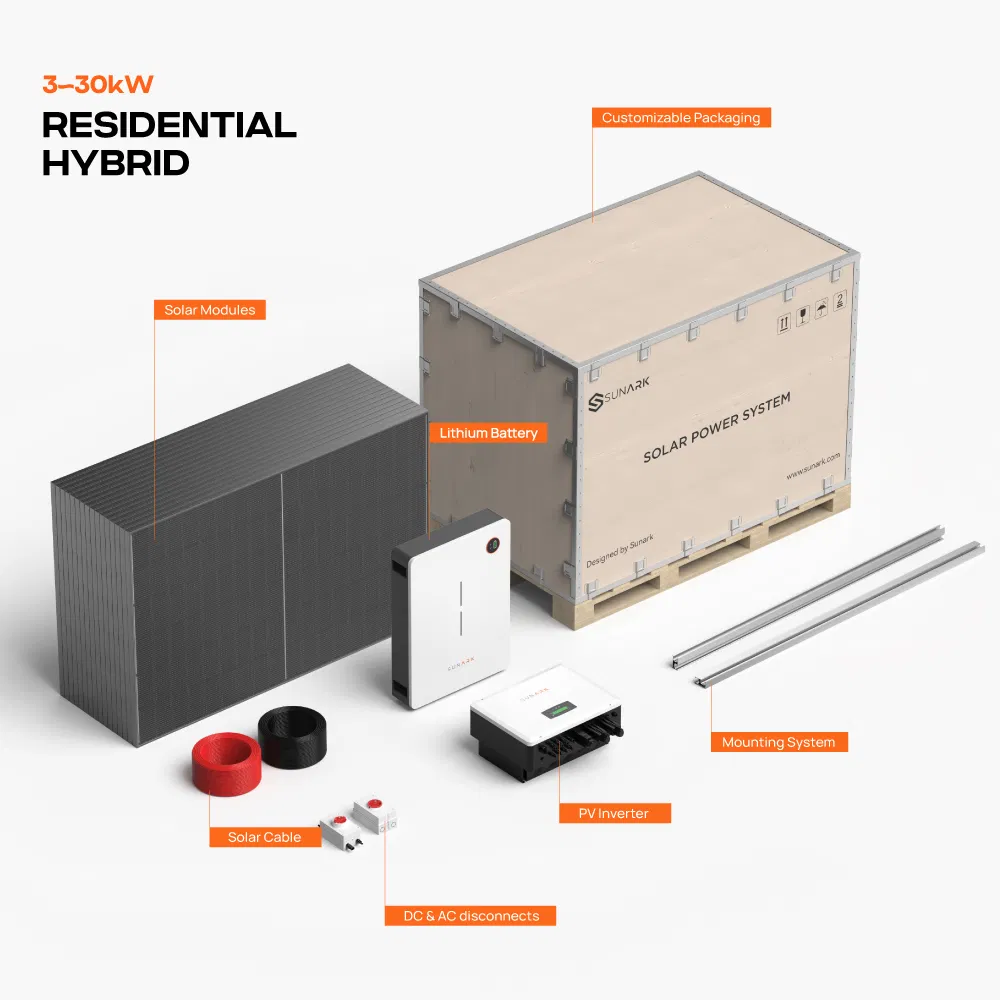

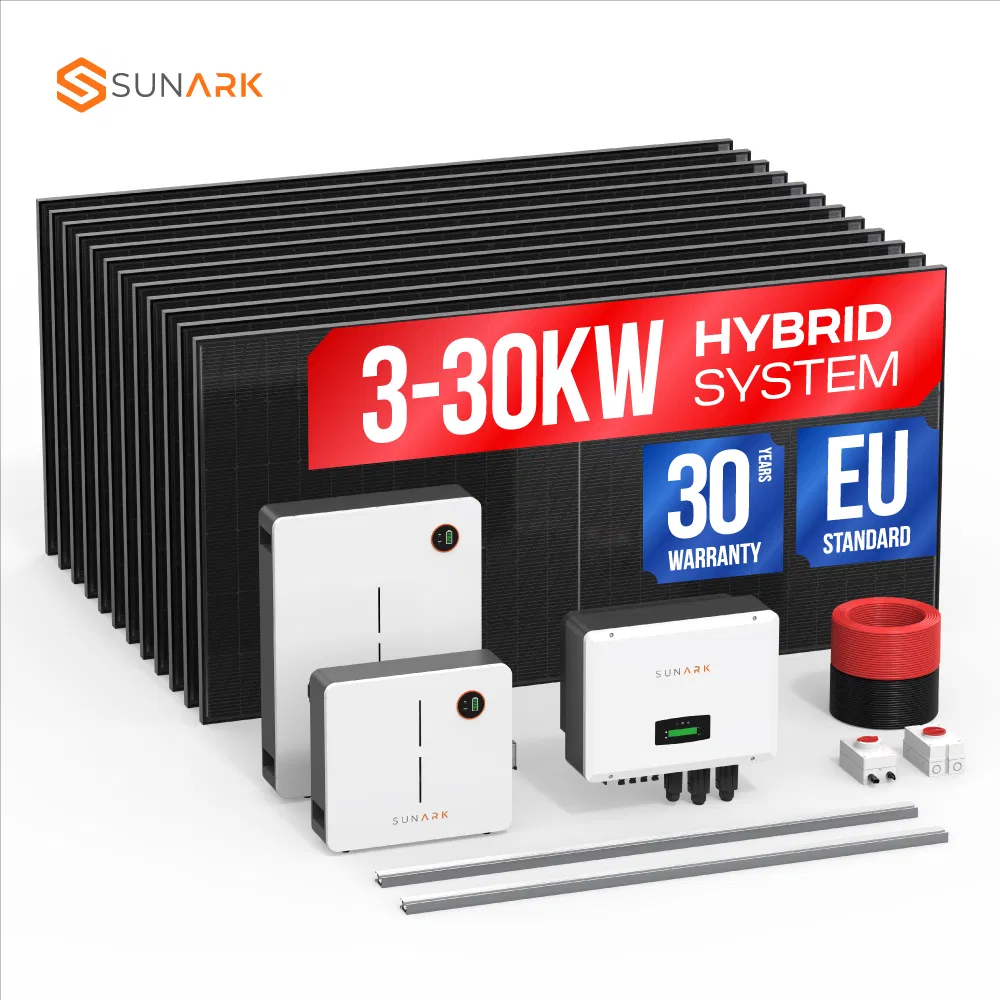

System Components & Models

Model	SE-3KW-HY	SE-5KW-HY	SE-10KW3-HY
Mono 550W Panels	6 pcs	10 pcs	20 pcs
Hybrid Inverter	1 pc	1 pc	1 pc
Lithium Battery 48V	1 pc	1 pc	1 pc
PV Cable 4mm2	100m	100m	200m
Accessories	Included	Included	Included

Model	SE-20KW3-HY	SE-30KW3-HY	SE-50KW3-HY
Mono 550W Panels	40 pcs	60 pcs	100 pcs
Hybrid Inverter	1 pc	1 pc	1 pc
Lithium Battery 48V	2 pcs	3 pcs	5 pcs
PV Cable 4mm2	300m	500m	1000m
Roof Mounting	1 set	1 set	1 set

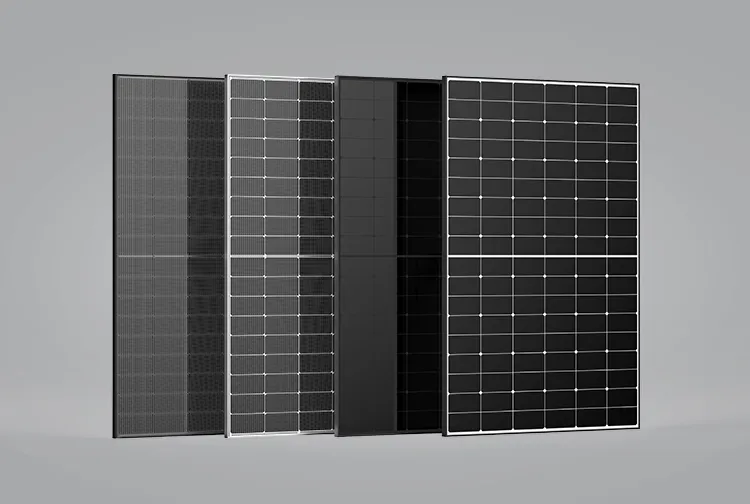

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Dimensions: 2279x1134x35mm
Weight: 26.9Kg

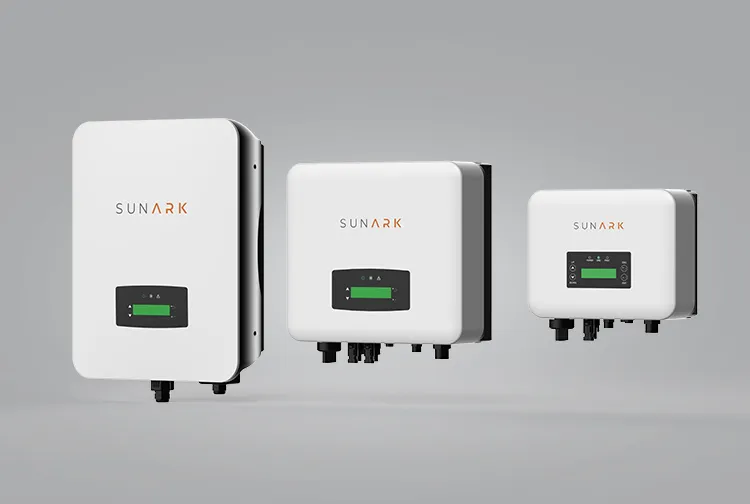

Hybrid Solar Inverter

Support both single phase and three phase, transformer isolation design. Different modes make system work more efficiency.
Max. charging/discharging current: 240A
Parallel Capability: Max. 6pcs

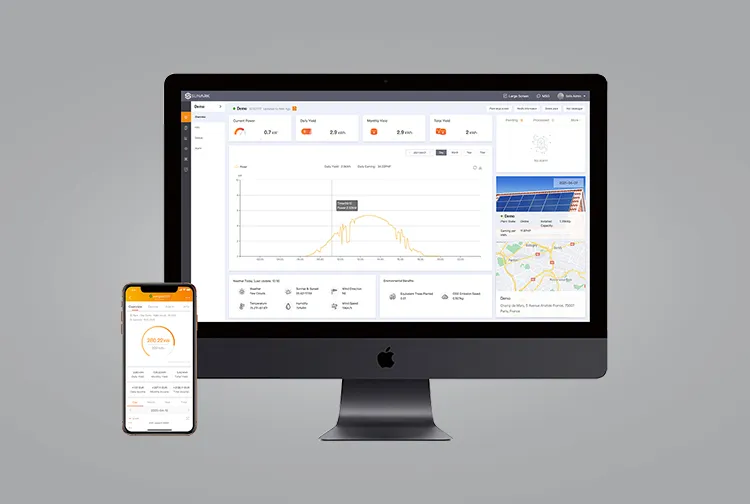

Intelligent Monitoring System

One-click installation and registration. Problem support one-click dispatch and navigation. Full lifecycle data storage to ensure security and reliability.

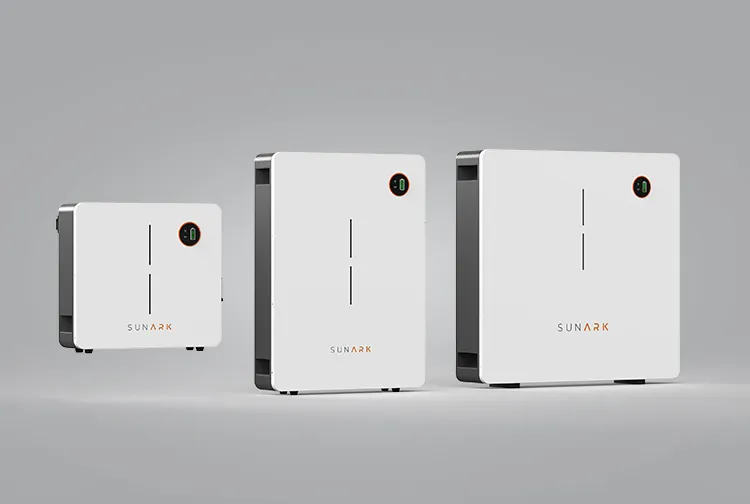

LiFePo4 Battery Bank

15-20 years design life. Up to 6000+ cycle life. Wall mount or ground stack design. Scalable for larger storage requirements. Built-in high quality BMS.

🏠

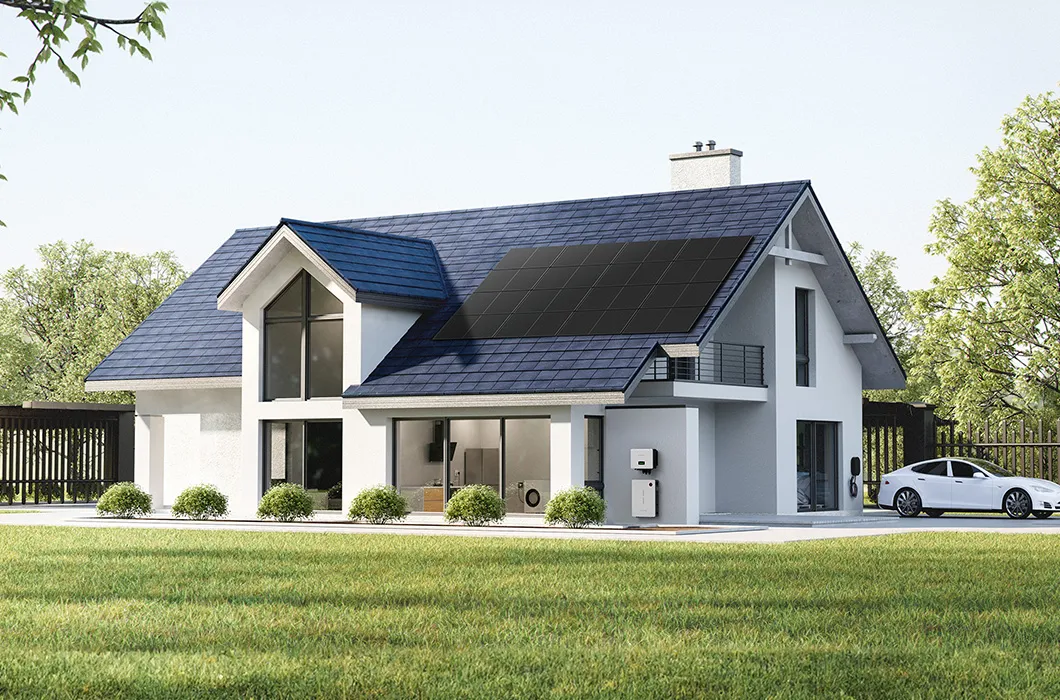

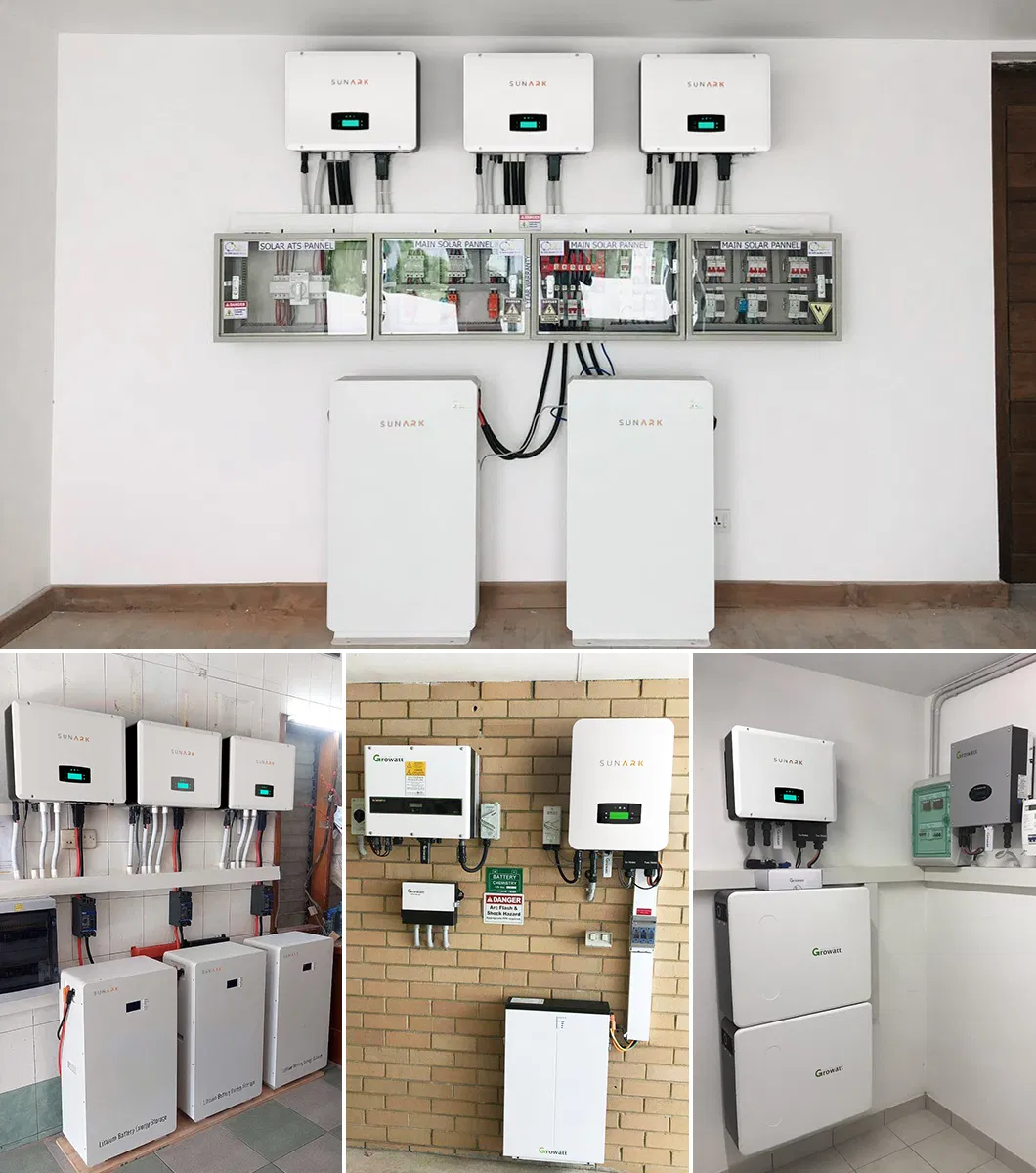

Applications & Case Study

Professional Packaging

🏭

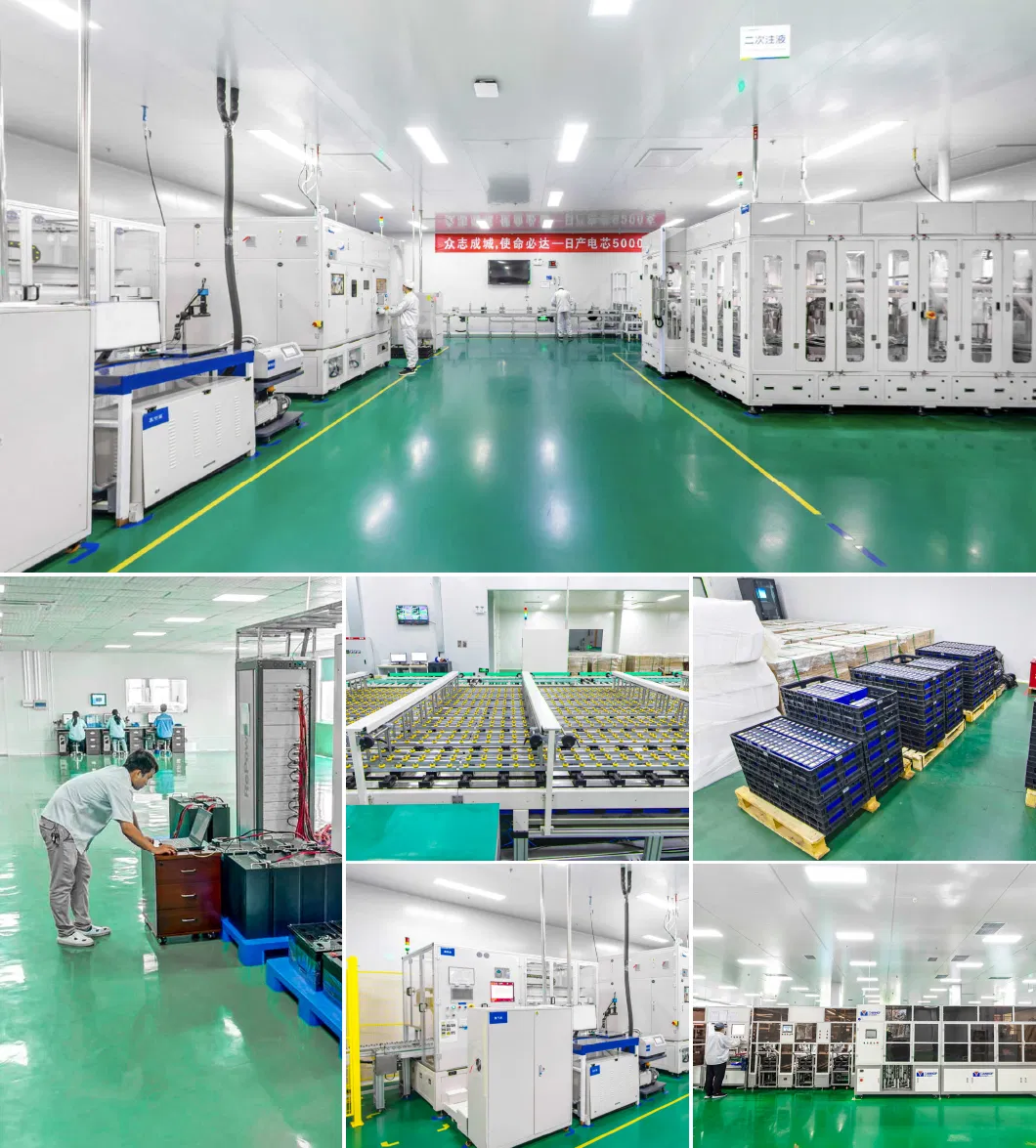

Manufacturing & Projects

🏢

Quality Control & Certificates

❓

Frequently Asked Questions

What is included in a complete residential hybrid solar system?

A complete kit typically includes high-efficiency monocrystalline solar panels, a hybrid solar inverter, LiFePO4 lithium batteries, PV cables, mounting structures, and necessary tools for assembly.

What is the expected lifespan of the battery bank?

The low voltage LiFePO4 battery banks are designed for a 15-20 year service life, supporting over 6,000 charge cycles.

Does the system support remote monitoring?

Yes, the system includes an intelligent monitoring platform that allows for real-time data tracking and one-click registration via a mobile app or web portal.

Can this hybrid system work off-grid?

Yes, hybrid systems are designed to manage power from the solar panels, battery storage, and the utility grid, allowing for full off-grid operation during power outages.

What certifications do the products carry?

Our systems are fully certified with ISO, CB, CE, and TUV standards, ensuring safety and performance for residential applications.

Is the mounting system compatible with different roof types?

The PV mounting system is versatile and includes options for asphalt shingles, tile roofs, and metal roofs using adjustable rails and clamps.
