Product Description

📊 Basic Info.
Model NO.
DKG-105
Output Type
AC Single Phase
Cooling Method
Water Cooling
Installation
Fixed
Generator Type
Diesel Generator
Color
Black
Warranty
1 Year
Delivery
After Paid 2 days
Language
Multiple Language
Application
Diesel or Gas Generator
Package
Carton
Origin
China
📝 Product Description

Automatic Genset/Diesel Industrial Generator Set Smart Controller DKG-105

DKG-105 Controller: The Automatic Mains Failure Monitoring Control Unit DKG-105 is designed to monitor incoming mains (utility) supplies and instruct gen-sets to start when power is unavailable. It includes intelligent control, monitoring, and protection features for both standard and electronic engine gen-set applications.

Safety Protections: The engine will stop immediately upon detection of: Overspeed, Underspeed, High engine temperature, Low oil pressure, or Auxiliary shutdown.

⚙️ Technical Specifications
SPECIFICATION DETAILS
Alternator Voltage277VAC(Ph-N)
Alternator Frequency0-100 Hz
DC Supply Range9 to 33 V-DC (4.0-33vdc while cranking)
Current Consumption60 mADC typical / 200 mADC max.
Total DC Current Rating10ADC
Total AC Current Rating10AAC
Operating Temperature-20°C (-4°F) to 70 °C (158°F)
Dimensions72x72x76mm (WxHxD)
Mounting Opening68x68 mm
Weight240g (approx.)
🛠️ System Functions
Control Functions Protection Functions Data Display
Auto-test Commercial powerLow-Lubrication OilBattery Voltage
Emergency StopCharging failureOil pressure
Manual Start/STOPOver Voltage / Over loadOperation Time
Long-Distance Start/StopHigh water temperatureFrequency
Auto quit of Start motorOver/Low frequencyVoltage
Double power switch transferStart/Stop FailureSpeed / Water Temp
🔍 Product Details

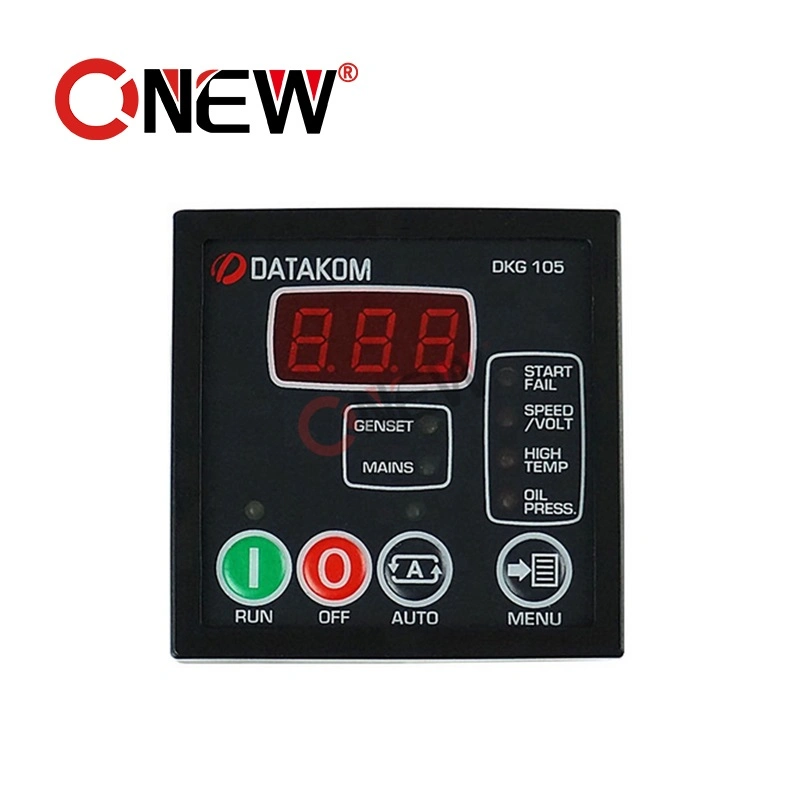

DKG-105 Main View
DKG-105 Detail 1
DKG-105 Detail 2

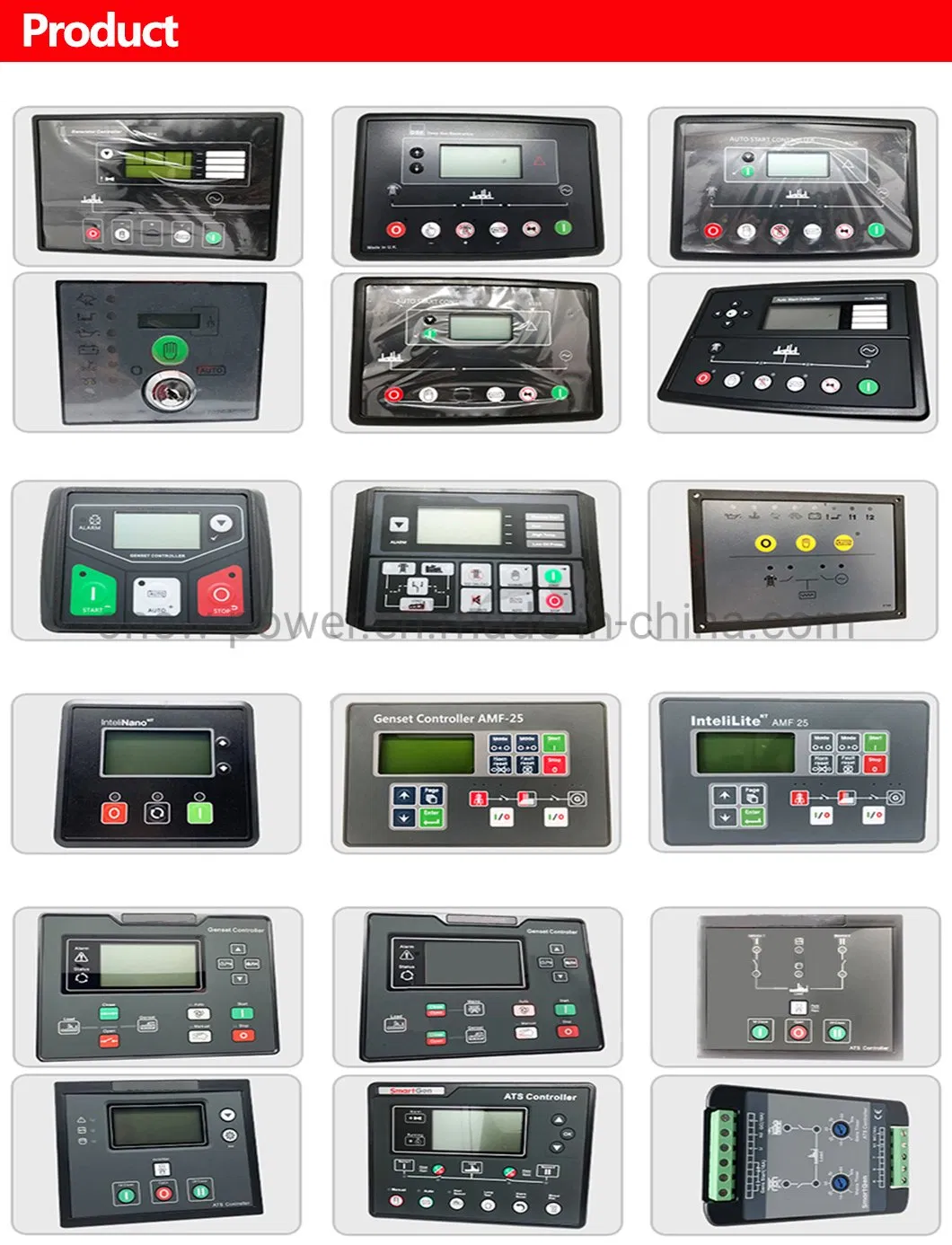

DKG-105 Detail 3
DKG-105 View 4
DKG-105 View 5
DKG-105 View 6
DKG-105 View 7
DKG-105 View 8
DKG-105 View 9
🛡️ Warranty & Quality
  • ✅ Strict Testing: All products are tested strictly one by one before delivery.
  • ✅ Quality Standards: High-level production processes and quality standards guarantee excellence.
  • ✅ Warranty Period: 12 months from the date of shipping (excludes human damage).
  • ✅ Service Support: We offer free components for service to help resolve any technical issues.
  • ✅ Secure Packaging: All items are professionally packaged to prevent transit damage.
❓ FAQ
1. What is the primary function of the DKG-105 controller?
The DKG-105 is an Automatic Mains Failure unit that monitors utility power and automatically starts the generator set when the mains supply fails.
2. Which engine fault conditions will trigger an automatic shutdown?
The controller will stop the engine immediately in cases of overspeed, underspeed, high engine temperature, low oil pressure, or auxiliary shutdown signals.
3. What is the power supply range for this unit?
The DC supply range is 9 to 33 V-DC, and it can maintain operation down to 4.0 V-DC during engine cranking.
4. Can this controller be used for both diesel and gas generators?
Yes, the DKG-105 is versatile and suitable for both diesel and gas industrial generator applications.
5. How long is the product warranty?
We provide a 12-month warranty from the date of shipping, covering manufacturing defects and providing free service components.
6. What is the typical lead time for shipping?
Orders are typically prepared and ready for shipment within 1-2 days after payment confirmation.
