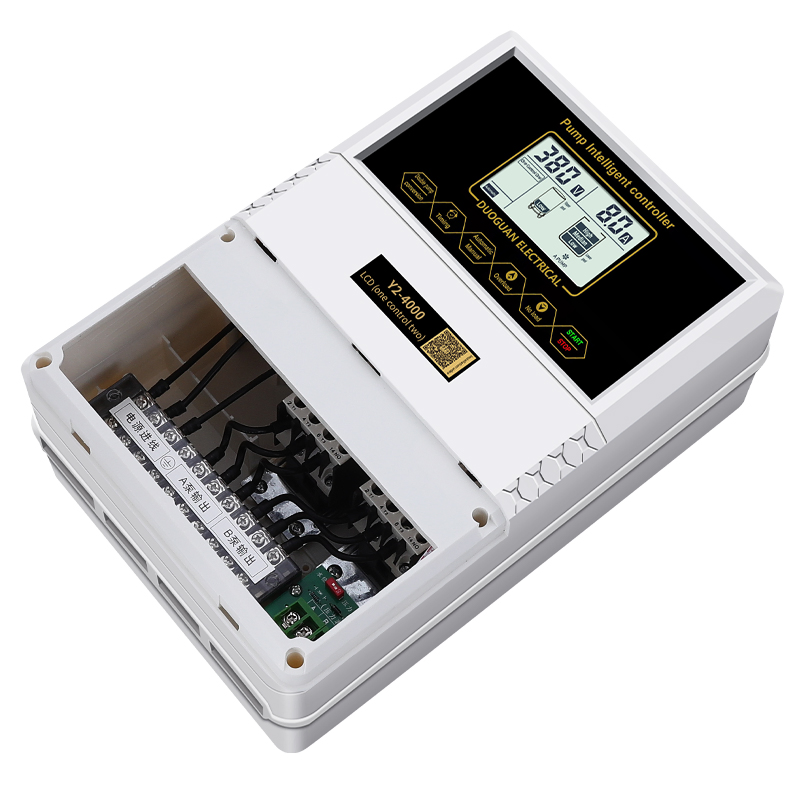

| Model NO. | Y2-4KW |
| Function | Automatic Control, Protection, Monitoring, Measurement |
| Material | ABS |
| Input Voltage | AC220-240V, Single-Phase |
| Pump Power | 0.75-4kw |
| Protection | Pump Stalled / Dry Run / Phase Loss / Over-voltage |

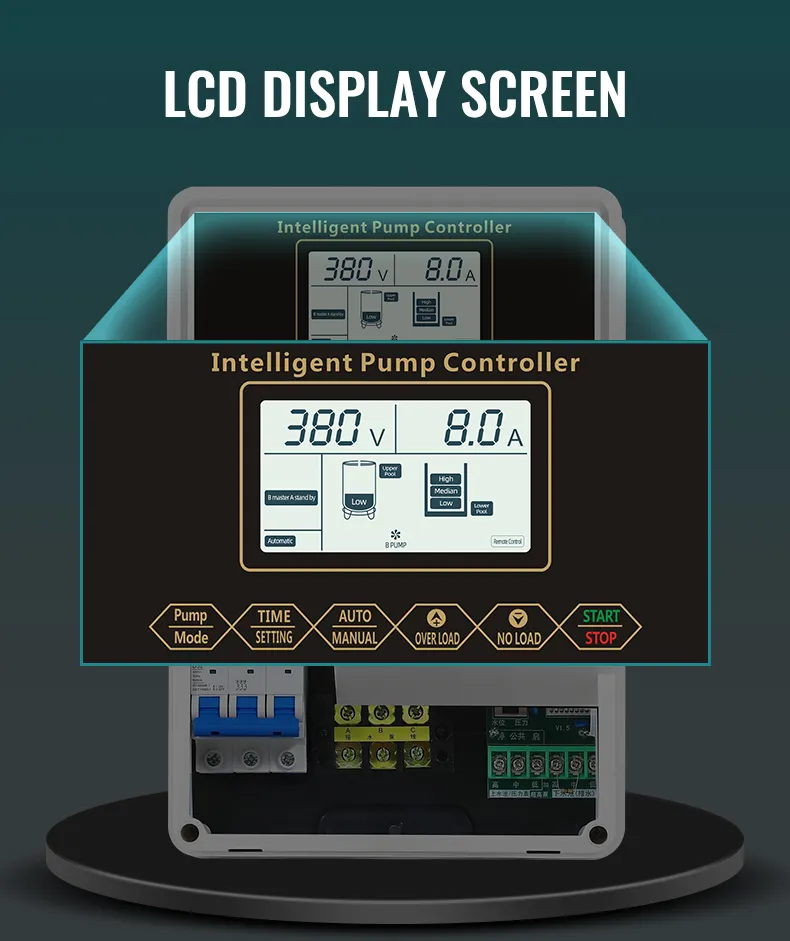

| Display | LCD Display |
| Installation | Wall-Mounted (IP22) |
| Type / Model | Y2-4KW | Y2-7.5KW | Y2-11KW | Y2-15KW | Y2-18.5KW | Y2-22KW |
|---|---|---|---|---|---|---|
| Rated Power | 0.75-4KW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW |
| Input Voltage | 220V / 380V / 460V | |||||

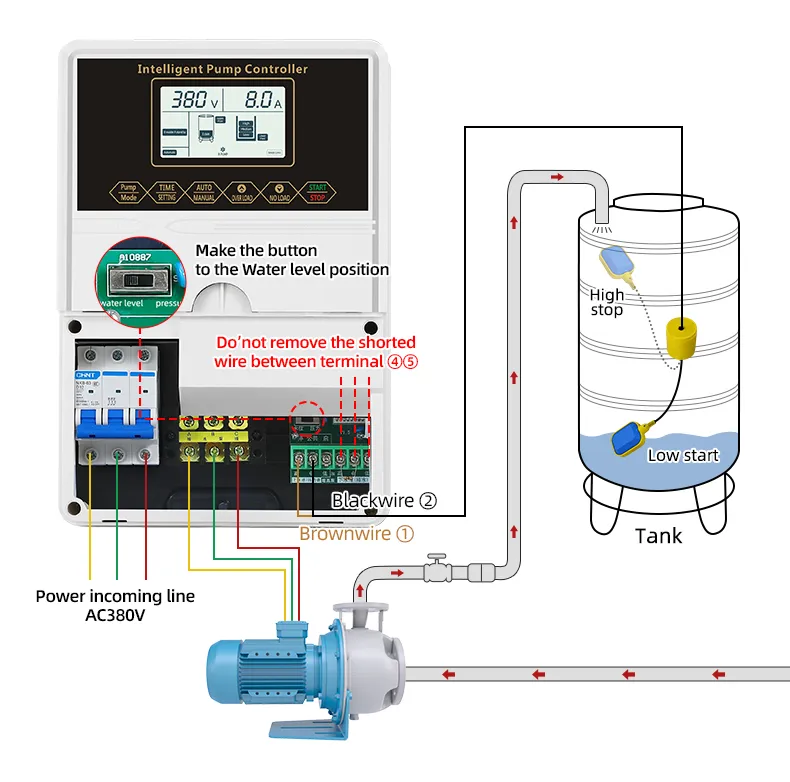

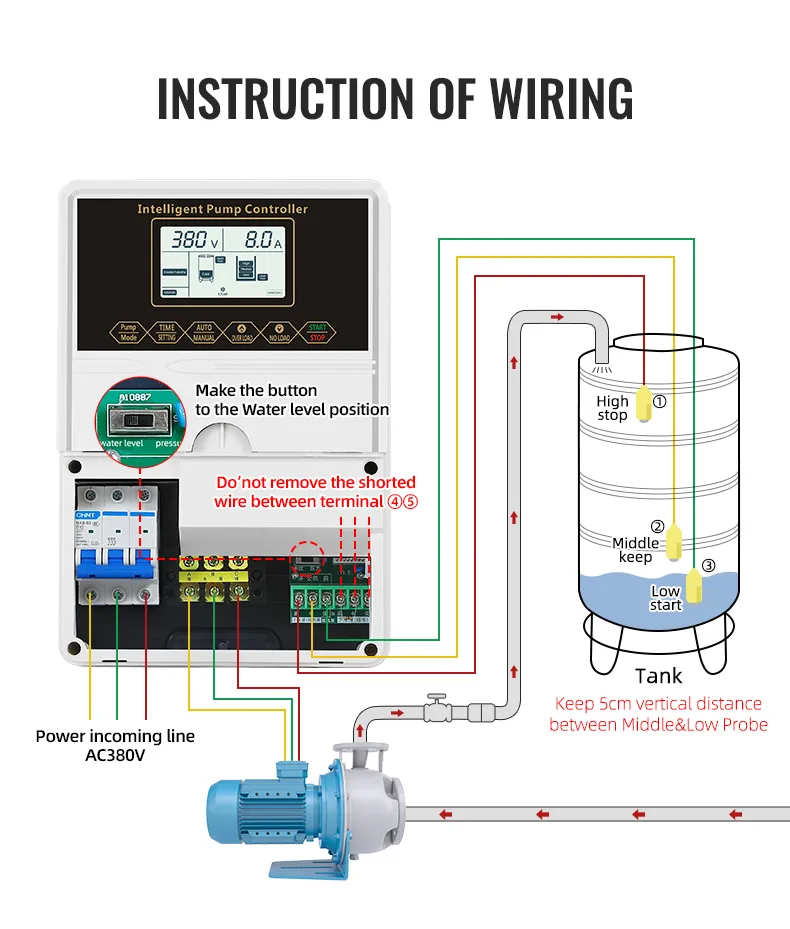

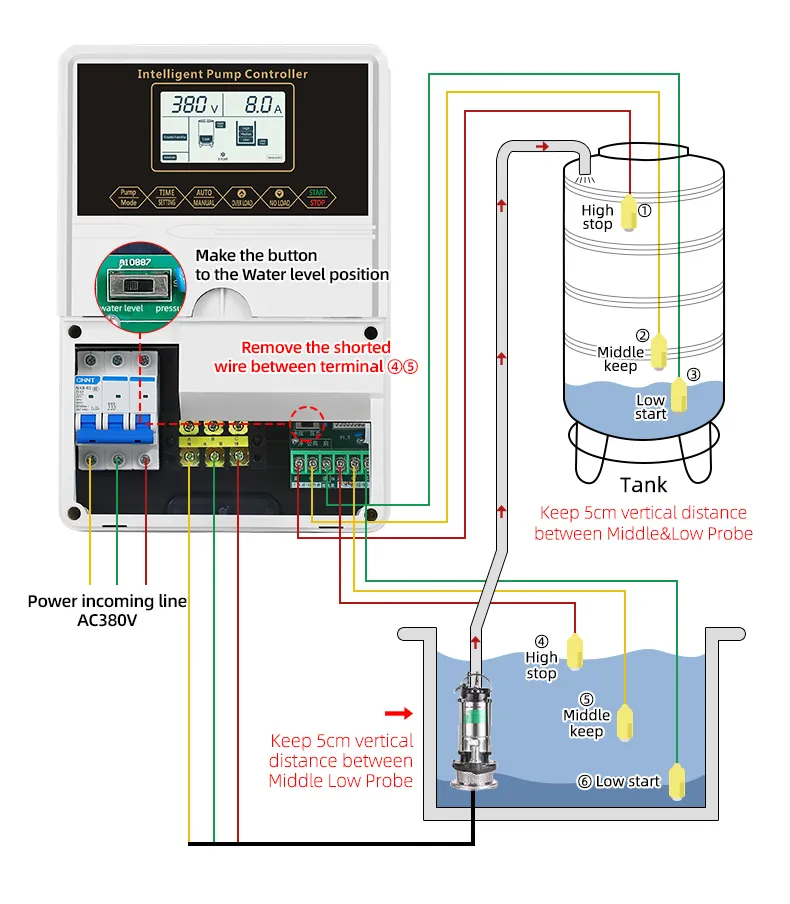

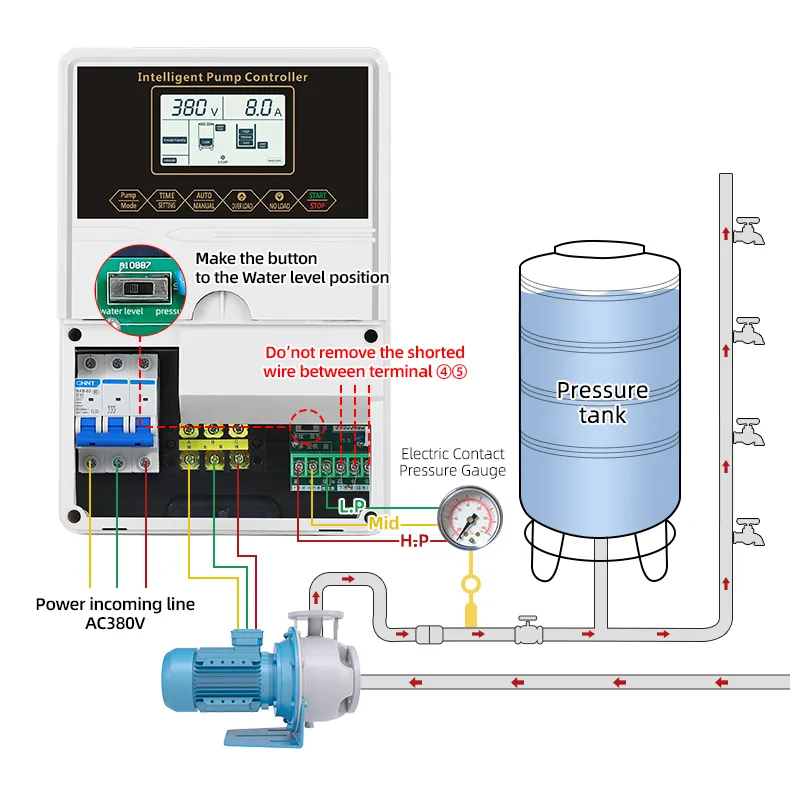

| Signal Modes | Level float switch, Level probe, Pressure switch, Electric contact pressure gauge | |||||
| Protections | Pump stalled, Dry run, Over-load, Under/Over-voltage, Open phase, Short circuit | |||||
| Working Temp | -25ºC to +55ºC (20%--90%RH) | |||||

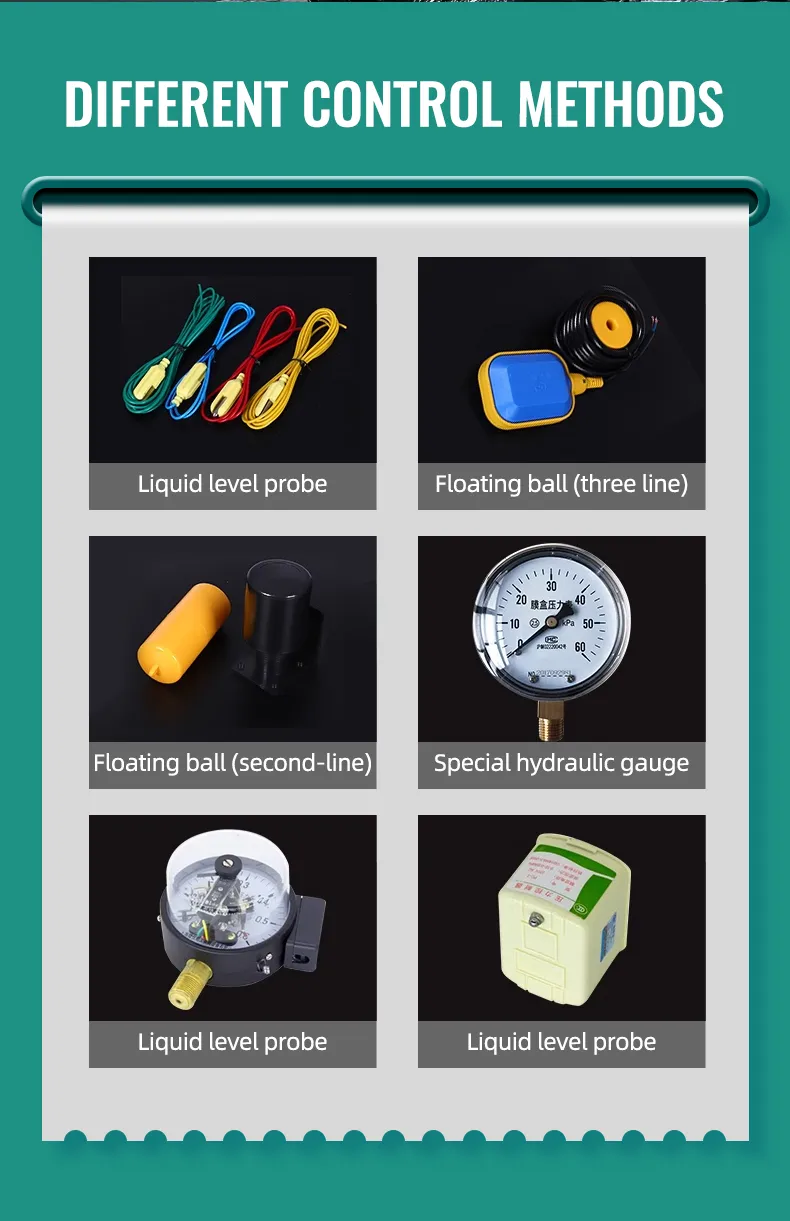

Supports a variety of signal control including Float, liquid level probe, pressure gauge, and pressure sensors. Ideal for:
A major manufacturer of intelligent water pump controllers in China. With advanced technology and a professional R&D team, we are committed to providing high-quality and intelligent products.
Our solutions have earned a solid reputation across the Middle East, Asia, Africa, Europe, and America. We maintain high self-development capability, fast delivery (10,000 pcs/month), and reliable after-sales service including OEM and ODM customized services.
