Basic Info.
Model NO.20Y
FunctionAutomatic Control, Protection, Monitoring, Measurement
CertificationRoHS, CCC, ISO: 9001, CE
MaterialABS
Input Voltage220-240VAC
Rated Power0.37-2.2kw
InstallationWall-Mounted
Operation ModeAutomatic and Manual
📦
Packaging & Delivery
Package Size27.00cm * 15.00cm * 18.00cm
Gross Weight1.000kg
💡

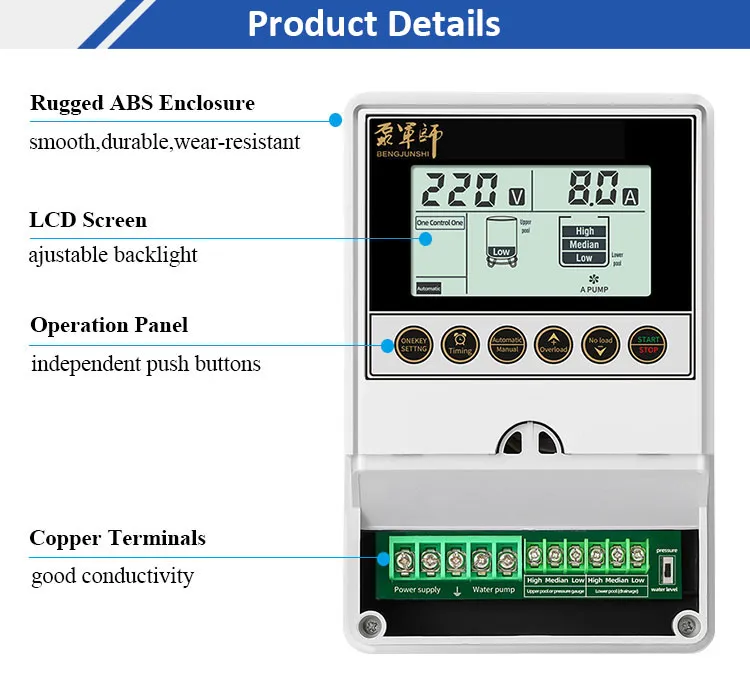

Product Description

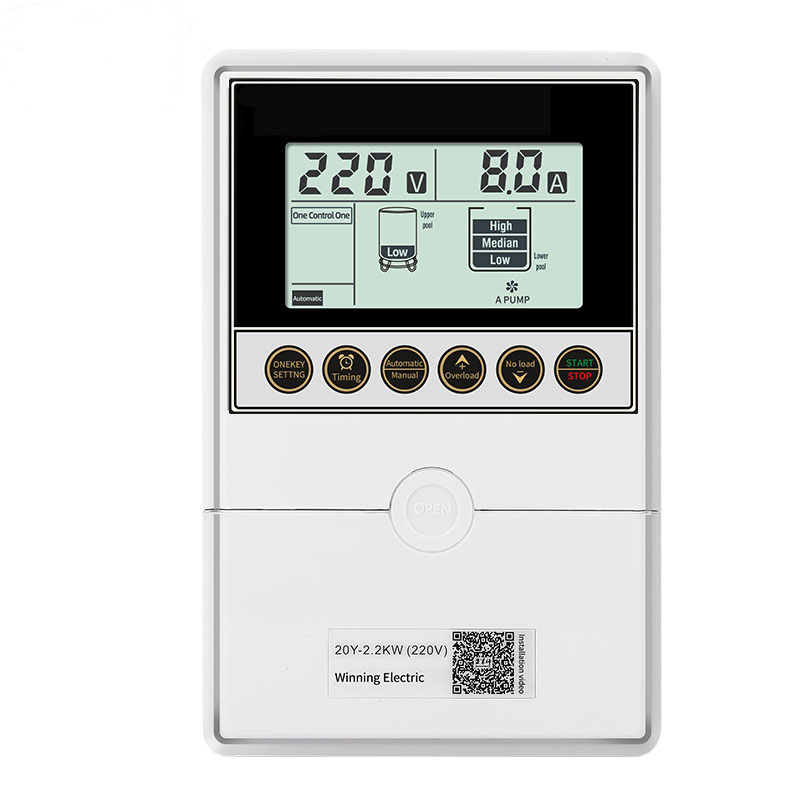

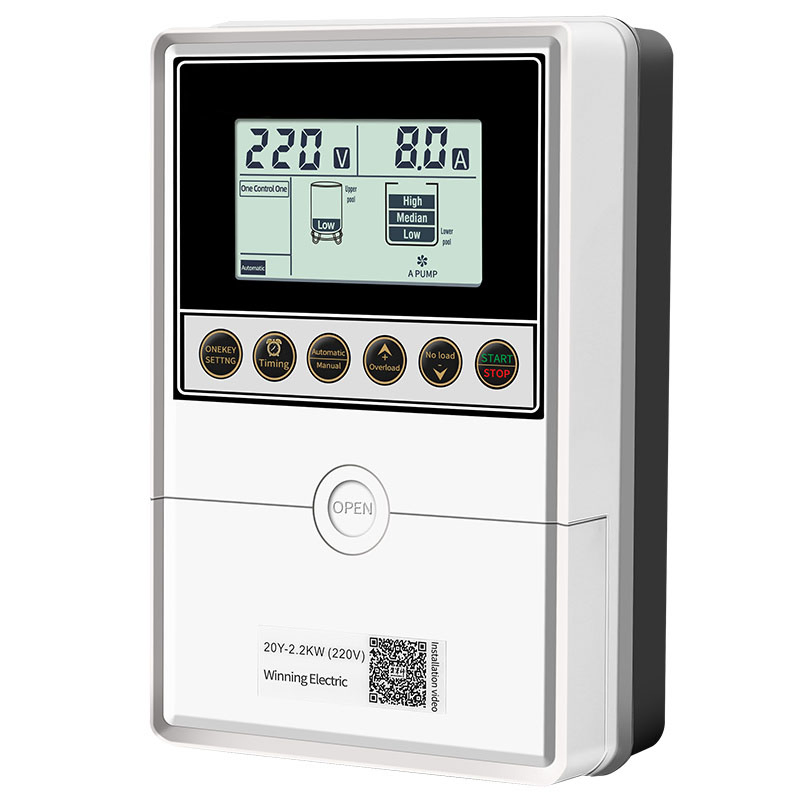

The 20Y automatic pump control panel is specially designed for 1-phase single Home water pump 0.37-3KW. The most basic difference between 20Y smart control unit and similar ON/OFF control units is that it doesn't need any level electrode or floater if desired. It protects the pump very sensitively against dry run without the need for any level electrodes or floater. This model is suitable for operation, control, and protection of smart submersible and surface pumps.
| Specifications |
20Y-2.2KW |
20Y-3KW |
| Rated Power | 0.37-2.2KW | 0.37-3KW |
| Input Voltage | 220V/110V @ 50Hz or 60Hz |

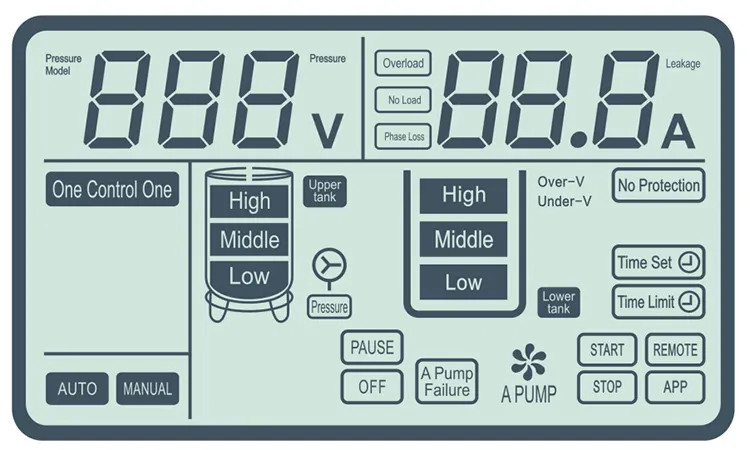

| Display | LCD Display |

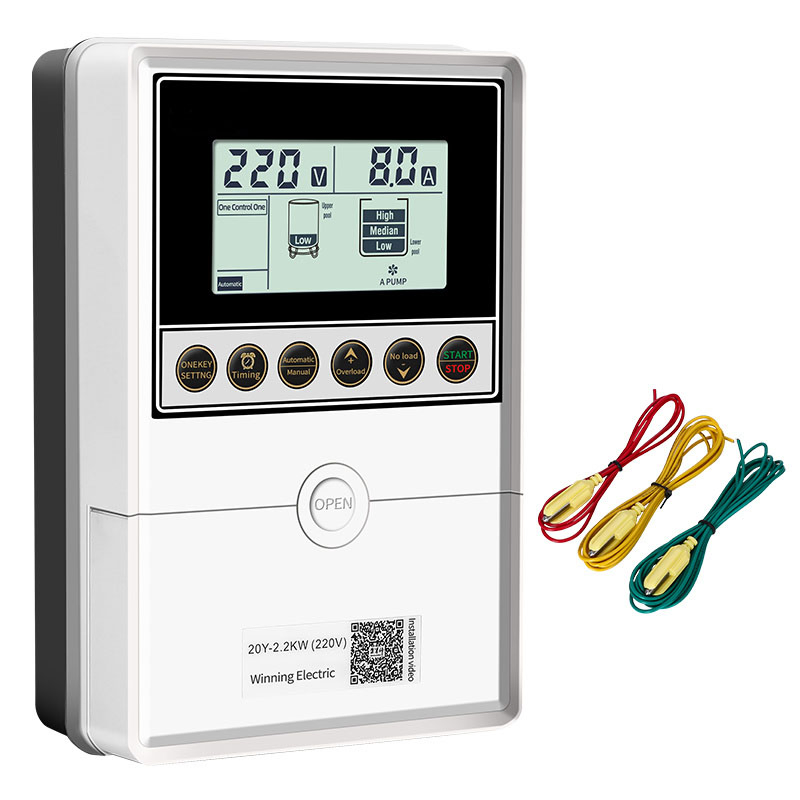

| Signal Mode | Level float switch / Level probe / Pressure switch |
| Over/Under Voltage | 176V-264V (Adjustable) |
| Protection Degree | IP22 |
| Dimensions | 210*139*65mm |
⚙️
Parameter Setting
Key Functions & Settings:
• P01: Over-load protection current setting
• P02: No-load protection current setting
• P03/P04: Time setting ON/OFF
• P05: Restart time after no-load protection
• P07/P08: Over/Under-voltage protection setting
• P12: No load protection trip delay
• P13: Overload protection trip delay
❓
Frequently Asked Questions
1) How to convert HP into KW?
The conversion formula is: 1HP = 0.74KW. For example, 3HP = 3 x 0.74KW = 2.22KW.
2) How to choose the power of your pump controller?
Normally you should choose a controller with a higher power rating than the pump. If the pump rated power is 4KW, the controller should be 7.5KW. For deep well submersible pumps, please consult us for specific requirements.
3) Can I get samples for testing?
Yes, sample units of the pump controller can be provided for your testing and evaluation purposes.
4) Do you provide OEM or ODM services?
Yes, we can handle orders based on your detailed technical requests and customization needs.
5) What is the standard delivery time?
Sample orders typically take 3-5 days, while bulk production orders usually take 15-20 days.

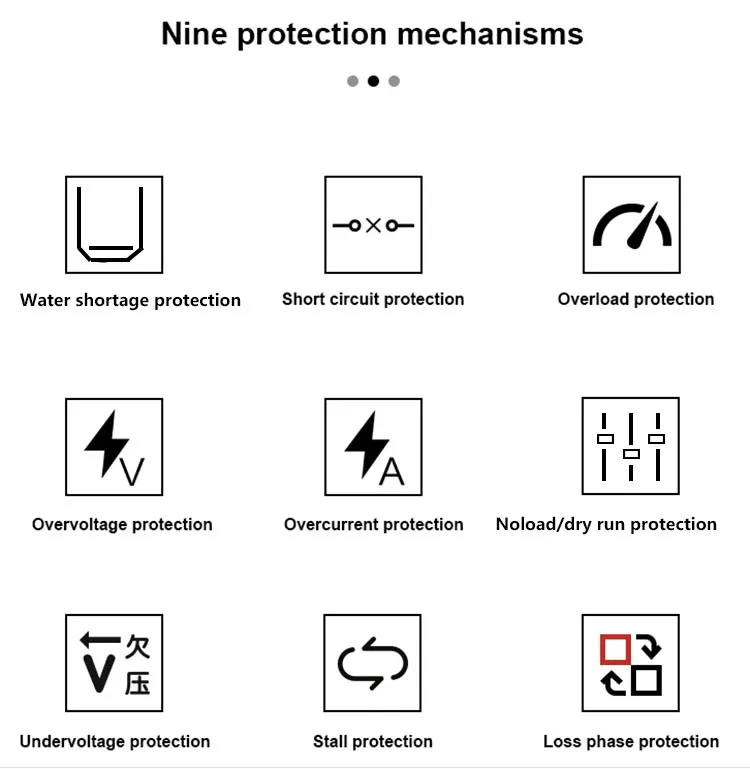

6) What are the main protection features?
The controller includes protections for dry run (no-load), overload, over-voltage, under-voltage, and anti-card protection for long-term non-use.
