Basic Information
Model NO.:20Y
Function:Automatic Control, Protection, Monitoring, Measurement
Certification:RoHS, CCC, ISO: 9001, CE
Material:ABS
Phase:Single-Phase
Input Voltage:220-240VAC
Rated Power:0.37-2.2kw
Display:LCD Display
Installation:Wall-Mounted
Operation Mode:Automatic and Manual
Origin:China

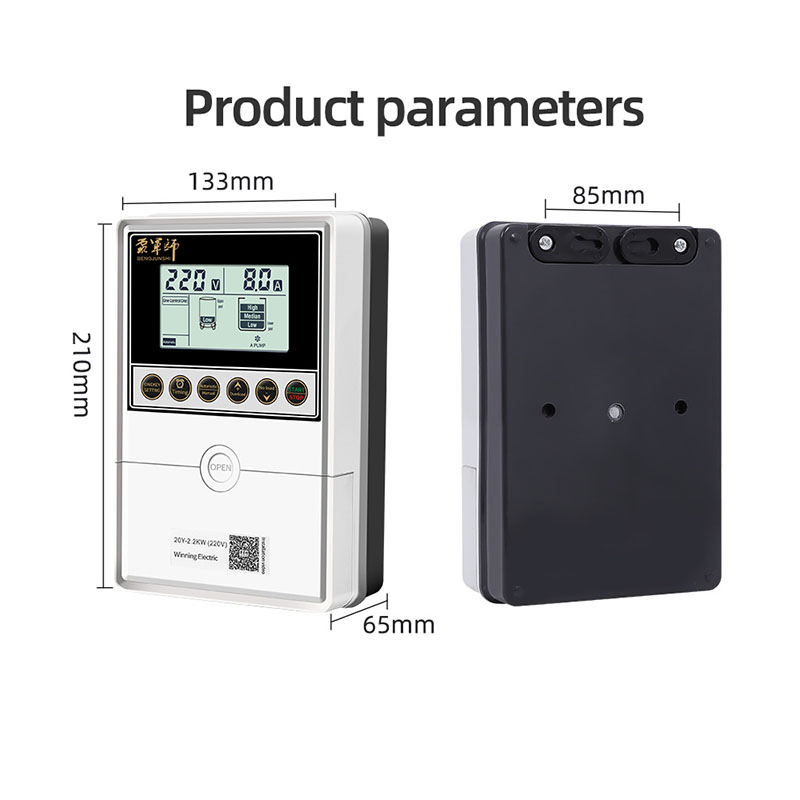

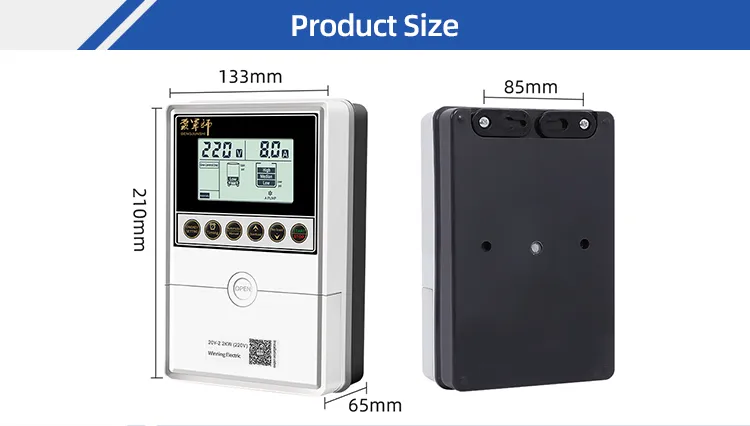

Specification:210*133*65mm
Product Description

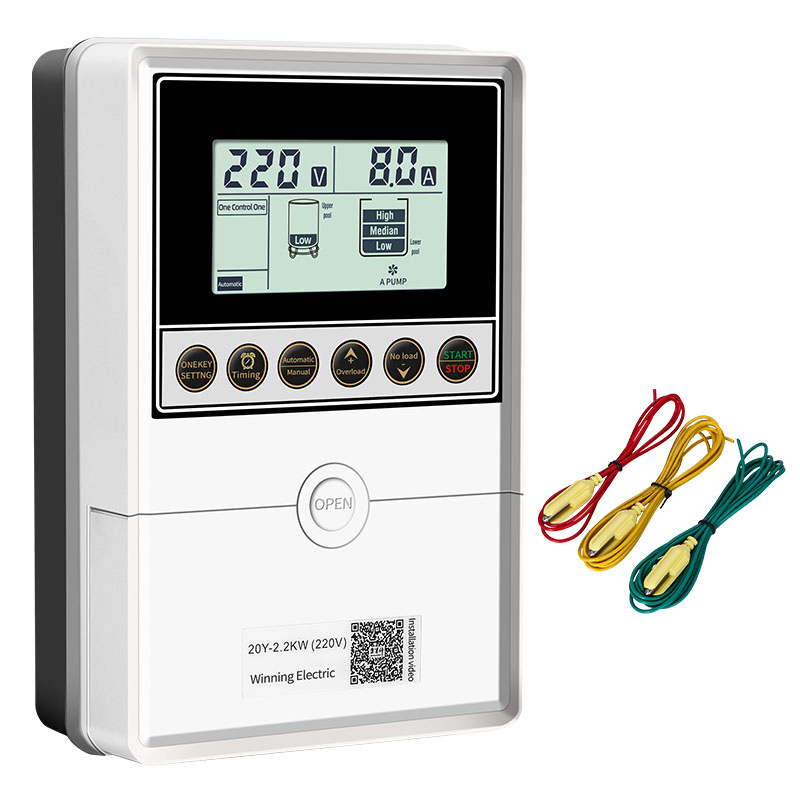

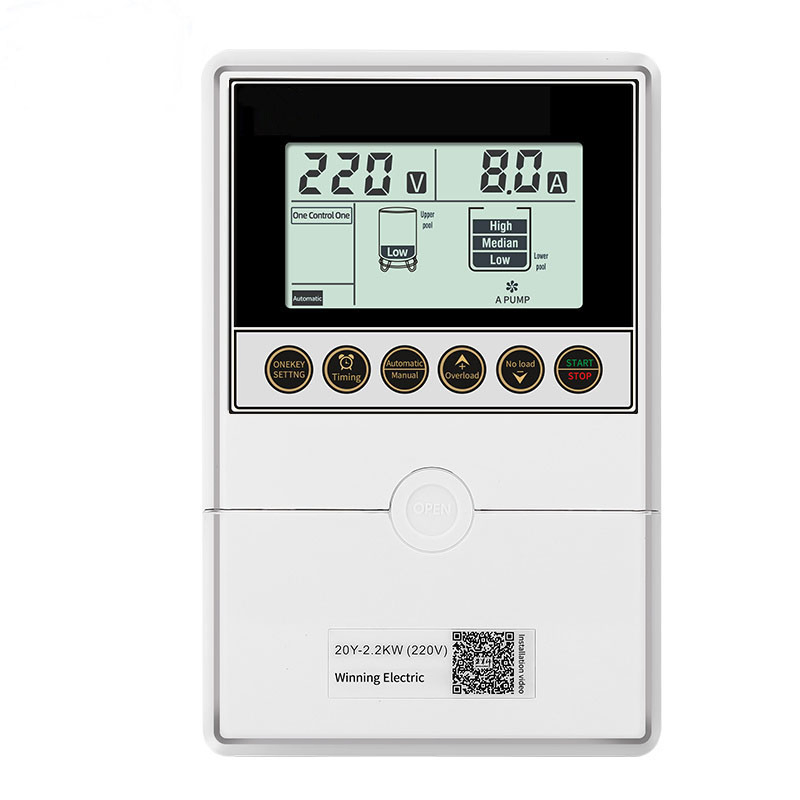

The 20Y automatic pump control panel is specially designed for 1-phase single home water pumps (0.37-3KW). The most significant feature of the 20Y smart control unit compared to similar ON/OFF units is its ability to operate without level electrodes or floaters if desired. It provides sensitive protection against dry running and is suitable for all situations involving the operation, control, and protection of smart submersible and surface pumps.
Technical Specifications
| Feature |
Details |
| Model |
20Y-2.2KW |
20Y-3KW |
| Rated Power |
0.37-2.2KW |
0.37-3KW |
| Rated Input Voltage |
220V/110V @ 50Hz or 60Hz |
| Signal Transmission |
Level float switch, Level probe, Pressure switch, Electric contact pressure gauge |
| Over/Under-voltage |
176V-264V (adjustable) |
| Protection Degree |
IP22 |
| Working Temp |
-25ºC to +80ºC |
Main Functions

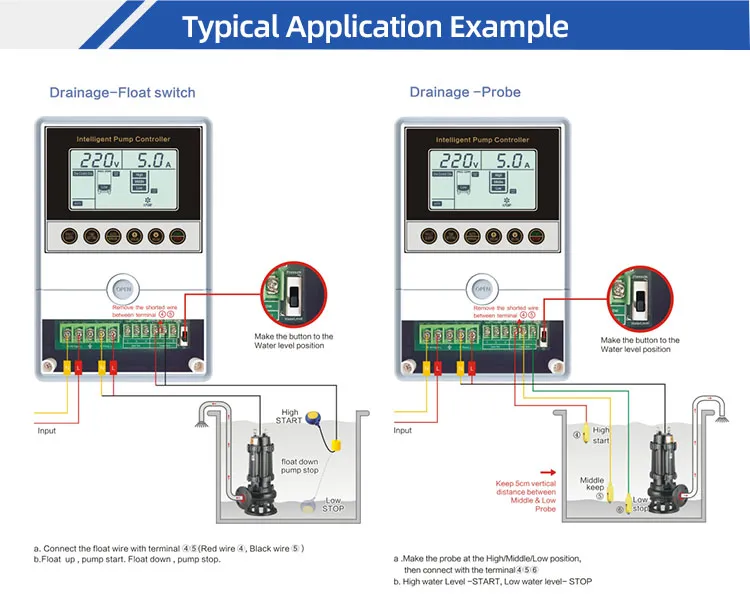

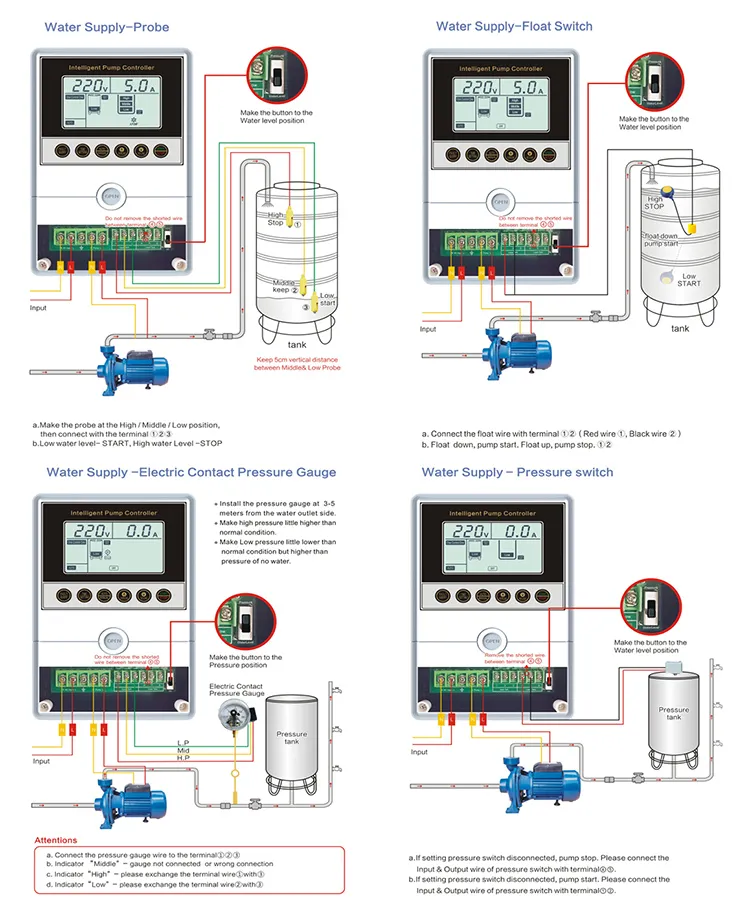

- ◈ Pressure and Water Level Control (Probes/Float Switch)
- ◈ Time Setting ON/OFF functionality

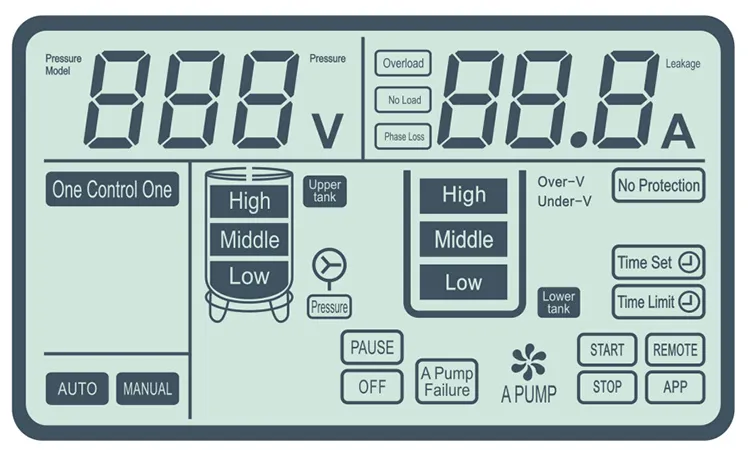

- ◈ Multifunction LCD: Visualizes voltage, current, tank status, and alarms
- ◈ Fault tracking: Stores last 10 fault reasons with audio/light alarms
- ◈ Anti-card protection: Starts pump every 15 days if unused
- ◈ Automatic restart after dry running or power failure recovery
Parameter Settings (P01-P13)
P01: Over-load current
P02: No-load current
P03: Time setting ON
P04: Time setting OFF
P05: Restart delay (No-load)
P07: Over-voltage setting
P08: Under-voltage setting
P09: LCD backlight OFF time
P12: No-load trip delay
P13: Overload trip delay
Frequently Asked Questions
1. How do I convert HP into KW for my pump?
The formula is 1HP = 0.74KW. For example, a 3HP pump is approximately 2.22KW.
2. How should I choose the power rating for the controller?
It is recommended to choose a controller with a higher power rating than the pump. For a 4KW pump, a 7.5KW controller is often preferred. Please consult for deep well submersible pumps specifically.
3. Does this controller protect against dry running?
Yes, the 20Y model features highly sensitive dry-run protection and does not necessarily require external float switches or probes to detect this condition.
4. Can I request OEM or ODM production?
Yes, customized orders can be fulfilled according to detailed technical requests.
5. What is the typical lead time for orders?
Sample orders usually take 3-5 days, while bulk orders typically take 15-20 days.
6. What happens if there is a power failure?
The controller is equipped with an automatic restart function once the power failure recovery occurs and the voltage returns to a normal rating.
