| Total Energy (kWh) | 14.34 |
| Useable Energy (kWh) | 13.48 |
| Nominal Voltage (Vd.c) | 51.2 |
| Voltage Range (Vd.c) | 44.8 ~ 57.6 |
| Rated Capacity (Ah) | 280 |
| Max. Charge/Discharge Current (A) | 200 |
| Recommend Using DOD | 90% |

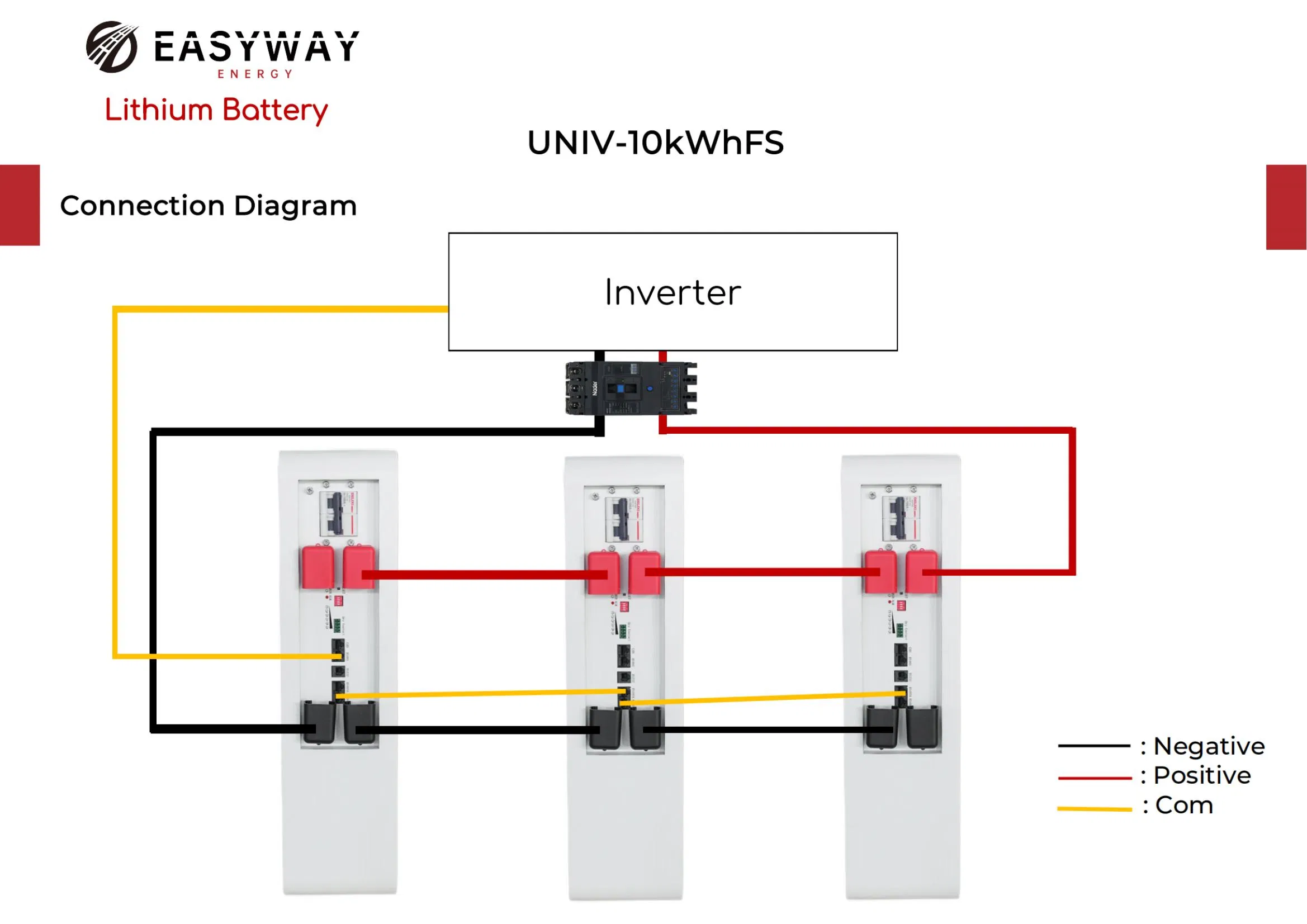

| Scalability | Max 16 in Parallel |
| Dimension (W*H*D) mm | 560*830*270 |
| Weight (KG) | 132 |

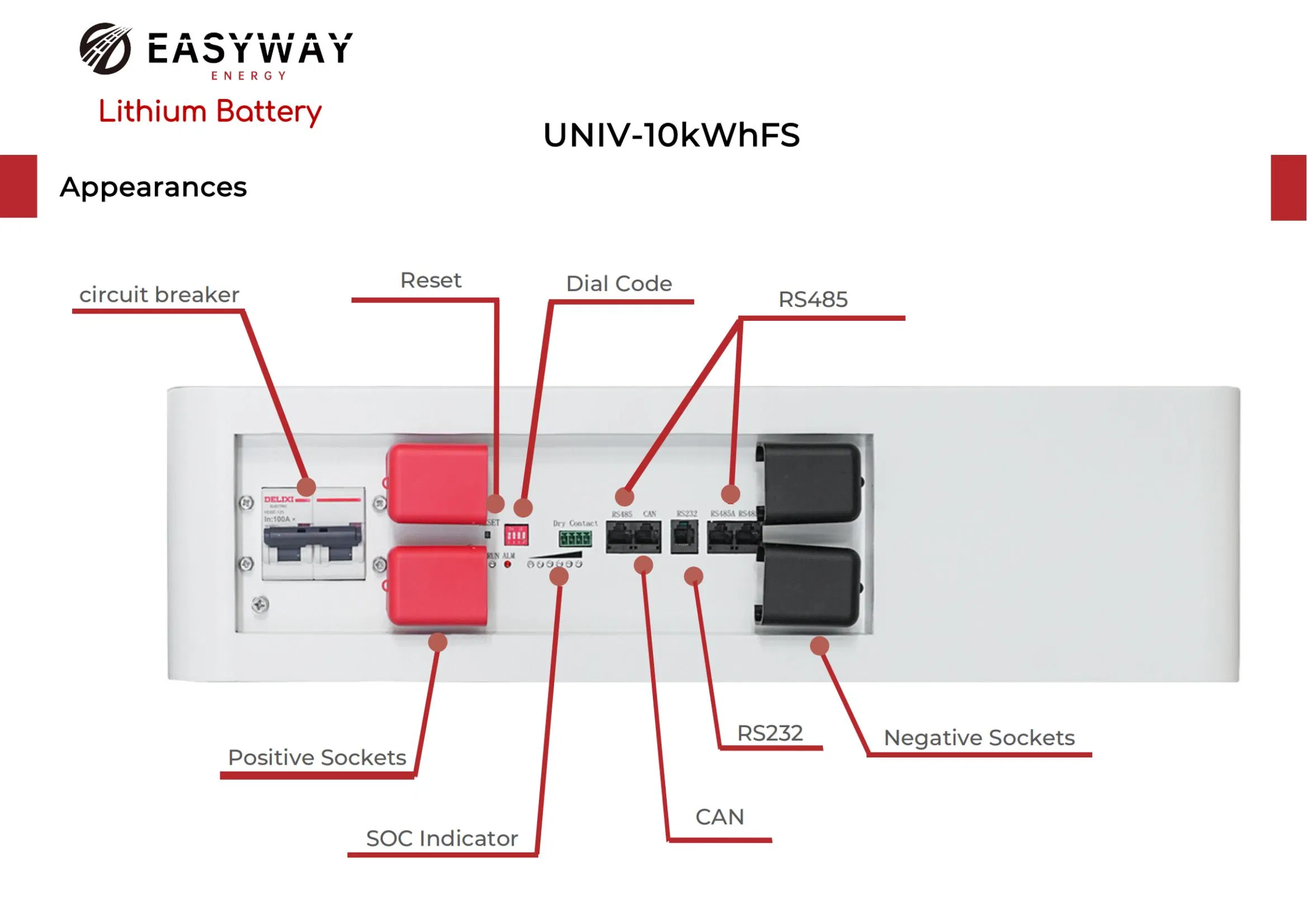

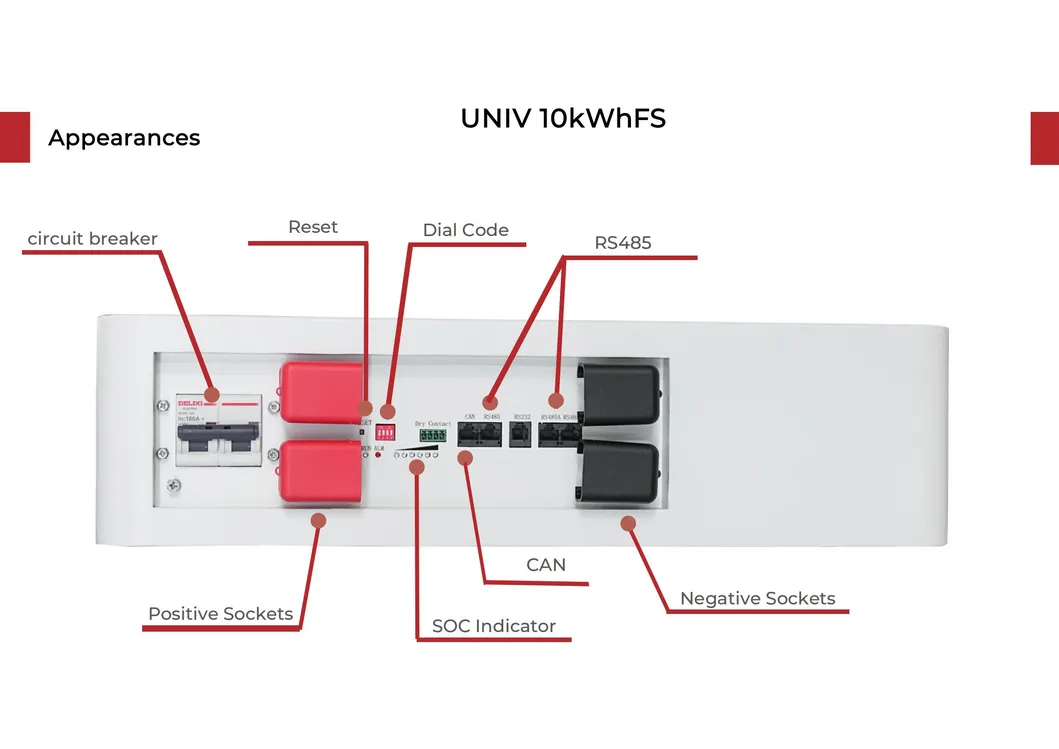

| Communication | CAN / RS485 / RS232 |

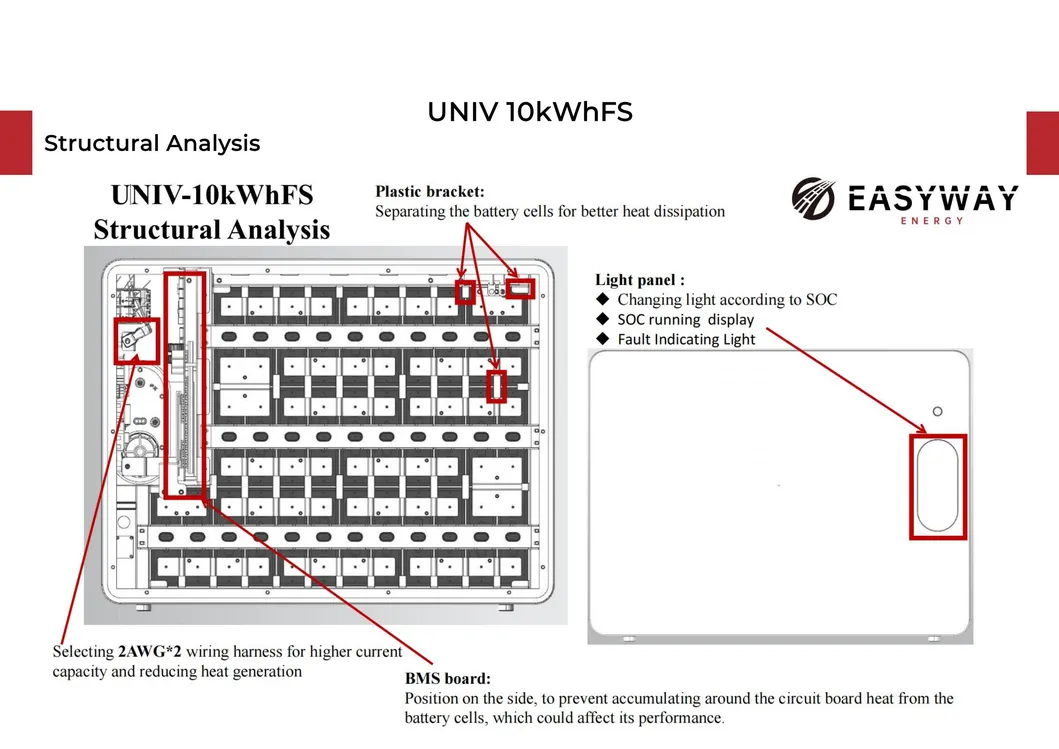

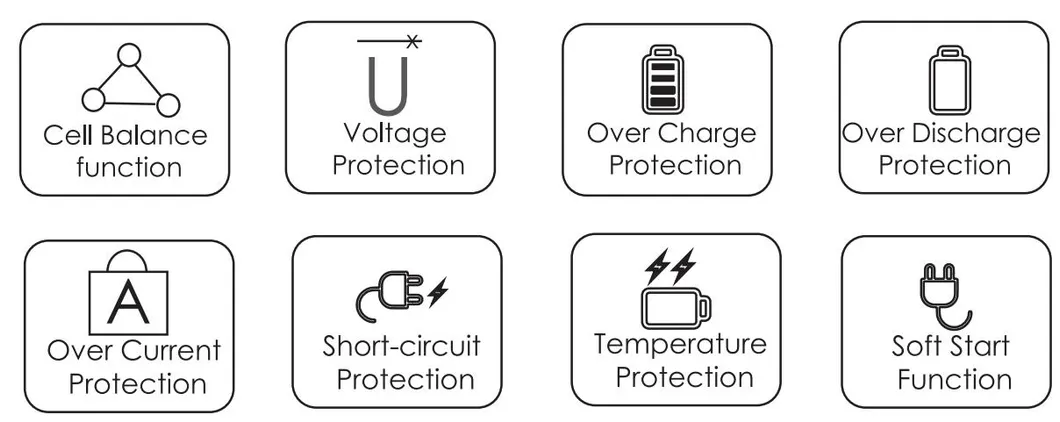

| BMS Features | Over-voltage, Over-current, Short-circuit, Low-voltage, Over Temperature Protection, Cell Balance |
