Basic Info.
Function
Automatic Control, Protection, Monitoring, Measurement
Certification
RoHS, CCC, ISO: 9001, CE
Operation Mode
Automatic and Manual
Packaging & Delivery

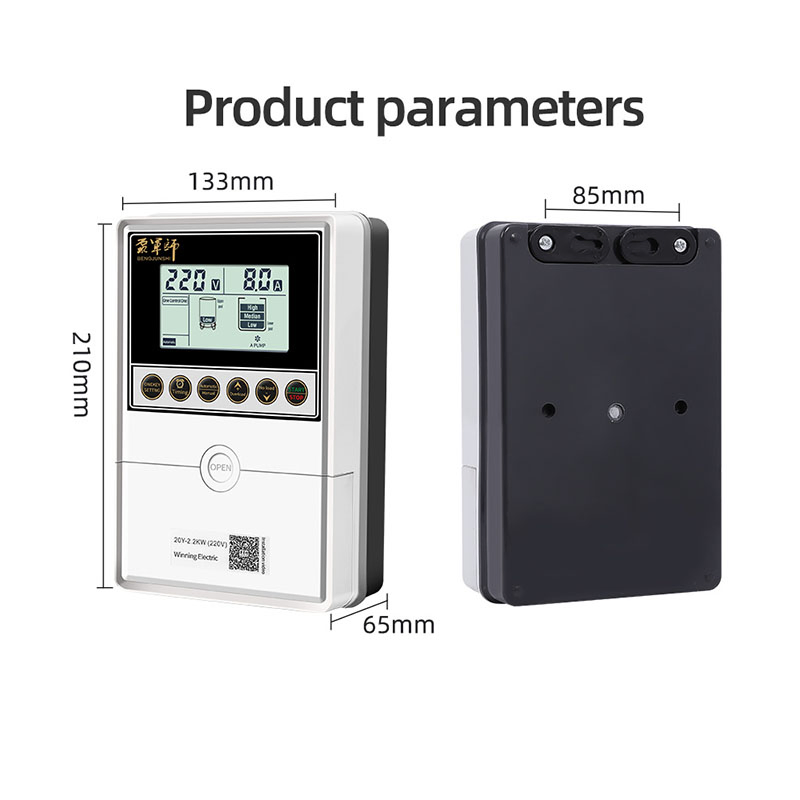

Package Size
27.00cm * 15.00cm * 18.00cm
Product Description

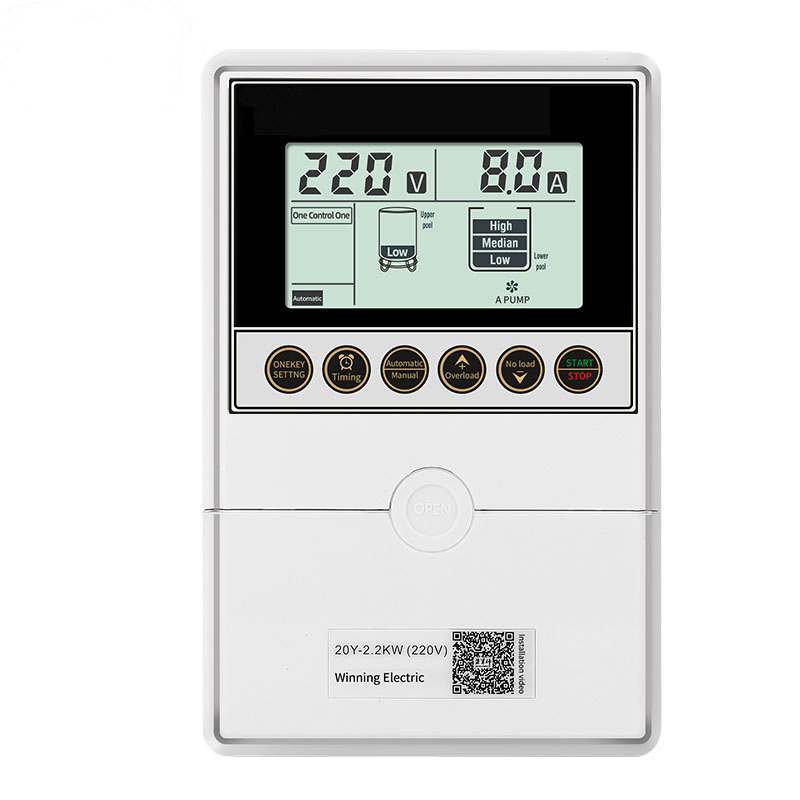

1. Description of Pump Controller

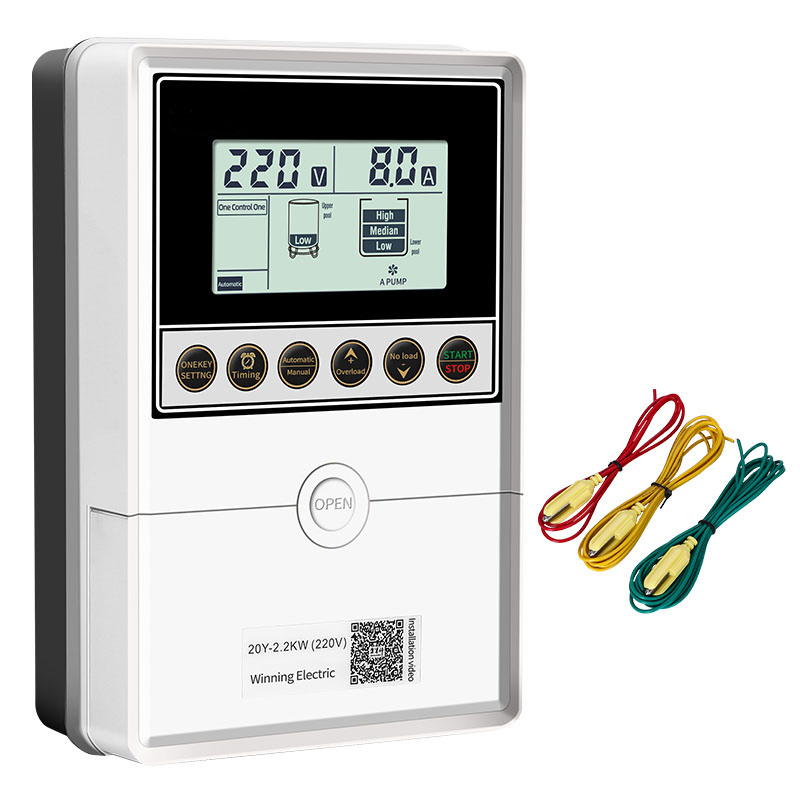

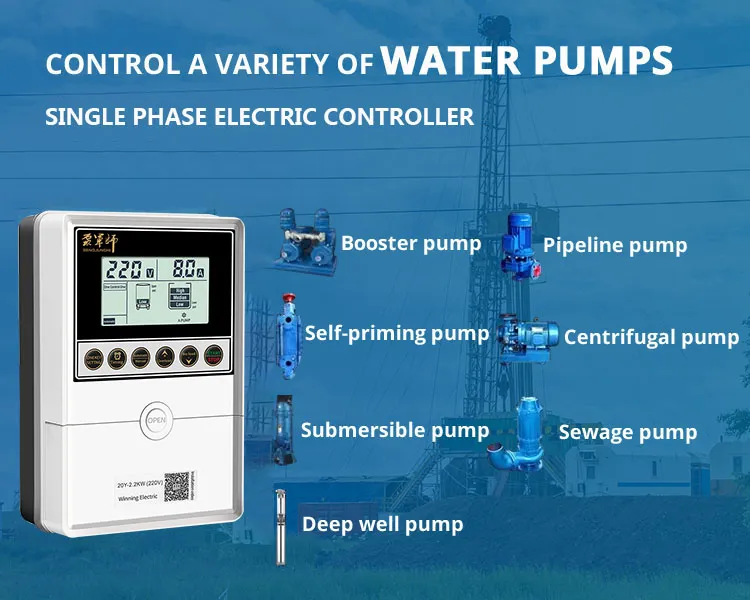

The 20Y automatic pump control panel is specially designed for 1-phase single Home water pump 0.37-3KW. The most basic difference between 20Y smart control unit and similar ON/OFF control units is that it doesn't need any level electrode or floater if desired. It protects the pump very sensitively against dry run without the need for any level electrodes or floater. This model is a control panel suitable for use in all situations where the operation, control and protection of the smart submersible pump and surface pump is in question.
2. Specifications
| Model | 20Y-2.2KW / 20Y-3KW |
| Rated Power | 0.37-2.2KW / 0.37-3KW |
| Input Voltage | 220V/110V @ 50Hz or 60Hz |

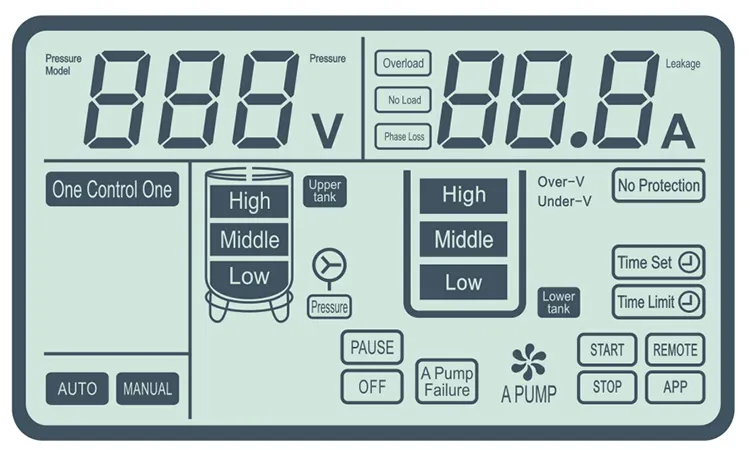

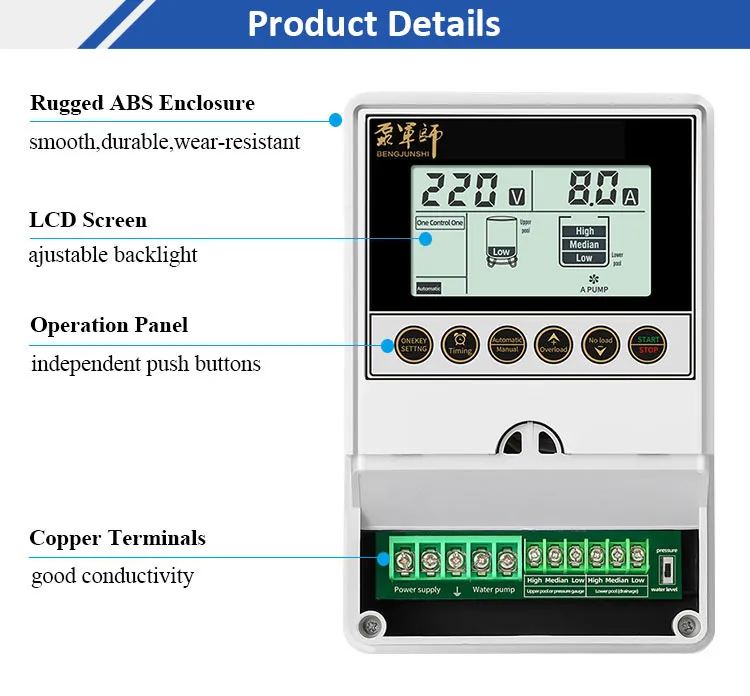

| Display | LCD visualization of voltage, current, tank status |

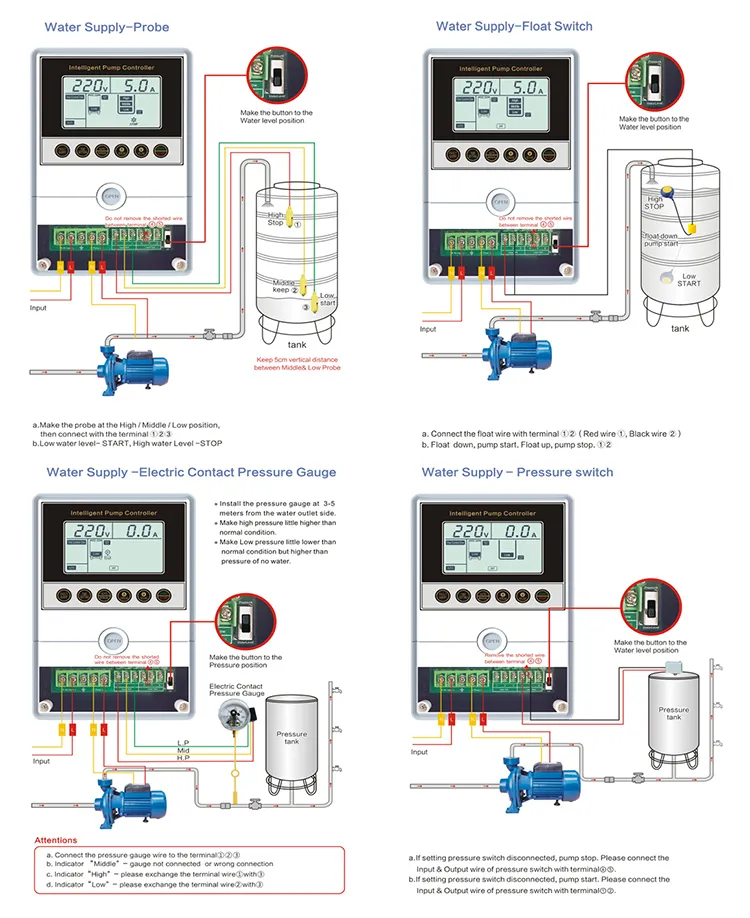

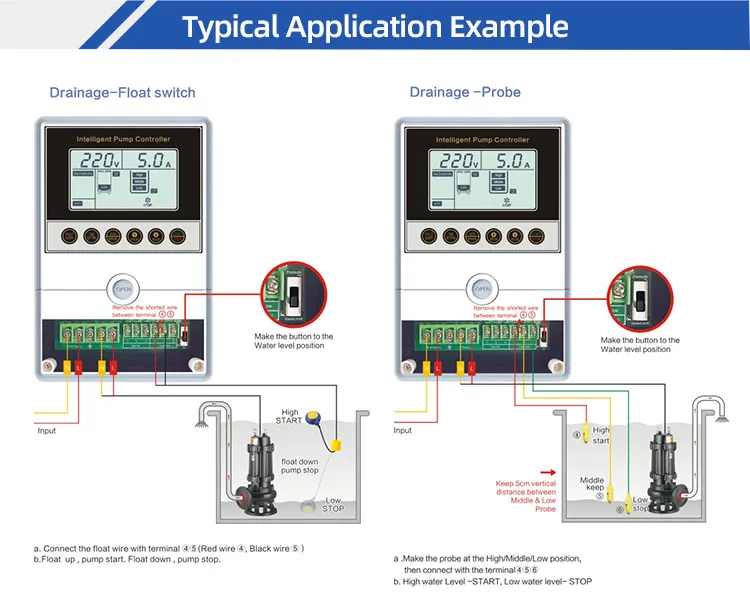

| Signal Mode | Level float switch, Level probe, Pressure switch, Electric contact pressure gauge |
| Control Distance | ≤2000m |
| Protection Range | Over/under-voltage (176V-264V adjustable) |
| Operating Temp | -25ºC to +80ºC |
| Protection Degree | IP22 |
Main Functions & Features
- Pressure & Level Control: Supports electric contact pressure gauges, pressure switches, probes, or float switches.
- Timer Functions: Time setting for ON/OFF operations.
- Multifunction Display: Real-time visualization of voltage, motor current, tank status, and last 10 fault records.
- Anti-card Protection: Automatically starts the pump every 15 days if not in use to prevent seizing.
- Smart Restarts: Automatic restart after power failure or dry run (0-720 min adjustable).

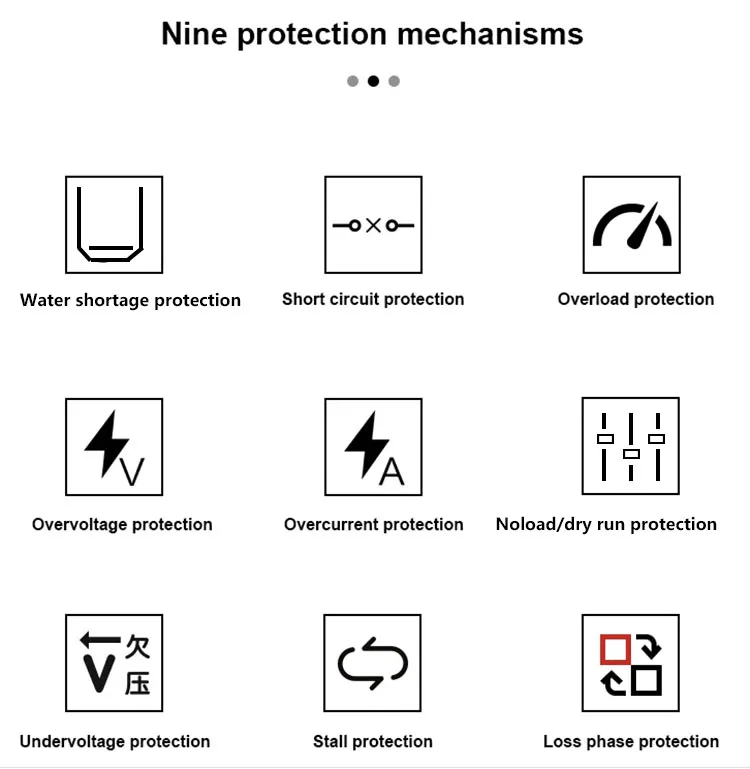

- Protection Suite: Motor overload/no-load protection, dry running, and over/under voltage safeguards.
Parameter Settings (P01-P13)
P01
Over-load protection current
P02
No-load protection current
P03/P04
Time setting ON/OFF
P05
Restart time after no-load
P07/P08
Over/Under-voltage settings
P12/P13
No-load/Overload trip delay
Frequently Asked Questions
How to convert HP into KW?
The conversion formula is: 1HP = 0.74KW. For example: 3HP = 3 x 0.74KW = 2.22KW.
How do I choose the correct power for my pump controller?
Normally, you should choose a controller with a power rating equal to or slightly higher than the motor. If the pump rated power is 4KW, a 7.5KW controller is often recommended. For submersible pumps in deep wells, please consult technical support first.
Are samples available for testing?
Yes, we can provide pump controller samples for your quality and compatibility testing.
Do you support OEM or ODM services?
Yes, we can manufacture orders according to your specific detailed requirements and branding needs.
What is the standard delivery time?
Sample orders typically take 3-5 days. Bulk orders generally take 15-20 days depending on the quantity.
What kind of signal modes are supported?
The unit supports Level float switches, Level probes, Pressure switches, and Electric contact pressure gauges for versatile operation.
