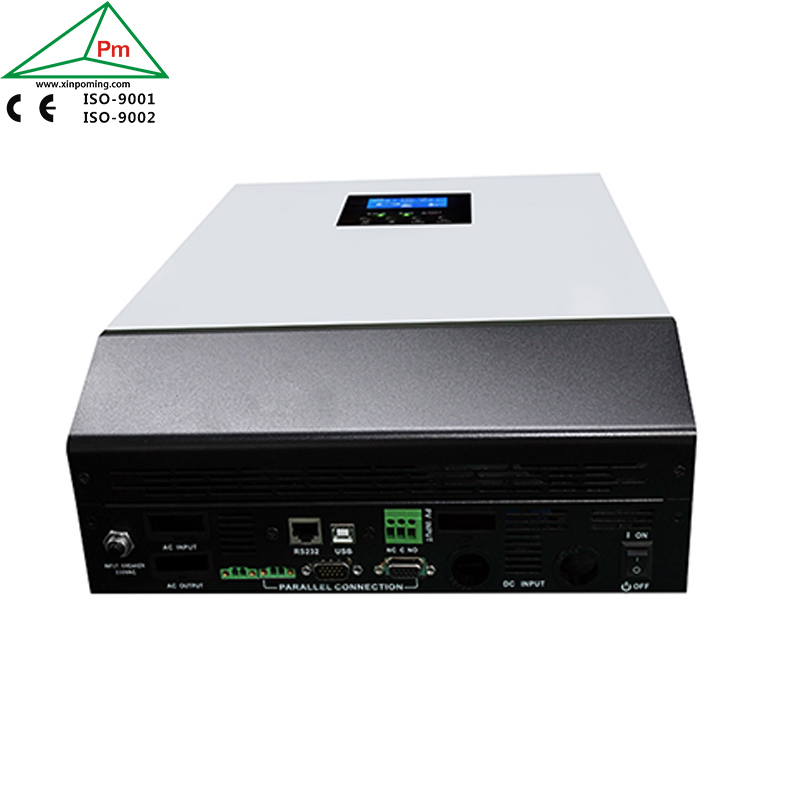

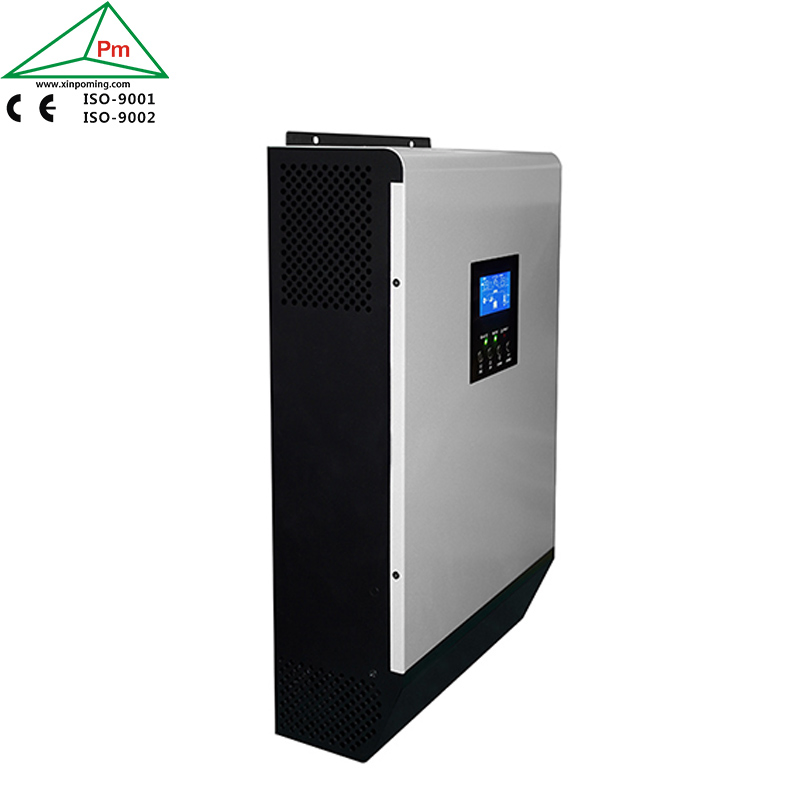

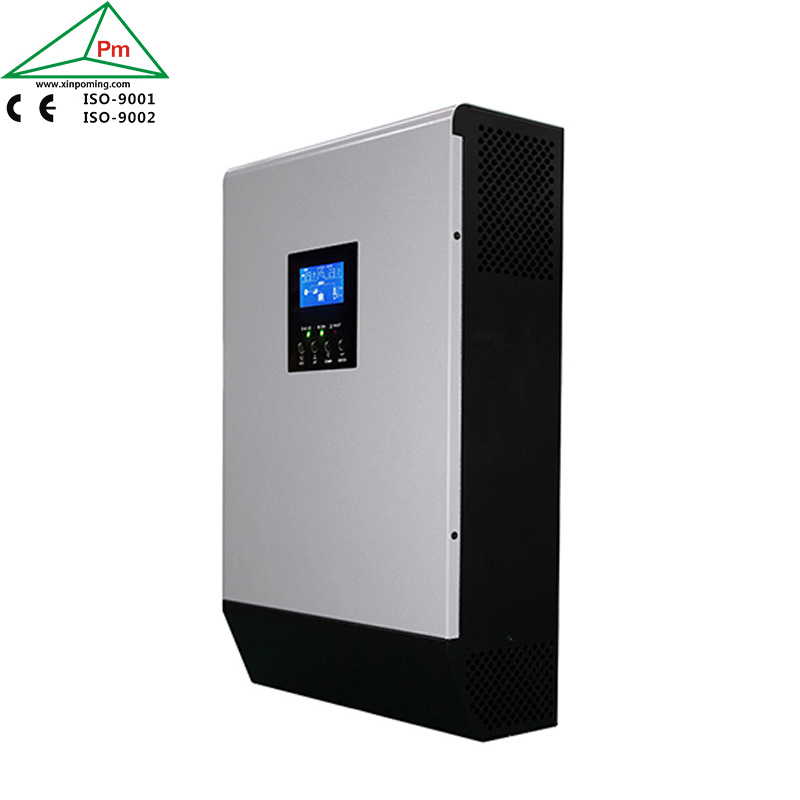

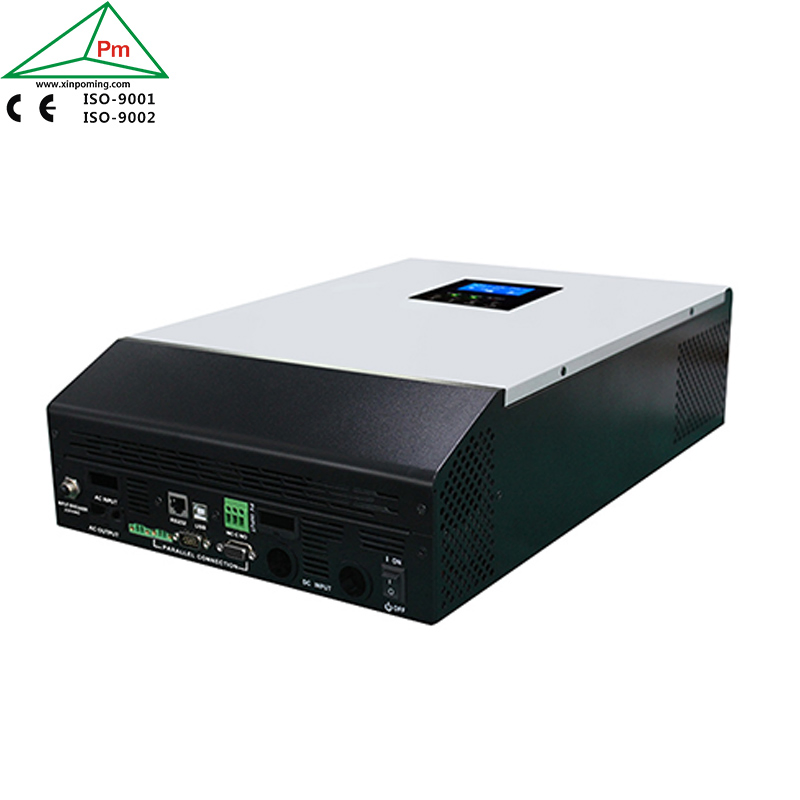

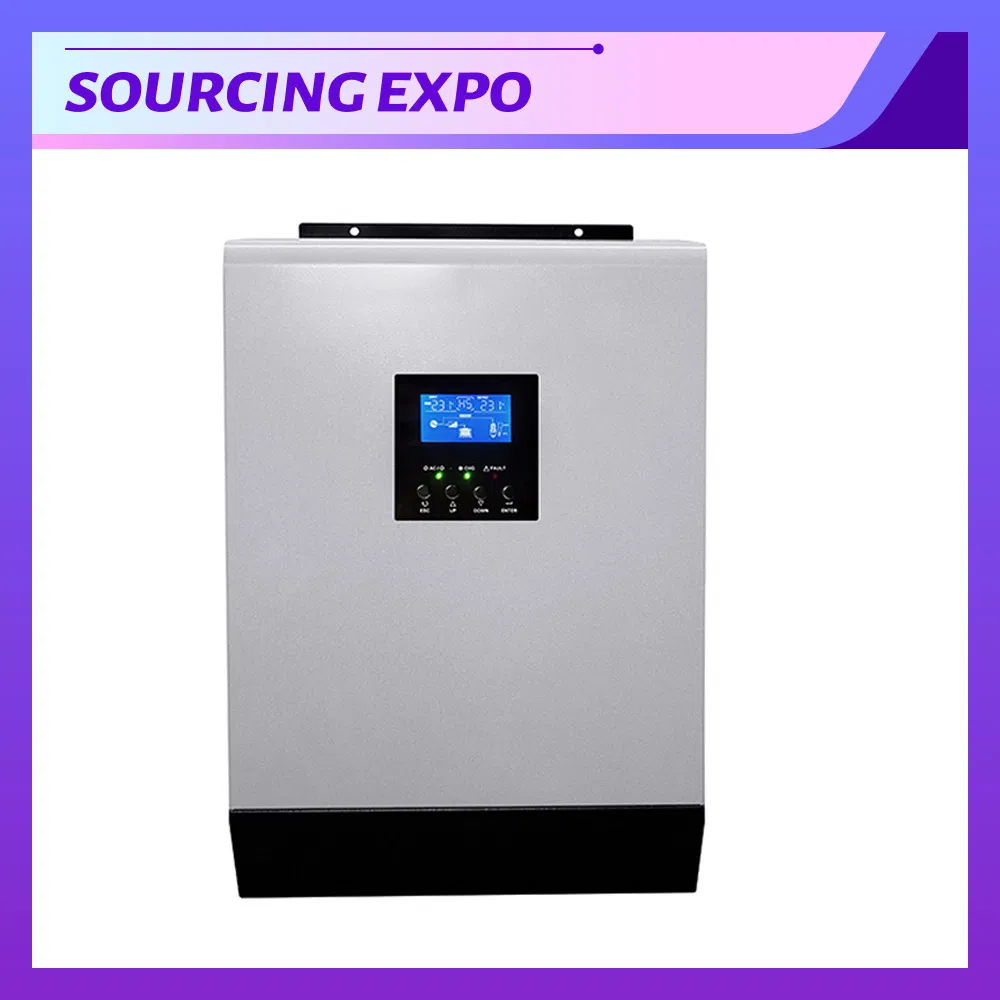

6PCS in Parallel 5kw Sinewave Solar Sun Grid Hybrid Inverter System with MPPT for Home

1 / 5

6PCS in Parallel 5kw Sinewave Solar Sun Grid Hybrid Inverter System with MPPT for Home

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

SLZX-5KW

Type

DC/AC Inverters

Power Source

Solar Power

Capacity

5000VA / 5000W

Waveform

Pure Sine Wave

Battery Voltage

48VDC

Input Voltage

230VAC

Efficiency (Peak)

90%

Max PV Array Power

4500W

Max Charge Current

80A

⚡

Product Description & Features

High-Performance Off-Grid Solar Inverter System

Pure Sine wave solar inverter with output power factor 1.0
High PV input voltage range 120-450 VDC
Built-in 80A MPPT solar charger
Battery equalization function to optimize performance and extend lifecycle
Built-in anti-dust kit for harsh environments
Parallel operation capability up to 6 units

Technical Parameters
Input Details
Voltage	230VAC
Selectable Voltage Range	170-280 VAC (PC); 90-280 VAC (Appliances)
Frequency Range	50Hz/60Hz (Auto Sensing)
Output Details
AC Voltage Regulation	230VAC ± 5%
Transfer Time	10ms (PC); 20ms (Home Appliances)
Solar & AC Charger
Max PV Array Power	4500W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Max PV Array Open Circuit Voltage	450VDC
Physical & Environment
Dimension (LxWxH)	120x295x468mm
Net Weight	11 kgs
Operating Temperature	0°C to 55°C

🖼️

Product Showcase

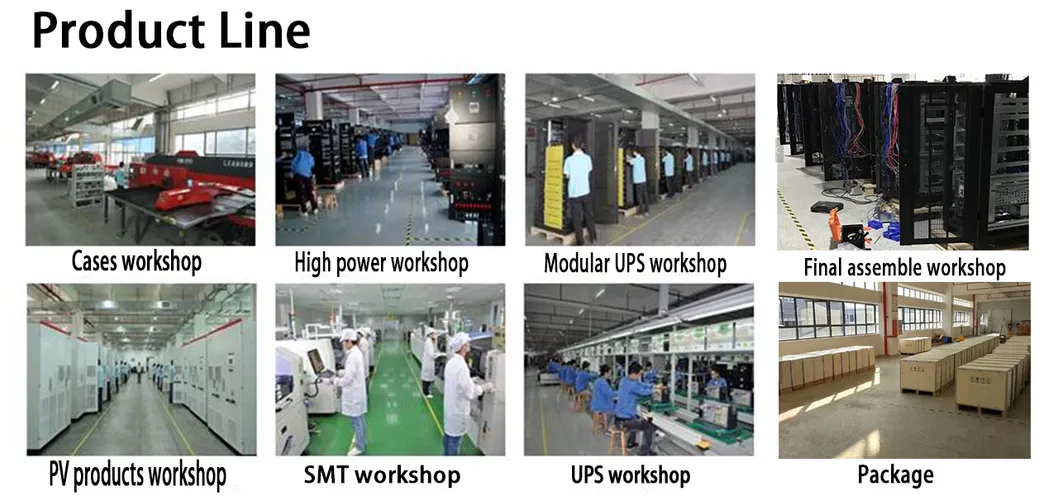

Product Line & Quality Control:

Manufacturing & Clients:

❓

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set. We support sample orders for testing.

Are OEM and ODM services available?

Yes! Our products can be customized. We have professional design and engineering teams to customize products according to your requirements or drawings.

What are the accepted terms of payment?

We accept T/T and Western Union for all orders.

How long does delivery usually take?

The delivery time depends on your order quantity, but it normally takes between 3 to 20 days.

What is the expected service life and warranty?

The service life is approximately 20-30 years. We provide a 1-year warranty from the sale date, including free accessory replacement and technical support.

Can I put my own logo on the products?

Yes, we can display your own logo on the products as part of our customization service.
