| Model | stackable 3.0 |
| Product Name | EU /Poland 51.2V 280ah DIY Kits |
| Battery Type | LiFePO4 |
| Rated Voltage | 51.2V (3.2V Cells) |
| Capacity Range | 272ah - 320ah |
| Cycle Life | ≥ 6000 Times |

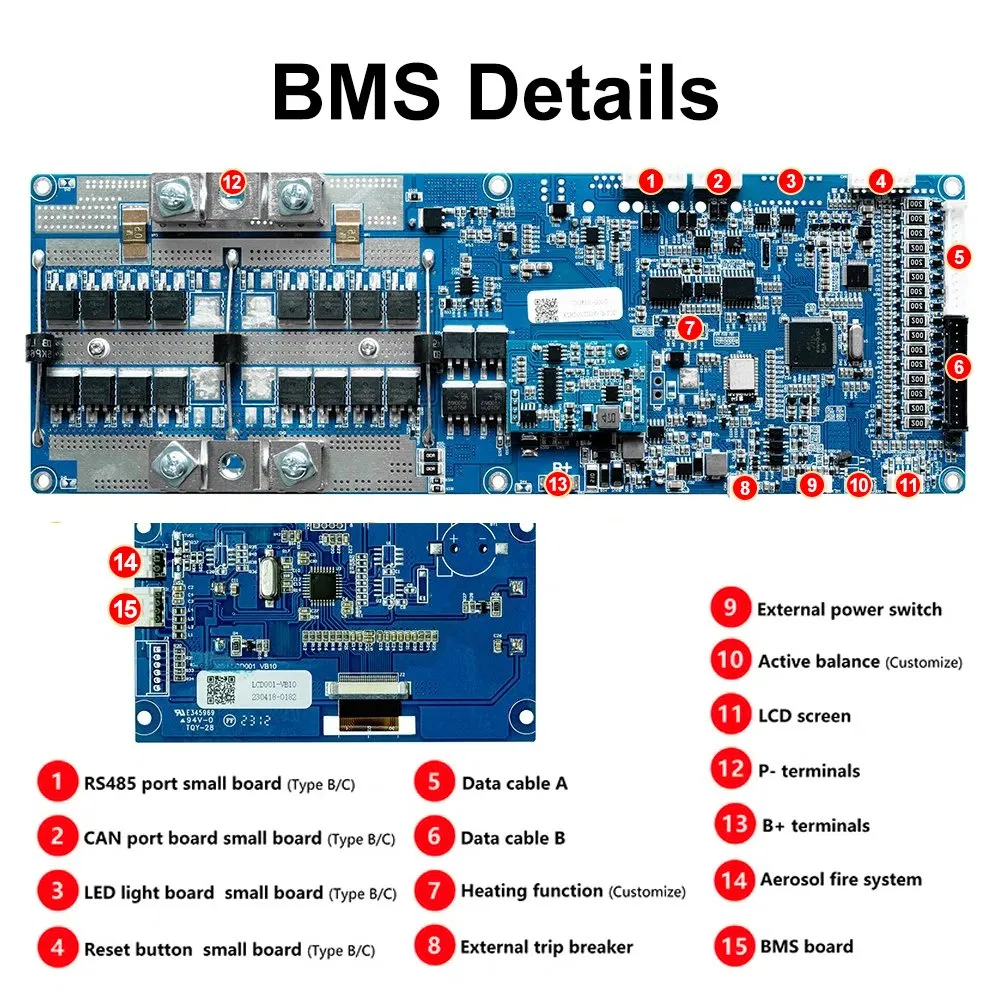

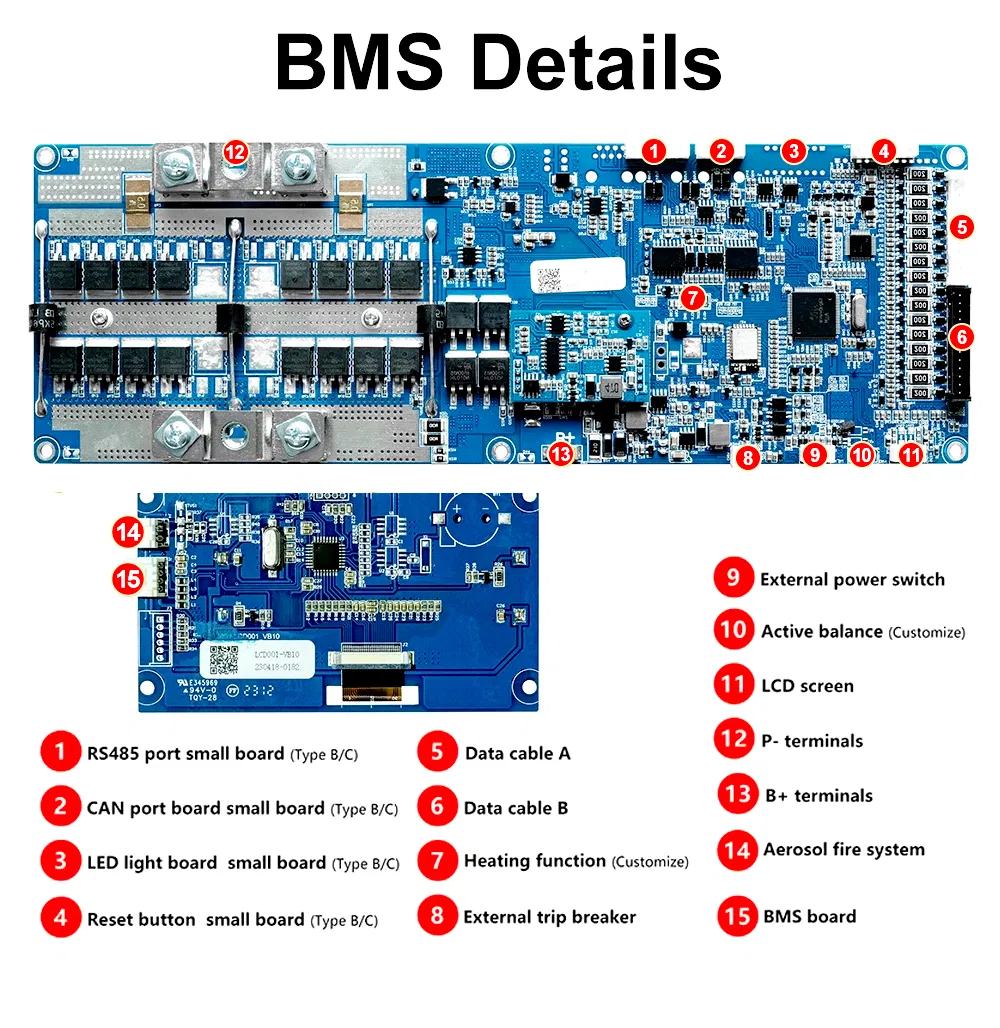

| BMS | 16S 48V 200A |
| Communication | Canbus / RS485 |

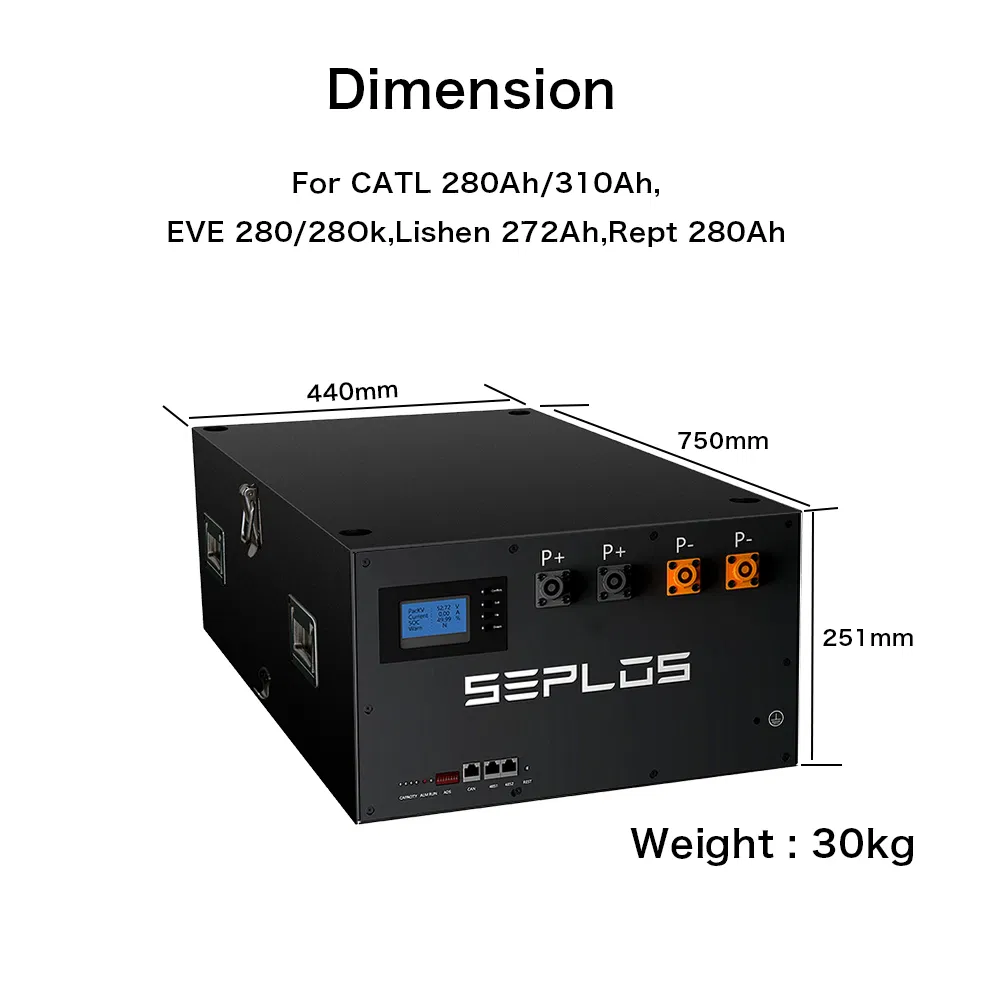

| Case Size | 750 * 440 * 251mm |
| Warranty | 3 Years |
| Production Capacity | 5,000,000 PCS / Year |

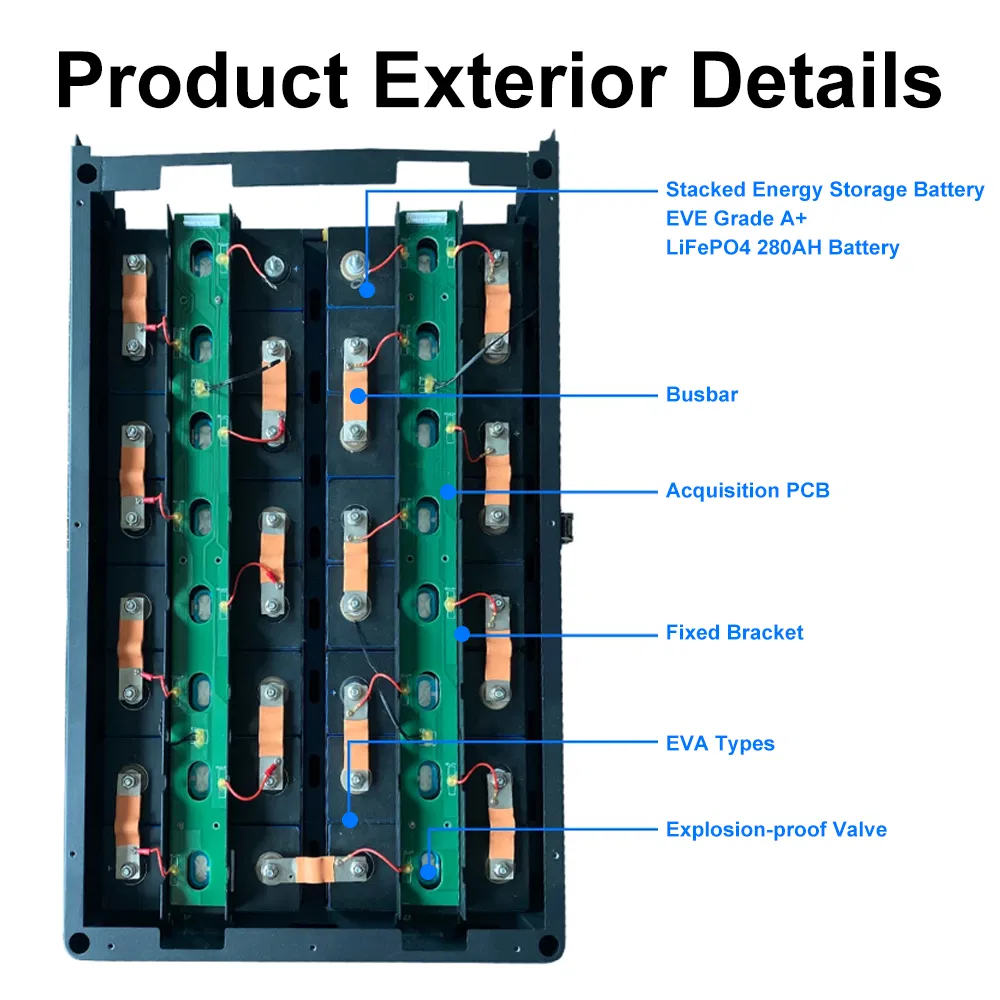

EU Stock: Featuring EVE and CATL battery cells, Seplos DIY kits, and JK BMS DIY Kits.
Cell Options: EVE 105AH, 280AH, 304AH, 314AH | CATL 280AH, 314AH

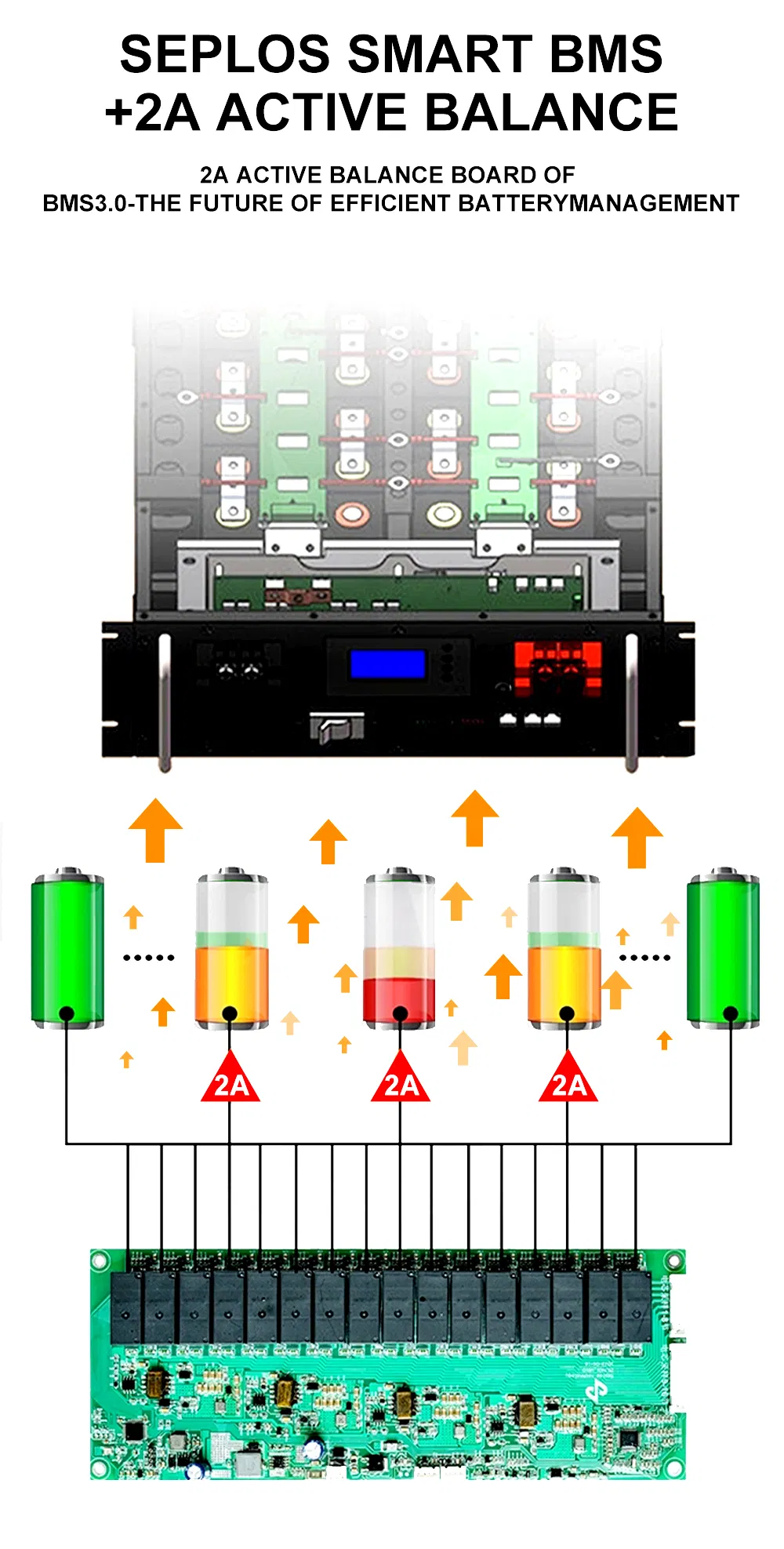

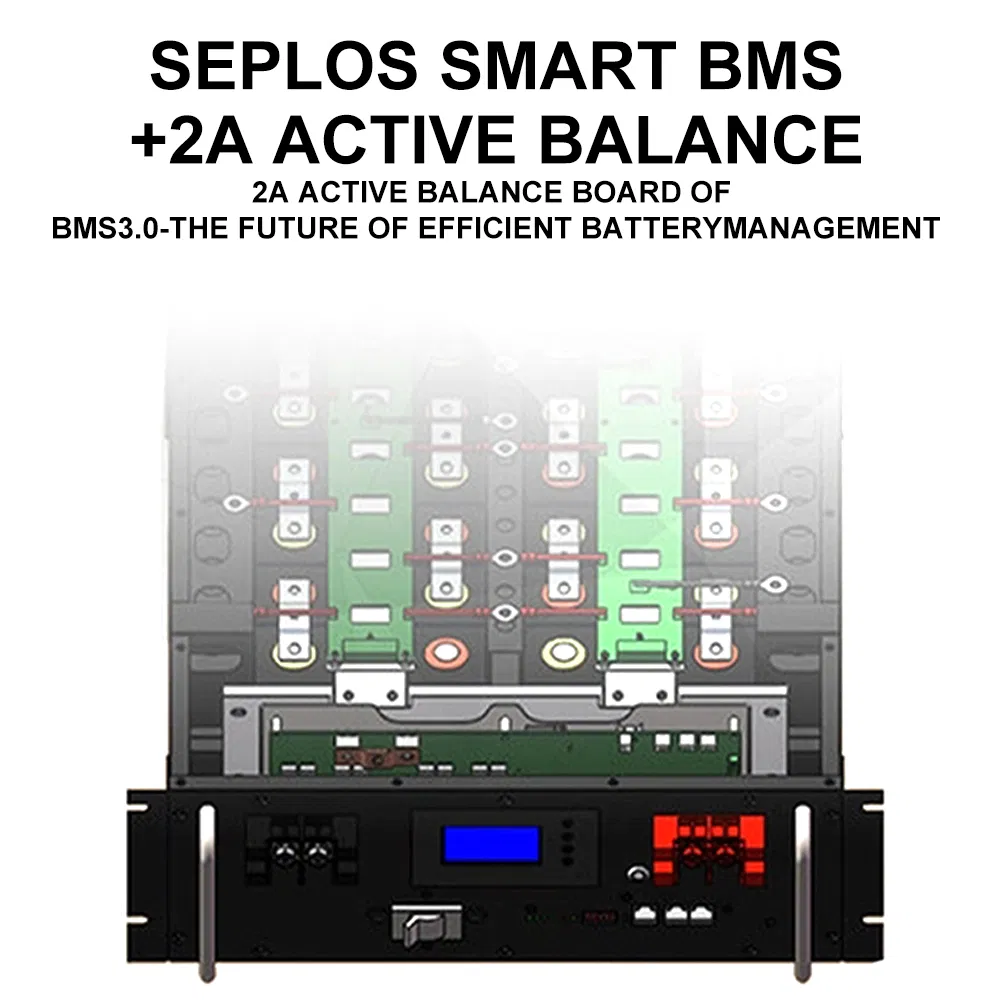

Kit Styles: Seplos V3 standing kits and Seplos V3 Horizontal kits (with or without active balancer).

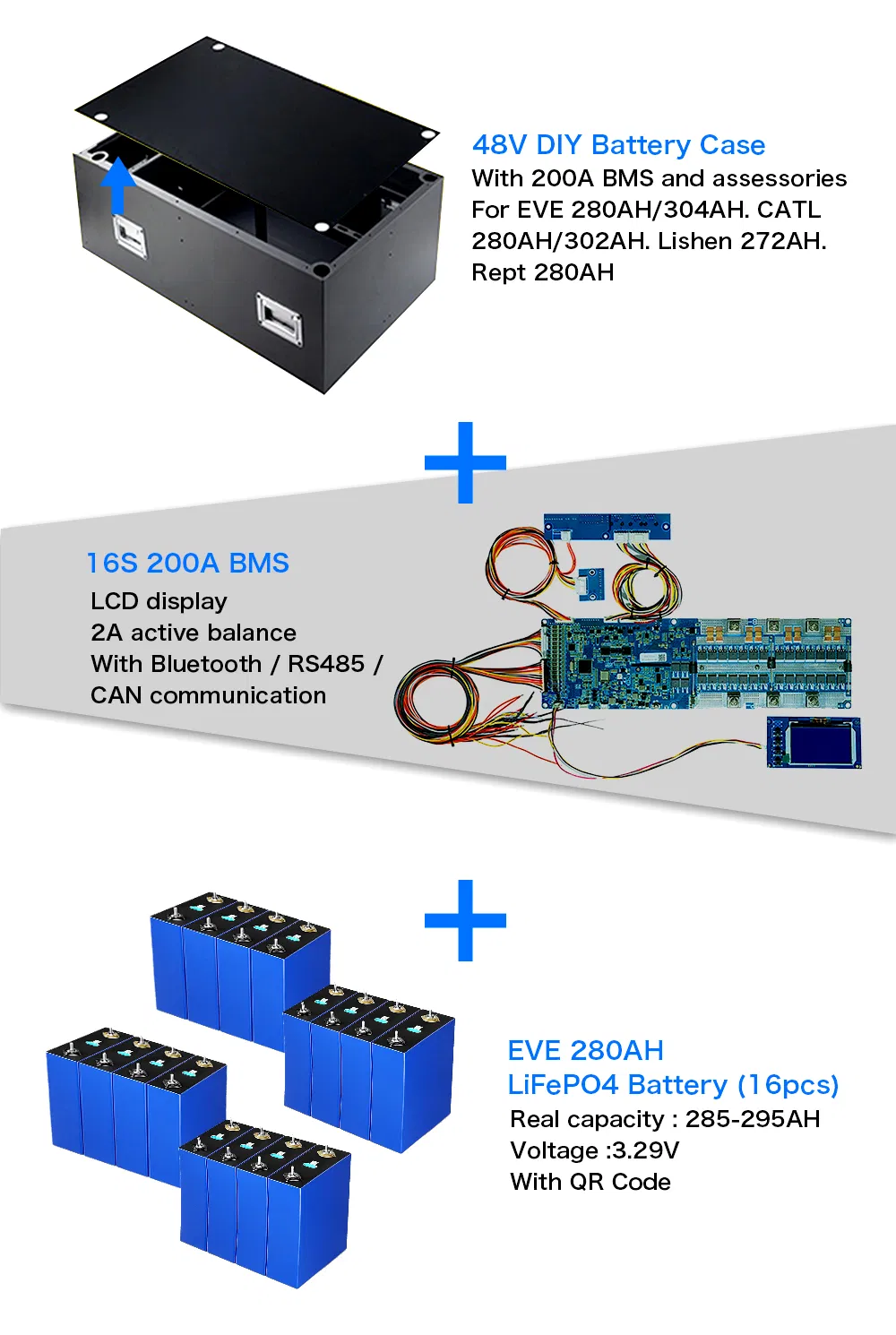

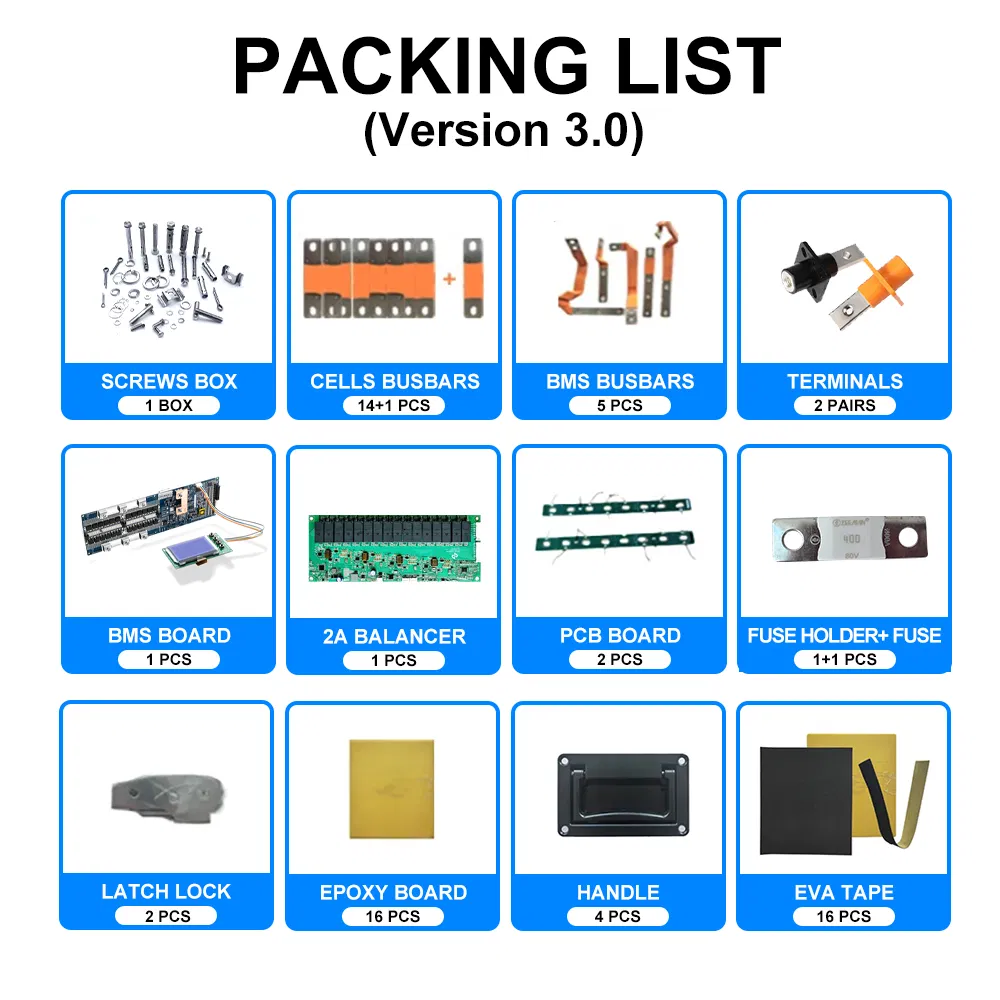

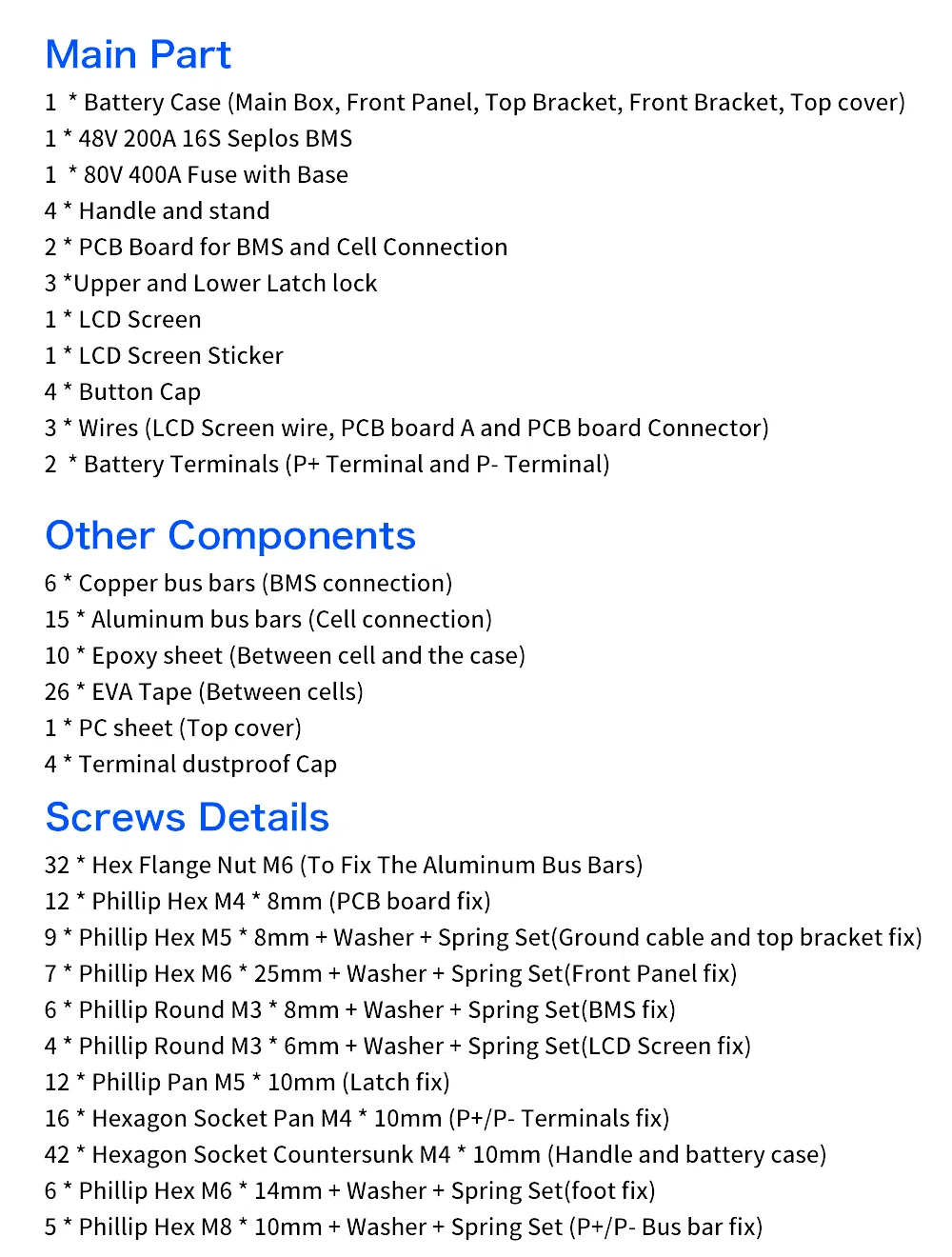

This is a complete box with BMS and accessories (battery cells not included).
Ideal for DIY users: Just add 16pcs battery cells to this kit for a professional, high-performance energy storage solution. Supports communication with major inverters via RS485 and CAN.
| Technical Specifications | |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 280ah, 304ah, 314ah |
| Nominal Power | 14-16kwh |
| Weight | 30kg (without battery cells) |
| Working Temperature | -20 ~ 55ºC |
| IP Level | IP 20 |
